◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51244 - NPR(LHD) EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-60 - ROOF PANEL ▶
6-60 — ROOF PANEL (#50527) — 29 parça

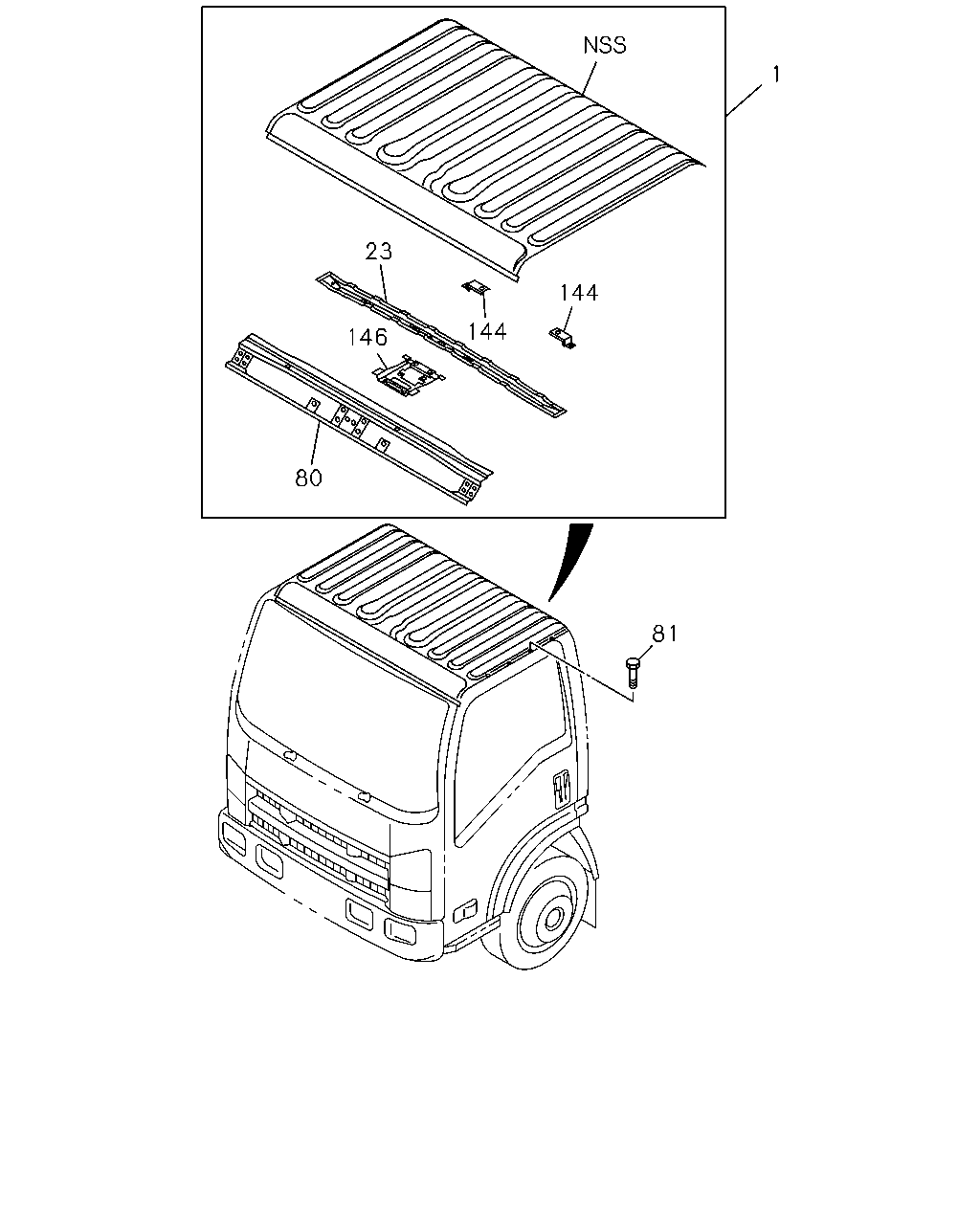

çizim 159401
1 23 144 144 146 80 81
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.585 PANEL; ROOF 8-98024-941-6 01 1 0911-1108 ●
1 16.585 PANEL; ROOF 8-98024-941-6 01 1 1109-1211 ● ●
1 16.585 PANEL; ROOF
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) 		8-98024-941-6 01 1 1212-1503 ●
1 16.585 PANEL; ROOF 8-98024-941-6 01 1 1212-1503 ●
1 16.585 PANEL; ROOF
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) 		8-98287-347-0 01 1 1504- ●
1 16.585 PANEL; ROOF 8-98287-347-0 01 1 1504- ●
23 16.570 REINFORCEMENT; ROOF PANEL,FRT 8-98013-502-0 01 1 0911-1108 ●
23 16.570 REINFORCEMENT; ROOF PANEL,FRT 8-98013-502-0 01 1 1109-1211 ● ●
23 16.570 REINFORCEMENT; ROOF PANEL,FRT
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) 		8-98013-502-0 01 1 1212-1503 ●
23 16.570 REINFORCEMENT; ROOF PANEL,FRT 8-98013-502-0 01 1 1212-1503 ●
23 16.570 REINFORCEMENT; ROOF PANEL,FRT
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) 		8-98287-359-0 01 1 1504- ●
23 16.570 REINFORCEMENT; ROOF PANEL,FRT 8-98287-359-0 01 1 1504- ●
80 16.585 PANEL; HEADER,ROOF 8-97584-190-4 01 1 0911-1108 ●
80 16.585 PANEL; HEADER,ROOF 8-97584-190-4 01 1 1109-1211 ● ●
80 16.585 PANEL; HEADER,ROOF
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) 		8-97584-190-4 01 1 1212-1503 ●
80 16.585 PANEL; HEADER,ROOF 8-97584-190-4 01 1 1212-1503 ●
80 16.585 PANEL; HEADER,ROOF
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) 		8-98287-354-0 01 1 1504- ●
80 16.585 PANEL; HEADER,ROOF 8-98287-354-0 01 1 1504- ●
81 16.585 BOLT; ROOF
16.450 M8X15.5 HEXALOBULAR 		8-98028-744-0 08 1 0911-0911 ●
81 16.585 BOLT; ROOF
M8X15.5 HEXALOBULAR 		8-98141-874-0 08 1 0911-1108 ●
81 16.585 BOLT; ROOF
M8X15.5 HEXALOBULAR 		8-98141-874-0 08 1 1109- ● ●
144 16.585 BRACKET; ROOF 8-98013-931-1 02 1 0911-1108 ●
144 16.585 BRACKET; ROOF 8-98013-931-1 02 1 1109-1211 ● ●
144 16.585 BRACKET; ROOF
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) 		8-98013-931-1 02 1 1212- ●
144 16.585 BRACKET; ROOF 8-98013-931-1 02 1 1212- ●
146 16.570 REINFORCEMENT; ROOM LAMP 8-98075-827-0 01 1 0911-1108 ●
146 16.570 REINFORCEMENT; ROOM LAMP 8-98075-827-0 01 1 1109-1211 ● ●
146 16.570 REINFORCEMENT; ROOM LAMP
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) 		8-98075-827-0 01 1 1212- ●
146 16.570 REINFORCEMENT; ROOM LAMP 8-98075-827-0 01 1 1212- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
