6-47 — MUD GUARD AND INSULATOR (#50526) — 134 parça

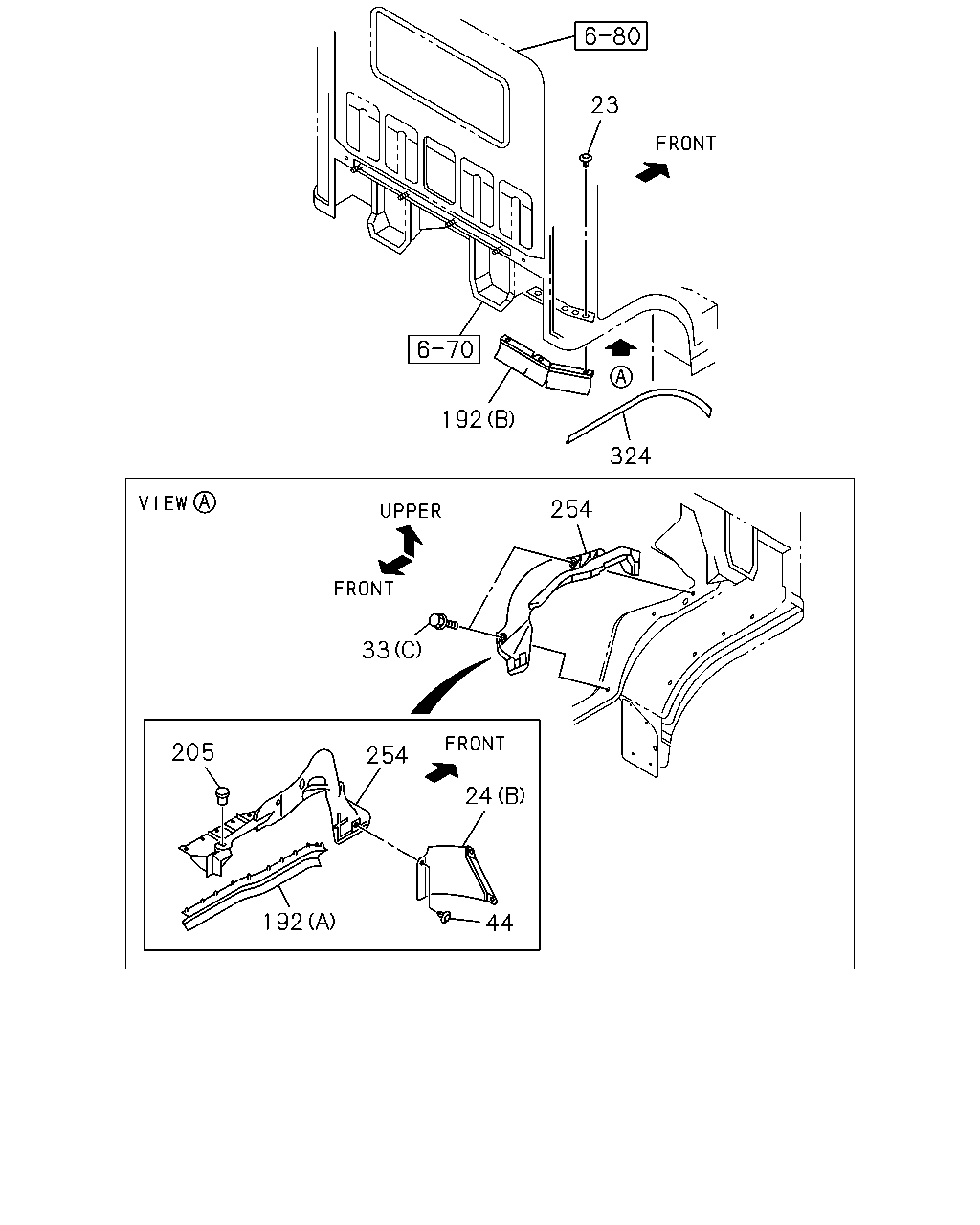

23 192 324 254 33 205 254 24 192 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
23	08.154 FASTENER; MUD COVER 16.320 OD=8.3	8-97997-832-0	06	1	0911-1108	●
23	08.154 FASTENER; MUD COVER 16.320 OD=8.3	8-97997-832-0	06	1	1109-	●	●
24	08.155 PLATE; MUD COVER (A)	8-98004-031-1	02	1	0911-1108	●
24	08.155 PLATE; MUD COVER (A)	8-98004-031-1	02	1	1109-	●	●
24	08.155 PLATE; MUD COVER (B)	8-98154-258-0	02	1	0911-1108	●
24	08.155 PLATE; MUD COVER (B)	8-98154-258-0	02	1	1109-	●	●
33	08.155 BOLT; MUD COVER 00.386 (A) M6X20 FLANGE	0-28050-620-0	08	1	0911-1108	●
33	08.155 BOLT; MUD COVER 00.386 (A) M6X20 FLANGE	0-28050-620-0	08	1	1109-1209	●	●
33	08.155 BOLT; MUD COVER (A) M6X16 FLANGE	8-98227-381-0	08	1	1210-	●	●
33	08.155 BOLT; MUD COVER (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	0911-1108	●
33	08.155 BOLT; MUD COVER (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1109-	●	●
33	08.155 BOLT; MUD COVER (C) M6X16 FLANGE	8-98061-108-0	04	1	0911-1108	●
33	08.155 BOLT; MUD COVER (C) M6X16 FLANGE	8-98061-108-0	04	1	1109-	●	●
44	08.154 CLIP; ANCHOR 08.155 OD=16 L=11	1-76378-155-0	06	1	0911-1108	●
44	08.154 CLIP; ANCHOR 08.155 OD=16 L=11	1-76378-155-0	06	1	1109-	●	●
192	08.153 SEAL; MUD COVER (A)	8-98022-755-1	01	1	0911-1108	●
192	08.153 SEAL; MUD COVER (A)	8-98022-755-1	01	1	1109-	●	●
192	08.153 SEAL; MUD COVER (A)	8-98022-756-1	01	1	0911-1108	●
192	08.153 SEAL; MUD COVER (A)	8-98022-756-1	01	1	1109-	●	●
192	08.153 SEAL; MUD COVER (B)	8-98022-782-3	02	1	0911-1108	●
192	08.153 SEAL; MUD COVER (B)	8-98022-782-3	02	1	1109-	●	●
205	08.155 FASTENER; MUD COVER 12.934 D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	02	1	0911-1108	●
205	08.155 FASTENER; MUD COVER 12.934 D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	02	1	1109-	●	●
254	08.153 COVER; MUD,VALANCE	8-98022-750-3	01	1	0911-1108	●
254	08.153 COVER; MUD,VALANCE	8-98022-750-3	01	1	1109-	●	●
254	08.153 COVER; MUD,VALANCE	8-98022-751-3	01	1	0911-1108	●
254	08.153 COVER; MUD,VALANCE	8-98022-751-3	01	1	1109-	●	●
324	08.155 PROTECTOR; FRT FENDER	8-98022-786-2	02	1	0911-1108	●
324	08.155 PROTECTOR; FRT FENDER	8-98022-786-2	02	1	1109-	●	●

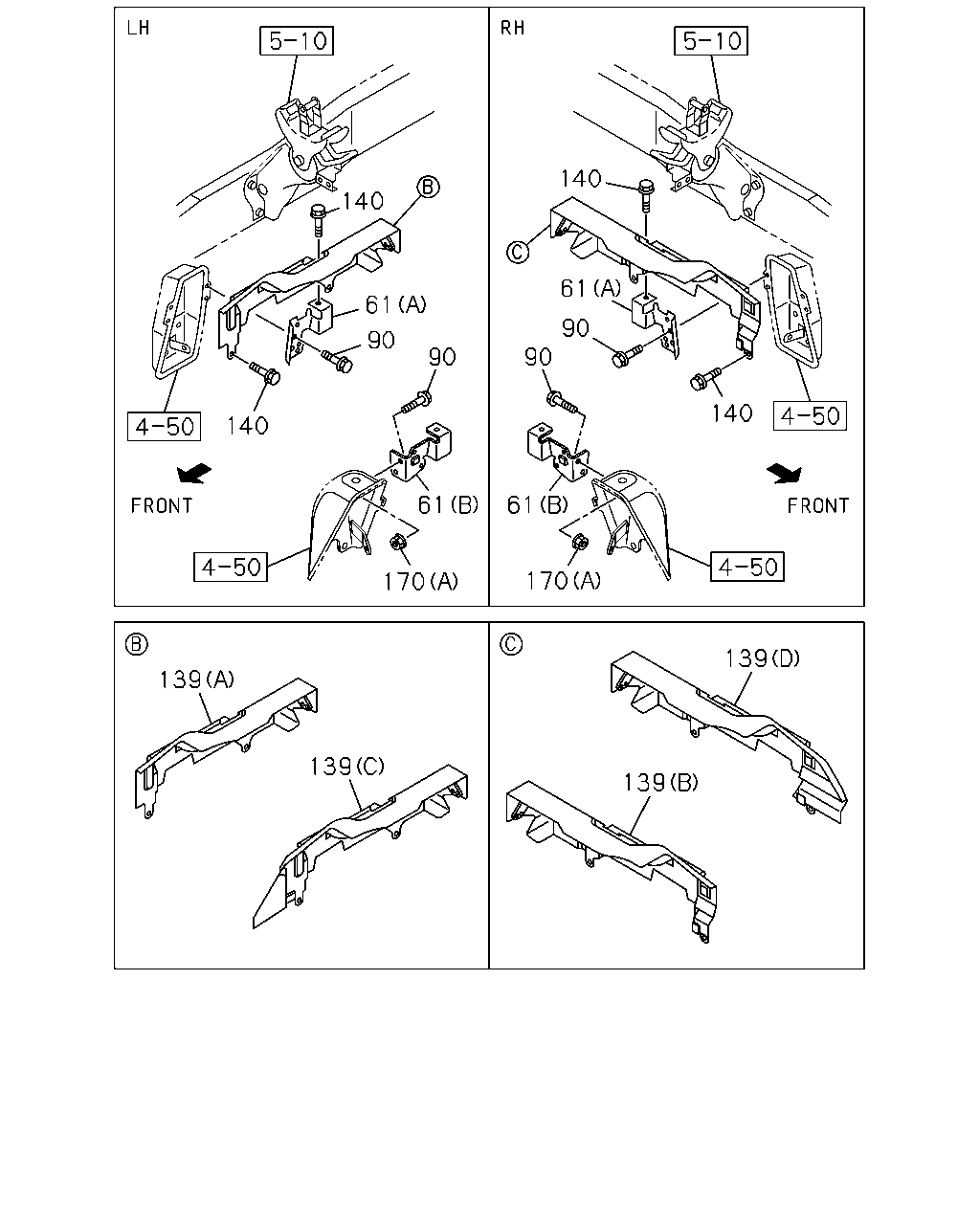

140 140 61 61 90 90 90 90 140 140 61 61 170 170 139 139 139 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
61	08.155 BRACKET; COVER (A)	8-98040-465-1	01	1	0911-1008	●
61	08.155 BRACKET; COVER EXC. FRONT WIDE TREAD<7GV> (A)	8-98040-465-1	01	1	1009-1108	●
61	08.155 BRACKET; COVER EXC. FRONT WIDE TREAD<7GV> (A)	8-98040-465-1	01	1	1109-	●
61	08.155 BRACKET; COVER (A)	8-98040-465-1	01	1	1109-		●
61	08.155 BRACKET; COVER (A)	8-98040-466-1	01	1	0911-1008	●
61	08.155 BRACKET; COVER EXC. FRONT WIDE TREAD<7GV> (A)	8-98040-466-1	01	1	1009-1108	●
61	08.155 BRACKET; COVER EXC. FRONT WIDE TREAD<7GV> (A)	8-98040-466-1	01	1	1109-	●
61	08.155 BRACKET; COVER (A)	8-98040-466-1	01	1	1109-		●
61	08.155 BRACKET; COVER FRONT WIDE TREAD<7GV> (B)	8-98135-993-0	01	1	1009-	●
61	08.155 BRACKET; COVER FRONT WIDE TREAD<7GV> (B)	8-98135-994-0	01	1	1009-	●
90	08.153 BOLT; COVER 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0911-1108	●
90	08.153 BOLT; COVER 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1109-1204	●	●
90	08.153 BOLT; COVER 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1205-	●	●
139	08.153 PANEL; SIDE (A)	8-98115-458-0	01	1	0911-1204	●
139	08.153 PANEL; SIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	8-98115-458-1	01	1	1205-	●
139	08.153 PANEL; SIDE (B)	8-98043-920-2	01	1	0911-1204	●
139	08.153 PANEL; SIDE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B)	8-98043-920-2	01	1	1205-	●
139	08.153 PANEL; SIDE (C)	8-97387-728-7	01	1	1109-1204		●
139	08.153 PANEL; SIDE 4JJ1-TCS ENG(LFB) (C)	8-97387-728-8	01	1	1205-		●
139	08.153 PANEL; SIDE (D)	8-97387-727-4	01	1	1109-1204		●
139	08.153 PANEL; SIDE 4JJ1-TCS ENG(LFB) (D)	8-97387-727-4	01	1	1205-		●
140	08.155 BOLT; SIDE PANEL M8X35 W/LK&PL WASHER	1-09030-094-0	06	1	0911-1108	●
140	08.155 BOLT; SIDE PANEL M8X35 W/LK&PL WASHER	1-09030-094-0	06	1	1109-1204	●	●
140	08.155 BOLT; SIDE PANEL M8X35 W/LK&PL WASHER	1-09030-094-0	06	1	1205-	●	●
170	08.155 NUT; COVER FRONT WIDE TREAD<7GV> 01.062 (A) M8 FLANGE	0-91180-108-0	04	1	1009-	●
170	08.155 NUT; COVER 4HK1-TCS ENG(RJS) 01.840 (B) M8 W/DISHED WASHER	8-97329-625-0	08	1	1109-1211	●
170	08.155 NUT; COVER 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.840 (B) M8 W/DISHED WASHER	8-97329-625-0	08	1	1212-1406	●
170	08.155 NUT; COVER 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.840 (B) M8 W/DISHED WASHER	8-97329-625-0	08	1	1407-	●

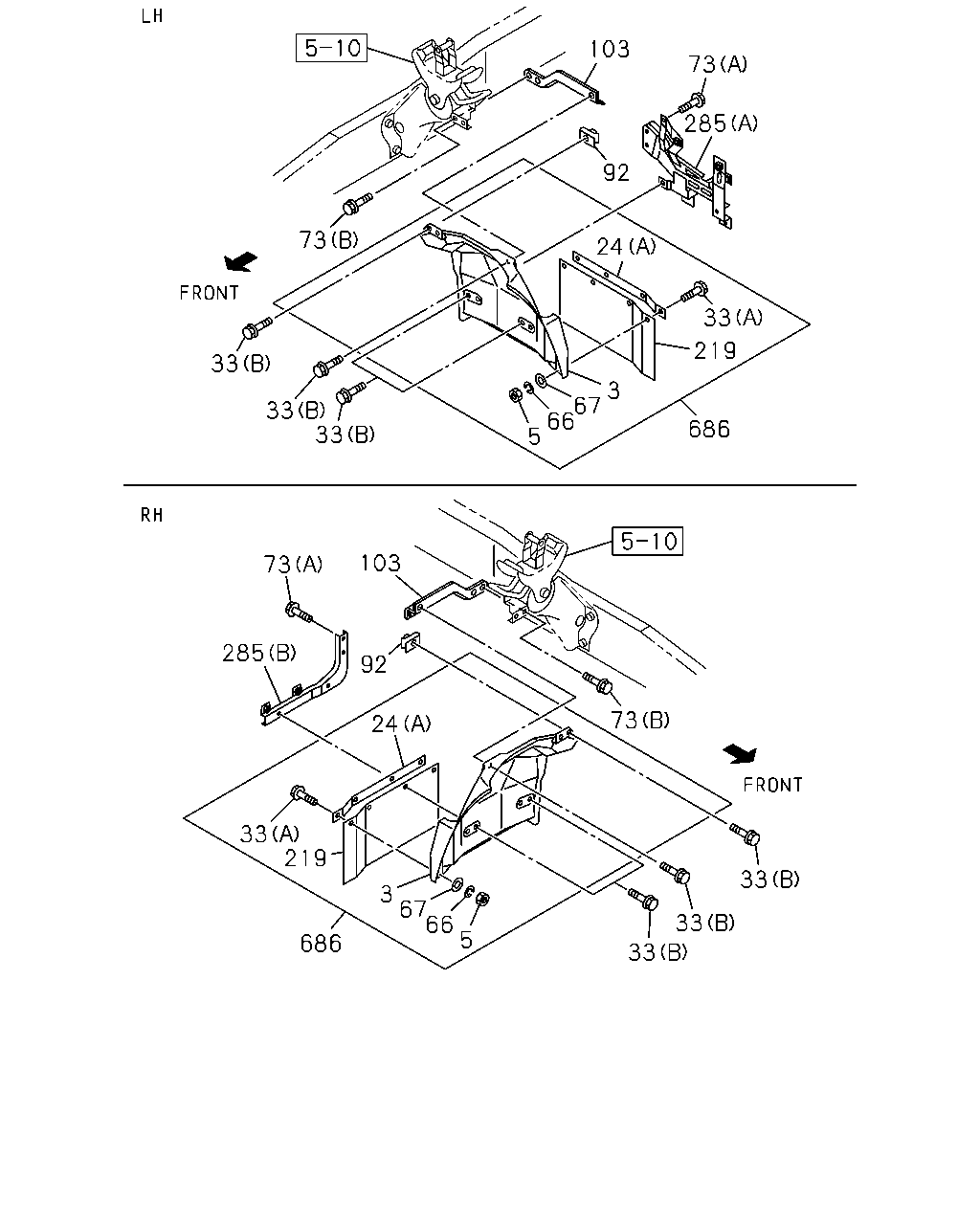

103 73 285 92 24 73 33 219 33 3 67 66 5 33 33 686 103 73 285 92 73 24 33 219 33 3 67 66 5 33 686 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	08.153 GUARD; MUD,RR	8-98004-029-5	01	1	0911-1108	●
3	08.153 GUARD; MUD,RR	8-98004-029-5	01	1	1109-	●	●
3	08.153 GUARD; MUD,RR	8-98004-030-4	01	1	0911-1108	●
3	08.153 GUARD; MUD,RR	8-98004-030-4	01	1	1109-	●	●
5	08.155 NUT; FLAP RUBBER 03.330 M6	0-91110-506-0	08	1	0911-1108	●
5	08.155 NUT; FLAP RUBBER 03.330 M6	0-91110-506-0	08	1	1109-1209	●	●
5	08.155 NUT; FLAP RUBBER M6	8-98227-380-0	08	1	1210-	●	●
24	08.155 PLATE; MUD COVER (A)	8-98004-031-1	02	1	0911-1108	●
24	08.155 PLATE; MUD COVER (A)	8-98004-031-1	02	1	1109-	●	●
24	08.155 PLATE; MUD COVER (B)	8-98154-258-0	02	1	0911-1108	●
24	08.155 PLATE; MUD COVER (B)	8-98154-258-0	02	1	1109-	●	●
33	08.155 BOLT; MUD COVER 00.386 (A) M6X20 FLANGE	0-28050-620-0	08	1	0911-1108	●
33	08.155 BOLT; MUD COVER 00.386 (A) M6X20 FLANGE	0-28050-620-0	08	1	1109-1209	●	●
33	08.155 BOLT; MUD COVER (A) M6X16 FLANGE	8-98227-381-0	08	1	1210-	●	●
33	08.155 BOLT; MUD COVER (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	0911-1108	●
33	08.155 BOLT; MUD COVER (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1109-	●	●
33	08.155 BOLT; MUD COVER (C) M6X16 FLANGE	8-98061-108-0	04	1	0911-1108	●
33	08.155 BOLT; MUD COVER (C) M6X16 FLANGE	8-98061-108-0	04	1	1109-	●	●
66	08.155 WASHER; LK ID=6.1	0-91510-606-0	08	1	0911-1108	●
66	08.155 WASHER; LK ID=6.1	0-91510-606-0	08	1	1109-1209	●	●
67	08.155 WASHER; PL 00.413 ID=6.4	0-91610-606-0	08	1	0911-1108	●
67	08.155 WASHER; PL 00.413 ID=6.4	0-91610-606-0	08	1	1109-1209	●	●
73	08.155 BOLT; MUD COVER BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	04	1	0911-1108	●
73	08.155 BOLT; MUD COVER BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	04	1	1109-	●	●
73	08.155 BOLT; MUD COVER BRKT 00.029 (A) M10X25 FLANGE	0-28651-025-0	04	1	0911-1108	●
73	08.155 BOLT; MUD COVER BRKT 00.029 (A) M10X25 FLANGE	0-28651-025-0	04	1	1109-	●	●
92	08.155 NUT; MUD COVER M8 SPIRE NUT	8-98039-860-2	02	1	0911-1108	●
92	08.155 NUT; MUD COVER M8 SPIRE NUT	8-98039-860-2	02	1	1109-	●	●
103	08.214 BRACKET ASM; RR MUD FLAP 08.155	8-98001-315-2	01	1	0911-1108	●
103	08.214 BRACKET ASM; RR MUD FLAP 08.155	8-98001-315-2	01	1	1109-	●	●
103	08.214 BRACKET ASM; RR MUD FLAP 08.155	8-98001-319-2	01	1	0911-1108	●
103	08.214 BRACKET ASM; RR MUD FLAP 08.155	8-98001-319-2	01	1	1109-	●	●
219	08.155 FLAP; MUD GUARD	8-98004-032-1	02	1	1109-		●
219	08.155 FLAP; MUD GUARD	8-98004-033-1	02	1	0911-	●
285	08.155 BRACKET; MUD COVER (A)	8-98001-320-3	01	1	0911-1108	●
285	08.155 BRACKET; MUD COVER (A)	8-98001-320-3	01	1	1109-	●	●
285	08.155 BRACKET; MUD COVER (B)	8-98001-314-2	01	1	0911-1108	●
285	08.155 BRACKET; MUD COVER (B)	8-98001-314-2	01	1	1109-	●	●
686	08.155 FLAP ASM; MUD	8-97387-746-7	01	1	1109-		●
686	08.155 FLAP ASM; MUD	8-97387-747-6	01	1	1109-		●
686	08.155 FLAP ASM; MUD	8-97387-750-7	01	1	0911-	●
686	08.155 FLAP ASM; MUD	8-97387-751-6	01	1	0911-	●

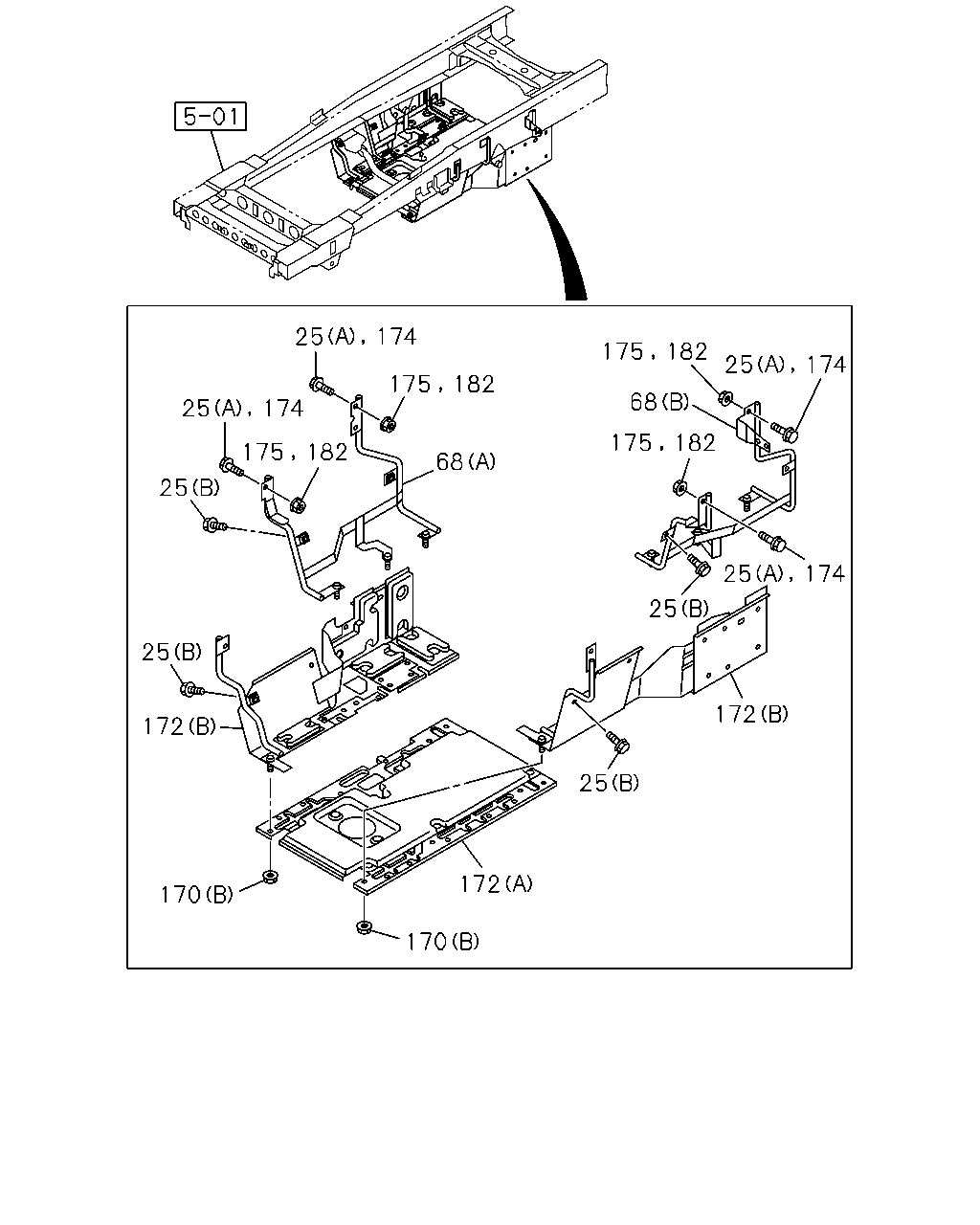

25 25 25 25 172 170 170 172 25 172 25 175 68 175 25 182 174 174 25 68 175 174 174 175 182 182 182

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
25	08.155 BOLT; PLATE TO MUD COVER 4HK1-TCS ENG(RJS) 00.029 (A) M10X30 FLANGE	0-28651-030-0	06	1	1109-1211	●
25	08.155 BOLT; PLATE TO MUD COVER 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.029 (A) M10X30 FLANGE	0-28651-030-0	06	1	1212-1312	●
25	08.155 BOLT; PLATE TO MUD COVER 4HK1-TCS ENG(RJS) (B) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	1109-1211	●
25	08.155 BOLT; PLATE TO MUD COVER 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	1212-1406	●
25	08.155 BOLT; PLATE TO MUD COVER 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X25 W/LK&PL WASHER	1-09030-093-0	06	1	1407-	●
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) (A)	8-98080-386-2	01	1	1109-1211	●
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98080-386-2	01	1	1212-1406	●
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98080-386-2	01	1	1407-	●
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98150-453-0	01	1	1109-1211	●
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) POOR QUALITY DIESEL FUEL(KF0) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98150-453-0	01	1	1212-1406	●
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) POOR QUALITY DIESEL FUEL(KF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98150-453-0	01	1	1407-	●
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98080-387-2	01	1	1109-1112	●
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98201-755-0	01	1	1201-1211	●
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) EXC. POOR QUALITY DIESEL FUEL(KF0), TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98201-755-0	01	1	1212-1406	●
68	08.155 STAY; COVER 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98201-755-0	01	1	1407-	●
170	08.155 NUT; COVER FRONT WIDE TREAD<7GV> 01.062 (A) M8 FLANGE	0-91180-108-0	04	1	1009-	●
170	08.155 NUT; COVER 4HK1-TCS ENG(RJS) 01.840 (B) M8 W/DISHED WASHER	8-97329-625-0	08	1	1109-1211	●
170	08.155 NUT; COVER 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.840 (B) M8 W/DISHED WASHER	8-97329-625-0	08	1	1212-1406	●
170	08.155 NUT; COVER 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.840 (B) M8 W/DISHED WASHER	8-97329-625-0	08	1	1407-	●
172	08.155 COVER; UNDER,ENG SIDE 4HK1-TCS ENG(RJS) (A)	8-98024-942-1	01	1	1109-1211	●
172	08.155 COVER; UNDER,ENG SIDE 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98024-942-1	01	1	1212-1406	●
172	08.155 COVER; UNDER,ENG SIDE 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98024-942-1	01	1	1407-	●
172	08.155 COVER; UNDER,ENG SIDE 4HK1-TCS ENG(RJS) (B)	8-98079-016-3	01	1	1109-1211	●
172	08.155 COVER; UNDER,ENG SIDE 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98079-016-3	01	1	1212-1312	●
172	08.155 COVER; UNDER,ENG SIDE 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98225-680-0	01	1	1401-1406	●
172	08.155 COVER; UNDER,ENG SIDE 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98225-680-0	01	1	1407-	●
172	08.155 COVER; UNDER,ENG SIDE 4HK1-TCS ENG(RJS) (B)	8-98079-017-4	01	1	1109-1211	●
172	08.155 COVER; UNDER,ENG SIDE 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98079-017-4	01	1	1212-1406	●
172	08.155 COVER; UNDER,ENG SIDE 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98079-017-4	01	1	1407-	●
174	08.155 BOLT; STAY FIX 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.029 M10X30 FLANGE	0-28651-030-0	06	1	1401-1406	●
174	08.155 BOLT; STAY FIX 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.029 M10X30 FLANGE	0-28651-030-0	06	1	1407-	●
175	08.155 NUT; STAY FIX 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE	0-91180-110-0	04	1	1401-1406	●
175	08.155 NUT; STAY FIX 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE	0-91180-110-0	04	1	1407-	●
182	08.155 NUT; COVER 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	04	1	1109-1211	●
182	08.155 NUT; COVER 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE	0-91180-110-0	04	1	1212-1312	●
