2-05C — CLUTCH PIPING (#5052) — 179 parça

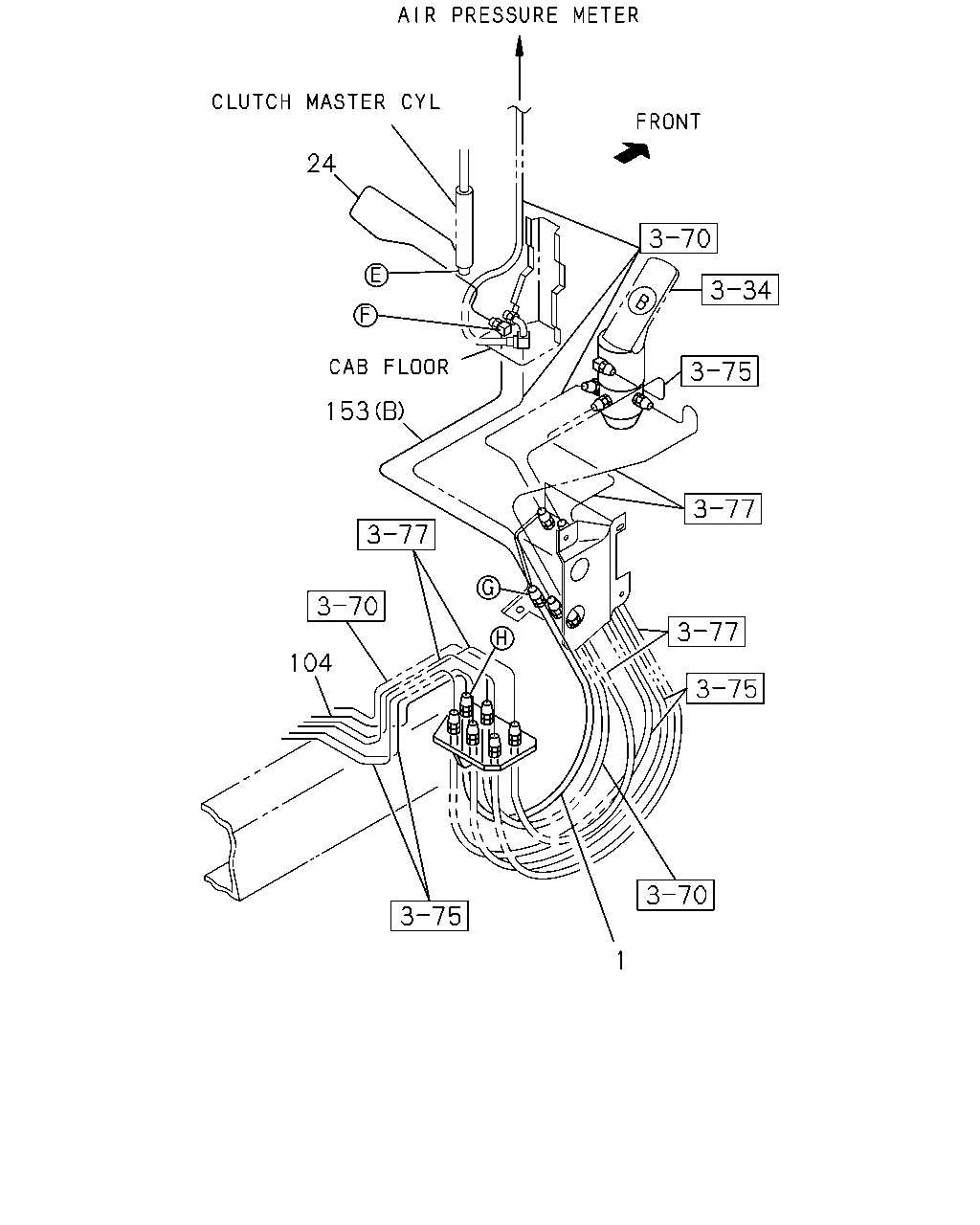

çizim 6478
24 153 104 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 HOSE; FLEX,CLU CONT
L=430 		1-09364-859-0 01 1 9606-9905 ● ●
1 HOSE; FLEX,CLU CONT
EXC. CAB UP +110MM<TGG> L=430 		1-09364-859-1 01 1 9906- ● ● ●
1 HOSE; FLEX,CLU CONT
CAB UP +110MM<TGG> L=520 		1-09364-948-1 01 1 9906- ● ● ●
24 PIPE ASM; CLU,M/CYL TO UNION
L=643 		1-47424-529-2 01 1 9606-9905 ● ●
24 PIPE ASM; CLU,M/CYL TO UNION
L=643 		1-47424-529-2 01 1 9906- ● ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1589 		1-49164-423-0 01 1 9906-0002 ● ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1595 		1-49165-436-0 01 1 0003- ● ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
6WG1 TC-N(71L) L=1521 SERVICED BY L=1550 		1-47426-390-0 01 1 9606-9702 ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
6WG1 TC-N(71L) L=1539 SERVICED BY L=1550 		1-47426-390-0 01 1 9703-9708 ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
6WA1 TC-S(56L) L=1539 SERVICED BY L=1550 		1-47426-390-0 01 1 9709-9711 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
6WG1 TC-N(71L) EXC. BUMPER W/HEADLAMPS<SLB> L=1539 SERVICED BY L=1550 		1-47426-390-0 01 1 9709-9711 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
6WG1 TC-N(71L) L=1536 SERVICED BY L=1550 		1-47426-390-0 01 1 9712-9905 ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
6WG1 TC-N(71L) BUMPER W/HEADLAMPS<SLB> L=1536 SERVICED BY L=1550 		1-47437-957-1 01 1 9709-9711 ●
153 PIPE ASM; CLU,UNION TO FLEX
(B) L=464 		1-47424-530-2 01 1 9606-9905 ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(B) L=464 		1-47424-530-2 01 1 9906- ● ● ●
153 PIPE ASM; CLU,UNION TO FLEX
L TYPE ENG<90L> (A) L=1753 SERVICED BY L=1800 		1-47426-392-0 01 1 9606-9905 ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=1753 SERVICED BY L=1800 		1-47426-392-0 01 1 9906- ● ● ●

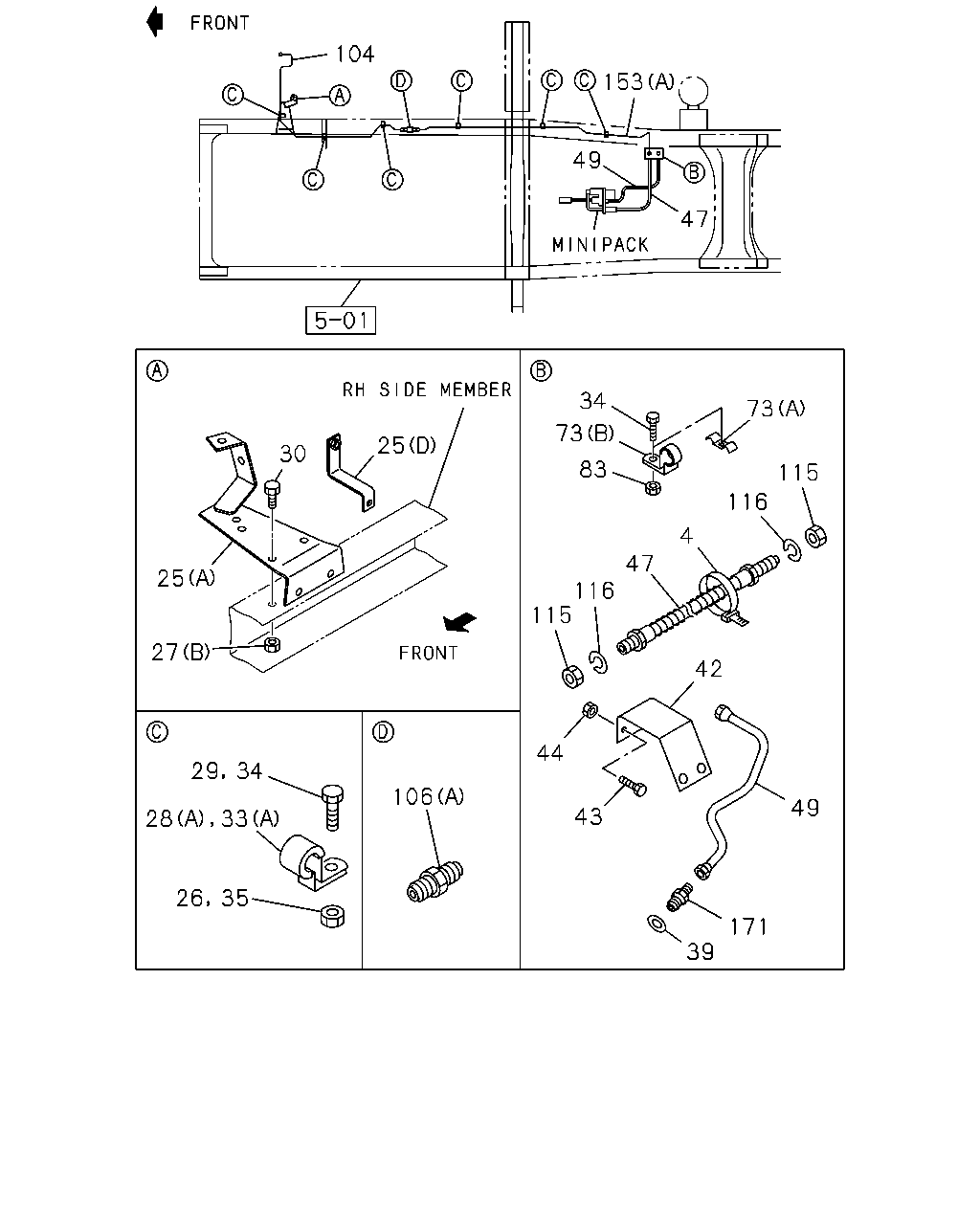

çizim 39514
104 153 49 47 34 73 73 25 30 83 115 116 4 47 25 116 115 27 42 44 29 34 106 49 43 33 28 26 35 171 39
BalonParca AdiParca NoAdetTipApplied Date A B C D E
4 CLIP; FLEX HOSE,CLU CONT
L=140 		5-09707-031-0 01 1 9606-9606 ● ●
25 BRACKET; OIL PIPE
(A) 		1-47477-604-1 01 1 9606-9905 ● ●
25 BRACKET; OIL PIPE
(A) 		1-47477-604-2 01 1 9906- ● ● ●
25 BRACKET; OIL PIPE
6WG1 TC-N(71L) (D) 		1-47477-653-0 01 1 9703-9905 ● ●
25 BRACKET; OIL PIPE
L TYPE ENG<90L> (D) 		1-47477-653-0 01 1 9906- ● ● ●
26 NUT; CLIP,OIL PIPE
L TYPE ENG<90L> M8 FLANGE 		0-91150-108-0 03 1 9906-0002 ● ● ●
26 NUT; CLIP,OIL PIPE
L TYPE ENG<90L> M8 FLANGE 		0-91150-108-0 03 1 0003- ● ● ●
27 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 9606-9905 ● ●
27 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 9906- ● ● ●
27 NUT; BRKT
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 01 1 9606-9905 ● ●
27 NUT; BRKT
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 01 1 9906- ● ● ●
27 NUT; BRKT
(B) M8 		9-09110-508-0 02 1 9606-9606 ● ●
27 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 02 1 9607-9905 ● ●
27 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 02 1 9906- ● ● ●
27 NUT; BRKT
6WG1 TC-N(71L) (B) M8 FLANGE 		0-91150-108-0 01 1 9703-9905 ● ●
27 NUT; BRKT
L TYPE ENG<90L> (B) M8 FLANGE 		0-91150-108-0 01 1 9906- ● ● ●
28 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 02 1 9606-9905 ● ●
28 CLIP; OIL PIPE
6WA1 TC-S(56L),6WG1 TC-N(71L) (A) ID=8 H=20 L=20 		1-09700-604-0 01 1 9703-9905 ● ●
28 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 02 1 9906-0002 ● ● ●
28 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 03 1 0003- ● ● ●
29 BOLT; CLIP,OIL PIPE
M8X20 FLANGE 		0-28080-820-0 02 1 9606-9606 ● ●
29 BOLT; CLIP,OIL PIPE
M8X25 FLANGE 		0-28680-825-0 02 1 9607-9905 ● ●
29 BOLT; CLIP,OIL PIPE
M8X25 FLANGE 		0-28680-825-0 02 1 9906-0002 ● ● ●
29 BOLT; CLIP,OIL PIPE
L TYPE ENG<90L> M8X25 FLANGE 		0-28680-825-0 01 1 0003- ● ● ●
29 BOLT; CLIP,OIL PIPE
L TYPE ENG<90L> M8X30 FLANGE 		0-28680-830-0 02 1 0003- ● ● ●
29 BOLT; CLIP,OIL PIPE
6WG1 TC-N(71L) M8X20 FLANGE 		0-28680-820-0 01 1 9703-9905 ● ●
30 BOLT; BRKT
M8X30 FLANGE 		0-28080-830-0 02 1 9606-9606 ● ●
30 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 02 1 9607-9905 ● ●
30 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 02 1 9906- ● ● ●
30 BOLT; BRKT
6WG1 TC-N(71L) M8X30 FLANGE 		0-28680-830-0 01 1 9703-9905 ● ●
30 BOLT; BRKT
L TYPE ENG<90L> M8X30 FLANGE 		0-28680-830-0 01 1 9906- ● ● ●
33 CLIP; OIL PIPE
6WA1 TC-S(56L),6WG1 TC-N(71L) (A) ID=8 H=20 L=20 		1-09700-604-0 03 1 9606-9905 ● ●
33 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 03 1 9906-0007 ● ● ●
33 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 03 1 0008- ● ● ●
34 BOLT; PIPE CLIP
M8X20 FLANGE 		0-28080-820-0 01 1 9606-9905 ● ●
34 BOLT; PIPE CLIP
M8X20 FLANGE 		0-28080-820-0 01 1 9906- ● ● ●
34 BOLT; PIPE CLIP
L TYPE ENG<90L> M8X25 FLANGE 		0-28080-825-0 03 1 9606-9606 ● ●
34 BOLT; PIPE CLIP
L TYPE ENG<90L> M8X30 FLANGE 		0-28680-830-0 03 1 9607-9905 ● ●
34 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28680-830-0 03 1 9906-0007 ● ● ●
34 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28680-830-0 03 1 0008- ● ● ●
35 NUT; PIPE CLIP
L TYPE ENG<90L> M8 FLANGE 		0-91150-108-0 03 1 9906-0007 ● ● ●
35 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 03 1 0008- ● ● ●
35 NUT; PIPE CLIP
6WA1 TC-S(56L),6WG1 TC-N(71L) M8 		9-09110-508-0 03 1 9606-9606 ● ●
35 NUT; PIPE CLIP
6WA1 TC-S(56L),6WG1 TC-N(71L) M8 FLANGE 		0-91150-108-0 03 1 9607-9905 ● ●
35 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 03 1 9906-9906 ● ● ●
39 GASKET; CONNECTOR
ID=10.2 OD=16.0 		9-09571-410-0 01 1 9606-9905 ● ●
39 GASKET; CONNECTOR
ID=10.2 OD=16.0 		9-09571-410-0 01 1 9906- ● ● ●
42 BRACKET; FLEX HOSE,CLU CONT 1-47475-420-1 01 1 9606-9905 ● ●
42 BRACKET; FLEX HOSE,CLU CONT 1-47475-420-1 01 1 9906- ● ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X25 FLANGE 		0-28080-825-0 02 1 9606-9606 ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X30 FLANGE 		0-28680-830-0 02 1 9607-9905 ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X30 FLANGE 		0-28680-830-0 02 1 9906-0007 ● ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X30 FLANGE 		0-28680-830-0 02 1 0008-0102 ● ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X30 FLANGE 		0-28680-830-0 02 1 0103- ● ● ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 		9-09110-508-0 02 1 9606-9606 ● ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91150-108-0 02 1 9607-9905 ● ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91150-108-0 02 1 9906-0102 ● ● ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91150-108-0 02 1 0103- ● ● ●
47 HOSE; FLEX,CLU CONT
L=500 		1-09364-546-0 01 1 9606-9905 ● ●
47 HOSE; FLEX,CLU CONT
L=500 		1-09364-546-0 01 1 9906- ● ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER 1-47428-380-0 01 1 9606-9606 ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER 1-47429-986-0 01 1 9607-9608 ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER 1-49161-120-0 01 1 9609-9905 ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER 1-49161-120-0 01 1 9906- ● ● ●
73 CLIP; OIL PIPE
(A) ID=16 & 9 L=21 & 18 		1-09700-676-0 01 1 9606-9905 ● ●
73 CLIP; OIL PIPE
(A) ID=16 & 9 L=21 & 18 		1-09700-676-0 01 1 9906- ● ● ●
73 CLIP; OIL PIPE
(B) ID=35 H=45 L=33 		1-09700-947-0 01 1 9606-9606 ● ●
83 NUT; PIPE CLIP
M8 		9-09110-408-0 01 1 9606-9905 ● ●
83 NUT; PIPE CLIP
M8 		9-09110-408-0 01 1 9906- ● ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1589 		1-49164-423-0 01 1 9906-0002 ● ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1595 		1-49165-436-0 01 1 0003- ● ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
6WG1 TC-N(71L) L=1521 SERVICED BY L=1550 		1-47426-390-0 01 1 9606-9702 ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
6WG1 TC-N(71L) L=1539 SERVICED BY L=1550 		1-47426-390-0 01 1 9703-9708 ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
6WA1 TC-S(56L) L=1539 SERVICED BY L=1550 		1-47426-390-0 01 1 9709-9711 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
6WG1 TC-N(71L) EXC. BUMPER W/HEADLAMPS<SLB> L=1539 SERVICED BY L=1550 		1-47426-390-0 01 1 9709-9711 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
6WG1 TC-N(71L) L=1536 SERVICED BY L=1550 		1-47426-390-0 01 1 9712-9905 ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
6WG1 TC-N(71L) BUMPER W/HEADLAMPS<SLB> L=1536 SERVICED BY L=1550 		1-47437-957-1 01 1 9709-9711 ●
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		9-09223-008-1 02 1 9606-9905 ● ●
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		9-09223-008-1 01 1 9906-9906 ● ●
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		9-09223-008-1 01 1 9906-9906 ● ●
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		9-09223-008-1 02 1 9906-0003 ● ● ●
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		9-09223-008-1 01 1 0004- ● ● ●
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		9-09223-008-1 01 1 0004- ● ● ●
115 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 9606-9612 ●
115 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 9701-9709 ●
115 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 9710-9905 ● ●
115 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 9906- ● ● ●
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 9606-9612 ●
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 9701-9709 ●
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 9710-9905 ● ●
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 9906- ● ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(B) L=464 		1-47424-530-2 01 1 9606-9905 ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(B) L=464 		1-47424-530-2 01 1 9906- ● ● ●
153 PIPE ASM; CLU,UNION TO FLEX
L TYPE ENG<90L> (A) L=1753 SERVICED BY L=1800 		1-47426-392-0 01 1 9606-9905 ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=1753 SERVICED BY L=1800 		1-47426-392-0 01 1 9906- ● ● ●
171 CONNECTOR; CLU BOOSTER 1-09650-256-1 01 1 9606-9905 ● ●
171 CONNECTOR; CLU BOOSTER 1-09650-256-1 01 1 9906- ● ● ●

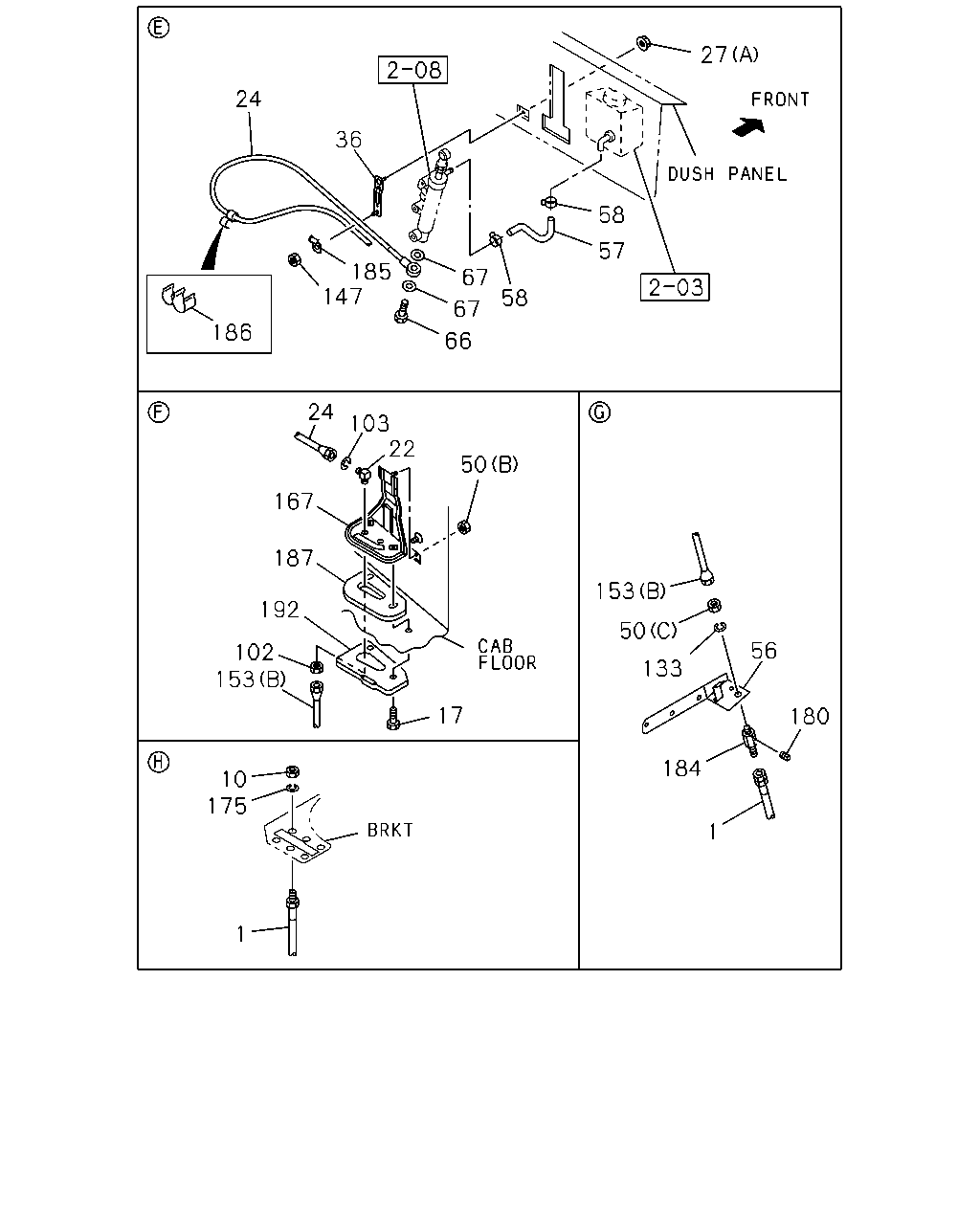

çizim 40196
27 24 36 58 57 185 147 67 58 67 186 66 24 103 22 50 167 187 153 192 50 56 102 153 133 17 180 184 10 175 1 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 HOSE; FLEX,CLU CONT
L=430 		1-09364-859-0 01 1 9606-9905 ● ●
1 HOSE; FLEX,CLU CONT
EXC. CAB UP +110MM<TGG> L=430 		1-09364-859-1 01 1 9906- ● ● ●
1 HOSE; FLEX,CLU CONT
CAB UP +110MM<TGG> L=520 		1-09364-948-1 01 1 9906- ● ● ●
10 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 9606-9905 ● ●
10 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 9906- ● ● ●
17 BOLT; BRKT
M8X20 W/LK&PL WASHER 		8-94279-216-0 02 1 9606-9905 ● ●
17 BOLT; BRKT
M8X20 W/LK&PL WASHER 		8-94279-216-0 02 1 9906- ● ● ●
22 UNION; CLU PIPE
M14 		9-09225-208-1 01 1 9710-9905 ● ●
22 UNION; CLU PIPE
M14 		9-09225-208-1 01 1 9906- ● ● ●
24 PIPE ASM; CLU,M/CYL TO UNION
L=643 		1-47424-529-2 01 1 9606-9905 ● ●
24 PIPE ASM; CLU,M/CYL TO UNION
L=643 		1-47424-529-2 01 1 9906- ● ● ●
27 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 9606-9905 ● ●
27 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 9906- ● ● ●
27 NUT; BRKT
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 01 1 9606-9905 ● ●
27 NUT; BRKT
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 01 1 9906- ● ● ●
27 NUT; BRKT
(B) M8 		9-09110-508-0 02 1 9606-9606 ● ●
27 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 02 1 9607-9905 ● ●
27 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 02 1 9906- ● ● ●
27 NUT; BRKT
6WG1 TC-N(71L) (B) M8 FLANGE 		0-91150-108-0 01 1 9703-9905 ● ●
27 NUT; BRKT
L TYPE ENG<90L> (B) M8 FLANGE 		0-91150-108-0 01 1 9906- ● ● ●
36 BRACKET; CLIP 1-71117-191-1 01 1 9606-9905 ● ●
36 BRACKET; CLIP 1-71117-191-1 01 1 9906- ● ● ●
50 NUT; UNION
(B) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 9606-9905 ● ●
50 NUT; UNION
(B) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 9906- ● ● ●
50 NUT; UNION
(C) M14 		9-99111-414-0 01 1 9606-9905 ● ●
50 NUT; UNION
(C) M14 		9-99111-414-0 01 1 9906- ● ● ●
56 BRACKET; FLEX HOSE 1-47477-801-0 01 1 9606-9905 ● ●
56 BRACKET; FLEX HOSE 1-47477-801-0 01 1 9906- ● ● ●
57 HOSE; CLU M/CYL TO OIL TANK 1-47424-533-0 01 1 9606-9905 ● ●
57 HOSE; CLU M/CYL TO OIL TANK 1-47424-533-0 01 1 9906- ● ● ●
58 CLIP; RUBBER HOSE TO M/CYL
ID=14 		8-94238-572-0 02 1 9606-9905 ● ●
58 CLIP; RUBBER HOSE TO M/CYL
ID=14 		8-94238-572-0 02 1 9906- ● ● ●
66 BOLT; EYE JOINT,CLU M/CYL
M14X30 EYE-BOLT 		1-09675-146-0 01 1 9606-9905 ● ●
66 BOLT; EYE JOINT,CLU M/CYL
M14X30 EYE-BOLT 		1-09675-146-0 01 1 9906- ● ● ●
67 GASKET; EYE JOINT,CLU M/CYL
ID=14.2 OD=19.2 		1-09630-085-0 02 1 9606-9905 ● ●
67 GASKET; EYE JOINT,CLU M/CYL
ID=14.2 OD=19.2 		1-09630-085-0 02 1 9906- ● ● ●
102 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 9710-9905 ● ●
102 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 9906- ● ● ●
103 WASHER; LK,FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 9710-9905 ● ●
103 WASHER; LK,FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 9906- ● ● ●
133 WASHER; LK,UNION
ID=14.2 		9-09150-514-0 01 1 9606-9905 ● ●
133 WASHER; LK,UNION
ID=14.2 		9-09150-514-0 01 1 9906- ● ● ●
147 NUT; CLIP FIX
M8 FLANGE 		8-94279-517-0 01 1 9606-9611 ● ●
147 NUT; CLIP FIX
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 01 1 9612-9905 ● ●
147 NUT; CLIP FIX
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 01 1 9906- ● ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(B) L=464 		1-47424-530-2 01 1 9606-9905 ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(B) L=464 		1-47424-530-2 01 1 9906- ● ● ●
153 PIPE ASM; CLU,UNION TO FLEX
L TYPE ENG<90L> (A) L=1753 SERVICED BY L=1800 		1-47426-392-0 01 1 9606-9905 ● ●
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=1753 SERVICED BY L=1800 		1-47426-392-0 01 1 9906- ● ● ●
167 BRACKET; UNION 1-71117-183-3 01 1 9606-9905 ● ●
167 BRACKET; UNION 1-71117-183-3 01 1 9906- ● ● ●
175 WASER; LK,FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 9606-9905 ● ●
175 WASER; LK,FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 9906- ● ● ●
180 PLUG; PIPE 9-09204-510-0 01 1 9606-9905 ● ●
180 PLUG; PIPE 9-09204-510-0 01 1 9906- ● ● ●
184 UNION; FLEX HOSE
3WAY 		1-09656-679-0 01 1 9606-9905 ● ●
184 UNION; FLEX HOSE
3WAY 		1-09656-679-0 01 1 9906- ● ● ●
185 CLIP; BRKT
ID=9 L=20 		9-09545-108-0 01 1 9606-9905 ● ●
185 CLIP; BRKT
ID=9 L=20 		9-09545-108-0 01 1 9906- ● ● ●
186 HOLDER; CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94107-710-0 02 1 9606-0011 ● ● ● ● ●
186 HOLDER; CLIP
DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94107-710-0 02 1 0012- ● ● ● ● ●
187 SEAL; BRKT 1-71117-222-0 01 1 9606-9905 ● ●
187 SEAL; BRKT 1-71117-222-0 01 1 9906- ● ● ●
192 PLATE 1-71117-221-0 01 1 9606-9905 ● ●
192 PLATE 1-71117-221-0 01 1 9906- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
