8-50 — AIR CONDITIONING SYSTEM; FRONT (#50516) — 36 parça

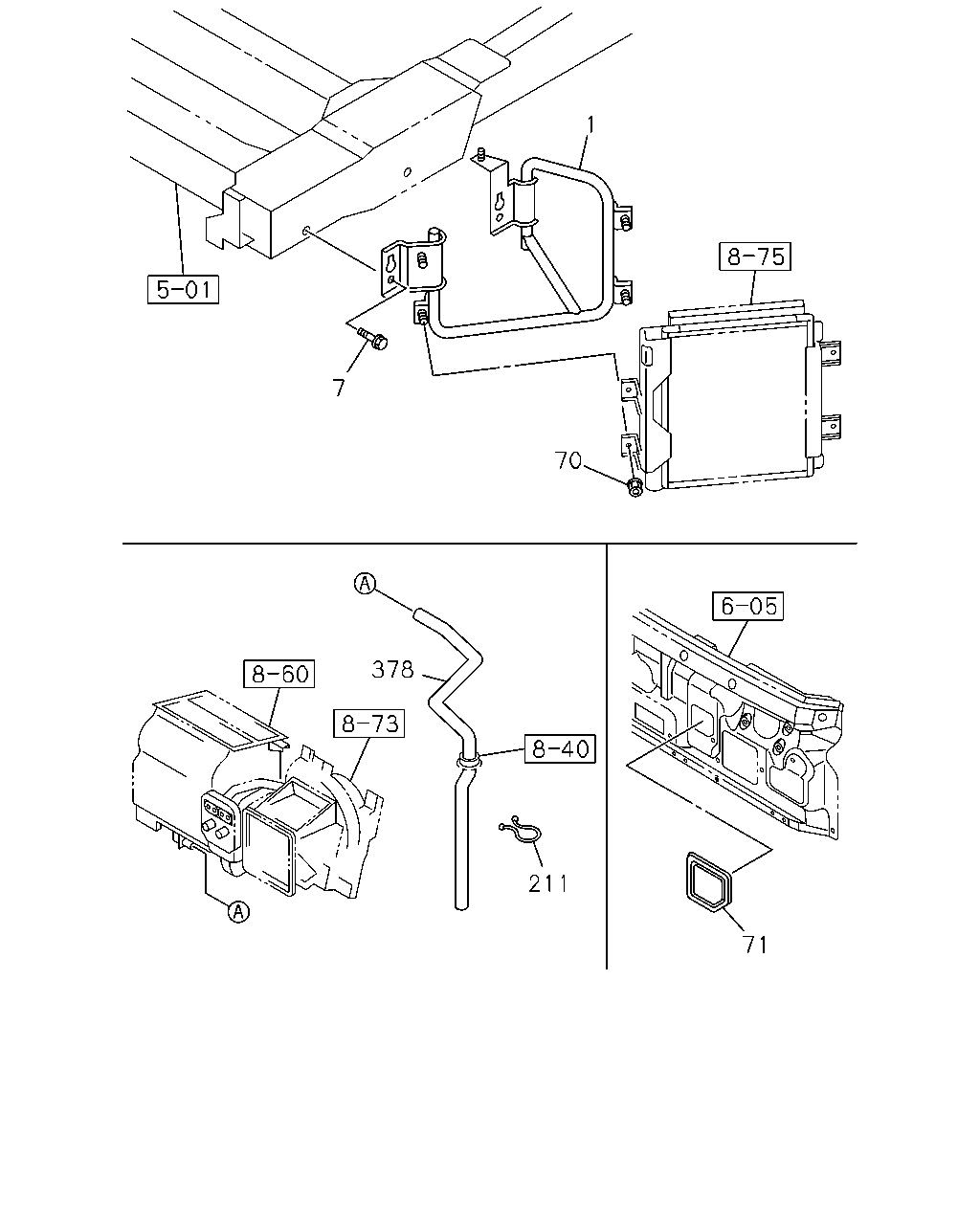

1 7 70 378 211 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	09.242 BRACKET; A/C AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68)	8-97387-182-0	01	1	0710-0803	●	●
1	09.242 BRACKET; A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-97387-182-0	01	1	0804-1303	●	●
1	09.242 BRACKET; A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-98214-411-0	01	1	1304-	●	●
7	09.242 BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 07.395 M12X30 FLANGE	0-28651-230-0	04	1	0710-0803	●	●
7	09.242 BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) 07.395 M12X30 FLANGE	0-28651-230-0	04	1	0804-	●	●
70	09.190 NUT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 01.062 M8 FLANGE	0-91180-108-0	04	1	0710-0803	●	●
70	09.190 NUT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) 01.062 M8 FLANGE	0-91180-108-0	04	1	0804-	●	●
71	09.190 COVER; EVAP,A/C EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98017-234-1	01	1	0710-0803	●	●
71	09.190 COVER; EVAP,A/C EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-98017-234-1	01	1	0804-1301	●	●
71	09.190 COVER; EVAP,A/C EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-98017-234-1	01	1	1302-	●	●
211	09.190 CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 03.278 ID=44	8-94463-508-0	01	1	0710-0803	●	●
211	09.190 CLIP; HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 03.278 ID=44	8-94463-508-0	01	1	0804-	●
211	09.190 CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 03.278 ID=44	8-94463-508-0	01	1	0804-		●
378	09.211 HOSE; DRAIN,EVAPORATOR AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68)	8-97387-174-2	01	1	0710-0803	●	●
378	09.211 HOSE; DRAIN,EVAPORATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO AIR CON DITIONER(C68)	8-97387-174-2	01	1	0804-	●	●

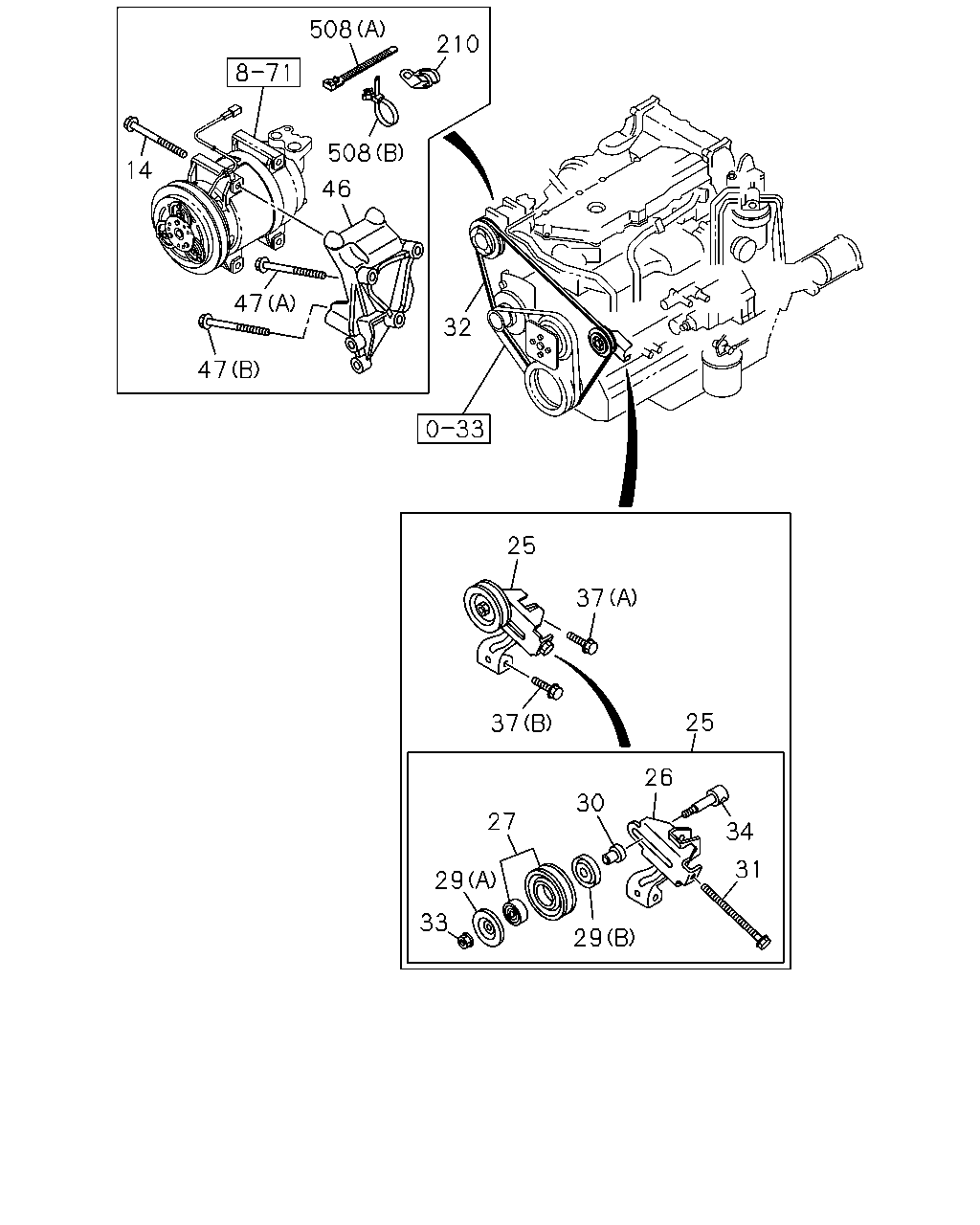

508 210 508 14 46 47 32 47 25 37 25 37 26 30 27 34 31 29 33 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	09.171 BOLT; CMPR AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) 02.100 M8X90 FLANGE	0-28050-890-0	04	1	0710-	●	●
25	09.180 PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) 1-GROOVE	8-97161-198-1	01	1	0710-	●	●
26	09.180 BRACKET; IDLE PULLEY,A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-97161-031-1	01	1	0710-	●	●
27	09.180 PULLEY; IDLE,A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-97386-869-0	01	1	0710-	●	●
29	09.181 COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) (A)	8-97384-114-0	01	1	0710-	●	●
29	09.181 COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) (B)	8-97384-115-0	01	1	0710-	●	●
30	09.181 COLLAR; IDLE PULLEY AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-97384-117-0	01	1	0710-	●	●
31	09.181 BOLT; ADJ,IDLE PULLEY AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-97384-113-0	01	1	0710-	●	●
32	01.066 BELT; A/C CMPR AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) L=1674	8-98010-841-1	01	1	0710-	●	●
33	09.181 NUT; IDLER PULLEY AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-97384-118-0	01	1	0710-	●	●
34	09.181 SHAFT; IDLE PULLEY AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68)	8-97384-116-0	01	1	0710-	●	●
37	09.173 BOLT; PULLEY BRKT AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) 00.386 (A) M8X50 FLANGE	0-28050-850-0	01	1	0710-	●	●
37	09.173 BOLT; PULLEY BRKT AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 04.510 (B) M10X65 FLANGE	8-94344-540-1	01	1	0710-0803	●	●
37	09.173 BOLT; PULLEY BRKT AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) 04.510 (B) M10X65 FLANGE	8-94344-540-1	01	1	0804-	●	●
46	09.171 BRACKET; CMPR AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) 09.242	8-98006-515-3	01	1	0710-	●	●
47	09.173 BOLT; BRKT TO BODY AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) 01.062 (A) M10X90 FLANGE	0-28151-090-0	02	1	0710-	●	●
47	09.173 BOLT; BRKT TO BODY AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) 09.171 (B) M10X120 FLANGE	0-28156-012-0	01	1	0710-	●	●
210	09.242 CLIP; HARNESS EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0907-	●
508	09.181 CLIP; HARNESS EURO2 SPECIFICATION(NT2) 02.559 (B) L=170.3	1-09987-182-0	01	1	0804-	●
508	09.181 CLIP; HARNESS EURO4 SPECIFICATION(NT4) 03.162 (A) L=140	5-09707-031-1	01	1	0804-	●
508	09.181 CLIP; HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	0804-		●
