◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51162 - NPS-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#50511) — 47 parça

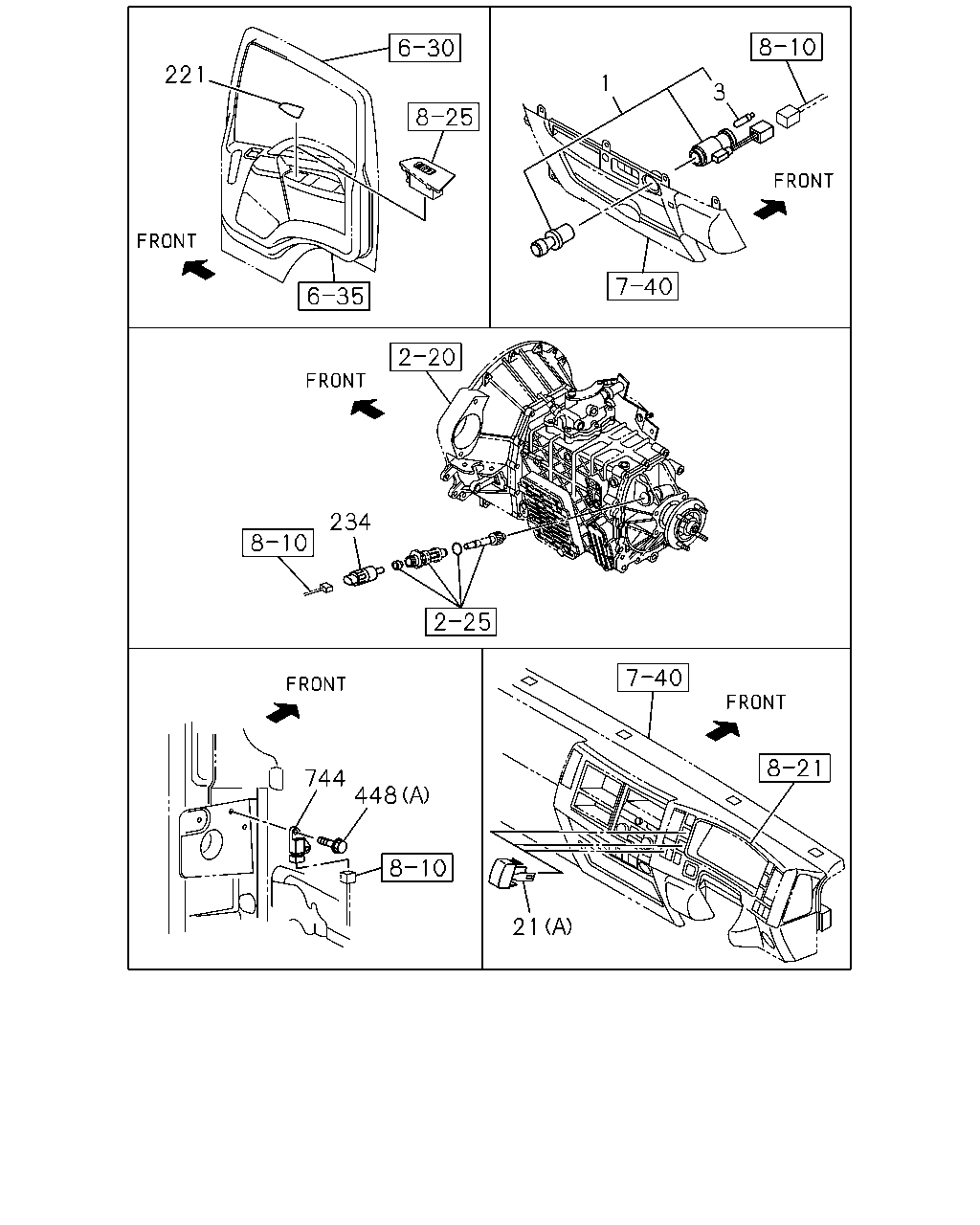

çizim 157374
221 1 3 234 744 448 21
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.709 LIGHTER; CIGAR 8-97320-325-0 01 1 0710-0906 ● ●
1 09.709 LIGHTER; CIGAR 8-98142-962-0 01 1 0907- ● ●
3 08.991 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 0710-0906 ● ●
21 09.744 COVER; HOLE
09.748 (B) 		8-97101-974-0 01 1 0710-0803 ● ●
21 09.744 COVER; HOLE
EURO4 SPECIFICATION(NT4) 09.748 (B) 		8-97101-974-0 01 1 0804- ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 0710- ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 0710- ● ●
221 16.320 COVER; HOLE,DOOR LOCK SW 8-98029-916-2 01 1 0710-0803 ●
221 16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-916-2 01 1 0804- ●
221 16.320 COVER; HOLE,DOOR LOCK SW 8-98029-916-2 01 1 0804- ●
221 16.320 COVER; HOLE,DOOR LOCK SW 8-98029-915-2 01 1 0710-0803 ●
221 16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-915-2 01 1 0804- ●
221 16.320 COVER; HOLE,DOOR LOCK SW 8-98029-915-2 01 1 0804- ●
234 03.682 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 0710- ● ●
448 02.500 BOLT; SENSOR
09.242 (B) M6X16 FLANGE 		0-28050-616-0 01 1 0710- ● ●
448 02.500 BOLT; SENSOR
AIR BAG DRIVER & PASSENGER<AK5> 06.870 (A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 0710- ● ●
744 03.682 SENSOR; AIR BAG
AIR BAG DRIVER & PASSENGER<AK5> 		8-97386-841-2 01 1 0710- ● ●

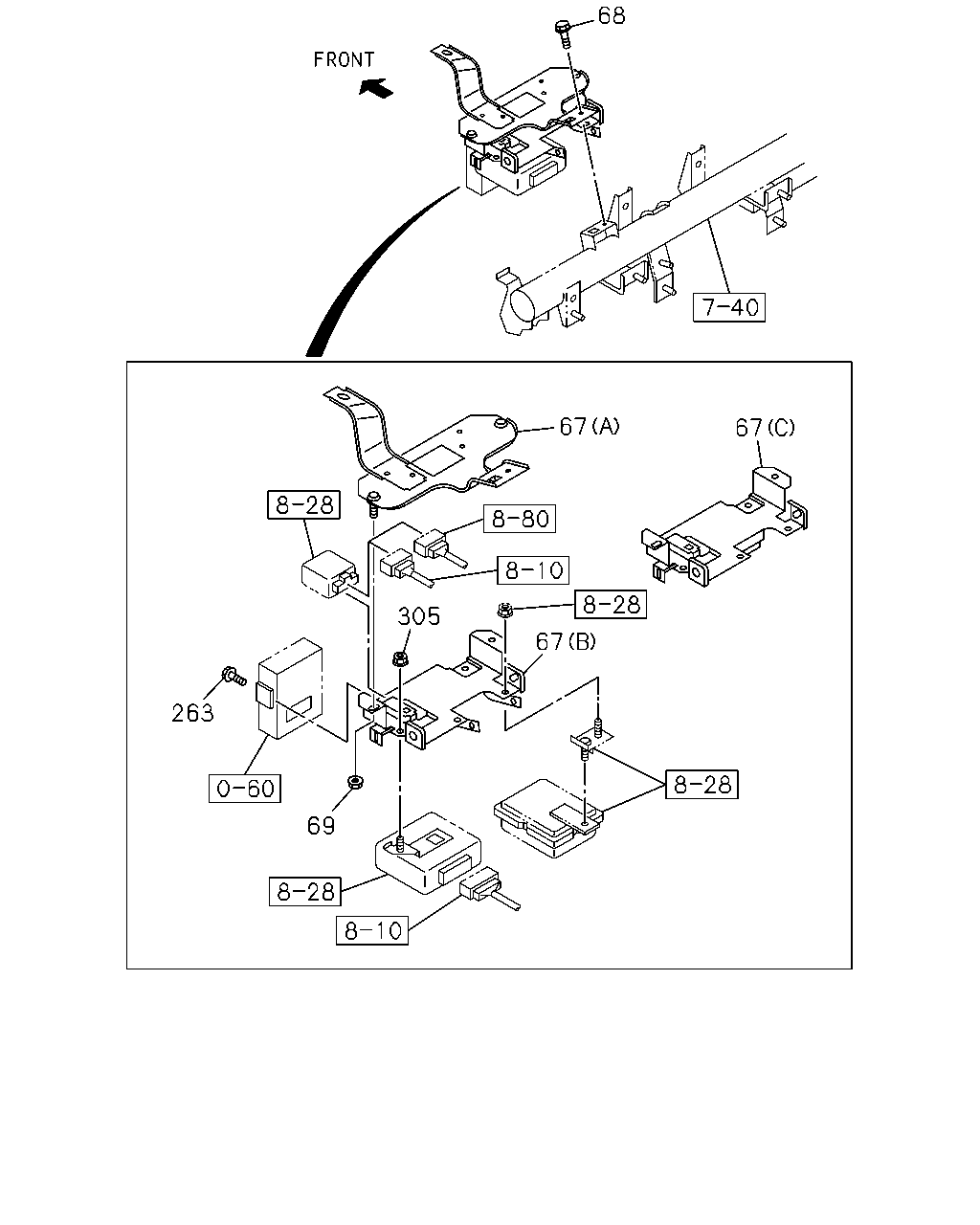

çizim 157375
68 67 67 305 67 69 263
BalonParca AdiParca NoAdetTipApplied Date A B
67 03.887 BRACKET; CONT UNIT
(A) 		8-98022-170-1 01 1 0710- ● ●
67 03.887 BRACKET; CONT UNIT
(B) 		8-98022-206-2 01 1 0710-1111 ● ●
67 03.887 BRACKET; CONT UNIT
(C) 		8-98203-057-0 01 1 1112-1207 ● ●
67 03.887 BRACKET; CONT UNIT
(C) 		8-98217-377-0 01 1 1208-1212 ● ●
67 03.887 BRACKET; CONT UNIT
(C) 		8-98237-555-0 01 1 1301-1404 ● ●
67 03.887 BRACKET; CONT UNIT
(C) 		8-98217-377-0 01 1 1405- ● ●
68 02.500 BOLT; BRKT
00.206 M6X12 FLANGE 		0-28450-612-0 01 1 0710- ● ●
69 02.458 NUT; BRKT
01.062 M6 FLANGE 		0-91180-106-0 02 1 0710- ● ●
263 04.115 BOLT; CONT UNIT
02.343 M6X16 FLANGE 		0-28650-616-0 02 1 0710-0809 ● ●
305 08.915 NUT; CONT UNIT
01.062 M6 FLANGE 		0-91180-106-0 01 1 0710-0803 ●
305 08.915 NUT; CONT UNIT
REMOTE CONT DOOR LOCK<6NF> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0804- ●

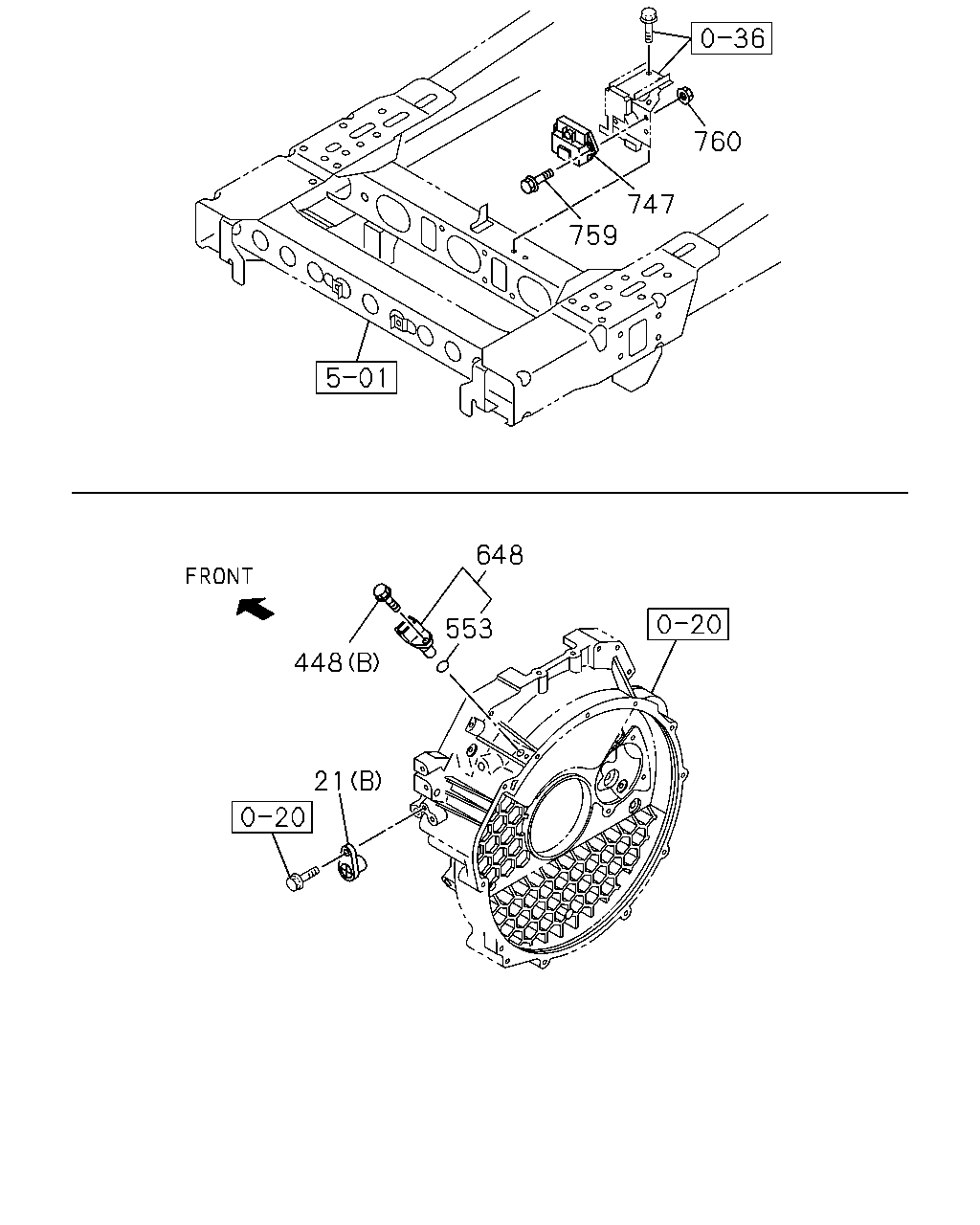

çizim 157384
760 747 759 648 553 448 21
BalonParca AdiParca NoAdetTipApplied Date A B
21 09.744 COVER; HOLE
09.748 (B) 		8-97101-974-0 01 1 0710-0803 ● ●
21 09.744 COVER; HOLE
EURO4 SPECIFICATION(NT4) 09.748 (B) 		8-97101-974-0 01 1 0804- ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 0710- ● ●
21 09.744 COVER; HOLE
16.081 (A) 		8-98025-954-1 01 1 0710- ● ●
448 02.500 BOLT; SENSOR
09.242 (B) M6X16 FLANGE 		0-28050-616-0 01 1 0710- ● ●
448 02.500 BOLT; SENSOR
AIR BAG DRIVER & PASSENGER<AK5> 06.870 (A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 0710- ● ●
553 02.500 GASKET
00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 0710- ● ●
648 03.682 SENSOR; CRANK ANGLE 8-97606-943-0 01 1 0710- ● ●
747 02.510 CONTROL UNIT; TURBOCHARGER 8-98077-118-2 01 1 0710-0803 ● ●
747 02.510 CONTROL UNIT; TURBOCHARGER
EURO4 SPECIFICATION(NT4) 		8-98077-118-2 01 1 0804-1012 ●
747 02.510 CONTROL UNIT; TURBOCHARGER 8-98077-118-2 01 1 0804-1012 ●
747 02.510 CONTROL UNIT; TURBOCHARGER
EURO4 SPECIFICATION(NT4) 		8-98162-807-0 01 1 1101- ●
747 02.510 CONTROL UNIT; TURBOCHARGER 8-98162-807-0 01 1 1101- ●
759 04.115 BOLT; CONT MODULE,TURBOCHARGER
03.162 M6X20 FLANGE 		0-28650-620-0 02 1 0710-0803 ● ●
759 04.115 BOLT; CONT MODULE,TURBOCHARGER
EURO4 SPECIFICATION(NT4) 03.162 M6X20 FLANGE 		0-28650-620-0 02 1 0804- ●
759 04.115 BOLT; CONT MODULE,TURBOCHARGER
03.162 M6X20 FLANGE 		0-28650-620-0 02 1 0804- ●
760 04.115 NUT; CONT MODULE,TURBOCHARGER
01.062 M6 FLANGE 		0-91180-106-0 02 1 0710-0803 ● ●
760 04.115 NUT; CONT MODULE,TURBOCHARGER
EURO4 SPECIFICATION(NT4) 01.062 M6 FLANGE 		0-91180-106-0 02 1 0804- ●
760 04.115 NUT; CONT MODULE,TURBOCHARGER
01.062 M6 FLANGE 		0-91180-106-0 02 1 0804- ●
