Sayfa 8-25 - Isuzu EPC

8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#50510) — 145 parça

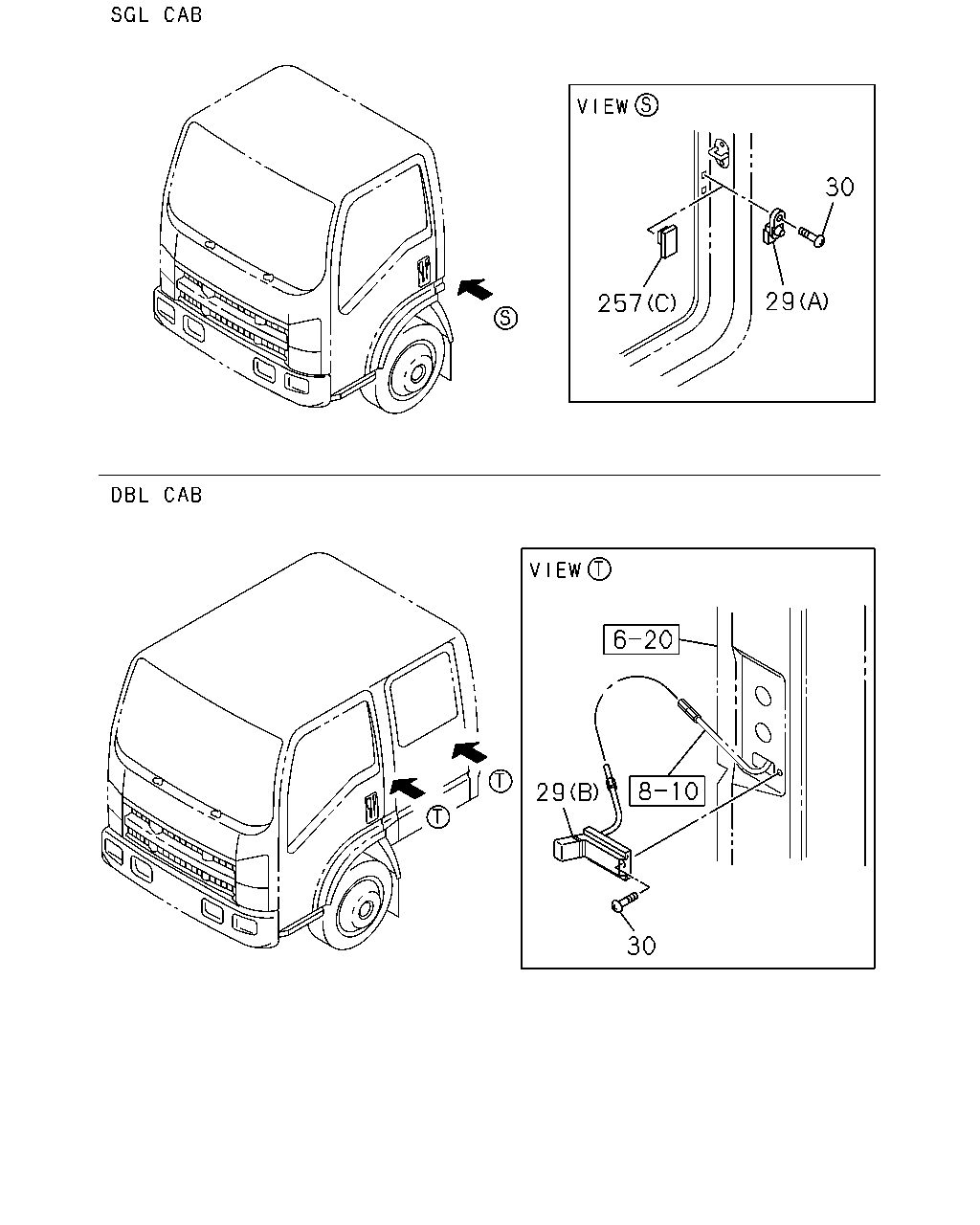

30 29 257 29 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	16.263 SWITCH; DOOR (A) BLACK	8-98022-211-0	02	1	0710-0710	●
29	16.263 SWITCH; DOOR (A) BLACK	8-98022-211-0	01	1	0710-0803	●
29	16.263 SWITCH; DOOR (A) BLACK	8-98022-211-0	01	1	0710-0803	●
29	16.263 SWITCH; DOOR (A) BLACK	8-98022-211-0	01	1	0804-	●
29	16.263 SWITCH; DOOR ROOM LAMP W/ALL DOORS SW(SDF) EXC. REMOTE CONT DOOR LOCK<6NF> (A) BLACK	8-98022-211-0	01	1	0804-	●
29	16.263 SWITCH; DOOR REMOTE CONT DOOR LOCK<6NF> (A) BLACK	8-98022-211-0	01	1	0804-	●
29	16.263 SWITCH; DOOR (B) FRONT	8-97855-032-3	02	1	0710-0710		●
29	16.263 SWITCH; DOOR (B) FRONT	8-97855-032-3	01	1	0711-		●
29	16.263 SWITCH; DOOR (B) FRONT	8-97855-032-3	01	1	0711-		●
29	16.263 SWITCH; DOOR (B) REAR	8-98054-195-0	02	1	0710-0710		●
29	16.263 SWITCH; DOOR (B) REAR	8-98054-195-0	01	1	0711-		●
29	16.263 SWITCH; DOOR (B) REAR	8-98054-195-0	01	1	0711-		●
30	16.263 SCREW; DOOR SW M5X18	8-98047-201-0	02	1	0710-0803	●
30	16.263 SCREW; DOOR SW ROOM LAMP W/ALL DOORS SW(SDF) EXC. REMOTE CONT DOOR LOCK<6NF> M5X18	8-98047-201-0	02	1	0804-	●
30	16.263 SCREW; DOOR SW REMOTE CONT DOOR LOCK<6NF> M5X18	8-98047-201-0	02	1	0804-	●
30	16.263 SCREW; DOOR SW EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTECONT DOOR LOCK<6NF> M5X18	8-98047-201-0	01	1	0804-	●
30	16.263 SCREW; DOOR SW M5X16	8-94279-341-0	04	1	0710-		●
257	16.081 COVER; HOLE,SW EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTECONT DOOR LOCK<6NF> (C)	8-98029-917-0	01	1	0804-	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	02	1	0710-0906	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-	●	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A)	8-98025-954-1	01	1	0907-	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-	●	●
257	16.081 COVER; HOLE,SW EXC. CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98025-954-1	01	1	0907-	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0710-0803	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0710-0803	●	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A)	8-98025-954-1	01	1	0710-0803	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0710-0803	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0710-0803	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0804-0906	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0804-0906	●	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A)	8-98025-954-1	01	1	0804-0906	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0804-0906	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0804-0906	●	●
257	16.081 COVER; HOLE,SW EXC. CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98025-954-1	01	1	0804-0906	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B)	8-98029-914-1	01	1	0710-	●	●

151 154 315

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
151	09.277 RELAY; HTR & A/C AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-0803	●	●
151	09.277 RELAY; HTR & A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0804-	●
151	09.277 RELAY; HTR & A/C AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0804-		●
154	09.277 RELAY; CONDENSER FAN AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0710-0803	●	●
154	09.277 RELAY; CONDENSER FAN AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0804-	●
154	09.277 RELAY; CONDENSER FAN AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0804-		●
315	09.277 RELAY; EXH BRAKE CONT EXC. EURO4 SPECIFICATION(NT4) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0804-	●

8 263 1 10 3 8 263 21 10 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

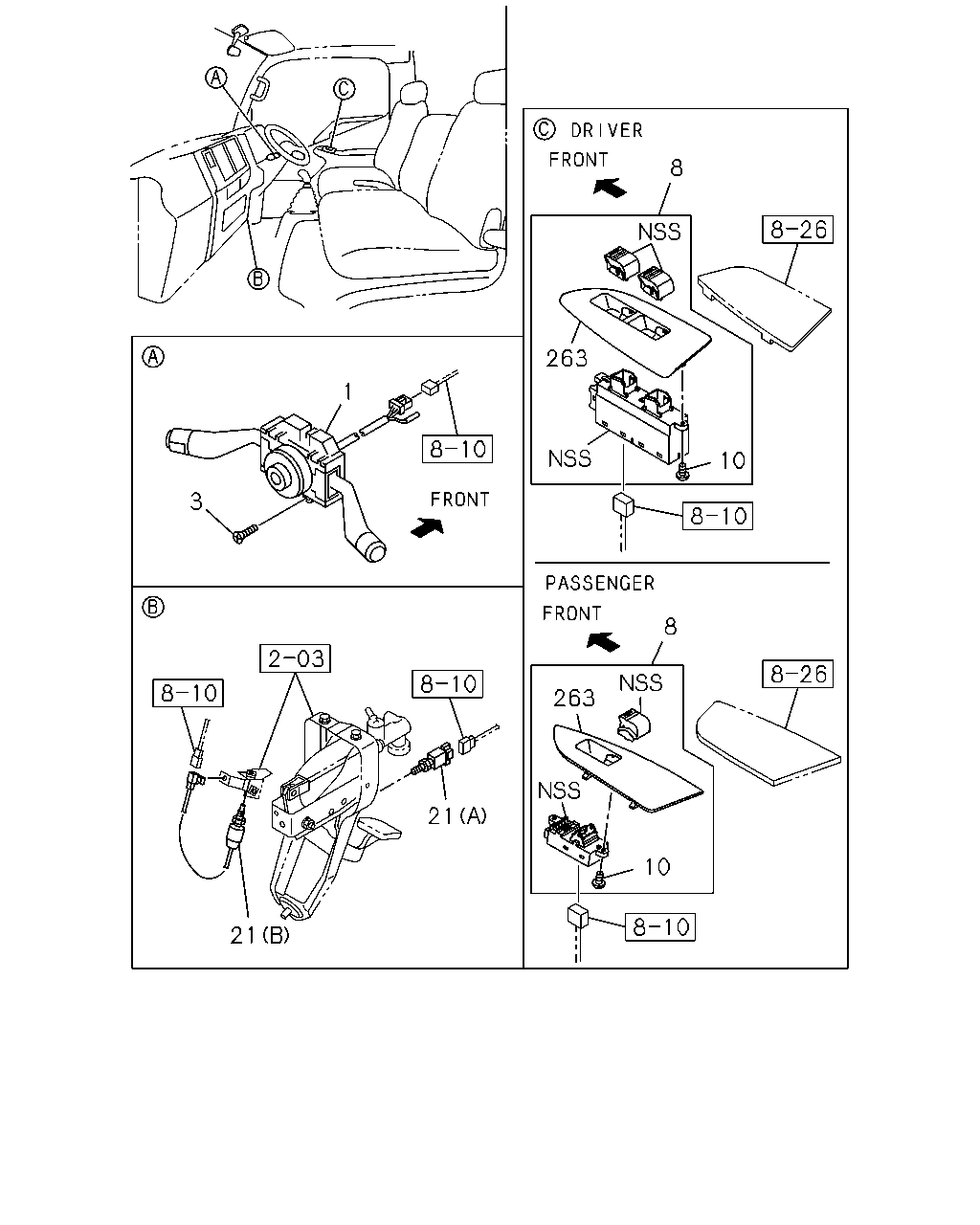

1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13>	8-98070-001-1	01	1	0710-0905	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13>	8-98146-635-0	01	1	0906-1210	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13>	8-98217-808-0	01	1	1211-1310	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13>	8-98243-725-0	01	1	1311-1509	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ>	8-98243-725-0	01	1	1510-	●
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13>	8-98243-725-0	01	1	1510-		●
1	02.895 SWITCH; COMB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,INTERMITTENT WIPER<C13>	8-98069-993-2	01	1	0710-1310	●	●
1	02.895 SWITCH; COMB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,INTERMITTENT WIPER<C13>	8-98243-728-0	01	1	1311-1509	●	●
1	02.895 SWITCH; COMB EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,INTERMITTENT WIPER<C13>	8-98243-728-0	01	1	1510-	●
1	02.895 SWITCH; COMB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,INTERMITTENT WIPER<C13>	8-98243-728-0	01	1	1510-		●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98069-995-1	01	1	0710-1310	●	●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98243-729-0	01	1	1311-1509	●	●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98243-729-0	01	1	1510-	●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98243-729-0	01	1	1510-		●
3	02.897 SCREW; COMB SW M5X20 W/PL WASHER&TORQUES	8-98061-743-0	02	1	0710-	●	●
8	16.263 SWITCH; POWER WINDOW PASSENGER SIDE	8-97387-034-2	01	1	0710-0803	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> PASSENGER SIDE	8-97387-034-2	01	1	0804-1509	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> PASSENGER SIDE	8-98316-415-0	01	1	1510-	●
8	16.263 SWITCH; POWER WINDOW DRIVER SIDE	8-98003-785-1	01	1	0710-0803	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> DRIVER SIDE	8-98003-785-1	01	1	0804-0809	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> DRIVER SIDE	8-98129-844-0	01	1	0810-1001	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> DRIVER SIDE	8-98159-543-0	01	1	1002-1509	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> DRIVER SIDE	8-98298-750-0	01	1	1510-	●
10	03.885 SCREW; POWER WINDOW SW	8-98153-865-0	03	1	0710-0803	●
10	03.885 SCREW; POWER WINDOW SW POWER WINDOW FRT DOOR<A32>	8-98153-865-0	03	1	0804-	●
21	02.575 SWITCH; CLU (A)	8-97358-248-0	01	1	0710-1509	●	●
21	02.575 SWITCH; CLU EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> (A)	8-97358-248-0	01	1	1510-	●
21	02.575 SWITCH; CLU (A)	8-97358-248-0	01	1	1510-		●
21	02.575 SWITCH; CLU (B)	8-97620-841-0	01	1	0710-	●	●
263	16.081 COVER; SW	8-98153-836-0	01	1	0710-0803	●
263	16.081 COVER; SW POWER WINDOW FRT DOOR<A32>	8-98153-836-0	01	1	0804-	●
263	16.081 COVER; SW	8-98153-841-0	01	1	0710-0803	●
263	16.081 COVER; SW POWER WINDOW FRT DOOR<A32>	8-98153-841-0	01	1	0804-	●

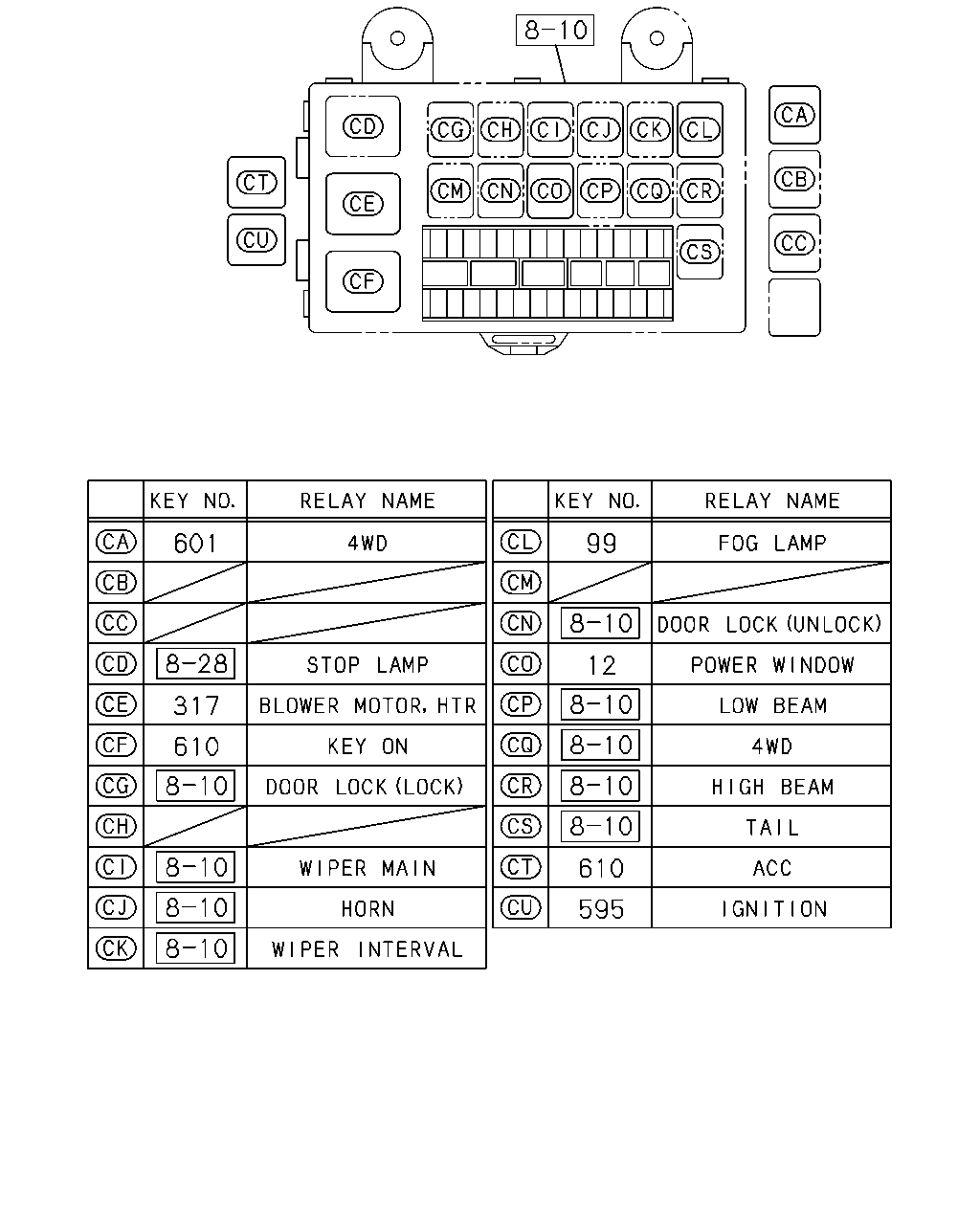

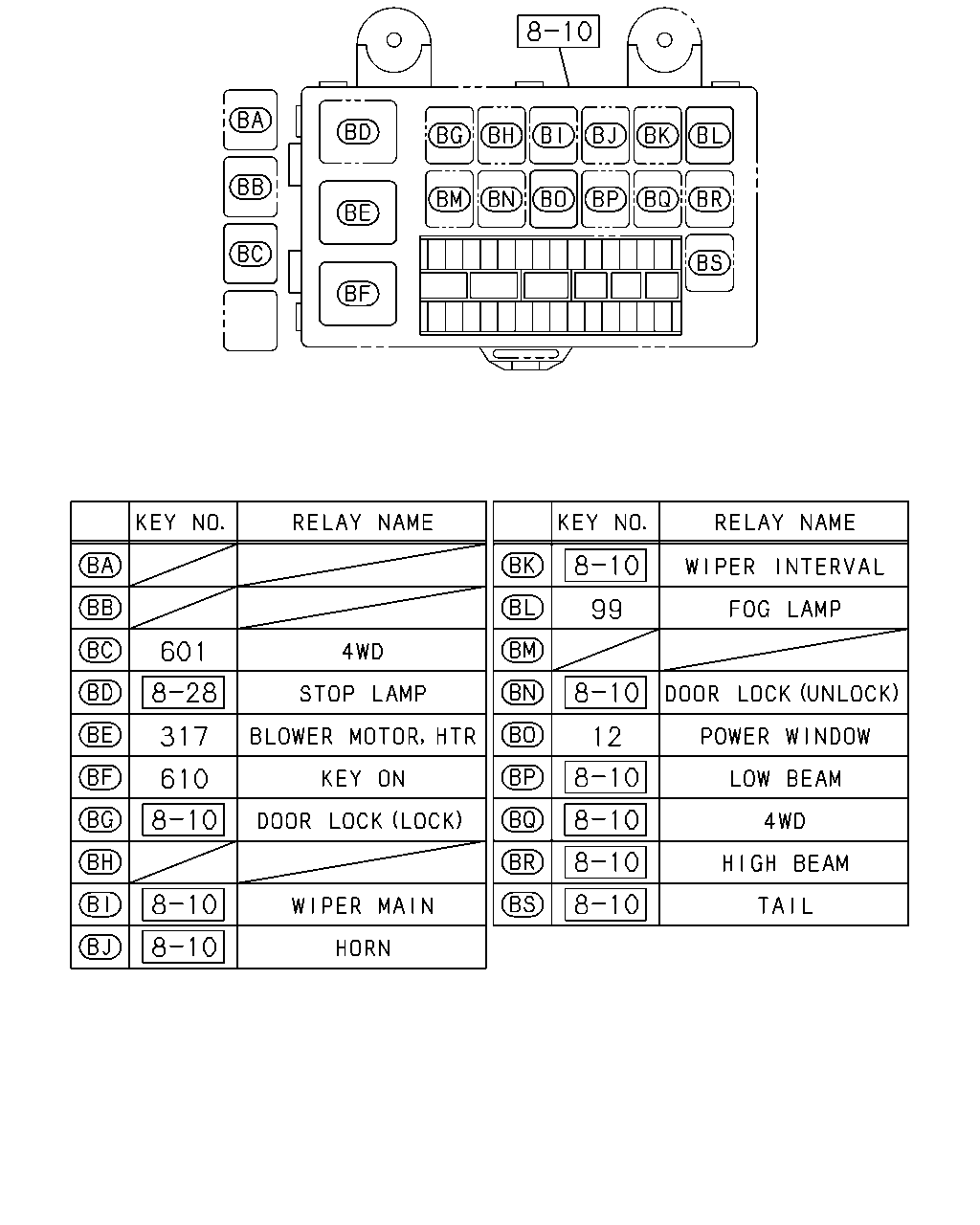

99 601 317 12 610

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	08.852 RELAY; POWER WINDOW 24V 10A PANASONIC	8-97173-035-1	01	1	0710-0803	●
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC	8-97173-035-1	01	1	0804-	●
99	02.485 RELAY; FOG LAMP FOG LAMP<T96> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0710-	●	●
317	02.510 RELAY; BLOWER MOTOR,HTR AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-0803	●	●
317	02.510 RELAY; BLOWER MOTOR,HTR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO AIR CON DITIONER(C68) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0804-	●
317	02.510 RELAY; BLOWER MOTOR,HTR AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0804-		●
601	02.510 RELAY; 4WD 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0710-	●	●
610	02.510 RELAY; KEY ON 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-1204	●	●
610	02.510 RELAY; KEY ON 24V 12.5A PANASONIC	8-97262-933-0	01	1	1205-1206	●	●
610	02.510 RELAY; KEY ON 24V 12.5A PANASONIC	8-97262-933-0	01	1	1205-1206	●	●
610	02.510 RELAY; KEY ON 24V 12.5A PANASONIC	8-97262-933-0	01	1	1207-	●	●
610	02.510 RELAY; KEY ON EXC. FULLAUTO AIR CONDITIONER(C68), REMOTECONT DOOR LOCK<6NF> 24V 12.5A PANASONIC	8-97262-933-0	01	1	1207-	●
610	02.510 RELAY; KEY ON AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 24V 12.5A PANASONIC	8-97262-933-0	01	1	1207-		●
610	02.510 RELAY; KEY ON EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FULLAUTO AIR CONDITIONER(C68) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1207-		●

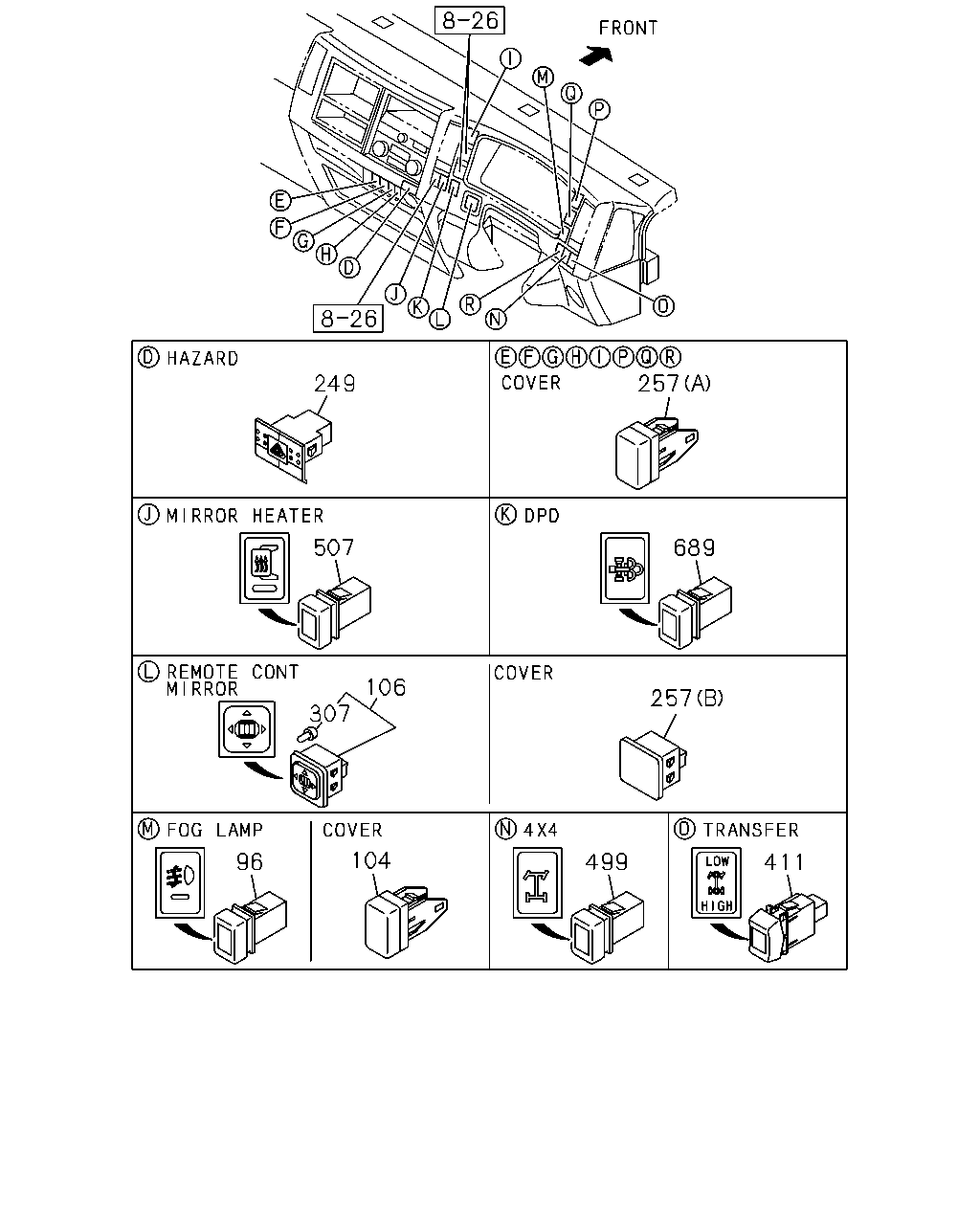

257 249 507 689 106 257 307 104 96 499 411

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
96	02.485 SWITCH; FOG LAMP FOG LAMP<T96>	8-97387-031-4	01	1	0710-	●	●
104	09.778 COVER; SW HOLE,FOG LAMP EXC. FOG LAMP<T96> 16.081	8-98025-954-1	01	1	0710-	●	●
106	10.186 SWITCH; REMOTE CONT MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-97173-294-1	01	1	0710-	●	●
249	02.485 SWITCH; HAZARD	8-97386-922-1	01	1	0710-	●	●
257	16.081 COVER; HOLE,SW EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTECONT DOOR LOCK<6NF> (C)	8-98029-917-0	01	1	0804-	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	02	1	0710-0906	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-	●	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A)	8-98025-954-1	01	1	0907-	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0907-	●	●
257	16.081 COVER; HOLE,SW EXC. CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98025-954-1	01	1	0907-	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0710-0803	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0710-0803	●	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A)	8-98025-954-1	01	1	0710-0803	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0710-0803	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0710-0803	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0804-0906	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0804-0906	●	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A)	8-98025-954-1	01	1	0804-0906	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0804-0906	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	0804-0906	●	●
257	16.081 COVER; HOLE,SW EXC. CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98025-954-1	01	1	0804-0906	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B)	8-98029-914-1	01	1	0710-	●	●
307	08.991 BULB ASM; SW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 24V	8-98226-896-0	01	1	0710-	●	●
411	09.755 SWITCH; TRANSFER	8-97613-967-1	01	1	0710-	●	●
499	09.755 SWITCH; 4X4	8-97386-914-3	01	1	0710-	●	●
507	10.186 SWITCH; MIRROR HEATER O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-97386-924-3	01	1	0710-	●	●
689	02.780 SWITCH; DPD	8-97386-921-2	01	1	0710-0803	●	●
689	02.780 SWITCH; DPD CATALYSIS CONTROL WITH DPD(8JM)	8-97386-921-2	01	1	0804-	●
689	02.780 SWITCH; DPD	8-97386-921-2	01	1	0804-		●

601 99 12 317 610 610 595

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	08.852 RELAY; POWER WINDOW 24V 10A PANASONIC	8-97173-035-1	01	1	0710-0803	●
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC	8-97173-035-1	01	1	0804-	●
99	02.485 RELAY; FOG LAMP FOG LAMP<T96> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0710-	●	●
317	02.510 RELAY; BLOWER MOTOR,HTR AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-0803	●	●
317	02.510 RELAY; BLOWER MOTOR,HTR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO AIR CON DITIONER(C68) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0804-	●
317	02.510 RELAY; BLOWER MOTOR,HTR AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0804-		●
595	02.510 RELAY; IGNITION 24V 12.5A PANASONIC	8-97262-933-0	01	1	1205-1206	●	●
595	02.510 RELAY; IGNITION EXC. FULLAUTO AIR CONDITIONER(C68), REMOTECONT DOOR LOCK<6NF> 24V 12.5A PANASONIC	8-97262-933-0	01	1	1207-	●
595	02.510 RELAY; IGNITION AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 24V 12.5A PANASONIC	8-97262-933-0	01	1	1207-		●
595	02.510 RELAY; IGNITION EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FULLAUTO AIR CONDITIONER(C68) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1207-		●
601	02.510 RELAY; 4WD 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0710-	●	●
610	02.510 RELAY; KEY ON 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-1204	●	●
610	02.510 RELAY; KEY ON 24V 12.5A PANASONIC	8-97262-933-0	01	1	1205-1206	●	●
610	02.510 RELAY; KEY ON 24V 12.5A PANASONIC	8-97262-933-0	01	1	1205-1206	●	●
610	02.510 RELAY; KEY ON 24V 12.5A PANASONIC	8-97262-933-0	01	1	1207-	●	●
610	02.510 RELAY; KEY ON EXC. FULLAUTO AIR CONDITIONER(C68), REMOTECONT DOOR LOCK<6NF> 24V 12.5A PANASONIC	8-97262-933-0	01	1	1207-	●
610	02.510 RELAY; KEY ON AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 24V 12.5A PANASONIC	8-97262-933-0	01	1	1207-		●
610	02.510 RELAY; KEY ON EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FULLAUTO AIR CONDITIONER(C68) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1207-		●

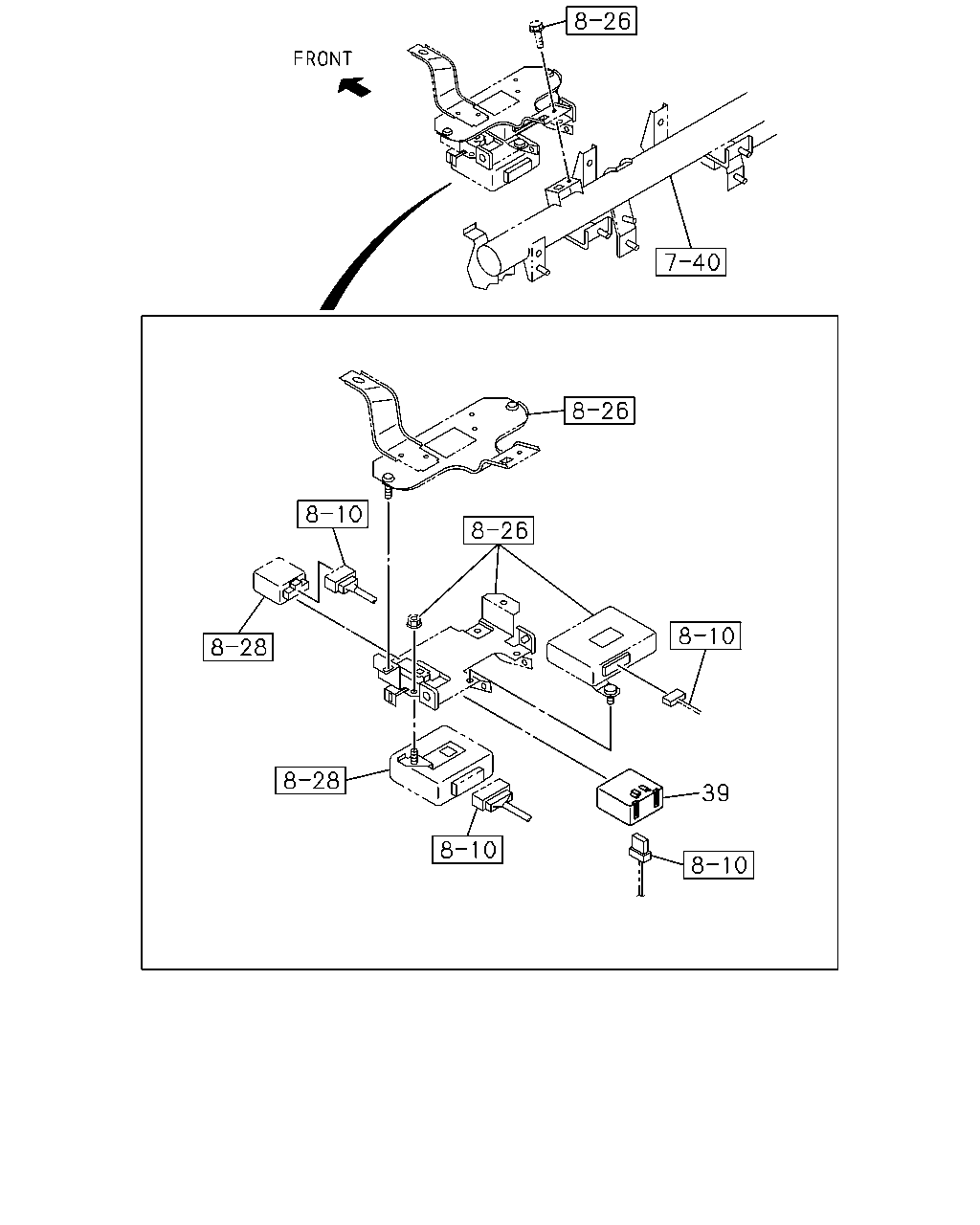

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	39	16.341 RELAY; DOOR LK AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF>	8-98060-789-0	01	1	0804-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
