Sayfa 2-05B - Isuzu EPC

2-05B — CLUTCH PIPING (#5051) — 489 parça

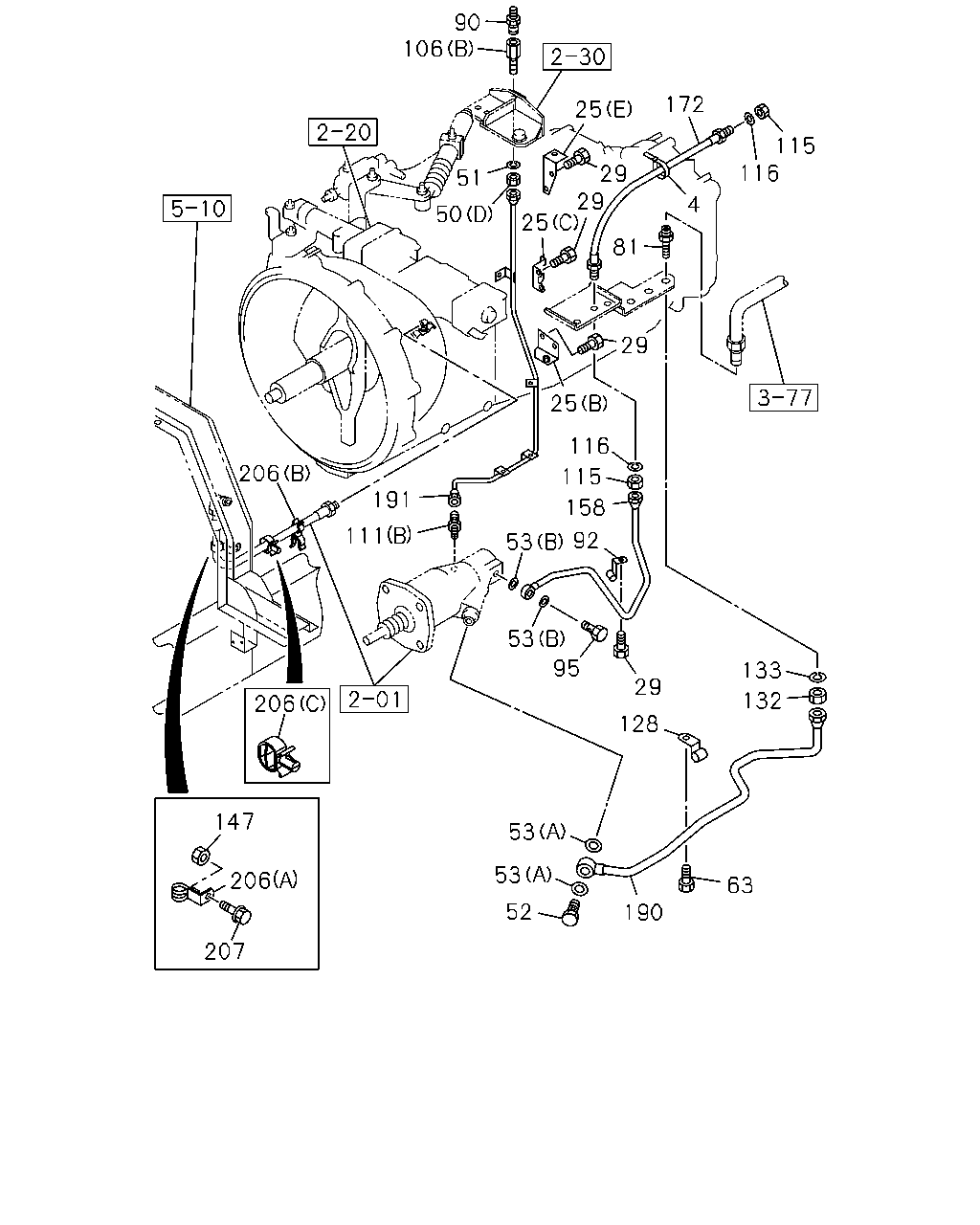

90 106 172 25 115 116 29 29 25 51 4 50 81 29 25 116 206 115 191 158 111 92 53 53 95 133 29 132 206 128 147 53 53 206 63 52 190 207

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	CLIP; FLEX HOSE,CLU CONT L=140	5-09707-031-0	01	1	9606-9606
25	BRACKET; OIL PIPE (A)	1-47477-604-1	01	1	9606-9905
25	BRACKET; OIL PIPE (A)	1-47477-604-2	01	1	9906-
25	BRACKET; OIL PIPE 6WA1 TC-S(56L) (D)	1-47477-653-0	01	1	9703-9905
25	BRACKET; OIL PIPE L TYPE ENG<90L> (D)	1-47477-653-0	01	1	9906-
25	BRACKET; OIL PIPE (E)	1-47478-406-0	01	1	9906-
25	BRACKET; OIL PIPE (B)	1-47477-498-1	01	1	9606-
25	BRACKET; OIL PIPE (C)	1-47477-499-1	01	1	9606-
25	BRACKET; OIL PIPE (F) L=50	1-47475-299-2	03	1	9906-
25	BRACKET; OIL PIPE V TYPE ENG<91L> (F) L=50	1-47475-299-2	01	1	9906-
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28080-820-0	02	1	9606-9606
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	9607-9905
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	9906-0002
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0003-
29	BOLT; CLIP,OIL PIPE 10PE1S(60L) M8X25 FLANGE	0-28080-825-0	01	1	9606-9606
29	BOLT; CLIP,OIL PIPE 10PE1S(60L) M8X30 FLANGE	0-28680-830-0	01	1	9607-9905
29	BOLT; CLIP,OIL PIPE 6WA1 TC-S(56L) M8X20 FLANGE	0-28680-820-0	01	1	9703-9905
29	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	04	1	9606-9905
29	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	05	1	9906-
29	BOLT; CLIP,OIL PIPE M8X40 FLANGE	0-28680-840-0	01	1	9606-9905
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	03	1	9906-0002
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28680-820-0	03	1	0003-
29	BOLT; CLIP,OIL PIPE V TYPE ENG<91L> M8X20 FLANGE	0-28680-820-0	01	1	9906-
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9606-9905
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9906-
50	NUT; UNION (C) M14	9-99111-414-0	01	1	9606-9905
50	NUT; UNION (C) M14	9-99111-414-0	01	1	9906-
50	NUT; UNION (E) M12	9-99111-412-0	01	1	9606-9905
50	NUT; UNION (E) M12 FLANGE	0-91150-212-0	01	1	9906-9906
50	NUT; UNION (E) M12 FLANGE	0-91150-212-0	01	1	9906-
50	NUT; UNION (D) M10 H=8	1-09400-029-0	01	1	9606-9606
50	NUT; UNION (D) M12	9-09840-280-0	01	1	9607-
51	WASHER; LK ID=10.2	9-09150-510-0	01	1	9606-9606
51	WASHER; LK ID=12.2	9-09150-512-0	01	1	9607-
52	BOLT; EYE,AIR PIPE M16X30	1-09675-026-0	01	1	9606-
53	GASKET; JOINT BOLT (A) ID=16.2	1-09630-086-0	02	1	9606-
53	GASKET; JOINT BOLT (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	9606-
63	BOLT; CLIP,PIPE M8X16 FLANGE	0-28080-816-0	01	1	9606-
81	UNION; AIR PIPE	1-09664-233-0	01	1	9606-
90	NIPPLE; OIL PIPE	1-31829-485-0	01	1	9906-
92	CLIP; OIL PIPE ID=9 H=32 L=24	1-09701-221-0	01	1	9606-9905
92	CLIP; OIL PIPE ID=9 L=32	9-09524-865-0	01	1	9906-
95	BOLT; EYE,OIL PIPE M14X27 FLANGE	1-09675-086-0	01	1	9606-
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	02	1	9606-9905
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	9906-9906
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	02	1	9906-0003
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	0004-
106	UNION; OIL PIPE (B) M10 2-WAY STRAIGHT	1-09654-368-0	01	1	9606-9606
106	UNION; OIL PIPE (B) M12 2-WAY STRAIGHT	1-09654-384-0	01	1	9607-
111	UNION; OIL PIPE (A) M14 2WAY	1-09654-176-2	01	1	9606-9905
111	UNION; OIL PIPE (A) M14 2WAY	1-09654-176-2	01	1	9906-
111	UNION; OIL PIPE (B) M8,M10 2-WAY STRAIGHT M8 & M10 STRAIGHT	1-09654-369-0	01	1	9606-9606
111	UNION; OIL PIPE (B) M8,M12 2-WAY STRAIGHT M8 & M12 STRAIGHT	1-09654-383-0	01	1	9607-
111	UNION; OIL PIPE V TYPE ENG<91L> (A) M14 STRAIGHT	9-09223-008-1	01	1	0004-
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9606-9612
115	NUT; FLEX HOSE,CLU CONT 10PE1S(60L) M14	9-99111-414-0	01	1	9606-9612
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9701-9709
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9710-9905
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9906-
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9906-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9606-9612
116	WASHER; FLEX HOSE,CLU CONT 10PE1S(60L) ID=14.2	9-09150-514-0	01	1	9606-9612
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9701-9709
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9710-9905
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9906-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9906-
128	CLIP; AIR PIPE ID=13 H=18 L=20	1-09701-232-0	01	1	9606-9905
128	CLIP; AIR PIPE ID=13	1-09701-030-1	01	1	9906-
132	NUT; UNION,AIR PIPE M20	9-99111-420-0	01	1	9606-9812
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	9606-9905
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	9906-
133	WASHER; LK,UNION ID=20.2	9-09150-520-0	01	1	9606-9810
147	NUT; CLIP FIX M8 FLANGE	8-94279-517-0	01	1	9606-9611
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	9612-9905
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	9906-
147	NUT; CLIP FIX M8 FLANGE	0-91150-208-0	01	1	9705-
158	PIPE; OIL,FLEX HOSE TO CLU BOOSTER	1-47428-571-0	01	1	9606-9608
158	PIPE; OIL,FLEX HOSE TO CLU BOOSTER	1-49161-059-0	01	1	9609-9905
158	PIPE; OIL,FLEX HOSE TO CLU BOOSTER	1-49119-466-2	01	1	9906-
172	HOSE; FLEX,CLU BOOSTER	1-09364-316-0	01	1	9606-9905
172	HOSE; FLEX,CLU BOOSTER 6WA1 TC-C(55L) L=470	1-09364-929-0	01	1	9906-
172	HOSE; FLEX,CLU BOOSTER 10PE1N(61L) L=400	1-09364-263-0	01	1	9906-
190	PIPE; AIR,UNION TO MINIPAC	1-49115-023-0	01	1	9606-9608
190	PIPE; AIR,UNION TO MINIPAC	1-49161-065-0	01	1	9609-9905
190	PIPE; AIR,UNION TO MINIPAC	1-49119-465-1	01	1	9906-
191	PIPE; OIL,UNION TO MINIPAC	1-47429-328-0	01	1	9606-9606
191	PIPE; OIL,UNION TO MINIPAC	1-47429-927-0	01	1	9607-9905
191	PIPE; OIL,UNION TO MINIPAC	1-49163-427-0	01	1	9906-
206	CLIP; TUBE (A) ID=16 H=30 L=30	1-09701-080-0	01	1	9705-9901
206	CLIP; TUBE (A) ID=18 L=28 H=30	1-09701-110-0	01	1	9902-
206	CLIP; TUBE (B) ID=13 & 12	8-94178-797-0	01	1	9705-
206	CLIP; TUBE (C) ID=13-18 L=14.5	1-09709-290-0	01	1	0008-
207	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	9705-

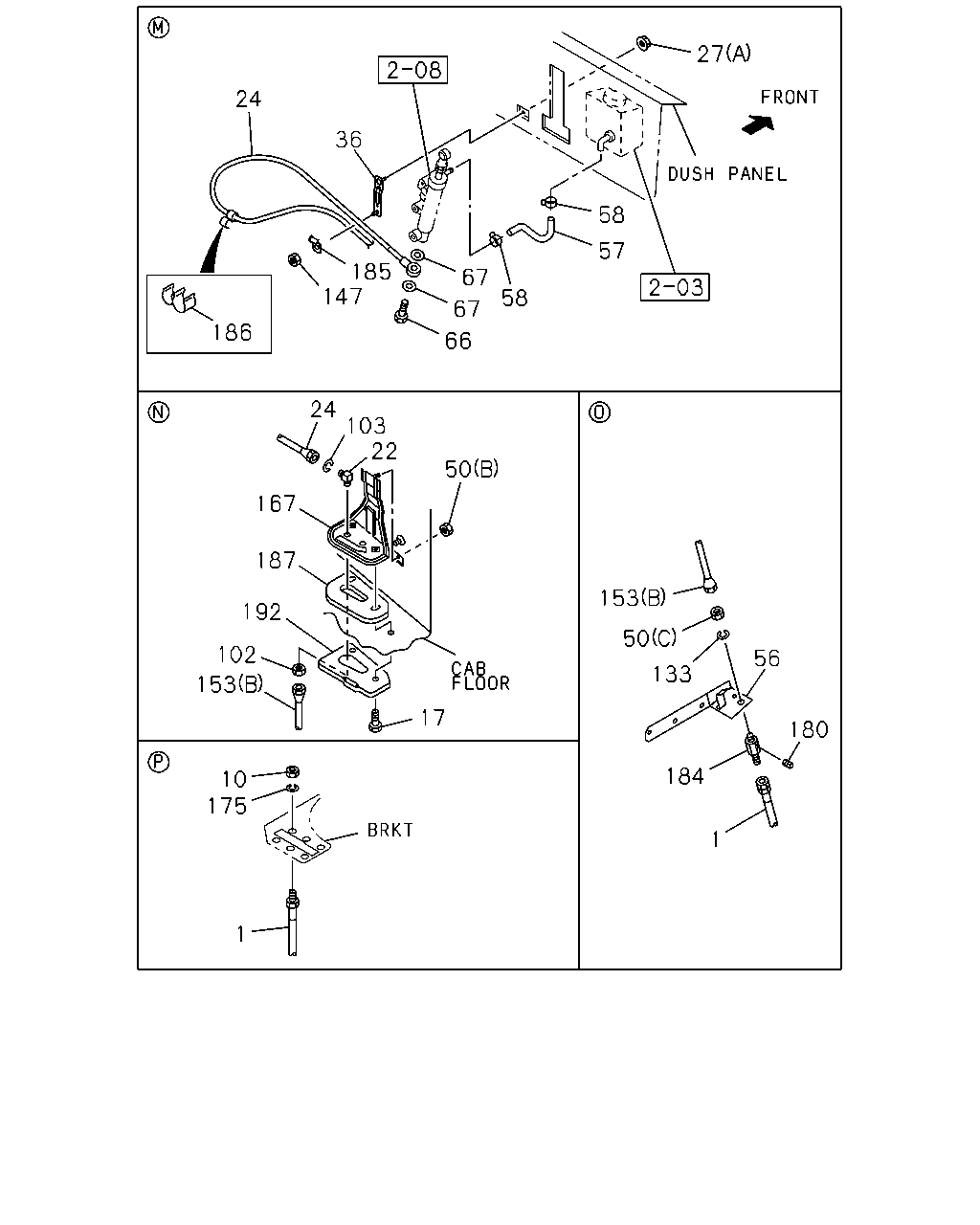

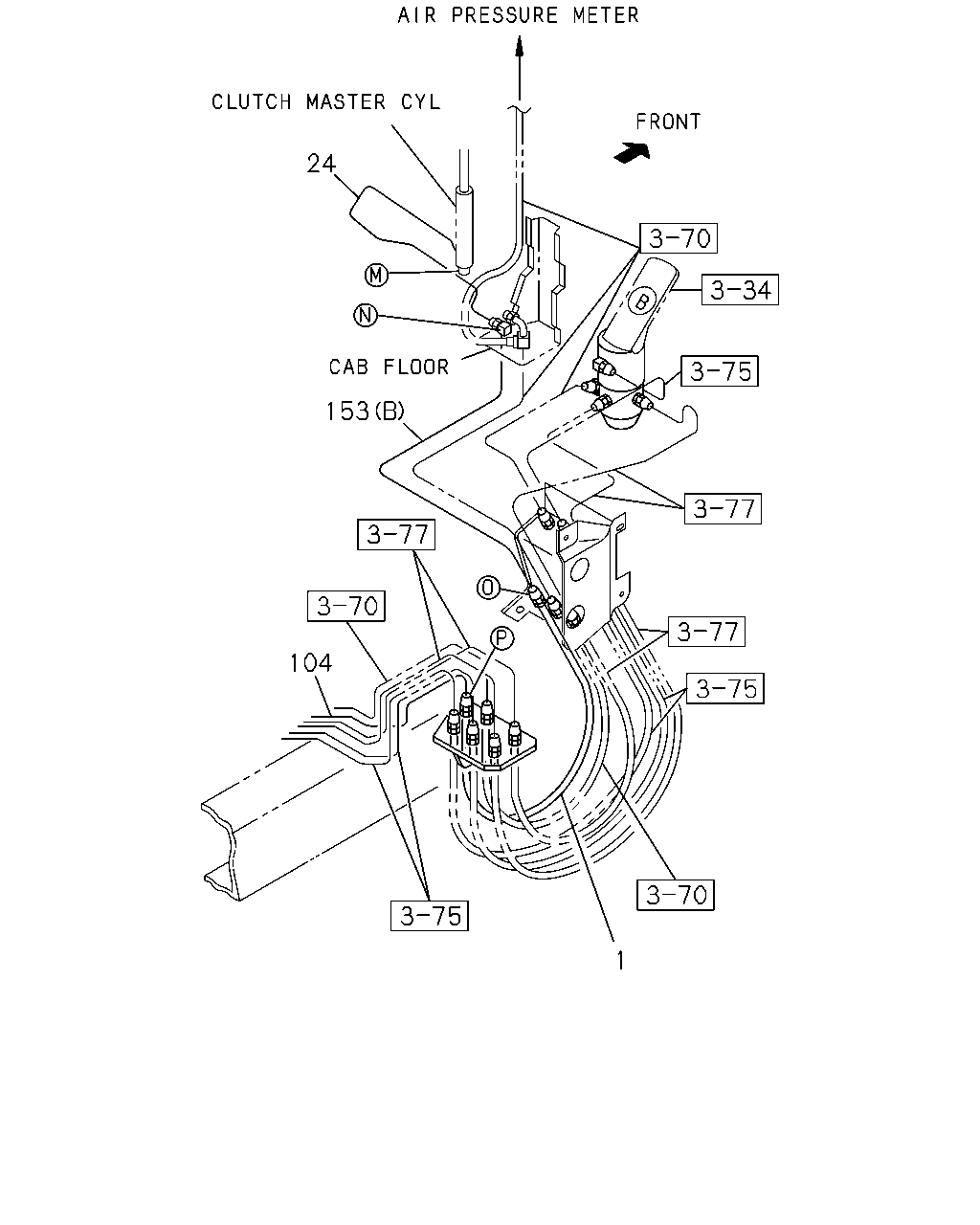

24 153 104 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,CLU CONT L=430	1-09364-859-0	01	1	9606-9905
1	HOSE; FLEX,CLU CONT EXC. CAB UP +110MM<TGG> L=430	1-09364-859-1	01	1	9906-
1	HOSE; FLEX,CLU CONT CAB UP +110MM<TGG> L=520	1-09364-948-1	01	1	9906-
24	PIPE ASM; CLU,M/CYL TO UNION	1-47427-608-0	01	1	9606-9905
24	PIPE ASM; CLU,M/CYL TO UNION	1-47427-608-0	01	1	9906-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 10PE1S(60L) L=1543 SERVICED BY L=1550	1-47426-390-0	01	1	9606-9905
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6WA1 TC-S(56L) L=1521 SERVICED BY L=1550	1-47426-390-0	01	1	9606-9702
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6WA1 TC-S(56L) L=1539 SERVICED BY L=1550	1-47426-390-0	01	1	9703-9708
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6WA1 TC-S(56L) L=1539 SERVICED BY L=1550	1-47426-390-0	01	1	9709-9711
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6WA1 TC-S(56L) L=1536 SERVICED BY L=1550	1-47426-390-0	01	1	9712-9905
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=2889	1-49164-483-0	01	1	9906-9906
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L TYPE ENG<90L> L=2889	1-49164-483-0	01	1	9907-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR V TYPE ENG<91L> L=2495	1-49163-209-0	01	1	9907-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	9606-9905
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	9906-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=1061 SERVICED BY L=1100	1-47426-387-0	01	1	9606-9612
153	PIPE ASM; CLU,UNION TO FLEX 10PE1S(60L) (A) L=1061 SERVICED BY L=1100	1-47426-387-0	01	1	9701-9702
153	PIPE ASM; CLU,UNION TO FLEX 10PE1S(60L) (A) L=1026 SERVICED BY L=1100	1-47426-387-0	01	1	9703-9905
153	PIPE ASM; CLU,UNION TO FLEX V TYPE ENG<91L> (A) L=897	1-49164-397-0	01	1	9906-9907
153	PIPE ASM; CLU,UNION TO FLEX V TYPE ENG<91L> (A) L=1453 SERVICED BY L=1550	1-47426-390-0	01	1	9908-
153	PIPE ASM; CLU,UNION TO FLEX 6WA1 TC-S(56L) (A) L=995 SERVICED BY L=1000	1-47426-386-0	01	1	9701-9702
153	PIPE ASM; CLU,UNION TO FLEX 6WA1 TC-S(56L) (A) L=960 SERVICED BY L=970	1-47426-385-0	01	1	9703-9905
153	PIPE ASM; CLU,UNION TO FLEX L TYPE ENG<90L> (A) L=955	1-49163-430-0	01	1	9906-0003
153	PIPE ASM; CLU,UNION TO FLEX L TYPE ENG<90L> EXC. MIXER TRUCK<RA2> (A) L=955	1-49163-430-0	01	1	0004-
153	PIPE ASM; CLU,UNION TO FLEX L TYPE ENG<90L> MIXER TRUCK<RA2> (A) L=962	1-49165-241-0	01	1	0004-

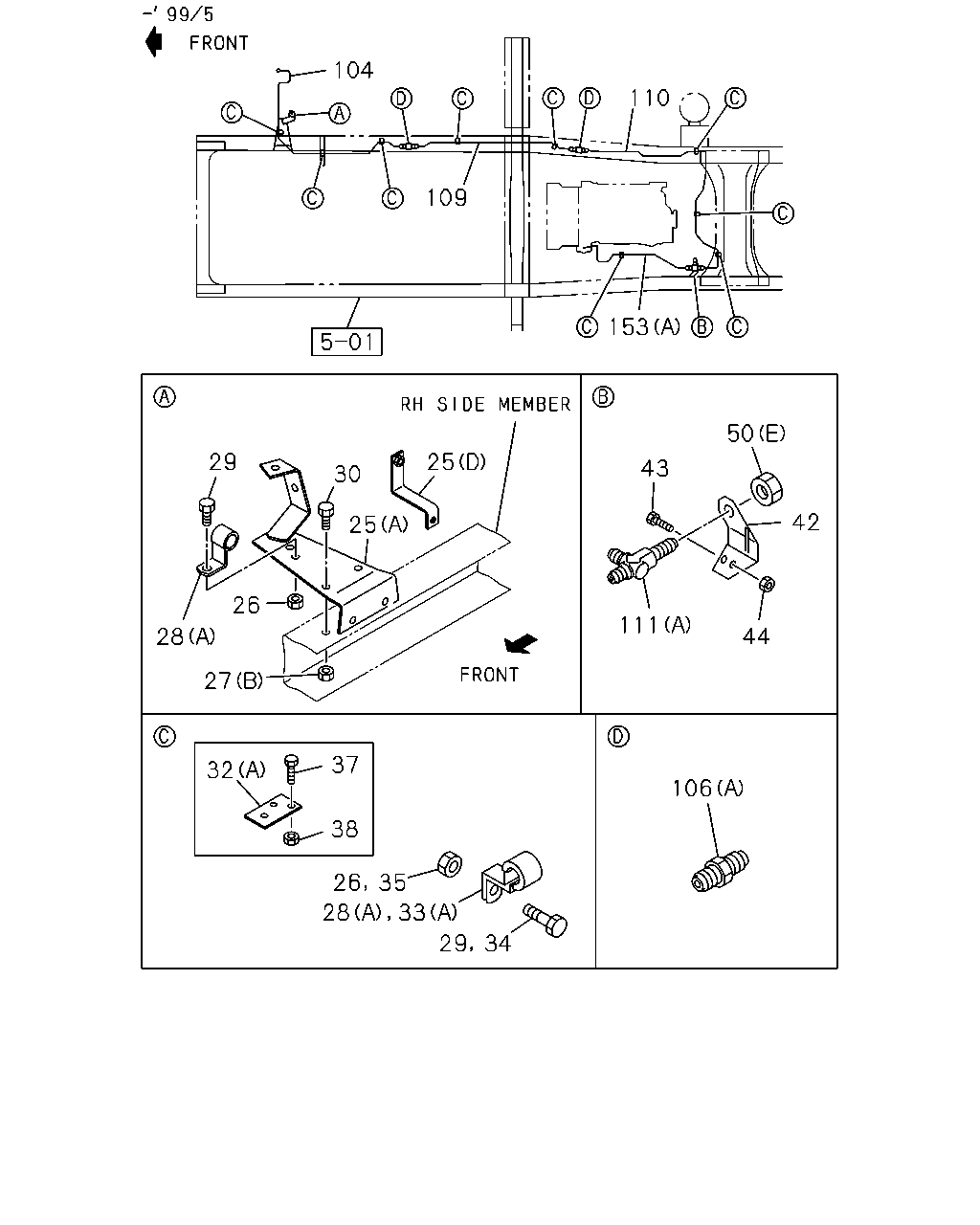

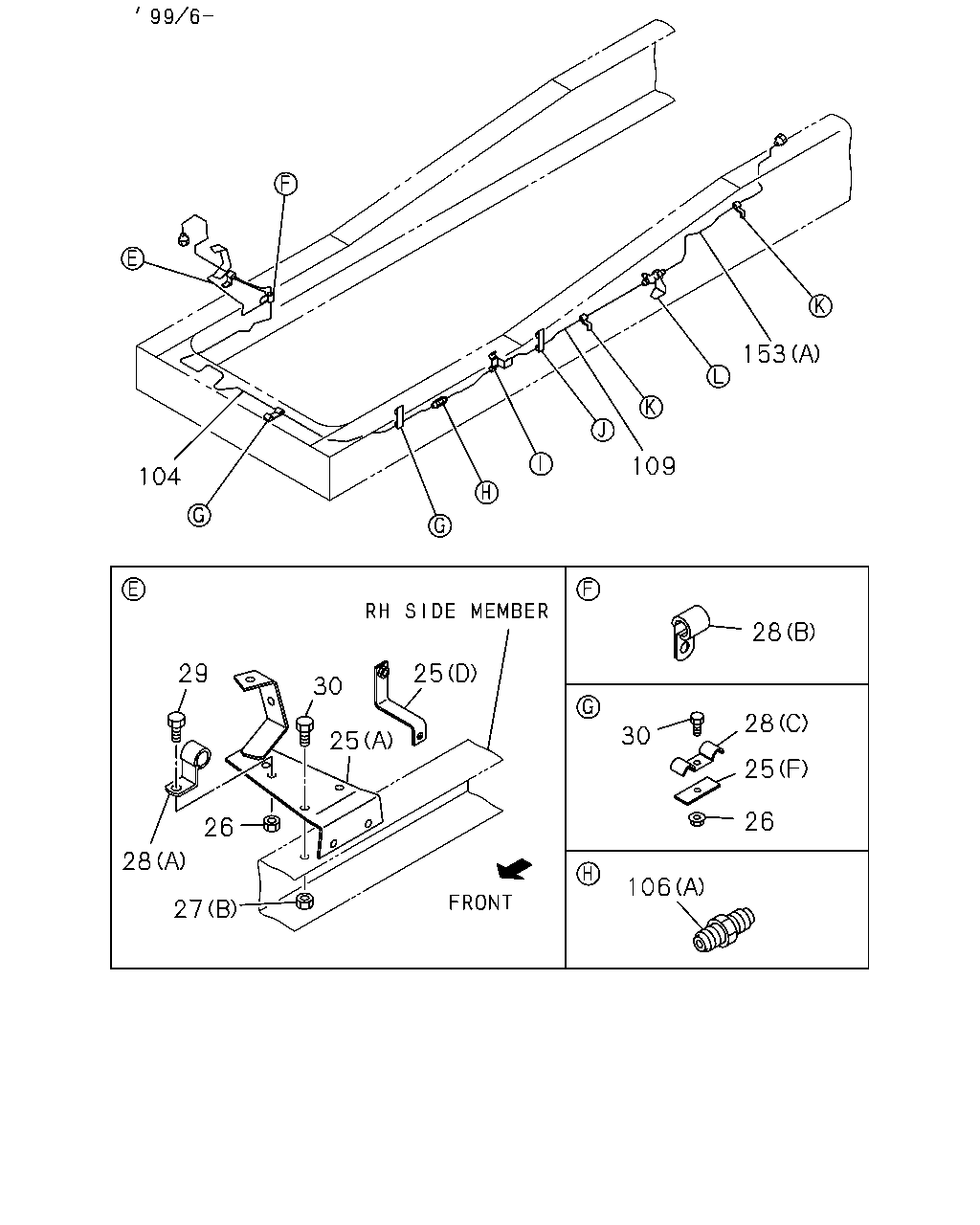

33 33 30 30 35 32 33 34 31 32 50 43 42 111 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	BOLT; BRKT M8X30 FLANGE	0-28080-830-0	02	1	9606-9606
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	9607-9905
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	9906-
30	BOLT; BRKT 6WA1 TC-S(56L) M8X30 FLANGE	0-28680-830-0	01	1	9703-9905
30	BOLT; BRKT 6WA1 TC-C(55L) M8X30 FLANGE	0-28680-830-0	01	1	9906-9906
30	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	9906-9906
30	BOLT; BRKT L TYPE ENG<90L> M8X30 FLANGE	0-28680-830-0	01	1	9906-
30	BOLT; BRKT L TYPE ENG<90L> M8X30 FLANGE	0-28680-830-0	01	1	9906-
31	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9906-9906
31	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9906-
32	BRACKET; CLIP OIL PIPE (A)	1-47475-303-1	01	1	9606-9905
32	BRACKET; CLIP OIL PIPE (C) L=50	1-47475-299-2	01	1	9906-9906
32	BRACKET; CLIP OIL PIPE (C) L=50	1-47475-299-2	01	1	9906-
32	BRACKET; CLIP OIL PIPE (B)	1-47475-881-0	01	1	9906-9906
32	BRACKET; CLIP OIL PIPE (B)	1-47475-881-0	01	1	9906-
33	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9906-
33	CLIP; OIL PIPE 10PE1S(60L) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9606-9905
33	CLIP; OIL PIPE (B) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	9906-9906
33	CLIP; OIL PIPE (B) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	9906-
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	04	1	9606-9905
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9906-9906
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9906-
33	CLIP; OIL PIPE (C) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9906-9906
33	CLIP; OIL PIPE (C) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9906-
34	BOLT; PIPE CLIP 10PE1S(60L) M8X25 FLANGE	0-28080-825-0	02	1	9606-9606
34	BOLT; PIPE CLIP 10PE1S(60L) M8X30 FLANGE	0-28680-830-0	02	1	9607-9905
34	BOLT; PIPE CLIP M8X16 FLANGE	0-28080-816-0	01	1	9606-9606
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28680-820-0	01	1	9607-9905
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	01	1	9906-
34	BOLT; PIPE CLIP V TYPE ENG<91L> M8X20 FLANGE	0-28680-820-0	02	1	9906-
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	02	1	9906-
35	NUT; PIPE CLIP 10PE1S(60L) M8	9-09110-508-0	02	1	9606-9606
35	NUT; PIPE CLIP 10PE1S(60L) M8 FLANGE	0-91150-108-0	02	1	9607-9905
35	NUT; PIPE CLIP M8	9-09110-508-0	04	1	9606-9606
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	04	1	9607-9905
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	05	1	9906-9906
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9906-
35	NUT; PIPE CLIP L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	03	1	9906-0007
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	0008-
35	NUT; PIPE CLIP V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	02	1	9906-
42	BRACKET; FLEX HOSE,CLU CONT	1-47477-563-0	01	1	9606-0102
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X25 FLANGE	0-28080-825-0	02	1	9606-9606
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	9607-9905
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	9906-0007
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	0008-0102
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8	9-09110-508-0	02	1	9606-9606
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9607-9905
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9906-0102
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9606-9905
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9906-
50	NUT; UNION (C) M14	9-99111-414-0	01	1	9606-9905
50	NUT; UNION (C) M14	9-99111-414-0	01	1	9906-
50	NUT; UNION (E) M12	9-99111-412-0	01	1	9606-9905
50	NUT; UNION (E) M12 FLANGE	0-91150-212-0	01	1	9906-9906
50	NUT; UNION (E) M12 FLANGE	0-91150-212-0	01	1	9906-
50	NUT; UNION (D) M10 H=8	1-09400-029-0	01	1	9606-9606
50	NUT; UNION (D) M12	9-09840-280-0	01	1	9607-
111	UNION; OIL PIPE (A) M14 2WAY	1-09654-176-2	01	1	9606-9905
111	UNION; OIL PIPE (A) M14 2WAY	1-09654-176-2	01	1	9906-
111	UNION; OIL PIPE (B) M8,M10 2-WAY STRAIGHT M8 & M10 STRAIGHT	1-09654-369-0	01	1	9606-9606
111	UNION; OIL PIPE (B) M8,M12 2-WAY STRAIGHT M8 & M12 STRAIGHT	1-09654-383-0	01	1	9607-
111	UNION; OIL PIPE V TYPE ENG<91L> (A) M14 STRAIGHT	9-09223-008-1	01	1	0004-

104 110 109 153 50 29 25 43 30 42 25 26 111 28 44 27 37 32 106 38 26 35 28 33 29 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE (A)	1-47477-604-1	01	1	9606-9905
25	BRACKET; OIL PIPE (A)	1-47477-604-2	01	1	9906-
25	BRACKET; OIL PIPE 6WA1 TC-S(56L) (D)	1-47477-653-0	01	1	9703-9905
25	BRACKET; OIL PIPE L TYPE ENG<90L> (D)	1-47477-653-0	01	1	9906-
25	BRACKET; OIL PIPE (E)	1-47478-406-0	01	1	9906-
25	BRACKET; OIL PIPE (B)	1-47477-498-1	01	1	9606-
25	BRACKET; OIL PIPE (C)	1-47477-499-1	01	1	9606-
25	BRACKET; OIL PIPE (F) L=50	1-47475-299-2	03	1	9906-
25	BRACKET; OIL PIPE V TYPE ENG<91L> (F) L=50	1-47475-299-2	01	1	9906-
26	NUT; CLIP,OIL PIPE L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	03	1	9906-0002
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	04	1	0003-
26	NUT; CLIP,OIL PIPE 10PE1S(60L) M8	9-09110-508-0	01	1	9606-9606
26	NUT; CLIP,OIL PIPE 10PE1S(60L) M8 FLANGE	0-91150-108-0	01	1	9607-9905
26	NUT; CLIP,OIL PIPE V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	02	1	9906-0002
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9606-9905
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9906-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9606-9905
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9906-
27	NUT; BRKT (B) M8	9-09110-508-0	02	1	9606-9606
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9607-9905
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9906-
27	NUT; BRKT 6WA1 TC-S(56L) (B) M8 FLANGE	0-91150-108-0	01	1	9703-9905
27	NUT; BRKT L TYPE ENG<90L> (B) M8 FLANGE	0-91150-108-0	01	1	9906-
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9606-9905
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9906-0002
28	CLIP; OIL PIPE V TYPE ENG<91L> (C) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0003-
28	CLIP; OIL PIPE 10PE1S(60L) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9606-9702
28	CLIP; OIL PIPE 6WA1 TC-S(56L),10PE1S(60L) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9703-9905
28	CLIP; OIL PIPE (C) ID=16 & 9 L=21 & 18	1-09700-676-0	03	1	9906-0002
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0003-
28	CLIP; OIL PIPE (C) ID=16 & 9 L=21 & 18	1-09700-676-0	03	1	9906-9906
28	CLIP; OIL PIPE (B) ID=9	9-09524-845-0	01	1	9906-0002
28	CLIP; OIL PIPE (C) ID=16 & 9 L=21 & 18	1-09700-676-0	03	1	0003-
28	CLIP; OIL PIPE (B) ID=9 L=20	9-09524-835-0	01	1	9906-
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28080-820-0	02	1	9606-9606
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	9607-9905
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	9906-0002
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0003-
29	BOLT; CLIP,OIL PIPE 10PE1S(60L) M8X25 FLANGE	0-28080-825-0	01	1	9606-9606
29	BOLT; CLIP,OIL PIPE 10PE1S(60L) M8X30 FLANGE	0-28680-830-0	01	1	9607-9905
29	BOLT; CLIP,OIL PIPE 6WA1 TC-S(56L) M8X20 FLANGE	0-28680-820-0	01	1	9703-9905
29	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	04	1	9606-9905
29	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	05	1	9906-
29	BOLT; CLIP,OIL PIPE M8X40 FLANGE	0-28680-840-0	01	1	9606-9905
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	03	1	9906-0002
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28680-820-0	03	1	0003-
29	BOLT; CLIP,OIL PIPE V TYPE ENG<91L> M8X20 FLANGE	0-28680-820-0	01	1	9906-
30	BOLT; BRKT M8X30 FLANGE	0-28080-830-0	02	1	9606-9606
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	9607-9905
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	9906-
30	BOLT; BRKT 6WA1 TC-S(56L) M8X30 FLANGE	0-28680-830-0	01	1	9703-9905
30	BOLT; BRKT 6WA1 TC-C(55L) M8X30 FLANGE	0-28680-830-0	01	1	9906-9906
30	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	9906-9906
30	BOLT; BRKT L TYPE ENG<90L> M8X30 FLANGE	0-28680-830-0	01	1	9906-
30	BOLT; BRKT L TYPE ENG<90L> M8X30 FLANGE	0-28680-830-0	01	1	9906-
32	BRACKET; CLIP OIL PIPE (A)	1-47475-303-1	01	1	9606-9905
32	BRACKET; CLIP OIL PIPE (C) L=50	1-47475-299-2	01	1	9906-9906
32	BRACKET; CLIP OIL PIPE (C) L=50	1-47475-299-2	01	1	9906-
32	BRACKET; CLIP OIL PIPE (B)	1-47475-881-0	01	1	9906-9906
32	BRACKET; CLIP OIL PIPE (B)	1-47475-881-0	01	1	9906-
33	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9906-
33	CLIP; OIL PIPE 10PE1S(60L) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9606-9905
33	CLIP; OIL PIPE (B) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	9906-9906
33	CLIP; OIL PIPE (B) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	9906-
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	04	1	9606-9905
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9906-9906
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9906-
33	CLIP; OIL PIPE (C) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9906-9906
33	CLIP; OIL PIPE (C) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9906-
34	BOLT; PIPE CLIP 10PE1S(60L) M8X25 FLANGE	0-28080-825-0	02	1	9606-9606
34	BOLT; PIPE CLIP 10PE1S(60L) M8X30 FLANGE	0-28680-830-0	02	1	9607-9905
34	BOLT; PIPE CLIP M8X16 FLANGE	0-28080-816-0	01	1	9606-9606
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28680-820-0	01	1	9607-9905
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	01	1	9906-
34	BOLT; PIPE CLIP V TYPE ENG<91L> M8X20 FLANGE	0-28680-820-0	02	1	9906-
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	02	1	9906-
35	NUT; PIPE CLIP 10PE1S(60L) M8	9-09110-508-0	02	1	9606-9606
35	NUT; PIPE CLIP 10PE1S(60L) M8 FLANGE	0-91150-108-0	02	1	9607-9905
35	NUT; PIPE CLIP M8	9-09110-508-0	04	1	9606-9606
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	04	1	9607-9905
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	05	1	9906-9906
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	9906-
35	NUT; PIPE CLIP L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	03	1	9906-0007
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	0008-
35	NUT; PIPE CLIP V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	02	1	9906-
37	BOLT; CLIP BRKT M8X20 FLANGE	0-28080-820-0	02	1	9606-9606
37	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	02	1	9607-9905
38	NUT; CLIP BRKT M8	9-09110-508-0	02	1	9606-9606
38	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	02	1	9607-9905
42	BRACKET; FLEX HOSE,CLU CONT	1-47477-563-0	01	1	9606-0102
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X25 FLANGE	0-28080-825-0	02	1	9606-9606
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	9607-9905
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	9906-0007
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	0008-0102
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8	9-09110-508-0	02	1	9606-9606
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9607-9905
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9906-0102
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9606-9905
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9906-
50	NUT; UNION (C) M14	9-99111-414-0	01	1	9606-9905
50	NUT; UNION (C) M14	9-99111-414-0	01	1	9906-
50	NUT; UNION (E) M12	9-99111-412-0	01	1	9606-9905
50	NUT; UNION (E) M12 FLANGE	0-91150-212-0	01	1	9906-9906
50	NUT; UNION (E) M12 FLANGE	0-91150-212-0	01	1	9906-
50	NUT; UNION (D) M10 H=8	1-09400-029-0	01	1	9606-9606
50	NUT; UNION (D) M12	9-09840-280-0	01	1	9607-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 10PE1S(60L) L=1543 SERVICED BY L=1550	1-47426-390-0	01	1	9606-9905
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6WA1 TC-S(56L) L=1521 SERVICED BY L=1550	1-47426-390-0	01	1	9606-9702
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6WA1 TC-S(56L) L=1539 SERVICED BY L=1550	1-47426-390-0	01	1	9703-9708
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6WA1 TC-S(56L) L=1539 SERVICED BY L=1550	1-47426-390-0	01	1	9709-9711
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6WA1 TC-S(56L) L=1536 SERVICED BY L=1550	1-47426-390-0	01	1	9712-9905
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=2889	1-49164-483-0	01	1	9906-9906
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L TYPE ENG<90L> L=2889	1-49164-483-0	01	1	9907-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR V TYPE ENG<91L> L=2495	1-49163-209-0	01	1	9907-
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	02	1	9606-9905
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	9906-9906
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	02	1	9906-0003
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	0004-
106	UNION; OIL PIPE (B) M10 2-WAY STRAIGHT	1-09654-368-0	01	1	9606-9606
106	UNION; OIL PIPE (B) M12 2-WAY STRAIGHT	1-09654-384-0	01	1	9607-
109	PIPE; AIR,UNION TO UNION 10PE1S(60L) L=973 SERVICED BY L=1000	1-47426-386-0	01	1	9606-9905
109	PIPE; AIR,UNION TO UNION 6WA1 TC-S(56L) L=1188 SERVICED BY L=1250	1-47426-388-0	01	1	9701-9905
109	PIPE; AIR,UNION TO UNION L TYPE ENG<90L> L=1106 SERVICED BY L=1100	1-47426-387-0	01	1	9906-
109	PIPE; AIR,UNION TO UNION V TYPE ENG<91L> L=942 SERVICED BY L=1000	1-47426-386-0	01	1	9906-
110	PIPE; OIL,UNION TO UNION L=2627 SERVICED BY L=2700	1-47426-396-0	01	1	9606-9612
110	PIPE; OIL,UNION TO UNION 10PE1S(60L) L=2627 SERVICED BY L=2700	1-47426-396-0	01	1	9701-9905
110	PIPE; OIL,UNION TO UNION 6WA1 TC-S(56L) L=2405 SERVICED BY L=2400	1-47426-395-0	01	1	9701-9905
111	UNION; OIL PIPE (A) M14 2WAY	1-09654-176-2	01	1	9606-9905
111	UNION; OIL PIPE (A) M14 2WAY	1-09654-176-2	01	1	9906-
111	UNION; OIL PIPE (B) M8,M10 2-WAY STRAIGHT M8 & M10 STRAIGHT	1-09654-369-0	01	1	9606-9606
111	UNION; OIL PIPE (B) M8,M12 2-WAY STRAIGHT M8 & M12 STRAIGHT	1-09654-383-0	01	1	9607-
111	UNION; OIL PIPE V TYPE ENG<91L> (A) M14 STRAIGHT	9-09223-008-1	01	1	0004-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	9606-9905
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	9906-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=1061 SERVICED BY L=1100	1-47426-387-0	01	1	9606-9612
153	PIPE ASM; CLU,UNION TO FLEX 10PE1S(60L) (A) L=1061 SERVICED BY L=1100	1-47426-387-0	01	1	9701-9702
153	PIPE ASM; CLU,UNION TO FLEX 10PE1S(60L) (A) L=1026 SERVICED BY L=1100	1-47426-387-0	01	1	9703-9905
153	PIPE ASM; CLU,UNION TO FLEX V TYPE ENG<91L> (A) L=897	1-49164-397-0	01	1	9906-9907
153	PIPE ASM; CLU,UNION TO FLEX V TYPE ENG<91L> (A) L=1453 SERVICED BY L=1550	1-47426-390-0	01	1	9908-
153	PIPE ASM; CLU,UNION TO FLEX 6WA1 TC-S(56L) (A) L=995 SERVICED BY L=1000	1-47426-386-0	01	1	9701-9702
153	PIPE ASM; CLU,UNION TO FLEX 6WA1 TC-S(56L) (A) L=960 SERVICED BY L=970	1-47426-385-0	01	1	9703-9905
153	PIPE ASM; CLU,UNION TO FLEX L TYPE ENG<90L> (A) L=955	1-49163-430-0	01	1	9906-0003
153	PIPE ASM; CLU,UNION TO FLEX L TYPE ENG<90L> EXC. MIXER TRUCK<RA2> (A) L=955	1-49163-430-0	01	1	0004-
153	PIPE ASM; CLU,UNION TO FLEX L TYPE ENG<90L> MIXER TRUCK<RA2> (A) L=962	1-49165-241-0	01	1	0004-

27 24 36 58 57 185 147 67 58 67 186 66 24 103 22 50 167 187 153 192 50 102 56 133 153 17 180 184 10 175 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,CLU CONT L=430	1-09364-859-0	01	1	9606-9905
1	HOSE; FLEX,CLU CONT EXC. CAB UP +110MM<TGG> L=430	1-09364-859-1	01	1	9906-
1	HOSE; FLEX,CLU CONT CAB UP +110MM<TGG> L=520	1-09364-948-1	01	1	9906-
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9606-9905
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9906-
17	BOLT; BRKT M8X20 W/LK&PL WASHER	8-94279-216-0	02	1	9606-9905
17	BOLT; BRKT M8X20 W/LK&PL WASHER	8-94279-216-0	02	1	9906-
22	UNION; CLU PIPE M14	9-09225-208-1	01	1	9710-9905
22	UNION; CLU PIPE M14	9-09225-208-1	01	1	9906-
24	PIPE ASM; CLU,M/CYL TO UNION	1-47427-608-0	01	1	9606-9905
24	PIPE ASM; CLU,M/CYL TO UNION	1-47427-608-0	01	1	9906-
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9606-9905
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9906-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9606-9905
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9906-
27	NUT; BRKT (B) M8	9-09110-508-0	02	1	9606-9606
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9607-9905
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9906-
27	NUT; BRKT 6WA1 TC-S(56L) (B) M8 FLANGE	0-91150-108-0	01	1	9703-9905
27	NUT; BRKT L TYPE ENG<90L> (B) M8 FLANGE	0-91150-108-0	01	1	9906-
36	BRACKET; CLIP	1-71117-191-1	01	1	9606-9905
36	BRACKET; CLIP	1-71117-191-1	01	1	9906-
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9606-9905
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9906-
50	NUT; UNION (C) M14	9-99111-414-0	01	1	9606-9905
50	NUT; UNION (C) M14	9-99111-414-0	01	1	9906-
50	NUT; UNION (E) M12	9-99111-412-0	01	1	9606-9905
50	NUT; UNION (E) M12 FLANGE	0-91150-212-0	01	1	9906-9906
50	NUT; UNION (E) M12 FLANGE	0-91150-212-0	01	1	9906-
50	NUT; UNION (D) M10 H=8	1-09400-029-0	01	1	9606-9606
50	NUT; UNION (D) M12	9-09840-280-0	01	1	9607-
56	BRACKET; FLEX HOSE	1-47477-801-0	01	1	9606-9905
56	BRACKET; FLEX HOSE	1-47477-801-0	01	1	9906-
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	9606-9905
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	9906-
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	9606-9905
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	9906-
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9606-9905
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9906-
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	9606-9905
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	9906-
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9710-9905
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9906-
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9710-9905
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9906-
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	9606-9905
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	9906-
133	WASHER; LK,UNION ID=20.2	9-09150-520-0	01	1	9606-9810
147	NUT; CLIP FIX M8 FLANGE	8-94279-517-0	01	1	9606-9611
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	9612-9905
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	9906-
147	NUT; CLIP FIX M8 FLANGE	0-91150-208-0	01	1	9705-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	9606-9905
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	9906-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=1061 SERVICED BY L=1100	1-47426-387-0	01	1	9606-9612
153	PIPE ASM; CLU,UNION TO FLEX 10PE1S(60L) (A) L=1061 SERVICED BY L=1100	1-47426-387-0	01	1	9701-9702
153	PIPE ASM; CLU,UNION TO FLEX 10PE1S(60L) (A) L=1026 SERVICED BY L=1100	1-47426-387-0	01	1	9703-9905
153	PIPE ASM; CLU,UNION TO FLEX V TYPE ENG<91L> (A) L=897	1-49164-397-0	01	1	9906-9907
153	PIPE ASM; CLU,UNION TO FLEX V TYPE ENG<91L> (A) L=1453 SERVICED BY L=1550	1-47426-390-0	01	1	9908-
153	PIPE ASM; CLU,UNION TO FLEX 6WA1 TC-S(56L) (A) L=995 SERVICED BY L=1000	1-47426-386-0	01	1	9701-9702
153	PIPE ASM; CLU,UNION TO FLEX 6WA1 TC-S(56L) (A) L=960 SERVICED BY L=970	1-47426-385-0	01	1	9703-9905
153	PIPE ASM; CLU,UNION TO FLEX L TYPE ENG<90L> (A) L=955	1-49163-430-0	01	1	9906-0003
153	PIPE ASM; CLU,UNION TO FLEX L TYPE ENG<90L> EXC. MIXER TRUCK<RA2> (A) L=955	1-49163-430-0	01	1	0004-
153	PIPE ASM; CLU,UNION TO FLEX L TYPE ENG<90L> MIXER TRUCK<RA2> (A) L=962	1-49165-241-0	01	1	0004-
167	BRACKET; UNION	1-71117-183-3	01	1	9606-9905
167	BRACKET; UNION	1-71117-183-3	01	1	9906-
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9606-9905
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9906-
180	PLUG; PIPE	9-09204-510-0	01	1	9606-9905
180	PLUG; PIPE	9-09204-510-0	01	1	9906-
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	9606-9905
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	9906-
185	CLIP; BRKT ID=9 L=20	9-09545-108-0	01	1	9606-9905
185	CLIP; BRKT ID=9 L=20	9-09545-108-0	01	1	9906-
186	HOLDER; CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-94107-710-0	02	1	9606-0011
186	HOLDER; CLIP DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL)	8-94107-710-0	02	1	0012-
187	SEAL; BRKT	1-71117-222-0	01	1	9606-9905
187	SEAL; BRKT	1-71117-222-0	01	1	9906-
192	PLATE	1-71117-221-0	01	1	9606-9905
192	PLATE	1-71117-221-0	01	1	9906-

153 109 104 28 29 25 30 28 30 25 25 26 26 28 27 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE (A)	1-47477-604-1	01	1	9606-9905
25	BRACKET; OIL PIPE (A)	1-47477-604-2	01	1	9906-
25	BRACKET; OIL PIPE 6WA1 TC-S(56L) (D)	1-47477-653-0	01	1	9703-9905
25	BRACKET; OIL PIPE L TYPE ENG<90L> (D)	1-47477-653-0	01	1	9906-
25	BRACKET; OIL PIPE (E)	1-47478-406-0	01	1	9906-
25	BRACKET; OIL PIPE (B)	1-47477-498-1	01	1	9606-
25	BRACKET; OIL PIPE (C)	1-47477-499-1	01	1	9606-
25	BRACKET; OIL PIPE (F) L=50	1-47475-299-2	03	1	9906-
25	BRACKET; OIL PIPE V TYPE ENG<91L> (F) L=50	1-47475-299-2	01	1	9906-
26	NUT; CLIP,OIL PIPE L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	03	1	9906-0002
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	04	1	0003-
26	NUT; CLIP,OIL PIPE 10PE1S(60L) M8	9-09110-508-0	01	1	9606-9606
26	NUT; CLIP,OIL PIPE 10PE1S(60L) M8 FLANGE	0-91150-108-0	01	1	9607-9905
26	NUT; CLIP,OIL PIPE V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	02	1	9906-0002
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9606-9905
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9906-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9606-9905
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9906-
27	NUT; BRKT (B) M8	9-09110-508-0	02	1	9606-9606
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9607-9905
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9906-
27	NUT; BRKT 6WA1 TC-S(56L) (B) M8 FLANGE	0-91150-108-0	01	1	9703-9905
27	NUT; BRKT L TYPE ENG<90L> (B) M8 FLANGE	0-91150-108-0	01	1	9906-
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9606-9905
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9906-0002
28	CLIP; OIL PIPE V TYPE ENG<91L> (C) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0003-
28	CLIP; OIL PIPE 10PE1S(60L) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9606-9702
28	CLIP; OIL PIPE 6WA1 TC-S(56L),10PE1S(60L) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9703-9905
28	CLIP; OIL PIPE (C) ID=16 & 9 L=21 & 18	1-09700-676-0	03	1	9906-0002
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0003-
28	CLIP; OIL PIPE (C) ID=16 & 9 L=21 & 18	1-09700-676-0	03	1	9906-9906
28	CLIP; OIL PIPE (B) ID=9	9-09524-845-0	01	1	9906-0002
28	CLIP; OIL PIPE (C) ID=16 & 9 L=21 & 18	1-09700-676-0	03	1	0003-
28	CLIP; OIL PIPE (B) ID=9 L=20	9-09524-835-0	01	1	9906-
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28080-820-0	02	1	9606-9606
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	9607-9905
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	9906-0002
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0003-
29	BOLT; CLIP,OIL PIPE 10PE1S(60L) M8X25 FLANGE	0-28080-825-0	01	1	9606-9606
29	BOLT; CLIP,OIL PIPE 10PE1S(60L) M8X30 FLANGE	0-28680-830-0	01	1	9607-9905
29	BOLT; CLIP,OIL PIPE 6WA1 TC-S(56L) M8X20 FLANGE	0-28680-820-0	01	1	9703-9905
29	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	04	1	9606-9905
29	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	05	1	9906-
29	BOLT; CLIP,OIL PIPE M8X40 FLANGE	0-28680-840-0	01	1	9606-9905
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	03	1	9906-0002
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28680-820-0	03	1	0003-
29	BOLT; CLIP,OIL PIPE V TYPE ENG<91L> M8X20 FLANGE	0-28680-820-0	01	1	9906-
30	BOLT; BRKT M8X30 FLANGE	0-28080-830-0	02	1	9606-9606
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	9607-9905
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	9906-
30	BOLT; BRKT 6WA1 TC-S(56L) M8X30 FLANGE	0-28680-830-0	01	1	9703-9905
30	BOLT; BRKT 6WA1 TC-C(55L) M8X30 FLANGE	0-28680-830-0	01	1	9906-9906
30	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	9906-9906
30	BOLT; BRKT L TYPE ENG<90L> M8X30 FLANGE	0-28680-830-0	01	1	9906-
30	BOLT; BRKT L TYPE ENG<90L> M8X30 FLANGE	0-28680-830-0	01	1	9906-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 10PE1S(60L) L=1543 SERVICED BY L=1550	1-47426-390-0	01	1	9606-9905
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6WA1 TC-S(56L) L=1521 SERVICED BY L=1550	1-47426-390-0	01	1	9606-9702
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6WA1 TC-S(56L) L=1539 SERVICED BY L=1550	1-47426-390-0	01	1	9703-9708
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6WA1 TC-S(56L) L=1539 SERVICED BY L=1550	1-47426-390-0	01	1	9709-9711
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6WA1 TC-S(56L) L=1536 SERVICED BY L=1550	1-47426-390-0	01	1	9712-9905
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=2889	1-49164-483-0	01	1	9906-9906
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L TYPE ENG<90L> L=2889	1-49164-483-0	01	1	9907-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR V TYPE ENG<91L> L=2495	1-49163-209-0	01	1	9907-
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	02	1	9606-9905
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	9906-9906
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	02	1	9906-0003
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	0004-
106	UNION; OIL PIPE (B) M10 2-WAY STRAIGHT	1-09654-368-0	01	1	9606-9606
106	UNION; OIL PIPE (B) M12 2-WAY STRAIGHT	1-09654-384-0	01	1	9607-
109	PIPE; AIR,UNION TO UNION 10PE1S(60L) L=973 SERVICED BY L=1000	1-47426-386-0	01	1	9606-9905
109	PIPE; AIR,UNION TO UNION 6WA1 TC-S(56L) L=1188 SERVICED BY L=1250	1-47426-388-0	01	1	9701-9905
109	PIPE; AIR,UNION TO UNION L TYPE ENG<90L> L=1106 SERVICED BY L=1100	1-47426-387-0	01	1	9906-
109	PIPE; AIR,UNION TO UNION V TYPE ENG<91L> L=942 SERVICED BY L=1000	1-47426-386-0	01	1	9906-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	9606-9905
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	9906-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=1061 SERVICED BY L=1100	1-47426-387-0	01	1	9606-9612
153	PIPE ASM; CLU,UNION TO FLEX 10PE1S(60L) (A) L=1061 SERVICED BY L=1100	1-47426-387-0	01	1	9701-9702
153	PIPE ASM; CLU,UNION TO FLEX 10PE1S(60L) (A) L=1026 SERVICED BY L=1100	1-47426-387-0	01	1	9703-9905
153	PIPE ASM; CLU,UNION TO FLEX V TYPE ENG<91L> (A) L=897	1-49164-397-0	01	1	9906-9907
153	PIPE ASM; CLU,UNION TO FLEX V TYPE ENG<91L> (A) L=1453 SERVICED BY L=1550	1-47426-390-0	01	1	9908-
153	PIPE ASM; CLU,UNION TO FLEX 6WA1 TC-S(56L) (A) L=995 SERVICED BY L=1000	1-47426-386-0	01	1	9701-9702
153	PIPE ASM; CLU,UNION TO FLEX 6WA1 TC-S(56L) (A) L=960 SERVICED BY L=970	1-47426-385-0	01	1	9703-9905
153	PIPE ASM; CLU,UNION TO FLEX L TYPE ENG<90L> (A) L=955	1-49163-430-0	01	1	9906-0003
153	PIPE ASM; CLU,UNION TO FLEX L TYPE ENG<90L> EXC. MIXER TRUCK<RA2> (A) L=955	1-49163-430-0	01	1	0004-
153	PIPE ASM; CLU,UNION TO FLEX L TYPE ENG<90L> MIXER TRUCK<RA2> (A) L=962	1-49165-241-0	01	1	0004-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
