Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#50508) — 273 parça

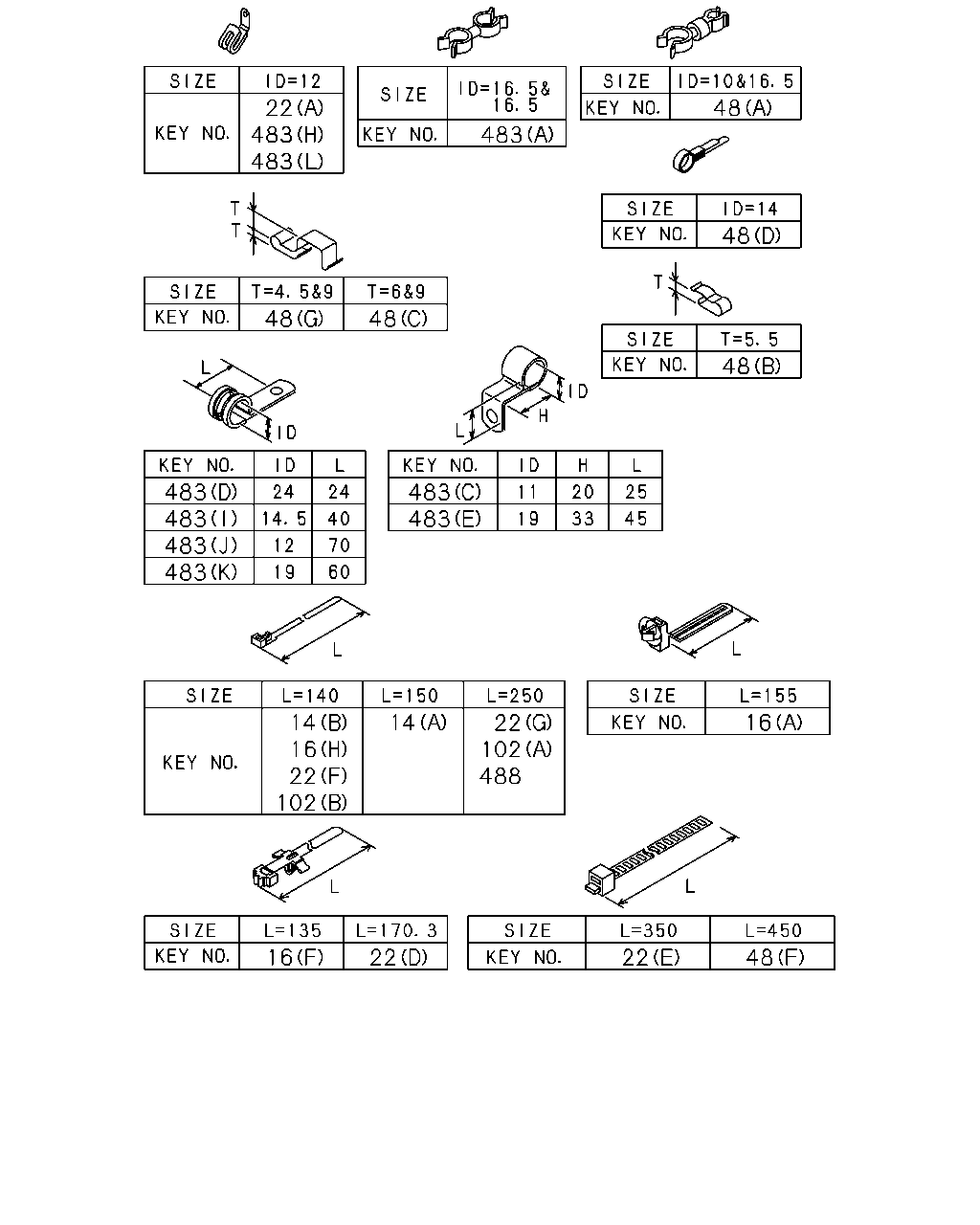

22 483 483 483 48 48 48 48 48 483 483 483 483 14 16 22 102 14 22 102 488 16 22 48 16 22 483 483

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	02.559 CLIP; BAND,HARNESS GLOW SYSTEM DELETE<7RK> 03.162 (B) L=140	5-09707-031-1	01	1	1502-	●
14	02.559 CLIP; BAND,HARNESS 09.242 (A) L=150	8-97355-273-0	02	1	0710-0801	●	●
14	02.559 CLIP; BAND,HARNESS 09.242 (A) L=150	8-97355-273-0	01	1	0802-0810	●	●
14	02.559 CLIP; BAND,HARNESS 09.242 (A) L=150	8-97355-273-0	02	1	0811-0906	●	●
14	02.559 CLIP; BAND,HARNESS 09.242 (A) L=150	8-97355-273-0	01	1	0907-	●	●
16	02.559 CLIP; HARNESS COOLER WO/HEATER(C65) 03.162 (H) L=140	5-09707-031-1	01	1	1401-	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	0710-	●	●
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	0710-	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	0710-	●	●
16	02.559 CLIP; HARNESS (E) L=40.6	8-97229-357-0	02	1	0710-	●	●
16	02.559 CLIP; HARNESS (C)	8-98052-679-0	02	1	0710-	●	●
16	02.559 CLIP; HARNESS (F) L=135	1-09987-143-1	01	1	0711-1106	●	●
16	02.559 CLIP; HARNESS 03.483 (G)	8-97101-436-0	01	1	0711-	●	●
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 02.343 (D) ID=10 & 16	8-94413-325-0	02	1	0710-0710	●	●
22	02.559 CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) 03.162 (F) L=140	5-09707-031-1	02	1	0804-0809	●
22	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4) (G) L=250	5-09707-030-1	01	1	0804-1505	●
22	02.559 CLIP; ENG HARNESS (G) L=250	5-09707-030-1	01	1	0804-1505		●
22	02.559 CLIP; ENG HARNESS 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0710-0801	●	●
22	02.559 CLIP; ENG HARNESS 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0802-0803	●	●
22	02.559 CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) EURO2 SPECIFICATION(NT2) 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0804-	●
22	02.559 CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0804-	●
22	02.559 CLIP; ENG HARNESS GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0804-		●
22	02.559 CLIP; ENG HARNESS 03.162 (C)	8-97037-154-0	01	1	0710-0710	●	●
22	02.559 CLIP; ENG HARNESS (D) L=170.3	1-09987-182-0	01	1	0710-0711	●	●
22	02.559 CLIP; ENG HARNESS (B) ID=14-20	8-97061-603-0	01	1	0710-0711	●	●
22	02.559 CLIP; ENG HARNESS (B) ID=14-20	8-97061-603-0	02	1	0712-0803	●	●
22	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4) (B) ID=14-20	8-97061-603-0	02	1	0804-1505	●
22	02.559 CLIP; ENG HARNESS (B) ID=14-20	8-97061-603-0	02	1	0804-1505		●
22	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4) (B) ID=14-20	8-97061-603-0	01	1	1506-	●
22	02.559 CLIP; ENG HARNESS (B) ID=14-20	8-97061-603-0	01	1	1506-		●
22	02.559 CLIP; ENG HARNESS 08.852 (E) L=350	8-94152-256-1	02	1	0801-0902	●	●
22	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4) 08.852 (E) L=350	8-94152-256-1	02	1	0903-	●
22	02.559 CLIP; ENG HARNESS 08.852 (E) L=350	8-94152-256-1	02	1	0903-		●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	01	1	0710-	●
48	02.559 CLIP; FRAME HARNESS 03.430 (A) ID=10 & 16.5	8-94424-440-0	01	1	0710-	●
48	02.559 CLIP; FRAME HARNESS EURO2 SPECIFICATION(NT2) 03.483 (F) L=450	1-09707-142-1	01	1	0804-	●
48	02.559 CLIP; FRAME HARNESS (E) ID=20	8-94241-972-0	01	1	0710-0803	●	●
48	02.559 CLIP; FRAME HARNESS EURO4 SPECIFICATION(NT4) (E) ID=20	8-94241-972-0	01	1	0804-	●
48	02.559 CLIP; FRAME HARNESS (E) ID=20	8-94241-972-0	01	1	0804-		●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0710-0712	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	06	1	0801-0805	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0806-	●	●
48	02.559 CLIP; FRAME HARNESS (C) T=6.0	5-09709-024-0	01	1	0710-0804	●	●
48	02.559 CLIP; FRAME HARNESS (G) T=4.5 & 9	8-97371-947-0	01	1	0805-	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (B) T=5.5	5-09709-047-0	01	1	0710-0803	●	●
48	02.559 CLIP; FRAME HARNESS EURO4 SPECIFICATION(NT4) 01.240 (B) T=5.5	5-09709-047-0	01	1	0804-0804	●
48	02.559 CLIP; FRAME HARNESS 01.240 (B) T=5.5	5-09709-047-0	01	1	0804-0804		●
48	02.559 CLIP; FRAME HARNESS EURO4 SPECIFICATION(NT4) (B) T=5.5	8-97371-951-0	01	1	0805-	●
48	02.559 CLIP; FRAME HARNESS (B) T=5.5	8-97371-951-0	01	1	0805-		●
102	02.559 CLIP; BAND EURO2 SPECIFICATION(NT2) (A) L=250	5-09707-030-1	01	1	0804-	●
102	02.559 CLIP; BAND EURO2 SPECIFICATION(NT2) 03.162 (B) L=140	5-09707-031-1	04	1	0804-1202	●
102	02.559 CLIP; BAND EURO2 SPECIFICATION(NT2) 03.162 (B) L=140	5-09707-031-1	02	1	1203-	●
102	02.559 CLIP; BAND (A) L=250	5-09707-030-1	04	1	0710-0801	●	●
102	02.559 CLIP; BAND 03.162 (B) L=140	5-09707-031-1	11	1	0710-0801	●	●
102	02.559 CLIP; BAND 03.162 (B) L=140	5-09707-031-1	06	1	0802-0803	●	●
102	02.559 CLIP; BAND EURO4 SPECIFICATION(NT4) 03.162 (B) L=140	5-09707-031-1	06	1	0804-1110	●	●
102	02.559 CLIP; BAND EURO4 SPECIFICATION(NT4) 03.162 (B) L=140	5-09707-031-1	07	1	1111-	●	●
483	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4) (L) ID=12	8-97329-630-0	01	1	1111-	●	●
483	02.559 CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) (K) ID=19 L=60	0-95235-896-0	01	1	0907-	●
483	02.559 CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) 03.671 (H) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0907-	●
483	02.559 CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) 04.785 (J) ID=12 L=70	1-09700-097-1	01	1	0804-	●
483	02.559 CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) (D) ID=24 L=24	1-09701-001-1	01	1	0804-	●
483	02.559 CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) 01.152 (F) L=36	8-94224-891-1	04	1	0804-	●
483	02.559 CLIP; ENG HARNESS 06.602 (B) ID=15 H=24 L=20	1-09700-606-0	01	1	0710-0803	●	●
483	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4) 06.602 (B) ID=15 H=24 L=20	1-09700-606-0	01	1	0804-	●	●
483	02.559 CLIP; ENG HARNESS 09.001 (C) ID=11 H=20 L=25	1-09700-848-0	01	1	0710-0801	●	●
483	02.559 CLIP; ENG HARNESS (D) ID=24 L=24	1-09701-001-1	01	1	0710-0801	●	●
483	02.559 CLIP; ENG HARNESS 04.785 (I) ID=14.5 L=40	1-09701-014-0	01	1	0710-0803	●	●
483	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4) 04.785 (I) ID=14.5 L=40	1-09701-014-0	01	1	0804-	●	●
483	02.559 CLIP; ENG HARNESS (E) ID=19 H=33 L=45	1-09701-045-0	01	1	0710-0803	●	●
483	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4) (E) ID=19 H=33 L=45	1-09701-045-0	01	1	0804-	●	●
483	02.559 CLIP; ENG HARNESS 01.152 (F) L=36	8-94224-891-1	01	1	0710-0803	●	●
483	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4) 01.152 (F) L=36	8-94224-891-1	01	1	0804-	●	●
483	02.559 CLIP; ENG HARNESS (A) ID=16.5 & 16.5	8-94468-380-0	02	1	0710-0801	●	●
483	02.559 CLIP; ENG HARNESS 03.483 (G)	8-97101-436-0	01	1	0710-0801	●	●
483	02.559 CLIP; ENG HARNESS (H) ID=12	8-97329-630-0	01	1	0710-0801	●	●
488	02.559 CLIP; CABLE,TRAILER L=250	5-09707-030-1	01	1	0710-	●	●

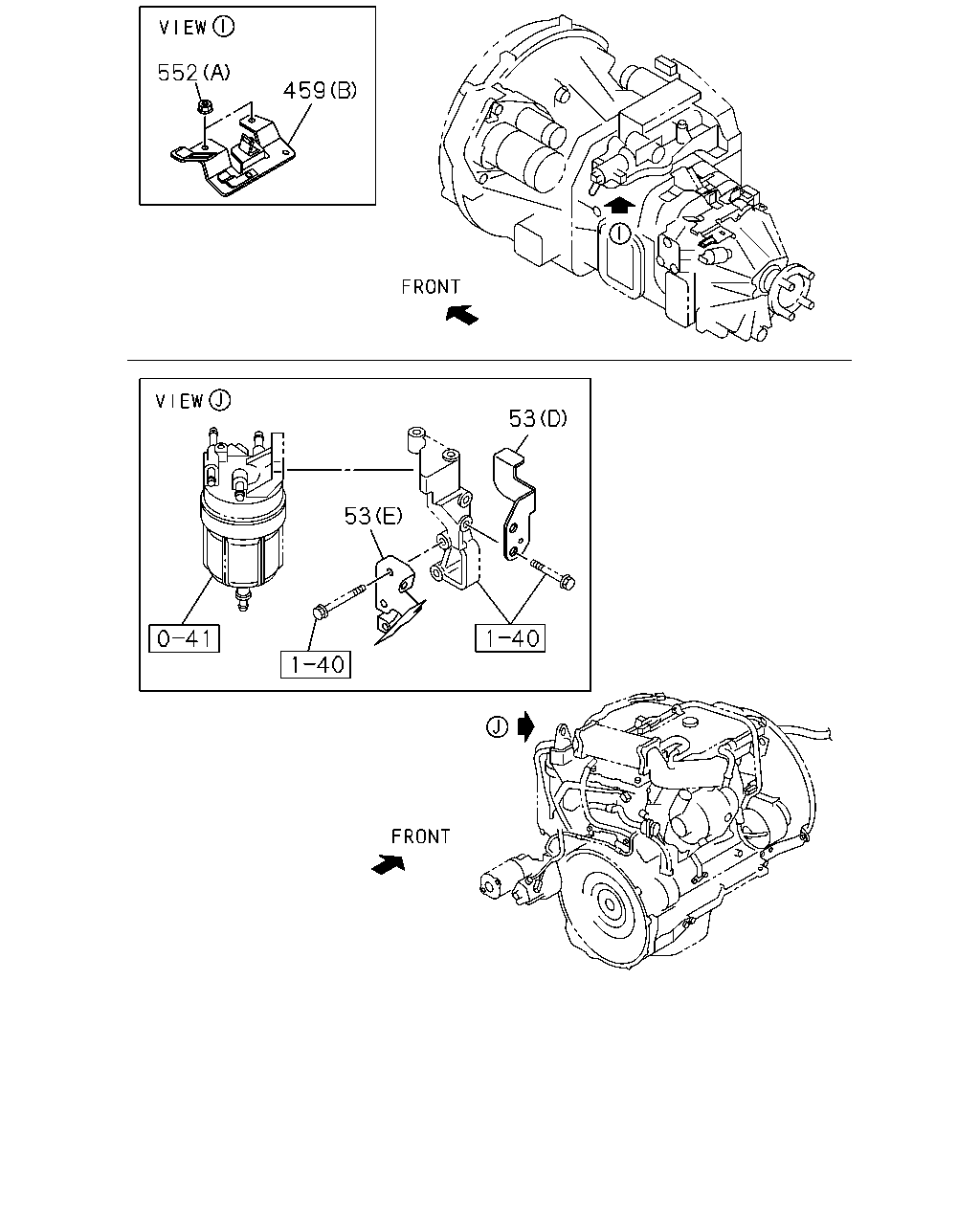

552 459 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) (K)	8-98084-590-0	01	1	0812-	●	●
53	02.483 BRACKET; HARNESS EXC. IMMOBILIZER SYSTEM(7KC) (J)	8-98074-502-0	01	1	0804-	●
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	0710-	●	●
53	02.483 BRACKET; HARNESS (G)	8-98051-457-0	01	1	0710-	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	0710-	●	●
53	02.483 BRACKET; HARNESS 02.559 (D)	8-98052-804-0	01	1	0710-	●	●
53	02.483 BRACKET; HARNESS 02.559 (E)	8-98055-636-0	01	1	0710-0803	●	●
53	02.483 BRACKET; HARNESS EURO4 SPECIFICATION(NT4) 02.559 (E)	8-98055-636-0	01	1	0804-	●	●
53	02.483 BRACKET; HARNESS (H)	8-98077-503-1	01	1	0710-	●	●
53	02.483 BRACKET; HARNESS (F)	8-98077-504-0	01	1	0710-	●	●
53	02.483 BRACKET; HARNESS (I)	8-98094-629-0	01	1	0710-1303	●	●
53	02.483 BRACKET; HARNESS (I)	8-98130-669-1	01	1	1304-	●	●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98039-277-1	02	1	0710-0805	●	●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98039-277-2	02	1	0806-	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 02.559 (A)	8-97379-633-0	01	1	0710-	●	●
459	02.483 BRACKET; SUPPORT,HARNESS (B)	8-98020-227-3	01	1	0710-	●	●
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0710-	●	●

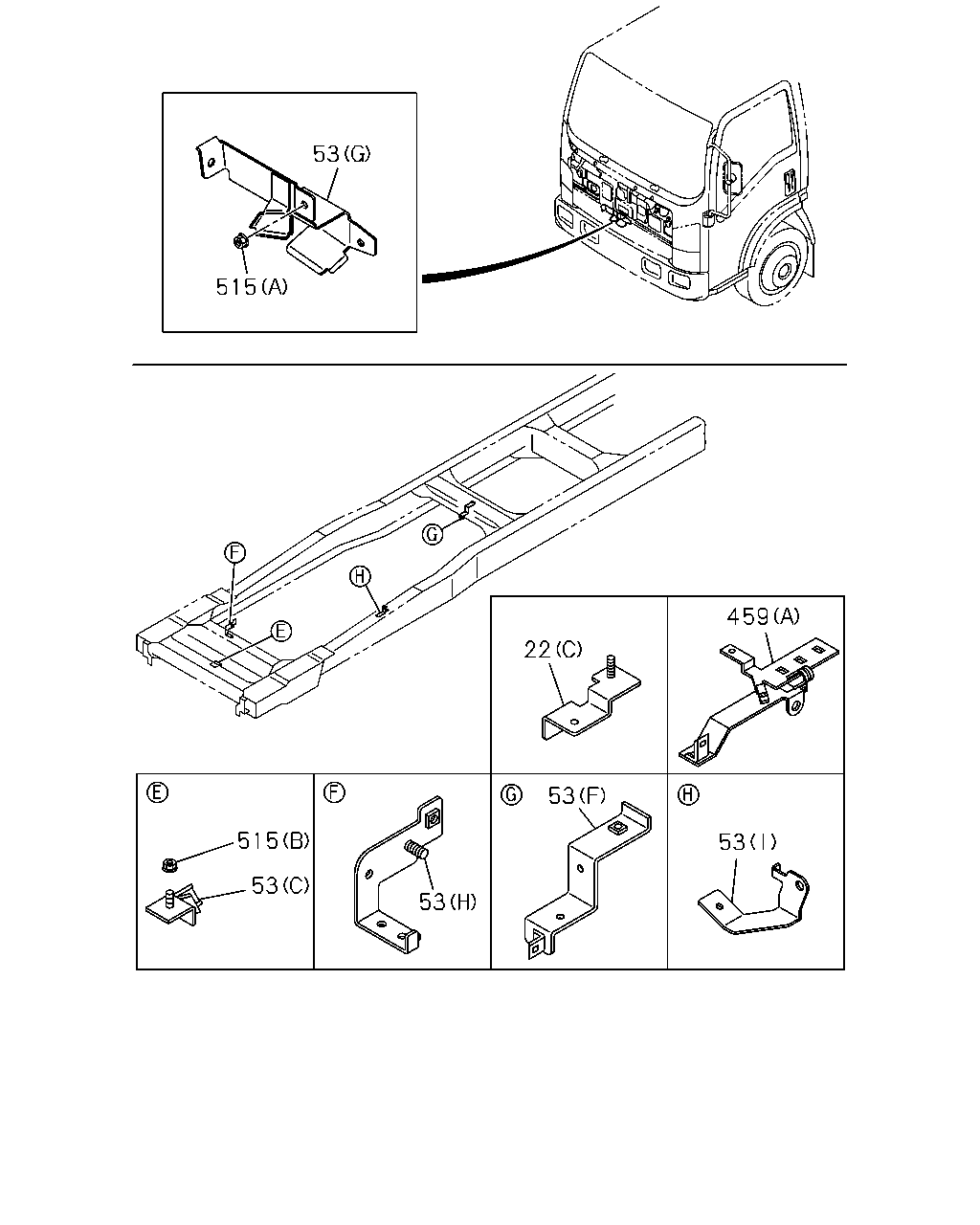

53 515 459 22 53 515 53 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	02.559 CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) 03.162 (F) L=140	5-09707-031-1	02	1	0804-0809	●
22	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4) (G) L=250	5-09707-030-1	01	1	0804-1505	●
22	02.559 CLIP; ENG HARNESS (G) L=250	5-09707-030-1	01	1	0804-1505		●
22	02.559 CLIP; ENG HARNESS 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0710-0801	●	●
22	02.559 CLIP; ENG HARNESS 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0802-0803	●	●
22	02.559 CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) EURO2 SPECIFICATION(NT2) 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0804-	●
22	02.559 CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0804-	●
22	02.559 CLIP; ENG HARNESS GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0804-		●
22	02.559 CLIP; ENG HARNESS 03.162 (C)	8-97037-154-0	01	1	0710-0710	●	●
22	02.559 CLIP; ENG HARNESS (D) L=170.3	1-09987-182-0	01	1	0710-0711	●	●
22	02.559 CLIP; ENG HARNESS (B) ID=14-20	8-97061-603-0	01	1	0710-0711	●	●
22	02.559 CLIP; ENG HARNESS (B) ID=14-20	8-97061-603-0	02	1	0712-0803	●	●
22	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4) (B) ID=14-20	8-97061-603-0	02	1	0804-1505	●
22	02.559 CLIP; ENG HARNESS (B) ID=14-20	8-97061-603-0	02	1	0804-1505		●
22	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4) (B) ID=14-20	8-97061-603-0	01	1	1506-	●
22	02.559 CLIP; ENG HARNESS (B) ID=14-20	8-97061-603-0	01	1	1506-		●
22	02.559 CLIP; ENG HARNESS 08.852 (E) L=350	8-94152-256-1	02	1	0801-0902	●	●
22	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4) 08.852 (E) L=350	8-94152-256-1	02	1	0903-	●
22	02.559 CLIP; ENG HARNESS 08.852 (E) L=350	8-94152-256-1	02	1	0903-		●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) (K)	8-98084-590-0	01	1	0812-	●	●
53	02.483 BRACKET; HARNESS EXC. IMMOBILIZER SYSTEM(7KC) (J)	8-98074-502-0	01	1	0804-	●
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	0710-	●	●
53	02.483 BRACKET; HARNESS (G)	8-98051-457-0	01	1	0710-	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	0710-	●	●
53	02.483 BRACKET; HARNESS 02.559 (D)	8-98052-804-0	01	1	0710-	●	●
53	02.483 BRACKET; HARNESS 02.559 (E)	8-98055-636-0	01	1	0710-0803	●	●
53	02.483 BRACKET; HARNESS EURO4 SPECIFICATION(NT4) 02.559 (E)	8-98055-636-0	01	1	0804-	●	●
53	02.483 BRACKET; HARNESS (H)	8-98077-503-1	01	1	0710-	●	●
53	02.483 BRACKET; HARNESS (F)	8-98077-504-0	01	1	0710-	●	●
53	02.483 BRACKET; HARNESS (I)	8-98094-629-0	01	1	0710-1303	●	●
53	02.483 BRACKET; HARNESS (I)	8-98130-669-1	01	1	1304-	●	●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98039-277-1	02	1	0710-0805	●	●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98039-277-2	02	1	0806-	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 02.559 (A)	8-97379-633-0	01	1	0710-	●	●
459	02.483 BRACKET; SUPPORT,HARNESS (B)	8-98020-227-3	01	1	0710-	●	●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0710-	●	●
515	02.559 NUT; BRKT 03.162 (D) M10 FLANGE	0-91180-110-0	01	1	0710-	●	●
515	02.559 NUT; BRKT 03.162 (D) M10 FLANGE	0-91180-110-0	01	1	0710-	●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	0710-	●	●
515	02.559 NUT; BRKT 01.062 (C) M8 FLANGE	0-91180-108-0	01	1	0710-		●

16 16 22 483 16 16 16 483 483 48 513 530 507

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	02.559 CLIP; HARNESS COOLER WO/HEATER(C65) 03.162 (H) L=140	5-09707-031-1	01	1	1401-	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	0710-	●	●
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	0710-	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	0710-	●	●
16	02.559 CLIP; HARNESS (E) L=40.6	8-97229-357-0	02	1	0710-	●	●
16	02.559 CLIP; HARNESS (C)	8-98052-679-0	02	1	0710-	●	●
16	02.559 CLIP; HARNESS (F) L=135	1-09987-143-1	01	1	0711-1106	●	●
16	02.559 CLIP; HARNESS 03.483 (G)	8-97101-436-0	01	1	0711-	●	●
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 02.343 (D) ID=10 & 16	8-94413-325-0	02	1	0710-0710	●	●
22	02.559 CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) 03.162 (F) L=140	5-09707-031-1	02	1	0804-0809	●
22	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4) (G) L=250	5-09707-030-1	01	1	0804-1505	●
22	02.559 CLIP; ENG HARNESS (G) L=250	5-09707-030-1	01	1	0804-1505		●
22	02.559 CLIP; ENG HARNESS 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0710-0801	●	●
22	02.559 CLIP; ENG HARNESS 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0802-0803	●	●
22	02.559 CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONT(C60), FULLAUTOAIR CONDITIONER(C68) EURO2 SPECIFICATION(NT2) 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0804-	●
22	02.559 CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0804-	●
22	02.559 CLIP; ENG HARNESS GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0804-		●
22	02.559 CLIP; ENG HARNESS 03.162 (C)	8-97037-154-0	01	1	0710-0710	●	●
22	02.559 CLIP; ENG HARNESS (D) L=170.3	1-09987-182-0	01	1	0710-0711	●	●
22	02.559 CLIP; ENG HARNESS (B) ID=14-20	8-97061-603-0	01	1	0710-0711	●	●
22	02.559 CLIP; ENG HARNESS (B) ID=14-20	8-97061-603-0	02	1	0712-0803	●	●
22	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4) (B) ID=14-20	8-97061-603-0	02	1	0804-1505	●
22	02.559 CLIP; ENG HARNESS (B) ID=14-20	8-97061-603-0	02	1	0804-1505		●
22	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4) (B) ID=14-20	8-97061-603-0	01	1	1506-	●
22	02.559 CLIP; ENG HARNESS (B) ID=14-20	8-97061-603-0	01	1	1506-		●
22	02.559 CLIP; ENG HARNESS 08.852 (E) L=350	8-94152-256-1	02	1	0801-0902	●	●
22	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4) 08.852 (E) L=350	8-94152-256-1	02	1	0903-	●
22	02.559 CLIP; ENG HARNESS 08.852 (E) L=350	8-94152-256-1	02	1	0903-		●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	01	1	0710-	●
48	02.559 CLIP; FRAME HARNESS 03.430 (A) ID=10 & 16.5	8-94424-440-0	01	1	0710-	●
48	02.559 CLIP; FRAME HARNESS EURO2 SPECIFICATION(NT2) 03.483 (F) L=450	1-09707-142-1	01	1	0804-	●
48	02.559 CLIP; FRAME HARNESS (E) ID=20	8-94241-972-0	01	1	0710-0803	●	●
48	02.559 CLIP; FRAME HARNESS EURO4 SPECIFICATION(NT4) (E) ID=20	8-94241-972-0	01	1	0804-	●
48	02.559 CLIP; FRAME HARNESS (E) ID=20	8-94241-972-0	01	1	0804-		●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0710-0712	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	06	1	0801-0805	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0806-	●	●
48	02.559 CLIP; FRAME HARNESS (C) T=6.0	5-09709-024-0	01	1	0710-0804	●	●
48	02.559 CLIP; FRAME HARNESS (G) T=4.5 & 9	8-97371-947-0	01	1	0805-	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (B) T=5.5	5-09709-047-0	01	1	0710-0803	●	●
48	02.559 CLIP; FRAME HARNESS EURO4 SPECIFICATION(NT4) 01.240 (B) T=5.5	5-09709-047-0	01	1	0804-0804	●
48	02.559 CLIP; FRAME HARNESS 01.240 (B) T=5.5	5-09709-047-0	01	1	0804-0804		●
48	02.559 CLIP; FRAME HARNESS EURO4 SPECIFICATION(NT4) (B) T=5.5	8-97371-951-0	01	1	0805-	●
48	02.559 CLIP; FRAME HARNESS (B) T=5.5	8-97371-951-0	01	1	0805-		●
483	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4) (L) ID=12	8-97329-630-0	01	1	1111-	●	●
483	02.559 CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) (K) ID=19 L=60	0-95235-896-0	01	1	0907-	●
483	02.559 CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) 03.671 (H) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0907-	●
483	02.559 CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) 04.785 (J) ID=12 L=70	1-09700-097-1	01	1	0804-	●
483	02.559 CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) (D) ID=24 L=24	1-09701-001-1	01	1	0804-	●
483	02.559 CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) 01.152 (F) L=36	8-94224-891-1	04	1	0804-	●
483	02.559 CLIP; ENG HARNESS 06.602 (B) ID=15 H=24 L=20	1-09700-606-0	01	1	0710-0803	●	●
483	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4) 06.602 (B) ID=15 H=24 L=20	1-09700-606-0	01	1	0804-	●	●
483	02.559 CLIP; ENG HARNESS 09.001 (C) ID=11 H=20 L=25	1-09700-848-0	01	1	0710-0801	●	●
483	02.559 CLIP; ENG HARNESS (D) ID=24 L=24	1-09701-001-1	01	1	0710-0801	●	●
483	02.559 CLIP; ENG HARNESS 04.785 (I) ID=14.5 L=40	1-09701-014-0	01	1	0710-0803	●	●
483	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4) 04.785 (I) ID=14.5 L=40	1-09701-014-0	01	1	0804-	●	●
483	02.559 CLIP; ENG HARNESS (E) ID=19 H=33 L=45	1-09701-045-0	01	1	0710-0803	●	●
483	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4) (E) ID=19 H=33 L=45	1-09701-045-0	01	1	0804-	●	●
483	02.559 CLIP; ENG HARNESS 01.152 (F) L=36	8-94224-891-1	01	1	0710-0803	●	●
483	02.559 CLIP; ENG HARNESS EURO4 SPECIFICATION(NT4) 01.152 (F) L=36	8-94224-891-1	01	1	0804-	●	●
483	02.559 CLIP; ENG HARNESS (A) ID=16.5 & 16.5	8-94468-380-0	02	1	0710-0801	●	●
483	02.559 CLIP; ENG HARNESS 03.483 (G)	8-97101-436-0	01	1	0710-0801	●	●
483	02.559 CLIP; ENG HARNESS (H) ID=12	8-97329-630-0	01	1	0710-0801	●	●
507	02.559 FINISHER 02.183 L=40	8-94212-660-0	01	1	0711-0902	●	●
507	02.559 FINISHER 02.183 L=40	8-94212-660-0	01	1	0903-1301		●
513	02.559 TAPE; SOFT,HARNESS 70X45	8-97304-372-0	01	1	0907-1309	●	●
513	02.559 TAPE; SOFT,HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) 130X80	8-97304-373-0	01	1	0808-	●	●
530	02.559 SEAL; HARNESS 16.545 OD=32 BLACK	8-98031-126-0	01	1	0710-	●	●

139 150 150 139 150 304 150 313 480 529 304 480 377 377 386 377 386 386 377 386 24 515 577 219 294 515 515 552 24 515 552 516

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	02.559 NUT; HARNESS 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0710-1409	●	●
24	02.559 NUT; HARNESS (A) M6 FLANGE STAINLESS	8-98297-112-0	01	1	1410-	●	●
24	02.559 NUT; HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0801-	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) 16.090 (C) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0812-1101	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) 16.090 (C) M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) 16.090 (C) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0710-	●	●
139	02.559 BOLT; BRKT O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0710-0805	●	●
139	02.559 BOLT; BRKT O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0806-	●	●
150	02.343 BOLT; CLIP EURO2 SPECIFICATION(NT2) 03.671 (A) M6X10 FLANGE	0-28050-610-0	01	1	0907-	●
150	02.343 BOLT; CLIP EURO2 SPECIFICATION(NT2) (C) M8X16 FLANGE	0-28050-816-0	03	1	0804-0906	●
150	02.343 BOLT; CLIP EURO2 SPECIFICATION(NT2) (C) M8X16 FLANGE	0-28050-816-0	04	1	0907-	●
150	02.343 BOLT; CLIP 03.671 (A) M6X10 FLANGE	0-28050-610-0	01	1	0710-0801	●	●
150	02.343 BOLT; CLIP (B) M8X12 FLANGE	0-28050-812-0	01	1	0710-0803	●	●
150	02.343 BOLT; CLIP EURO4 SPECIFICATION(NT4) (B) M8X12 FLANGE	0-28050-812-0	01	1	0804-	●	●
150	02.343 BOLT; CLIP (C) M8X16 FLANGE	0-28050-816-0	01	1	0710-0801	●	●
150	02.343 BOLT; CLIP 00.662 (D) M8X14 FLANGE	0-28080-814-0	01	1	0710-0801	●	●
219	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
294	02.559 NUT 04.309 M8 W/LK WASHER	8-94413-537-0	01	1	0801-0904	●	●
294	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	01	1	0905-	●	●
304	02.483 BOLT; ENG HARNESS CLIP 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0710-0801	●	●
304	02.483 BOLT; ENG HARNESS CLIP 00.029 (B) M10X16 FLANGE	0-28151-016-0	01	1	0710-0803	●	●
304	02.483 BOLT; ENG HARNESS CLIP EURO4 SPECIFICATION(NT4) 00.029 (B) M10X16 FLANGE	0-28151-016-0	01	1	0804-	●	●
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	0710-	●	●
377	02.559 BOLT; CAB EARTH (A) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	0710-1004	●	●
377	02.559 BOLT; CAB EARTH 02.343 (D) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1005-	●	●
377	02.559 BOLT; CAB EARTH (B) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0710-1004	●	●
377	02.559 BOLT; CAB EARTH (A) M6X14 W/PL WASHER	8-98164-836-0	01	1	1005-	●	●
377	02.559 BOLT; CAB EARTH 02.343 (C) M8X25 W/LK&PL WASHER	8-97087-203-0	02	1	0710-1004	●	●
386	02.559 BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0710-1004	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (C) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (B) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0710-1004	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (D) M8X24 W/PL WASHER	8-98141-256-1	01	1	1005-	●	●
480	02.483 BOLT; BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0710-	●	●
480	02.483 BOLT; BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	01	1	0710-	●	●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0710-	●	●
515	02.559 NUT; BRKT 03.162 (D) M10 FLANGE	0-91180-110-0	01	1	0710-	●	●
515	02.559 NUT; BRKT 03.162 (D) M10 FLANGE	0-91180-110-0	01	1	0710-	●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	0710-	●	●
515	02.559 NUT; BRKT 01.062 (C) M8 FLANGE	0-91180-108-0	01	1	0710-		●
516	02.559 BOLT; HARNESS EXC. IMMOBILIZER SYSTEM(7KC) 09.650 M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	0804-	●
529	02.559 BOLT; RELAY BOX 08.155 M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	0710-	●	●
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0710-	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	04	1	0710-	●	●

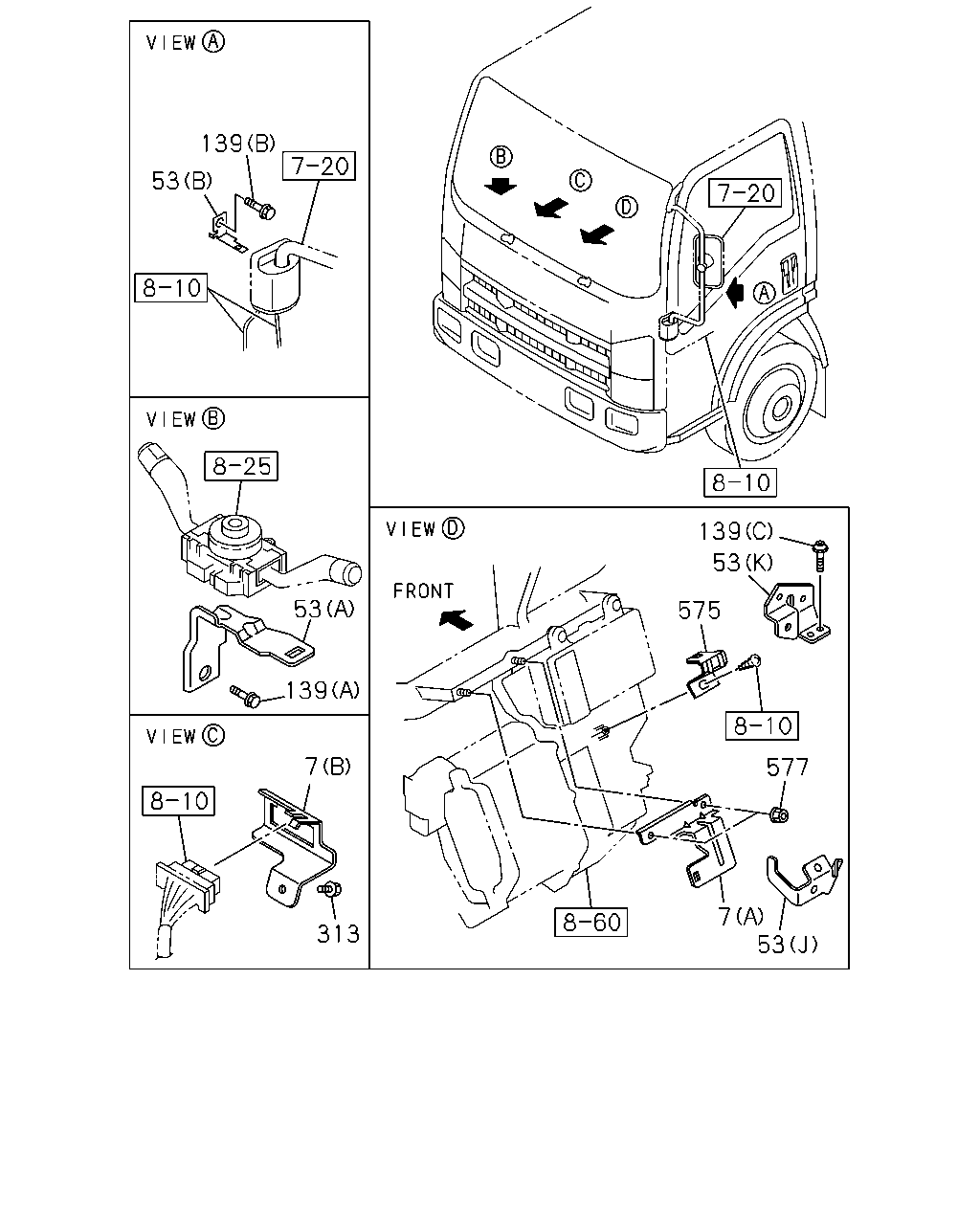

139 53 139 53 53 575 139 7 577 7 53 313

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	02.559 BRACKET; CONNECTOR (A)	8-98029-762-4	01	1	0710-	●	●
7	02.559 BRACKET; CONNECTOR (B)	8-98043-070-1	01	1	0710-	●	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) (K)	8-98084-590-0	01	1	0812-	●	●
53	02.483 BRACKET; HARNESS EXC. IMMOBILIZER SYSTEM(7KC) (J)	8-98074-502-0	01	1	0804-	●
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	0710-	●	●
53	02.483 BRACKET; HARNESS (G)	8-98051-457-0	01	1	0710-	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	0710-	●	●
53	02.483 BRACKET; HARNESS 02.559 (D)	8-98052-804-0	01	1	0710-	●	●
53	02.483 BRACKET; HARNESS 02.559 (E)	8-98055-636-0	01	1	0710-0803	●	●
53	02.483 BRACKET; HARNESS EURO4 SPECIFICATION(NT4) 02.559 (E)	8-98055-636-0	01	1	0804-	●	●
53	02.483 BRACKET; HARNESS (H)	8-98077-503-1	01	1	0710-	●	●
53	02.483 BRACKET; HARNESS (F)	8-98077-504-0	01	1	0710-	●	●
53	02.483 BRACKET; HARNESS (I)	8-98094-629-0	01	1	0710-1303	●	●
53	02.483 BRACKET; HARNESS (I)	8-98130-669-1	01	1	1304-	●	●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98039-277-1	02	1	0710-0805	●	●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> (B)	8-98039-277-2	02	1	0806-	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) 16.090 (C) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0812-1101	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) 16.090 (C) M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER &DEFROSTER(C41),AIR CONDITIONER MANUAL CO NT(C60),COOLER WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) 16.090 (C) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0710-	●	●
139	02.559 BOLT; BRKT O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0710-0805	●	●
139	02.559 BOLT; BRKT O/SIDE MIRROR RR VIEW LONG ARM<DH2>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0806-	●	●
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	0710-	●	●
575	02.559 BRACKET; FUSE BOX	8-98042-656-2	01	1	0710-	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	04	1	0710-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
