2-05A — CLUTCH PIPING (#5050) — 258 parça

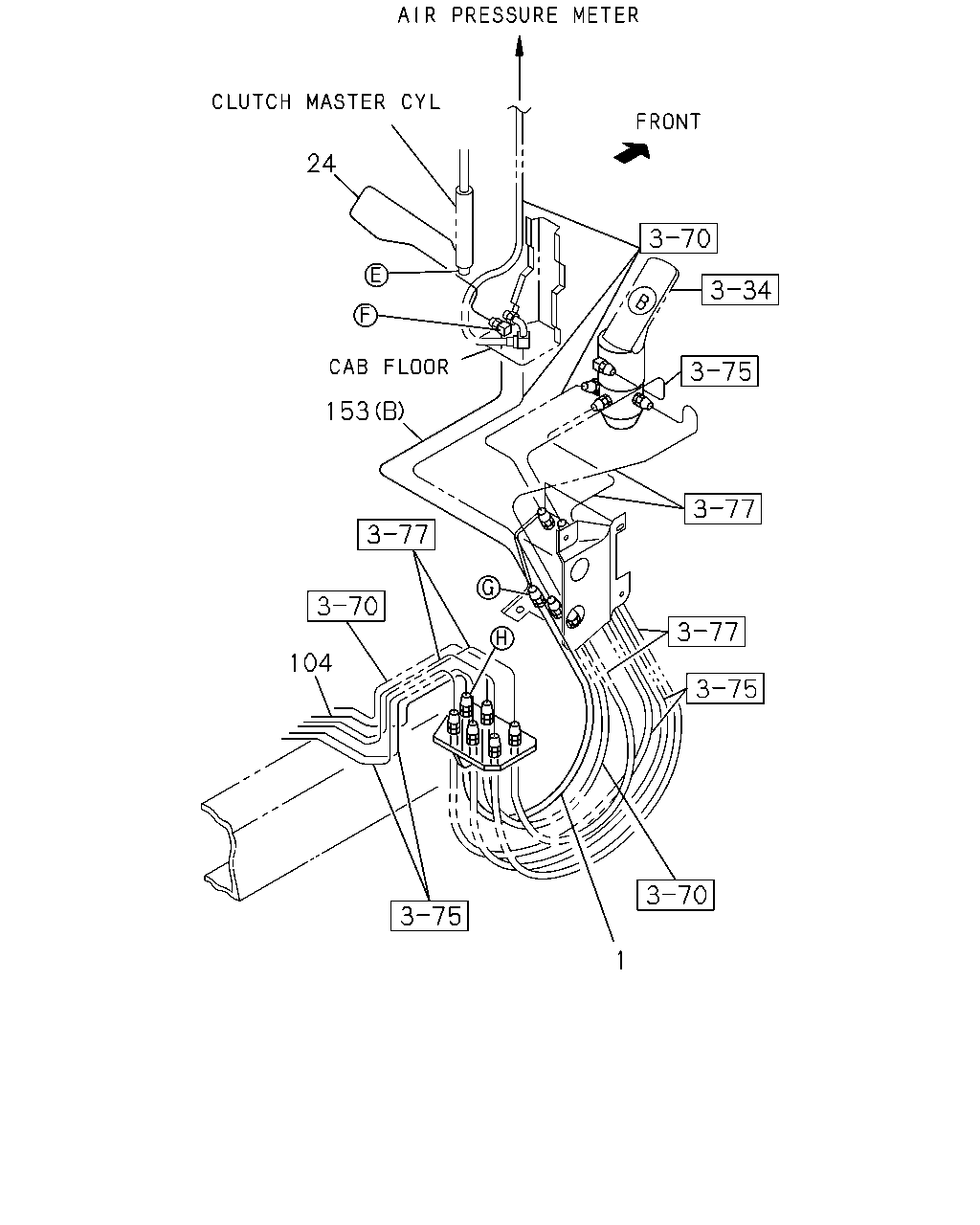

24 153 104 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,CLU CONT L=430	1-09364-859-0	01	1	9606-9905
1	HOSE; FLEX,CLU CONT EXC. CAB UP +110MM<TGG> L=430	1-09364-859-1	01	1	9906-
1	HOSE; FLEX,CLU CONT CAB UP +110MM<TGG> L=520	1-09364-948-1	01	1	9906-
24	PIPE ASM; CLU,M/CYL TO UNION L=643	1-47424-529-2	01	1	9606-9905
24	PIPE ASM; CLU,M/CYL TO UNION L=643	1-47424-529-2	01	1	9906-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L TYPE ENG<90L> L=1589	1-49164-423-0	01	1	9906-0002
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L TYPE ENG<90L> L=1595	1-49165-436-0	01	1	0003-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 10PE1S(60L) L=1543 SERVICED BY L=1550	1-47426-390-0	01	1	9606-9905
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 10PE1N(61L) L=1543 SERVICED BY L=1550	1-47426-390-0	01	1	9906-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6WA1 TC-S(56L) L=1521 SERVICED BY L=1550	1-47426-390-0	01	1	9606-9702
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6WA1 TC-S(56L) L=1539 SERVICED BY L=1550	1-47426-390-0	01	1	9703-9708
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6WA1 TC-S(56L) L=1539 SERVICED BY L=1550	1-47426-390-0	01	1	9709-9711
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6WA1 TC-S(56L) L=1536 SERVICED BY L=1550	1-47426-390-0	01	1	9712-9905
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	9606-9905
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	9906-
153	PIPE ASM; CLU,UNION TO FLEX V TYPE ENG<91L> (A) L=623	1-47429-395-0	01	1	9606-9905
153	PIPE ASM; CLU,UNION TO FLEX 10PE1N(61L) (A) L=623	1-47429-395-0	01	1	9906-
153	PIPE ASM; CLU,UNION TO FLEX 6WA1 TC-S(56L) (A) L=1907 SERVICED BY L=1950	1-47428-769-0	01	1	9610-9902
153	PIPE ASM; CLU,UNION TO FLEX 6WA1 TC-S(56L) (A) L=1879 SERVICED BY L=1950	1-47426-393-0	01	1	9903-9905
153	PIPE ASM; CLU,UNION TO FLEX 6WA1 TC-C(55L) (A) L=1879 SERVICED BY L=1950	1-47426-393-0	01	1	9906-0007
153	PIPE ASM; CLU,UNION TO FLEX L TYPE ENG<90L> (A) L=1879 SERVICED BY L=1950	1-47426-393-0	01	1	0008-

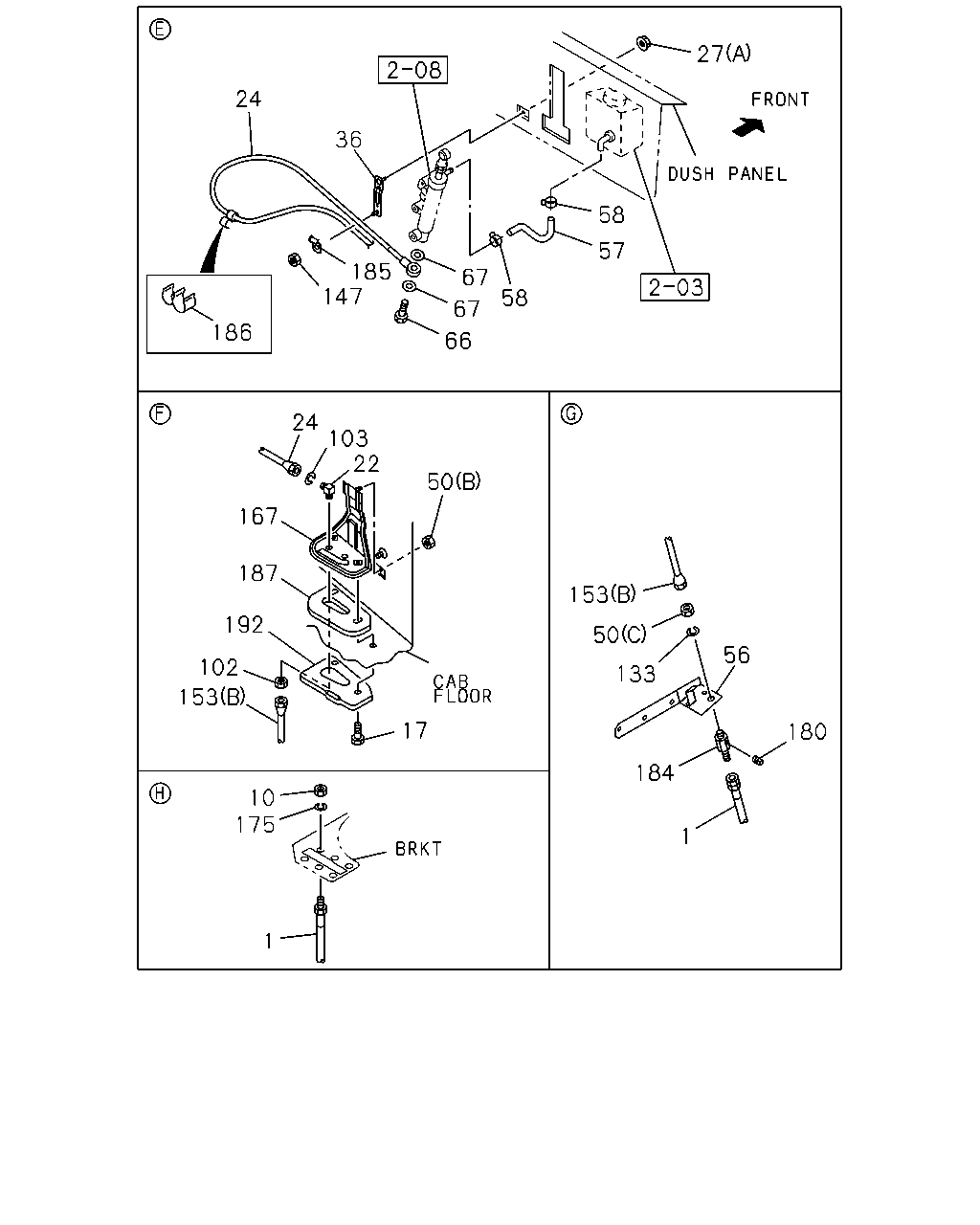

27 24 36 58 57 185 147 67 58 67 186 66 24 103 22 50 167 187 153 192 50 56 102 133 153 17 180 184 10 175 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,CLU CONT L=430	1-09364-859-0	01	1	9606-9905
1	HOSE; FLEX,CLU CONT EXC. CAB UP +110MM<TGG> L=430	1-09364-859-1	01	1	9906-
1	HOSE; FLEX,CLU CONT CAB UP +110MM<TGG> L=520	1-09364-948-1	01	1	9906-
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9606-9905
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9906-
17	BOLT; BRKT M8X20 W/LK&PL WASHER	8-94279-216-0	02	1	9606-9905
17	BOLT; BRKT M8X20 W/LK&PL WASHER	8-94279-216-0	02	1	9906-
22	UNION; CLU PIPE M14	9-09225-208-1	01	1	9710-9905
22	UNION; CLU PIPE M14	9-09225-208-1	01	1	9906-
24	PIPE ASM; CLU,M/CYL TO UNION L=643	1-47424-529-2	01	1	9606-9905
24	PIPE ASM; CLU,M/CYL TO UNION L=643	1-47424-529-2	01	1	9906-
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9606-9905
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9906-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9606-9905
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9906-
27	NUT; BRKT (B) M8	9-09110-508-0	02	1	9606-9606
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9607-9905
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9906-
27	NUT; BRKT 6WA1 TC-S(56L) (B) M8 FLANGE	0-91150-108-0	01	1	9703-9905
27	NUT; BRKT L TYPE ENG<90L> (B) M8 FLANGE	0-91150-108-0	01	1	9906-
36	BRACKET; CLIP	1-71117-191-1	01	1	9606-9905
36	BRACKET; CLIP	1-71117-191-1	01	1	9906-
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9606-9905
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9906-
50	NUT; UNION (C) M14	9-99111-414-0	01	1	9606-9905
50	NUT; UNION (C) M14	9-99111-414-0	01	1	9906-
50	NUT; UNION ASSISTER SHIFT CONTROL<WX8> (A) M20	9-99111-420-0	01	1	9606-9905
50	NUT; UNION ASSISTER SHIFT CONTROL<WX8> (A) M20	9-99111-420-0	01	1	9906-
56	BRACKET; FLEX HOSE	1-47477-801-0	01	1	9606-9905
56	BRACKET; FLEX HOSE	1-47477-801-0	01	1	9906-
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	9606-9905
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	9906-
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	9606-9905
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	9906-
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9606-9905
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9906-
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	9606-9905
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	9906-
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9710-9905
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9906-
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9710-9905
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9906-
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	9606-9905
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	9906-
147	NUT; CLIP FIX M8 FLANGE	8-94279-517-0	01	1	9606-9611
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	9612-9905
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	9906-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	9606-9905
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	9906-
153	PIPE ASM; CLU,UNION TO FLEX V TYPE ENG<91L> (A) L=623	1-47429-395-0	01	1	9606-9905
153	PIPE ASM; CLU,UNION TO FLEX 10PE1N(61L) (A) L=623	1-47429-395-0	01	1	9906-
153	PIPE ASM; CLU,UNION TO FLEX 6WA1 TC-S(56L) (A) L=1907 SERVICED BY L=1950	1-47428-769-0	01	1	9610-9902
153	PIPE ASM; CLU,UNION TO FLEX 6WA1 TC-S(56L) (A) L=1879 SERVICED BY L=1950	1-47426-393-0	01	1	9903-9905
153	PIPE ASM; CLU,UNION TO FLEX 6WA1 TC-C(55L) (A) L=1879 SERVICED BY L=1950	1-47426-393-0	01	1	9906-0007
153	PIPE ASM; CLU,UNION TO FLEX L TYPE ENG<90L> (A) L=1879 SERVICED BY L=1950	1-47426-393-0	01	1	0008-
167	BRACKET; UNION	1-71117-183-3	01	1	9606-9905
167	BRACKET; UNION	1-71117-183-3	01	1	9906-
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9606-9905
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9906-
180	PLUG; PIPE	9-09204-510-0	01	1	9606-9905
180	PLUG; PIPE	9-09204-510-0	01	1	9906-
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	9606-9905
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	9906-
185	CLIP; BRKT ID=9 L=20	9-09545-108-0	01	1	9606-9905
185	CLIP; BRKT ID=9 L=20	9-09545-108-0	01	1	9906-
186	HOLDER; CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-94107-710-0	02	1	9606-0011
186	HOLDER; CLIP DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL)	8-94107-710-0	02	1	0012-
187	SEAL; BRKT	1-71117-222-0	01	1	9606-9905
187	SEAL; BRKT	1-71117-222-0	01	1	9906-
192	PLATE	1-71117-221-0	01	1	9606-9905
192	PLATE	1-71117-221-0	01	1	9906-

153 104 109 47 47 25 44 30 42 43 25 27 26 35 28 33 29 34 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE (A)	1-47477-604-1	01	1	9606-9905
25	BRACKET; OIL PIPE (A)	1-47477-604-2	01	1	9906-
25	BRACKET; OIL PIPE 6WA1 TC-S(56L) (D)	1-47477-653-0	01	1	9703-9905
25	BRACKET; OIL PIPE L TYPE ENG<90L> (D)	1-47477-653-0	01	1	9906-
26	NUT; CLIP,OIL PIPE L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	03	1	9906-0002
26	NUT; CLIP,OIL PIPE 10PE1S(60L) M8	9-09110-508-0	01	1	9606-9606
26	NUT; CLIP,OIL PIPE 10PE1S(60L) M8 FLANGE	0-91150-108-0	01	1	9607-9905
26	NUT; CLIP,OIL PIPE 10PE1N(61L) M8 FLANGE	0-91150-108-0	01	1	9906-0002
26	NUT; CLIP,OIL PIPE 10PE1N(61L) M8 FLANGE	0-91150-108-0	02	1	0003-
26	NUT; CLIP,OIL PIPE L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	03	1	0003-
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9606-9905
27	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	9906-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9606-9905
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9906-
27	NUT; BRKT (B) M8	9-09110-508-0	02	1	9606-9606
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9607-9905
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	9906-
27	NUT; BRKT 6WA1 TC-S(56L) (B) M8 FLANGE	0-91150-108-0	01	1	9703-9905
27	NUT; BRKT L TYPE ENG<90L> (B) M8 FLANGE	0-91150-108-0	01	1	9906-
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9606-9905
28	CLIP; OIL PIPE 10PE1N(61L) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9906-0002
28	CLIP; OIL PIPE 10PE1S(60L) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9606-9702
28	CLIP; OIL PIPE 6WA1 TC-S(56L),10PE1S(60L) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9703-9905
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9906-0002
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0003-
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28080-820-0	02	1	9606-9606
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	9607-9905
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	9906-0002
29	BOLT; CLIP,OIL PIPE L TYPE ENG<90L> M8X25 FLANGE	0-28680-825-0	01	1	0003-
29	BOLT; CLIP,OIL PIPE 10PE1N(61L) M8X25 FLANGE	0-28680-825-0	02	1	0003-
29	BOLT; CLIP,OIL PIPE 10PE1N(61L) M8X30 FLANGE	0-28680-830-0	01	1	0003-
29	BOLT; CLIP,OIL PIPE 10PE1S(60L) M8X25 FLANGE	0-28080-825-0	01	1	9606-9606
29	BOLT; CLIP,OIL PIPE 10PE1S(60L) M8X30 FLANGE	0-28680-830-0	01	1	9607-9905
29	BOLT; CLIP,OIL PIPE 10PE1N(61L) M8X30 FLANGE	0-28680-830-0	01	1	9906-0002
29	BOLT; CLIP,OIL PIPE L TYPE ENG<90L> M8X30 FLANGE	0-28680-830-0	02	1	0003-
29	BOLT; CLIP,OIL PIPE 6WA1 TC-S(56L) M8X20 FLANGE	0-28680-820-0	01	1	9703-9905
30	BOLT; BRKT M8X30 FLANGE	0-28080-830-0	02	1	9606-9606
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	9607-9905
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	9906-
30	BOLT; BRKT 6WA1 TC-S(56L) M8X30 FLANGE	0-28680-830-0	01	1	9703-9905
30	BOLT; BRKT 6WA1 TC-C(55L) M8X30 FLANGE	0-28680-830-0	01	1	9906-9906
30	BOLT; BRKT L TYPE ENG<90L> M8X30 FLANGE	0-28680-830-0	01	1	9906-
33	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9606-9905
33	CLIP; OIL PIPE 10PE1N(61L) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9906-9906
33	CLIP; OIL PIPE 10PE1S(60L) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9606-9905
33	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9906-
33	CLIP; OIL PIPE L TYPE ENG<90L> (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0008-
34	BOLT; PIPE CLIP 10PE1S(60L) M8X25 FLANGE	0-28080-825-0	02	1	9606-9606
34	BOLT; PIPE CLIP 10PE1S(60L) M8X30 FLANGE	0-28680-830-0	02	1	9607-9905
34	BOLT; PIPE CLIP L TYPE ENG<90L> M8X30 FLANGE	0-28680-830-0	03	1	0008-
35	NUT; PIPE CLIP 10PE1S(60L) M8	9-09110-508-0	02	1	9606-9606
35	NUT; PIPE CLIP 10PE1S(60L) M8 FLANGE	0-91150-108-0	02	1	9607-9905
35	NUT; PIPE CLIP L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	03	1	0008-
42	BRACKET; FLEX HOSE,CLU CONT V TYPE ENG<91L>	1-47477-546-0	01	1	9606-9609
42	BRACKET; FLEX HOSE,CLU CONT	1-47477-546-1	01	1	9610-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X25 FLANGE	0-28080-825-0	02	1	9606-9606
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	9607-9905
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	9906-0007
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	0103-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER L TYPE ENG<90L> M10X30 FLANGE	0-28681-030-0	01	1	9906-0007
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER L TYPE ENG<90L> M10X30 FLANGE	0-28681-030-0	02	1	0008-0102
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8	9-09110-508-0	02	1	9606-9606
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9607-9905
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9906-0102
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0103-
47	HOSE; FLEX,CLU CONT (A) L=500	0-07806-500-1	01	1	9606-9609
47	HOSE; FLEX,CLU CONT V TYPE ENG<91L> (A) L=500	0-07806-500-1	01	1	9610-9905
47	HOSE; FLEX,CLU CONT 10PE1N(61L) (A) L=500	0-07806-500-1	01	1	9906-
47	HOSE; FLEX,CLU CONT (B) L=550	1-09364-434-0	01	1	9606-9609
47	HOSE; FLEX,CLU CONT V TYPE ENG<91L> (B) L=550	1-09364-434-0	01	1	9610-9905
47	HOSE; FLEX,CLU CONT 10PE1N(61L) (B) L=550	1-09364-434-0	01	1	9906-
47	HOSE; FLEX,CLU CONT 6WA1 TC-S(56L) (A) L=560	0-07806-560-1	01	1	9610-9905
47	HOSE; FLEX,CLU CONT 6WA1 TC-C(55L) (A) L=560	0-07806-560-1	01	1	9906-0007
47	HOSE; FLEX,CLU CONT L TYPE ENG<90L> (A) L=560	0-07806-560-1	01	1	0008-
47	HOSE; FLEX,CLU CONT 6WA1 TC-S(56L) (B) L=600	1-09364-705-0	01	1	9610-9905
47	HOSE; FLEX,CLU CONT 6WA1 TC-C(55L) (B) L=600	1-09364-705-0	01	1	9906-0007
47	HOSE; FLEX,CLU CONT L TYPE ENG<90L> (B) L=600	1-09364-705-0	01	1	0008-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L TYPE ENG<90L> L=1589	1-49164-423-0	01	1	9906-0002
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L TYPE ENG<90L> L=1595	1-49165-436-0	01	1	0003-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 10PE1S(60L) L=1543 SERVICED BY L=1550	1-47426-390-0	01	1	9606-9905
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 10PE1N(61L) L=1543 SERVICED BY L=1550	1-47426-390-0	01	1	9906-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6WA1 TC-S(56L) L=1521 SERVICED BY L=1550	1-47426-390-0	01	1	9606-9702
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6WA1 TC-S(56L) L=1539 SERVICED BY L=1550	1-47426-390-0	01	1	9703-9708
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6WA1 TC-S(56L) L=1539 SERVICED BY L=1550	1-47426-390-0	01	1	9709-9711
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6WA1 TC-S(56L) L=1536 SERVICED BY L=1550	1-47426-390-0	01	1	9712-9905
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	02	1	9606-9905
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	9906-9906
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	9906-9906
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	02	1	9906-0003
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	0004-
106	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	0004-
109	PIPE; AIR,UNION TO UNION 10PE1S(60L) L=973 SERVICED BY L=1000	1-47426-386-0	01	1	9606-9905
109	PIPE; AIR,UNION TO UNION 10PE1N(61L) L=973 SERVICED BY L=1000	1-47426-386-0	01	1	9906-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	9606-9905
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	9906-
153	PIPE ASM; CLU,UNION TO FLEX V TYPE ENG<91L> (A) L=623	1-47429-395-0	01	1	9606-9905
153	PIPE ASM; CLU,UNION TO FLEX 10PE1N(61L) (A) L=623	1-47429-395-0	01	1	9906-
153	PIPE ASM; CLU,UNION TO FLEX 6WA1 TC-S(56L) (A) L=1907 SERVICED BY L=1950	1-47428-769-0	01	1	9610-9902
153	PIPE ASM; CLU,UNION TO FLEX 6WA1 TC-S(56L) (A) L=1879 SERVICED BY L=1950	1-47426-393-0	01	1	9903-9905
153	PIPE ASM; CLU,UNION TO FLEX 6WA1 TC-C(55L) (A) L=1879 SERVICED BY L=1950	1-47426-393-0	01	1	9906-0007
153	PIPE ASM; CLU,UNION TO FLEX L TYPE ENG<90L> (A) L=1879 SERVICED BY L=1950	1-47426-393-0	01	1	0008-

52 53 53 9 47 48 49 50 51 46 173 54 45 4 48 170 47 116 42 115 153 44 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	CLIP; FLEX HOSE,CLU CONT L=140	5-09707-031-0	01	1	9606-9606
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91150-210-0	02	1	9606-
42	BRACKET; FLEX HOSE,CLU CONT V TYPE ENG<91L>	1-47477-546-0	01	1	9606-9609
42	BRACKET; FLEX HOSE,CLU CONT	1-47477-546-1	01	1	9610-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X25 FLANGE	0-28080-825-0	02	1	9606-9606
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	9607-9905
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	9906-0007
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	0103-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER L TYPE ENG<90L> M10X30 FLANGE	0-28681-030-0	01	1	9906-0007
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER L TYPE ENG<90L> M10X30 FLANGE	0-28681-030-0	02	1	0008-0102
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8	9-09110-508-0	02	1	9606-9606
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9607-9905
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	9906-0102
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0103-
45	NUT; FLEX HOSE,CLU CONT M20	9-99111-420-0	01	1	9606-
46	WASHER; LK,FLEX HOSE,CLU CONT ID=20.2	9-09150-520-0	01	1	9606-
47	HOSE; FLEX,CLU CONT (A) L=500	0-07806-500-1	01	1	9606-9609
47	HOSE; FLEX,CLU CONT V TYPE ENG<91L> (A) L=500	0-07806-500-1	01	1	9610-9905
47	HOSE; FLEX,CLU CONT 10PE1N(61L) (A) L=500	0-07806-500-1	01	1	9906-
47	HOSE; FLEX,CLU CONT (B) L=550	1-09364-434-0	01	1	9606-9609
47	HOSE; FLEX,CLU CONT V TYPE ENG<91L> (B) L=550	1-09364-434-0	01	1	9610-9905
47	HOSE; FLEX,CLU CONT 10PE1N(61L) (B) L=550	1-09364-434-0	01	1	9906-
47	HOSE; FLEX,CLU CONT 6WA1 TC-S(56L) (A) L=560	0-07806-560-1	01	1	9610-9905
47	HOSE; FLEX,CLU CONT 6WA1 TC-C(55L) (A) L=560	0-07806-560-1	01	1	9906-0007
47	HOSE; FLEX,CLU CONT L TYPE ENG<90L> (A) L=560	0-07806-560-1	01	1	0008-
47	HOSE; FLEX,CLU CONT 6WA1 TC-S(56L) (B) L=600	1-09364-705-0	01	1	9610-9905
47	HOSE; FLEX,CLU CONT 6WA1 TC-C(55L) (B) L=600	1-09364-705-0	01	1	9906-0007
47	HOSE; FLEX,CLU CONT L TYPE ENG<90L> (B) L=600	1-09364-705-0	01	1	0008-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	9606-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=293	1-49114-730-1	01	1	9606-9608
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=293	1-49117-734-0	01	1	9609-9905
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER L=293	1-49117-734-0	01	1	9906-
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9606-9905
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9906-
50	NUT; UNION (C) M14	9-99111-414-0	01	1	9606-9905
50	NUT; UNION (C) M14	9-99111-414-0	01	1	9906-
50	NUT; UNION ASSISTER SHIFT CONTROL<WX8> (A) M20	9-99111-420-0	01	1	9606-9905
50	NUT; UNION ASSISTER SHIFT CONTROL<WX8> (A) M20	9-99111-420-0	01	1	9906-
51	WASHER; LK ASSISTER SHIFT CONTROL<WX8> ID=20.2	9-09150-520-0	01	1	9606-9905
51	WASHER; LK ASSISTER SHIFT CONTROL<WX8> ID=20.2	9-09150-520-0	01	1	9906-
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	9606-
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	9606-
54	BRACKET; AIR,FLEX HOSE	1-47477-284-1	01	1	9606-
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9606-9612
115	NUT; FLEX HOSE,CLU CONT 10PE1S(60L) M14	9-99111-414-0	01	1	9606-9612
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9701-9709
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9710-9905
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9906-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9606-9612
116	WASHER; FLEX HOSE,CLU CONT 10PE1S(60L) ID=14.2	9-09150-514-0	01	1	9606-9612
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9701-9709
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9710-9905
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9906-
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	9606-9905
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	9906-
153	PIPE ASM; CLU,UNION TO FLEX V TYPE ENG<91L> (A) L=623	1-47429-395-0	01	1	9606-9905
153	PIPE ASM; CLU,UNION TO FLEX 10PE1N(61L) (A) L=623	1-47429-395-0	01	1	9906-
153	PIPE ASM; CLU,UNION TO FLEX 6WA1 TC-S(56L) (A) L=1907 SERVICED BY L=1950	1-47428-769-0	01	1	9610-9902
153	PIPE ASM; CLU,UNION TO FLEX 6WA1 TC-S(56L) (A) L=1879 SERVICED BY L=1950	1-47426-393-0	01	1	9903-9905
153	PIPE ASM; CLU,UNION TO FLEX 6WA1 TC-C(55L) (A) L=1879 SERVICED BY L=1950	1-47426-393-0	01	1	9906-0007
153	PIPE ASM; CLU,UNION TO FLEX L TYPE ENG<90L> (A) L=1879 SERVICED BY L=1950	1-47426-393-0	01	1	0008-
170	UNION; AIR PIPE ASSISTER SHIFT CONTROL<WX8>	1-09656-640-0	01	1	9606-9905
170	UNION; AIR PIPE ASSISTER SHIFT CONTROL<WX8>	1-09656-640-0	01	1	9906-
173	CONNECTOR ASSISTER SHIFT CONTROL<WX8> M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9606-9905
173	CONNECTOR ASSISTER SHIFT CONTROL<WX8> M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9906-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
