Sayfa 3-05 - Isuzu EPC

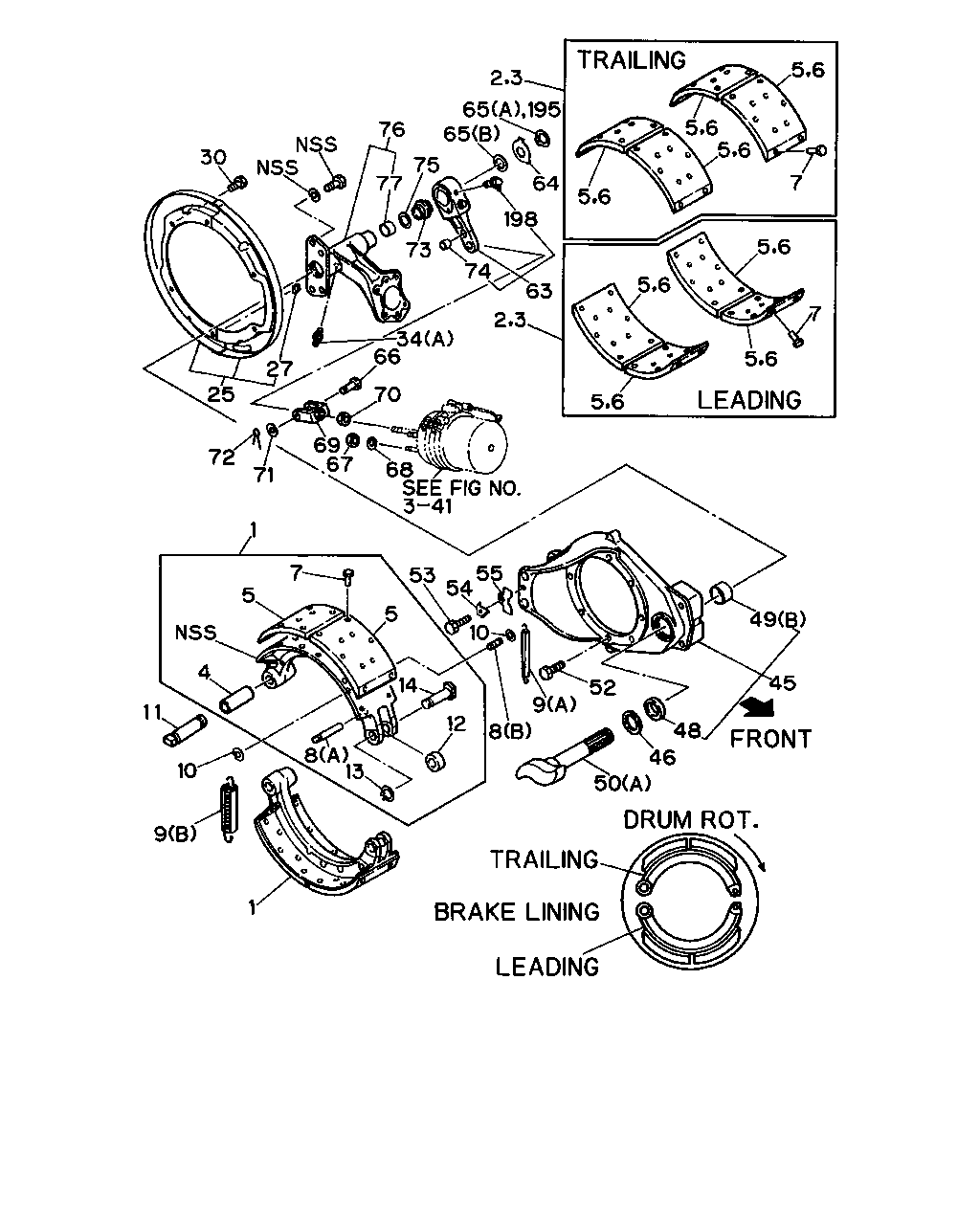

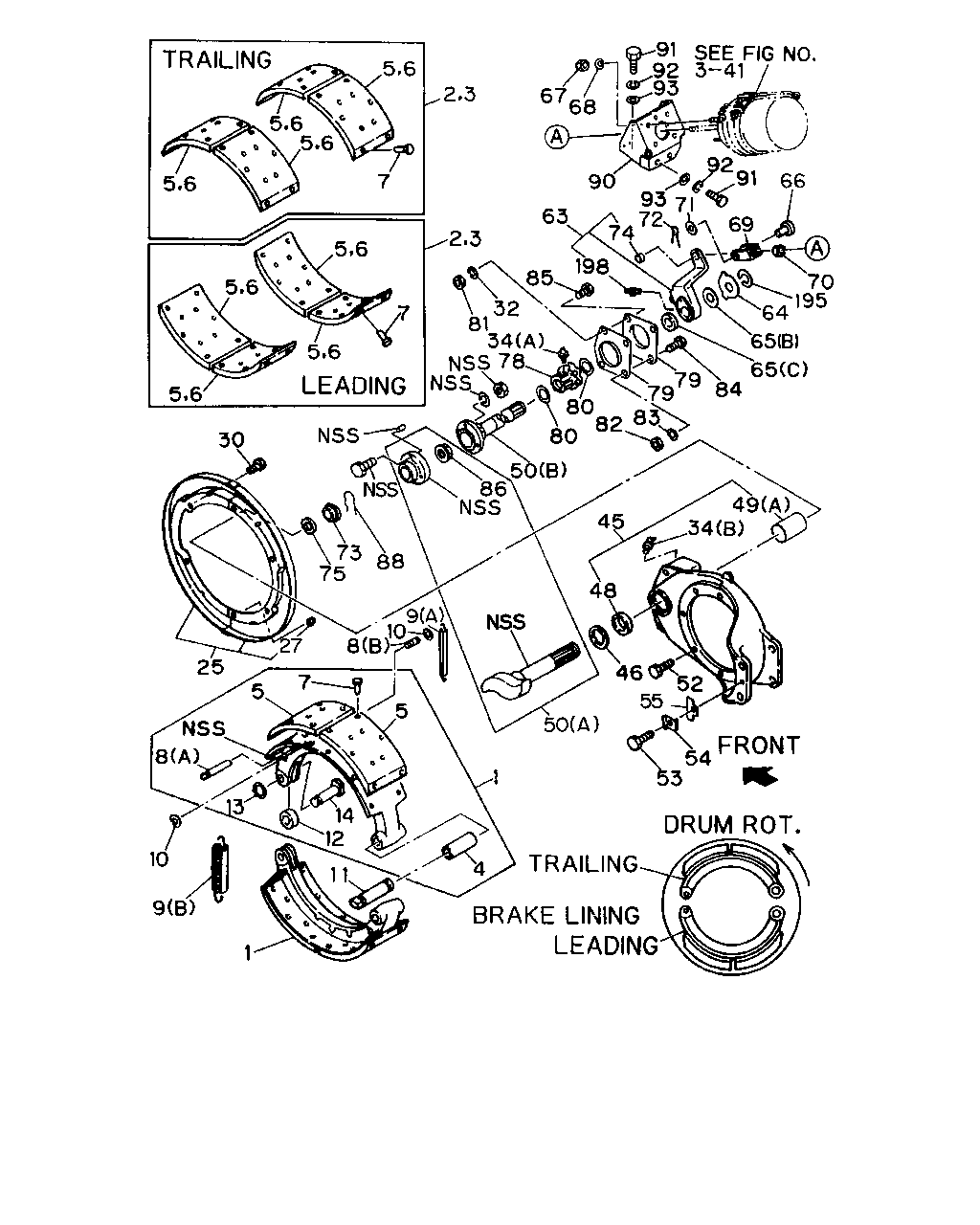

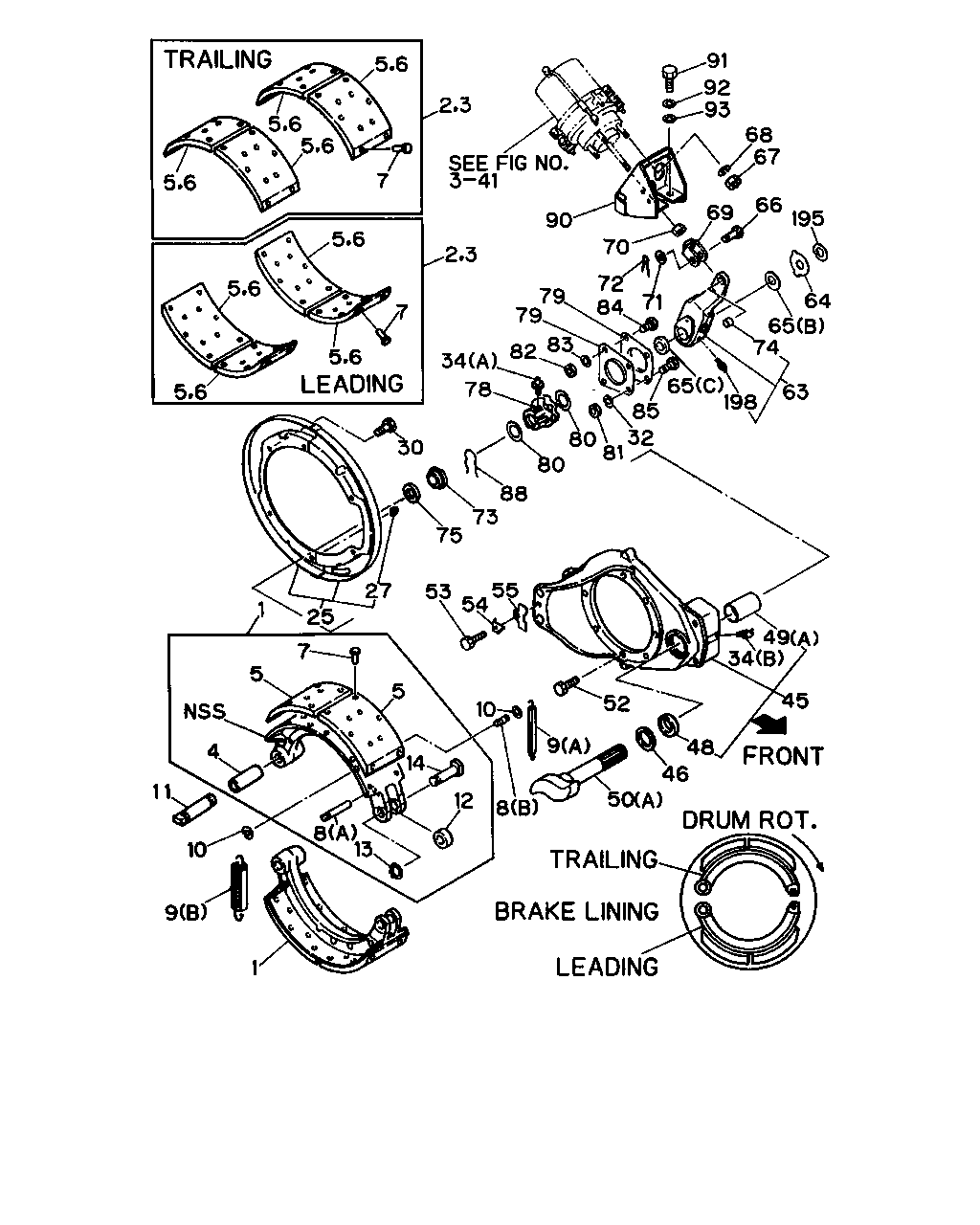

3-05 — REAR WHEEL BRAKE (#505) — 312 parça

5 6 5 6 5 6 5 6 7 2 3 67 68 91 92 93 92 91 66 69 71 93 72 90 63 74 198 70 195 2 3 85 32 81 34 78 64 65 65 84 79 79 83 82 80 80 50 86 45 49 34 48 46 52 55 54 53 50 1 4 1 11 12 14 9 10 13 8 5 7 5 25 27 8 10 9 75 73 88 30 5 6 5 6 5 6 5 6 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR LEADING	1-47110-712-0	02	1	8712-9001
1	SHOE; BRK,RR TRAILING	1-47110-713-0	02	1	8712-9001
1	SHOE; BRK,RR LEADING	1-47110-714-0	02	1	8712-9001
1	SHOE; BRK,RR TRAILING	1-47110-715-0	02	1	8712-9001
1	SHOE; BRK,RR LEADING	1-47110-969-0	02	1	9002-
1	SHOE; BRK,RR TRAILING	1-47110-970-0	02	1	9002-
1	SHOE; BRK,RR LEADING	1-47110-967-0	02	1	9002-
1	SHOE; BRK,RR TRAILING	1-47110-968-0	02	1	9002-
2	LINING SET; RR BRK,STANDARD LEADING	1-88302-804-0	02	1	8712-9001
2	LINING SET; RR BRK,STANDARD TRAILING	1-88302-806-0	02	1	8712-9001
2	LINING SET; RR BRK,STANDARD LEADING	1-88302-925-0	02	1	9002-
2	LINING SET; RR BRK,STANDARD TRAILING	1-88302-933-0	02	1	9002-
3	LINING SET; RR BRK,OVER SIZE LEADING	1-88302-805-0	02	1	8712-9001
3	LINING SET; RR BRK,OVER SIZE TRAILING	1-88302-807-0	02	1	8712-9001
3	LINING SET; RR BRK,OVER SIZE LEADING	1-88302-926-0	02	1	9002-
3	LINING SET; RR BRK,OVER SIZE TRAILING	1-88302-934-0	02	1	9002-
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	08	1	8712-
5	LINING; RR BRK SHOE,STANDARD LEADING	1-47115-409-1	08	1	8712-9001
5	LINING; RR BRK SHOE,STANDARD TRAILING	1-47115-427-0	08	1	8712-9001
5	LINING; RR BRK SHOE,STANDARD LEADING	1-47115-773-0	08	1	9002-
5	LINING; RR BRK SHOE,STANDARD TRAILING	1-47115-817-0	08	1	9002-
6	LINING; RR BRK SHOE,OVER SIZE LEADING	1-47115-774-0	08	1	9002-
6	LINING; RR BRK SHOE,OVER SIZE TRAILING	1-47115-818-0	08	1	9002-
7	RIVET; LINING,RR BRK L=18.5	1-09732-034-0	AR	1	8712-
8	PIN; RETURN SPRING,RR BRK SHOE (B) INNER	1-47119-021-0	08	1	8712-
8	PIN; RETURN SPRING,RR BRK SHOE (A) OUTER	1-47119-029-0	08	1	8712-
9	SPRING; RETURN,BRK SHOE (B) OUTER	1-09583-175-0	04	1	8712-
9	SPRING; RETURN,BRK SHOE (A) INNER	1-09583-196-0	04	1	8712-
10	RING; SNAP,SPR PIN ID=10	9-09185-410-0	16	1	8712-
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	08	1	8712-
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	08	1	8712-
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	08	1	8712-
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	08	1	8712-
25	COVER SET; RR BRK DRUM	1-47151-462-1	02	1	8712-
25	COVER SET; RR BRK DRUM	1-47151-462-1	02	1	8712-
27	COVER; CHECK HOLE,DRUM COVER	1-09333-095-0	08	1	8712-9501
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	08	1	9502-
30	BOLT; DRUM COVER M10X16 W/LK WASHER	9-01901-016-0	24	1	8712-9204
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	24	1	9205-
32	WASHER; LK REARWARD ID=10.2	9-09150-510-0	04	1	8712-
34	NIPPLE; GREASE,CHAMBER BRKT (A) PT1/8 STRAIGHT	9-09031-010-0	04	1	8712-
34	NIPPLE; GREASE,CHAMBER BRKT (B) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	8712-
45	BRACKET; ANCHOR PIN,W/BUSHING FORWARD	1-47137-120-2	02	1	8712-
45	BRACKET; ANCHOR PIN,W/BUSHING REARWARD	1-47137-128-1	02	1	8712-
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	04	1	8712-
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	04	1	8712-
49	BUSHING; CM/SHF,RR BRK (B) FORWARD	1-47146-003-1	02	1	8712-
49	BUSHING; CM/SHF,RR BRK (A) REARWARD	1-47146-009-0	02	1	8712-
50	CAMSHAFT; BRK,RR BRK (A) FORWARD	1-47141-053-0	01	1	8712-
50	CAMSHAFT; BRK,RR BRK (B) REARWARD	1-47141-065-1	01	1	8712-
50	CAMSHAFT; BRK,RR BRK (A) REARWARD	1-47141-066-0	01	1	8712-
50	CAMSHAFT; BRK,RR BRK (A) FORWARD	1-47141-054-0	01	1	8712-
50	CAMSHAFT; BRK,RR BRK (A) REARWARD	1-47141-063-0	01	1	8712-
52	BOLT; ANCHOR BRKT M14X43	1-09040-045-0	01	1	8712-
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	02	1	8712-
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	01	1	8712-
53	BOLT; LOCK PLATE M10X16	9-02041-016-0	04	1	8712-9204
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	04	1	9205-
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-007-0	04	1	8712-9109
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	04	1	9110-
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	04	1	8712-
63	ADJUSTER ASM; SLACK,RR BRK FORWARD LH REARWARD RH	1-48270-045-0	02	1	8712-
63	ADJUSTER ASM; SLACK,RR BRK REARWARD	1-48270-050-1	01	1	8712-
63	ADJUSTER ASM; SLACK,RR BRK FORWARD	1-48270-046-0	01	1	8712-
64	PLATE; STOPPER,CM/SHF FORWARD	1-47149-022-0	02	1	8712-
64	PLATE; STOPPER,CM/SHF REARWARD	1-47149-040-0	02	1	8712-
65	SPACER; SLACK ADJ,BRK (B)	1-47143-004-0	04	1	8712-
65	SPACER; SLACK ADJ,BRK (C)	1-47143-007-0	02	1	8712-
65	SPACER; SLACK ADJ,BRK (A)	9-09180-038-0	01	1	8712-
66	PIN; JAW JOINT	1-09744-088-0	04	1	8712-
67	NUT; POWER CHAMBER FIX M16	9-99110-416-0	16	1	8712-
68	WASHER; LK,CHAMBER ID=16.2	9-09150-516-0	16	1	8712-
69	JOINT; JAW	1-09768-060-0	04	1	8712-
70	NUT; LK,JAW JOINT M16	9-99111-416-0	04	1	8712-
71	WASHER; PL,JAW JOINT ID=17	9-09160-516-0	04	1	8712-9401
71	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	04	1	9402-
72	PIN; SPLIT OD=3.7 L=28	9-08114-028-0	04	1	8712-
73	COLLAR; FELT RING,CM/SHF FORWARD	1-47143-003-0	02	1	8712-
73	COLLAR; FELT RING,CM/SHF REARWARD	1-47143-006-0	02	1	8712-
74	BUSHING; SLACK ADJ	1-09330-041-0	04	1	8712-
75	RING; FELT,CM/SHF	1-09620-009-0	04	1	8712-
78	BUSHING; BRKT REARWARD	1-47146-008-0	02	1	8712-
79	BRACKET; CM/SHF REARWARD	9-47145-013-0	04	1	8712-
80	GASKET; BUSHING REARWARD ID=39.7	9-09561-340-0	04	1	8712-
81	NUT REARWARD M10	9-09110-410-0	04	1	8712-
82	NUT REARWARD M16	9-99110-516-0	04	1	8712-
83	WASHER; PL REARWARD ID=16.2	9-09851-672-2	08	1	8712-
84	BOLT; BRKT TO CASE REARWARD M16X40	9-92061-640-0	04	1	8712-
85	BOLT; CM/SHF BRKT REARWARD M10X20	9-02041-020-0	04	1	8712-9204
85	BOLT; CM/SHF BRKT REARWARD M10X20	0-20801-020-0	04	1	9205-
86	NUT; FLANGE REARWARD	1-09440-020-0	01	1	8902-
88	CLIP; BRKT REARWARD	1-09589-014-0	02	1	8712-9403
88	CLIP; BRKT REARWARD	1-09589-018-0	02	1	9404-
90	BRACKET; CHAMBER REARWARD	1-42129-046-3	01	1	8712-
90	BRACKET; CHAMBER REARWARD	1-42129-045-3	01	1	8712-
91	BOLT; CHAMBER REARWARD	9-92351-635-0	08	1	8712-9005
91	BOLT; CHAMBER REARWARD	0-23801-635-0	08	1	9006-9604
91	BOLT; CHAMBER REARWARD M16X30 FLANGE	0-28981-630-0	08	1	9605-
92	WASHER; LK,CHAMBER REARWARD ID=16.2	9-09150-516-0	08	1	8712-9604
93	WASHER; PL,CHAMBER REARWARD ID=17 OD=32	9-09160-616-0	08	1	8712-9604
195	RING; SNAP,CM/SHF	9-09180-038-0	04	1	9002-
198	NIPPLE; GREASE,SLACK ADJ	9-09031-110-0	04	1	8712-

5 6 5 6 5 6 7 5 6 2 3 5 6 5 6 5 6 5 6 7 2 3 91 92 93 68 67 69 66 195 64 65 74 63 198 65 85 32 81 80 80 88 73 75 90 70 71 72 84 79 79 82 83 34 78 30 27 25 1 53 54 55 49 34 45 52 48 46 50 9 10 8 7 5 5 12 14 13 8 4 11 10 1 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR LEADING	1-47110-712-0	02	1	8712-9001
1	SHOE; BRK,RR TRAILING	1-47110-713-0	02	1	8712-9001
1	SHOE; BRK,RR LEADING	1-47110-714-0	02	1	8712-9001
1	SHOE; BRK,RR TRAILING	1-47110-715-0	02	1	8712-9001
1	SHOE; BRK,RR LEADING	1-47110-969-0	02	1	9002-
1	SHOE; BRK,RR TRAILING	1-47110-970-0	02	1	9002-
1	SHOE; BRK,RR LEADING	1-47110-967-0	02	1	9002-
1	SHOE; BRK,RR TRAILING	1-47110-968-0	02	1	9002-
2	LINING SET; RR BRK,STANDARD LEADING	1-88302-804-0	02	1	8712-9001
2	LINING SET; RR BRK,STANDARD TRAILING	1-88302-806-0	02	1	8712-9001
2	LINING SET; RR BRK,STANDARD LEADING	1-88302-925-0	02	1	9002-
2	LINING SET; RR BRK,STANDARD TRAILING	1-88302-933-0	02	1	9002-
3	LINING SET; RR BRK,OVER SIZE LEADING	1-88302-805-0	02	1	8712-9001
3	LINING SET; RR BRK,OVER SIZE TRAILING	1-88302-807-0	02	1	8712-9001
3	LINING SET; RR BRK,OVER SIZE LEADING	1-88302-926-0	02	1	9002-
3	LINING SET; RR BRK,OVER SIZE TRAILING	1-88302-934-0	02	1	9002-
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	08	1	8712-
5	LINING; RR BRK SHOE,STANDARD LEADING	1-47115-409-1	08	1	8712-9001
5	LINING; RR BRK SHOE,STANDARD TRAILING	1-47115-427-0	08	1	8712-9001
5	LINING; RR BRK SHOE,STANDARD LEADING	1-47115-773-0	08	1	9002-
5	LINING; RR BRK SHOE,STANDARD TRAILING	1-47115-817-0	08	1	9002-
6	LINING; RR BRK SHOE,OVER SIZE LEADING	1-47115-774-0	08	1	9002-
6	LINING; RR BRK SHOE,OVER SIZE TRAILING	1-47115-818-0	08	1	9002-
7	RIVET; LINING,RR BRK L=18.5	1-09732-034-0	AR	1	8712-
8	PIN; RETURN SPRING,RR BRK SHOE (B) INNER	1-47119-021-0	08	1	8712-
8	PIN; RETURN SPRING,RR BRK SHOE (A) OUTER	1-47119-029-0	08	1	8712-
9	SPRING; RETURN,BRK SHOE (B) OUTER	1-09583-175-0	04	1	8712-
9	SPRING; RETURN,BRK SHOE (A) INNER	1-09583-196-0	04	1	8712-
10	RING; SNAP,SPR PIN ID=10	9-09185-410-0	16	1	8712-
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	08	1	8712-
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	08	1	8712-
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	08	1	8712-
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	08	1	8712-
25	COVER SET; RR BRK DRUM	1-47151-462-1	02	1	8712-
25	COVER SET; RR BRK DRUM	1-47151-462-1	02	1	8712-
27	COVER; CHECK HOLE,DRUM COVER	1-09333-095-0	08	1	8712-9501
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	08	1	9502-
30	BOLT; DRUM COVER M10X16 W/LK WASHER	9-01901-016-0	24	1	8712-9204
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	24	1	9205-
32	WASHER; LK REARWARD ID=10.2	9-09150-510-0	04	1	8712-
34	NIPPLE; GREASE,CHAMBER BRKT (A) PT1/8 STRAIGHT	9-09031-010-0	04	1	8712-
34	NIPPLE; GREASE,CHAMBER BRKT (B) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	8712-
45	BRACKET; ANCHOR PIN,W/BUSHING FORWARD	1-47137-120-2	02	1	8712-
45	BRACKET; ANCHOR PIN,W/BUSHING REARWARD	1-47137-128-1	02	1	8712-
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	04	1	8712-
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	04	1	8712-
49	BUSHING; CM/SHF,RR BRK (B) FORWARD	1-47146-003-1	02	1	8712-
49	BUSHING; CM/SHF,RR BRK (A) REARWARD	1-47146-009-0	02	1	8712-
50	CAMSHAFT; BRK,RR BRK (A) FORWARD	1-47141-053-0	01	1	8712-
50	CAMSHAFT; BRK,RR BRK (B) REARWARD	1-47141-065-1	01	1	8712-
50	CAMSHAFT; BRK,RR BRK (A) REARWARD	1-47141-066-0	01	1	8712-
50	CAMSHAFT; BRK,RR BRK (A) FORWARD	1-47141-054-0	01	1	8712-
50	CAMSHAFT; BRK,RR BRK (A) REARWARD	1-47141-063-0	01	1	8712-
52	BOLT; ANCHOR BRKT M14X43	1-09040-045-0	01	1	8712-
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	02	1	8712-
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	01	1	8712-
53	BOLT; LOCK PLATE M10X16	9-02041-016-0	04	1	8712-9204
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	04	1	9205-
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-007-0	04	1	8712-9109
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	04	1	9110-
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	04	1	8712-
63	ADJUSTER ASM; SLACK,RR BRK FORWARD LH REARWARD RH	1-48270-045-0	02	1	8712-
63	ADJUSTER ASM; SLACK,RR BRK REARWARD	1-48270-050-1	01	1	8712-
63	ADJUSTER ASM; SLACK,RR BRK FORWARD	1-48270-046-0	01	1	8712-
64	PLATE; STOPPER,CM/SHF FORWARD	1-47149-022-0	02	1	8712-
64	PLATE; STOPPER,CM/SHF REARWARD	1-47149-040-0	02	1	8712-
65	SPACER; SLACK ADJ,BRK (B)	1-47143-004-0	04	1	8712-
65	SPACER; SLACK ADJ,BRK (C)	1-47143-007-0	02	1	8712-
65	SPACER; SLACK ADJ,BRK (A)	9-09180-038-0	01	1	8712-
66	PIN; JAW JOINT	1-09744-088-0	04	1	8712-
67	NUT; POWER CHAMBER FIX M16	9-99110-416-0	16	1	8712-
68	WASHER; LK,CHAMBER ID=16.2	9-09150-516-0	16	1	8712-
69	JOINT; JAW	1-09768-060-0	04	1	8712-
70	NUT; LK,JAW JOINT M16	9-99111-416-0	04	1	8712-
71	WASHER; PL,JAW JOINT ID=17	9-09160-516-0	04	1	8712-9401
71	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	04	1	9402-
72	PIN; SPLIT OD=3.7 L=28	9-08114-028-0	04	1	8712-
73	COLLAR; FELT RING,CM/SHF FORWARD	1-47143-003-0	02	1	8712-
73	COLLAR; FELT RING,CM/SHF REARWARD	1-47143-006-0	02	1	8712-
74	BUSHING; SLACK ADJ	1-09330-041-0	04	1	8712-
75	RING; FELT,CM/SHF	1-09620-009-0	04	1	8712-
78	BUSHING; BRKT REARWARD	1-47146-008-0	02	1	8712-
79	BRACKET; CM/SHF REARWARD	9-47145-013-0	04	1	8712-
80	GASKET; BUSHING REARWARD ID=39.7	9-09561-340-0	04	1	8712-
81	NUT REARWARD M10	9-09110-410-0	04	1	8712-
82	NUT REARWARD M16	9-99110-516-0	04	1	8712-
83	WASHER; PL REARWARD ID=16.2	9-09851-672-2	08	1	8712-
84	BOLT; BRKT TO CASE REARWARD M16X40	9-92061-640-0	04	1	8712-
85	BOLT; CM/SHF BRKT REARWARD M10X20	9-02041-020-0	04	1	8712-9204
85	BOLT; CM/SHF BRKT REARWARD M10X20	0-20801-020-0	04	1	9205-
88	CLIP; BRKT REARWARD	1-09589-014-0	02	1	8712-9403
88	CLIP; BRKT REARWARD	1-09589-018-0	02	1	9404-
90	BRACKET; CHAMBER REARWARD	1-42129-046-3	01	1	8712-
90	BRACKET; CHAMBER REARWARD	1-42129-045-3	01	1	8712-
91	BOLT; CHAMBER REARWARD	9-92351-635-0	08	1	8712-9005
91	BOLT; CHAMBER REARWARD	0-23801-635-0	08	1	9006-9604
91	BOLT; CHAMBER REARWARD M16X30 FLANGE	0-28981-630-0	08	1	9605-
92	WASHER; LK,CHAMBER REARWARD ID=16.2	9-09150-516-0	08	1	8712-9604
93	WASHER; PL,CHAMBER REARWARD ID=17 OD=32	9-09160-616-0	08	1	8712-9604
195	RING; SNAP,CM/SHF	9-09180-038-0	04	1	9002-
198	NIPPLE; GREASE,SLACK ADJ	9-09031-110-0	04	1	8712-

5 6 5 6 5 6 7 5 6 5 6 5 6 5 6 7 5 6 2 3 195 65 65 64 198 63 2 3 74 73 75 77 76 30 27 25 34 66 70 69 67 68 71 72 1 5 7 5 53 54 55 10 4 11 10 9 1 8 13 12 14 8 9 52 49 45 48 46 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR LEADING	1-47110-712-0	02	1	8712-9001
1	SHOE; BRK,RR TRAILING	1-47110-713-0	02	1	8712-9001
1	SHOE; BRK,RR LEADING	1-47110-714-0	02	1	8712-9001
1	SHOE; BRK,RR TRAILING	1-47110-715-0	02	1	8712-9001
1	SHOE; BRK,RR LEADING	1-47110-969-0	02	1	9002-
1	SHOE; BRK,RR TRAILING	1-47110-970-0	02	1	9002-
1	SHOE; BRK,RR LEADING	1-47110-967-0	02	1	9002-
1	SHOE; BRK,RR TRAILING	1-47110-968-0	02	1	9002-
2	LINING SET; RR BRK,STANDARD LEADING	1-88302-804-0	02	1	8712-9001
2	LINING SET; RR BRK,STANDARD TRAILING	1-88302-806-0	02	1	8712-9001
2	LINING SET; RR BRK,STANDARD LEADING	1-88302-925-0	02	1	9002-
2	LINING SET; RR BRK,STANDARD TRAILING	1-88302-933-0	02	1	9002-
3	LINING SET; RR BRK,OVER SIZE LEADING	1-88302-805-0	02	1	8712-9001
3	LINING SET; RR BRK,OVER SIZE TRAILING	1-88302-807-0	02	1	8712-9001
3	LINING SET; RR BRK,OVER SIZE LEADING	1-88302-926-0	02	1	9002-
3	LINING SET; RR BRK,OVER SIZE TRAILING	1-88302-934-0	02	1	9002-
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	08	1	8712-
5	LINING; RR BRK SHOE,STANDARD LEADING	1-47115-409-1	08	1	8712-9001
5	LINING; RR BRK SHOE,STANDARD TRAILING	1-47115-427-0	08	1	8712-9001
5	LINING; RR BRK SHOE,STANDARD LEADING	1-47115-773-0	08	1	9002-
5	LINING; RR BRK SHOE,STANDARD TRAILING	1-47115-817-0	08	1	9002-
6	LINING; RR BRK SHOE,OVER SIZE LEADING	1-47115-774-0	08	1	9002-
6	LINING; RR BRK SHOE,OVER SIZE TRAILING	1-47115-818-0	08	1	9002-
7	RIVET; LINING,RR BRK L=18.5	1-09732-034-0	AR	1	8712-
8	PIN; RETURN SPRING,RR BRK SHOE (B) INNER	1-47119-021-0	08	1	8712-
8	PIN; RETURN SPRING,RR BRK SHOE (A) OUTER	1-47119-029-0	08	1	8712-
9	SPRING; RETURN,BRK SHOE (B) OUTER	1-09583-175-0	04	1	8712-
9	SPRING; RETURN,BRK SHOE (A) INNER	1-09583-196-0	04	1	8712-
10	RING; SNAP,SPR PIN ID=10	9-09185-410-0	16	1	8712-
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	08	1	8712-
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	08	1	8712-
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	08	1	8712-
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	08	1	8712-
25	COVER SET; RR BRK DRUM	1-47151-462-1	02	1	8712-
25	COVER SET; RR BRK DRUM	1-47151-462-1	02	1	8712-
27	COVER; CHECK HOLE,DRUM COVER	1-09333-095-0	08	1	8712-9501
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	08	1	9502-
30	BOLT; DRUM COVER M10X16 W/LK WASHER	9-01901-016-0	24	1	8712-9204
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	24	1	9205-
34	NIPPLE; GREASE,CHAMBER BRKT (A) PT1/8 STRAIGHT	9-09031-010-0	04	1	8712-
34	NIPPLE; GREASE,CHAMBER BRKT (B) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	8712-
45	BRACKET; ANCHOR PIN,W/BUSHING FORWARD	1-47137-120-2	02	1	8712-
45	BRACKET; ANCHOR PIN,W/BUSHING REARWARD	1-47137-128-1	02	1	8712-
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	04	1	8712-
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	04	1	8712-
49	BUSHING; CM/SHF,RR BRK (B) FORWARD	1-47146-003-1	02	1	8712-
49	BUSHING; CM/SHF,RR BRK (A) REARWARD	1-47146-009-0	02	1	8712-
50	CAMSHAFT; BRK,RR BRK (A) FORWARD	1-47141-053-0	01	1	8712-
50	CAMSHAFT; BRK,RR BRK (B) REARWARD	1-47141-065-1	01	1	8712-
50	CAMSHAFT; BRK,RR BRK (A) REARWARD	1-47141-066-0	01	1	8712-
50	CAMSHAFT; BRK,RR BRK (A) FORWARD	1-47141-054-0	01	1	8712-
50	CAMSHAFT; BRK,RR BRK (A) REARWARD	1-47141-063-0	01	1	8712-
52	BOLT; ANCHOR BRKT M14X43	1-09040-045-0	01	1	8712-
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	02	1	8712-
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	01	1	8712-
53	BOLT; LOCK PLATE M10X16	9-02041-016-0	04	1	8712-9204
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	04	1	9205-
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-007-0	04	1	8712-9109
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	04	1	9110-
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	04	1	8712-
63	ADJUSTER ASM; SLACK,RR BRK FORWARD LH REARWARD RH	1-48270-045-0	02	1	8712-
63	ADJUSTER ASM; SLACK,RR BRK REARWARD	1-48270-050-1	01	1	8712-
63	ADJUSTER ASM; SLACK,RR BRK FORWARD	1-48270-046-0	01	1	8712-
64	PLATE; STOPPER,CM/SHF FORWARD	1-47149-022-0	02	1	8712-
64	PLATE; STOPPER,CM/SHF REARWARD	1-47149-040-0	02	1	8712-
65	SPACER; SLACK ADJ,BRK (B)	1-47143-004-0	04	1	8712-
65	SPACER; SLACK ADJ,BRK (C)	1-47143-007-0	02	1	8712-
65	SPACER; SLACK ADJ,BRK (A)	9-09180-038-0	01	1	8712-
66	PIN; JAW JOINT	1-09744-088-0	04	1	8712-
67	NUT; POWER CHAMBER FIX M16	9-99110-416-0	16	1	8712-
68	WASHER; LK,CHAMBER ID=16.2	9-09150-516-0	16	1	8712-
69	JOINT; JAW	1-09768-060-0	04	1	8712-
70	NUT; LK,JAW JOINT M16	9-99111-416-0	04	1	8712-
71	WASHER; PL,JAW JOINT ID=17	9-09160-516-0	04	1	8712-9401
71	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	04	1	9402-
72	PIN; SPLIT OD=3.7 L=28	9-08114-028-0	04	1	8712-
73	COLLAR; FELT RING,CM/SHF FORWARD	1-47143-003-0	02	1	8712-
73	COLLAR; FELT RING,CM/SHF REARWARD	1-47143-006-0	02	1	8712-
74	BUSHING; SLACK ADJ	1-09330-041-0	04	1	8712-
75	RING; FELT,CM/SHF	1-09620-009-0	04	1	8712-
76	BRACKET; POWER CHAMBER,RR,W/BUSHING FORWARD	1-48258-083-0	01	1	8712-
76	BRACKET; POWER CHAMBER,RR,W/BUSHING FORWARD	1-48258-084-0	01	1	8712-
77	BUSHING FORWARD	1-47146-003-1	02	1	8712-
195	RING; SNAP,CM/SHF	9-09180-038-0	04	1	9002-
198	NIPPLE; GREASE,SLACK ADJ	9-09031-110-0	04	1	8712-

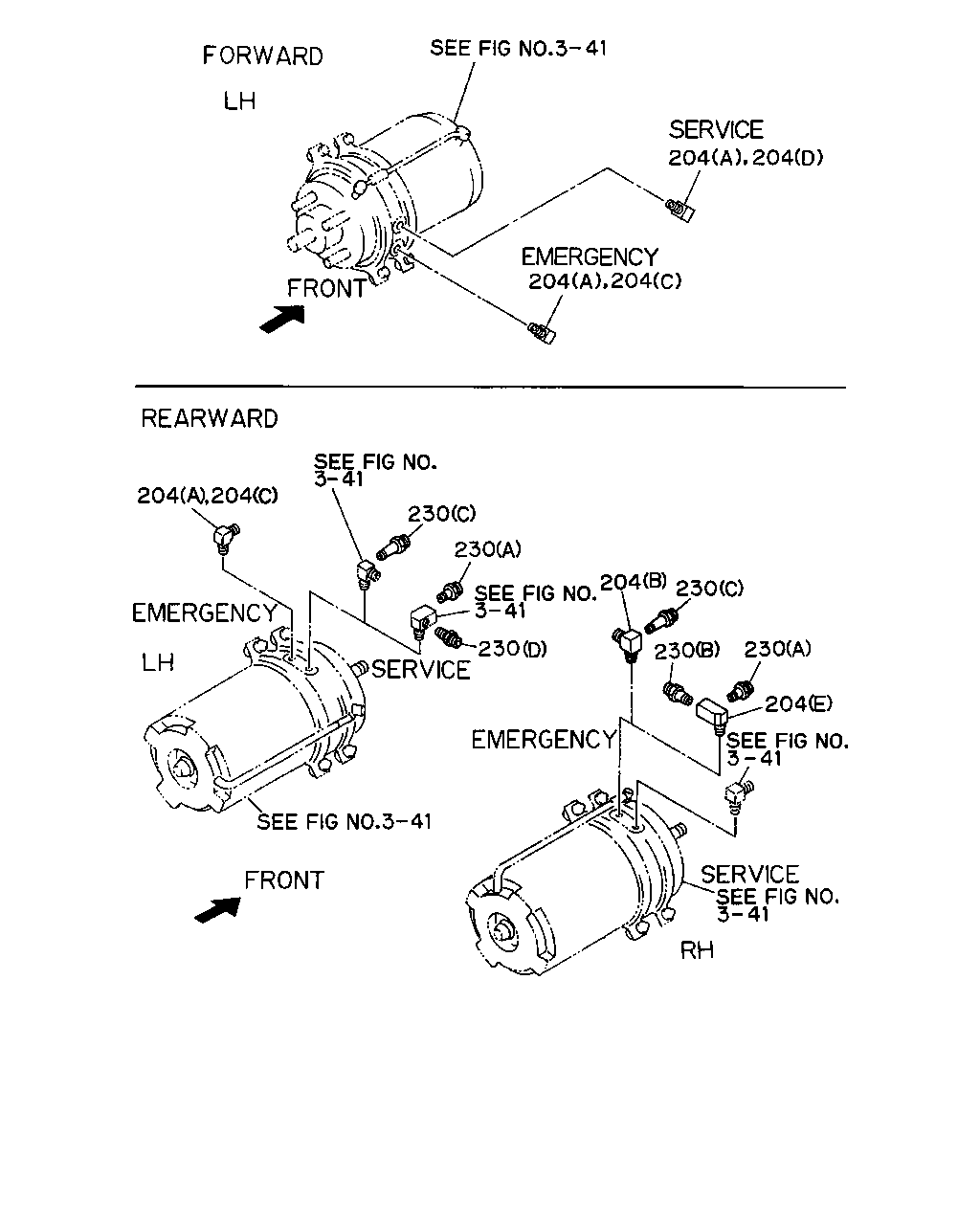

204 204 204 204 230 230 204 230 230 204 204 204 230 230

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
204	CONNECTOR; SPR CHAMBER (C)	1-09660-570-0	01	1	9307-
204	CONNECTOR; SPR CHAMBER EXC. NYLON TUBE AIR PIPING<Z29> (C)	1-09660-570-0	01	1	9307-
204	CONNECTOR; SPR CHAMBER (D)	1-09660-574-0	01	1	9307-
204	CONNECTOR; SPR CHAMBER NYLON TUBE AIR PIPING<Z29> (G) M14 & PT3/8 ELBOW	1-09660-234-0	02	1	8712-9306
204	CONNECTOR; SPR CHAMBER NYLON TUBE AIR PIPING<Z29> (F) M18 & PT3/8 ELBOW	1-09660-235-0	01	1	8712-9306
204	CONNECTOR; SPR CHAMBER NYLON TUBE AIR PIPING<Z29> (H)	1-09660-248-0	01	1	8712-9306
204	CONNECTOR; SPR CHAMBER NYLON TUBE AIR PIPING<Z29> (C)	1-09660-570-0	02	1	9307-
204	CONNECTOR; SPR CHAMBER EXC. NYLON TUBE AIR PIPING<Z29> (B) M16 PT3/8X2 3WAY	1-09656-418-1	01	1	8712-9306
204	CONNECTOR; SPR CHAMBER EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-47815-006-1	03	1	8712-9306
204	CONNECTOR; SPR CHAMBER EXC. NYLON TUBE AIR PIPING<Z29> (E)	1-09660-697-1	01	1	9307-
230	NIPPLE; SPR CHAMBER EXC. NYLON TUBE AIR PIPING<Z29> (C)	1-09660-178-0	02	1	8712-9306
230	NIPPLE; SPR CHAMBER EXC. NYLON TUBE AIR PIPING<Z29> (A) M27 & PT3/8 STRAIGHT	1-09650-250-0	02	1	9307-
230	NIPPLE; SPR CHAMBER EXC. NYLON TUBE AIR PIPING<Z29> (B)	1-09660-569-0	01	1	9307-
230	NIPPLE; SPR CHAMBER EXC. NYLON TUBE AIR PIPING<Z29> (D)	1-09660-572-0	01	1	9307-

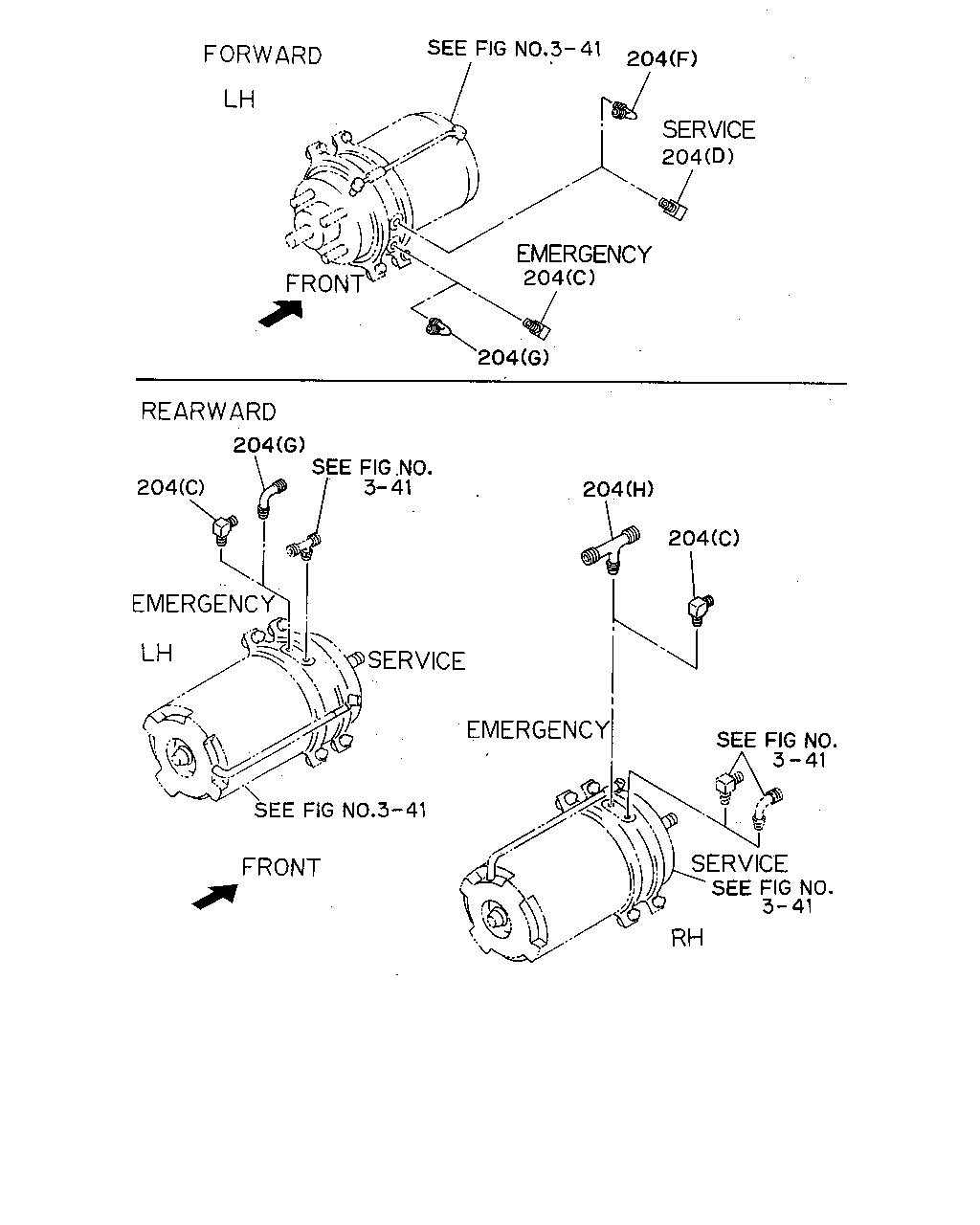

204 204 204 204 204 204 204 204

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
204	CONNECTOR; SPR CHAMBER (C)	1-09660-570-0	01	1	9307-
204	CONNECTOR; SPR CHAMBER EXC. NYLON TUBE AIR PIPING<Z29> (C)	1-09660-570-0	01	1	9307-
204	CONNECTOR; SPR CHAMBER (D)	1-09660-574-0	01	1	9307-
204	CONNECTOR; SPR CHAMBER NYLON TUBE AIR PIPING<Z29> (G) M14 & PT3/8 ELBOW	1-09660-234-0	02	1	8712-9306
204	CONNECTOR; SPR CHAMBER NYLON TUBE AIR PIPING<Z29> (F) M18 & PT3/8 ELBOW	1-09660-235-0	01	1	8712-9306
204	CONNECTOR; SPR CHAMBER NYLON TUBE AIR PIPING<Z29> (H)	1-09660-248-0	01	1	8712-9306
204	CONNECTOR; SPR CHAMBER NYLON TUBE AIR PIPING<Z29> (C)	1-09660-570-0	02	1	9307-
204	CONNECTOR; SPR CHAMBER EXC. NYLON TUBE AIR PIPING<Z29> (B) M16 PT3/8X2 3WAY	1-09656-418-1	01	1	8712-9306
204	CONNECTOR; SPR CHAMBER EXC. NYLON TUBE AIR PIPING<Z29> (A)	1-47815-006-1	03	1	8712-9306
204	CONNECTOR; SPR CHAMBER EXC. NYLON TUBE AIR PIPING<Z29> (E)	1-09660-697-1	01	1	9307-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
