Isuzu WW
▶
TRUCKS
▶
CXH
▶
10722 - CXH RHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-03 - CLUTCH PEDAL AND CONTROL
▶

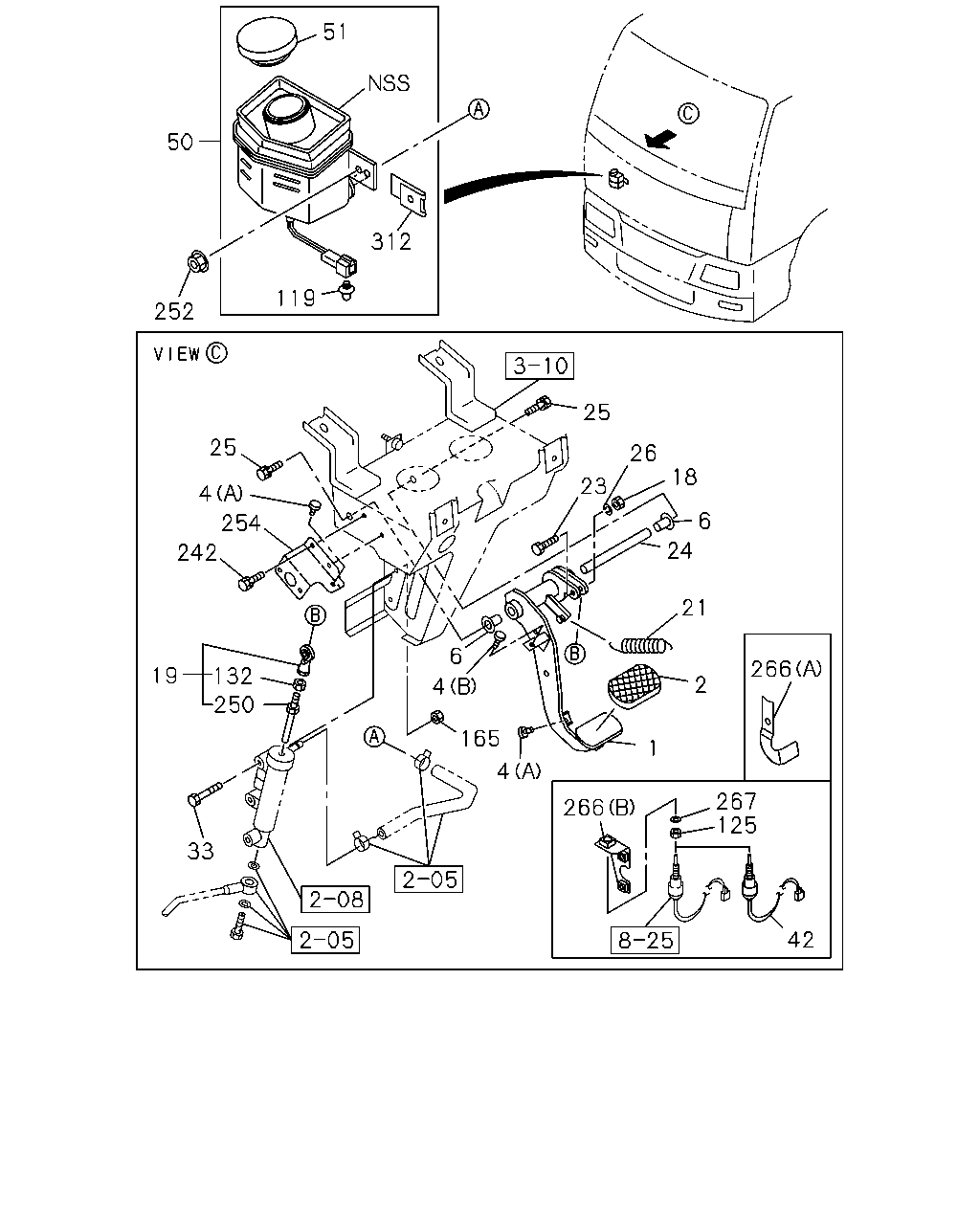

2-03 — CLUTCH PEDAL AND CONTROL
(#5049) — 36 parça
51
50
312
119
252
25
25
26
18
23
4
6
254
24
242
21
6
266
19
132
2
4
250
165
1
4
267
125
266
33
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PEDAL; CLU
ISUZU M/T<X9A>,FULLER M/T<X9B>
1-73907-321-4
01
1
9606-
1
PEDAL; CLU
ZF M/T<X9E>
1-73907-469-1
01
1
9606-
2
COVER; CLU PEDAL
8-94204-810-0
01
1
9606-0103
2
COVER; CLU PEDAL
8-97893-618-1
01
1
0104-
4
STOPPER; CLU PEDAL
(A)
1-47319-014-1
04
1
9606-0103
4
STOPPER; CLU PEDAL
ISUZU M/T<X9A>,FULLER M/T<X9B> (A)
1-47319-014-1
04
1
0104-
4
STOPPER; CLU PEDAL
(B)
5-31419-003-0
01
1
9606-0103
4
STOPPER; CLU PEDAL
ZF M/T<X9E> (A)
1-47319-014-1
02
1
0104-
6
BUSHING; CLU PEDAL
1-09330-045-0
02
1
9606-
18
NUT; PUSH ROD
M8
9-09110-508-0
01
1
9606-
19
ROD ASM; PUSH,CLU
1-73907-320-1
01
1
9606-
21
SPRING; RETURN,CLU PEDAL
ISUZU M/T<X9A>,FULLER M/T<X9B>
1-73998-820-0
01
1
9606-9608
21
SPRING; RETURN,CLU PEDAL
ISUZU M/T<X9A>,FULLER M/T<X9B>
1-73908-265-0
01
1
9609-
21
SPRING; RETURN,CLU PEDAL
ZF M/T<X9E>
1-73907-445-0
01
1
9606-
23
BOLT; PUSH ROD
M8X39.7
1-09009-150-0
01
1
9606-
24
SHAFT; CLU PEDAL
1-73998-936-1
01
1
9606-
25
BOLT; PEDAL
M10X25 W/LK WASHER
0-50051-025-0
02
1
9606-
26
WASHER; LK,PUSH ROD
ID=8.2
9-09150-608-0
01
1
9606-
33
BOLT; CLU M/CYL TO BRKT
M10X65
5-09030-024-1
02
1
9606-9703
33
BOLT; CLU M/CYL TO BRKT
M10X60 FLANGE
0-28081-060-0
02
1
9704-
42
SWITCH; CLU
ZF M/T<X9E>
1-82380-114-2
01
1
0104-
50
TANK; OIL,CLU
1-47530-182-0
01
1
9606-
51
CAP; OIL TANK,CLU
8-94136-483-1
01
1
9606-
119
CLIP; CONNECTOR
OD=7 H=1.2
8-94364-750-0
01
1
9903-
125
NUT; CLU SWITCH
ZF M/T<X9E> M10
9-09110-510-0
01
1
0104-
132
NUT; LK,PUSH ROD
M8
9-09110-408-0
01
1
9606-
165
NUT; CLU M/CYL
ZF M/T<X9E> M10 FLANGE
0-91150-210-0
02
1
9606-
242
BOLT; BRKT,CLUTCH
ISUZU M/T<X9A>,FULLER M/T<X9B> M6X16 W/LK WASHER
0-50040-616-0
02
1
9606-
242
BOLT; BRKT,CLUTCH
ZF M/T<X9E> M6X16 W/LK WASHER
0-50040-616-0
04
1
9606-
250
ROD; PUSH,CLU
1-73996-219-0
01
1
9606-
252
NUT; OIL TANK
M8 FLANGE W/RUBBER
1-09984-176-0
02
1
9606-
254
BRACKET; CLU SENSOR
1-73998-979-5
01
1
9606-
266
BRACKET; CLU SWITCH
ZF M/T<X9E> (A)
1-73907-395-1
01
1
0104-
266
BRACKET; CLU SWITCH
ZF M/T<X9E> (B)
1-73908-354-0
01
1
0104-
267
WASHER; LK,CLU SWITCH
ZF M/T<X9E> ID=10.2
9-09150-510-0
01
1
0104-
312
PLATE; OIL TANK,CLU
1-21249-007-1
01
1
9606-
