Sayfa 6-76 - Isuzu EPC

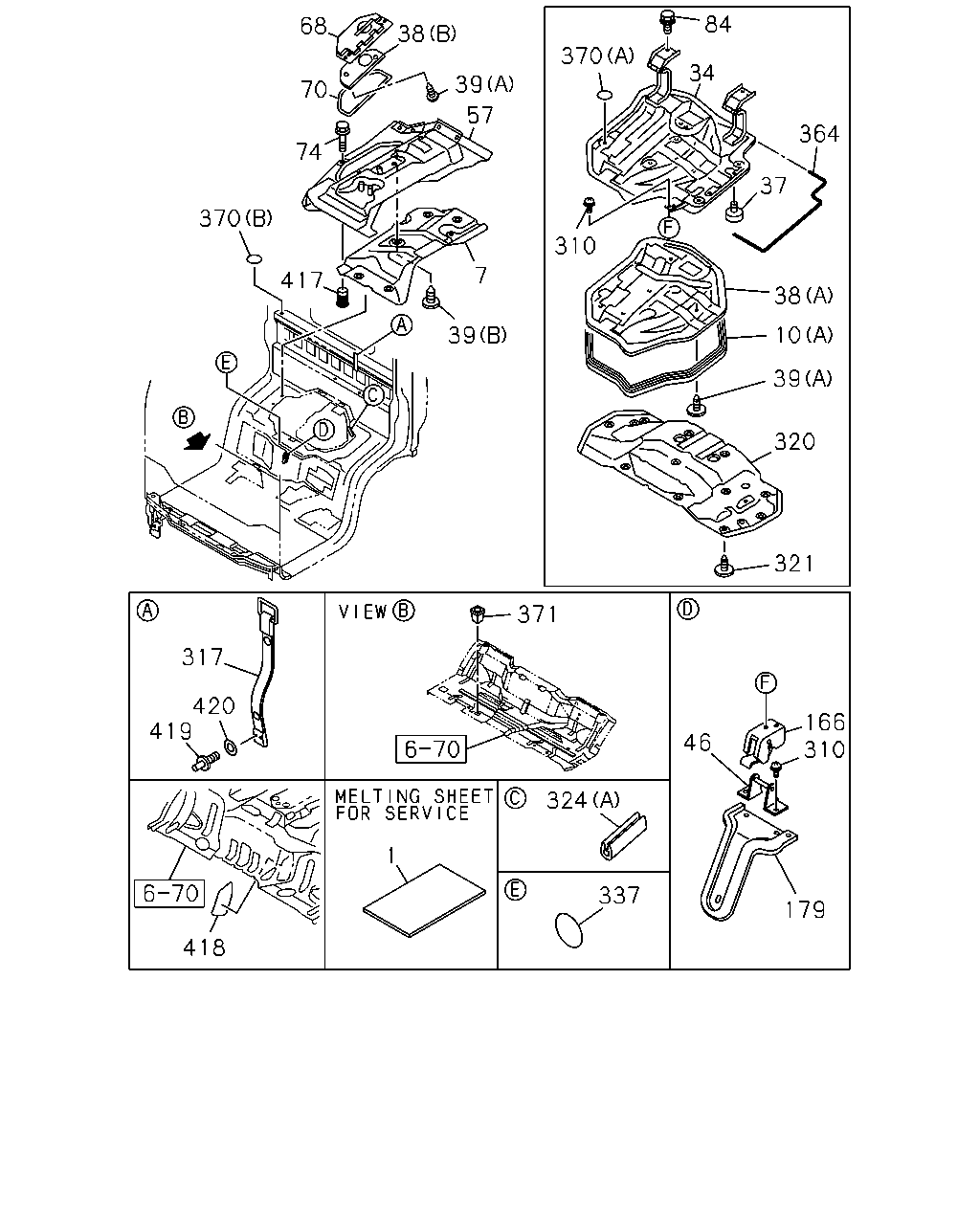

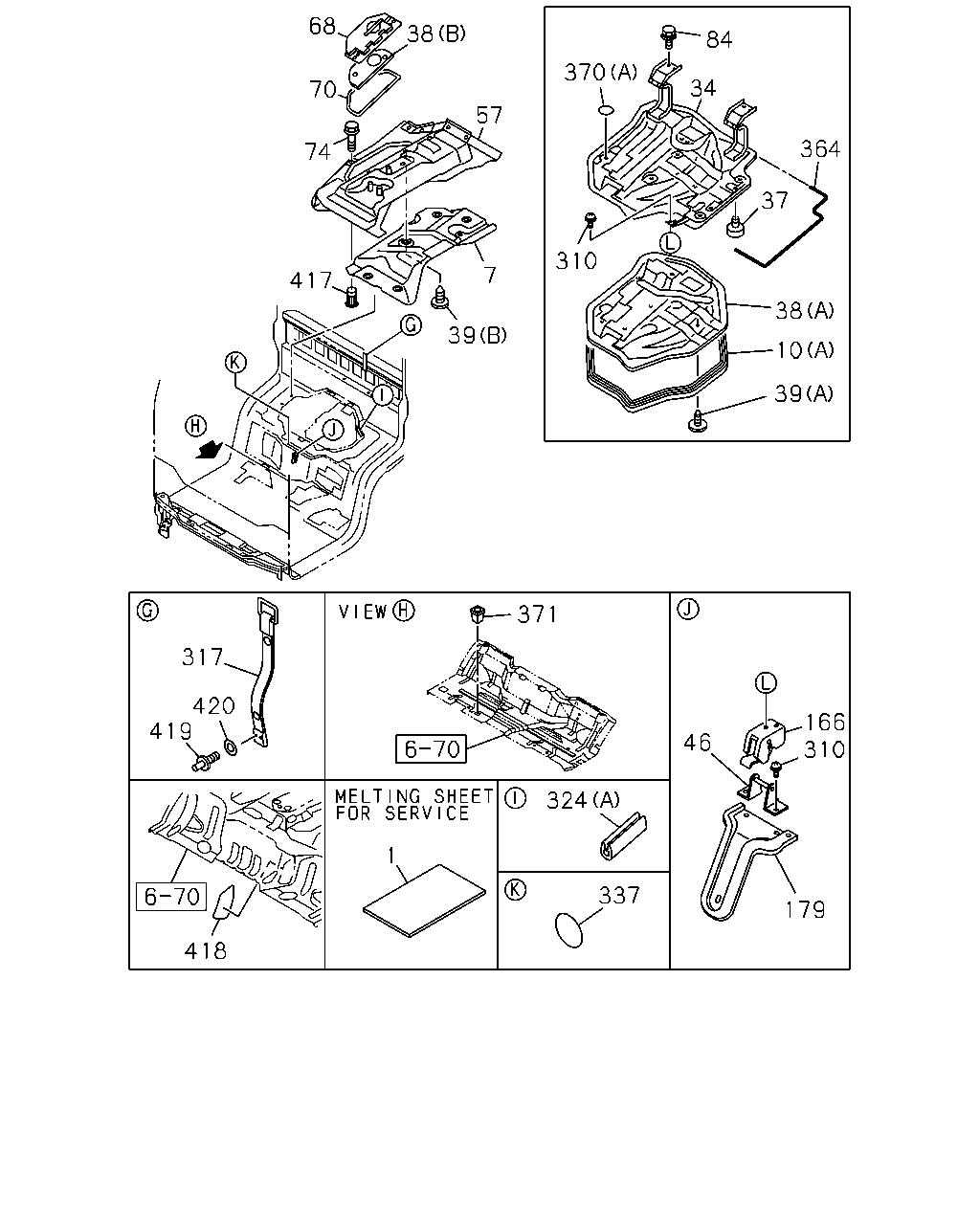

6-76 — FLOOR EQUIPMENT AND SEALING (#50487) — 181 parça

84 68 38 370 34 39 70 57 364 74 37 370 310 7 417 38 10 39 39 320 321 371 317 420 419 166 310 46 324 1 337 179 418

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.850 SHEET; MELTING,FLOOR NON ASBESTOS 1000X600 T=1.5; PARTS ONLY	8-94262-093-0	AR	1	0710-	●	●
7	16.545 INSULATOR; SUPPORT COVER AUSTRALIA EQUIPMENT(B13) INSPECTION ENGINE COVER<8GA>	8-98242-228-0	01	1	1402-1408	●
7	16.545 INSULATOR; SUPPORT COVER	8-98242-228-0	01	1	1402-1408		●
7	16.545 INSULATOR; SUPPORT COVER INSPECTION ENGINE COVER<8GA>	8-98242-228-0	01	1	1409-	●
7	16.545 INSULATOR; SUPPORT COVER	8-98242-228-0	01	1	1409-		●
7	16.545 INSULATOR; SUPPORT COVER INSPECTION ENGINE COVER<8GA>	8-97586-175-1	01	1	0710-1401	●
7	16.545 INSULATOR; SUPPORT COVER	8-97586-175-1	01	1	0710-1401		●
7	16.545 INSULATOR; SUPPORT COVER INSPECTION ENGINE COVER<8GA> EXC. AUSTRALIA EQUIPMENT(B13)	8-97586-175-1	01	1	1402-1408	●
10	16.549 SEAL; ENG COVER INSPECTION ENGINE COVER<8GA> (A)	8-98029-377-0	01	1	0710-	●
10	16.549 SEAL; ENG COVER (A)	8-98029-377-0	01	1	0710-		●
10	16.549 SEAL; ENG COVER (B)	8-98006-847-0	01	1	0710-		●
10	16.549 SEAL; ENG COVER (C)	8-98006-852-0	01	1	0710-		●
34	16.549 COVER ASM; ENG,CAB FLOOR INSPECTION ENGINE COVER<8GA>	8-97587-395-3	01	1	0710-	●
34	16.549 COVER ASM; ENG,CAB FLOOR	8-97587-395-3	01	1	0710-		●
37	16.549 RUBBER; BUFFER,ENG COVER INSPECTION ENGINE COVER<8GA> 16.155 OD=30 T=10	5-74917-001-2	02	1	0710-	●
37	16.549 RUBBER; BUFFER,ENG COVER 16.155 OD=30 T=10	5-74917-001-2	02	1	0710-		●
38	16.549 INSULATOR; ENG COVER AUSTRALIA EQUIPMENT(B13) INSPECTION ENGINE COVER<8GA> (A)	8-98242-226-0	01	1	1402-1408	●
38	16.549 INSULATOR; ENG COVER (A)	8-98242-226-0	01	1	1402-1408		●
38	16.549 INSULATOR; ENG COVER INSPECTION ENGINE COVER<8GA> (A)	8-98242-226-0	01	1	1409-	●
38	16.549 INSULATOR; ENG COVER (A)	8-98242-226-0	01	1	1409-		●
38	16.549 INSULATOR; ENG COVER AUSTRALIA EQUIPMENT(B13) INSPECTION ENGINE COVER<8GA> (B)	8-98242-234-0	01	1	1402-1408	●
38	16.549 INSULATOR; ENG COVER (B)	8-98242-234-0	01	1	1402-1408		●
38	16.549 INSULATOR; ENG COVER INSPECTION ENGINE COVER<8GA> (B)	8-98242-234-0	01	1	1409-	●
38	16.549 INSULATOR; ENG COVER (B)	8-98242-234-0	01	1	1409-		●
38	16.549 INSULATOR; ENG COVER INSPECTION ENGINE COVER<8GA> (B)	8-97586-169-2	01	1	0710-1401	●
38	16.549 INSULATOR; ENG COVER (B)	8-97586-169-2	01	1	0710-1401		●
38	16.549 INSULATOR; ENG COVER INSPECTION ENGINE COVER<8GA> EXC. AUSTRALIA EQUIPMENT(B13) (B)	8-97586-169-2	01	1	1402-1408	●
38	16.549 INSULATOR; ENG COVER INSPECTION ENGINE COVER<8GA> (A)	8-97586-182-2	01	1	0710-1401	●
38	16.549 INSULATOR; ENG COVER (A)	8-97586-182-2	01	1	0710-1401		●
38	16.549 INSULATOR; ENG COVER INSPECTION ENGINE COVER<8GA> EXC. AUSTRALIA EQUIPMENT(B13) (A)	8-97586-182-2	01	1	1402-1408	●
39	16.549 CLIP; INSULATOR,COVER INSPECTION ENGINE COVER<8GA> (B) OD=30	8-94279-952-0	07	1	0710-	●
39	16.549 CLIP; INSULATOR,COVER (B) OD=30	8-94279-952-0	07	1	0710-		●
39	16.549 CLIP; INSULATOR,COVER INSPECTION ENGINE COVER<8GA> 08.021 (A) ID=6.2 L=11.4	8-97808-623-0	05	1	0710-	●
39	16.549 CLIP; INSULATOR,COVER 08.021 (A) ID=6.2 L=11.4	8-97808-623-0	05	1	0710-		●
46	16.549 HOOK ASM; ENG COVER INSPECTION ENGINE COVER<8GA>	8-98040-145-0	02	1	0710-	●
46	16.549 HOOK ASM; ENG COVER	8-98040-145-0	02	1	0710-		●
57	16.549 COVER ASM; SUPPORT,CAB FLOOR INSPECTION ENGINE COVER<8GA>	8-97587-400-3	01	1	0710-	●
57	16.549 COVER ASM; SUPPORT,CAB FLOOR	8-97587-400-3	01	1	0710-		●
68	16.549 COVER ASM; SUB,ENG COVER INSPECTION ENGINE COVER<8GA>	8-98040-141-0	01	1	0710-	●
68	16.549 COVER ASM; SUB,ENG COVER	8-98040-141-0	01	1	0710-		●
70	16.549 SEAL; ENG SUB COVER,CAB FLOOR INSPECTION ENGINE COVER<8GA>	8-97853-050-1	01	1	0710-	●
70	16.549 SEAL; ENG SUB COVER,CAB FLOOR	8-97853-050-1	01	1	0710-		●
74	16.549 BOLT; SUPPORT COVER TO FLOOR INSPECTION ENGINE COVER<8GA> 01.531 M8X20 FLANGE	0-28650-820-0	10	1	0710-	●
74	16.549 BOLT; SUPPORT COVER TO FLOOR 01.531 M8X20 FLANGE	0-28650-820-0	10	1	0710-		●
84	16.549 BOLT; ENG COVER HINGE INSPECTION ENGINE COVER<8GA> 01.531 M8X20 FLANGE	0-28650-820-0	04	1	0710-	●
84	16.549 BOLT; ENG COVER HINGE 01.531 M8X20 FLANGE	0-28650-820-0	04	1	0710-		●
166	16.549 LOCK; ENG COVER INSPECTION ENGINE COVER<8GA>	8-98040-152-0	02	1	0710-	●
166	16.549 LOCK; ENG COVER	8-98040-152-0	02	1	0710-		●
179	16.549 REINFORCEMENT; COVER INSPECTION ENGINE COVER<8GA>	8-98048-301-1	01	1	0710-	●
179	16.549 REINFORCEMENT; COVER	8-98048-301-1	01	1	0710-		●
310	16.549 SCREW; ENG COVER HOOK INSPECTION ENGINE COVER<8GA> 02.343 M6X16 FLANGE	0-28650-616-0	04	1	0811-	●
310	16.549 SCREW; ENG COVER HOOK 02.343 M6X16 FLANGE	0-28650-616-0	04	1	0811-		●
310	16.549 SCREW; ENG COVER HOOK INSPECTION ENGINE COVER<8GA> 16.570 M6X16	0-38050-616-0	09	1	0710-0810	●
310	16.549 SCREW; ENG COVER HOOK 16.570 M6X16	0-38050-616-0	09	1	0710-0810		●
310	16.549 SCREW; ENG COVER HOOK INSPECTION ENGINE COVER<8GA> 16.570 M6X16	0-38050-616-0	05	1	0811-	●
310	16.549 SCREW; ENG COVER HOOK 16.570 M6X16	0-38050-616-0	05	1	0811-		●
317	16.549 BAND; ENGINE COVER INSPECTION ENGINE COVER<8GA>	8-97585-575-0	01	1	0710-	●
317	16.549 BAND; ENGINE COVER	8-97585-575-0	01	1	0710-		●
320	16.549 INSULATOR; FLOOR,FRT AUSTRALIA EQUIPMENT(B13) EXC. INSPECTION ENGINE COVER<8GA>	8-98242-225-0	01	1	1401-1408	●
320	16.549 INSULATOR; FLOOR,FRT EXC. INSPECTION ENGINE COVER<8GA>	8-98242-225-0	01	1	1409-	●
320	16.549 INSULATOR; FLOOR,FRT EXC. INSPECTION ENGINE COVER<8GA>	8-97586-164-7	01	1	0710-1312	●
320	16.549 INSULATOR; FLOOR,FRT EXC. AUSTRALIA EQUIPMENT(B13),INSPECTION ENGINE COVER<8GA>	8-97586-164-7	01	1	1401-1408	●
321	16.549 CLIP; INSULATOR,FLOOR EXC. INSPECTION ENGINE COVER<8GA> 08.021 ID=6.2 L=11.4	8-97808-623-0	15	1	0710-	●
324	16.545 FINISHER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> (A) L=140	8-97892-742-0	03	1	0710-	●
324	16.545 FINISHER; FLOOR PANEL (A) L=140	8-97892-742-0	03	1	0710-		●
324	16.545 FINISHER; FLOOR PANEL 16.742 (B) L=120	1-73948-004-0	02	1	0710-		●
337	16.545 SEAL; CLIP HOLE INSPECTION ENGINE COVER<8GA> OD=32 BLACK	8-98031-126-0	01	1	0710-	●
337	16.545 SEAL; CLIP HOLE OD=32 BLACK	8-98031-126-0	04	1	0710-	●	●
337	16.545 SEAL; CLIP HOLE OD=32 BLACK	8-98031-126-0	08	1	0710-	●	●
337	16.545 SEAL; CLIP HOLE 16.165 OD=25 BLACK	1-76798-019-0	23	1	0710-		●
364	16.545 FINISHER; ENG COVER SIDE INSPECTION ENGINE COVER<8GA> L=1100	8-97892-744-0	01	1	0710-	●
364	16.545 FINISHER; ENG COVER SIDE L=1100	8-97892-744-0	01	1	0710-		●
370	16.549 SEAL; LOCATION HOLE INSPECTION ENGINE COVER<8GA> 16.165 (A) OD=25 BLACK	1-76798-019-0	01	1	0710-	●
370	16.549 SEAL; LOCATION HOLE 16.165 (A) OD=25 BLACK	1-76798-019-0	01	1	0710-		●
370	16.549 SEAL; LOCATION HOLE INSPECTION ENGINE COVER<8GA> 16.165 (B) OD=20 T=0.05 BLACK	5-76777-036-0	03	1	0710-	●
371	16.549 GROMMET; LOCATION HOLE 16.547 14.5X14.5 BLACK	8-94279-714-0	02	1	0710-	●	●
417	16.549 NUT; POP INSPECTION ENGINE COVER<8GA> 09.786 M6 POP NUT	8-98013-752-0	01	1	0710-	●
417	16.549 NUT; POP 09.786 M6 POP NUT	8-98013-752-0	01	1	0710-		●
418	16.549 SEAL; PROTECTOR	8-98090-192-0	01	1	0710-0910	●	●
418	16.549 SEAL; PROTECTOR	8-98090-191-0	01	1	0710-0910	●	●
419	09.786 RIVET; ENG COVER INSPECTION ENGINE COVER<8GA>	8-98065-262-0	01	1	0710-	●
419	09.786 RIVET; ENG COVER	8-98065-262-0	01	1	0710-		●
420	09.786 WASHER; ENG COVER INSPECTION ENGINE COVER<8GA> 02.335 ID=5.3 OD=16	0-91614-705-0	01	1	0710-	●
420	09.786 WASHER; ENG COVER 02.335 ID=5.3 OD=16	0-91614-705-0	01	1	0710-		●

68 38 84 370 34 70 57 364 74 37 310 7 417 38 39 10 39 371 317 420 419 166 310 46 324 1 337 179 418

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.850 SHEET; MELTING,FLOOR NON ASBESTOS 1000X600 T=1.5; PARTS ONLY	8-94262-093-0	AR	1	0710-	●	●
7	16.545 INSULATOR; SUPPORT COVER AUSTRALIA EQUIPMENT(B13) INSPECTION ENGINE COVER<8GA>	8-98242-228-0	01	1	1402-1408	●
7	16.545 INSULATOR; SUPPORT COVER	8-98242-228-0	01	1	1402-1408		●
7	16.545 INSULATOR; SUPPORT COVER INSPECTION ENGINE COVER<8GA>	8-98242-228-0	01	1	1409-	●
7	16.545 INSULATOR; SUPPORT COVER	8-98242-228-0	01	1	1409-		●
7	16.545 INSULATOR; SUPPORT COVER INSPECTION ENGINE COVER<8GA>	8-97586-175-1	01	1	0710-1401	●
7	16.545 INSULATOR; SUPPORT COVER	8-97586-175-1	01	1	0710-1401		●
7	16.545 INSULATOR; SUPPORT COVER INSPECTION ENGINE COVER<8GA> EXC. AUSTRALIA EQUIPMENT(B13)	8-97586-175-1	01	1	1402-1408	●
10	16.549 SEAL; ENG COVER INSPECTION ENGINE COVER<8GA> (A)	8-98029-377-0	01	1	0710-	●
10	16.549 SEAL; ENG COVER (A)	8-98029-377-0	01	1	0710-		●
10	16.549 SEAL; ENG COVER (B)	8-98006-847-0	01	1	0710-		●
10	16.549 SEAL; ENG COVER (C)	8-98006-852-0	01	1	0710-		●
34	16.549 COVER ASM; ENG,CAB FLOOR INSPECTION ENGINE COVER<8GA>	8-97587-395-3	01	1	0710-	●
34	16.549 COVER ASM; ENG,CAB FLOOR	8-97587-395-3	01	1	0710-		●
37	16.549 RUBBER; BUFFER,ENG COVER INSPECTION ENGINE COVER<8GA> 16.155 OD=30 T=10	5-74917-001-2	02	1	0710-	●
37	16.549 RUBBER; BUFFER,ENG COVER 16.155 OD=30 T=10	5-74917-001-2	02	1	0710-		●
38	16.549 INSULATOR; ENG COVER AUSTRALIA EQUIPMENT(B13) INSPECTION ENGINE COVER<8GA> (A)	8-98242-226-0	01	1	1402-1408	●
38	16.549 INSULATOR; ENG COVER (A)	8-98242-226-0	01	1	1402-1408		●
38	16.549 INSULATOR; ENG COVER INSPECTION ENGINE COVER<8GA> (A)	8-98242-226-0	01	1	1409-	●
38	16.549 INSULATOR; ENG COVER (A)	8-98242-226-0	01	1	1409-		●
38	16.549 INSULATOR; ENG COVER AUSTRALIA EQUIPMENT(B13) INSPECTION ENGINE COVER<8GA> (B)	8-98242-234-0	01	1	1402-1408	●
38	16.549 INSULATOR; ENG COVER (B)	8-98242-234-0	01	1	1402-1408		●
38	16.549 INSULATOR; ENG COVER INSPECTION ENGINE COVER<8GA> (B)	8-98242-234-0	01	1	1409-	●
38	16.549 INSULATOR; ENG COVER (B)	8-98242-234-0	01	1	1409-		●
38	16.549 INSULATOR; ENG COVER INSPECTION ENGINE COVER<8GA> (B)	8-97586-169-2	01	1	0710-1401	●
38	16.549 INSULATOR; ENG COVER (B)	8-97586-169-2	01	1	0710-1401		●
38	16.549 INSULATOR; ENG COVER INSPECTION ENGINE COVER<8GA> EXC. AUSTRALIA EQUIPMENT(B13) (B)	8-97586-169-2	01	1	1402-1408	●
38	16.549 INSULATOR; ENG COVER INSPECTION ENGINE COVER<8GA> (A)	8-97586-182-2	01	1	0710-1401	●
38	16.549 INSULATOR; ENG COVER (A)	8-97586-182-2	01	1	0710-1401		●
38	16.549 INSULATOR; ENG COVER INSPECTION ENGINE COVER<8GA> EXC. AUSTRALIA EQUIPMENT(B13) (A)	8-97586-182-2	01	1	1402-1408	●
39	16.549 CLIP; INSULATOR,COVER INSPECTION ENGINE COVER<8GA> (B) OD=30	8-94279-952-0	07	1	0710-	●
39	16.549 CLIP; INSULATOR,COVER (B) OD=30	8-94279-952-0	07	1	0710-		●
39	16.549 CLIP; INSULATOR,COVER INSPECTION ENGINE COVER<8GA> 08.021 (A) ID=6.2 L=11.4	8-97808-623-0	05	1	0710-	●
39	16.549 CLIP; INSULATOR,COVER 08.021 (A) ID=6.2 L=11.4	8-97808-623-0	05	1	0710-		●
46	16.549 HOOK ASM; ENG COVER INSPECTION ENGINE COVER<8GA>	8-98040-145-0	02	1	0710-	●
46	16.549 HOOK ASM; ENG COVER	8-98040-145-0	02	1	0710-		●
57	16.549 COVER ASM; SUPPORT,CAB FLOOR INSPECTION ENGINE COVER<8GA>	8-97587-400-3	01	1	0710-	●
57	16.549 COVER ASM; SUPPORT,CAB FLOOR	8-97587-400-3	01	1	0710-		●
68	16.549 COVER ASM; SUB,ENG COVER INSPECTION ENGINE COVER<8GA>	8-98040-141-0	01	1	0710-	●
68	16.549 COVER ASM; SUB,ENG COVER	8-98040-141-0	01	1	0710-		●
70	16.549 SEAL; ENG SUB COVER,CAB FLOOR INSPECTION ENGINE COVER<8GA>	8-97853-050-1	01	1	0710-	●
70	16.549 SEAL; ENG SUB COVER,CAB FLOOR	8-97853-050-1	01	1	0710-		●
74	16.549 BOLT; SUPPORT COVER TO FLOOR INSPECTION ENGINE COVER<8GA> 01.531 M8X20 FLANGE	0-28650-820-0	10	1	0710-	●
74	16.549 BOLT; SUPPORT COVER TO FLOOR 01.531 M8X20 FLANGE	0-28650-820-0	10	1	0710-		●
84	16.549 BOLT; ENG COVER HINGE INSPECTION ENGINE COVER<8GA> 01.531 M8X20 FLANGE	0-28650-820-0	04	1	0710-	●
84	16.549 BOLT; ENG COVER HINGE 01.531 M8X20 FLANGE	0-28650-820-0	04	1	0710-		●
166	16.549 LOCK; ENG COVER INSPECTION ENGINE COVER<8GA>	8-98040-152-0	02	1	0710-	●
166	16.549 LOCK; ENG COVER	8-98040-152-0	02	1	0710-		●
179	16.549 REINFORCEMENT; COVER INSPECTION ENGINE COVER<8GA>	8-98048-301-1	01	1	0710-	●
179	16.549 REINFORCEMENT; COVER	8-98048-301-1	01	1	0710-		●
310	16.549 SCREW; ENG COVER HOOK INSPECTION ENGINE COVER<8GA> 02.343 M6X16 FLANGE	0-28650-616-0	04	1	0811-	●
310	16.549 SCREW; ENG COVER HOOK 02.343 M6X16 FLANGE	0-28650-616-0	04	1	0811-		●
310	16.549 SCREW; ENG COVER HOOK INSPECTION ENGINE COVER<8GA> 16.570 M6X16	0-38050-616-0	09	1	0710-0810	●
310	16.549 SCREW; ENG COVER HOOK 16.570 M6X16	0-38050-616-0	09	1	0710-0810		●
310	16.549 SCREW; ENG COVER HOOK INSPECTION ENGINE COVER<8GA> 16.570 M6X16	0-38050-616-0	05	1	0811-	●
310	16.549 SCREW; ENG COVER HOOK 16.570 M6X16	0-38050-616-0	05	1	0811-		●
317	16.549 BAND; ENGINE COVER INSPECTION ENGINE COVER<8GA>	8-97585-575-0	01	1	0710-	●
317	16.549 BAND; ENGINE COVER	8-97585-575-0	01	1	0710-		●
324	16.545 FINISHER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> (A) L=140	8-97892-742-0	03	1	0710-	●
324	16.545 FINISHER; FLOOR PANEL (A) L=140	8-97892-742-0	03	1	0710-		●
324	16.545 FINISHER; FLOOR PANEL 16.742 (B) L=120	1-73948-004-0	02	1	0710-		●
337	16.545 SEAL; CLIP HOLE INSPECTION ENGINE COVER<8GA> OD=32 BLACK	8-98031-126-0	01	1	0710-	●
337	16.545 SEAL; CLIP HOLE OD=32 BLACK	8-98031-126-0	04	1	0710-	●	●
337	16.545 SEAL; CLIP HOLE OD=32 BLACK	8-98031-126-0	08	1	0710-	●	●
337	16.545 SEAL; CLIP HOLE 16.165 OD=25 BLACK	1-76798-019-0	23	1	0710-		●
364	16.545 FINISHER; ENG COVER SIDE INSPECTION ENGINE COVER<8GA> L=1100	8-97892-744-0	01	1	0710-	●
364	16.545 FINISHER; ENG COVER SIDE L=1100	8-97892-744-0	01	1	0710-		●
370	16.549 SEAL; LOCATION HOLE INSPECTION ENGINE COVER<8GA> 16.165 (A) OD=25 BLACK	1-76798-019-0	01	1	0710-	●
370	16.549 SEAL; LOCATION HOLE 16.165 (A) OD=25 BLACK	1-76798-019-0	01	1	0710-		●
370	16.549 SEAL; LOCATION HOLE INSPECTION ENGINE COVER<8GA> 16.165 (B) OD=20 T=0.05 BLACK	5-76777-036-0	03	1	0710-	●
371	16.549 GROMMET; LOCATION HOLE 16.547 14.5X14.5 BLACK	8-94279-714-0	02	1	0710-	●	●
417	16.549 NUT; POP INSPECTION ENGINE COVER<8GA> 09.786 M6 POP NUT	8-98013-752-0	01	1	0710-	●
417	16.549 NUT; POP 09.786 M6 POP NUT	8-98013-752-0	01	1	0710-		●
418	16.549 SEAL; PROTECTOR	8-98090-192-0	01	1	0710-0910	●	●
418	16.549 SEAL; PROTECTOR	8-98090-191-0	01	1	0710-0910	●	●
419	09.786 RIVET; ENG COVER INSPECTION ENGINE COVER<8GA>	8-98065-262-0	01	1	0710-	●
419	09.786 RIVET; ENG COVER	8-98065-262-0	01	1	0710-		●
420	09.786 WASHER; ENG COVER INSPECTION ENGINE COVER<8GA> 02.335 ID=5.3 OD=16	0-91614-705-0	01	1	0710-	●
420	09.786 WASHER; ENG COVER 02.335 ID=5.3 OD=16	0-91614-705-0	01	1	0710-		●

324 325 326 163 119 151 163 120 10 87 55 10 88 366 324

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	16.549 SEAL; ENG COVER INSPECTION ENGINE COVER<8GA> (A)	8-98029-377-0	01	1	0710-	●
10	16.549 SEAL; ENG COVER (A)	8-98029-377-0	01	1	0710-		●
10	16.549 SEAL; ENG COVER (B)	8-98006-847-0	01	1	0710-		●
10	16.549 SEAL; ENG COVER (C)	8-98006-852-0	01	1	0710-		●
55	16.549 SEAL; SUPPORT COVER	8-97583-500-1	01	1	0710-		●
87	16.549 COVER; BATTERY CHECK HOLE	8-97856-332-4	01	1	0710-		●
88	16.549 SEAL; BATTERY CHECK HOLE COVER	8-97853-725-1	01	1	0710-		●
119	16.090 LID; P/S OIL TANK	8-97853-440-2	01	1	0710-		●
120	16.090 SEAL; LID,P/S	8-97853-441-1	01	1	0710-		●
151	16.549 COVER ASM; ENG	8-98043-008-4	01	1	0710-		●
163	16.549 BOLT; RR,ENG COVER,FRT 02.343 M6X16 FLANGE	0-28650-616-0	08	1	0710-0901		●
163	16.549 BOLT; RR,ENG COVER,FRT 02.343 M6X16 FLANGE	0-28650-616-0	11	1	0710-		●
324	16.545 FINISHER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> (A) L=140	8-97892-742-0	03	1	0710-	●
324	16.545 FINISHER; FLOOR PANEL (A) L=140	8-97892-742-0	03	1	0710-		●
324	16.545 FINISHER; FLOOR PANEL 16.742 (B) L=120	1-73948-004-0	02	1	0710-		●
325	16.549 COVER; LLC	8-97856-974-0	01	1	0710-		●
326	16.549 SEAL; COVER	8-97856-975-1	01	1	0710-		●
366	16.545 FINISHER; COVER	8-97583-501-0	01	1	0710-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
