6-51 — REAR DOOR GLASS AND REGULATOR (#50480) — 27 parça

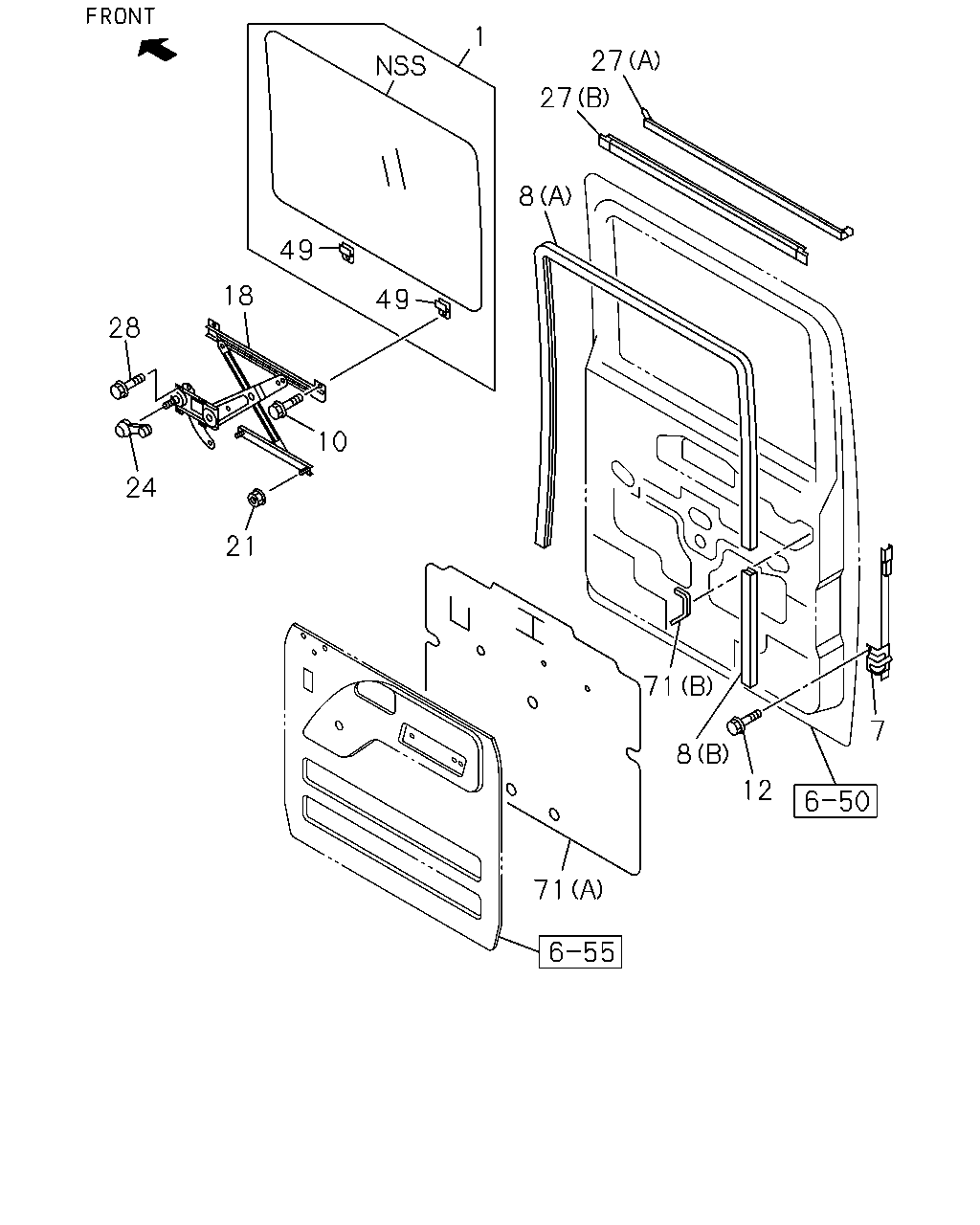

çizim 157302
1 27 27 8 49 18 49 28 10 24 21 71 7 8 12 71
BalonParca AdiParca NoAdetTipApplied Date
1 16.180 GLASS; RR DOOR 8-97587-681-2 01 1 0710-1204
1 16.180 GLASS; RR DOOR 8-98211-770-0 01 1 1205-
1 16.180 GLASS; RR DOOR 8-97587-680-2 01 1 0710-1204
1 16.180 GLASS; RR DOOR 8-98211-769-0 01 1 1205-
7 16.190 CHANNEL; GLASS RUN,RR DOOR 8-98032-138-2 01 1 0710-
7 16.190 CHANNEL; GLASS RUN,RR DOOR 8-98032-137-2 01 1 0710-
8 16.190 RUN; GLASS,RR DOOR
(B) 		8-98070-147-0 02 1 0710-
8 16.190 RUN; GLASS,RR DOOR
(A) 		8-97587-685-1 01 1 0710-
8 16.190 RUN; GLASS,RR DOOR
(A) 		8-98002-256-1 01 1 0710-
10 16.183 SCREW; GLASS
M6X10 FLANGE 		8-98032-500-0 04 1 0710-0802
10 16.183 SCREW; GLASS
03.671 M6X10 FLANGE 		0-28050-610-0 04 1 0803-
12 16.181 SCREW; CHANNEL,GLASS RUN
16.183 M6X10 FLANGE 		8-98032-500-0 04 1 0710-0802
12 16.181 SCREW; CHANNEL,GLASS RUN
03.671 M6X10 FLANGE 		0-28050-610-0 04 1 0803-
18 16.260 REGULATOR; WINDOW,RR DOOR 8-97587-698-2 01 1 0710-1007
18 16.260 REGULATOR; WINDOW,RR DOOR 8-98155-997-0 01 1 1008-
18 16.260 REGULATOR; WINDOW,RR DOOR 8-97587-697-2 01 1 0710-1007
18 16.260 REGULATOR; WINDOW,RR DOOR 8-98155-996-0 01 1 1008-
21 16.270 NUT; FLANGE,WINDOW REG
01.062 M6 FLANGE 		0-91180-106-0 04 1 0710-
24 16.270 HANDLE; WINDOW REG,RR DOOR
GRAY 		8-97405-313-3 02 1 0710-
27 16.183 SEAL; WAIST,RR DOOR
(A) 		8-97587-691-1 02 1 0710-
27 16.183 SEAL; WAIST,RR DOOR
(B) 		8-97587-692-1 02 1 0710-
28 16.181 BOLT; WINDOW REG
16.183 M6X10 FLANGE 		8-98032-500-0 08 1 0710-0802
28 16.181 BOLT; WINDOW REG
03.671 M6X10 FLANGE 		0-28050-610-0 08 1 0803-
49 16.180 HOLDER; DOOR GLASS
16.183 		8-98041-907-0 04 1 0710-1204
49 16.180 HOLDER; DOOR GLASS
16.183 		8-98211-762-0 04 1 1205-
71 16.183 SEAL; WATER,RR DOOR
(A) 		8-97587-700-1 02 1 0710-
71 16.183 SEAL; WATER,RR DOOR
(B) 		8-98061-351-0 02 1 0710-
