Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#50473) — 208 parça

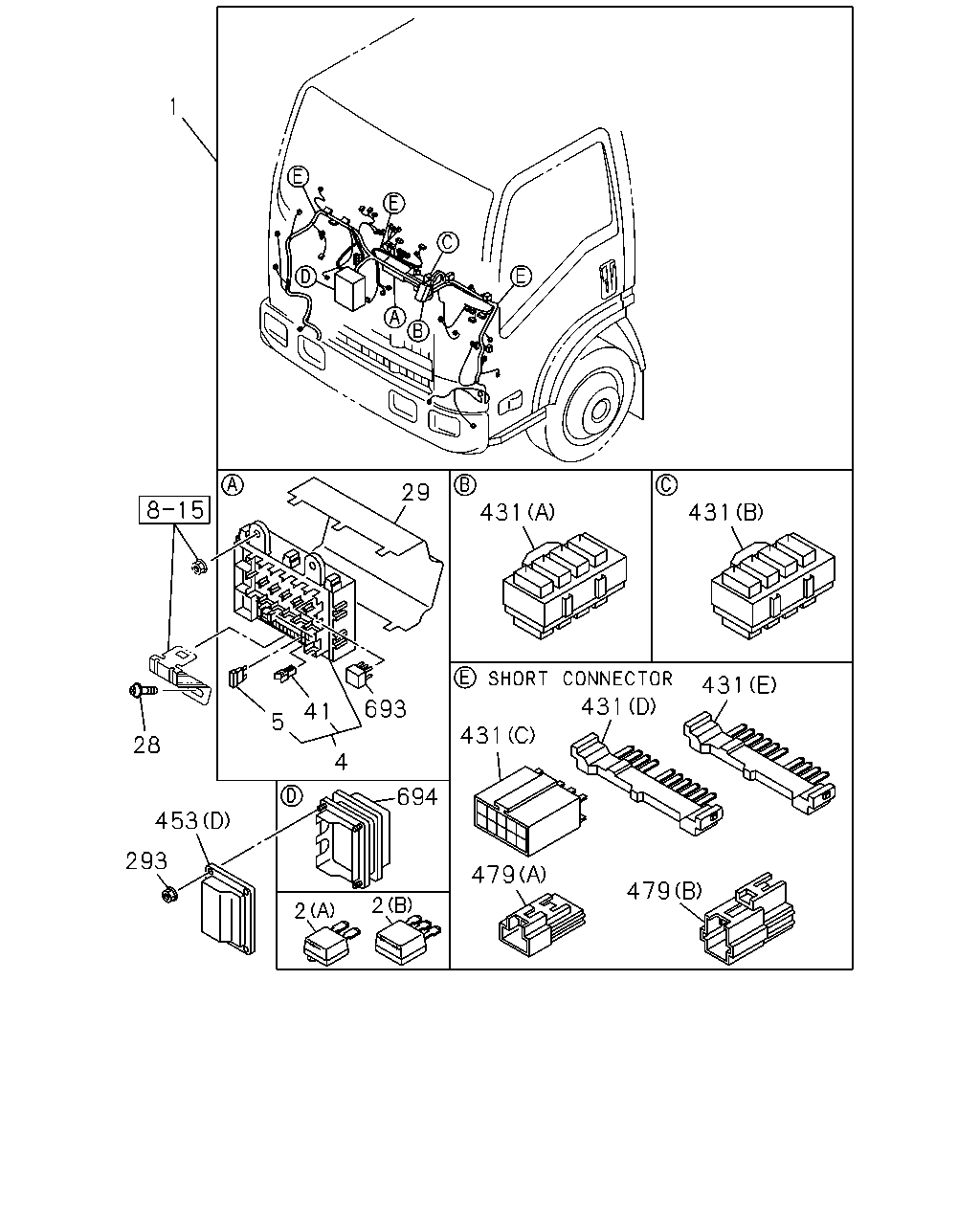

1 29 431 431 431 431 693 41 5 431 28 4 694 453 293 479 479 2 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98088-747-5	01	1	0712-	●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98088-749-5	01	1	0712-	●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98088-746-5	01	1	0712-	●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98088-748-5	01	1	0712-	●	●
1	02.480 HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98091-908-1	01	1	0712-0802	●	●
1	02.480 HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98091-910-1	01	1	0712-0802	●	●
1	02.480 HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98091-907-1	01	1	0712-0802	●	●
1	02.480 HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98091-909-1	01	1	0712-0802	●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98088-751-5	01	1	0712-			●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98088-753-5	01	1	0712-			●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98088-750-5	01	1	0712-			●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98088-752-5	01	1	0712-			●
1	02.480 HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98091-912-1	01	1	0712-0802			●
1	02.480 HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98091-914-1	01	1	0712-0802			●
1	02.480 HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98091-911-1	01	1	0712-0802			●
1	02.480 HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98091-913-1	01	1	0712-0802			●
2	02.483 DIODE; CABLE HARNESS (A) BLACK 2P-1.5A	8-94422-639-1	AR	1	0712-	●	●	●
2	02.483 DIODE; CABLE HARNESS (B) BLACK 3P-1.5A	8-94422-640-1	AR	1	0712-	●	●	●
4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-0	01	1	0712-	●	●	●
5	02.485 FUSE; FACIA HARNESS 10A RED	8-98054-257-0	AR	1	0712-	●	●	●
5	02.485 FUSE; FACIA HARNESS 15A BLUE	8-98054-258-0	AR	1	0712-	●	●	●
5	02.485 FUSE; FACIA HARNESS 20A YELLOW	8-98054-259-0	AR	1	0712-	●	●	●
28	02.483 SCREW; FUSE BOX 16.090 M5X16 TAPPING	0-72180-516-0	01	1	0712-1101	●	●	●
28	02.483 SCREW; FUSE BOX 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212	●	●	●
28	02.483 SCREW; FUSE BOX 16.090 M5X16 TAPPING	0-72180-516-0	01	1	1301-	●	●	●
29	02.483 COVER; FUSE BOX	8-98056-968-0	01	1	0712-	●	●	●
41	08.821 PULLER; FUSE	8-98054-260-0	01	1	0712-	●	●	●
293	02.559 NUT 01.062 M6 FLANGE	0-91180-106-0	04	1	0712-	●	●	●
431	02.530 CONNECTOR; JOINT (D) 10P BLUE	1-82699-598-0	02	1	0712-1005	●	●	●
431	02.530 CONNECTOR; JOINT (D) 10P BLUE	1-82699-598-0	01	1	1006-	●	●	●
431	02.530 CONNECTOR; JOINT (E) 10P GREEN	1-82699-599-0	01	1	0712-	●	●	●
431	02.530 CONNECTOR; JOINT (C) 10P	8-97077-943-0	02	1	0712-	●	●	●
431	02.530 CONNECTOR; JOINT (A)	8-98046-205-0	01	1	0712-	●	●	●
431	02.530 CONNECTOR; JOINT (B)	8-98046-206-0	01	1	0712-	●	●	●
453	02.483 PROTECTOR; HARNESS (E)	8-94452-553-0	01	1	0805-	●	●	●
453	02.483 PROTECTOR; HARNESS (A)	8-94417-716-0	02	1	0712-	●	●	●
453	02.483 PROTECTOR; HARNESS (B)	8-98031-850-1	01	1	0712-	●	●	●
453	02.483 PROTECTOR; HARNESS (C)	8-98031-851-2	01	1	0712-	●	●	●
453	02.483 PROTECTOR; HARNESS (D)	8-98034-039-1	01	1	0712-	●	●	●
479	02.530 CAP; CONNECTOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98108-678-0	01	1	0802-	●	●	●
479	02.530 CAP; CONNECTOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98108-679-0	01	1	0802-	●	●	●
693	02.694 RELAY; FUSE BOX 08.852 24V 10A MATSUSHITA	8-97173-035-1	AR	1	0712-	●	●	●
694	02.483 BOX ASM; CONNECTOR	8-98057-772-0	01	1	0712-	●	●	●

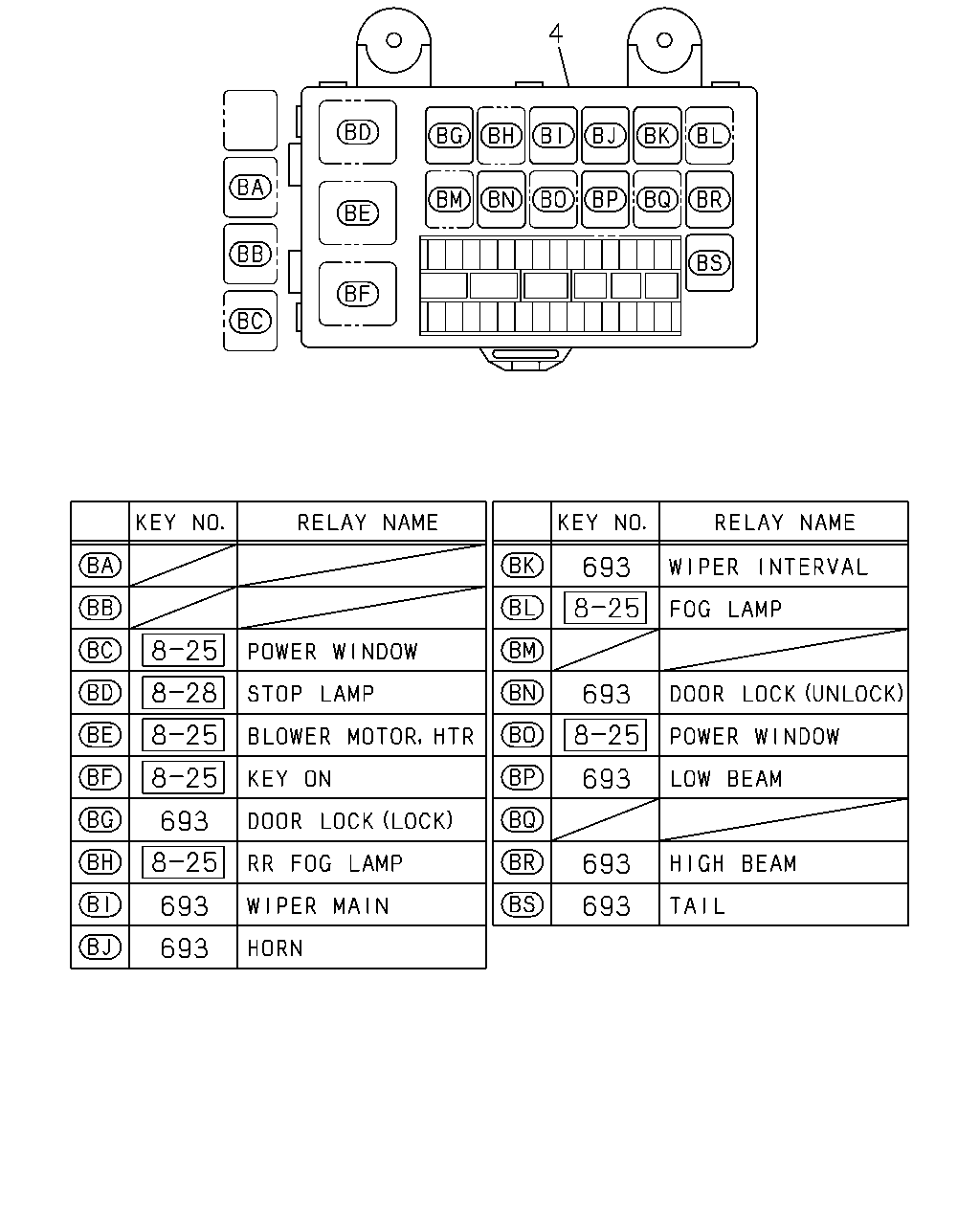

4 693 693 693 693 693 693 693 693

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-0	01	1	0712-	●	●	●
	693	02.694 RELAY; FUSE BOX 08.852 24V 10A MATSUSHITA	8-97173-035-1	AR	1	0712-	●	●	●

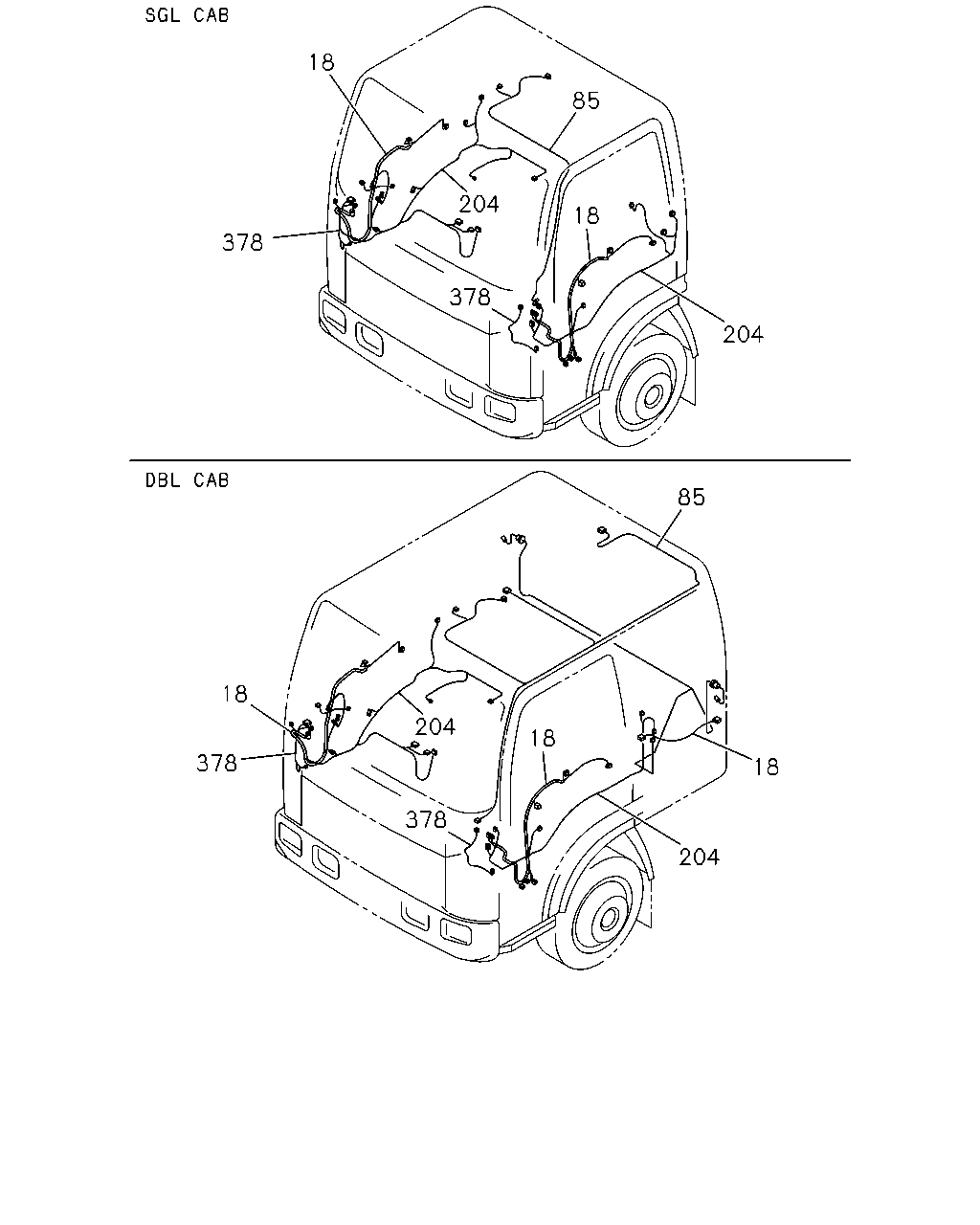

18 85 204 18 378 378 204 85 18 204 18 378 18 378 204

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
18	02.480 HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> FRONT	8-98071-086-3	01	1	0712-	●	●	●
18	02.480 HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> FRONT	8-98071-078-2	01	1	0712-	●	●	●
18	02.480 HARNESS; DOOR EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> FRONT	8-98071-084-2	01	1	0712-0904	●	●	●
18	02.480 HARNESS; DOOR EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> FRONT	8-98071-084-3	01	1	0905-	●	●	●
18	02.480 HARNESS; DOOR EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> FRONT	8-98071-076-2	01	1	0712-	●	●	●
18	02.480 HARNESS; DOOR REAR	8-98056-047-1	02	1	0712-1203			●
18	02.480 HARNESS; DOOR REAR	8-98202-555-0	02	1	1204-			●
85	06.495 HARNESS; ROOM LAMP	8-98049-963-3	01	1	0712-	●	●
85	06.495 HARNESS; ROOM LAMP	8-98033-823-4	01	1	0712-			●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5>	8-98074-592-3	01	1	0712-	●	●
204	02.559 HARNESS; CABLE,FLOOR EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98070-807-3	01	1	0712-	●	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98047-157-6	01	1	0712-	●	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98047-156-6	01	1	0712-	●	●
204	02.559 HARNESS; CABLE,FLOOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98070-787-4	01	1	0712-	●	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5>	8-98074-594-3	01	1	0712-			●
204	02.559 HARNESS; CABLE,FLOOR EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98070-810-3	01	1	0712-			●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98029-726-6	01	1	0712-			●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98029-727-6	01	1	0712-			●
204	02.559 HARNESS; CABLE,FLOOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98070-792-3	01	1	0712-			●

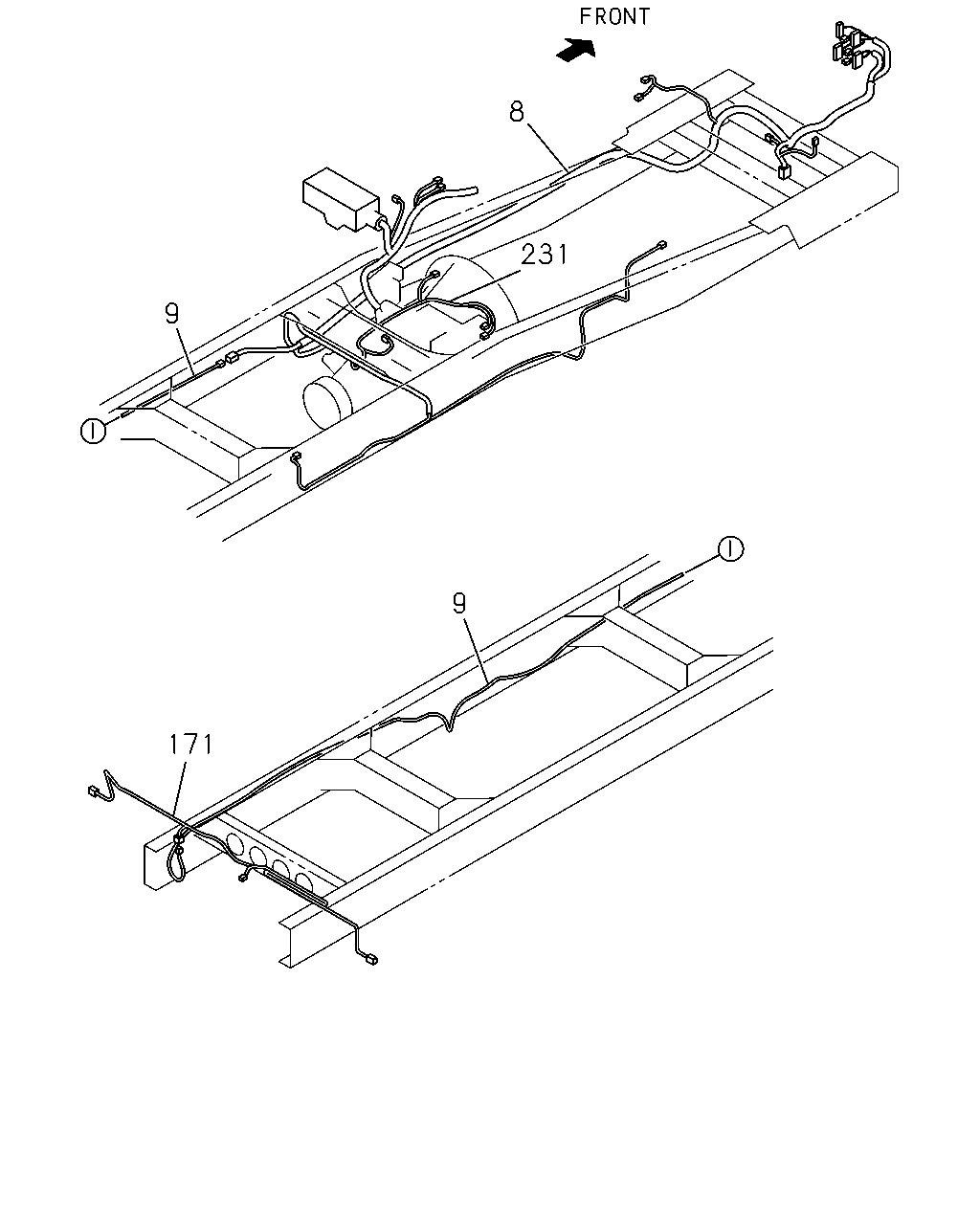

8 231 9 9 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>	8-98071-788-5	01	1	0712-0804	●
8	02.480 HARNESS; FRAME,FRT FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98071-788-5	01	1	0712-0804	●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>	8-98117-777-2	01	1	0805-	●
8	02.480 HARNESS; FRAME,FRT FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98117-777-2	01	1	0805-	●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>	8-98071-794-5	01	1	0712-0804	●
8	02.480 HARNESS; FRAME,FRT FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98071-794-5	01	1	0712-0804	●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>	8-98117-783-2	01	1	0805-	●
8	02.480 HARNESS; FRAME,FRT FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98117-783-2	01	1	0805-	●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98071-790-6	01	1	0712-0804	●
8	02.480 HARNESS; FRAME,FRT FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98071-790-6	01	1	0712-0804	●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98071-790-6	01	1	0712-0804		●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98117-779-2	01	1	0805-	●
8	02.480 HARNESS; FRAME,FRT FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98117-779-2	01	1	0805-	●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98117-779-2	01	1	0805-		●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98071-796-6	01	1	0712-0804	●
8	02.480 HARNESS; FRAME,FRT FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98071-796-6	01	1	0712-0804	●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98071-796-6	01	1	0712-0804		●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98117-785-2	01	1	0805-	●
8	02.480 HARNESS; FRAME,FRT FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98117-785-2	01	1	0805-	●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98117-785-2	01	1	0805-		●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98071-789-5	01	1	0712-0804			●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98117-778-2	01	1	0805-			●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98071-795-5	01	1	0712-0804			●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98117-784-2	01	1	0805-			●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98071-791-5	01	1	0712-0804			●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98117-780-2	01	1	0805-			●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98071-797-5	01	1	0712-0804			●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98117-786-2	01	1	0805-			●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 2800MM(28W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. SINGLE RR TIRE(6TD)	8-98048-419-1	01	1	0904-	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 2800MM(28W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, SINGLERR TIRE(6TD)	8-98048-418-2	01	1	0904-	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98048-413-4	01	1	0712-	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 2400MM(24W) 4 WHEEL ANTI LOCK BRAKE<JE5> SINGLE RR TIRE(6TD)	8-98080-439-0	01	1	0712-	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 2400MM(24W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. SINGLE RR TIRE(6TD)	8-98048-414-2	01	1	0712-	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 2400MM(24W)	8-98048-414-2	01	1	0712-		●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 2400MM(24W) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98048-414-2	01	1	0712-			●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 2400MM(24W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, SINGLERR TIRE(6TD)	8-98048-412-2	01	1	0712-	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 2400MM(24W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98048-412-2	01	1	0712-			●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. SINGLE RR TIRE(6TD)	8-98048-424-1	01	1	0712-	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3300MM(33W)	8-98048-424-1	01	1	0712-		●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98048-424-1	01	1	0712-			●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, SINGLERR TIRE(6TD)	8-98048-422-2	01	1	0712-	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98048-422-2	01	1	0712-			●
171	02.596 HARNESS; CABLE,TAIL LAMP	8-98070-319-1	01	1	0712-1009	●	●	●
171	02.596 HARNESS; CABLE,TAIL LAMP	8-98156-026-0	01	1	1010-	●	●	●
231	02.480 HARNESS; TRANS TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98029-598-1	01	1	0712-	●	●	●

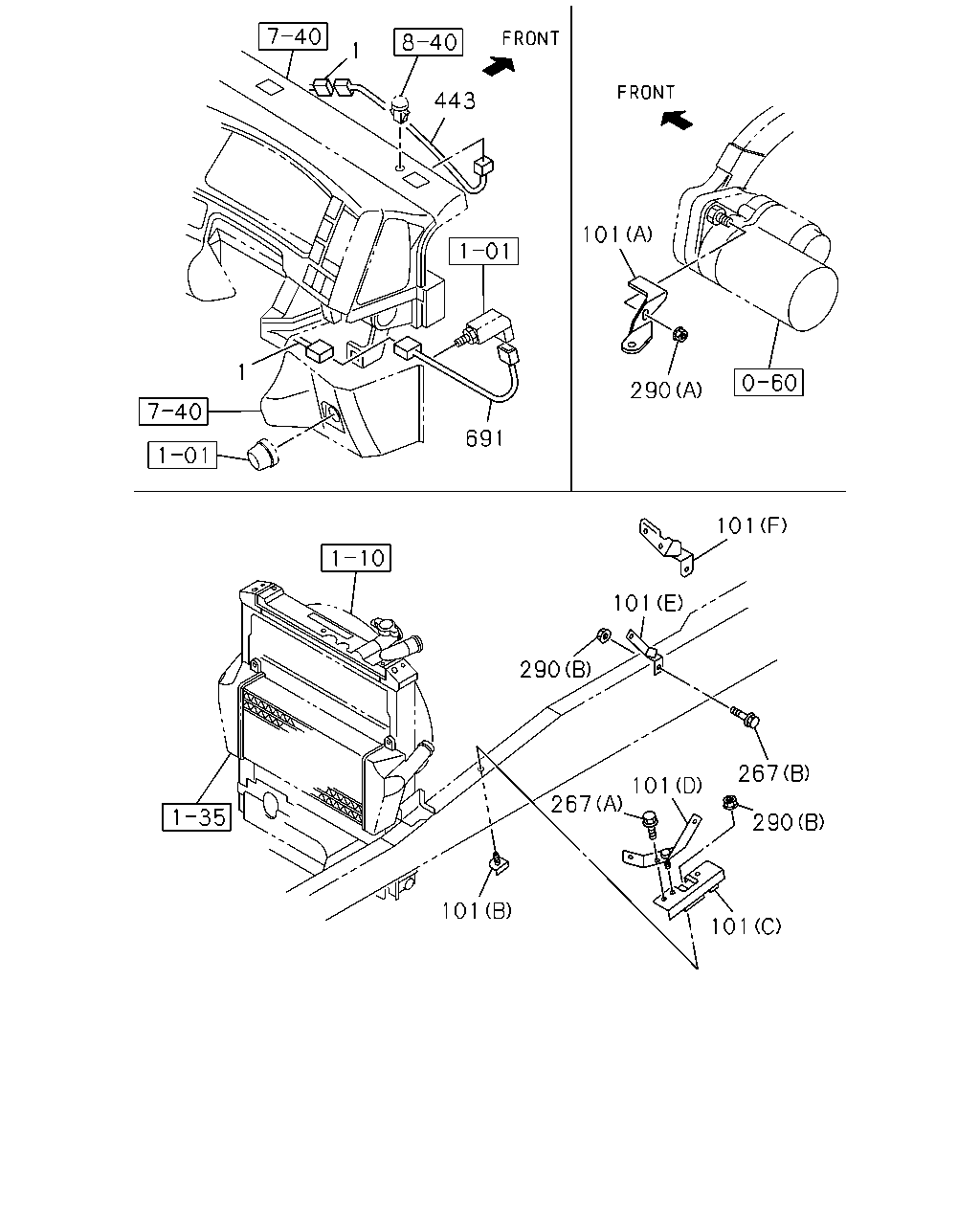

1 443 101 1 290 691 101 101 290 267 101 267 290 101 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98088-747-5	01	1	0712-	●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98088-749-5	01	1	0712-	●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98088-746-5	01	1	0712-	●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98088-748-5	01	1	0712-	●	●
1	02.480 HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98091-908-1	01	1	0712-0802	●	●
1	02.480 HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98091-910-1	01	1	0712-0802	●	●
1	02.480 HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98091-907-1	01	1	0712-0802	●	●
1	02.480 HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98091-909-1	01	1	0712-0802	●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98088-751-5	01	1	0712-			●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98088-753-5	01	1	0712-			●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98088-750-5	01	1	0712-			●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98088-752-5	01	1	0712-			●
1	02.480 HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98091-912-1	01	1	0712-0802			●
1	02.480 HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98091-914-1	01	1	0712-0802			●
1	02.480 HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98091-911-1	01	1	0712-0802			●
1	02.480 HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98091-913-1	01	1	0712-0802			●
101	02.483 BRACKET; HARNESS CONNECTOR (C)	8-98078-070-1	01	1	0712-	●	●	●
101	02.483 BRACKET; HARNESS CONNECTOR (D)	8-98078-071-1	01	1	0712-	●	●	●
101	02.483 BRACKET; HARNESS CONNECTOR (E)	8-98079-011-1	01	1	0712-1205	●	●	●
101	02.483 BRACKET; HARNESS CONNECTOR (F)	8-98217-757-0	01	1	1206-	●	●	●
101	02.483 BRACKET; HARNESS CONNECTOR (B)	8-98093-465-1	01	1	0712-	●	●	●
101	02.483 BRACKET; HARNESS CONNECTOR EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.183 (A)	8-98030-725-1	01	1	0712-	●	●	●
267	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0712-	●
267	02.483 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0712-	●
267	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0712-		●	●
267	02.483 BOLT; BRKT 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	0712-	●	●	●
290	02.483 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0712-	●	●	●
290	02.483 NUT; BRKT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0712-	●	●	●
443	02.480 HARNESS; EXT,A/C FULLAUTO AIR CONDITIONER(C68)	8-98029-830-0	01	1	0712-	●	●	●
691	02.480 HARNESS; IDLE CONT SWITCH HIGH IDLE ENGINE SPEED CONTROL<NMT>	8-98049-014-2	01	1	0712-	●	●	●

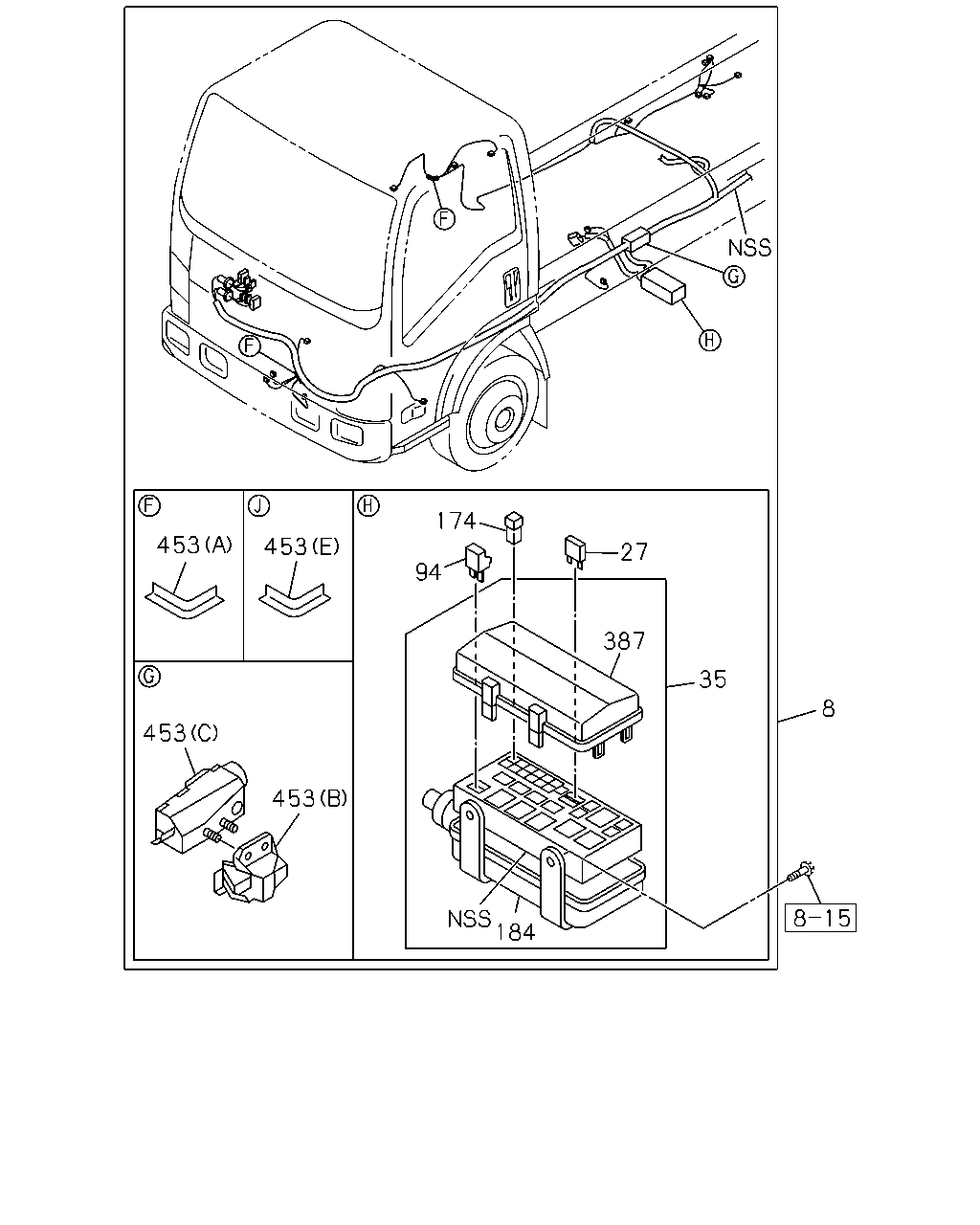

174 453 453 27 94 387 35 8 453 453 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>	8-98071-788-5	01	1	0712-0804	●
8	02.480 HARNESS; FRAME,FRT FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98071-788-5	01	1	0712-0804	●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>	8-98117-777-2	01	1	0805-	●
8	02.480 HARNESS; FRAME,FRT FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98117-777-2	01	1	0805-	●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>	8-98071-794-5	01	1	0712-0804	●
8	02.480 HARNESS; FRAME,FRT FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98071-794-5	01	1	0712-0804	●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL ANTI LOCK BRAKE<JE5>	8-98117-783-2	01	1	0805-	●
8	02.480 HARNESS; FRAME,FRT FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98117-783-2	01	1	0805-	●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98071-790-6	01	1	0712-0804	●
8	02.480 HARNESS; FRAME,FRT FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98071-790-6	01	1	0712-0804	●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98071-790-6	01	1	0712-0804		●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98117-779-2	01	1	0805-	●
8	02.480 HARNESS; FRAME,FRT FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98117-779-2	01	1	0805-	●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98117-779-2	01	1	0805-		●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98071-796-6	01	1	0712-0804	●
8	02.480 HARNESS; FRAME,FRT FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98071-796-6	01	1	0712-0804	●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98071-796-6	01	1	0712-0804		●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98117-785-2	01	1	0805-	●
8	02.480 HARNESS; FRAME,FRT FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98117-785-2	01	1	0805-	●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98117-785-2	01	1	0805-		●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98071-789-5	01	1	0712-0804			●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98117-778-2	01	1	0805-			●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98071-795-5	01	1	0712-0804			●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98117-784-2	01	1	0805-			●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98071-791-5	01	1	0712-0804			●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98117-780-2	01	1	0805-			●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98071-797-5	01	1	0712-0804			●
8	02.480 HARNESS; FRAME,FRT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98117-786-2	01	1	0805-			●
27	08.965 FUSE UNIT 02.485 10A RED	8-98054-257-0	AR	1	0712-	●	●	●
35	02.530 BOX; RELAY & FUSE	8-98030-763-0	01	1	0712-	●	●	●
94	02.483 DIODE; FRAME HARNESS BLACK 2P-1.5A	8-94422-639-1	01	1	0712-	●	●	●
174	08.965 FUSE; SLOW BLOW 30A PINK	8-98079-191-0	AR	1	0712-	●	●	●
174	08.965 FUSE; SLOW BLOW 40A GREEN	8-98079-192-0	AR	1	0712-	●	●	●
174	08.965 FUSE; SLOW BLOW 50A RED	8-98079-193-0	AR	1	0712-	●	●	●
174	08.965 FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	AR	1	0712-	●	●	●
184	02.559 COVER; RELAY & FUSE BOX	8-98030-766-0	01	1	0712-	●	●	●
387	02.483 COVER; RELAY BOX	8-98081-367-0	01	1	0712-	●	●	●
453	02.483 PROTECTOR; HARNESS (E)	8-94452-553-0	01	1	0805-	●	●	●
453	02.483 PROTECTOR; HARNESS (A)	8-94417-716-0	02	1	0712-	●	●	●
453	02.483 PROTECTOR; HARNESS (B)	8-98031-850-1	01	1	0712-	●	●	●
453	02.483 PROTECTOR; HARNESS (C)	8-98031-851-2	01	1	0712-	●	●	●
453	02.483 PROTECTOR; HARNESS (D)	8-98034-039-1	01	1	0712-	●	●	●

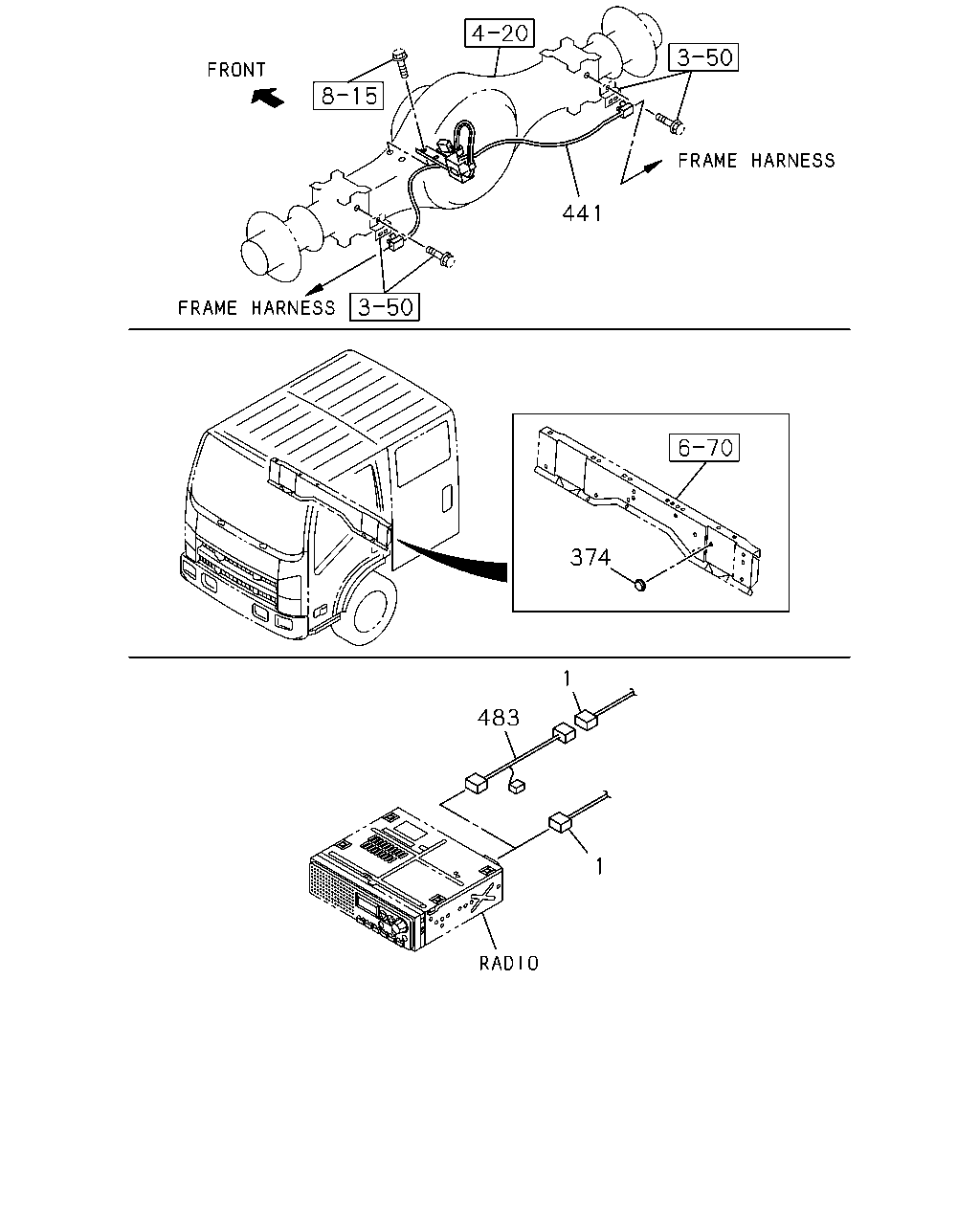

441 374 1 483 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98088-747-5	01	1	0712-	●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98088-749-5	01	1	0712-	●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98088-746-5	01	1	0712-	●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98088-748-5	01	1	0712-	●	●
1	02.480 HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98091-908-1	01	1	0712-0802	●	●
1	02.480 HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98091-910-1	01	1	0712-0802	●	●
1	02.480 HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98091-907-1	01	1	0712-0802	●	●
1	02.480 HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98091-909-1	01	1	0712-0802	●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98088-751-5	01	1	0712-			●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98088-753-5	01	1	0712-			●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98088-750-5	01	1	0712-			●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98088-752-5	01	1	0712-			●
1	02.480 HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98091-912-1	01	1	0712-0802			●
1	02.480 HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98091-914-1	01	1	0712-0802			●
1	02.480 HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98091-911-1	01	1	0712-0802			●
1	02.480 HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98091-913-1	01	1	0712-0802			●
374	02.530 PLUG; HARNESS CONNECTOR 16.545 OD=24.5 T=7.5	8-97224-683-0	01	1	0712-			●
441	02.480 HARNESS; CABLE,SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> REAR WIDE TREAD(V4T) EXC. 4 WHEEL DISC BRAKE<JF9>	8-97308-220-4	01	1	0712-	●
441	02.480 HARNESS; CABLE,SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> SINGLE RR TIRE(6TD)	8-97308-212-3	01	1	0712-	●
441	02.480 HARNESS; CABLE,SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9>	8-98080-696-1	01	1	0712-	●
441	02.480 HARNESS; CABLE,SPEED SENSOR	8-98080-696-1	01	1	0712-		●
441	02.480 HARNESS; CABLE,SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98080-696-1	01	1	0712-			●
483	02.480 HARNESS; EXT,RADIO IDENTIFICATION LABEL FOR KD<6UT>	8-98116-875-0	01	1	0805-	●	●	●

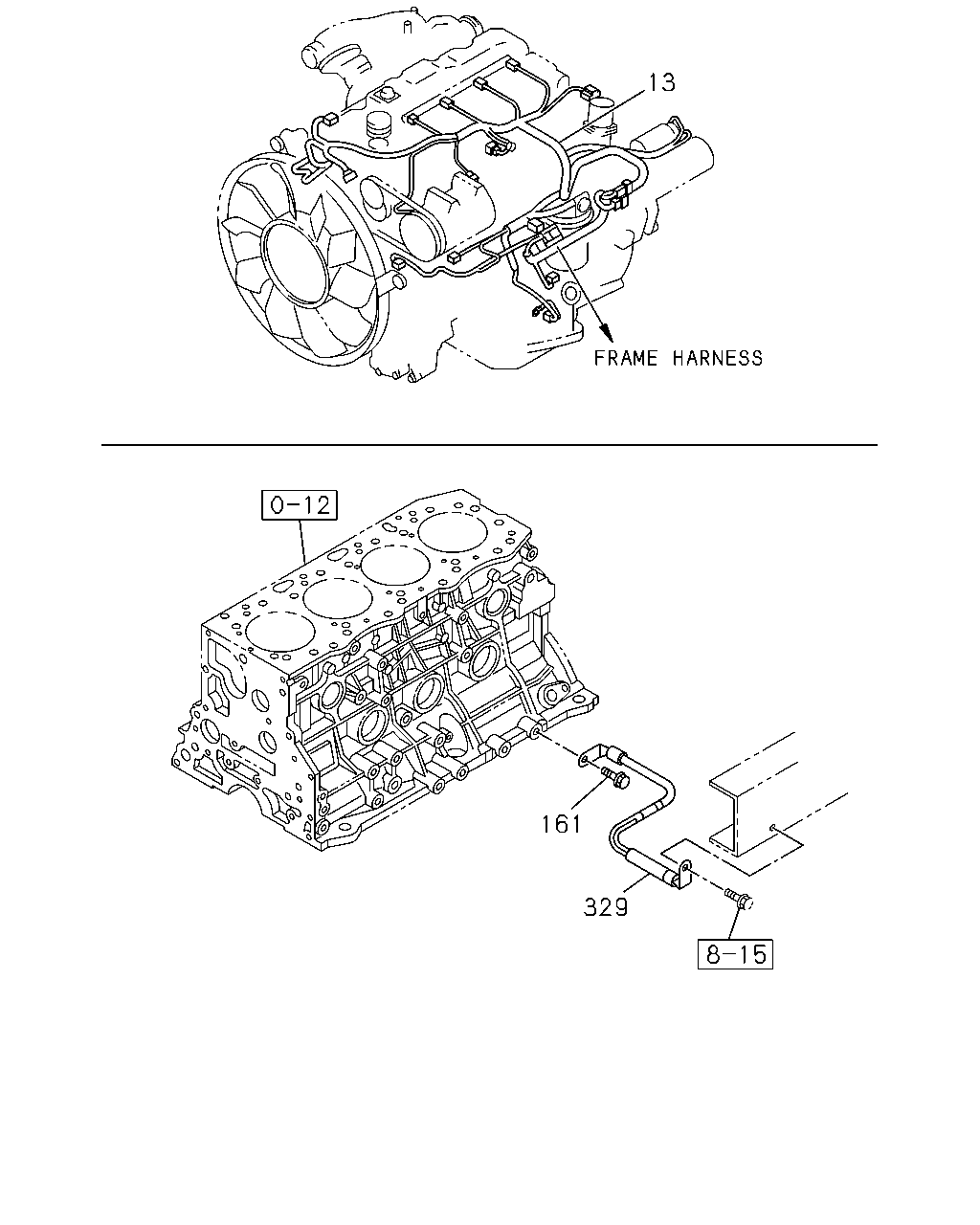

13 161 329

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
13	02.525 HARNESS; ENG	8-98082-045-5	01	1	0712-1006	●	●	●
13	02.525 HARNESS; ENG	8-98147-729-0	01	1	1007-	●	●	●
161	02.559 BOLT; GROUND,HARNESS 02.483 M10X16 FLANGE	0-28051-016-0	01	1	0712-	●	●	●
329	02.480 CABLE; ENG TO FRAME	8-98039-854-1	01	1	0712-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
