Isuzu WW
▶
TRUCKS
▶
NLR
▶
51150 - NLR/NMR(EU)-RHD EU4
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-60 - SEAT BELT
▶
7-60 — SEAT BELT
(#50469) — 39 parça
Tümü
A - NMR5WE
B - NMR5SE
C - NMR5SN
◀

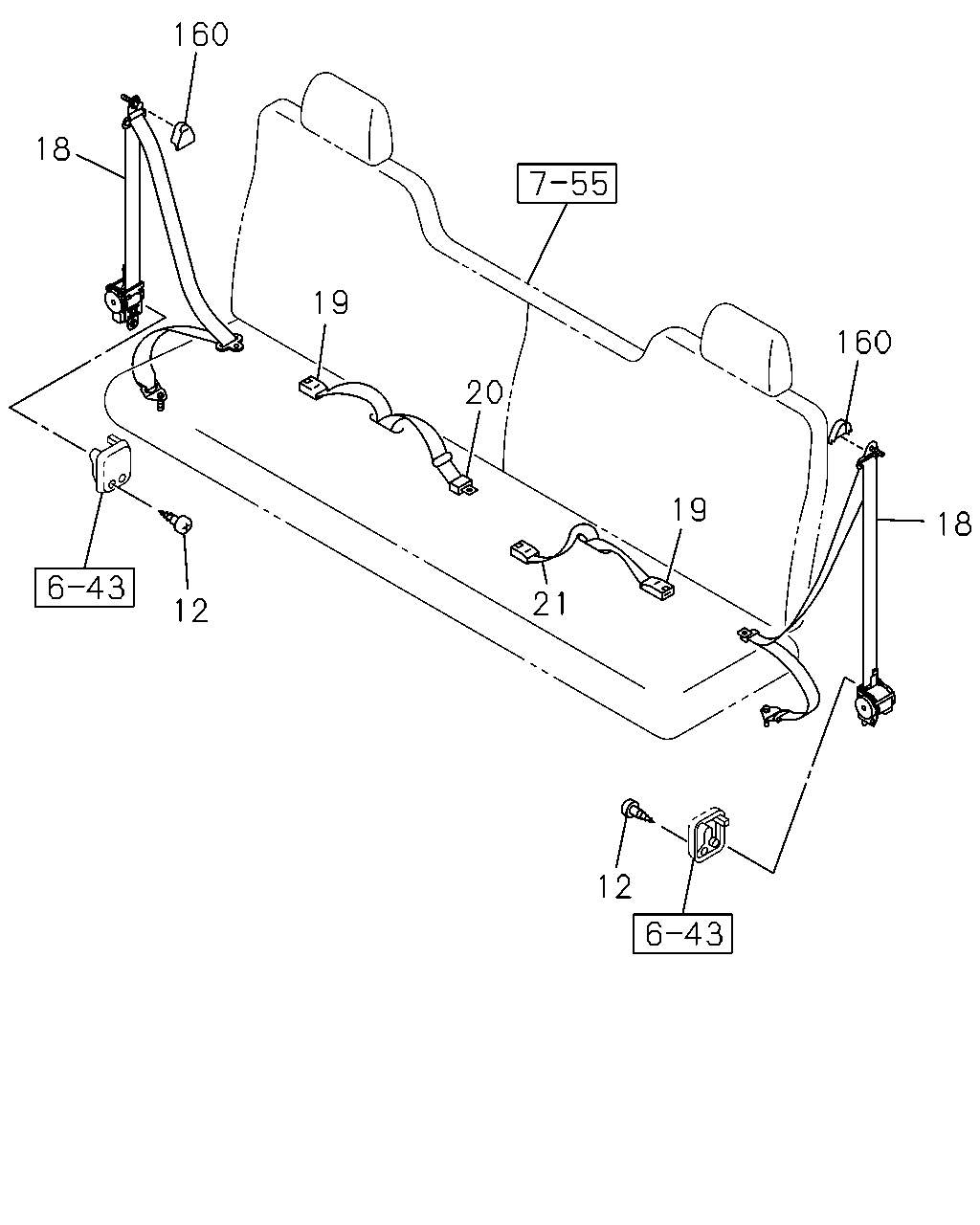

[760A] REAR SEAT (7 parça)

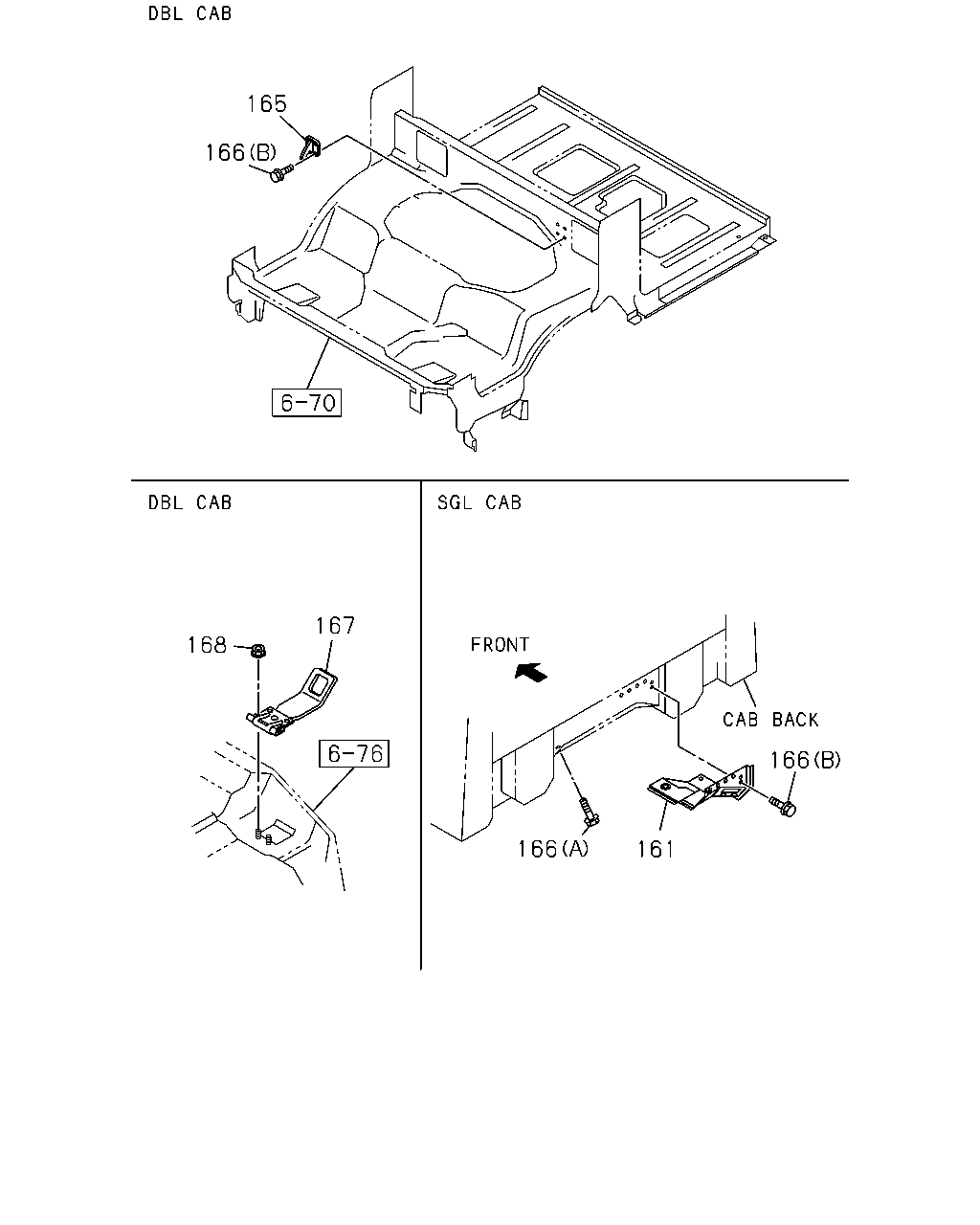

[760A] SEAT BELT ANCHOR (16 parça)

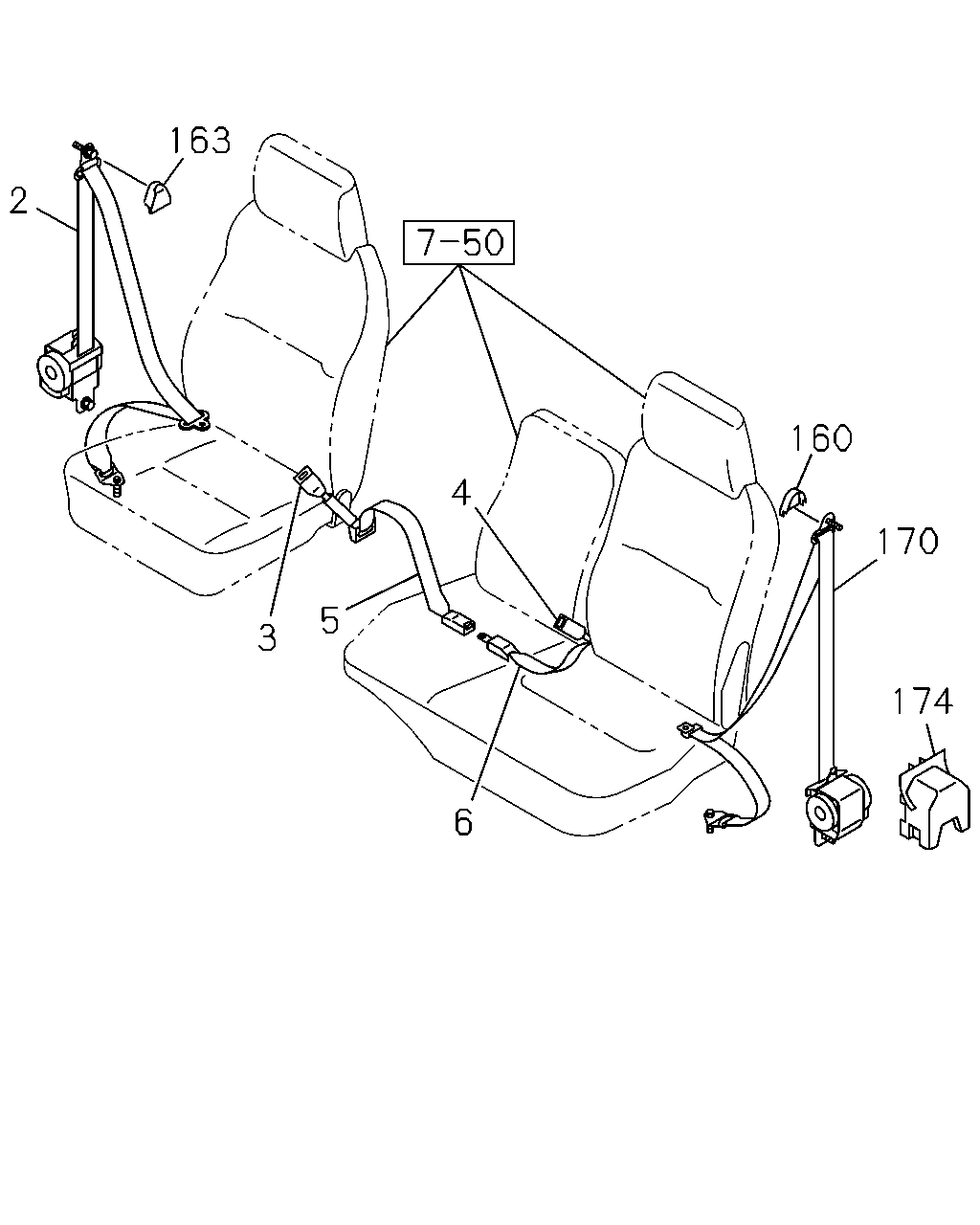

[760A] FRONT SEAT (16 parça)
▶
160
18
19
160
20
19
18
21
12
12
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
12
16.714 SCREW; RETRACTOR COVER,SEAT BELT
M4X14 TAPPING
0-74360-414-0
04
1
0712-
●
18
16.714 BELT; SEAT,RR
GRAY
8-97405-185-8
02
1
0712-
●
19
16.714 BELT; RR SEAT,BUCKLE SIDE
GRAY
8-97405-184-2
02
1
0712-
●
20
16.714 BELT; RR SEAT CTR,TONGUE SIDE
GRAY
8-97411-512-2
01
1
0712-
●
21
16.714 BELT; RR SEAT CTR,BUCKLE SIDE
GRAY
8-97405-188-2
01
1
0712-
●
160
16.714 COVER; THROUGH ANCHOR
FRONT GRAY
8-97405-991-0
01
1
0712-
●
●
●
160
16.714 COVER; THROUGH ANCHOR
REAR GRAY
8-97405-991-0
02
1
0712-
●
165
166
167
168
166
166
161
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
161
16.714 REINFORCEMENT; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA>
8-98015-215-2
01
1
0802-
●
●
165
16.714 HOOK; SEAT BELT ANCHOR
8-98040-143-0
01
1
0712-0801
●
165
16.714 HOOK; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA>
8-98040-143-0
01
1
0802-
●
●
165
16.714 HOOK; SEAT BELT ANCHOR
8-98040-143-0
01
1
0802-
●
166
16.714 BOLT; SEAT BELT ANCHOR
04.338 (A) M8X20 FLANGE
0-28050-820-0
02
1
0712-0801
●
●
166
16.714 BOLT; SEAT BELT ANCHOR
EXC. INSPECTION ENGINE COVER<8GA> 04.338 (A) M8X20 FLANGE
0-28050-820-0
02
1
0802-
●
●
166
16.714 BOLT; SEAT BELT ANCHOR
06.216 (B) M8X25 FLANGE
0-28650-825-0
04
1
0712-0801
●
166
16.714 BOLT; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> 06.216 (B) M8X25 FLANGE
0-28650-825-0
04
1
0802-
●
●
166
16.714 BOLT; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> 06.216 (B) M8X25 FLANGE
0-28650-825-0
04
1
0802-
●
●
166
16.714 BOLT; SEAT BELT ANCHOR
06.216 (B) M8X25 FLANGE
0-28650-825-0
04
1
0802-
●
167
16.714 PLATE; ANCHOR
8-97589-140-0
01
1
0712-0801
●
167
16.714 PLATE; ANCHOR
INSPECTION ENGINE COVER<8GA>
8-97589-140-0
01
1
0802-
●
●
167
16.714 PLATE; ANCHOR
8-97589-140-0
01
1
0802-
●
168
16.714 NUT; ANCHOR PLATE
01.062 M8 FLANGE
0-91180-108-0
02
1
0712-0801
●
168
16.714 NUT; ANCHOR PLATE
INSPECTION ENGINE COVER<8GA> 01.062 M8 FLANGE
0-91180-108-0
02
1
0802-
●
●
168
16.714 NUT; ANCHOR PLATE
01.062 M8 FLANGE
0-91180-108-0
02
1
0802-
●
163
2
160
4
170
5
3
174
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> GRAY
8-97405-179-9
01
1
0712-1406
●
●
●
2
16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> GRAY
8-97428-456-0
01
1
1407-
●
●
●
2
16.714 BELT; SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> GRAY
8-97405-180-7
01
1
0712-1406
●
●
●
2
16.714 BELT; SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> GRAY
8-97428-457-0
01
1
1407-
●
●
●
3
16.714 BELT; SEAT,BUCKLE SIDE
GRAY
8-97405-175-2
01
1
0712-
●
●
●
4
16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
GRAY
8-97405-178-0
01
1
0712-
●
●
●
5
16.714 BELT; CENTER SEAT,BUCKLE SIDE
GRAY
8-97405-182-1
01
1
0712-
●
●
●
6
16.714 BELT; CENTER SEAT,TONGUE SIDE
GRAY
8-97411-507-2
01
1
0712-
●
●
●
160
16.714 COVER; THROUGH ANCHOR
FRONT GRAY
8-97405-991-0
01
1
0712-
●
●
●
160
16.714 COVER; THROUGH ANCHOR
REAR GRAY
8-97405-991-0
02
1
0712-
●
163
16.714 COVER; ADJUSTER
GRAY
8-97405-991-0
01
1
0712-
●
●
●
170
16.714 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER<AK5> GRAY
8-97405-179-9
01
1
0712-1406
●
●
●
170
16.714 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER<AK5> GRAY
8-97428-456-0
01
1
1407-
●
●
●
170
16.714 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY
8-97405-180-7
01
1
0712-1406
●
●
●
170
16.714 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY
8-97428-457-0
01
1
1407-
●
●
●
174
16.714 COVER; RETRACTOR,SEAT BELT
8-98039-376-1
01
1
0712-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
