2-01A — CLUTCH (#5046) — 94 parça

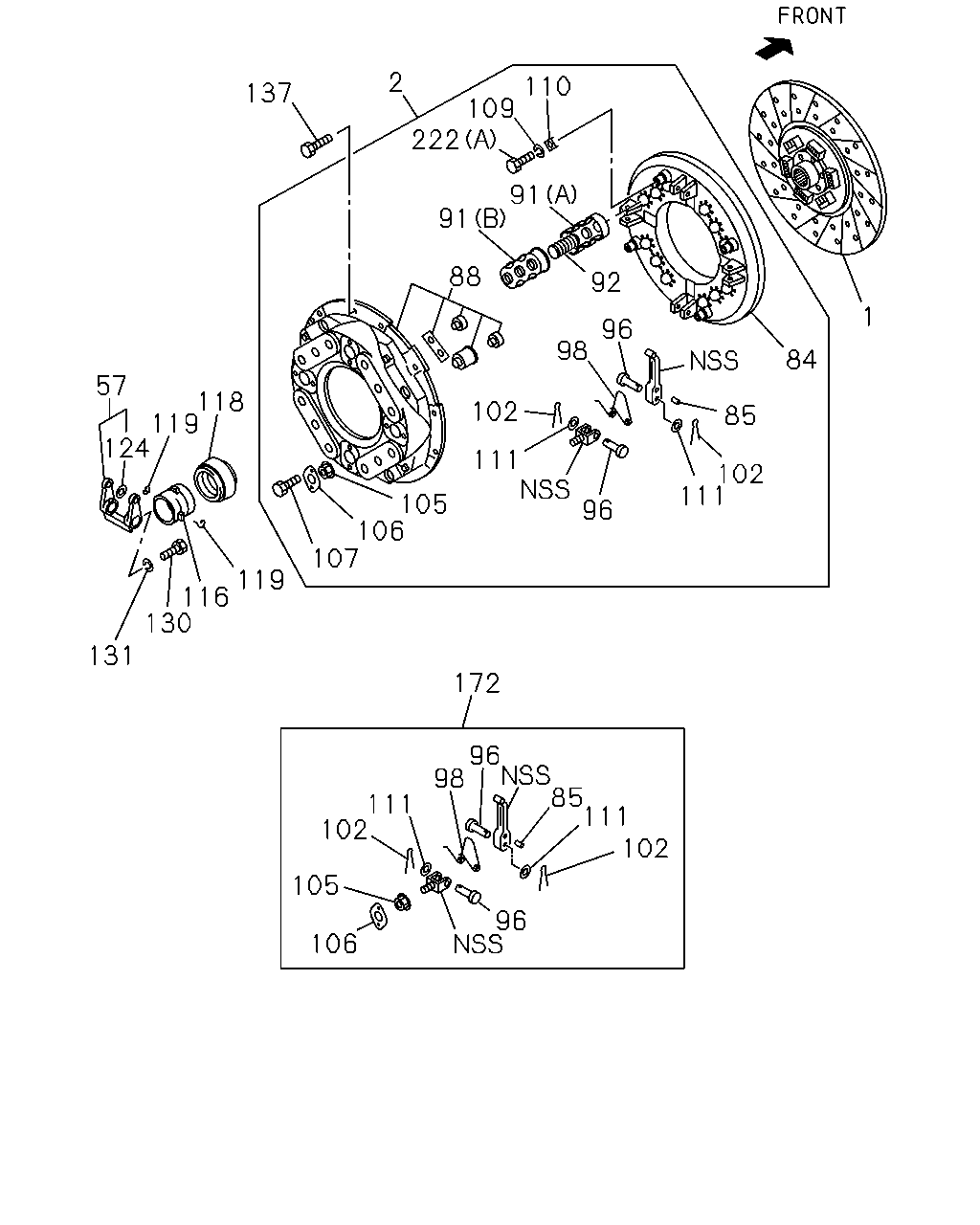

2 110 137 109 222 91 91 88 92 1 96 98 84 57 118 119 124 102 85 111 102 111 105 106 107 96 119 116 130 131 172 96 98 85 111 102 111 102 105 96 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DISC; CLUTCH 6WA1 TC-S(56L) 17"	1-31240-753-1	01	1	9702-9704
1	DISC; CLUTCH 6WA1 TC-S(56L) 17"	1-31240-775-0	01	1	9705-9707
1	DISC; CLUTCH 6WA1 TC-S(56L) 17"	1-31240-773-1	01	1	9708-9905
1	DISC; CLUTCH 6WA1 TC-C(55L) 17"	1-31240-773-1	01	1	9906-9908
1	DISC; CLUTCH 6WA1 TC-C(55L) 17"	1-31240-824-0	01	1	9909-
1	DISC; CLUTCH 17"	1-31240-700-0	01	1	9610-9701
1	DISC; CLUTCH 10PE1S(60L) 17"	1-31240-700-0	01	1	9702-9905
1	DISC; CLUTCH 10PE1N(61L) 17"	1-31240-700-0	01	1	9906-
2	PLATE ASM; PRESSURE,CLU	1-31220-265-2	01	1	9606-9707
2	PLATE ASM; PRESSURE,CLU	1-31220-321-0	01	1	9708-9905
2	PLATE ASM; PRESSURE,CLU 6WA1 TC-C(55L)	1-31220-321-2	01	1	9906-
2	PLATE ASM; PRESSURE,CLU 10PE1N(61L)	1-31220-277-1	01	1	9906-
57	FORK; SHIFT,CLU	1-31340-059-1	01	1	9606-
84	PLATE; PRESSURE	1-31221-083-1	01	1	9606-9905
84	PLATE; PRESSURE 6WA1 TC-C(55L)	1-31221-083-1	01	1	9906-
84	PLATE; PRESSURE 10PE1N(61L)	1-31221-041-0	01	1	9906-
85	BUSHING; RELEASE LEVER	1-31239-021-0	08	1	9606-9707
85	BUSHING; RELEASE LEVER	1-31239-053-0	08	1	9708-9905
85	BUSHING; RELEASE LEVER 6WA1 TC-C(55L)	1-31239-053-0	08	1	9906-
85	BUSHING; RELEASE LEVER 10PE1N(61L)	1-31239-003-0	08	1	9906-
88	COVER SUB ASM; CLU 10PE1N(61L)	1-31210-008-0	01	1	9906-0007
88	COVER SUB ASM; CLU	1-31210-008-0	01	1	9606-9905
88	COVER SUB ASM; CLU 6WA1 TC-C(55L)	1-31210-008-0	01	1	9906-0007
88	COVER SUB ASM; CLU	1-31210-008-0	01	1	0008-
91	SEAT; SPR (A)	1-31219-032-0	04	1	9606-
91	SEAT; SPR (B)	1-31219-033-0	04	1	9606-
92	SPRING; CLU	1-31214-040-0	12	1	9606-9905
92	SPRING; CLU 6WA1 TC-C(55L)	1-31214-040-0	12	1	9906-
92	SPRING; CLU 10PE1N(61L)	1-09580-297-0	12	1	9906-
96	PIN; RELEASE LEVER	1-31232-017-0	08	1	9606-9905
96	PIN; RELEASE LEVER 6WA1 TC-C(55L)	1-31232-017-0	08	1	9906-
96	PIN; RELEASE LEVER 10PE1N(61L) L=77	1-31232-010-0	08	1	9906-
98	SPRING; RETURN 10PE1N(61L)	1-31233-001-0	04	1	9906-
98	SPRING; RETURN	1-31233-007-0	04	1	9606-9905
98	SPRING; RETURN 6WA1 TC-C(55L)	1-31233-007-0	04	1	9906-
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	9606-9905
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	9906-
105	NUT; SUPPORT	1-31235-009-0	04	1	9606-9905
105	NUT; SUPPORT 6WA1 TC-C(55L)	1-31235-009-0	04	1	9906-
105	NUT; SUPPORT 10PE1N(61L)	9-31235-061-0	04	1	9906-
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	9606-9905
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	9906-
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9606-9905
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9906-
109	WASHER; LK,STRAP ID=12.2	9-09150-512-0	04	1	9606-9905
109	WASHER; LK,STRAP ID=12.2	9-09150-512-0	04	1	9906-
110	WASHER; SPECIAL,STRAP ID=12	1-31229-006-0	04	1	9606-9905
110	WASHER; SPECIAL,STRAP ID=12	1-31229-006-0	04	1	9906-
111	WASHER; PL,STRAP ID=14	9-09651-098-0	08	1	9606-
116	BLOCK; SHIFT,CLU	1-31321-073-2	01	1	9606-
118	BEARING; CLU RELEASE	9-00095-044-1	01	1	9606-0003
118	BEARING; CLU RELEASE	1-09820-112-0	01	1	0004-
119	SPRING; SHIFT FORK	1-31329-019-0	01	1	9606-
119	SPRING; SHIFT FORK	1-31329-018-0	01	1	9606-
124	BEARING; CAM,SHIFT FORK	1-31349-011-1	02	1	9606-
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	9606-
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	9606-
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	9606-
172	LEVER KIT; RELEASE,CLU	1-87830-650-0	01	1	9606-9707
172	LEVER KIT; RELEASE,CLU	1-87830-885-1	01	1	9708-9905
172	LEVER KIT; RELEASE,CLU 6WA1 TC-C(55L)	1-87830-885-2	01	1	9906-
172	LEVER KIT; RELEASE,CLU 10PE1N(61L)	1-87830-526-1	01	1	9906-
222	BOLT; STRAP (A)	1-09040-102-0	04	1	9606-9905
222	BOLT; STRAP 6WA1 TC-C(55L) (A)	1-09040-102-0	04	1	9906-
222	BOLT; STRAP 10PE1N(61L) (A) M12X30	1-09040-016-0	04	1	9906-

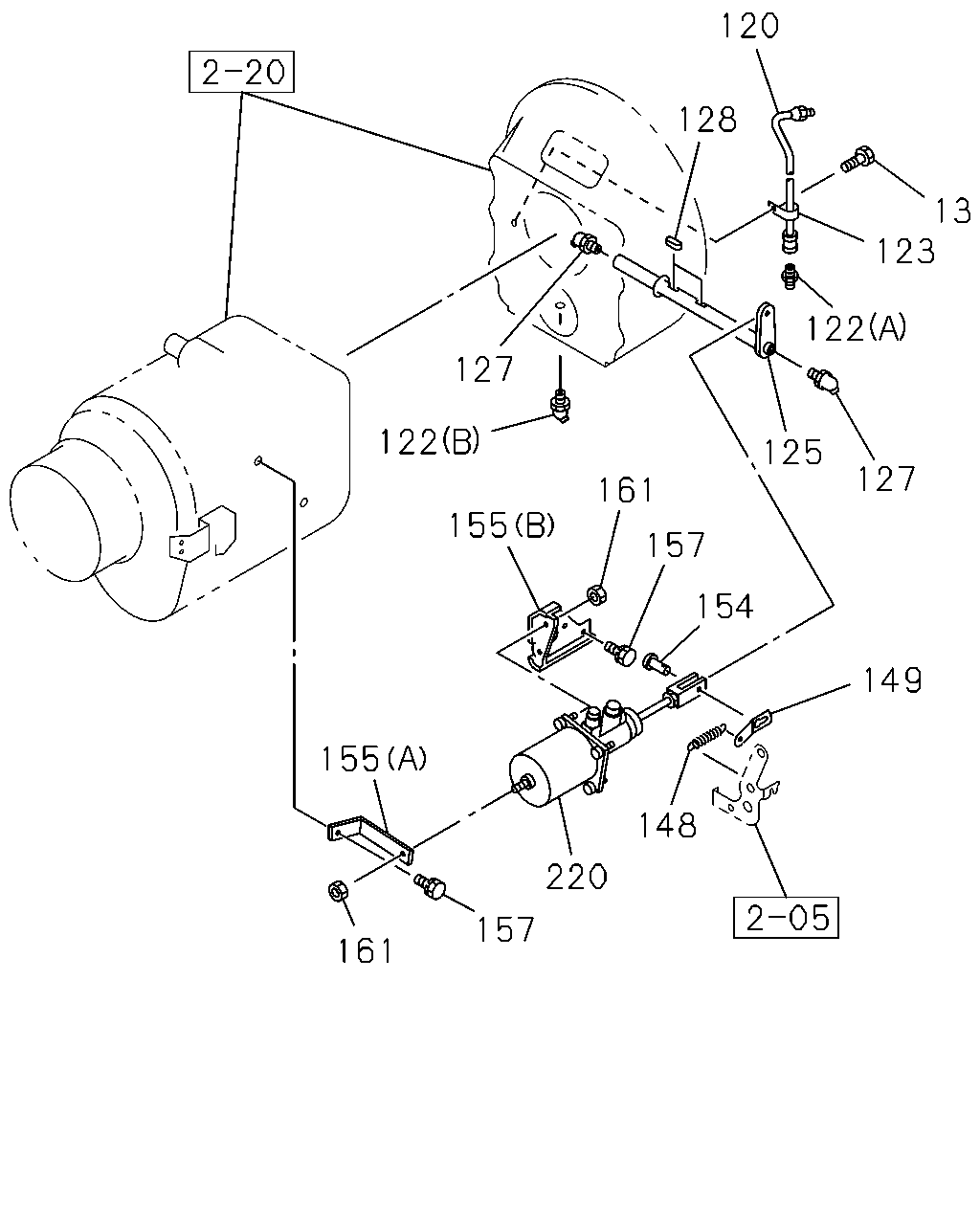

120 128 13 123 122 127 122 125 127 161 155 157 154 149 155 148 220 157 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9606-
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09364-870-0	01	1	9606-0003
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0004-
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 & M10	1-09660-710-0	01	1	9606-9609
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 & M10	1-09660-710-0	01	1	9701-9905
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 & M10	1-09660-710-0	01	1	9906-
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	9606-9609
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	9701-9905
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	9906-
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	9-09524-835-0	01	1	9606-
125	SHAFT; CLU L=477	1-31342-240-1	01	1	9606-9901
125	SHAFT; CLU	1-31342-305-0	01	1	9902-
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	9-09031-210-0	02	1	9606-9609
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	9-09031-210-0	02	1	9610-9803
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	9-09031-210-0	02	1	9903-9905
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	9-09031-210-0	02	1	9906-9907
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	9-09031-210-0	02	1	9908-
128	KEY; FEATHER,CLU SHAFT	1-09735-045-0	02	1	9606-
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	9606-
149	EYE; SPRING,RETURN SPRING	1-31426-041-0	01	1	9606-9904
149	EYE; SPRING,RETURN SPRING	1-31426-052-0	01	1	9905-
154	PIN; JAW JOINT	1-31424-009-0	01	1	9606-
155	BRACKET; MINIPACK (A)	1-31429-289-1	01	1	9606-
155	BRACKET; MINIPACK (B)	1-31429-301-0	01	1	9606-9901
155	BRACKET; MINIPACK (B)	1-31429-402-0	01	1	9902-
157	BOLT; BRKT M10X18 FLANGE	0-28181-018-0	03	1	9606-
161	NUT; BRKT M10 FLANGE	0-91150-210-0	03	1	9606-
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-382-1	01	1	9606-0011
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-466-0	01	1	0012-
