6-76 — FLOOR EQUIPMENT AND SEALING (#50454) — 143 parça

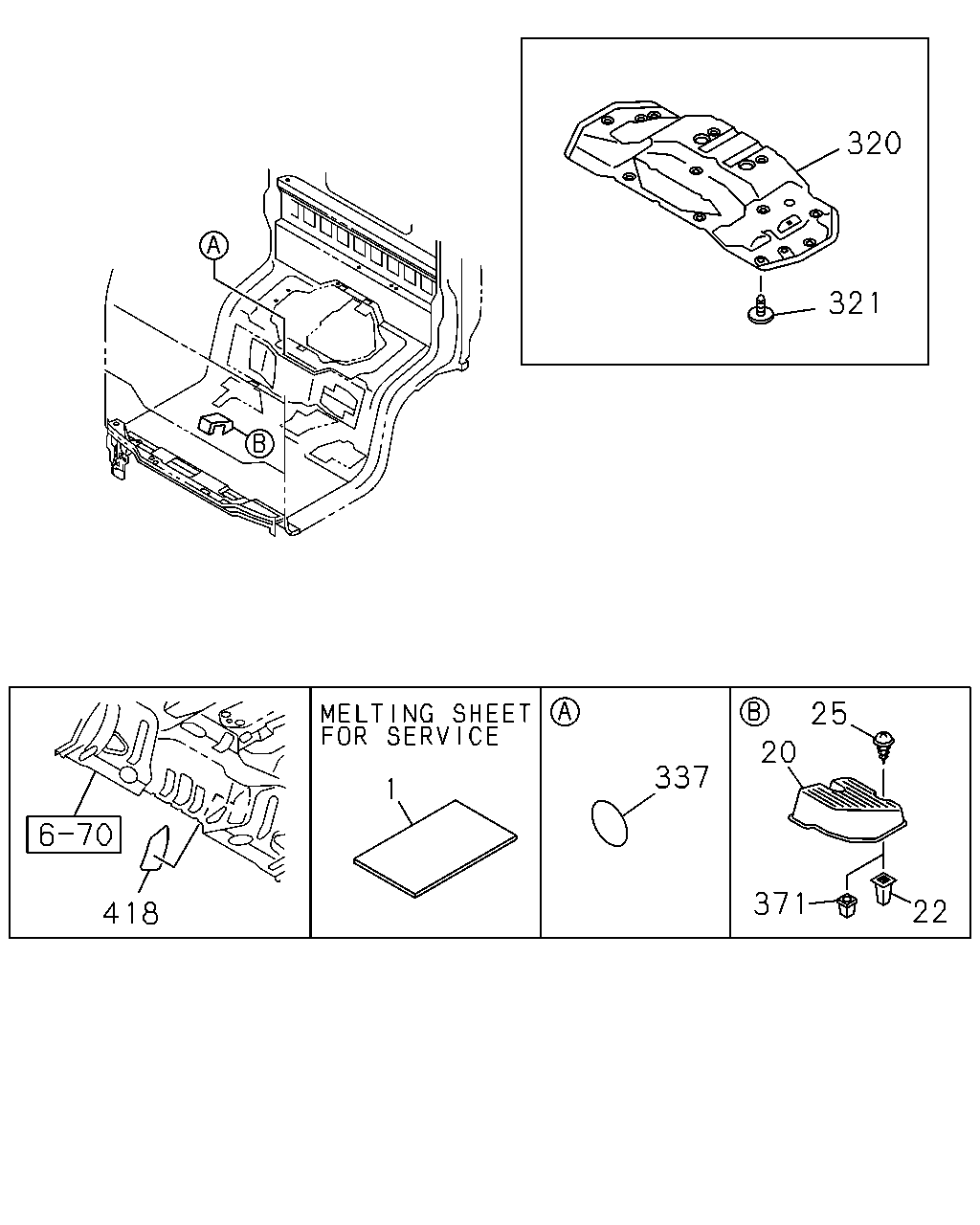

çizim 155254
320 321 25 20 37 1 371 22 418
BalonParca AdiParca NoAdetTipApplied Date A B C
1 16.850 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY 		8-94262-093-0 AR 1 0712- ● ● ●
20 16.547 REST; FOOT
EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 		8-98032-754-0 01 1 0712- ● ● ●
22 16.547 GROMMET; SCREW,FOOT REST
EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 04.931 H=15 		8-94463-268-1 02 1 0712- ● ● ●
25 16.549 SCREW; FOOT REST
EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 16.570 M5X16 HEX SOCKET 		0-72380-516-0 02 1 0712- ● ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
16.155 OD=30 T=10 		5-74917-001-2 02 1 0712-0801 ●
37 16.549 RUBBER; BUFFER,ENG COVER
INSPECTION ENGINE COVER<8GA> 16.155 OD=30 T=10 		5-74917-001-2 02 1 0802- ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
16.155 OD=30 T=10 		5-74917-001-2 02 1 0802- ●
320 16.549 INSULATOR; FLOOR,FRT 8-97586-162-1 01 1 0712-0801 ● ●
320 16.549 INSULATOR; FLOOR,FRT
EXC. INSPECTION ENGINE COVER<8GA> 		8-97586-162-1 01 1 0802- ● ●
321 16.549 CLIP; INSULATOR,FLOOR
08.021 ID=6.2 L=11.4 		8-97808-623-0 14 1 0712-0801 ● ●
321 16.549 CLIP; INSULATOR,FLOOR
EXC. INSPECTION ENGINE COVER<8GA> 08.021 ID=6.2 L=11.4 		8-97808-623-0 14 1 0802- ● ●
371 16.549 GROMMET; LOCATION HOLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 16.547 14.5X14.5 BLACK 		8-94279-714-0 02 1 0712- ● ● ●
418 16.549 SEAL; PROTECTOR 8-98090-192-1 01 1 0712- ● ● ●
418 16.549 SEAL; PROTECTOR 8-98090-191-1 01 1 0712- ● ● ●

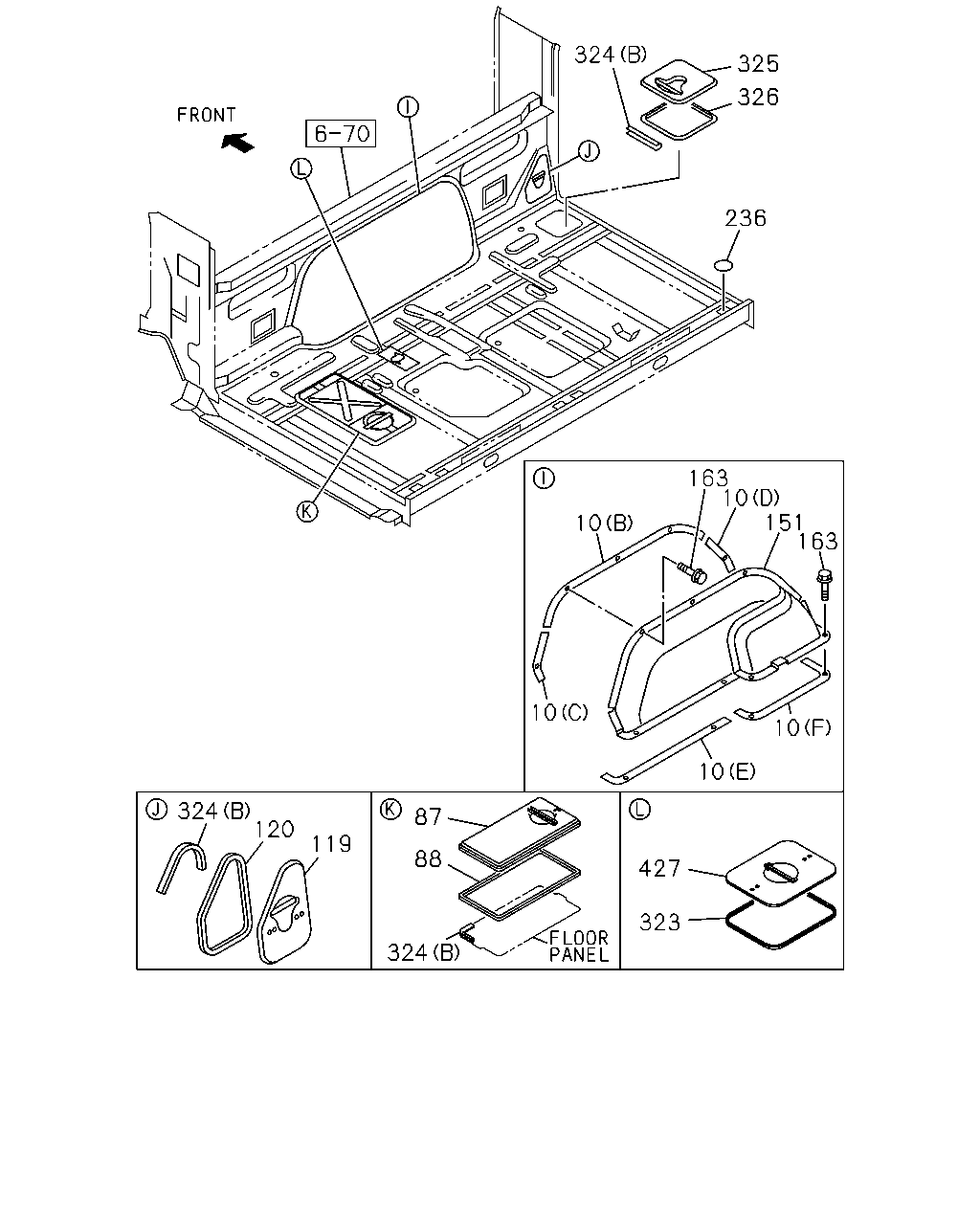

çizim 155260
324 325 326 236 163 10 151 163 10 10 10 10 324 120 87 119 88 427 323 324
BalonParca AdiParca NoAdetTipApplied Date A B C
10 16.549 SEAL; ENG COVER
(E) 		8-98105-285-0 01 1 0712- ●
10 16.549 SEAL; ENG COVER
(F) 		8-98105-300-0 01 1 0712- ●
10 16.549 SEAL; ENG COVER
(A) 		8-98029-377-0 01 1 0712-0801 ●
10 16.549 SEAL; ENG COVER
INSPECTION ENGINE COVER<8GA> (A) 		8-98029-377-0 01 1 0802- ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-98029-377-0 01 1 0802- ●
10 16.549 SEAL; ENG COVER
(B) 		8-98033-268-0 01 1 0712- ●
10 16.549 SEAL; ENG COVER
(C) 		8-98033-269-0 01 1 0712- ●
10 16.549 SEAL; ENG COVER
(D) 		8-98033-270-0 01 1 0712- ●
87 16.549 COVER; BATTERY CHECK HOLE 8-97856-332-4 01 1 0712- ●
88 16.549 SEAL; BATTERY CHECK HOLE COVER 8-97853-725-1 01 1 0712- ●
119 16.090 LID; P/S OIL TANK 8-97410-834-1 01 1 0712- ●
120 16.090 SEAL; LID,P/S 8-97853-441-1 01 1 0712- ●
151 16.549 COVER ASM; ENG 8-98081-412-0 01 1 0712- ●
163 16.549 BOLT; RR,ENG COVER,FRT
02.343 M6X16 FLANGE 		0-28650-616-0 09 1 0712- ●
236 16.549 SEAL; CHECK HOLE
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0802- ●
323 16.549 SEAL; COVER,A/T OIL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97853-443-2 01 1 0712- ●
324 16.545 FINISHER; FLOOR PANEL
16.570 (B) L=73 SERVICED BY L=190 		1-71998-300-0 02 1 0712- ●
324 16.545 FINISHER; FLOOR PANEL
16.570 (B) SERVICED BY L=190 		1-71998-300-0 02 1 0712- ●
324 16.545 FINISHER; FLOOR PANEL
(A) L=140 		8-97892-742-0 01 1 0712-0801 ●
324 16.545 FINISHER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> (A) L=140 		8-97892-742-0 01 1 0802- ● ●
324 16.545 FINISHER; FLOOR PANEL
(A) L=140 		8-97892-742-0 01 1 0802- ●
325 16.549 COVER; LLC 8-97856-974-0 01 1 0712- ●
326 16.549 SEAL; COVER 8-97856-975-1 01 1 0712- ●
427 16.549 COVER; SMOOTHER OIL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97853-442-2 01 1 0712- ●

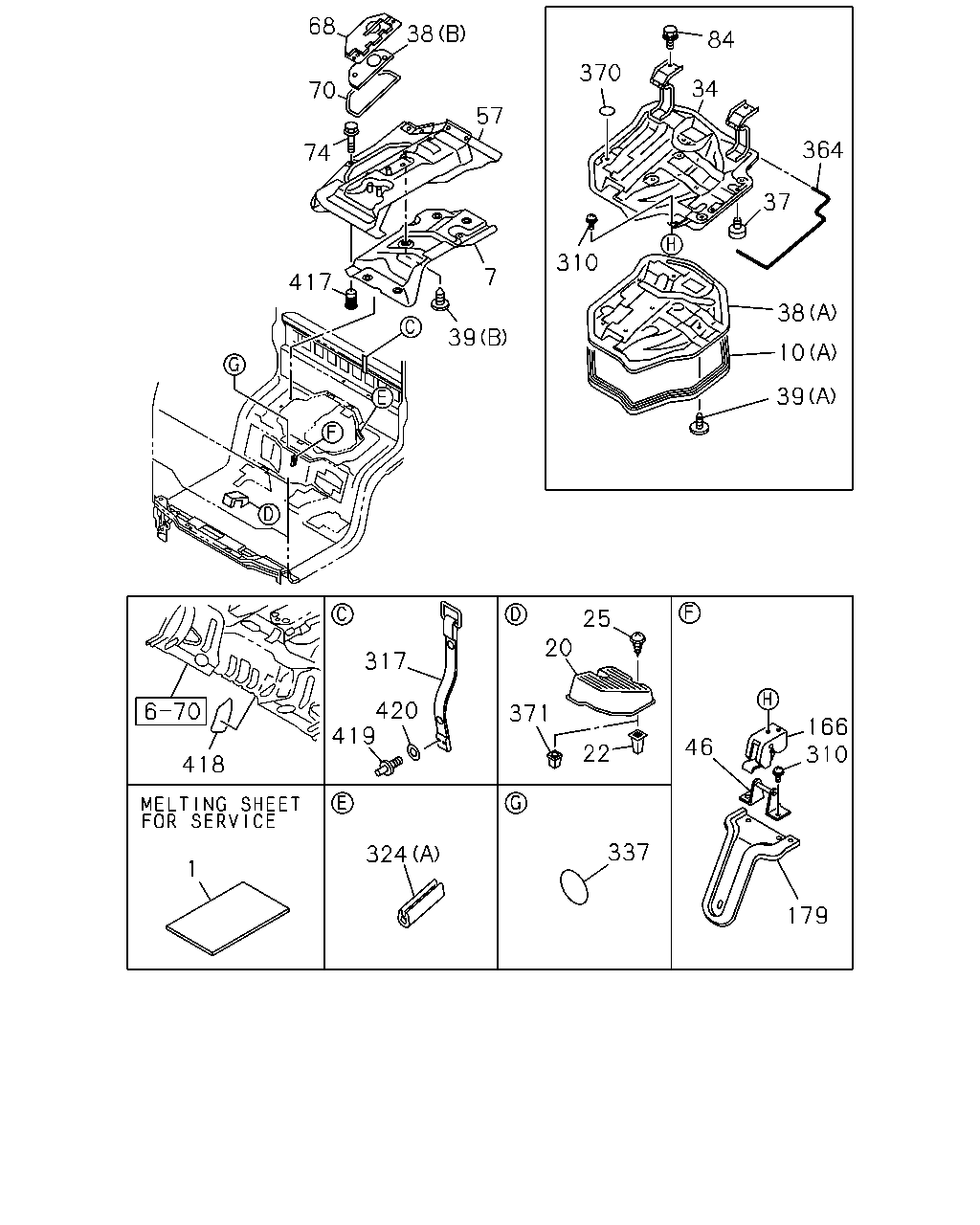

çizim 155267
68 38 84 370 34 70 57 364 74 37 310 7 417 38 39 10 39 25 20 317 420 419 371 166 310 46 22 418 337 324 1 179
BalonParca AdiParca NoAdetTipApplied Date A B C
1 16.850 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY 		8-94262-093-0 AR 1 0712- ● ● ●
7 16.545 INSULATOR; SUPPORT COVER 8-97586-174-1 01 1 0712-0801 ●
7 16.545 INSULATOR; SUPPORT COVER
INSPECTION ENGINE COVER<8GA> 		8-97586-174-1 01 1 0802- ● ●
7 16.545 INSULATOR; SUPPORT COVER 8-97586-174-1 01 1 0802- ●
10 16.549 SEAL; ENG COVER
(E) 		8-98105-285-0 01 1 0712- ●
10 16.549 SEAL; ENG COVER
(F) 		8-98105-300-0 01 1 0712- ●
10 16.549 SEAL; ENG COVER
(A) 		8-98029-377-0 01 1 0712-0801 ●
10 16.549 SEAL; ENG COVER
INSPECTION ENGINE COVER<8GA> (A) 		8-98029-377-0 01 1 0802- ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-98029-377-0 01 1 0802- ●
10 16.549 SEAL; ENG COVER
(B) 		8-98033-268-0 01 1 0712- ●
10 16.549 SEAL; ENG COVER
(C) 		8-98033-269-0 01 1 0712- ●
10 16.549 SEAL; ENG COVER
(D) 		8-98033-270-0 01 1 0712- ●
20 16.547 REST; FOOT
EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 		8-98032-754-0 01 1 0712- ● ● ●
22 16.547 GROMMET; SCREW,FOOT REST
EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 04.931 H=15 		8-94463-268-1 02 1 0712- ● ● ●
25 16.549 SCREW; FOOT REST
EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 16.570 M5X16 HEX SOCKET 		0-72380-516-0 02 1 0712- ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR 8-97589-241-3 01 1 0712-0801 ●
34 16.549 COVER ASM; ENG,CAB FLOOR
INSPECTION ENGINE COVER<8GA> 		8-97589-241-3 01 1 0802- ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR 8-97589-241-3 01 1 0802- ●
37 16.549 RUBBER; BUFFER,ENG COVER
16.155 OD=30 T=10 		5-74917-001-2 02 1 0712-0801 ●
37 16.549 RUBBER; BUFFER,ENG COVER
INSPECTION ENGINE COVER<8GA> 16.155 OD=30 T=10 		5-74917-001-2 02 1 0802- ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
16.155 OD=30 T=10 		5-74917-001-2 02 1 0802- ●
38 16.549 INSULATOR; ENG COVER
(B) 		8-97586-169-2 01 1 0712-0801 ●
38 16.549 INSULATOR; ENG COVER
INSPECTION ENGINE COVER<8GA> (B) 		8-97586-169-2 01 1 0802- ● ●
38 16.549 INSULATOR; ENG COVER
(B) 		8-97586-169-2 01 1 0802- ●
38 16.549 INSULATOR; ENG COVER
(A) 		8-97586-182-2 01 1 0712-0801 ●
38 16.549 INSULATOR; ENG COVER
INSPECTION ENGINE COVER<8GA> (A) 		8-97586-182-2 01 1 0802- ● ●
38 16.549 INSULATOR; ENG COVER
(A) 		8-97586-182-2 01 1 0802- ●
39 16.549 CLIP; INSULATOR,COVER
(B) OD=30 		8-94279-952-0 07 1 0712-0801 ●
39 16.549 CLIP; INSULATOR,COVER
INSPECTION ENGINE COVER<8GA> (B) OD=30 		8-94279-952-0 07 1 0802- ● ●
39 16.549 CLIP; INSULATOR,COVER
(B) OD=30 		8-94279-952-0 07 1 0802- ●
39 16.549 CLIP; INSULATOR,COVER
08.021 (A) ID=6.2 L=11.4 		8-97808-623-0 05 1 0712-0801 ●
39 16.549 CLIP; INSULATOR,COVER
INSPECTION ENGINE COVER<8GA> 08.021 (A) ID=6.2 L=11.4 		8-97808-623-0 05 1 0802- ● ●
39 16.549 CLIP; INSULATOR,COVER
08.021 (A) ID=6.2 L=11.4 		8-97808-623-0 05 1 0802- ●
46 16.549 HOOK ASM; ENG COVER 8-98040-145-0 02 1 0712-0801 ●
46 16.549 HOOK ASM; ENG COVER
INSPECTION ENGINE COVER<8GA> 		8-98040-145-0 02 1 0802- ● ●
46 16.549 HOOK ASM; ENG COVER 8-98040-145-0 02 1 0802- ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR 8-97589-291-5 01 1 0712-0801 ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
INSPECTION ENGINE COVER<8GA> 		8-97589-291-5 01 1 0802- ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR 8-97589-291-5 01 1 0802- ●
68 16.549 COVER ASM; SUB,ENG COVER 8-98040-141-0 01 1 0712-0801 ●
68 16.549 COVER ASM; SUB,ENG COVER
INSPECTION ENGINE COVER<8GA> 		8-98040-141-0 01 1 0802- ● ●
68 16.549 COVER ASM; SUB,ENG COVER 8-98040-141-0 01 1 0802- ●
70 16.549 SEAL; ENG SUB COVER,CAB FLOOR 8-97853-050-1 01 1 0712-0801 ●
70 16.549 SEAL; ENG SUB COVER,CAB FLOOR
INSPECTION ENGINE COVER<8GA> 		8-97853-050-1 01 1 0802- ● ●
70 16.549 SEAL; ENG SUB COVER,CAB FLOOR 8-97853-050-1 01 1 0802- ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
01.531 M8X20 FLANGE 		0-28650-820-0 09 1 0712-0801 ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
INSPECTION ENGINE COVER<8GA> 01.531 M8X20 FLANGE 		0-28650-820-0 09 1 0802- ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
01.531 M8X20 FLANGE 		0-28650-820-0 09 1 0802- ●
84 16.549 BOLT; ENG COVER HINGE
INSPECTION ENGINE COVER<8GA> 01.531 M8X20 FLANGE 		0-28650-820-0 03 1 0802- ● ●
84 16.549 BOLT; ENG COVER HINGE
01.531 M8X20 FLANGE 		0-28650-820-0 04 1 0712- ●
166 16.549 LOCK; ENG COVER 8-98040-152-0 02 1 0712-0801 ●
166 16.549 LOCK; ENG COVER
INSPECTION ENGINE COVER<8GA> 		8-98040-152-0 02 1 0802- ● ●
166 16.549 LOCK; ENG COVER 8-98040-152-0 02 1 0802- ●
179 16.549 REINFORCEMENT; COVER 8-98048-301-1 01 1 0712-0801 ●
179 16.549 REINFORCEMENT; COVER
INSPECTION ENGINE COVER<8GA> 		8-98048-301-1 01 1 0802- ● ●
179 16.549 REINFORCEMENT; COVER 8-98048-301-1 01 1 0802- ●
310 16.549 SCREW; ENG COVER HOOK
INSPECTION ENGINE COVER<8GA> 02.343 M6X16 FLANGE 		0-28650-616-0 04 1 0811- ● ●
310 16.549 SCREW; ENG COVER HOOK
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 0811- ●
310 16.549 SCREW; ENG COVER HOOK
16.570 M6X16 		0-38050-616-0 09 1 0712-0801 ●
310 16.549 SCREW; ENG COVER HOOK
INSPECTION ENGINE COVER<8GA> 16.570 M6X16 		0-38050-616-0 09 1 0802-0810 ● ●
310 16.549 SCREW; ENG COVER HOOK
16.570 M6X16 		0-38050-616-0 09 1 0802-0810 ●
310 16.549 SCREW; ENG COVER HOOK
INSPECTION ENGINE COVER<8GA> 16.570 M6X16 		0-38050-616-0 05 1 0811- ● ●
310 16.549 SCREW; ENG COVER HOOK
16.570 M6X16 		0-38050-616-0 05 1 0811- ●
317 16.549 BAND; ENGINE COVER 8-97585-575-0 01 1 0712-0801 ●
317 16.549 BAND; ENGINE COVER
INSPECTION ENGINE COVER<8GA> 		8-97585-575-0 01 1 0802- ● ●
317 16.549 BAND; ENGINE COVER 8-97585-575-0 01 1 0802- ●
324 16.545 FINISHER; FLOOR PANEL
16.570 (B) L=73 SERVICED BY L=190 		1-71998-300-0 02 1 0712- ●
324 16.545 FINISHER; FLOOR PANEL
16.570 (B) SERVICED BY L=190 		1-71998-300-0 02 1 0712- ●
324 16.545 FINISHER; FLOOR PANEL
(A) L=140 		8-97892-742-0 01 1 0712-0801 ●
324 16.545 FINISHER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> (A) L=140 		8-97892-742-0 01 1 0802- ● ●
324 16.545 FINISHER; FLOOR PANEL
(A) L=140 		8-97892-742-0 01 1 0802- ●
337 16.545 SEAL; CLIP HOLE
EXC. FUEL TANK 63L<6EF> 16.165 OD=25 BLACK 		1-76798-019-0 14 1 0811- ●
337 16.545 SEAL; CLIP HOLE
INSPECTION ENGINE COVER<8GA> OD=32 BLACK 		8-98031-126-0 01 1 0802- ● ●
337 16.545 SEAL; CLIP HOLE
OD=32 BLACK 		8-98031-126-0 04 1 0712-0801 ● ●
337 16.545 SEAL; CLIP HOLE
EXC. INSPECTION ENGINE COVER<8GA> OD=32 BLACK 		8-98031-126-0 04 1 0802- ● ●
337 16.545 SEAL; CLIP HOLE
OD=32 BLACK 		8-98031-126-0 08 1 0712-0801 ● ●
337 16.545 SEAL; CLIP HOLE
EXC. INSPECTION ENGINE COVER<8GA> OD=32 BLACK 		8-98031-126-0 08 1 0802- ● ●
337 16.545 SEAL; CLIP HOLE
16.165 OD=25 BLACK 		1-76798-019-0 14 1 0712-0810 ●
337 16.545 SEAL; CLIP HOLE
FUEL TANK 63L<6EF> 16.165 OD=25 BLACK 		1-76798-019-0 18 1 0811- ●
337 16.545 SEAL; CLIP HOLE
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0712-0801 ●
337 16.545 SEAL; CLIP HOLE
INSPECTION ENGINE COVER<8GA> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 03 1 0802- ● ●
337 16.545 SEAL; CLIP HOLE
OD=32 BLACK 		8-98031-126-0 07 1 0712-0801 ●
337 16.545 SEAL; CLIP HOLE
INSPECTION ENGINE COVER<8GA> OD=32 BLACK 		8-98031-126-0 07 1 0802- ● ●
337 16.545 SEAL; CLIP HOLE
OD=32 BLACK 		8-98031-126-0 07 1 0802- ●
364 16.545 FINISHER; ENG COVER SIDE
L=1100 		8-97892-744-0 01 1 0712-0801 ●
364 16.545 FINISHER; ENG COVER SIDE
INSPECTION ENGINE COVER<8GA> L=1100 		8-97892-744-0 01 1 0802- ● ●
364 16.545 FINISHER; ENG COVER SIDE
L=1100 		8-97892-744-0 01 1 0802- ●
370 16.549 SEAL; LOCATION HOLE
16.165 OD=25 BLACK 		1-76798-019-0 01 1 0712-0801 ●
370 16.549 SEAL; LOCATION HOLE
INSPECTION ENGINE COVER<8GA> 16.165 OD=25 BLACK 		1-76798-019-0 01 1 0802- ● ●
370 16.549 SEAL; LOCATION HOLE
16.165 OD=25 BLACK 		1-76798-019-0 01 1 0802- ●
371 16.549 GROMMET; LOCATION HOLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 16.547 14.5X14.5 BLACK 		8-94279-714-0 02 1 0712- ● ● ●
417 16.549 NUT; POP
09.786 M6 POP NUT 		8-98013-752-0 01 1 0712-0801 ●
417 16.549 NUT; POP
INSPECTION ENGINE COVER<8GA> 09.786 M6 POP NUT 		8-98013-752-0 01 1 0802- ● ●
417 16.549 NUT; POP
09.786 M6 POP NUT 		8-98013-752-0 01 1 0802- ●
417 16.549 NUT; POP
M8 POP NUT 		8-98021-404-0 01 1 0712-0801 ●
417 16.549 NUT; POP
INSPECTION ENGINE COVER<8GA> M8 POP NUT 		8-98021-404-0 01 1 0802- ● ●
417 16.549 NUT; POP
M8 POP NUT 		8-98021-404-0 01 1 0802- ●
418 16.549 SEAL; PROTECTOR 8-98090-192-1 01 1 0712- ● ● ●
418 16.549 SEAL; PROTECTOR 8-98090-191-1 01 1 0712- ● ● ●
419 09.786 RIVET; ENG COVER 8-98065-262-0 01 1 0712-0801 ●
419 09.786 RIVET; ENG COVER
INSPECTION ENGINE COVER<8GA> 		8-98065-262-0 01 1 0802- ● ●
419 09.786 RIVET; ENG COVER 8-98065-262-0 01 1 0802- ●
420 09.786 WASHER; ENG COVER
02.335 ID=5.3 OD=16 		0-91614-705-0 01 1 0712-0801 ●
420 09.786 WASHER; ENG COVER
INSPECTION ENGINE COVER<8GA> 02.335 ID=5.3 OD=16 		0-91614-705-0 01 1 0802- ● ●
420 09.786 WASHER; ENG COVER
02.335 ID=5.3 OD=16 		0-91614-705-0 01 1 0802- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
