Isuzu WW
▶
TRUCKS
▶
CXH
▶
10722 - CXH RHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-56B - EXHAUST BRAKE SYSTEM
▶
1-56B — EXHAUST BRAKE SYSTEM
(#5045) — 32 parça
Tümü
A - 10PE1S
B - 10PE1N
◀

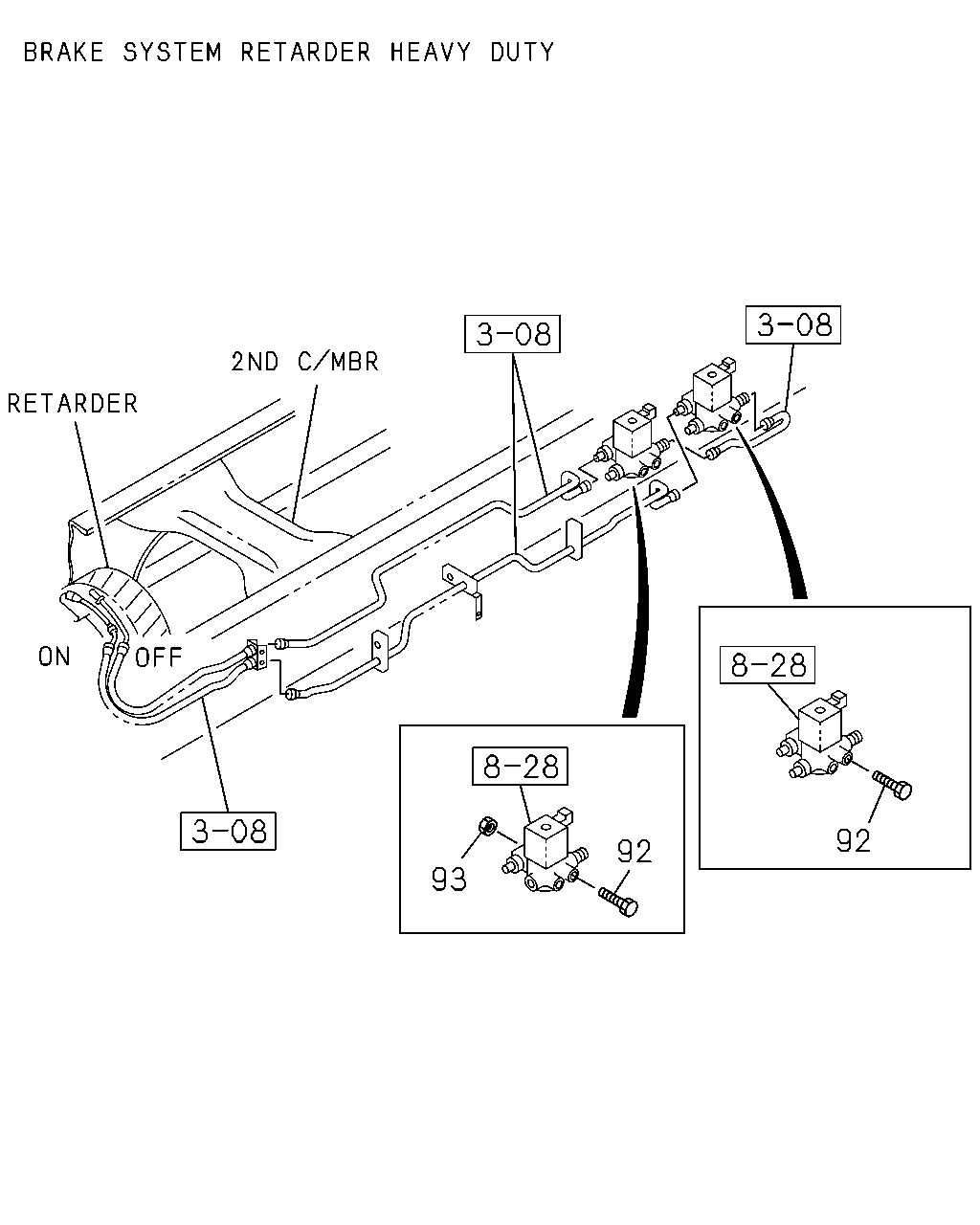

[156B] NO.2 (6 parça)
[156B] NO.1 (26 parça)
▶
92
92
93
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
92
BOLT; MAG VLV
M8X20 FLANGE
0-28080-820-0
02
1
9607-9608
●
92
BOLT; MAG VLV
M8X20 FLANGE
0-28680-820-0
02
1
9609-9905
●
92
BOLT; MAG VLV
M8X20 FLANGE
0-28680-820-0
02
1
9906-
●
92
BOLT; MAG VLV
BRAKE SYSTEM RETARDER<RE2> M8X70 FLANGE
0-28080-870-0
02
1
9606-9905
●
93
NUT; MAG VLV
BRAKE SYSTEM RETARDER<RE2> M8
9-09110-408-0
02
1
9606-9606
●
93
NUT; MAG VLV
BRAKE SYSTEM RETARDER<RE2> M8 FLANGE
0-91150-108-0
02
1
9607-9905
●
17
94
86
10
87
92
87
87
17
10
92
87
94
87
86
87
88
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
10
NUT; BRKT,EXH BRAKE
M8
9-09110-508-0
03
1
9606-9606
●
10
NUT; BRKT,EXH BRAKE
M8 FLANGE
0-91150-108-0
03
1
9607-9905
●
10
NUT; BRKT,EXH BRAKE
M8 FLANGE
0-91150-108-0
01
1
9906-
●
10
NUT; BRKT,EXH BRAKE
M10 FLANGE
0-91150-210-0
01
1
0104-
●
17
BOLT; BRKT
M8X20 FLANGE
0-28080-820-0
02
1
9606-9606
●
17
BOLT; BRKT
M8X25 FLANGE
0-28680-825-0
02
1
9607-9905
●
17
BOLT; BRKT
M8X25 FLANGE
0-28680-825-0
02
1
9906-0103
●
17
BOLT; BRKT
M8X20 FLANGE
0-28680-820-0
01
1
0104-
●
17
BOLT; BRKT
M10X25 FLANGE
0-28681-025-0
01
1
0104-
●
86
VALVE; MAG,EXH BRK
1-82563-598-3
01
1
9606-9905
●
86
VALVE; MAG,EXH BRK
1-82563-871-2
01
1
9906-
●
87
CONNECTOR
(B) M12 & PT1/4 ELBOW
1-09650-430-0
01
1
9606-9706
●
87
CONNECTOR
(B) M12 & PT1/4 ELBOW
1-09650-430-0
01
1
9707-9905
●
87
CONNECTOR
(C) M20 & PT1/4
9-09902-386-0
01
1
9606-9702
●
87
CONNECTOR
(C) M12 & PT1/4 STRAIGHT
1-09650-074-1
01
1
9703-9706
●
87
CONNECTOR
(C) M12 & PT1/4 STRAIGHT
1-09650-074-1
01
1
9707-9905
●
87
CONNECTOR
(C) M12 & PT1/4 STRAIGHT
1-09650-074-1
02
1
9906-
●
87
CONNECTOR
(A) PT1/4 & M12 ELBOW
1-09656-665-0
01
1
9606-9905
●
87
CONNECTOR
(A) PT1/4 & M12 ELBOW
1-09656-665-0
01
1
9906-
●
88
PLUG
PT1/4
9-99204-513-0
01
1
9906-
●
92
BOLT; MAG VLV
M8X20 FLANGE
0-28080-820-0
02
1
9607-9608
●
92
BOLT; MAG VLV
M8X20 FLANGE
0-28680-820-0
02
1
9609-9905
●
92
BOLT; MAG VLV
M8X20 FLANGE
0-28680-820-0
02
1
9906-
●
92
BOLT; MAG VLV
BRAKE SYSTEM RETARDER<RE2> M8X70 FLANGE
0-28080-870-0
02
1
9606-9905
●
94
BRACKET; MAG VLV,EXH BRAKE
(B)
1-82569-153-0
01
1
9606-9905
●
94
BRACKET; MAG VLV,EXH BRAKE
(A)
1-82569-277-2
01
1
9906-
●
