◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51150 - NLR/NMR(EU)-RHD EU4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-03 - RADIATOR GRILLE ▶
6-03 — RADIATOR GRILLE (#50435) — 14 parça

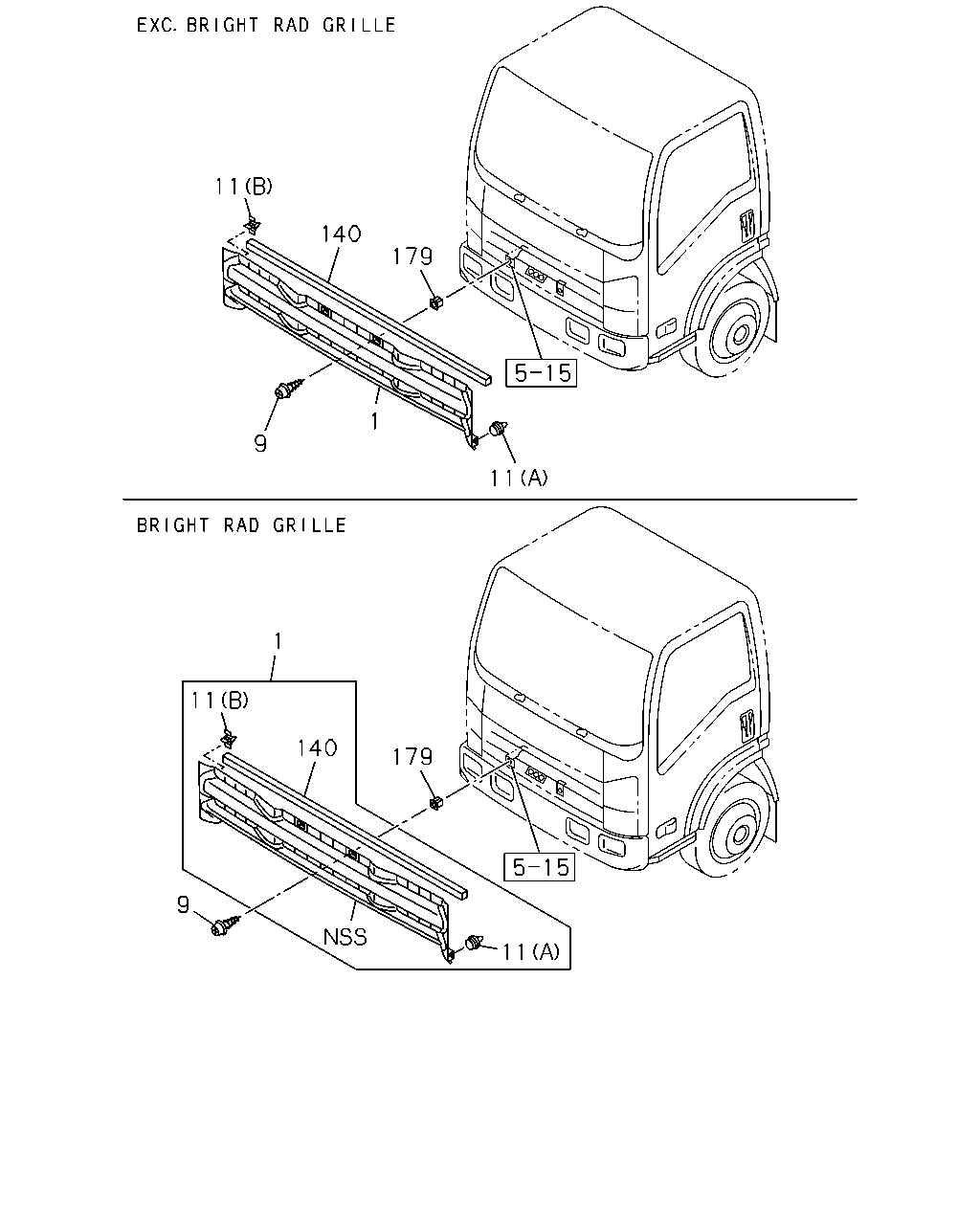

çizim 155179
11 140 179 1 11 1 11 140 179 9 11 9
BalonParca AdiParca NoAdetTipApplied Date A B C
1 01.266 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97412-264-3 01 1 0803- ● ● ●
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> PLATED 		8-98025-455-4 01 1 0801- ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR QUICK SILVER MET(998) EXC. RADIATOR GRILLE NON PAINT<7LB> LIGHT GRAY 		8-97407-290-3 01 1 0712-0712 ● ●
1 01.266 GRILLE; RAD
BODY COLOR QUICK SILVER MET(998) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> LIGHT GRAY 		8-97407-290-3 01 1 0801- ● ●
1 01.266 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97407-291-3 01 1 0712-0712 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97407-291-3 01 1 0801- ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR TRANS BLUE(999) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97407-289-3 01 1 0712-0712 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR TRANS BLUE(999) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97407-289-3 01 1 0801- ● ● ●
1 01.266 GRILLE; RAD
RADIATOR GRILLE NON PAINT<7LB> 		8-98025-465-3 01 1 0712- ● ● ●
9 01.269 SCREW; RAD GRILLE
M5X16 TAPPING W/PL WASHER 		0-74165-516-0 01 1 0712- ● ● ●
11 01.269 CLIP; RAD GRILLE
(A) 		8-97581-651-2 02 1 0712- ● ● ●
11 01.269 CLIP; RAD GRILLE
(B) 		8-98025-698-0 05 1 0712- ● ● ●
140 01.266 SEAL; RAD GRILLE 8-98054-279-0 01 1 0712- ● ● ●
179 01.269 RETAINER; GRILLE,RAD
02.726 D=7X7 L=7.5 		8-94291-927-0 01 1 0712- ● ● ●
