Sayfa 5-01 - Isuzu EPC

5-01 — FRAME AND OTHER PARTS (#50429) — 178 parça

140 140 140 217 217 356 356 43 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
43	09.003 BRACKET; CAB MTG,RR	8-98035-851-1	01	1	0712-	●
43	09.003 BRACKET; CAB MTG,RR	8-98035-852-1	01	1	0712-	●
140	07.112 BRACKET; S/ABS,RR WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98006-174-0	02	1	0712-		●
140	07.112 BRACKET; S/ABS,RR WHEEL BASE 2400MM(24W) EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98006-176-0	01	1	0712-		●
140	07.112 BRACKET; S/ABS,RR WHEEL BASE 3300MM(33W) (B)	8-98006-176-0	01	1	0712-		●
140	07.112 BRACKET; S/ABS,RR (B)	8-98006-176-0	01	1	0712-	●		●
140	07.112 BRACKET; S/ABS,RR WHEEL BASE 2400MM(24W) EXC. FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98006-180-0	01	1	0712-		●
140	07.112 BRACKET; S/ABS,RR WHEEL BASE 3300MM(33W) (C)	8-98006-180-0	01	1	0712-		●
140	07.112 BRACKET; S/ABS,RR (C)	8-98006-180-0	01	1	0712-	●		●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) (A)	8-97163-899-1	02	1	0712-		●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING WHEEL BASE 2400MM(24W) EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-97202-417-0	02	1	0712-		●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING WHEEL BASE 3300MM(33W) (B)	8-97202-417-0	02	1	0712-		●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING (B)	8-97202-417-0	02	1	0712-	●		●
356	07.011 BRACKET; ENG SUPPORT,INNER EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98062-611-1	01	1	0712-			●
356	07.011 BRACKET; ENG SUPPORT,INNER EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98062-610-1	01	1	0712-			●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

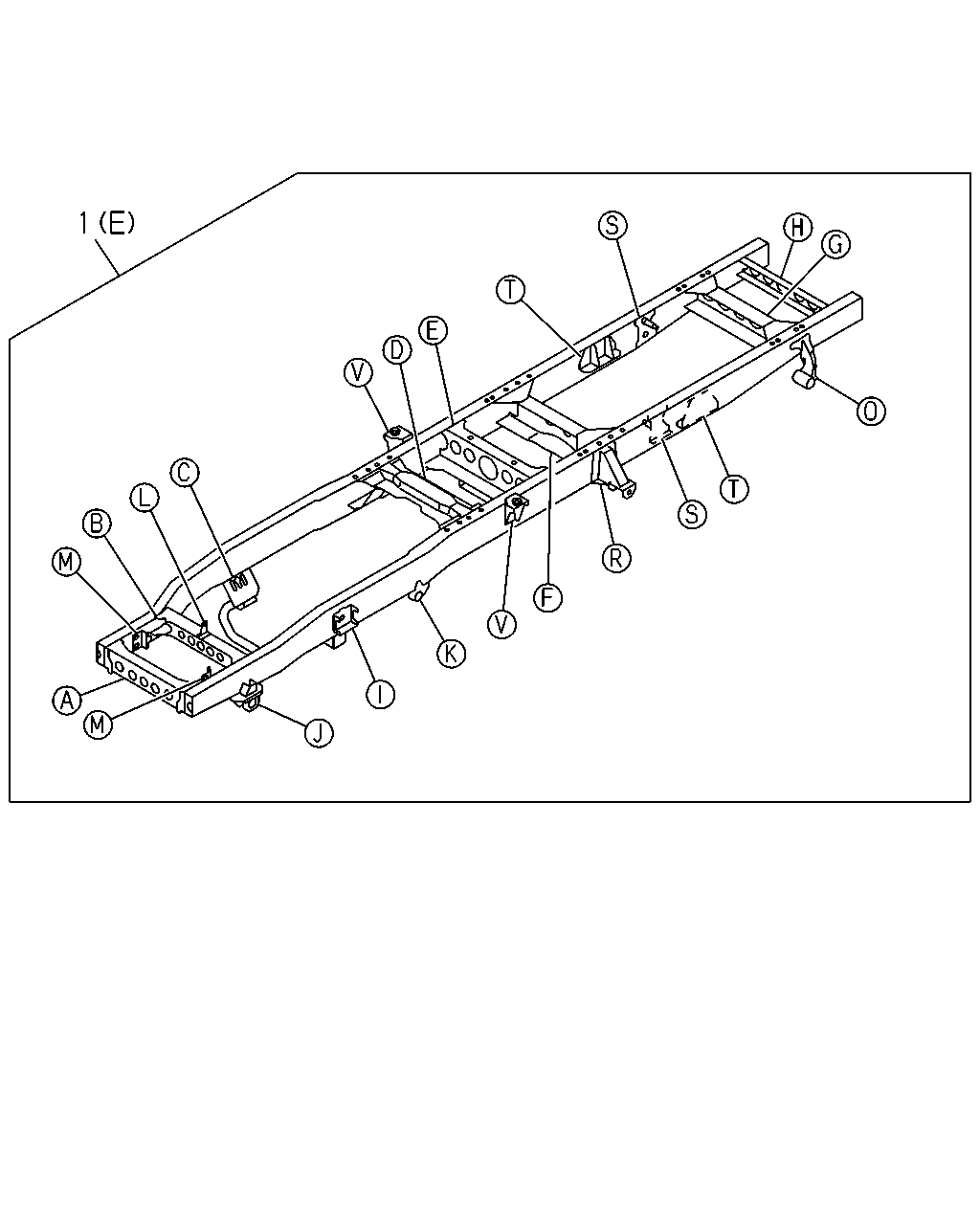

1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98023-293-2	01	1	0712-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98023-293-2	01	1	0712-			●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98023-294-2	01	1	0712-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98023-294-2	01	1	0712-			●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98023-285-2	01	1	0712-0906		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98023-285-3	01	1	0907-0907		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98023-285-3	01	1	0908-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98023-286-2	01	1	0712-0906		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98023-286-3	01	1	0907-0907		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98023-286-3	01	1	0908-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98023-260-2	01	1	0712-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98023-260-2	01	1	0712-			●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98023-261-2	01	1	0712-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98023-261-2	01	1	0712-			●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98023-258-2	01	1	0712-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98023-259-2	01	1	0712-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98023-308-4	01	1	0712-			●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D)	8-98023-265-4	01	1	0712-			●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98023-270-3	01	1	0712-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98023-271-3	01	1	0712-	●

376 376 376 376 376 376 376 376 376 376 376 376 376 376 376 376 60 296 176 40 176 62 118 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
40	08.155 BOLT; BRKT TO FRAME AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 04.338 M8X20 FLANGE	0-28050-820-0	02	1	0803-	●	●	●
60	05.601 BOLT; MBR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 07.039 M10X30	0-20851-030-0	04	1	0712-0802			●
60	05.601 BOLT; MBR 07.039 M10X30	0-20851-030-0	04	1	0803-	●	●	●
62	05.601 NUT; MBR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 04.085 M10 FLANGE	0-91180-210-0	04	1	0712-0802			●
62	05.601 NUT; MBR 04.085 M10 FLANGE	0-91180-210-0	04	1	0803-	●	●	●
67	07.011 NUT; C/MBR 04.085 M10 FLANGE	0-91180-210-0	04	1	0712-0802	●	●	●
67	07.011 NUT; C/MBR EXC. FRT INDEPENDENT SUSPENSION(FF0) 04.085 M10 FLANGE	0-91180-210-0	04	1	0803-		●
67	07.011 NUT; C/MBR 04.085 M10 FLANGE	0-91180-210-0	04	1	0803-	●		●
118	07.529 NUT; STOPPER EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M8 LOCK NUT	0-91370-008-0	02	1	0712-			●
176	04.085 BOLT; C/MBR,ENG MTG WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 03.890 (B) M10X30 FLANGE	0-28051-030-0	08	1	0712-0802			●
176	04.085 BOLT; C/MBR,ENG MTG WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 03.890 (B) M10X30 FLANGE	0-28051-030-0	16	1	0803-0906			●
176	04.085 BOLT; C/MBR,ENG MTG WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) M14X45 FLANGE	0-29261-445-0	08	1	0712-0802		●	●
176	04.085 BOLT; C/MBR,ENG MTG WHEEL BASE 3300MM(33W) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) M14X45 FLANGE	0-29261-445-0	08	1	0712-0802		●	●
176	04.085 BOLT; C/MBR,ENG MTG (A) M14X45 FLANGE	0-29261-445-0	08	1	0712-0802	●
176	04.085 BOLT; C/MBR,ENG MTG WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 03.890 (B) M10X30 FLANGE	0-28051-030-0	08	1	0803-0906		●	●
176	04.085 BOLT; C/MBR,ENG MTG WHEEL BASE 3300MM(33W) EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.890 (B) M10X30 FLANGE	0-28051-030-0	08	1	0803-0906		●	●
176	04.085 BOLT; C/MBR,ENG MTG 03.890 (B) M10X30 FLANGE	0-28051-030-0	08	1	0803-0906	●
176	04.085 BOLT; C/MBR,ENG MTG EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.890 (B) M10X30 FLANGE	0-28051-030-0	08	1	0907-		●
176	04.085 BOLT; C/MBR,ENG MTG 03.890 (B) M10X30 FLANGE	0-28051-030-0	08	1	0907-	●		●
296	07.039 BOLT; 3RD C/MBR M10X30	0-20851-030-0	04	1	0712-0802	●	●
296	07.039 BOLT; 3RD C/MBR WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) M10X30	0-20851-030-0	04	1	0712-0802			●
296	07.039 BOLT; 3RD C/MBR WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) M10X30	0-20851-030-0	04	1	0712-0802			●
296	07.039 BOLT; 3RD C/MBR WHEEL BASE 3300MM(33W) M10X30	0-20851-030-0	04	1	0712-0802			●
376	07.039 RIVET; FRAME (A) D8X20 TAPER END	9-06750-820-0	AR	1	0712-	●	●	●
376	07.039 RIVET; FRAME 07.011 (B) D8X22 TAPER END	9-06750-822-0	AR	1	0712-	●	●	●
376	07.039 RIVET; FRAME 07.395 (C) D8X26 TAPER END	9-06750-826-0	AR	1	0712-	●	●	●
376	07.039 RIVET; FRAME (D) D10X22 TAPER END	9-06751-022-0	AR	1	0712-	●	●	●
376	07.039 RIVET; FRAME (E) D10X24 TAPER END	9-06751-024-0	AR	1	0712-	●	●	●
376	07.039 RIVET; FRAME (F) D10X26 TAPER END	9-06751-026-0	AR	1	0712-	●	●	●
376	07.039 RIVET; FRAME (G) D10X28 TAPER END	9-06751-028-0	AR	1	0712-	●	●	●
376	07.039 RIVET; FRAME (H) D10X30 TAPER END	9-06751-030-0	AR	1	0712-	●	●	●
376	07.039 RIVET; FRAME (I) D10X32 TAPER END	9-06751-032-0	AR	1	0712-	●	●	●
376	07.039 RIVET; FRAME (J) D10X34 TAPER END	9-06751-034-0	AR	1	0712-	●	●	●
376	07.039 RIVET; FRAME (K) D10X36 TAPER END	9-06751-036-0	AR	1	0712-	●	●	●
376	07.039 RIVET; FRAME (L) D11X26 TAPER END	9-06751-126-0	AR	1	0712-	●	●	●
376	07.039 RIVET; FRAME 07.105 (M) D12X30 TAPER END	9-06751-230-0	AR	1	0712-	●	●	●
376	07.039 RIVET; FRAME 07.006 (N) D12X32 TAPER END	9-06751-232-0	AR	1	0712-	●	●	●
376	07.039 RIVET; FRAME 07.535 (O) D12X34 TAPER END	9-06751-234-0	AR	1	0712-	●	●	●
376	07.039 RIVET; FRAME 07.428 (P) D12X36 TAPER END	9-06751-236-0	AR	1	0712-	●	●	●

533 173 533 173 105 105 215 215 103 446 103 147 147 101 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
101	07.112 BRACKET; RR SPR,FRT WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98034-042-0	02	1	0712-		●
101	07.112 BRACKET; RR SPR,FRT WHEEL BASE 2400MM(24W) EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-97034-156-1	02	1	0712-		●
101	07.112 BRACKET; RR SPR,FRT WHEEL BASE 3300MM(33W) (B)	8-97034-156-1	02	1	0712-		●
101	07.112 BRACKET; RR SPR,FRT (B)	8-97034-156-1	02	1	0712-	●		●
103	07.420 STOPPER; SUB SPR EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-97223-748-0	02	1	0712-			●
103	07.420 STOPPER; SUB SPR EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-97223-750-0	02	1	0712-			●
105	07.112 BRACKET; RR SPR,RR WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98031-058-0	01	1	0712-		●
105	07.112 BRACKET; RR SPR,RR WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98031-059-0	01	1	0712-		●
105	07.112 BRACKET; RR SPR,RR WHEEL BASE 2400MM(24W) EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98032-488-0	01	1	0712-		●
105	07.112 BRACKET; RR SPR,RR WHEEL BASE 3300MM(33W) (B)	8-98032-488-0	01	1	0712-		●
105	07.112 BRACKET; RR SPR,RR (B)	8-98032-488-0	01	1	0712-	●		●
105	07.112 BRACKET; RR SPR,RR WHEEL BASE 2400MM(24W) EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98032-489-0	01	1	0712-		●
105	07.112 BRACKET; RR SPR,RR WHEEL BASE 3300MM(33W) (B)	8-98032-489-0	01	1	0712-		●
105	07.112 BRACKET; RR SPR,RR (B)	8-98032-489-0	01	1	0712-	●		●
147	07.535 RUBBER; SUB SPRING EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97254-387-0	04	1	0712-			●
173	07.112 STIFFENER; RR SPRING EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98012-947-3	02	1	0712-			●
173	07.112 STIFFENER; RR SPRING EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98012-948-2	02	1	0712-			●
215	07.524 BUSHING; BRKT,RR SPRING WHEEL BASE 2400MM(24W) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97184-699-1	04	1	0712-		●
215	07.524 BUSHING; BRKT,RR SPRING WHEEL BASE 3300MM(33W)	8-97184-699-1	04	1	0712-		●
215	07.524 BUSHING; BRKT,RR SPRING	8-97184-699-1	04	1	0712-	●		●
446	07.112 STIFFENER; SPRING STOPPER WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98060-184-1	01	1	0803-			●
533	07.010 STIFFENER; REINFORCEMENT	8-98006-680-1	02	1	0712-	●	●
533	07.010 STIFFENER; REINFORCEMENT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98006-680-1	02	1	0712-			●

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

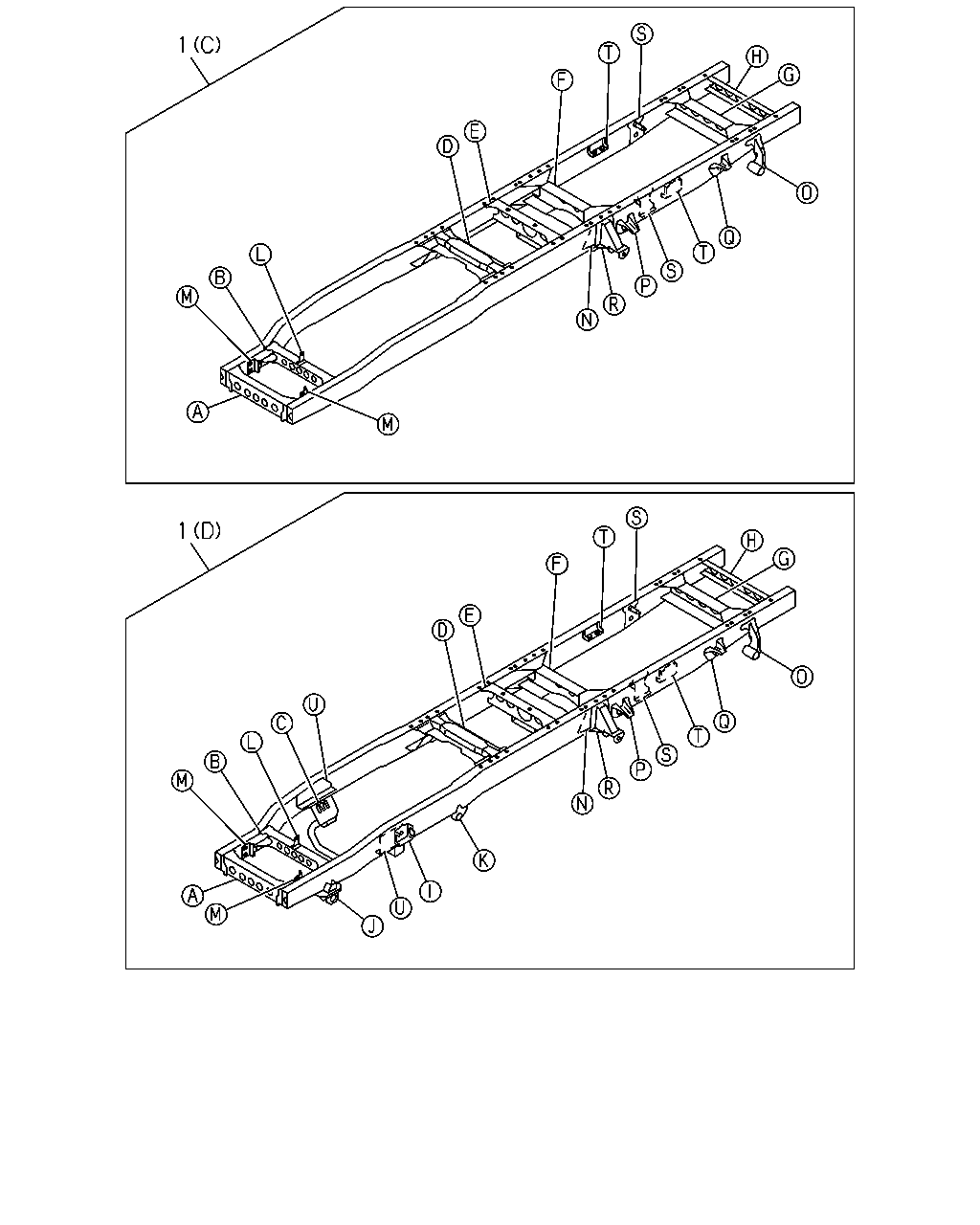

1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98023-293-2	01	1	0712-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98023-293-2	01	1	0712-			●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98023-294-2	01	1	0712-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98023-294-2	01	1	0712-			●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98023-285-2	01	1	0712-0906		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98023-285-3	01	1	0907-0907		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98023-285-3	01	1	0908-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98023-286-2	01	1	0712-0906		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98023-286-3	01	1	0907-0907		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98023-286-3	01	1	0908-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98023-260-2	01	1	0712-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98023-260-2	01	1	0712-			●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98023-261-2	01	1	0712-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98023-261-2	01	1	0712-			●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98023-258-2	01	1	0712-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98023-259-2	01	1	0712-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98023-308-4	01	1	0712-			●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D)	8-98023-265-4	01	1	0712-			●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98023-270-3	01	1	0712-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98023-271-3	01	1	0712-	●

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

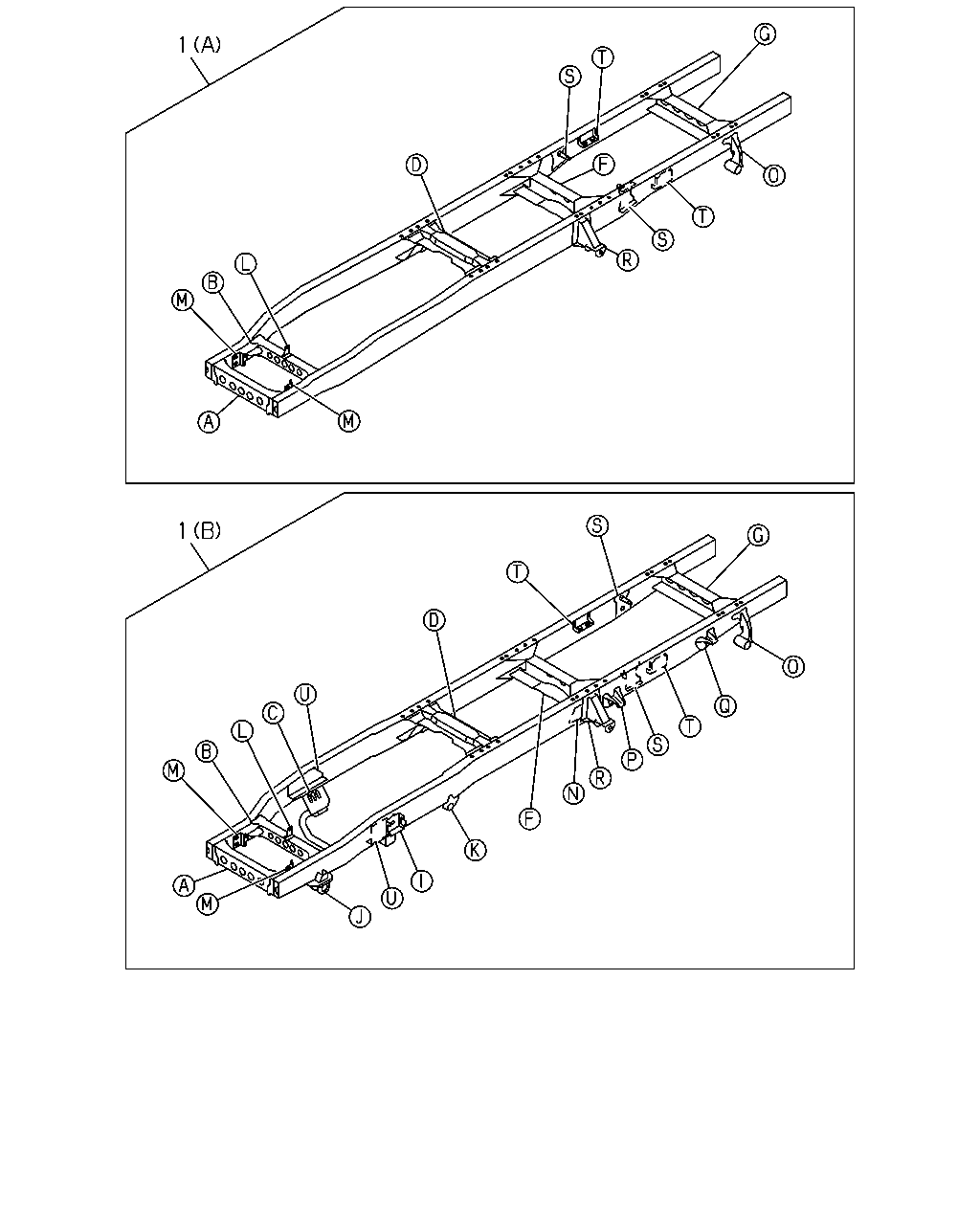

1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98023-293-2	01	1	0712-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98023-293-2	01	1	0712-			●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98023-294-2	01	1	0712-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98023-294-2	01	1	0712-			●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98023-285-2	01	1	0712-0906		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98023-285-3	01	1	0907-0907		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98023-285-3	01	1	0908-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98023-286-2	01	1	0712-0906		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98023-286-3	01	1	0907-0907		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98023-286-3	01	1	0908-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98023-260-2	01	1	0712-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D)	8-98023-260-2	01	1	0712-			●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98023-261-2	01	1	0712-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98023-261-2	01	1	0712-			●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98023-258-2	01	1	0712-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98023-259-2	01	1	0712-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98023-308-4	01	1	0712-			●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D)	8-98023-265-4	01	1	0712-			●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98023-270-3	01	1	0712-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98023-271-3	01	1	0712-	●

130 24 51 165 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	07.105 BRACKET; FRT SPR,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98029-126-0	01	1	0712-		●
24	07.105 BRACKET; FRT SPR,FRT	8-98029-126-0	01	1	0712-	●		●
24	07.105 BRACKET; FRT SPR,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98029-127-0	01	1	0712-		●
24	07.105 BRACKET; FRT SPR,FRT	8-98029-127-0	01	1	0712-	●		●
39	07.112 BRACKET; FRT SPR,RR EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-94258-091-0	02	1	0712-		●
39	07.112 BRACKET; FRT SPR,RR	8-94258-091-0	02	1	0712-	●		●
51	07.011 BRACKET; ENG SUPPORT,OUTER EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98038-962-3	02	1	0712-		●
51	07.011 BRACKET; ENG SUPPORT,OUTER	8-98038-962-3	02	1	0712-	●		●
130	07.014 MEMBER; CROSS,END WHEEL BASE 3300MM(33W)	8-98041-239-0	01	1	0712-	●	●	●
165	01.270 BRACKET; RAD STAY	8-98000-886-0	01	1	0712-	●	●	●

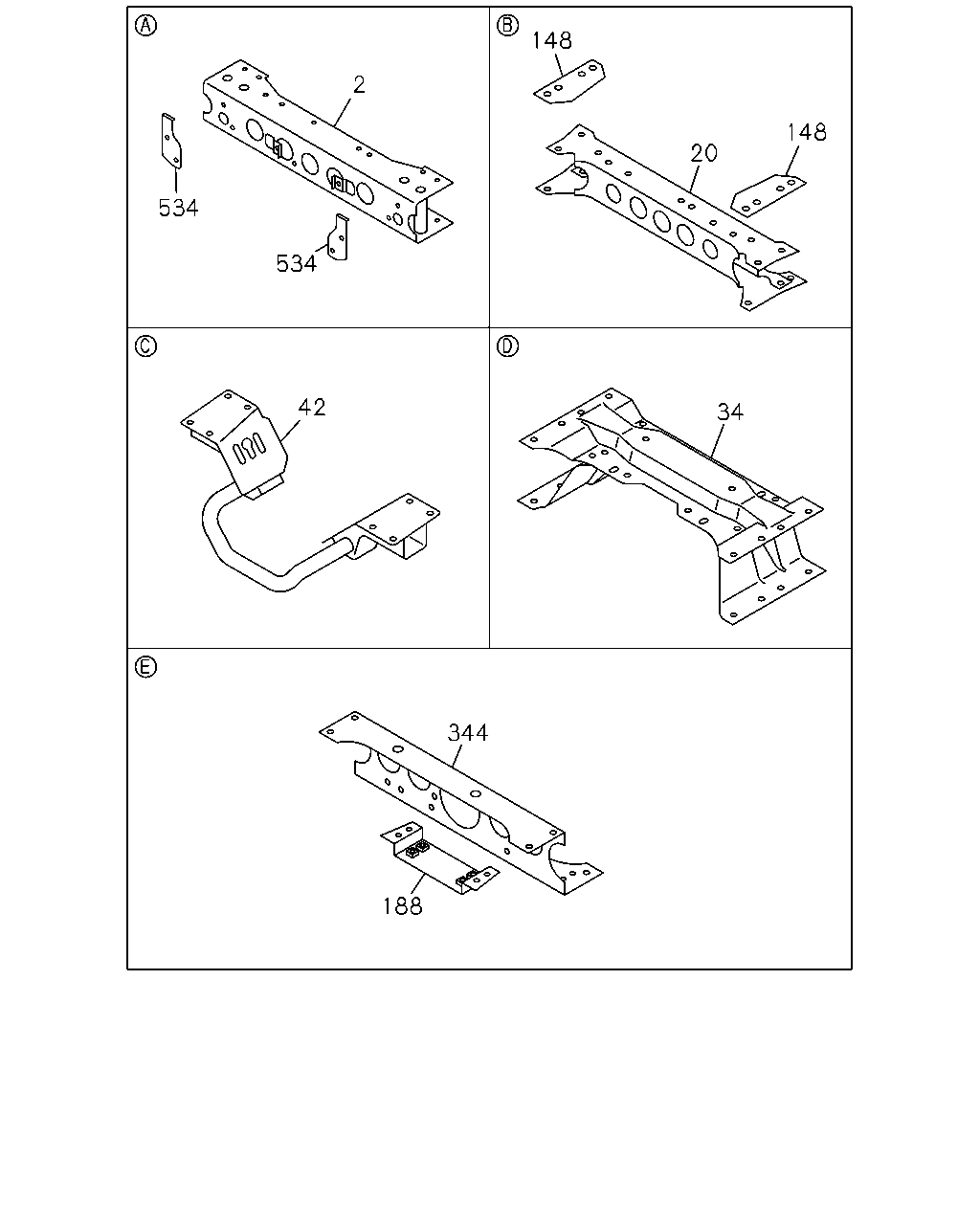

148 2 148 20 534 534 42 34 344 188

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	07.010 MEMBER; CROSS,1ST	8-97384-741-5	01	1	0712-	●	●	●
20	07.012 MEMBER; CROSS,2ND	8-98038-419-2	01	1	0712-	●	●
20	07.012 MEMBER; CROSS,2ND AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98038-419-2	01	1	0712-			●
20	07.012 MEMBER; CROSS,2ND EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98088-281-1	01	1	0712-			●
34	07.012 MEMBER; CROSS,3RD	8-97384-743-1	01	1	0712-	●	●
34	07.012 MEMBER; CROSS,3RD AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97384-743-1	01	1	0712-			●
34	07.012 MEMBER; CROSS,3RD EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98081-959-0	01	1	0712-			●
42	07.011 MEMBER; CROSS,ENG MTG EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98006-224-1	01	1	0712-		●
42	07.011 MEMBER; CROSS,ENG MTG	8-98006-224-1	01	1	0712-	●		●
148	07.105 SPACER; C/MBR EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98081-958-0	04	1	0712-			●
188	07.039 BRACKET; SUPPORT,CTR BRG WHEEL BASE 3300MM(33W)	8-97083-157-1	01	1	0712-	●	●	●
344	07.012 MEMBER; CROSS,4TH WHEEL BASE 3300MM(33W)	8-98005-959-1	01	1	0712-	●	●	●
534	07.869 BRACKET; BACK BAR	8-98061-413-0	01	1	0712-	●	●	●
534	07.869 BRACKET; BACK BAR	8-98061-414-0	01	1	0712-	●	●	●

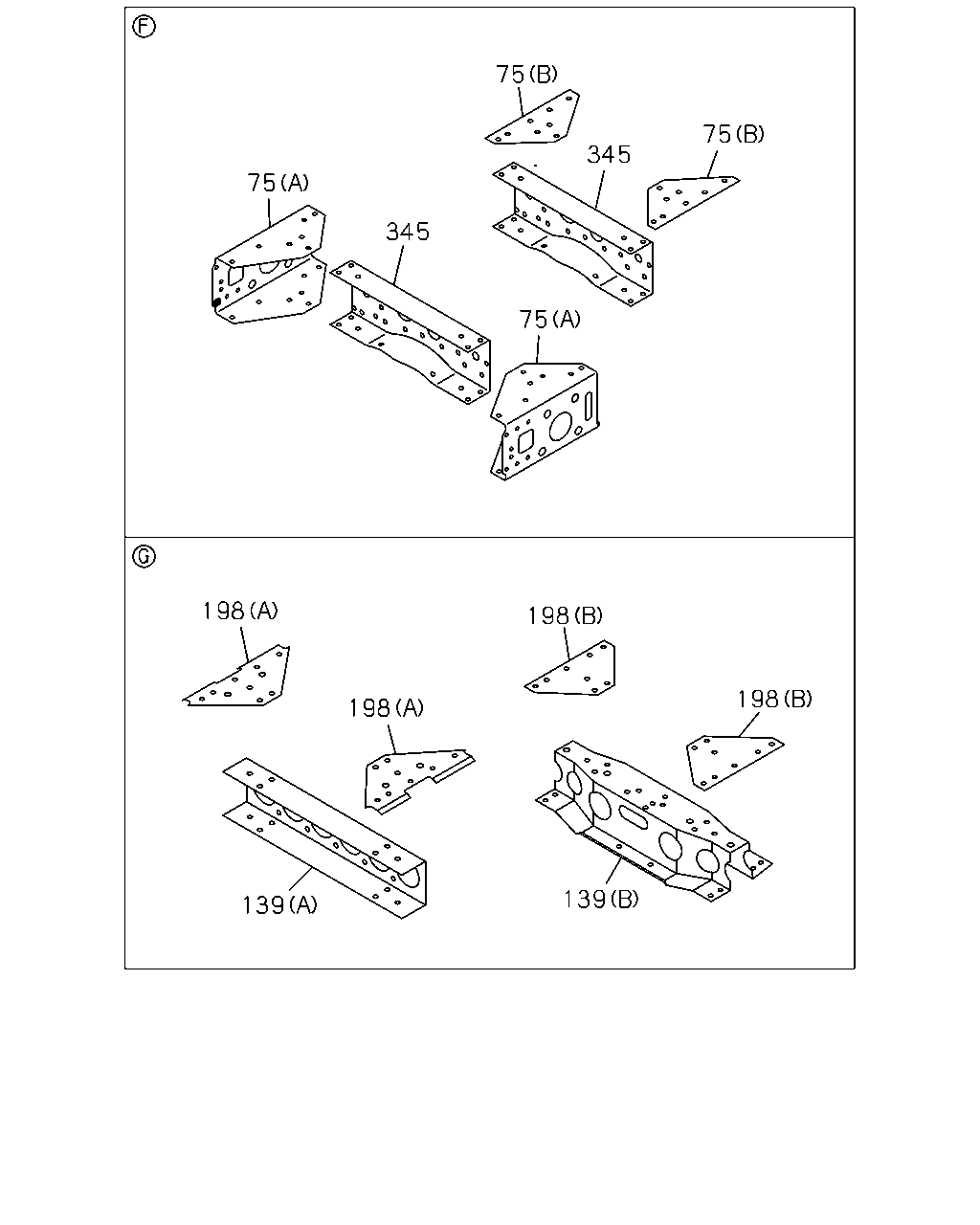

75 75 345 75 345 75 198 198 198 198 139 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
75	07.039 GUSSET; 5TH C/MBR WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98011-312-1	01	1	0712-		●
75	07.039 GUSSET; 5TH C/MBR WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98006-124-1	01	1	0712-		●
75	07.039 GUSSET; 5TH C/MBR WHEEL BASE 2400MM(24W) EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98011-863-0	04	1	0712-		●
75	07.039 GUSSET; 5TH C/MBR WHEEL BASE 3300MM(33W) (B)	8-98011-863-0	04	1	0712-		●
75	07.039 GUSSET; 5TH C/MBR (B)	8-98011-863-0	04	1	0712-	●		●
139	07.012 MEMBER; CROSS,6TH WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98006-168-1	01	1	0712-		●
139	07.012 MEMBER; CROSS,6TH WHEEL BASE 2400MM(24W) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-97384-745-0	01	1	0712-		●
139	07.012 MEMBER; CROSS,6TH WHEEL BASE 3300MM(33W) (A)	8-97384-745-0	01	1	0712-		●
139	07.012 MEMBER; CROSS,6TH (A)	8-97384-745-0	01	1	0712-	●		●
198	07.039 GUSSET; 6TH C/MBR WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98011-865-0	02	1	0712-		●
198	07.039 GUSSET; 6TH C/MBR WHEEL BASE 2400MM(24W) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) RH LOWER & LH UPPER	8-94258-068-1	02	1	0712-		●
198	07.039 GUSSET; 6TH C/MBR WHEEL BASE 3300MM(33W) (A) RH LOWER & LH UPPER	8-94258-068-1	02	1	0712-		●
198	07.039 GUSSET; 6TH C/MBR (A) RH LOWER & LH UPPER	8-94258-068-1	02	1	0712-	●		●
198	07.039 GUSSET; 6TH C/MBR WHEEL BASE 2400MM(24W) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) RH UPPER & LH LOWER	8-94258-069-1	02	1	0712-		●
198	07.039 GUSSET; 6TH C/MBR WHEEL BASE 3300MM(33W) (A) RH UPPER & LH LOWER	8-94258-069-1	02	1	0712-		●
198	07.039 GUSSET; 6TH C/MBR (A) RH UPPER & LH LOWER	8-94258-069-1	02	1	0712-	●		●
345	07.012 MEMBER; CROSS,5TH	8-98011-861-2	01	1	0712-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
