◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51150 - NLR/NMR(EU)-RHD EU4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-65B - REAR LEAF SPRING ▶
4-65B — REAR LEAF SPRING (#50427) — 14 parça

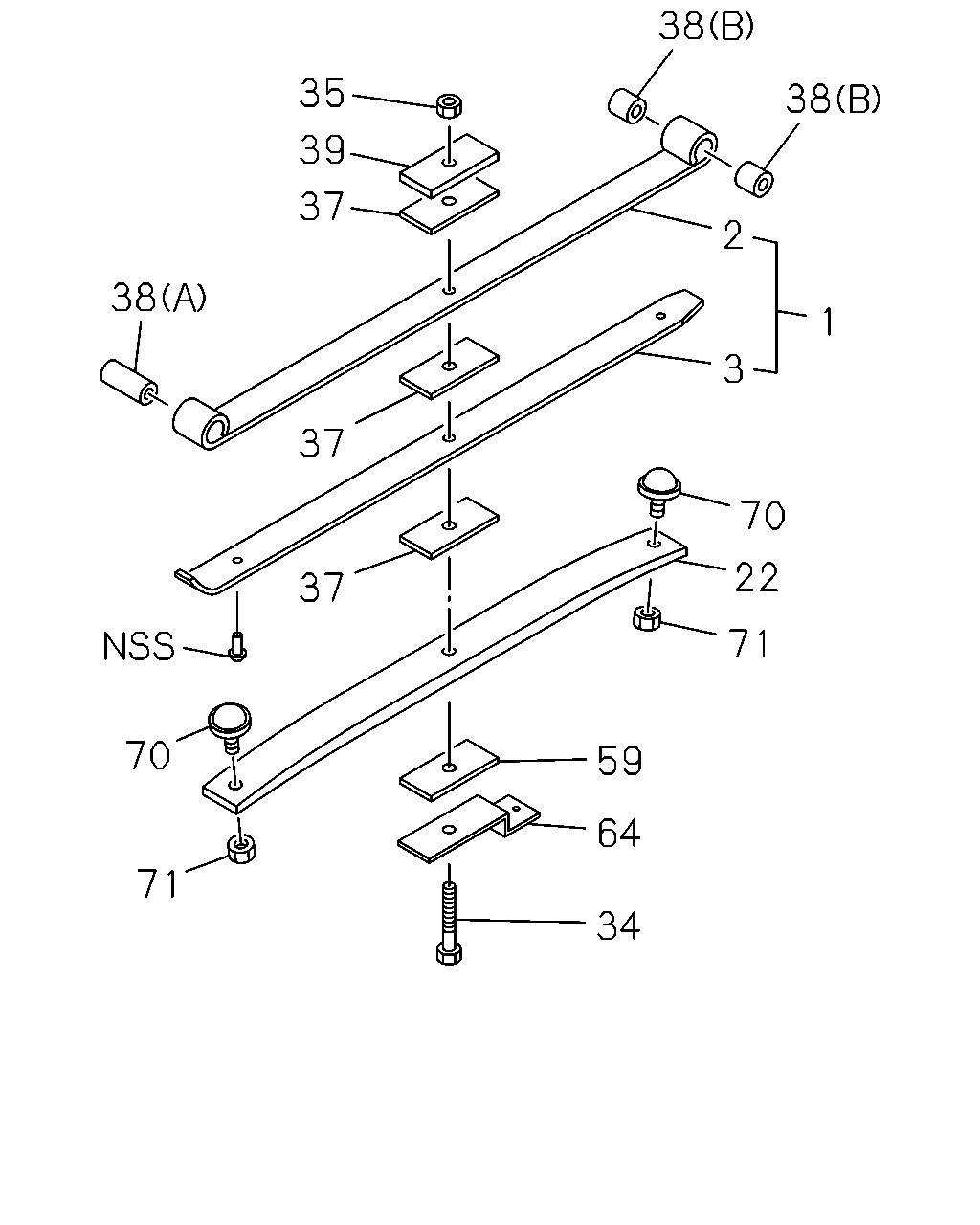

çizim 155285
35 39 37 2 1 3 37 70 22 37 71 70 59 64 71 34 38 38
BalonParca AdiParca NoAdetTipApplied Date
1 07.503 SPRING ASM; LEAF,RR MAIN
ASM PART: A = 8-98022-372-0, 98022372 		8-98043-825-0 01 1 -
2 07.505 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 8-98022-372-0, 98022372 		8-98043-826-0 01 1 -
3 07.505 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 8-98022-372-0, 98022372 		8-98043-827-0 01 1 -
22 07.505 SPRING; LEAF,NO 1,RR SUB
ASM PART: A = 8-98022-372-0, 98022372 		8-98100-791-0 01 1 -
34 07.506 BOLT; CENTER,LEAF SPR,RR MAIN
L=110 ASM PART: A = 8-98022-372-0, 98022372 		8-98040-312-0 01 1 -
35 07.506 NUT; CENTER BOLT,LEAF SPR,RR
04.634, M12 ASM PART: A = 8-98022-372-0, 98022372 		9-99110-512-0 01 1 -
37 07.518 SPACER; CENTER,LEAF SPR,RR
T=1 ASM PART: A = 8-98022-372-0, 98022372 		8-94448-734-0 03 1 -
38 07.505 BUSHING; LEAF SPR,RR
07.524, (B) ASM PART: A = 8-98022-372-0, 98022372 		8-94118-588-1 02 1 -
38 07.505 BUSHING; LEAF SPR,RR
(A), OD=42 L=81 ASM PART: A = 8-98022-372-0, 98022372 		8-97074-826-0 01 1 -
39 07.518 SEAT; LEAF SPR,RR MAIN
T=12 ASM PART: A = 8-98022-372-0, 98022372 		8-94407-146-0 01 1 -
59 07.513 SEAT; RR SPRING,SUB
(B), T=6 ASM PART: A = 8-98022-372-0, 98022372 		8-98041-367-0 01 1 -
64 07.513 SUPPORT; RR SPR
ASM PART: A = 8-98022-372-0, 98022372 		8-94342-863-1 01 1 -
70 07.505 RUBBER; LEAF SPR,RR
ASM PART: A = 8-98022-372-0, 98022372 		8-98040-323-0 02 1 -
71 07.505 NUT; RUBBER,RR LEAF SPR
07.506, M10 ASM PART: A = 8-98022-372-0, 98022372 		9-09110-010-0 02 1 -
