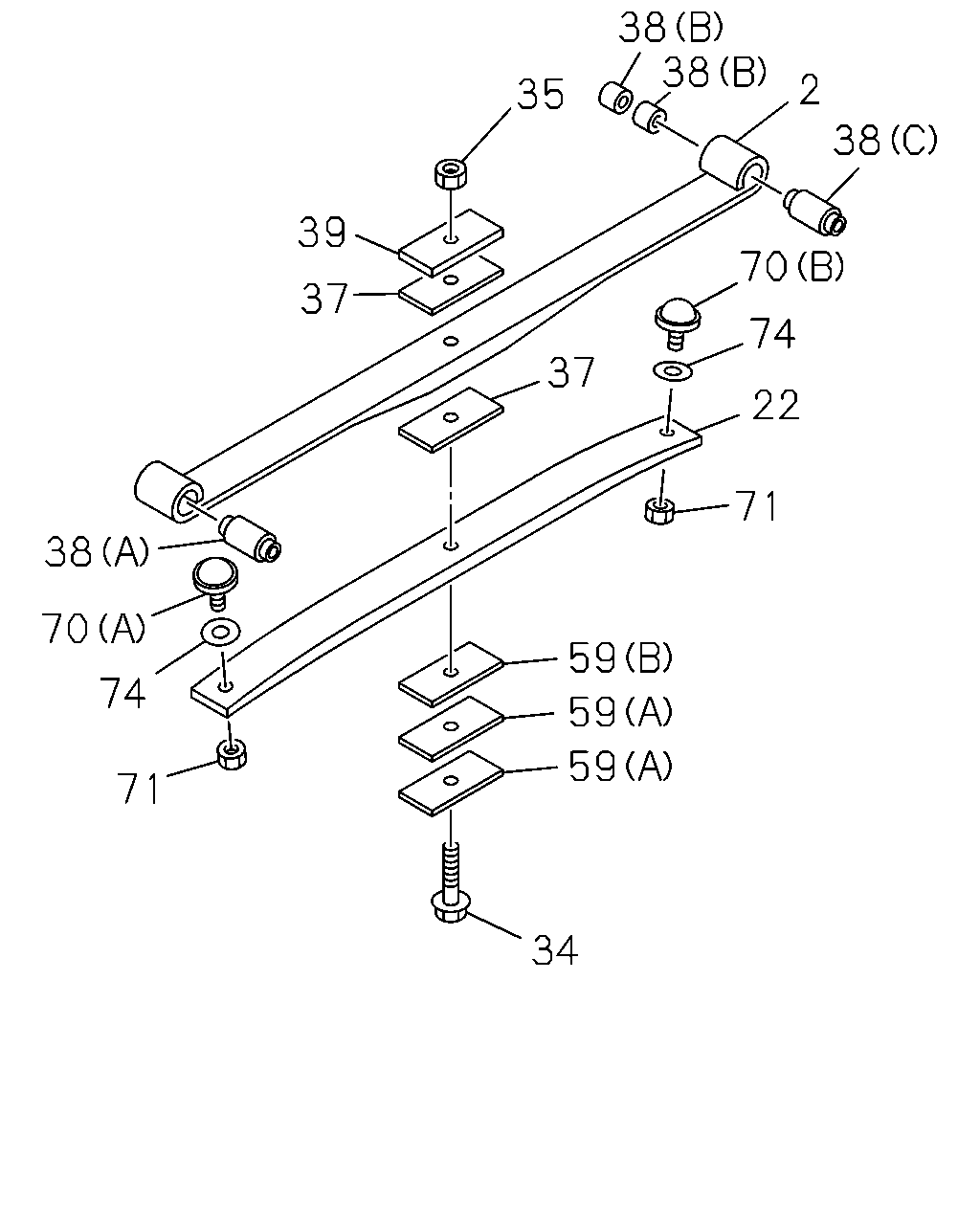

4-65A — REAR LEAF SPRING (#50426) — 20 parça

38 38 2 38 35 39 70 37 74 37 22 71 38 70 59 74 59 59 71 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 8-98022-370-1, 98022370	8-98039-305-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: B = 8-98022-371-1, 98022371	8-98046-893-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: A = 8-98022-370-1, 98022370	8-98039-306-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: B = 8-98022-371-1, 98022371	8-98046-894-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN L=85 ASM PART: A = 8-98022-370-1, 98022370	8-98037-590-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN L=72 ASM PART: B = 8-98022-371-1, 98022371	8-98041-352-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR 04.634, M12 ASM PART: A = 8-98022-370-1, 98022370, B = 8-98022-371-1, 98022371	9-99110-512-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: A = 8-98022-370-1, 98022370, B = 8-98022-371-1, 98022371	8-94448-734-0	02	1	-
38	07.505 BUSHING; LEAF SPR,RR 07.524, (B) ASM PART: B = 8-98022-371-1, 98022371	8-94118-588-1	02	1	-
38	07.505 BUSHING; LEAF SPR,RR 07.105, (A) ASM PART: A = 8-98022-370-1, 98022370	8-94130-354-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR (C), OD=42 L=85.2 ASM PART: A = 8-98022-370-1, 98022370	8-97034-380-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR (A), OD=42 L=81 ASM PART: B = 8-98022-371-1, 98022371	8-97074-826-0	01	1	-
39	07.518 SEAT; LEAF SPR,RR MAIN T=12 ASM PART: A = 8-98022-370-1, 98022370, B = 8-98022-371-1, 98022371	8-94407-146-0	01	1	-
59	07.513 SEAT; RR SPRING,SUB (A), T=10 ASM PART: A = 8-98022-370-1, 98022370	1-51177-216-0	02	1	-
59	07.513 SEAT; RR SPRING,SUB (B), T=6 ASM PART: B = 8-98022-371-1, 98022371	8-98041-367-0	01	1	-
70	07.505 RUBBER; LEAF SPR,RR (A) ASM PART: A = 8-98022-370-1, 98022370, B = 8-98022-371-1, 98022371	8-98039-335-0	01	1	-
70	07.505 RUBBER; LEAF SPR,RR (B) ASM PART: A = 8-98022-370-1, 98022370, B = 8-98022-371-1, 98022371	8-98039-336-0	01	1	-
71	07.505 NUT; RUBBER,RR LEAF SPR 07.506, M10 ASM PART: A = 8-98022-370-1, 98022370, B = 8-98022-371-1, 98022371	9-09110-010-0	02	1	-
74	07.518 SPACER; SILENSER T=1 ASM PART: A = 8-98022-370-1, 98022370, B = 8-98022-371-1, 98022371	8-98069-694-0	AR	1	-
74	07.518 SPACER; SILENSER T=2 ASM PART: A = 8-98022-370-1, 98022370, B = 8-98022-371-1, 98022371	8-98201-771-0	AR	1	1203-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
