◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51150 - NLR/NMR(EU)-RHD EU4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#50424) — 62 parça

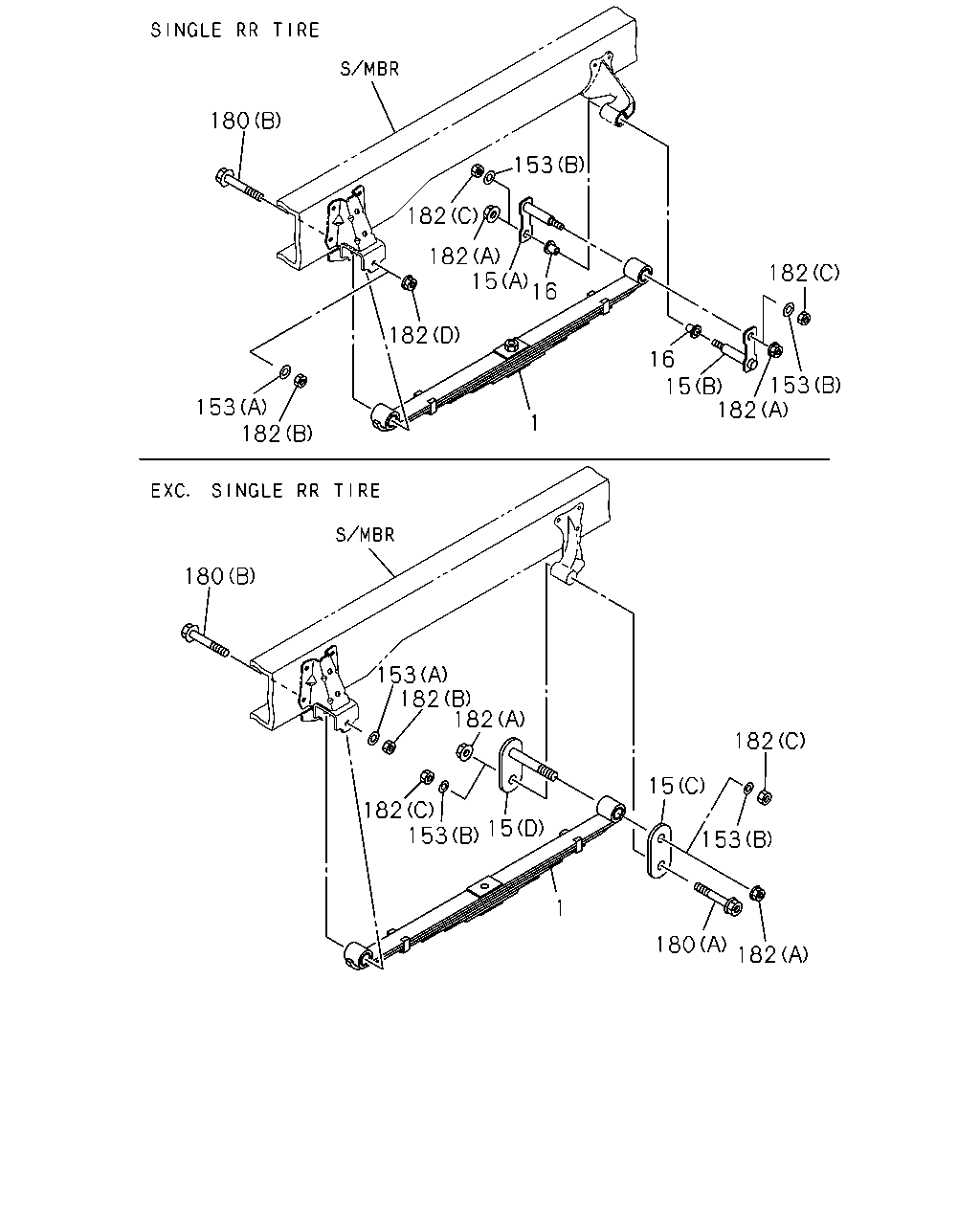

çizim 155156
180 153 182 182 15 182 16 182 16 15 153 182 153 182 1 180 153 182 182 182 182 15 153 15 153 1 180 182
BalonParca AdiParca NoAdetTipApplied Date A B C
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR WIDE TREAD(V4T) 2-LEAF 		8-98022-371-0 02 1 0712-0908 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 2-LEAF 		8-98022-371-0 02 1 0712-0908 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 2-LEAF 		8-98022-371-1 02 1 0909- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 2-LEAF 		8-98022-371-1 02 1 0909- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SINGLE RR TIRE(6TD) 2-LEAF 		8-98022-370-0 02 1 0712-0908 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T) 2-LEAF 		8-98022-370-1 02 1 0909- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR WIDE TREAD(V4T) 3-LEAF 		8-98022-372-0 02 1 0712- ●
15 07.523 SHACKLE; RR SPR
SINGLE RR TIRE(6TD) (B) 		8-94113-322-3 02 1 0712- ●
15 07.523 SHACKLE; RR SPR
SINGLE RR TIRE(6TD) (A) 		8-97033-966-1 02 1 0712- ●
15 07.523 SHACKLE; RR SPR
EXC. SINGLE RR TIRE(6TD) (C) 		8-94118-511-3 02 1 0712- ●
15 07.523 SHACKLE; RR SPR
(C) 		8-94118-511-3 02 1 0712- ● ●
15 07.523 SHACKLE; RR SPR
EXC. SINGLE RR TIRE(6TD) (D) 		8-97360-011-0 02 1 0712- ●
15 07.523 SHACKLE; RR SPR
(D) 		8-97360-011-0 02 1 0712- ● ●
16 07.524 BUSHING; SHACKLE,RR SPR
SINGLE RR TIRE(6TD) 		8-94113-323-2 04 1 0712- ●
153 07.529 WASHER; PL,SPRING PIN
KD PREPARATORY PACK<6HF> SINGLE RR TIRE(6TD) 07.427 (A) ID=16.5 		8-98011-489-0 02 1 0712- ●
153 07.529 WASHER; PL,SPRING PIN
EXC. SINGLE RR TIRE(6TD) (A) ID=19 		8-97360-119-0 02 1 0712- ●
153 07.529 WASHER; PL,SPRING PIN
(A) ID=19 		8-97360-119-0 02 1 0712- ● ●
153 07.529 WASHER; PL,SPRING PIN
KD PREPARATORY PACK<6HF> 07.427 (B) ID=16.5 		8-98011-489-0 04 1 0712- ● ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> EXC. SINGLE RR TIRE(6TD) (A) M18X130 		8-98011-488-0 02 1 0712- ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> (A) M18X130 		8-98011-488-0 02 1 0712- ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF>,SINGLE RR TIRE(6TD) (A) M18X130 FLANGE 		8-97360-112-0 02 1 0712- ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M18X130 FLANGE 		8-97360-112-0 02 1 0712- ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> 07.427 (B) M16X122 		8-98011-487-0 02 1 0712- ● ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (B) M16X122 FLANGE 		8-97360-110-0 02 1 0712- ● ● ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> SINGLE RR TIRE(6TD) 06.509 (B) M16 		0-91110-516-0 02 1 0712- ●
182 07.529 NUT; PIN,RR SPR
SINGLE RR TIRE(6TD) EXC. KD PREPARATORY PACK<6HF> 07.427 (D) M16 FLANGE 		8-97360-125-0 02 1 0712- ●
182 07.529 NUT; PIN,RR SPR
EXC. SINGLE RR TIRE(6TD) (B) M18 		0-91110-518-0 02 1 0712- ●
182 07.529 NUT; PIN,RR SPR
(B) M18 		0-91110-518-0 02 1 0712- ● ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> 06.509 (C) M16 		0-91110-516-0 04 1 0712- ● ● ●
182 07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16 FLANGE 		8-97360-125-0 04 1 0712- ● ● ●
çizim 155161
227 230 225 4 502 1 6 155 5
BalonParca AdiParca NoAdetTipApplied Date A B C
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR WIDE TREAD(V4T) 2-LEAF 		8-98022-371-0 02 1 0712-0908 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 2-LEAF 		8-98022-371-0 02 1 0712-0908 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 2-LEAF 		8-98022-371-1 02 1 0909- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 2-LEAF 		8-98022-371-1 02 1 0909- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SINGLE RR TIRE(6TD) 2-LEAF 		8-98022-370-0 02 1 0712-0908 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T) 2-LEAF 		8-98022-370-1 02 1 0909- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR WIDE TREAD(V4T) 3-LEAF 		8-98022-372-0 02 1 0712- ●
4 07.516 U-BOLT; RR SPR
REAR WIDE TREAD(V4T) L=215 		8-94127-918-3 04 1 0712-1308 ●
4 07.516 U-BOLT; RR SPR
L=215 		8-94127-918-3 04 1 0712-1308 ●
4 07.516 U-BOLT; RR SPR
REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) L=215 		8-94127-918-3 04 1 1309- ●
4 07.516 U-BOLT; RR SPR
L=215 		8-94127-918-3 04 1 1309- ●
4 07.516 U-BOLT; RR SPR
SINGLE RR TIRE(6TD) L=235 		8-94127-920-3 04 1 0712-1308 ●
4 07.516 U-BOLT; RR SPR
SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T) L=235 		8-94127-920-3 04 1 1309- ●
4 07.516 U-BOLT; RR SPR
REAR WIDE TREAD(V4T) L=255 		8-94127-922-3 04 1 0712- ●
5 07.529 NUT; U-BOLT,RR SPR
07.417 M16 		8-97360-121-0 08 1 0712- ● ● ●
6 07.516 WASHER; PL,U-BOLT
ID=16.4 		8-97360-118-0 08 1 0712- ● ● ●
155 07.380 BRACKET; S/ABS
SINGLE RR TIRE(6TD) 		8-94128-361-4 01 1 0712- ●
155 07.380 BRACKET; S/ABS
SINGLE RR TIRE(6TD) 		8-94128-360-4 01 1 0712- ●
225 07.535 RUBBER; CUSHION,RR SPR
SINGLE RR TIRE(6TD) 		8-98002-085-0 02 1 0712-0908 ●
225 07.535 RUBBER; CUSHION,RR SPR
SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T) 		8-98002-085-1 02 1 0909- ●
225 07.535 RUBBER; CUSHION,RR SPR
REAR WIDE TREAD(V4T) 		8-98021-554-0 02 1 0712-0908 ● ●
225 07.535 RUBBER; CUSHION,RR SPR 8-98021-554-0 02 1 0712-0908 ●
225 07.535 RUBBER; CUSHION,RR SPR
REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 		8-98021-554-0 02 1 0909- ●
225 07.535 RUBBER; CUSHION,RR SPR
REAR WIDE TREAD(V4T) 		8-98021-554-0 02 1 0909- ●
225 07.535 RUBBER; CUSHION,RR SPR 8-98021-554-0 02 1 0909- ●
227 07.535 NUT; CUSHION RUBBER
02.042 M12 FLANGE 		0-91180-112-0 02 1 0712- ● ● ●
230 07.518 SPACER; CUSHION RUBBER
REAR WIDE TREAD(V4T) 		8-97136-852-0 02 1 0712- ● ●
230 07.518 SPACER; CUSHION RUBBER 8-97136-852-0 02 1 0712- ●
502 07.506 CLAMP; RR LEAF SPR
REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 07.518 L=130 T=4.5 		8-94119-069-2 02 1 0712- ●
502 07.506 CLAMP; RR LEAF SPR
SINGLE RR TIRE(6TD) 07.518 L=130 T=4.5 		8-94119-069-2 02 1 0712- ●
502 07.506 CLAMP; RR LEAF SPR
REAR WIDE TREAD(V4T) 07.518 L=130 T=4.5 		8-94119-069-2 02 1 0712- ●
502 07.506 CLAMP; RR LEAF SPR
07.518 L=130 T=4.5 		8-94119-069-2 02 1 0712- ●
