4-20 — REAR AXLE CASE AND SHAFT (#50412) — 120 parça

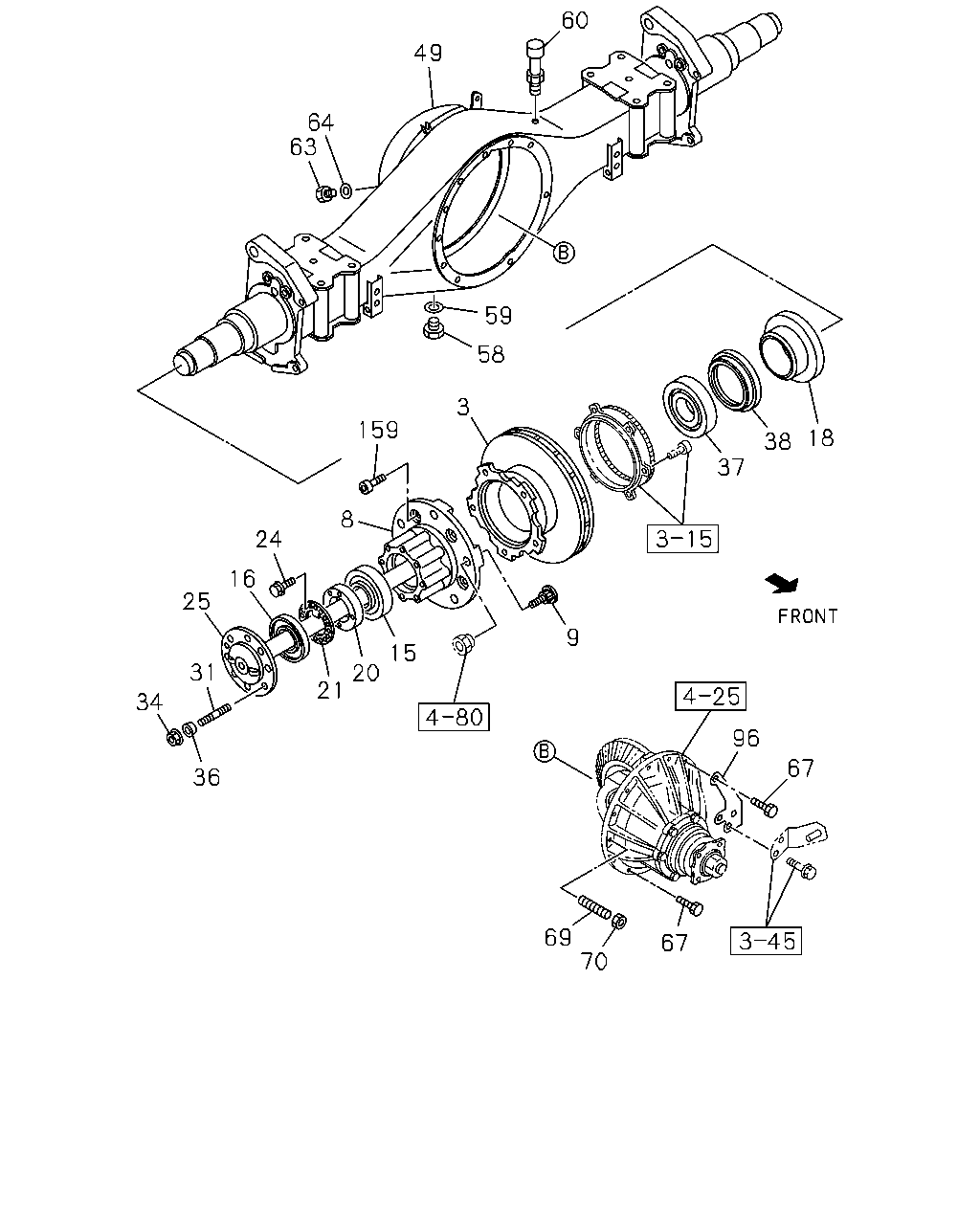

çizim 155137
60 49 64 63 59 58 3 159 18 38 37 8 24 16 25 9 15 31 20 21 34 96 67 36 69 70 67
BalonParca AdiParca NoAdetTipApplied Date A B C
3 05.809 ROTOR; DISC BRK,RR
4 WHEEL DISC BRAKE<JF9> 		8-98024-006-0 02 1 0712-1310 ●
3 05.809 ROTOR; DISC BRK,RR 8-98024-006-0 02 1 0712-1310 ● ●
3 05.809 ROTOR; DISC BRK,RR
4 WHEEL DISC BRAKE<JF9> 		8-98248-897-0 02 1 1311- ●
3 05.809 ROTOR; DISC BRK,RR 8-98248-897-0 02 1 1311- ● ●
8 05.809 HUB; RR AXLE
BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9> 		8-94335-927-4 02 1 0712- ●
8 05.809 HUB; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. 4 WHEEL DISC BRAKE<JF9>,BRK WHL LK CONT LSPV<6PH> 		8-97240-323-1 02 1 0712- ●
8 05.809 HUB; RR AXLE
4 WHEEL DISC BRAKE<JF9> 		8-98022-462-0 02 1 0712- ●
8 05.809 HUB; RR AXLE 8-98022-462-0 02 1 0712- ● ●
9 05.812 PIN; WHEEL,RR AXLE
4 WHEEL DISC BRAKE<JF9> M18X46 LH THREAD 		8-98028-533-1 05 1 0712- ●
9 05.812 PIN; WHEEL,RR AXLE
M18X46 LH THREAD 		8-98028-533-1 05 1 0712- ● ●
9 05.812 PIN; WHEEL,RR AXLE
4 WHEEL DISC BRAKE<JF9> M18X46 RH THREAD 		8-98028-532-1 05 1 0712- ●
9 05.812 PIN; WHEEL,RR AXLE
M18X46 RH THREAD 		8-98028-532-1 05 1 0712- ● ●
9 05.812 PIN; WHEEL,RR AXLE
EXC. 4 WHEEL DISC BRAKE<JF9> M14X50 LH THREAD 		9-42332-605-5 06 1 0712- ●
9 05.812 PIN; WHEEL,RR AXLE
EXC. 4 WHEEL DISC BRAKE<JF9> M14X50 RH THREAD 		9-42331-605-5 06 1 0712- ●
15 05.855 BEARING; HUB OUTER,RR AXLE
NSK 		9-00093-082-0 02 1 0712- ● ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
TKK 		8-94336-315-2 02 1 0712-1207 ● ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
NOK 		8-98202-911-0 02 1 1208- ● ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
NOK 		8-94367-961-1 02 1 0712-1106 ● ● ●
18 05.822 RETAINER; RR AXLE
4 WHEEL DISC BRAKE<JF9> 		8-98032-676-0 02 1 0712-1308 ●
18 05.822 RETAINER; RR AXLE 8-98032-676-0 02 1 0712-1308 ● ●
18 05.822 RETAINER; RR AXLE
4 WHEEL DISC BRAKE<JF9> 		8-98232-252-0 02 1 1309- ●
18 05.822 RETAINER; RR AXLE 8-98232-252-0 02 1 1309- ● ●
20 05.830 NUT; BRG,RR HUB
M52 		8-97137-092-0 02 1 0712-1303 ● ● ●
20 05.830 NUT; BRG,RR HUB
M52 		8-98236-850-0 02 1 1304- ● ● ●
21 05.830 WASHER; LK,BRG NUT
ID=52 		9-09853-214-0 02 1 0712- ● ● ●
24 05.830 BOLT; LK WASHER
03.671 M6X10 FLANGE 		0-28050-610-0 04 1 0712- ● ● ●
25 05.420 SHAFT; AXLE,RR
4 WHEEL DISC BRAKE<JF9> 		8-97032-496-0 02 1 0712- ●
25 05.420 SHAFT; AXLE,RR 8-97032-496-0 02 1 0712- ● ●
25 05.420 SHAFT; AXLE,RR
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-94366-192-0 02 1 0712- ●
31 05.422 STUD; AXLE SHAFT TO HUB
4 WHEEL DISC BRAKE<JF9> M10X30 L=49 		8-97359-803-0 16 1 0712- ●
31 05.422 STUD; AXLE SHAFT TO HUB
M10X30 L=49 		8-97359-803-0 16 1 0712- ● ●
31 05.422 STUD; AXLE SHAFT TO HUB
EXC. 4 WHEEL DISC BRAKE<JF9> M10X30 L=49 		8-97359-803-0 12 1 0712- ●
34 05.387 NUT; AXLE SHAFT
4 WHEEL DISC BRAKE<JF9> 04.085 M10 FLANGE 		0-91180-210-0 16 1 0712- ●
34 05.387 NUT; AXLE SHAFT
04.085 M10 FLANGE 		0-91180-210-0 16 1 0712- ● ●
34 05.387 NUT; AXLE SHAFT
EXC. 4 WHEEL DISC BRAKE<JF9> 04.085 M10 FLANGE 		0-91180-210-0 12 1 0712- ●
36 05.422 WASHER; SPECIAL,AXLE SHAFT
4 WHEEL DISC BRAKE<JF9> ID=10.5 		8-97360-004-0 16 1 0712- ●
36 05.422 WASHER; SPECIAL,AXLE SHAFT
ID=10.5 		8-97360-004-0 16 1 0712- ● ●
36 05.422 WASHER; SPECIAL,AXLE SHAFT
EXC. 4 WHEEL DISC BRAKE<JF9> ID=10.5 		8-97360-004-0 12 1 0712- ●
37 05.855 BEARING; HUB INNER,RR AXLE
NSK 		9-00093-081-0 02 1 0712- ● ● ●
38 05.822 SEAL; OIL,RR HUB,INNER
4 WHEEL DISC BRAKE<JF9> NOK 		8-98037-080-0 02 1 0712- ●
38 05.822 SEAL; OIL,RR HUB,INNER
NOK 		8-98037-080-0 02 1 0712- ● ●
38 05.822 SEAL; OIL,RR HUB,INNER
EXC. 4 WHEEL DISC BRAKE<JF9> TKK 		8-94336-314-1 02 1 0712- ●
38 05.822 SEAL; OIL,RR HUB,INNER
EXC. 4 WHEEL DISC BRAKE<JF9> NOK 		8-94367-959-0 02 1 0712- ●
49 05.387 CASE; RR AXLE
BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9> 		8-98061-921-0 01 1 0712- ●
49 05.387 CASE; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> EXC. BRK WHL LK CONT LSPV<6PH> 		8-98022-458-5 01 1 0712- ●
49 05.387 CASE; RR AXLE 8-98022-458-5 01 1 0712- ●
49 05.387 CASE; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98022-458-5 01 1 0712- ●
49 05.387 CASE; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. 4 WHEEL DISC BRAKE<JF9>,BRK WHL LK CONT LSPV<6PH> 		8-97240-329-3 01 1 0712- ●
49 05.387 CASE; RR AXLE
4 WHEEL DISC BRAKE<JF9> BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98022-457-5 01 1 0712- ● ●
58 05.508 PLUG; DRAIN,AXLE CASE
M16X12.5 		8-97307-060-0 01 1 0712- ● ● ●
59 05.400 GASKET; DRAIN PLUG
01.252 ID=16.2 OD=24 		9-09571-416-0 01 1 0712- ● ● ●
60 05.387 BREATHER; RR AXLE CASE
L=29 		8-98006-960-0 01 1 0712- ● ● ●
63 05.400 PLUG; OIL FILLER,AXLE CASE
M20X10.5 		8-98009-333-0 01 1 0712- ● ● ●
64 05.400 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30 		8-94462-734-0 01 1 0712- ● ● ●
67 05.387 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER 		0-50061-040-0 11 1 0712-0909 ● ● ●
67 05.387 BOLT; FINAL DRIVE SETTING
06.156 M10X40 W/LK WASHER 		0-50561-040-0 11 1 0910- ● ● ●
69 05.387 STUD; AXLE CASE
M10X40.5 L=52.5 		8-97359-802-0 02 1 0712- ● ● ●
70 05.387 NUT; CARRIER
04.085 M10 FLANGE 		0-91180-210-0 02 1 0712- ● ● ●
96 04.730 BRACKET; LSPV,AXLE CASE
BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9> 		8-98030-956-0 01 1 0712- ●
96 04.730 BRACKET; LSPV,AXLE CASE
4 WHEEL DISC BRAKE<JF9> BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98030-957-0 01 1 0712- ● ●
159 05.822 BOLT; ROTOR TO HUB
4 WHEEL DISC BRAKE<JF9> 05.812 		8-98021-780-0 10 1 1311- ●
159 05.822 BOLT; ROTOR TO HUB
05.812 		8-98021-780-0 10 1 1311- ● ●

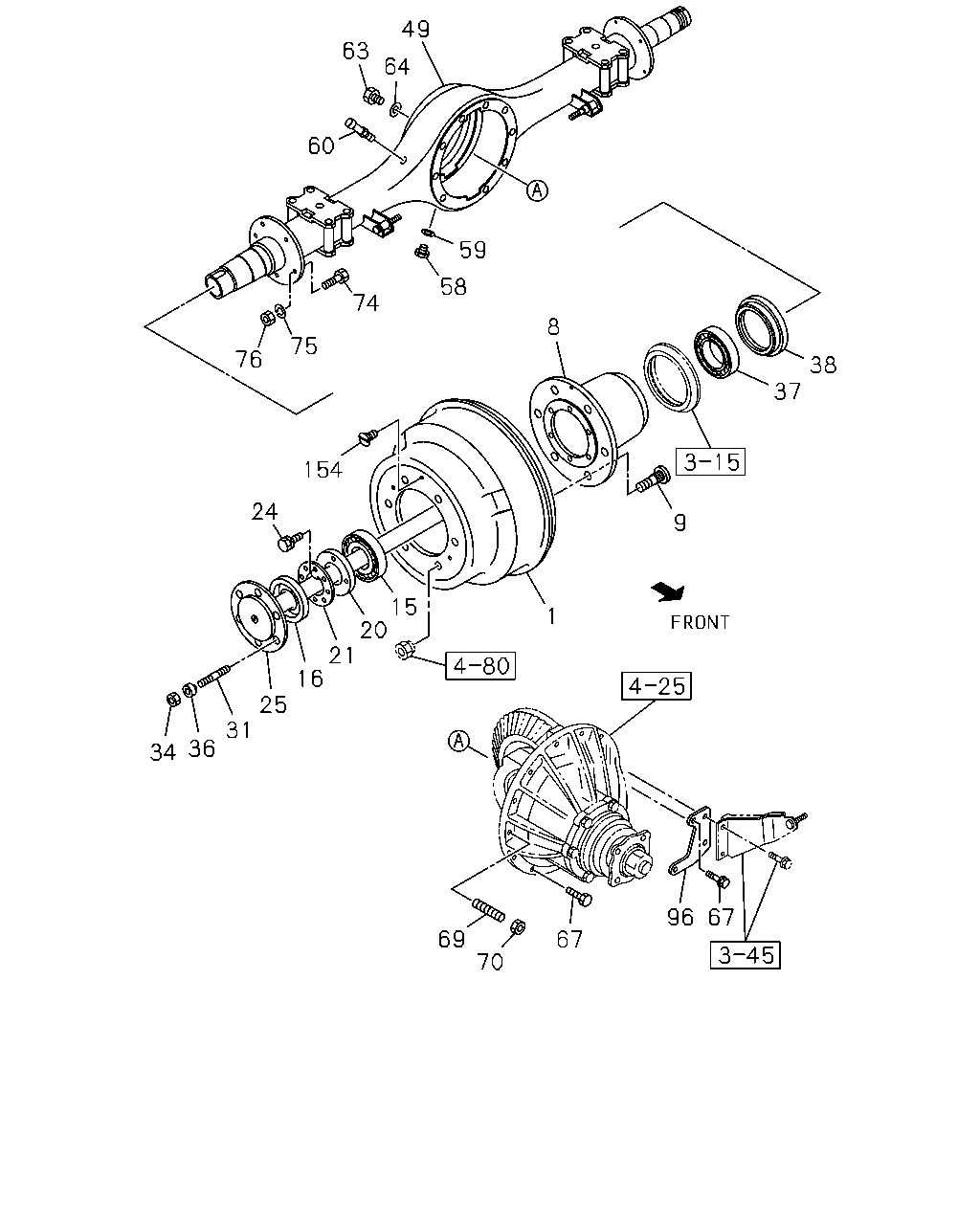

çizim 155164
49 63 64 60 59 58 74 8 75 76 38 37 154 24 9 15 20 21 16 1 25 31 36 34 96 67 69 67 70
BalonParca AdiParca NoAdetTipApplied Date A B C
1 05.809 DRUM; BRK,RR
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97366-736-0 02 1 0712-1308 ●
1 05.809 DRUM; BRK,RR
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-98248-899-0 02 1 1309- ●
8 05.809 HUB; RR AXLE
BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9> 		8-94335-927-4 02 1 0712- ●
8 05.809 HUB; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. 4 WHEEL DISC BRAKE<JF9>,BRK WHL LK CONT LSPV<6PH> 		8-97240-323-1 02 1 0712- ●
8 05.809 HUB; RR AXLE
4 WHEEL DISC BRAKE<JF9> 		8-98022-462-0 02 1 0712- ●
8 05.809 HUB; RR AXLE 8-98022-462-0 02 1 0712- ● ●
9 05.812 PIN; WHEEL,RR AXLE
4 WHEEL DISC BRAKE<JF9> M18X46 LH THREAD 		8-98028-533-1 05 1 0712- ●
9 05.812 PIN; WHEEL,RR AXLE
M18X46 LH THREAD 		8-98028-533-1 05 1 0712- ● ●
9 05.812 PIN; WHEEL,RR AXLE
4 WHEEL DISC BRAKE<JF9> M18X46 RH THREAD 		8-98028-532-1 05 1 0712- ●
9 05.812 PIN; WHEEL,RR AXLE
M18X46 RH THREAD 		8-98028-532-1 05 1 0712- ● ●
9 05.812 PIN; WHEEL,RR AXLE
EXC. 4 WHEEL DISC BRAKE<JF9> M14X50 LH THREAD 		9-42332-605-5 06 1 0712- ●
9 05.812 PIN; WHEEL,RR AXLE
EXC. 4 WHEEL DISC BRAKE<JF9> M14X50 RH THREAD 		9-42331-605-5 06 1 0712- ●
15 05.855 BEARING; HUB OUTER,RR AXLE
NSK 		9-00093-082-0 02 1 0712- ● ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
TKK 		8-94336-315-2 02 1 0712-1207 ● ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
NOK 		8-98202-911-0 02 1 1208- ● ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
NOK 		8-94367-961-1 02 1 0712-1106 ● ● ●
20 05.830 NUT; BRG,RR HUB
M52 		8-97137-092-0 02 1 0712-1303 ● ● ●
20 05.830 NUT; BRG,RR HUB
M52 		8-98236-850-0 02 1 1304- ● ● ●
21 05.830 WASHER; LK,BRG NUT
ID=52 		9-09853-214-0 02 1 0712- ● ● ●
24 05.830 BOLT; LK WASHER
03.671 M6X10 FLANGE 		0-28050-610-0 04 1 0712- ● ● ●
25 05.420 SHAFT; AXLE,RR
4 WHEEL DISC BRAKE<JF9> 		8-97032-496-0 02 1 0712- ●
25 05.420 SHAFT; AXLE,RR 8-97032-496-0 02 1 0712- ● ●
25 05.420 SHAFT; AXLE,RR
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-94366-192-0 02 1 0712- ●
31 05.422 STUD; AXLE SHAFT TO HUB
4 WHEEL DISC BRAKE<JF9> M10X30 L=49 		8-97359-803-0 16 1 0712- ●
31 05.422 STUD; AXLE SHAFT TO HUB
M10X30 L=49 		8-97359-803-0 16 1 0712- ● ●
31 05.422 STUD; AXLE SHAFT TO HUB
EXC. 4 WHEEL DISC BRAKE<JF9> M10X30 L=49 		8-97359-803-0 12 1 0712- ●
34 05.387 NUT; AXLE SHAFT
4 WHEEL DISC BRAKE<JF9> 04.085 M10 FLANGE 		0-91180-210-0 16 1 0712- ●
34 05.387 NUT; AXLE SHAFT
04.085 M10 FLANGE 		0-91180-210-0 16 1 0712- ● ●
34 05.387 NUT; AXLE SHAFT
EXC. 4 WHEEL DISC BRAKE<JF9> 04.085 M10 FLANGE 		0-91180-210-0 12 1 0712- ●
36 05.422 WASHER; SPECIAL,AXLE SHAFT
4 WHEEL DISC BRAKE<JF9> ID=10.5 		8-97360-004-0 16 1 0712- ●
36 05.422 WASHER; SPECIAL,AXLE SHAFT
ID=10.5 		8-97360-004-0 16 1 0712- ● ●
36 05.422 WASHER; SPECIAL,AXLE SHAFT
EXC. 4 WHEEL DISC BRAKE<JF9> ID=10.5 		8-97360-004-0 12 1 0712- ●
37 05.855 BEARING; HUB INNER,RR AXLE
NSK 		9-00093-081-0 02 1 0712- ● ● ●
38 05.822 SEAL; OIL,RR HUB,INNER
4 WHEEL DISC BRAKE<JF9> NOK 		8-98037-080-0 02 1 0712- ●
38 05.822 SEAL; OIL,RR HUB,INNER
NOK 		8-98037-080-0 02 1 0712- ● ●
38 05.822 SEAL; OIL,RR HUB,INNER
EXC. 4 WHEEL DISC BRAKE<JF9> TKK 		8-94336-314-1 02 1 0712- ●
38 05.822 SEAL; OIL,RR HUB,INNER
EXC. 4 WHEEL DISC BRAKE<JF9> NOK 		8-94367-959-0 02 1 0712- ●
49 05.387 CASE; RR AXLE
BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9> 		8-98061-921-0 01 1 0712- ●
49 05.387 CASE; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> EXC. BRK WHL LK CONT LSPV<6PH> 		8-98022-458-5 01 1 0712- ●
49 05.387 CASE; RR AXLE 8-98022-458-5 01 1 0712- ●
49 05.387 CASE; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98022-458-5 01 1 0712- ●
49 05.387 CASE; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. 4 WHEEL DISC BRAKE<JF9>,BRK WHL LK CONT LSPV<6PH> 		8-97240-329-3 01 1 0712- ●
49 05.387 CASE; RR AXLE
4 WHEEL DISC BRAKE<JF9> BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98022-457-5 01 1 0712- ● ●
58 05.508 PLUG; DRAIN,AXLE CASE
M16X12.5 		8-97307-060-0 01 1 0712- ● ● ●
59 05.400 GASKET; DRAIN PLUG
01.252 ID=16.2 OD=24 		9-09571-416-0 01 1 0712- ● ● ●
60 05.387 BREATHER; RR AXLE CASE
L=29 		8-98006-960-0 01 1 0712- ● ● ●
63 05.400 PLUG; OIL FILLER,AXLE CASE
M20X10.5 		8-98009-333-0 01 1 0712- ● ● ●
64 05.400 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30 		8-94462-734-0 01 1 0712- ● ● ●
67 05.387 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER 		0-50061-040-0 11 1 0712-0909 ● ● ●
67 05.387 BOLT; FINAL DRIVE SETTING
06.156 M10X40 W/LK WASHER 		0-50561-040-0 11 1 0910- ● ● ●
69 05.387 STUD; AXLE CASE
M10X40.5 L=52.5 		8-97359-802-0 02 1 0712- ● ● ●
70 05.387 NUT; CARRIER
04.085 M10 FLANGE 		0-91180-210-0 02 1 0712- ● ● ●
74 05.002 BOLT; RR BRK ASM SETTING
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-98007-877-0 12 1 0712- ●
75 05.002 WASHER; LK,RR BRK ASM SETTING
EXC. 4 WHEEL DISC BRAKE<JF9> 02.277 ID=10.2 		0-91510-810-0 12 1 0712- ●
76 05.002 NUT; RR BRK ASM SETTING
EXC. 4 WHEEL DISC BRAKE<JF9> 00.833 M10 		0-91110-510-0 12 1 0712- ●
96 04.730 BRACKET; LSPV,AXLE CASE
BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9> 		8-98030-956-0 01 1 0712- ●
96 04.730 BRACKET; LSPV,AXLE CASE
4 WHEEL DISC BRAKE<JF9> BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98030-957-0 01 1 0712- ● ●
154 04.665 SCREW; SLOTTED
EXC. 4 WHEEL DISC BRAKE<JF9> 05.812 M6X16 CK-HEAD 		0-36410-616-0 02 1 0712-1402 ●
