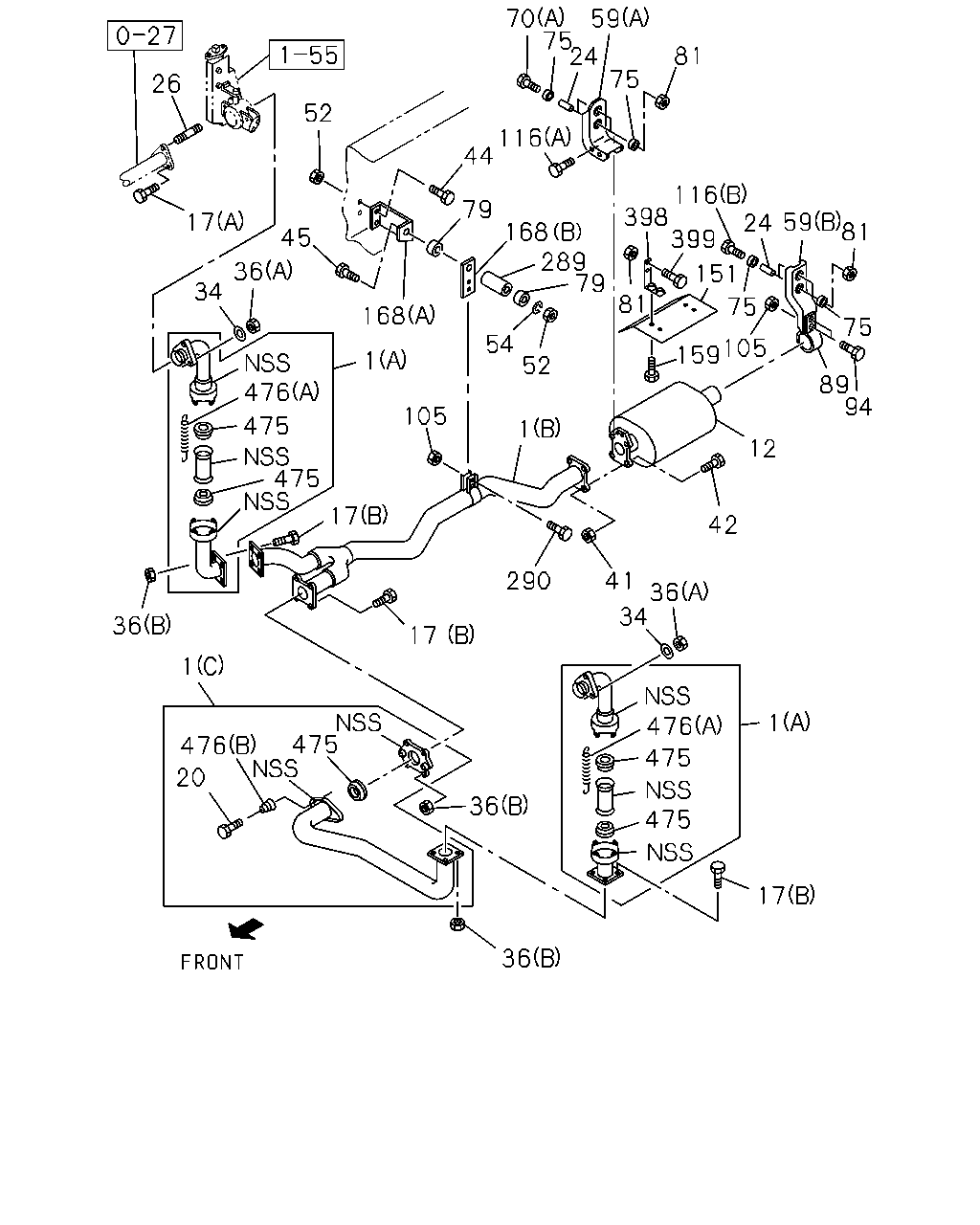

1-50B — EXHAUST PIPE AND SILENCER (#5041) — 180 parça

70 75 24 59 81 75 26 52 116 44 116 398 24 399 79 59 81 17 168 289 79 45 36 151 34 81 75 168 75 54 52 105 159 1 476 89 94 105 475 475 1 12 17 42 290 41 36 34 36 17 1 476 1 475 20 475 36 17 36 476 475

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH (C)	1-22122-485-1	01	1	9606-9905	●
1	PIPE; EXH (C)	1-22122-485-1	01	1	9906-		●
1	PIPE; EXH (B)	1-22122-795-0	01	1	9606-9905	●
1	PIPE; EXH (B)	1-22122-795-0	01	1	9906-		●
1	PIPE; EXH (A)	1-22122-300-1	01	1	9606-9905	●
1	PIPE; EXH (A)	1-22122-300-1	01	1	9906-		●
1	PIPE; EXH (A)	1-22122-482-0	01	1	9606-9905	●
1	PIPE; EXH (A)	1-22122-482-0	01	1	9906-		●
12	SILENCER ASM; EXH	1-22140-795-0	01	1	9606-9905	●
12	SILENCER ASM; EXH	1-22140-795-0	01	1	9906-0003		●
12	SILENCER ASM; EXH	1-22140-944-1	01	1	0004-		●
17	BOLT; EXH PIPE (A) M12X120	1-09000-603-0	02	1	9606-9606	●
17	BOLT; EXH PIPE (A) M12X120	1-09000-293-0	02	1	9607-9905	●
17	BOLT; EXH PIPE (A) M12X120	1-09000-293-0	02	1	9906-		●
17	BOLT; EXH PIPE (B) M12X25 FLANGE	1-09000-604-0	12	1	9606-9905	●
17	BOLT; EXH PIPE (B) M12X25 FLANGE	1-09000-604-0	12	1	9906-		●
20	BOLT; FLANGE,EXH PIPE M10X51.4	8-94436-943-0	02	1	9606-9905	●
20	BOLT; FLANGE,EXH PIPE M10X51.4	8-94436-943-0	02	1	9906-		●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	9606-9905	●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	9906-		●
26	STUD; EXH MANIF	1-09302-161-0	04	1	9606-9606	●
26	STUD; EXH MANIF	1-09302-165-0	04	1	9607-9905	●
26	STUD; EXH MANIF	1-09302-165-0	04	1	9906-		●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	06	1	9606-9606	●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09556-020-0	08	1	9607-9610	●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09556-020-0	06	1	9611-9905	●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09556-020-0	06	1	9906-		●
36	NUT; EXH PIPE (B) M12	1-09400-010-0	06	1	9606-9807	●
36	NUT; EXH PIPE (B) M12	1-09400-131-0	06	1	9808-9905	●
36	NUT; EXH PIPE (B) M12	1-09400-131-0	06	1	9906-		●
36	NUT; EXH PIPE (A) M12 FLANGE	0-91150-212-0	12	1	9607-9709	●
36	NUT; EXH PIPE (A) M12	9-99110-512-0	12	1	9710-9905	●
36	NUT; EXH PIPE (A) M12	9-99110-512-0	12	1	9906-		●
41	NUT; EXH PIPE TO EXH SILENCER M12 FLANGE	0-91150-212-0	04	1	9607-9701	●
41	NUT; EXH PIPE TO EXH SILENCER M12 FLANGE	0-91150-212-0	04	1	9702-9709	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	04	1	9710-9905	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	04	1	9906-		●
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	04	1	9606-9701	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	04	1	9702-9905	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	04	1	9906-		●
44	BOLT; BRKT M8X30 FLANGE	0-28080-830-0	02	1	9606-9606	●
44	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	9607-9905	●
44	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	9906-		●
45	BOLT; BRKT M10X50	0-10806-050-0	01	1	9606-9606	●
45	BOLT; BRKT M10X50 FLANGE	0-28081-050-0	01	1	9607-9905	●
45	BOLT; BRKT M10X50 FLANGE	0-28081-050-0	01	1	9906-		●
52	NUT; BRKT M8	9-09110-408-0	02	1	9606-9606	●
52	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9607-9905	●
52	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9906-		●
52	NUT; BRKT M10	9-09110-510-0	01	1	9606-9606	●
52	NUT; BRKT M10 FLANGE	0-91150-210-0	01	1	9607-9905	●
52	NUT; BRKT M10 FLANGE	0-91150-210-0	01	1	9906-		●
54	WASHER; LK,BRKT ID=10.2	9-09150-510-0	01	1	9606-9711	●
59	BRACKET; EXH SILENCER,FRT (B)	1-22151-728-0	01	1	9606-9701	●
59	BRACKET; EXH SILENCER,FRT (B)	1-22151-728-0	01	1	9702-9903	●
59	BRACKET; EXH SILENCER,FRT (B)	1-22151-728-0	01	1	9904-9905	●
59	BRACKET; EXH SILENCER,FRT (B)	1-22151-728-0	01	1	9906-		●
59	BRACKET; EXH SILENCER,FRT (A)	1-22151-727-1	01	1	9606-9903	●
59	BRACKET; EXH SILENCER,FRT (A)	1-22151-727-1	01	1	9904-9905	●
59	BRACKET; EXH SILENCER,FRT (A)	1-22151-727-1	01	1	9906-		●
70	BOLT; BRKT (B) M10X25 FLANGE	0-28081-025-0	02	1	9606-9606	●
70	BOLT; BRKT (B) M10X35 FLANGE	0-28681-035-0	02	1	9607-9607	●
70	BOLT; BRKT (B) M10X35 FLANGE	0-28681-035-0	02	1	9607-9609	●
70	BOLT; BRKT (B) M10X35 FLANGE	0-28681-035-0	02	1	9610-9905	●
70	BOLT; BRKT (B) M10X35 FLANGE	0-28681-035-0	02	1	9906-		●
70	BOLT; BRKT (A) M10X50 FLANGE	0-28081-050-0	03	1	9606-9905	●
70	BOLT; BRKT (A) M10X50 FLANGE	0-28081-050-0	03	1	9906-		●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	08	1	9606-9905	●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	08	1	9906-		●
79	SUPPORT; BRKT OD=40	1-22159-094-0	02	1	9606-9905	●
79	SUPPORT; BRKT OD=40	1-22159-094-0	02	1	9906-		●
81	NUT; BRKT M8	9-09110-408-0	04	1	9606-9606	●
81	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	9607-9905	●
81	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	9906-		●
81	NUT; BRKT M10	9-09110-510-0	07	1	9606-9606	●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	07	1	9607-9607	●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	05	1	9607-9905	●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	05	1	9906-		●
81	NUT; BRKT M10	9-09110-510-0	02	1	9606-9606	●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9607-9607	●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	04	1	9607-9609	●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9610-	●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9610-	●
89	CLAMP; EXH SILENCER,RR	1-22133-172-2	01	1	9606-9701	●
89	CLAMP; EXH SILENCER,RR	1-22133-172-2	01	1	9702-9706	●
89	CLAMP; EXH SILENCER,RR	1-22133-172-2	01	1	9707-9905	●
89	CLAMP; EXH SILENCER,RR	1-22133-172-2	01	1	9906-9910		●
89	CLAMP; EXH SILENCER,RR	1-22133-276-0	01	1	9911-		●
94	BOLT; CLAMP M8X40 W/LK WASHER	0-50040-840-0	04	1	9606-9606	●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	04	1	9607-9701	●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9702-9905	●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9702-9905	●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9906-		●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9906-		●
105	NUT; CLAMP M8	9-09110-408-0	04	1	9606-9606	●
105	NUT; CLAMP M8 FLANGE	0-91150-108-0	04	1	9607-9701	●
105	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	9702-9706	●
105	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	9702-9706	●
105	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	9707-9905	●
105	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	9707-9905	●
105	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	9906-		●
105	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	9906-		●
116	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	02	1	9606-9905	●
116	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	02	1	9906-		●
116	BOLT; BRKT (A) M10X70 FLANGE	0-28081-070-0	02	1	9606-9905	●
116	BOLT; BRKT (A) M10X70 FLANGE	0-28081-070-0	02	1	9906-		●
151	PROTECTOR; HEAT,EXH PIPE	1-22159-274-0	01	1	9606-9905	●
151	PROTECTOR; HEAT,EXH PIPE	1-22159-274-0	01	1	9906-		●
159	BOLT; HEAT PROTECTOR M8X20 FLANGE	0-28080-820-0	01	1	9606-9606	●
159	BOLT; HEAT PROTECTOR M8X20 FLANGE	0-28080-820-0	04	1	9606-9606	●
159	BOLT; HEAT PROTECTOR M8X20 FLANGE	0-28680-820-0	04	1	9607-9905	●
159	BOLT; HEAT PROTECTOR M8X20 FLANGE	0-28680-820-0	04	1	9906-		●
168	BRACKET; EXH PIPE,FRT (B)	1-22131-276-2	01	1	9606-9905	●
168	BRACKET; EXH PIPE,FRT (B)	1-22131-276-2	01	1	9906-		●
168	BRACKET; EXH PIPE,FRT (A)	1-22131-649-0	01	1	9606-9905	●
168	BRACKET; EXH PIPE,FRT (A)	1-22131-649-0	01	1	9906-		●
168	BRACKET; EXH PIPE,FRT (C)	1-22131-761-0	01	1	9606-9609	●
168	BRACKET; EXH PIPE,FRT (C)	1-22131-761-0	01	1	9610-9905	●
168	BRACKET; EXH PIPE,FRT (C)	1-22131-761-0	01	1	9906-		●
289	COLLAR; DIST,SUPPORT RUBBER L=22	9-22159-024-0	01	1	9606-9905	●
289	COLLAR; DIST,SUPPORT RUBBER L=22	9-22159-024-0	01	1	9906-		●
290	BOLT; CLAMP M8X40 W/LK WASHER	0-50040-840-0	02	1	9606-9606	●
290	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9607-9905	●
290	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9906-		●
398	BRACKET; HEAT PROTECTOR	1-22119-355-0	02	1	9606-9905	●
398	BRACKET; HEAT PROTECTOR	1-22119-355-0	02	1	9906-		●
399	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	04	1	9606-9606	●
399	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	04	1	9607-9905	●
399	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	04	1	9906-		●
475	BEARING; SEAL,VIBNON,EXH PIPE OD=112	1-22119-294-0	05	1	9606-9905	●
475	BEARING; SEAL,VIBNON,EXH PIPE OD=112	1-22119-294-0	05	1	9906-		●
476	SPRING; VIBNON,EXH PIPE (A)	1-09583-248-0	08	1	9606-9905	●
476	SPRING; VIBNON,EXH PIPE (A)	1-09583-248-0	08	1	9906-		●
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	02	1	9606-9905	●
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	02	1	9906-		●

70 56 81 168 76 80 76 94 72 81 125 126 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
56	BRACKET; CLAMP,EXH PIPE (B)	1-22131-232-2	01	1	9606-9609	●
56	BRACKET; CLAMP,EXH PIPE (B)	1-22131-232-2	01	1	9610-9905	●	●
56	BRACKET; CLAMP,EXH PIPE (B)	1-22131-232-2	01	1	9906-		●
70	BOLT; BRKT (B) M10X25 FLANGE	0-28081-025-0	02	1	9606-9606	●
70	BOLT; BRKT (B) M10X35 FLANGE	0-28681-035-0	02	1	9607-9607	●
70	BOLT; BRKT (B) M10X35 FLANGE	0-28681-035-0	02	1	9607-9609	●
70	BOLT; BRKT (B) M10X35 FLANGE	0-28681-035-0	02	1	9610-9905	●
70	BOLT; BRKT (B) M10X35 FLANGE	0-28681-035-0	02	1	9906-		●
70	BOLT; BRKT (A) M10X50 FLANGE	0-28081-050-0	03	1	9606-9905	●
70	BOLT; BRKT (A) M10X50 FLANGE	0-28081-050-0	03	1	9906-		●
72	WASHER; LK,BRKT ID=10.2	9-09150-510-0	01	1	9606-9606	●
76	SUPPORT; BRKT OD=40	1-22159-193-0	02	1	9606-9905	●
76	SUPPORT; BRKT OD=40	1-22159-193-0	02	1	9906-		●
80	COLLAR; DIST,SUPPORT RUBBER L=22	9-22159-024-0	01	1	9606-9905	●
80	COLLAR; DIST,SUPPORT RUBBER L=22	9-22159-024-0	01	1	9906-		●
81	NUT; BRKT M8	9-09110-408-0	04	1	9606-9606	●
81	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	9607-9905	●
81	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	9906-		●
81	NUT; BRKT M10	9-09110-510-0	07	1	9606-9606	●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	07	1	9607-9607	●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	05	1	9607-9905	●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	05	1	9906-		●
81	NUT; BRKT M10	9-09110-510-0	02	1	9606-9606	●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9607-9607	●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	04	1	9607-9609	●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9610-	●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9610-	●
94	BOLT; CLAMP M8X40 W/LK WASHER	0-50040-840-0	04	1	9606-9606	●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	04	1	9607-9701	●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9702-9905	●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9702-9905	●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9906-		●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9906-		●
125	NUT; CLAMP M8	9-09110-408-0	02	1	9606-9606	●
125	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	9607-9905	●
125	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	9906-		●
126	PIPE; EXH,RR	1-22126-191-0	01	1	9606-9905	●
126	PIPE; EXH,RR	1-22126-191-0	01	1	9906-		●
168	BRACKET; EXH PIPE,FRT (B)	1-22131-276-2	01	1	9606-9905	●
168	BRACKET; EXH PIPE,FRT (B)	1-22131-276-2	01	1	9906-		●
168	BRACKET; EXH PIPE,FRT (A)	1-22131-649-0	01	1	9606-9905	●
168	BRACKET; EXH PIPE,FRT (A)	1-22131-649-0	01	1	9906-		●
168	BRACKET; EXH PIPE,FRT (C)	1-22131-761-0	01	1	9606-9609	●
168	BRACKET; EXH PIPE,FRT (C)	1-22131-761-0	01	1	9610-9905	●
168	BRACKET; EXH PIPE,FRT (C)	1-22131-761-0	01	1	9906-		●
