Sayfa 3-60 - Isuzu EPC

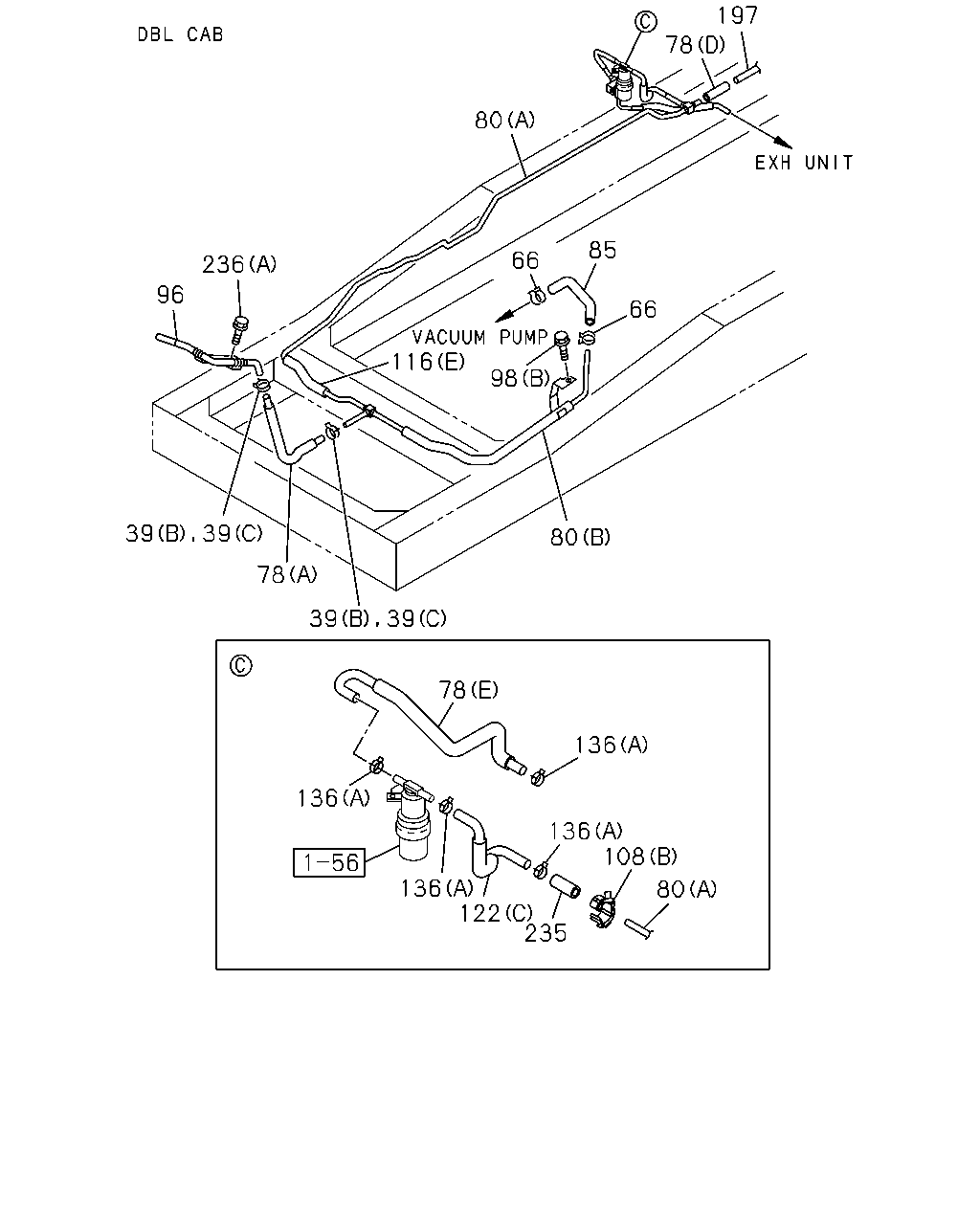

3-60 — BRAKE PIPING; VACUUM (#50408) — 779 parça

197 78 80 98 85 66 236 96 66 116 98 80 78 136 136 136 122 136 136 78 44 228 136 136 122 78 136 136 39 39 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	0912-	●	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0712-	●	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0712-0801	●	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0802-0911	●	●	●

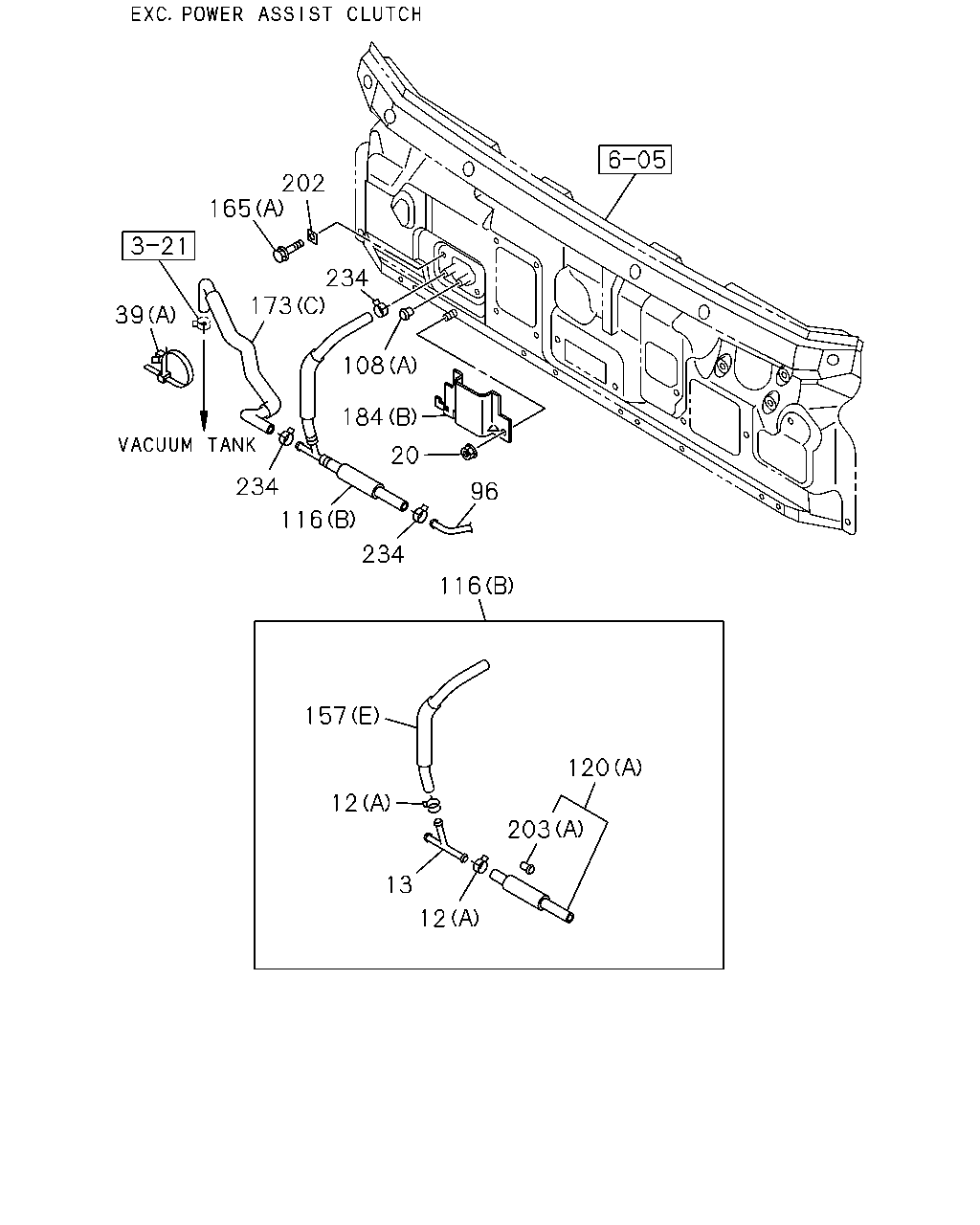

39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0802-0911	●	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0912-	●	●	●

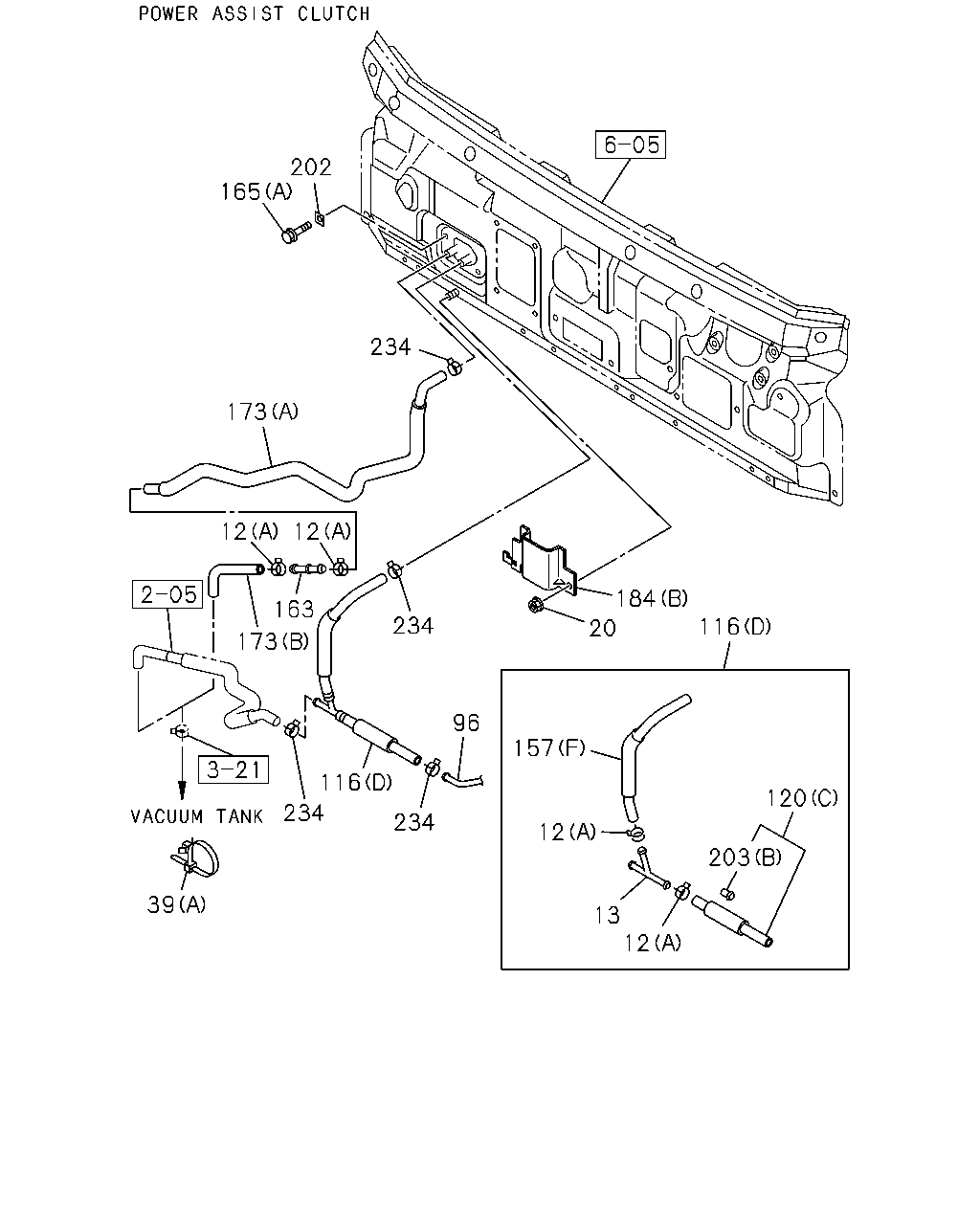

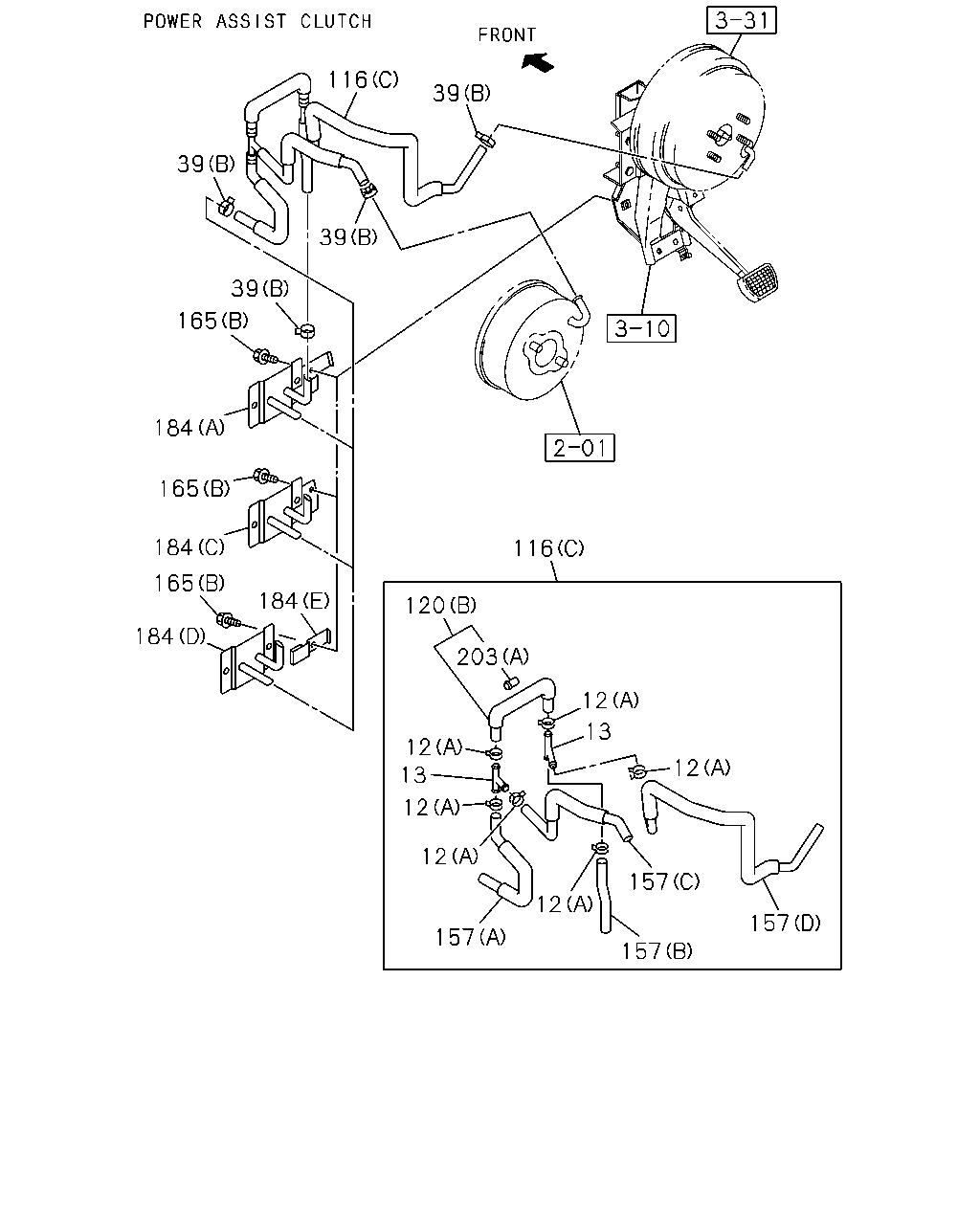

39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	08	1	0712-0801	●	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	0802-	●	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	05	1	0712-0801	●	●	●

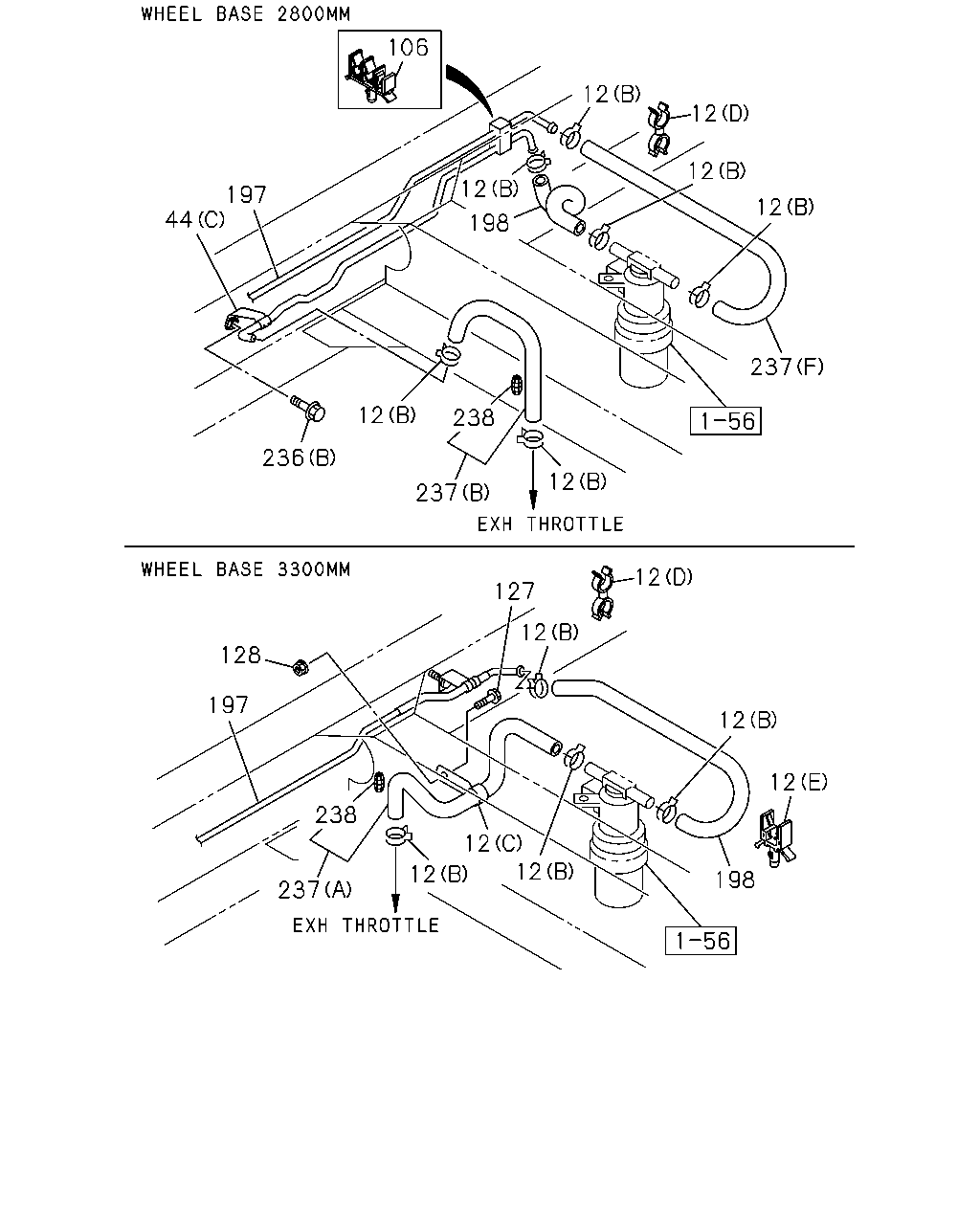

44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2800MM(28W) (C)	8-98145-928-0	01	1	0904-	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (A)	8-98039-808-2	01	1	0712-	●
44	04.930 PIPE; VAC,MAG VLV (B)	8-98042-654-0	01	1	0712-0910	●	●

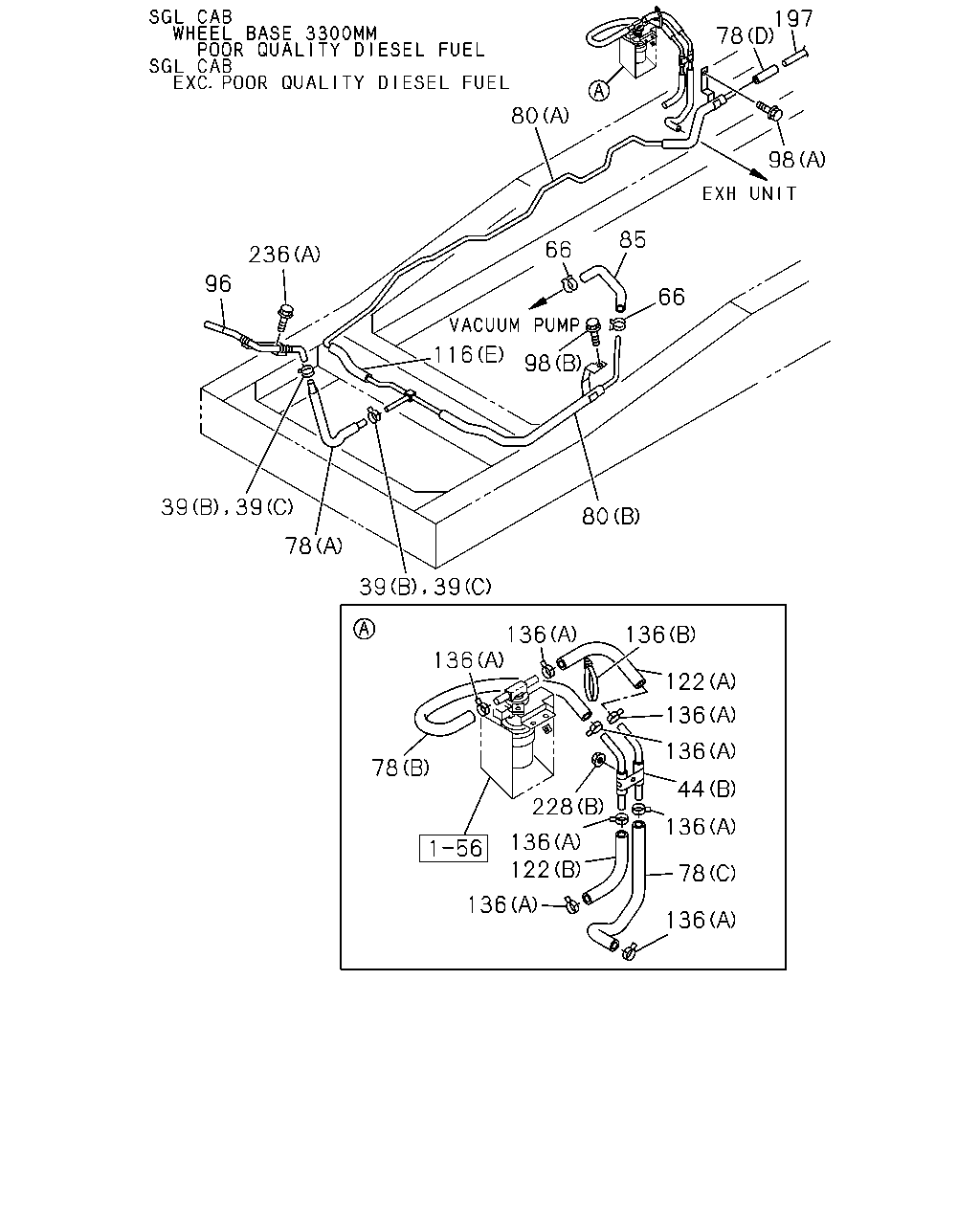

44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-654-0	01	1	0911-1009	●	●
44	04.930 PIPE; VAC,MAG VLV EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-654-0	01	1	0911-1009	●	●
44	04.930 PIPE; VAC,MAG VLV EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-654-0	01	1	1010-	●	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-654-0	01	1	1010-	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-654-0	01	1	1010-		●

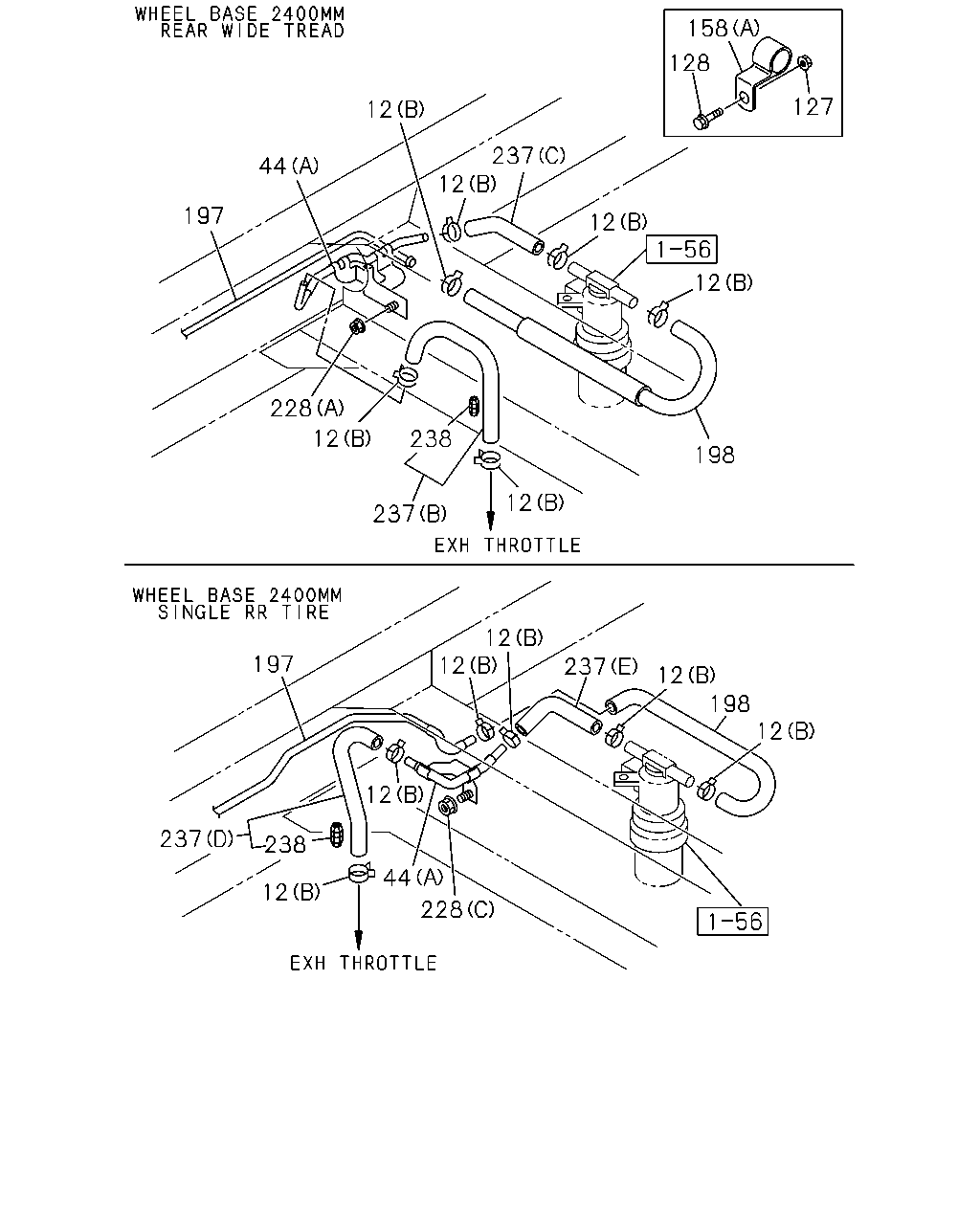

44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98039-806-0	01	1	0712-	●	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2400MM(24W) (A)	8-98039-806-0	01	1	0712-			●
66	04.930 CLIP; VAC HOSE,M/VAC ID=16	8-94238-568-0	02	1	0712-0911	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	0912-	●	●	●

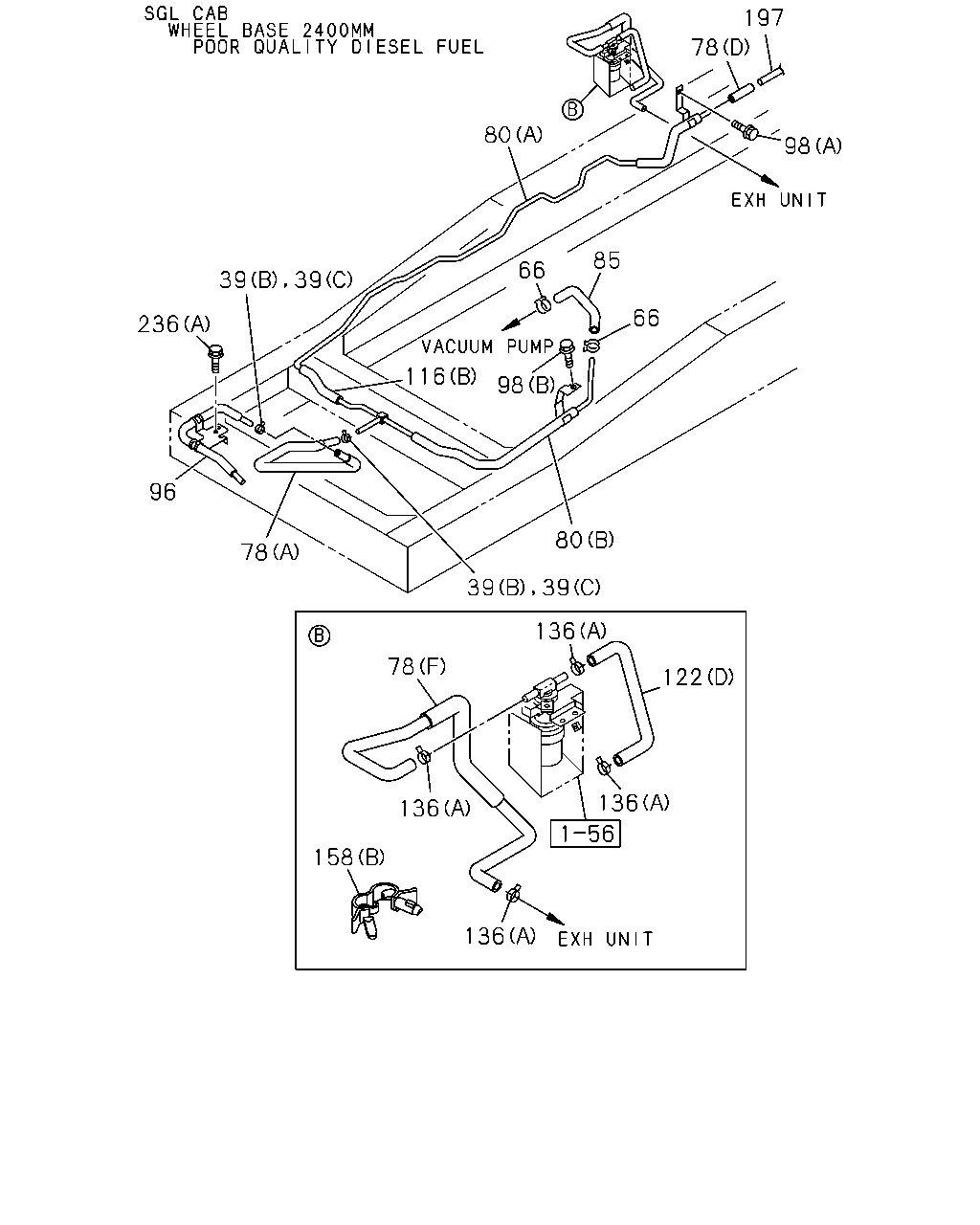

78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) (F)	8-98098-174-0	01	1	0911-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.630 (D) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	0712-	●
78	04.931 HOSE; VAC,PIPE TO PIPE FRT INDEPENDENT SUSPENSION(FF0) 03.630 (D) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	0712-	●
78	04.931 HOSE; VAC,PIPE TO PIPE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 03.630 (D) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	0712-		●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 03.630 (D) L=240 SERVICED BY L=3000	0-08258-300-0	01	1	0712-	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 03.630 (D) L=240 SERVICED BY L=3000	0-08258-300-0	01	1	0712-		●
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98042-690-1	01	1	0712-0910	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-690-1	01	1	0911-1009	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-690-1	01	1	0911-1009	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-690-1	01	1	1010-1104	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-690-1	01	1	1010-1104	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-690-1	01	1	1010-1104		●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (C)	8-98189-223-0	01	1	1105-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (C)	8-98189-223-0	01	1	1105-	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (C)	8-98189-223-0	01	1	1105-		●
78	04.931 HOSE; VAC,PIPE TO PIPE (C)	8-98042-691-2	01	1	0712-0910	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (C)	8-98042-691-2	01	1	0911-1009	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (C)	8-98042-691-2	01	1	0911-1009	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (C)	8-98042-691-2	01	1	1010-1104	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (C)	8-98042-691-2	01	1	1010-1104	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (C)	8-98042-691-2	01	1	1010-1104		●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98189-224-0	01	1	1105-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98189-224-0	01	1	1105-	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98189-224-0	01	1	1105-		●
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-97389-745-1	01	1	0712-	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE (E)	8-98068-245-0	01	1	0712-1008			●
78	04.931 HOSE; VAC,PIPE TO PIPE (E)	8-98171-283-0	01	1	1009-			●
78	04.931 HOSE; VAC,PIPE TO PIPE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 03.630 (D) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0712-			●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D)	8-98064-718-0	01	1	0712-			●
80	04.930 PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98042-655-2	01	1	0712-	●
80	04.930 PIPE; VAC,ENG SIDE FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98042-655-2	01	1	0712-	●
80	04.930 PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98042-655-2	01	1	0712-		●
80	04.930 PIPE; VAC,ENG SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98064-565-3	01	1	0712-	●
80	04.930 PIPE; VAC,ENG SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98064-565-3	01	1	0712-		●
80	04.930 PIPE; VAC,ENG SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98075-014-0	01	1	0712-	●	●	●
80	04.930 PIPE; VAC,ENG SIDE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98064-345-2	01	1	0712-	●	●	●
80	04.930 PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-97389-604-1	01	1	0712-0905			●
80	04.930 PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98146-875-1	01	1	0906-			●
80	04.930 PIPE; VAC,ENG SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98064-570-0	01	1	0712-			●
85	04.931 HOSE; VAC,ENG SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98075-176-0	01	1	0712-	●	●	●
85	04.931 HOSE; VAC,ENG SIDE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98092-071-0	01	1	0712-0810	●	●	●
85	04.931 HOSE; VAC,ENG SIDE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98135-573-0	01	1	0811-	●	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98039-736-1	01	1	0712-	●	●	●
98	04.931 BOLT; VAC PIPE FIX 00.029 (A) M10X30 FLANGE	0-28651-030-0	01	1	0712-	●	●
98	04.931 BOLT; VAC PIPE FIX EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0712-	●	●	●
116	04.931 HOSE; VAC,M/VAC (E) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	0712-	●	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	0712-	●	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	0712-	●	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	0712-	●	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	0712-	●	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) (D)	8-98076-068-1	01	1	0911-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE (B)	8-98042-689-2	01	1	0712-0910	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-689-2	01	1	0911-1009	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-689-2	01	1	0911-1009	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-689-2	01	1	1010-1104	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-689-2	01	1	1010-1104	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-689-2	01	1	1010-1104		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98189-222-0	01	1	1105-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (A)	8-98189-222-0	01	1	1105-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (A)	8-98189-222-0	01	1	1105-		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE (A)	8-98089-657-0	01	1	0712-0910	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (A)	8-98089-657-0	01	1	0911-1009	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98089-657-0	01	1	0911-1009	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98089-657-0	01	1	1010-1104	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (A)	8-98089-657-0	01	1	1010-1104	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (A)	8-98089-657-0	01	1	1010-1104		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98189-226-0	01	1	1105-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98189-226-0	01	1	1105-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98189-226-0	01	1	1105-		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE (C)	8-98064-717-1	01	1	0712-			●
136	04.681 CLIP; VAC HOSE 03.162 (B) L=140	5-09707-031-1	01	1	0712-0910	●	●
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) 03.162 (B) L=140	5-09707-031-1	01	1	0911-1009	●	●
136	04.681 CLIP; VAC HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) 03.162 (B) L=140	5-09707-031-1	01	1	0911-1009	●	●
136	04.681 CLIP; VAC HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) 03.162 (B) L=140	5-09707-031-1	01	1	1010-	●	●
136	04.681 CLIP; VAC HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) 03.162 (B) L=140	5-09707-031-1	01	1	1010-	●
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) 03.162 (B) L=140	5-09707-031-1	01	1	1010-		●
136	04.681 CLIP; VAC HOSE 04.930 (A) ID=16	8-94238-568-0	04	1	0712-0803	●	●
136	04.681 CLIP; VAC HOSE 04.930 (A) ID=16	8-94238-568-0	04	1	0804-0911	●	●	●
136	04.681 CLIP; VAC HOSE 03.162 (A) ID=16	8-98008-098-0	04	1	0912-	●	●	●
136	04.681 CLIP; VAC HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0712-0803	●	●	●
136	04.681 CLIP; VAC HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0804-0910	●	●
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) 04.930 (A) ID=16	8-94238-568-0	02	1	0911-0911	●	●
136	04.681 CLIP; VAC HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) 04.930 (A) ID=16	8-94238-568-0	02	1	0911-0911	●	●
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) 03.162 (A) ID=16	8-98008-098-0	02	1	0912-1009	●	●
136	04.681 CLIP; VAC HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) 03.162 (A) ID=16	8-98008-098-0	02	1	0912-1009	●	●
136	04.681 CLIP; VAC HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) 03.162 (A) ID=16	8-98008-098-0	02	1	1010-	●	●
136	04.681 CLIP; VAC HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) 03.162 (A) ID=16	8-98008-098-0	02	1	1010-	●
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) 03.162 (A) ID=16	8-98008-098-0	02	1	1010-		●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W)	8-98145-534-0	01	1	0904-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98039-852-1	01	1	0712-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T)	8-98039-852-1	01	1	0712-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T)	8-98039-852-1	01	1	0712-		●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98039-852-1	01	1	0712-			●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SINGLE RR TIRE(6TD) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98089-483-0	01	1	0712-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD)	8-98089-483-0	01	1	0712-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98064-727-0	01	1	0712-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98064-727-0	01	1	0712-		●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98064-727-0	01	1	0712-			●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98064-725-1	01	1	0712-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98039-805-2	01	1	0712-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0)	8-98039-805-2	01	1	0712-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98039-805-2	01	1	0712-		●	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98064-730-0	01	1	0712-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98064-730-0	01	1	0712-		●	●
228	04.930 NUT; PIPE WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) 01.062 (C) M8 FLANGE	0-91180-108-0	02	1	0712-	●
228	04.930 NUT; PIPE 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0712-0910	●	●
228	04.930 NUT; PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0911-1009	●	●
228	04.930 NUT; PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0911-1009	●	●
228	04.930 NUT; PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1010-	●	●
228	04.930 NUT; PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1010-	●
228	04.930 NUT; PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1010-		●
228	04.930 NUT; PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0712-	●	●
228	04.930 NUT; PIPE WHEEL BASE 2400MM(24W) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0712-			●
236	04.930 BOLT; PIPE WHEEL BASE 2800MM(28W) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	0904-	●
236	04.930 BOLT; PIPE 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0712-	●	●	●

197 78 80 85 66 236 96 66 116 98 80 78 78 136 136 136 108 136 122 235 80 39 39 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	0912-	●	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0712-	●	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0712-0801	●	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0802-0911	●	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0802-0911	●	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0912-	●	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	08	1	0712-0801	●	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	0802-	●	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	05	1	0712-0801	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC ID=16	8-94238-568-0	02	1	0712-0911	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	0912-	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) (F)	8-98098-174-0	01	1	0911-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.630 (D) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	0712-	●
78	04.931 HOSE; VAC,PIPE TO PIPE FRT INDEPENDENT SUSPENSION(FF0) 03.630 (D) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	0712-	●
78	04.931 HOSE; VAC,PIPE TO PIPE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 03.630 (D) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	0712-		●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 03.630 (D) L=240 SERVICED BY L=3000	0-08258-300-0	01	1	0712-	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 03.630 (D) L=240 SERVICED BY L=3000	0-08258-300-0	01	1	0712-		●
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98042-690-1	01	1	0712-0910	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-690-1	01	1	0911-1009	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-690-1	01	1	0911-1009	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-690-1	01	1	1010-1104	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-690-1	01	1	1010-1104	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-690-1	01	1	1010-1104		●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (C)	8-98189-223-0	01	1	1105-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (C)	8-98189-223-0	01	1	1105-	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (C)	8-98189-223-0	01	1	1105-		●
78	04.931 HOSE; VAC,PIPE TO PIPE (C)	8-98042-691-2	01	1	0712-0910	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (C)	8-98042-691-2	01	1	0911-1009	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (C)	8-98042-691-2	01	1	0911-1009	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (C)	8-98042-691-2	01	1	1010-1104	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (C)	8-98042-691-2	01	1	1010-1104	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (C)	8-98042-691-2	01	1	1010-1104		●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98189-224-0	01	1	1105-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98189-224-0	01	1	1105-	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98189-224-0	01	1	1105-		●
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-97389-745-1	01	1	0712-	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE (E)	8-98068-245-0	01	1	0712-1008			●
78	04.931 HOSE; VAC,PIPE TO PIPE (E)	8-98171-283-0	01	1	1009-			●
78	04.931 HOSE; VAC,PIPE TO PIPE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 03.630 (D) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0712-			●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D)	8-98064-718-0	01	1	0712-			●
80	04.930 PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98042-655-2	01	1	0712-	●
80	04.930 PIPE; VAC,ENG SIDE FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98042-655-2	01	1	0712-	●
80	04.930 PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98042-655-2	01	1	0712-		●
80	04.930 PIPE; VAC,ENG SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98064-565-3	01	1	0712-	●
80	04.930 PIPE; VAC,ENG SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98064-565-3	01	1	0712-		●
80	04.930 PIPE; VAC,ENG SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98075-014-0	01	1	0712-	●	●	●
80	04.930 PIPE; VAC,ENG SIDE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98064-345-2	01	1	0712-	●	●	●
80	04.930 PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-97389-604-1	01	1	0712-0905			●
80	04.930 PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98146-875-1	01	1	0906-			●
80	04.930 PIPE; VAC,ENG SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98064-570-0	01	1	0712-			●
85	04.931 HOSE; VAC,ENG SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98075-176-0	01	1	0712-	●	●	●
85	04.931 HOSE; VAC,ENG SIDE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98092-071-0	01	1	0712-0810	●	●	●
85	04.931 HOSE; VAC,ENG SIDE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98135-573-0	01	1	0811-	●	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98039-736-1	01	1	0712-	●	●	●
98	04.931 BOLT; VAC PIPE FIX 00.029 (A) M10X30 FLANGE	0-28651-030-0	01	1	0712-	●	●
98	04.931 BOLT; VAC PIPE FIX EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0712-	●	●	●
108	04.931 GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) (A)	9-09956-353-0	01	1	0712-	●	●	●
108	04.931 GROMMET; PIPE 02.343 (B) ID=17	8-94128-319-2	01	1	0712-			●
116	04.931 HOSE; VAC,M/VAC (E) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	0712-	●	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	0712-	●	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	0712-	●	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	0712-	●	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	0712-	●	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) (D)	8-98076-068-1	01	1	0911-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE (B)	8-98042-689-2	01	1	0712-0910	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-689-2	01	1	0911-1009	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-689-2	01	1	0911-1009	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-689-2	01	1	1010-1104	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-689-2	01	1	1010-1104	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-689-2	01	1	1010-1104		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98189-222-0	01	1	1105-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (A)	8-98189-222-0	01	1	1105-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (A)	8-98189-222-0	01	1	1105-		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE (A)	8-98089-657-0	01	1	0712-0910	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (A)	8-98089-657-0	01	1	0911-1009	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98089-657-0	01	1	0911-1009	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98089-657-0	01	1	1010-1104	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (A)	8-98089-657-0	01	1	1010-1104	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (A)	8-98089-657-0	01	1	1010-1104		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98189-226-0	01	1	1105-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98189-226-0	01	1	1105-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98189-226-0	01	1	1105-		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE (C)	8-98064-717-1	01	1	0712-			●
136	04.681 CLIP; VAC HOSE 03.162 (B) L=140	5-09707-031-1	01	1	0712-0910	●	●
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) 03.162 (B) L=140	5-09707-031-1	01	1	0911-1009	●	●
136	04.681 CLIP; VAC HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) 03.162 (B) L=140	5-09707-031-1	01	1	0911-1009	●	●
136	04.681 CLIP; VAC HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) 03.162 (B) L=140	5-09707-031-1	01	1	1010-	●	●
136	04.681 CLIP; VAC HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) 03.162 (B) L=140	5-09707-031-1	01	1	1010-	●
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) 03.162 (B) L=140	5-09707-031-1	01	1	1010-		●
136	04.681 CLIP; VAC HOSE 04.930 (A) ID=16	8-94238-568-0	04	1	0712-0803	●	●
136	04.681 CLIP; VAC HOSE 04.930 (A) ID=16	8-94238-568-0	04	1	0804-0911	●	●	●
136	04.681 CLIP; VAC HOSE 03.162 (A) ID=16	8-98008-098-0	04	1	0912-	●	●	●
136	04.681 CLIP; VAC HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0712-0803	●	●	●
136	04.681 CLIP; VAC HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0804-0910	●	●
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) 04.930 (A) ID=16	8-94238-568-0	02	1	0911-0911	●	●
136	04.681 CLIP; VAC HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) 04.930 (A) ID=16	8-94238-568-0	02	1	0911-0911	●	●
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) 03.162 (A) ID=16	8-98008-098-0	02	1	0912-1009	●	●
136	04.681 CLIP; VAC HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) 03.162 (A) ID=16	8-98008-098-0	02	1	0912-1009	●	●
136	04.681 CLIP; VAC HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) 03.162 (A) ID=16	8-98008-098-0	02	1	1010-	●	●
136	04.681 CLIP; VAC HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) 03.162 (A) ID=16	8-98008-098-0	02	1	1010-	●
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) 03.162 (A) ID=16	8-98008-098-0	02	1	1010-		●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W)	8-98145-534-0	01	1	0904-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98039-852-1	01	1	0712-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T)	8-98039-852-1	01	1	0712-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T)	8-98039-852-1	01	1	0712-		●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98039-852-1	01	1	0712-			●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SINGLE RR TIRE(6TD) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98089-483-0	01	1	0712-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD)	8-98089-483-0	01	1	0712-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98064-727-0	01	1	0712-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98064-727-0	01	1	0712-		●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98064-727-0	01	1	0712-			●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98064-725-1	01	1	0712-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98039-805-2	01	1	0712-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0)	8-98039-805-2	01	1	0712-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98039-805-2	01	1	0712-		●	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98064-730-0	01	1	0712-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98064-730-0	01	1	0712-		●	●
235	04.931 RUBBER; SUPPORT,PIPE 03.162 OD=16.5 L=50	8-97214-235-0	01	1	0712-			●
236	04.930 BOLT; PIPE WHEEL BASE 2800MM(28W) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	0904-	●
236	04.930 BOLT; PIPE 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0712-	●	●	●

39 116 165 39 184 165 184 165 184 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	0912-	●	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0712-	●	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0712-0801	●	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0802-0911	●	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0802-0911	●	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0912-	●	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	08	1	0712-0801	●	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	0802-	●	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	05	1	0712-0801	●	●	●
116	04.931 HOSE; VAC,M/VAC (E) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	0712-	●	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	0712-	●	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	0712-	●	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	0712-	●	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	0712-	●	●	●
165	04.686 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0712-1001	●	●	●
165	04.686 BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1002-	●	●	●
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0712-	●	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-548-0	01	1	1312-	●	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98155-345-0	01	1	1002-1103	●	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-467-1	01	1	1104-	●	●	●
184	04.685 BRACKET; UNION FIX (A)	8-97389-686-1	01	1	0712-1001	●	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-97389-686-1	01	1	1002-1103	●	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-98183-462-1	01	1	1104-1311	●	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-535-0	01	1	1312-	●	●	●
184	04.685 BRACKET; UNION FIX (B)	8-98017-628-1	01	1	0712-0712	●	●	●
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (B)	8-98017-628-1	01	1	0712-	●	●	●

158 128 127 12 237 12 44 197 12 12 228 12 238 198 12 237 12 12 197 237 12 198 12 12 237 238 44 12 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	16	1	0712-	●	●	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	02	1	0712-	●	●	●
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) 04.930 (B) ID=16	8-94238-568-0	04	1	0712-0903	●	●	●
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) 04.930 (B) ID=16	8-94238-568-0	04	1	0904-0911	●
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) 04.930 (B) ID=16	8-94238-568-0	04	1	0904-0911		●	●
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) 03.162 (B) ID=16	8-98008-098-0	04	1	0912-	●
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) 03.162 (B) ID=16	8-98008-098-0	04	1	0912-		●	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) (C) ID=18 L=80	1-09701-069-0	01	1	0712-	●	●	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 04.930 (B) ID=16	8-94238-568-0	02	1	0712-0903	●	●	●
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	02	1	0712-0903	●	●	●
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	02	1	0904-0911	●	●	●
12	04.681 CLIP; HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 04.930 (B) ID=16	8-94238-568-0	02	1	0904-0911	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 04.930 (B) ID=16	8-94238-568-0	02	1	0904-0911		●	●
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	02	1	0912-	●	●	●
12	04.681 CLIP; HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 (B) ID=16	8-98008-098-0	02	1	0912-	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 03.162 (B) ID=16	8-98008-098-0	02	1	0912-		●	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 04.930 (E) ID=10 H=40	8-94462-219-0	01	1	0712-	●	●	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	0712-0903	●	●	●
12	04.681 CLIP; HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	0904-	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	0904-		●	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2800MM(28W) (C)	8-98145-928-0	01	1	0904-	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (A)	8-98039-808-2	01	1	0712-	●
44	04.930 PIPE; VAC,MAG VLV (B)	8-98042-654-0	01	1	0712-0910	●	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-654-0	01	1	0911-1009	●	●
44	04.930 PIPE; VAC,MAG VLV EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-654-0	01	1	0911-1009	●	●
44	04.930 PIPE; VAC,MAG VLV EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-654-0	01	1	1010-	●	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-654-0	01	1	1010-	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-654-0	01	1	1010-		●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98039-806-0	01	1	0712-	●	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2400MM(24W) (A)	8-98039-806-0	01	1	0712-			●
127	04.930 BOLT; CLIP WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0712-	●	●	●
127	04.930 BOLT; CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0712-			●
128	04.930 NUT; CLIP WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE	0-91180-108-0	01	1	0712-	●	●	●
128	04.930 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0712-			●
158	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) (B) ID=18-24 L=14.5	1-09709-298-0	01	1	0911-	●	●
158	04.681 CLIP; HOSE 02.559 (A) ID=28 H=45 L=30	1-09700-707-0	01	1	0712-			●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W)	8-98145-534-0	01	1	0904-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98039-852-1	01	1	0712-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T)	8-98039-852-1	01	1	0712-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T)	8-98039-852-1	01	1	0712-		●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98039-852-1	01	1	0712-			●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SINGLE RR TIRE(6TD) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98089-483-0	01	1	0712-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD)	8-98089-483-0	01	1	0712-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98064-727-0	01	1	0712-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98064-727-0	01	1	0712-		●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98064-727-0	01	1	0712-			●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98064-725-1	01	1	0712-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98039-805-2	01	1	0712-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0)	8-98039-805-2	01	1	0712-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98039-805-2	01	1	0712-		●	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98064-730-0	01	1	0712-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98064-730-0	01	1	0712-		●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W)	8-98039-788-1	01	1	0904-	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD)	8-97371-687-0	01	1	0712-	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-98039-787-0	01	1	0712-	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W)	8-98039-787-0	01	1	0712-			●
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W)	8-98063-388-0	01	1	0712-	●	●	●
228	04.930 NUT; PIPE WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) 01.062 (C) M8 FLANGE	0-91180-108-0	02	1	0712-	●
228	04.930 NUT; PIPE 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0712-0910	●	●
228	04.930 NUT; PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0911-1009	●	●
228	04.930 NUT; PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0911-1009	●	●
228	04.930 NUT; PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1010-	●	●
228	04.930 NUT; PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1010-	●
228	04.930 NUT; PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1010-		●
228	04.930 NUT; PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0712-	●	●
228	04.930 NUT; PIPE WHEEL BASE 2400MM(24W) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0712-			●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2800MM(28W) (F)	8-98039-789-1	01	1	0904-	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (D)	8-98036-102-0	01	1	0712-	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (E)	8-98039-790-0	01	1	0712-	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.630 (C) L=170 SERVICED BY L=3000	0-08258-300-0	01	1	0712-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) 03.630 (C) L=170 SERVICED BY L=3000	0-08258-300-0	01	1	0712-			●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98034-429-0	01	1	0712-0903	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) (B)	8-98034-429-0	01	1	0712-0903			●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) REAR WIDE TREAD(V4T) (B)	8-98034-429-0	01	1	0904-	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98034-429-0	01	1	0904-		●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) (B)	8-98034-429-0	01	1	0904-			●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 3300MM(33W) (A)	8-98039-792-0	01	1	0712-1008	●	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 3300MM(33W) (A)	8-98171-286-0	01	1	1009-	●	●	●
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 3300MM(33W)	8-97377-521-0	01	1	0712-0903	●	●
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-97377-521-0	01	1	0712-0903	●	●
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD)	8-97377-521-0	01	1	0712-0903	●
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W)	8-97377-521-0	01	1	0712-0903			●
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 3300MM(33W)	8-97377-521-0	01	1	0904-1008	●	●
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD)	8-97377-521-0	01	1	0904-1008	●
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) REAR WIDE TREAD(V4T)	8-97377-521-0	01	1	0904-1008	●
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-97377-521-0	01	1	0904-1008		●
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W)	8-97377-521-0	01	1	0904-1008			●
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD)	8-97377-521-0	01	1	1009-	●
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) REAR WIDE TREAD(V4T)	8-97377-521-0	01	1	1009-	●
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-97377-521-0	01	1	1009-		●
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W)	8-97377-521-0	01	1	1009-			●

197 78 80 98 85 66 66 236 116 98 96 80 78 136 78 122 136 136 158 136 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	0912-	●	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0712-	●	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0712-0801	●	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0802-0911	●	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0802-0911	●	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0912-	●	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	08	1	0712-0801	●	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	0802-	●	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	05	1	0712-0801	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC ID=16	8-94238-568-0	02	1	0712-0911	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	0912-	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) (F)	8-98098-174-0	01	1	0911-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.630 (D) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	0712-	●
78	04.931 HOSE; VAC,PIPE TO PIPE FRT INDEPENDENT SUSPENSION(FF0) 03.630 (D) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	0712-	●
78	04.931 HOSE; VAC,PIPE TO PIPE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 03.630 (D) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	0712-		●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 03.630 (D) L=240 SERVICED BY L=3000	0-08258-300-0	01	1	0712-	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 03.630 (D) L=240 SERVICED BY L=3000	0-08258-300-0	01	1	0712-		●
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98042-690-1	01	1	0712-0910	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-690-1	01	1	0911-1009	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-690-1	01	1	0911-1009	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-690-1	01	1	1010-1104	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-690-1	01	1	1010-1104	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-690-1	01	1	1010-1104		●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (C)	8-98189-223-0	01	1	1105-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (C)	8-98189-223-0	01	1	1105-	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (C)	8-98189-223-0	01	1	1105-		●
78	04.931 HOSE; VAC,PIPE TO PIPE (C)	8-98042-691-2	01	1	0712-0910	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (C)	8-98042-691-2	01	1	0911-1009	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (C)	8-98042-691-2	01	1	0911-1009	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (C)	8-98042-691-2	01	1	1010-1104	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (C)	8-98042-691-2	01	1	1010-1104	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (C)	8-98042-691-2	01	1	1010-1104		●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98189-224-0	01	1	1105-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98189-224-0	01	1	1105-	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98189-224-0	01	1	1105-		●
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-97389-745-1	01	1	0712-	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE (E)	8-98068-245-0	01	1	0712-1008			●
78	04.931 HOSE; VAC,PIPE TO PIPE (E)	8-98171-283-0	01	1	1009-			●
78	04.931 HOSE; VAC,PIPE TO PIPE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 03.630 (D) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0712-			●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D)	8-98064-718-0	01	1	0712-			●
80	04.930 PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98042-655-2	01	1	0712-	●
80	04.930 PIPE; VAC,ENG SIDE FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98042-655-2	01	1	0712-	●
80	04.930 PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98042-655-2	01	1	0712-		●
80	04.930 PIPE; VAC,ENG SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98064-565-3	01	1	0712-	●
80	04.930 PIPE; VAC,ENG SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98064-565-3	01	1	0712-		●
80	04.930 PIPE; VAC,ENG SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98075-014-0	01	1	0712-	●	●	●
80	04.930 PIPE; VAC,ENG SIDE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98064-345-2	01	1	0712-	●	●	●
80	04.930 PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-97389-604-1	01	1	0712-0905			●
80	04.930 PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98146-875-1	01	1	0906-			●
80	04.930 PIPE; VAC,ENG SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98064-570-0	01	1	0712-			●
85	04.931 HOSE; VAC,ENG SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98075-176-0	01	1	0712-	●	●	●
85	04.931 HOSE; VAC,ENG SIDE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98092-071-0	01	1	0712-0810	●	●	●
85	04.931 HOSE; VAC,ENG SIDE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98135-573-0	01	1	0811-	●	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98039-736-1	01	1	0712-	●	●	●
98	04.931 BOLT; VAC PIPE FIX 00.029 (A) M10X30 FLANGE	0-28651-030-0	01	1	0712-	●	●
98	04.931 BOLT; VAC PIPE FIX EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0712-	●	●	●
116	04.931 HOSE; VAC,M/VAC (E) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	0712-	●	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	0712-	●	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	0712-	●	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	0712-	●	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	0712-	●	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) (D)	8-98076-068-1	01	1	0911-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE (B)	8-98042-689-2	01	1	0712-0910	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-689-2	01	1	0911-1009	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-689-2	01	1	0911-1009	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-689-2	01	1	1010-1104	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-689-2	01	1	1010-1104	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-689-2	01	1	1010-1104		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98189-222-0	01	1	1105-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (A)	8-98189-222-0	01	1	1105-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (A)	8-98189-222-0	01	1	1105-		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE (A)	8-98089-657-0	01	1	0712-0910	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (A)	8-98089-657-0	01	1	0911-1009	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98089-657-0	01	1	0911-1009	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98089-657-0	01	1	1010-1104	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (A)	8-98089-657-0	01	1	1010-1104	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (A)	8-98089-657-0	01	1	1010-1104		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98189-226-0	01	1	1105-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98189-226-0	01	1	1105-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98189-226-0	01	1	1105-		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE (C)	8-98064-717-1	01	1	0712-			●
136	04.681 CLIP; VAC HOSE 03.162 (B) L=140	5-09707-031-1	01	1	0712-0910	●	●
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) 03.162 (B) L=140	5-09707-031-1	01	1	0911-1009	●	●
136	04.681 CLIP; VAC HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) 03.162 (B) L=140	5-09707-031-1	01	1	0911-1009	●	●
136	04.681 CLIP; VAC HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) 03.162 (B) L=140	5-09707-031-1	01	1	1010-	●	●
136	04.681 CLIP; VAC HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) 03.162 (B) L=140	5-09707-031-1	01	1	1010-	●
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) 03.162 (B) L=140	5-09707-031-1	01	1	1010-		●
136	04.681 CLIP; VAC HOSE 04.930 (A) ID=16	8-94238-568-0	04	1	0712-0803	●	●
136	04.681 CLIP; VAC HOSE 04.930 (A) ID=16	8-94238-568-0	04	1	0804-0911	●	●	●
136	04.681 CLIP; VAC HOSE 03.162 (A) ID=16	8-98008-098-0	04	1	0912-	●	●	●
136	04.681 CLIP; VAC HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0712-0803	●	●	●
136	04.681 CLIP; VAC HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0804-0910	●	●
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) 04.930 (A) ID=16	8-94238-568-0	02	1	0911-0911	●	●
136	04.681 CLIP; VAC HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) 04.930 (A) ID=16	8-94238-568-0	02	1	0911-0911	●	●
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) 03.162 (A) ID=16	8-98008-098-0	02	1	0912-1009	●	●
136	04.681 CLIP; VAC HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) 03.162 (A) ID=16	8-98008-098-0	02	1	0912-1009	●	●
136	04.681 CLIP; VAC HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) 03.162 (A) ID=16	8-98008-098-0	02	1	1010-	●	●
136	04.681 CLIP; VAC HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) 03.162 (A) ID=16	8-98008-098-0	02	1	1010-	●
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) 03.162 (A) ID=16	8-98008-098-0	02	1	1010-		●
158	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) (B) ID=18-24 L=14.5	1-09709-298-0	01	1	0911-	●	●
158	04.681 CLIP; HOSE 02.559 (A) ID=28 H=45 L=30	1-09700-707-0	01	1	0712-			●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W)	8-98145-534-0	01	1	0904-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98039-852-1	01	1	0712-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T)	8-98039-852-1	01	1	0712-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T)	8-98039-852-1	01	1	0712-		●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98039-852-1	01	1	0712-			●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SINGLE RR TIRE(6TD) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98089-483-0	01	1	0712-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD)	8-98089-483-0	01	1	0712-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98064-727-0	01	1	0712-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98064-727-0	01	1	0712-		●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98064-727-0	01	1	0712-			●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98064-725-1	01	1	0712-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98039-805-2	01	1	0712-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0)	8-98039-805-2	01	1	0712-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98039-805-2	01	1	0712-		●	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98064-730-0	01	1	0712-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98064-730-0	01	1	0712-		●	●
236	04.930 BOLT; PIPE WHEEL BASE 2800MM(28W) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	0904-	●
236	04.930 BOLT; PIPE 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0712-	●	●	●

116 120 203 12 13 12 157 157 157 12 157 12 12 13 12 39 116 39 39 39 165 184 165 184 165 184 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	16	1	0712-	●	●	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	02	1	0712-	●	●	●
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) 04.930 (B) ID=16	8-94238-568-0	04	1	0712-0903	●	●	●
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) 04.930 (B) ID=16	8-94238-568-0	04	1	0904-0911	●
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) 04.930 (B) ID=16	8-94238-568-0	04	1	0904-0911		●	●
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) 03.162 (B) ID=16	8-98008-098-0	04	1	0912-	●
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) 03.162 (B) ID=16	8-98008-098-0	04	1	0912-		●	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) (C) ID=18 L=80	1-09701-069-0	01	1	0712-	●	●	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 04.930 (B) ID=16	8-94238-568-0	02	1	0712-0903	●	●	●
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	02	1	0712-0903	●	●	●
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	02	1	0904-0911	●	●	●
12	04.681 CLIP; HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 04.930 (B) ID=16	8-94238-568-0	02	1	0904-0911	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 04.930 (B) ID=16	8-94238-568-0	02	1	0904-0911		●	●
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	02	1	0912-	●	●	●
12	04.681 CLIP; HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 (B) ID=16	8-98008-098-0	02	1	0912-	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 03.162 (B) ID=16	8-98008-098-0	02	1	0912-		●	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 04.930 (E) ID=10 H=40	8-94462-219-0	01	1	0712-	●	●	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	0712-0903	●	●	●
12	04.681 CLIP; HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	0904-	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	0904-		●	●
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	03	1	0712-	●	●	●
13	04.681 JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98035-106-0	01	1	0712-	●	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	0912-	●	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0712-	●	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0712-0801	●	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0802-0911	●	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0802-0911	●	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0912-	●	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	08	1	0712-0801	●	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	0802-	●	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	05	1	0712-0801	●	●	●
116	04.931 HOSE; VAC,M/VAC (E) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	0712-	●	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	0712-	●	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	0712-	●	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	0712-	●	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	0712-	●	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (C)	8-97389-695-2	01	1	0712-	●	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98027-352-3	01	1	0712-	●	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97389-696-2	01	1	0712-	●	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (F)	8-98017-168-3	01	1	0712-	●	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (D)	8-98027-350-3	01	1	0712-	●	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98027-351-3	01	1	0712-	●	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98027-353-3	01	1	0712-	●	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98027-354-2	01	1	0712-	●	●	●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98022-868-3	01	1	0712-	●	●	●
165	04.686 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0712-1001	●	●	●
165	04.686 BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1002-	●	●	●
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0712-	●	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-548-0	01	1	1312-	●	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98155-345-0	01	1	1002-1103	●	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-467-1	01	1	1104-	●	●	●
184	04.685 BRACKET; UNION FIX (A)	8-97389-686-1	01	1	0712-1001	●	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-97389-686-1	01	1	1002-1103	●	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-98183-462-1	01	1	1104-1311	●	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-535-0	01	1	1312-	●	●	●
184	04.685 BRACKET; UNION FIX (B)	8-98017-628-1	01	1	0712-0712	●	●	●
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (B)	8-98017-628-1	01	1	0712-	●	●	●
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	0712-	●	●	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	0712-	●	●	●

202 165 234 173 12 12 184 163 234 116 20 173 96 157 116 120 234 234 12 203 39 13 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	16	1	0712-	●	●	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	02	1	0712-	●	●	●
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) 04.930 (B) ID=16	8-94238-568-0	04	1	0712-0903	●	●	●
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) 04.930 (B) ID=16	8-94238-568-0	04	1	0904-0911	●
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) 04.930 (B) ID=16	8-94238-568-0	04	1	0904-0911		●	●
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) 03.162 (B) ID=16	8-98008-098-0	04	1	0912-	●
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) 03.162 (B) ID=16	8-98008-098-0	04	1	0912-		●	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) (C) ID=18 L=80	1-09701-069-0	01	1	0712-	●	●	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 04.930 (B) ID=16	8-94238-568-0	02	1	0712-0903	●	●	●
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	02	1	0712-0903	●	●	●
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	02	1	0904-0911	●	●	●
12	04.681 CLIP; HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 04.930 (B) ID=16	8-94238-568-0	02	1	0904-0911	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 04.930 (B) ID=16	8-94238-568-0	02	1	0904-0911		●	●
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	02	1	0912-	●	●	●
12	04.681 CLIP; HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 (B) ID=16	8-98008-098-0	02	1	0912-	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 03.162 (B) ID=16	8-98008-098-0	02	1	0912-		●	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 04.930 (E) ID=10 H=40	8-94462-219-0	01	1	0712-	●	●	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	0712-0903	●	●	●
12	04.681 CLIP; HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	0904-	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	0904-		●	●
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	03	1	0712-	●	●	●
13	04.681 JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98035-106-0	01	1	0712-	●	●	●
20	04.686 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	01	1	0712-0712	●	●	●
20	04.686 NUT; BRKT EXC. PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE	0-91180-106-0	01	1	0712-	●	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	0912-	●	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0712-	●	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0712-0801	●	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0802-0911	●	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0802-0911	●	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0912-	●	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	08	1	0712-0801	●	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	0802-	●	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	05	1	0712-0801	●	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98039-736-1	01	1	0712-	●	●	●
116	04.931 HOSE; VAC,M/VAC (E) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	0712-	●	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	0712-	●	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	0712-	●	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	0712-	●	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	0712-	●	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (C)	8-97389-695-2	01	1	0712-	●	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98027-352-3	01	1	0712-	●	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97389-696-2	01	1	0712-	●	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (F)	8-98017-168-3	01	1	0712-	●	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (D)	8-98027-350-3	01	1	0712-	●	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98027-351-3	01	1	0712-	●	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98027-353-3	01	1	0712-	●	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98027-354-2	01	1	0712-	●	●	●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98022-868-3	01	1	0712-	●	●	●
163	04.681 JOINT; VAC HOSE POWER ASSIST CLUTCH(S2T) 03.163	8-97353-668-0	01	1	0712-	●	●	●
165	04.686 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0712-1001	●	●	●
165	04.686 BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1002-	●	●	●
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0712-	●	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98055-936-1	01	1	0712-1012	●	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98121-941-0	01	1	1101-	●	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98055-937-1	01	1	0712-1012	●	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98121-940-0	01	1	1101-	●	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98022-870-1	01	1	0712-1012	●	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98107-558-0	01	1	1101-	●	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-548-0	01	1	1312-	●	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98155-345-0	01	1	1002-1103	●	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-467-1	01	1	1104-	●	●	●
184	04.685 BRACKET; UNION FIX (A)	8-97389-686-1	01	1	0712-1001	●	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-97389-686-1	01	1	1002-1103	●	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-98183-462-1	01	1	1104-1311	●	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-535-0	01	1	1312-	●	●	●
184	04.685 BRACKET; UNION FIX (B)	8-98017-628-1	01	1	0712-0712	●	●	●
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (B)	8-98017-628-1	01	1	0712-	●	●	●
202	04.686 SEAL 08.845	8-97856-616-0	02	1	0712-	●	●	●
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	0712-	●	●	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	0712-	●	●	●
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	04	1	0712-	●	●	●
234	04.685 CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	03	1	0712-	●	●	●

202 165 234 173 39 108 184 20 234 96 116 234 116 157 120 12 203 13 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	16	1	0712-	●	●	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	02	1	0712-	●	●	●
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) 04.930 (B) ID=16	8-94238-568-0	04	1	0712-0903	●	●	●
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) 04.930 (B) ID=16	8-94238-568-0	04	1	0904-0911	●
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) 04.930 (B) ID=16	8-94238-568-0	04	1	0904-0911		●	●
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) 03.162 (B) ID=16	8-98008-098-0	04	1	0912-	●
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) 03.162 (B) ID=16	8-98008-098-0	04	1	0912-		●	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) (C) ID=18 L=80	1-09701-069-0	01	1	0712-	●	●	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 04.930 (B) ID=16	8-94238-568-0	02	1	0712-0903	●	●	●
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	02	1	0712-0903	●	●	●
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	02	1	0904-0911	●	●	●
12	04.681 CLIP; HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 04.930 (B) ID=16	8-94238-568-0	02	1	0904-0911	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 04.930 (B) ID=16	8-94238-568-0	02	1	0904-0911		●	●
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	02	1	0912-	●	●	●
12	04.681 CLIP; HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 (B) ID=16	8-98008-098-0	02	1	0912-	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 03.162 (B) ID=16	8-98008-098-0	02	1	0912-		●	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 04.930 (E) ID=10 H=40	8-94462-219-0	01	1	0712-	●	●	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	0712-0903	●	●	●
12	04.681 CLIP; HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	0904-	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	0904-		●	●
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	03	1	0712-	●	●	●
13	04.681 JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98035-106-0	01	1	0712-	●	●	●
20	04.686 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	01	1	0712-0712	●	●	●
20	04.686 NUT; BRKT EXC. PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE	0-91180-106-0	01	1	0712-	●	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	0912-	●	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0712-	●	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0712-0801	●	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0802-0911	●	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0802-0911	●	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0912-	●	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	08	1	0712-0801	●	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	0802-	●	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	05	1	0712-0801	●	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98039-736-1	01	1	0712-	●	●	●
108	04.931 GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) (A)	9-09956-353-0	01	1	0712-	●	●	●
108	04.931 GROMMET; PIPE 02.343 (B) ID=17	8-94128-319-2	01	1	0712-			●
116	04.931 HOSE; VAC,M/VAC (E) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	0712-	●	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	0712-	●	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	0712-	●	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	0712-	●	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	0712-	●	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (C)	8-97389-695-2	01	1	0712-	●	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98027-352-3	01	1	0712-	●	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97389-696-2	01	1	0712-	●	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (F)	8-98017-168-3	01	1	0712-	●	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (D)	8-98027-350-3	01	1	0712-	●	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98027-351-3	01	1	0712-	●	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98027-353-3	01	1	0712-	●	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98027-354-2	01	1	0712-	●	●	●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98022-868-3	01	1	0712-	●	●	●
165	04.686 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0712-1001	●	●	●
165	04.686 BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1002-	●	●	●
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0712-	●	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98055-936-1	01	1	0712-1012	●	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98121-941-0	01	1	1101-	●	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98055-937-1	01	1	0712-1012	●	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98121-940-0	01	1	1101-	●	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98022-870-1	01	1	0712-1012	●	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98107-558-0	01	1	1101-	●	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-548-0	01	1	1312-	●	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98155-345-0	01	1	1002-1103	●	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-467-1	01	1	1104-	●	●	●
184	04.685 BRACKET; UNION FIX (A)	8-97389-686-1	01	1	0712-1001	●	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-97389-686-1	01	1	1002-1103	●	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-98183-462-1	01	1	1104-1311	●	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-535-0	01	1	1312-	●	●	●
184	04.685 BRACKET; UNION FIX (B)	8-98017-628-1	01	1	0712-0712	●	●	●
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (B)	8-98017-628-1	01	1	0712-	●	●	●
202	04.686 SEAL 08.845	8-97856-616-0	02	1	0712-	●	●	●
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	0712-	●	●	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	0712-	●	●	●
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	04	1	0712-	●	●	●
234	04.685 CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	03	1	0712-	●	●	●

106 12 12 12 12 197 44 12 198 237 12 238 236 12 237 12 127 12 128 197 12 12 238 12 12 12 198 237

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	16	1	0712-	●	●	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	02	1	0712-	●	●	●
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) 04.930 (B) ID=16	8-94238-568-0	04	1	0712-0903	●	●	●
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) 04.930 (B) ID=16	8-94238-568-0	04	1	0904-0911	●
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) 04.930 (B) ID=16	8-94238-568-0	04	1	0904-0911		●	●
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) 03.162 (B) ID=16	8-98008-098-0	04	1	0912-	●
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) 03.162 (B) ID=16	8-98008-098-0	04	1	0912-		●	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) (C) ID=18 L=80	1-09701-069-0	01	1	0712-	●	●	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 04.930 (B) ID=16	8-94238-568-0	02	1	0712-0903	●	●	●
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	02	1	0712-0903	●	●	●
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	02	1	0904-0911	●	●	●
12	04.681 CLIP; HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 04.930 (B) ID=16	8-94238-568-0	02	1	0904-0911	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 04.930 (B) ID=16	8-94238-568-0	02	1	0904-0911		●	●
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	02	1	0912-	●	●	●
12	04.681 CLIP; HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 (B) ID=16	8-98008-098-0	02	1	0912-	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 03.162 (B) ID=16	8-98008-098-0	02	1	0912-		●	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 04.930 (E) ID=10 H=40	8-94462-219-0	01	1	0712-	●	●	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	0712-0903	●	●	●
12	04.681 CLIP; HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	0904-	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	0904-		●	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2800MM(28W) (C)	8-98145-928-0	01	1	0904-	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (A)	8-98039-808-2	01	1	0712-	●
44	04.930 PIPE; VAC,MAG VLV (B)	8-98042-654-0	01	1	0712-0910	●	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-654-0	01	1	0911-1009	●	●
44	04.930 PIPE; VAC,MAG VLV EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-654-0	01	1	0911-1009	●	●
44	04.930 PIPE; VAC,MAG VLV EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-654-0	01	1	1010-	●	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-654-0	01	1	1010-	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-654-0	01	1	1010-		●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98039-806-0	01	1	0712-	●	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2400MM(24W) (A)	8-98039-806-0	01	1	0712-			●
106	04.930 CLIP; PIPE WHEEL BASE 2800MM(28W) ID=10X2 & 4.76	8-97170-259-0	01	1	0904-	●
127	04.930 BOLT; CLIP WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0712-	●	●	●
127	04.930 BOLT; CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0712-			●
128	04.930 NUT; CLIP WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE	0-91180-108-0	01	1	0712-	●	●	●
128	04.930 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0712-			●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W)	8-98145-534-0	01	1	0904-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98039-852-1	01	1	0712-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) REAR WIDE TREAD(V4T)	8-98039-852-1	01	1	0712-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T)	8-98039-852-1	01	1	0712-		●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98039-852-1	01	1	0712-			●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SINGLE RR TIRE(6TD) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98089-483-0	01	1	0712-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) FRT INDEPENDENT SUSPENSION(FF0) SINGLE RR TIRE(6TD)	8-98089-483-0	01	1	0712-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98064-727-0	01	1	0712-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98064-727-0	01	1	0712-		●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98064-727-0	01	1	0712-			●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98064-725-1	01	1	0712-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98039-805-2	01	1	0712-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) FRT INDEPENDENT SUSPENSION(FF0)	8-98039-805-2	01	1	0712-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98039-805-2	01	1	0712-		●	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0)	8-98064-730-0	01	1	0712-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98064-730-0	01	1	0712-		●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W)	8-98039-788-1	01	1	0904-	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD)	8-97371-687-0	01	1	0712-	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-98039-787-0	01	1	0712-	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W)	8-98039-787-0	01	1	0712-			●
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W)	8-98063-388-0	01	1	0712-	●	●	●
236	04.930 BOLT; PIPE WHEEL BASE 2800MM(28W) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	0904-	●
236	04.930 BOLT; PIPE 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0712-	●	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2800MM(28W) (F)	8-98039-789-1	01	1	0904-	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (D)	8-98036-102-0	01	1	0712-	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (E)	8-98039-790-0	01	1	0712-	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.630 (C) L=170 SERVICED BY L=3000	0-08258-300-0	01	1	0712-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) 03.630 (C) L=170 SERVICED BY L=3000	0-08258-300-0	01	1	0712-			●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98034-429-0	01	1	0712-0903	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) (B)	8-98034-429-0	01	1	0712-0903			●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) REAR WIDE TREAD(V4T) (B)	8-98034-429-0	01	1	0904-	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98034-429-0	01	1	0904-		●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) (B)	8-98034-429-0	01	1	0904-			●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 3300MM(33W) (A)	8-98039-792-0	01	1	0712-1008	●	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 3300MM(33W) (A)	8-98171-286-0	01	1	1009-	●	●	●
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 3300MM(33W)	8-97377-521-0	01	1	0712-0903	●	●
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-97377-521-0	01	1	0712-0903	●	●
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD)	8-97377-521-0	01	1	0712-0903	●
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W)	8-97377-521-0	01	1	0712-0903			●
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 3300MM(33W)	8-97377-521-0	01	1	0904-1008	●	●
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD)	8-97377-521-0	01	1	0904-1008	●
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) REAR WIDE TREAD(V4T)	8-97377-521-0	01	1	0904-1008	●
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-97377-521-0	01	1	0904-1008		●
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W)	8-97377-521-0	01	1	0904-1008			●
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD)	8-97377-521-0	01	1	1009-	●
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) REAR WIDE TREAD(V4T)	8-97377-521-0	01	1	1009-	●
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-97377-521-0	01	1	1009-		●
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W)	8-97377-521-0	01	1	1009-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
