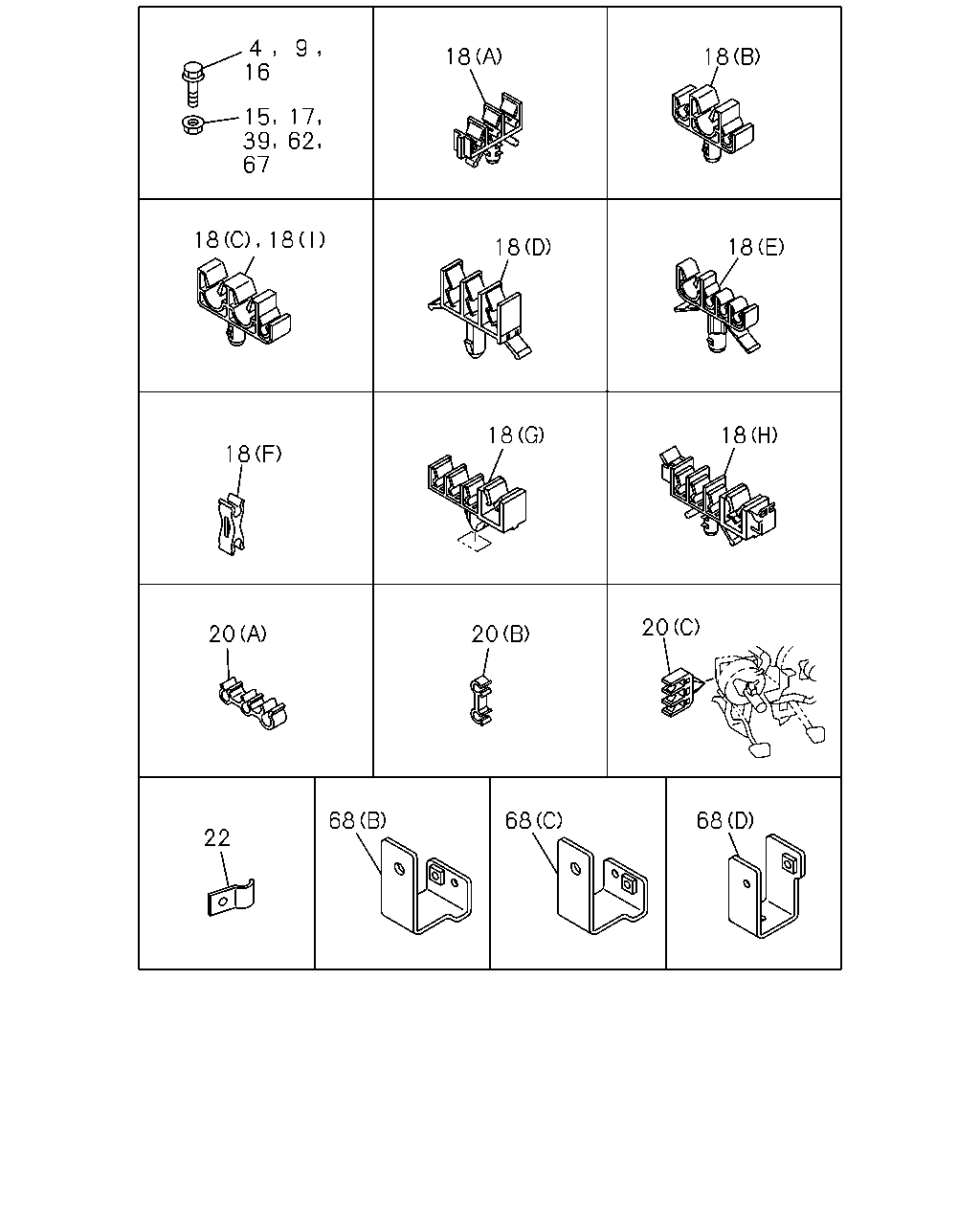

3-58 — FIXING PARTS; OIL PIPING (#50407) — 72 parça

19 67 68 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
4	04.686 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0712-	●	●	●
4	04.686 BOLT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0712-	●	●	●
4	04.686 BOLT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0712-	●	●	●
19	04.686 BRACKET; OIL PIPE	8-98009-117-2	01	1	0712-1006	●	●	●
19	04.686 BRACKET; OIL PIPE	8-98162-759-0	01	1	1007-	●	●	●
67	04.686 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE	0-91180-108-0	02	1	0801-	●	●	●
67	04.686 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0712-	●	●	●
68	04.686 BRACKET; CLIP EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98060-870-2	01	1	0712-	●
68	04.686 BRACKET; CLIP EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98060-870-2	01	1	0712-		●	●
68	04.686 BRACKET; CLIP EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98090-213-1	01	1	0712-1009	●
68	04.686 BRACKET; CLIP EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C)	8-98090-213-1	01	1	0712-1009		●	●
68	04.686 BRACKET; CLIP EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98178-046-0	01	1	1010-	●	●	●
68	04.686 BRACKET; CLIP (A)	8-98039-558-2	01	1	0712-	●	●	●

9 4 16 18 18 15 39 67 17 62 18 18 18 18 18 18 18 20 20 20 68 68 68 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
4	04.686 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0712-	●	●	●
4	04.686 BOLT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0712-	●	●	●
4	04.686 BOLT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0712-	●	●	●
9	04.686 BOLT; BRKT SINGLE RR TIRE(6TD) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0712-	●
9	04.686 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> SINGLE RR TIRE(6TD) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0712-	●
9	04.686 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. SINGLE RR TIRE(6TD) 00.029 M10X25 FLANGE	0-28651-025-0	01	1	0712-	●
9	04.686 BOLT; BRKT EXC. SINGLE RR TIRE(6TD) 00.029 M10X25 FLANGE	0-28651-025-0	01	1	0712-	●
9	04.686 BOLT; BRKT 00.029 M10X25 FLANGE	0-28651-025-0	01	1	0712-		●	●
9	04.686 BOLT; BRKT 00.029 M10X25 FLANGE	0-28651-025-0	01	1	0712-		●
9	04.686 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 00.029 M10X25 FLANGE	0-28651-025-0	01	1	0712-			●
15	04.686 NUT; CLIP,OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 M6 FLANGE	0-91180-106-0	02	1	0712-	●
15	04.686 NUT; CLIP,OIL PIPE 01.062 M6 FLANGE	0-91180-106-0	02	1	0712-		●	●
16	04.686 BOLT; BRKT TO FRAME FRT INDEPENDENT SUSPENSION(FF0) 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0712-	●
17	04.686 NUT; BRKT TO FRAME EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE	0-91180-108-0	02	1	0712-	●
17	04.686 NUT; BRKT TO FRAME 01.062 M8 FLANGE	0-91180-108-0	02	1	0712-		●	●
18	04.686 CLIP; BRK PIPE WHEEL BASE 2800MM(28W) (H) ID=10 & 4.76X3	8-97326-158-1	01	1	0904-	●
18	04.686 CLIP; BRK PIPE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (G) ID=10 & 4.76X3	8-97168-819-0	01	1	0712-	●
18	04.686 CLIP; BRK PIPE FRT INDEPENDENT SUSPENSION(FF0) (G) ID=10 & 4.76X3	8-97168-819-0	01	1	0712-	●
18	04.686 CLIP; BRK PIPE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (G) ID=10 & 4.76X3	8-97168-819-0	01	1	0712-		●	●
18	04.686 CLIP; BRK PIPE (G) ID=10 & 4.76X3	8-97168-819-0	07	1	0712-	●	●	●
18	04.686 CLIP; BRK PIPE (E) ID=10 & 4.76X3	8-97168-820-0	01	1	0712-	●	●	●
18	04.686 CLIP; BRK PIPE (E) ID=10 & 4.76X3	8-97168-820-0	01	1	0712-	●	●	●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. SINGLE RR TIRE(6TD) (E) ID=10 & 4.76X3	8-97168-820-0	01	1	0712-	●
18	04.686 CLIP; BRK PIPE (E) ID=10 & 4.76X3	8-97168-820-0	01	1	0712-		●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=10 & 4.76X3	8-97168-820-0	01	1	0712-			●
18	04.686 CLIP; BRK PIPE 03.162 (A) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	0712-	●	●	●
18	04.686 CLIP; BRK PIPE (B) ID=12 & 6.35 & 4.76	8-97305-169-1	05	1	0712-1005	●	●	●
18	04.686 CLIP; BRK PIPE (B) ID=12 & 6.35 & 4.76	8-97305-169-1	04	1	1006-	●	●	●
18	04.686 CLIP; BRK PIPE (D) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0712-	●	●	●
18	04.686 CLIP; BRK PIPE 03.162 (A) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0712-	●	●	●
18	04.686 CLIP; BRK PIPE (H) ID=10 & 4.76X3	8-97326-158-1	02	1	0712-	●	●	●
18	04.686 CLIP; BRK PIPE (H) ID=10 & 4.76X3	8-97326-158-1	02	1	0712-	●	●	●
18	04.686 CLIP; BRK PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=10X2 & 4.76	8-97305-170-0	01	1	0712-0801	●	●	●
18	04.686 CLIP; BRK PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) 04.128 (I) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	0802-	●	●	●
18	04.686 CLIP; BRK PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=12 & 6.35 & 4.76	8-97305-169-1	01	1	0712-	●	●	●
18	04.686 CLIP; BRK PIPE WHEEL BASE 3300MM(33W) (H) ID=10 & 4.76X3	8-97326-158-1	03	1	0712-	●	●	●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> 04.868 (F) ID=4.6X2	8-94241-454-0	01	1	0712-	●		●
18	04.686 CLIP; BRK PIPE 04.868 (F) ID=4.6X2	8-94241-454-0	01	1	0712-		●
20	04.686 CLIP; BRK PIPE (A) ID=6.4 & 4.8X2	8-94146-043-0	01	1	0712-	●	●	●
20	04.686 CLIP; BRK PIPE (C) ID=6.35 & 4.76X2	8-94250-923-2	01	1	0712-	●	●	●
20	04.686 CLIP; BRK PIPE (B)	8-94338-104-0	01	1	0712-	●	●	●
22	04.686 CLIP; PIPE TO FRAME EXC. FRT INDEPENDENT SUSPENSION(FF0) 00.785 B=14 L=16	9-09916-996-0	02	1	0712-	●
22	04.686 CLIP; PIPE TO FRAME 00.785 B=14 L=16	9-09916-996-0	02	1	0712-		●	●
39	04.686 NUT; BRKT FIX SINGLE RR TIRE(6TD) 01.062 M8 FLANGE	0-91180-108-0	01	1	0712-	●
39	04.686 NUT; BRKT FIX 4 WHEEL ANTI LOCK BRAKE<JE5> SINGLE RR TIRE(6TD) 01.062 M8 FLANGE	0-91180-108-0	01	1	0712-	●
39	04.686 NUT; BRKT FIX 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. SINGLE RR TIRE(6TD) 03.162 M10 FLANGE	0-91180-110-0	01	1	0712-	●
39	04.686 NUT; BRKT FIX EXC. SINGLE RR TIRE(6TD) 03.162 M10 FLANGE	0-91180-110-0	01	1	0712-	●
39	04.686 NUT; BRKT FIX 03.162 M10 FLANGE	0-91180-110-0	01	1	0712-		●	●
39	04.686 NUT; BRKT FIX 03.162 M10 FLANGE	0-91180-110-0	01	1	0712-		●
39	04.686 NUT; BRKT FIX 4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 M10 FLANGE	0-91180-110-0	01	1	0712-			●
62	04.686 NUT 03.162 M10 FLANGE	0-91180-110-0	01	1	0712-	●	●
67	04.686 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) 01.062 M8 FLANGE	0-91180-108-0	02	1	0801-	●	●	●
67	04.686 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0712-	●	●	●
68	04.686 BRACKET; CLIP EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98060-870-2	01	1	0712-	●
68	04.686 BRACKET; CLIP EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98060-870-2	01	1	0712-		●	●
68	04.686 BRACKET; CLIP EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98090-213-1	01	1	0712-1009	●
68	04.686 BRACKET; CLIP EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C)	8-98090-213-1	01	1	0712-1009		●	●
68	04.686 BRACKET; CLIP EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98178-046-0	01	1	1010-	●	●	●
68	04.686 BRACKET; CLIP (A)	8-98039-558-2	01	1	0712-	●	●	●
