◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51150 - NLR/NMR(EU)-RHD EU4 ▶ 3 - Brakes, Brake System ▶ 3-50 - BRAKE PIPING; OIL,MASTER CYLINDER ▶
3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#50404) — 88 parça

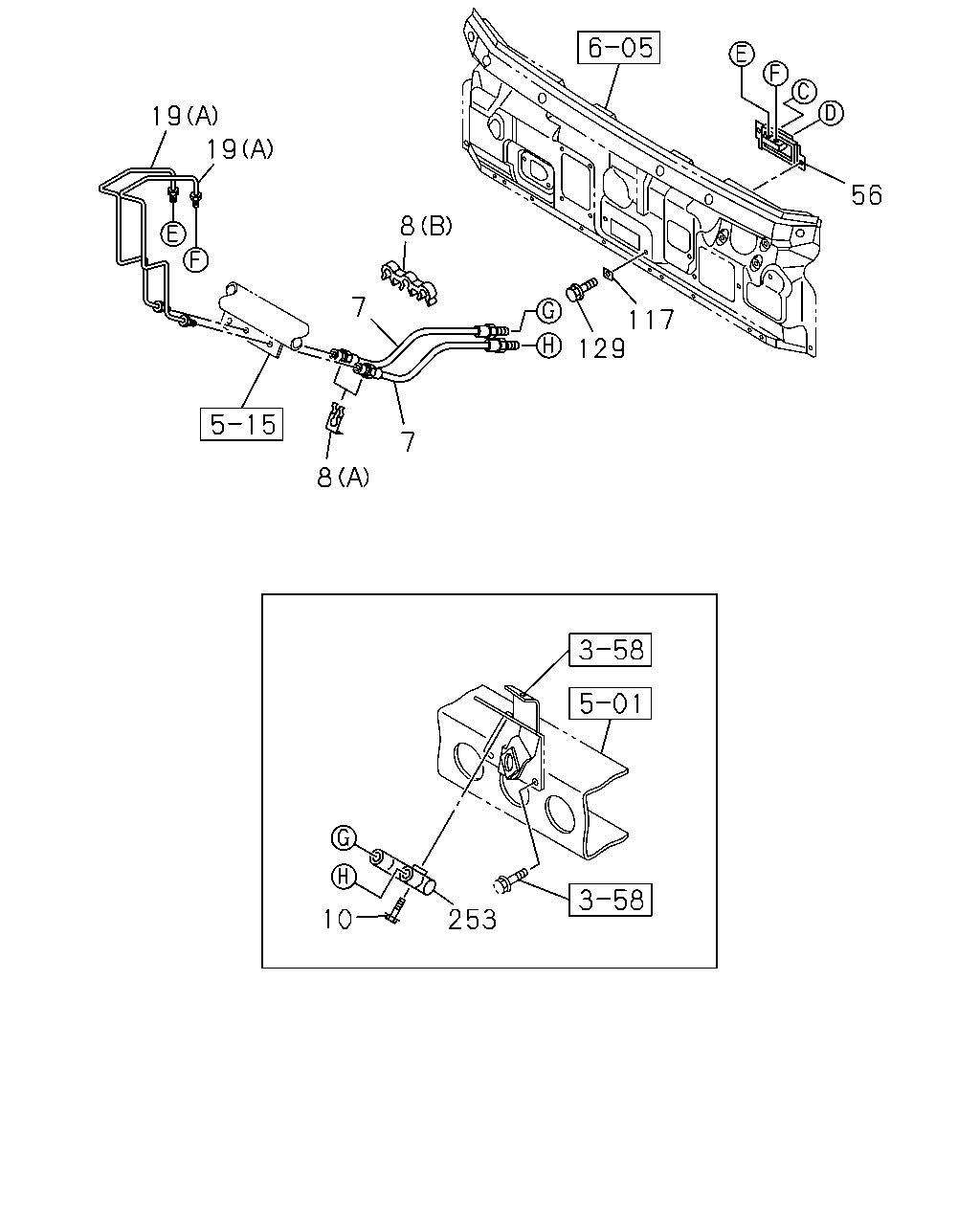

çizim 155098
19 19 56 8 7 117 129 7 8 10 253
BalonParca AdiParca NoAdetTipApplied Date A B C
7 04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT 8-98033-732-0 02 1 0712- ● ● ●
8 04.681 CLIP; FLEX HOSE,CABLE SIDE
(A) 		8-97365-304-0 02 1 0712- ● ● ●
8 04.681 CLIP; FLEX HOSE,CABLE SIDE
(B) 		8-98056-614-0 01 1 0712- ● ● ●
10 04.686 BOLT; JOINT
00.685 M6X40 FLANGE 		0-28650-640-0 01 1 0712- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) 		8-97389-337-3 01 1 0712- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(A) 		8-98012-095-1 02 1 0712- ● ● ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97389-282-1 01 1 0712-1005 ● ● ●
56 04.686 BRACKET; UNION,BRK
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98154-265-1 01 1 1006- ● ● ●
56 04.686 BRACKET; UNION,BRK
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97389-281-1 01 1 0712-1005 ● ● ●
56 04.686 BRACKET; UNION,BRK
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98154-264-1 01 1 1006- ● ● ●
117 04.686 SEAL; UNION,BRK PIPE JOINT
08.845 		8-97856-616-0 02 1 0712- ● ● ●
129 04.710 BOLT; BRKT
02.343 M6X16 FLANGE 		0-28650-616-0 01 1 0712-0809 ● ● ●
129 04.710 BOLT; BRKT
08.857 M6X20 W/LK&PL WASHER 		8-98081-030-0 02 1 0712- ● ● ●
253 04.840 JOINT
BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.686 		8-97120-033-2 01 1 0712- ● ●
253 04.840 JOINT
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97038-940-1 01 1 0712- ● ●
253 04.840 JOINT 8-97038-940-1 01 1 0712- ●
253 04.840 JOINT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH> 04.686 		5-47456-009-1 01 1 0712- ● ●
çizim 155099
130 131 130 131
BalonParca AdiParca NoAdetTipApplied Date A B C
130 04.686 BRACKET; SPEED SENSOR
FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-98035-634-0 01 1 0712- ●
130 04.686 BRACKET; SPEED SENSOR
FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-98035-633-0 01 1 0712- ●
130 04.686 BRACKET; SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. 4 WHEEL DISC BRAKE<JF9> (B) 		8-97080-060-2 02 1 0712- ●
131 04.710 BOLT; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0712- ● ●
131 04.710 BOLT; BRKT
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0712- ●

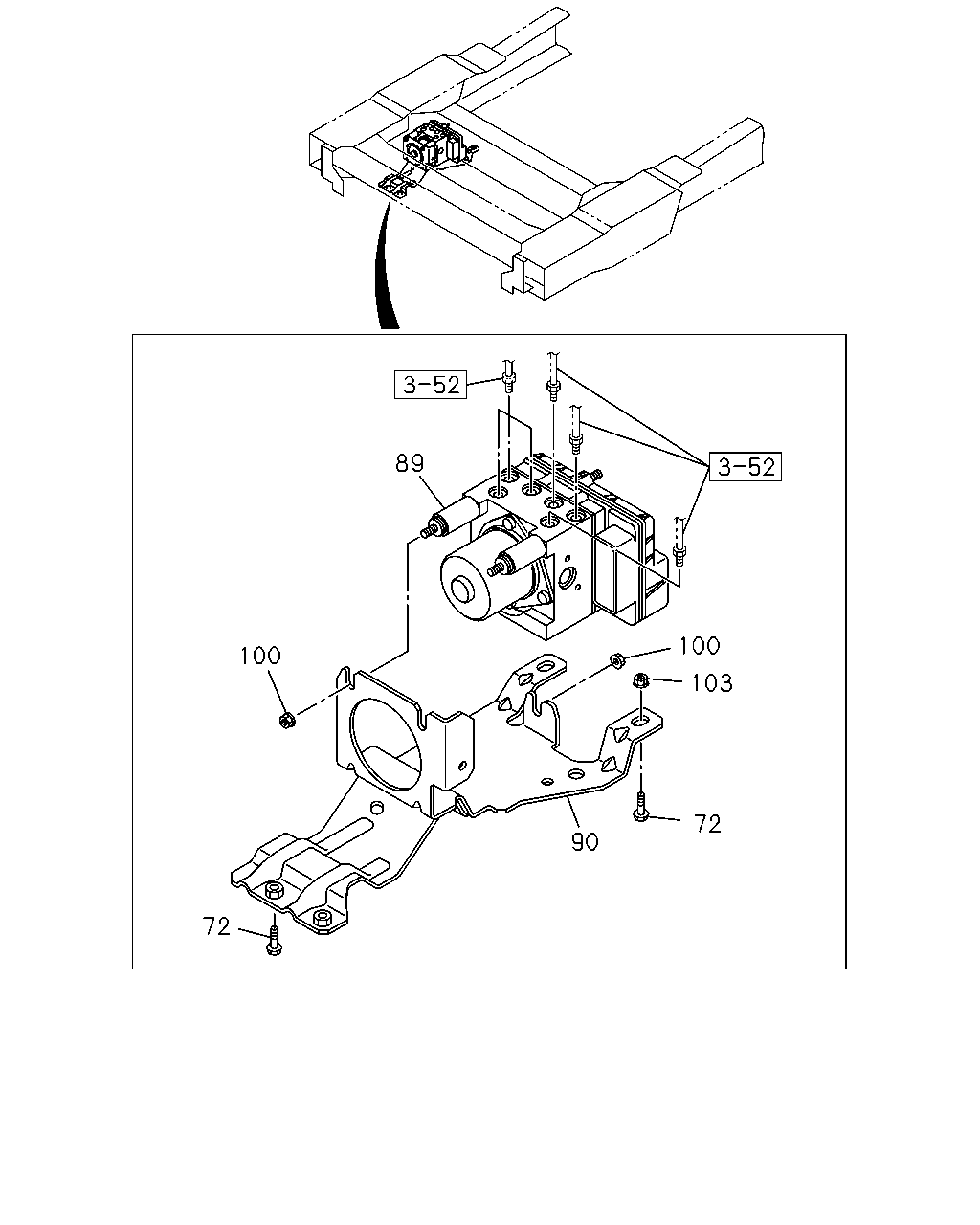

çizim 155102
89 100 100 103 72 90 72
BalonParca AdiParca NoAdetTipApplied Date A B C
72 04.686 BOLT; BRKT TO BODY
4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0712- ● ●
72 04.686 BOLT; BRKT TO BODY
06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0712- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-98081-561-1 01 1 0802-1006 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. 4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> 		8-98158-006-1 01 1 1007- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 		8-98081-562-1 01 1 0712-1006 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 		8-98158-007-1 01 1 1007- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> 		8-98081-564-1 01 1 0712-1006 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK 8-98081-564-1 01 1 0712-1006 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98081-564-1 01 1 0712-1006 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> 		8-98158-009-1 01 1 1007- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK 8-98158-009-1 01 1 1007- ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98158-009-1 01 1 1007- ●
90 04.730 BRACKET; HYDRAULIC UNIT,ABS
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97386-355-0 01 1 0712- ● ●
90 04.730 BRACKET; HYDRAULIC UNIT,ABS 8-97386-355-0 01 1 0712- ●
100 04.730 NUT; HYDRAULIC UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M8 FLANGE 		0-91180-108-0 03 1 0712- ● ●
100 04.730 NUT; HYDRAULIC UNIT
01.062 M8 FLANGE 		0-91180-108-0 03 1 0712- ●
103 04.730 NUT; HYDRAULIC UNIT BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0804- ● ●
103 04.730 NUT; HYDRAULIC UNIT BRKT
01.062 M8 FLANGE 		0-91180-108-0 02 1 0804- ●
çizim 155105
35 11
BalonParca AdiParca NoAdetTipApplied Date A B C
11 04.686 VALVE; BRK CONT
BRK WHL LK CONT LSPV<6PH> SINGLE RR TIRE(6TD) 04.730 		8-94368-455-2 01 1 0712- ●
11 04.686 VALVE; BRK CONT
BRK WHL LK CONT LSPV<6PH> EXC. SINGLE RR TIRE(6TD) 04.730 		8-97070-721-0 01 1 0712- ●
11 04.686 VALVE; BRK CONT
BRK WHL LK CONT LSPV<6PH> 04.730 		8-97070-721-0 01 1 0712- ●
35 04.685 PIPE; BRK,VLV TO RR AXLE
BRK WHL LK CONT LSPV<6PH> SINGLE RR TIRE(6TD) 		8-98064-716-0 01 1 0712- ●
35 04.685 PIPE; BRK,VLV TO RR AXLE
BRK WHL LK CONT LSPV<6PH> EXC. SINGLE RR TIRE(6TD) 		8-97389-540-0 01 1 0712- ●
35 04.685 PIPE; BRK,VLV TO RR AXLE
BRK WHL LK CONT LSPV<6PH> 		8-97389-540-0 01 1 0712- ●

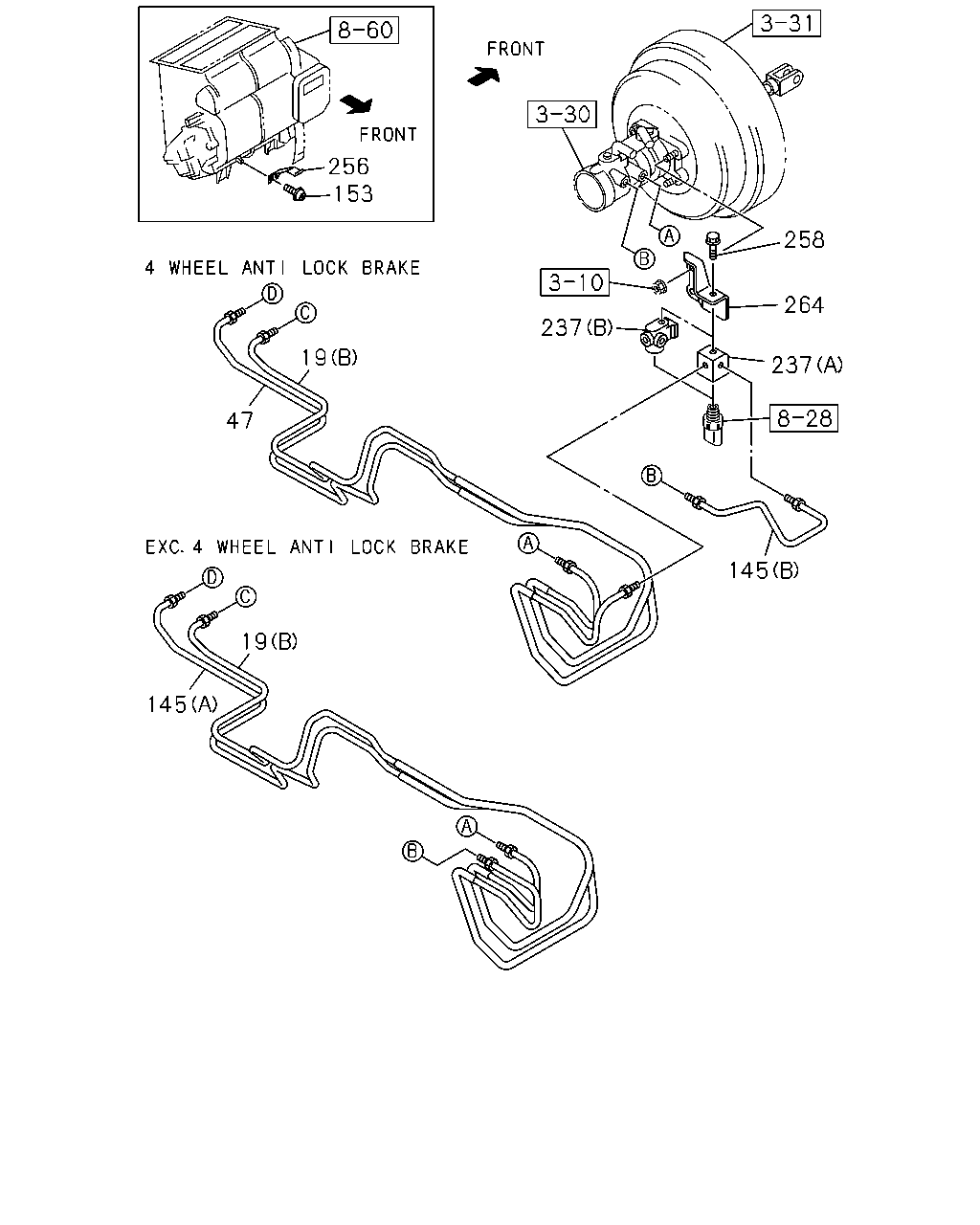

çizim 155113
256 153 258 264 237 19 237 47 145 19 145
BalonParca AdiParca NoAdetTipApplied Date A B C
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) 		8-97389-337-3 01 1 0712- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(A) 		8-98012-095-1 02 1 0712- ● ● ●
47 04.685 PIPE; OIL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98005-586-3 01 1 0712-0906 ● ●
47 04.685 PIPE; OIL,FRT BRK 8-98005-586-3 01 1 0712-0906 ●
47 04.685 PIPE; OIL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> L=1173 		8-98133-413-0 01 1 0907- ● ●
47 04.685 PIPE; OIL,FRT BRK
L=1173 		8-98133-413-0 01 1 0907- ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98042-422-0 01 1 0712-0906 ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
(B) 		8-98042-422-0 01 1 0712-0906 ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (B) L=201 		8-98133-407-0 01 1 0907- ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
(B) L=201 		8-98133-407-0 01 1 0907- ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97389-295-3 01 1 0712- ● ●
153 04.730 SCREW; BRKT FIX
04.681 M5X12 TAPPING 		0-72180-512-0 01 1 0712-0808 ● ● ●
153 04.730 SCREW; BRKT FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 04.681 M5X12 TAPPING 		0-72180-512-0 01 1 0809-1001 ● ● ●
153 04.730 SCREW; BRKT FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 M5X12 TAPPING 		0-72180-512-0 01 1 1002- ● ● ●
237 04.840 CONNECTOR; MODULATOR
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-98007-865-3 01 1 0712-0906 ● ●
237 04.840 CONNECTOR; MODULATOR
(A) 		8-98007-865-3 01 1 0712-0906 ●
237 04.840 CONNECTOR; MODULATOR
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-98111-748-1 01 1 0907- ● ●
237 04.840 CONNECTOR; MODULATOR
(B) 		8-98111-748-1 01 1 0907- ●
256 04.840 BRACKET; BRK PIPE 8-98034-784-1 01 1 0712-0808 ● ● ●
256 04.840 BRACKET; BRK PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98034-784-1 01 1 0809-1001 ● ● ●
256 04.840 BRACKET; BRK PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. KD PREPARATORY PACK VAR.4<7TV> 		8-98034-784-1 01 1 1002-1005 ● ● ●
256 04.840 BRACKET; BRK PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) EXC. KD PREPARATORY PACK VAR.4<7TV> 		8-98163-521-0 01 1 1006- ● ● ●
258 04.730 BOLT; PIPE,BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0712- ● ●
258 04.730 BOLT; PIPE,BRK
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0712- ●
264 04.681 BRACKET; SENSOR,PRESSURE
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97387-683-2 01 1 0712- ● ●
264 04.681 BRACKET; SENSOR,PRESSURE 8-97387-683-2 01 1 0712- ●

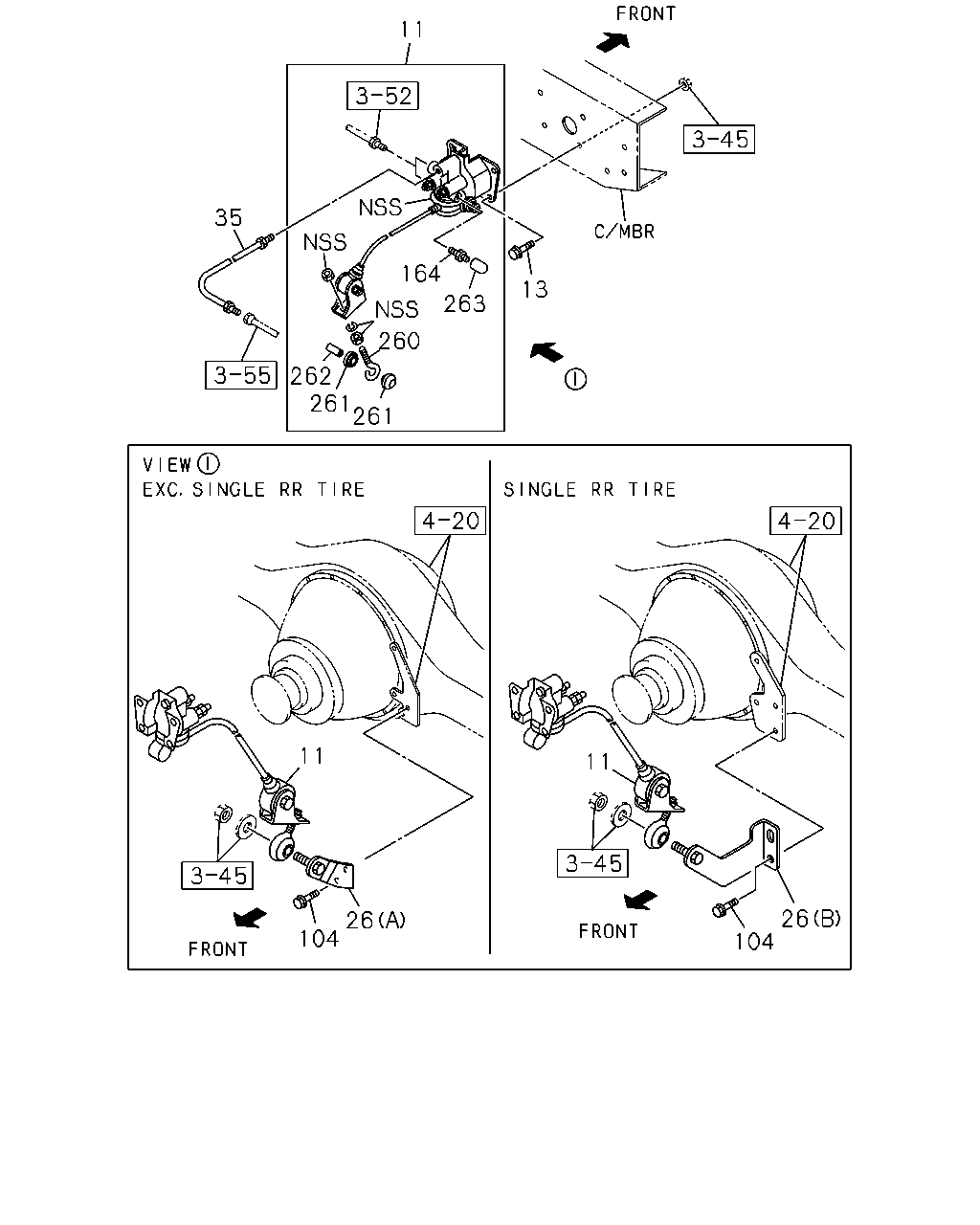

çizim 155117
11 35 164 13 263 260 262 261 261 11 11 26 104 26 104
BalonParca AdiParca NoAdetTipApplied Date A B C
11 04.686 VALVE; BRK CONT
BRK WHL LK CONT LSPV<6PH> SINGLE RR TIRE(6TD) 04.730 		8-94368-455-2 01 1 0712- ●
11 04.686 VALVE; BRK CONT
BRK WHL LK CONT LSPV<6PH> EXC. SINGLE RR TIRE(6TD) 04.730 		8-97070-721-0 01 1 0712- ●
11 04.686 VALVE; BRK CONT
BRK WHL LK CONT LSPV<6PH> 04.730 		8-97070-721-0 01 1 0712- ●
13 04.686 BOLT; VLV TO BRKT
BRK WHL LK CONT LSPV<6PH> 02.343 M8X16 FLANGE 		0-28050-816-0 04 1 0712- ● ●
26 04.730 BRACKET; PROPORTIONING VLV
BRK WHL LK CONT LSPV<6PH> SINGLE RR TIRE(6TD) (B) 		8-98029-822-0 01 1 0712- ●
26 04.730 BRACKET; PROPORTIONING VLV
BRK WHL LK CONT LSPV<6PH> EXC. SINGLE RR TIRE(6TD) (A) 		8-98029-821-0 01 1 0712- ●
26 04.730 BRACKET; PROPORTIONING VLV
BRK WHL LK CONT LSPV<6PH> (A) 		8-98029-821-0 01 1 0712- ●
35 04.685 PIPE; BRK,VLV TO RR AXLE
BRK WHL LK CONT LSPV<6PH> SINGLE RR TIRE(6TD) 		8-98064-716-0 01 1 0712- ●
35 04.685 PIPE; BRK,VLV TO RR AXLE
BRK WHL LK CONT LSPV<6PH> EXC. SINGLE RR TIRE(6TD) 		8-97389-540-0 01 1 0712- ●
35 04.685 PIPE; BRK,VLV TO RR AXLE
BRK WHL LK CONT LSPV<6PH> 		8-97389-540-0 01 1 0712- ●
104 04.730 BOLT; BRKT TO BODY
BRK WHL LK CONT LSPV<6PH> 02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0712- ● ●
164 04.730 SCREW; BLEEDER
BRK WHL LK CONT LSPV<6PH> 04.685 		8-97093-663-0 01 1 0712- ● ●
260 04.685 SHACKLE; LSPV
BRK WHL LK CONT LSPV<6PH> 04.710 		8-97173-366-0 01 1 0712- ● ●
261 04.685 BUSHING; LSPV
BRK WHL LK CONT LSPV<6PH> 04.710 		8-97145-631-0 02 1 0712- ● ●
262 04.685 COLLAR; LSPV
BRK WHL LK CONT LSPV<6PH> 04.710 		8-97139-186-0 01 1 0712- ● ●
263 04.685 CAP; BLEEDER
BRK WHL LK CONT LSPV<6PH> 		8-97093-662-0 01 1 0712- ● ●
