Sayfa 1-50A - Isuzu EPC

1-50A — EXHAUST PIPE AND SILENCER (#5040) — 332 parça

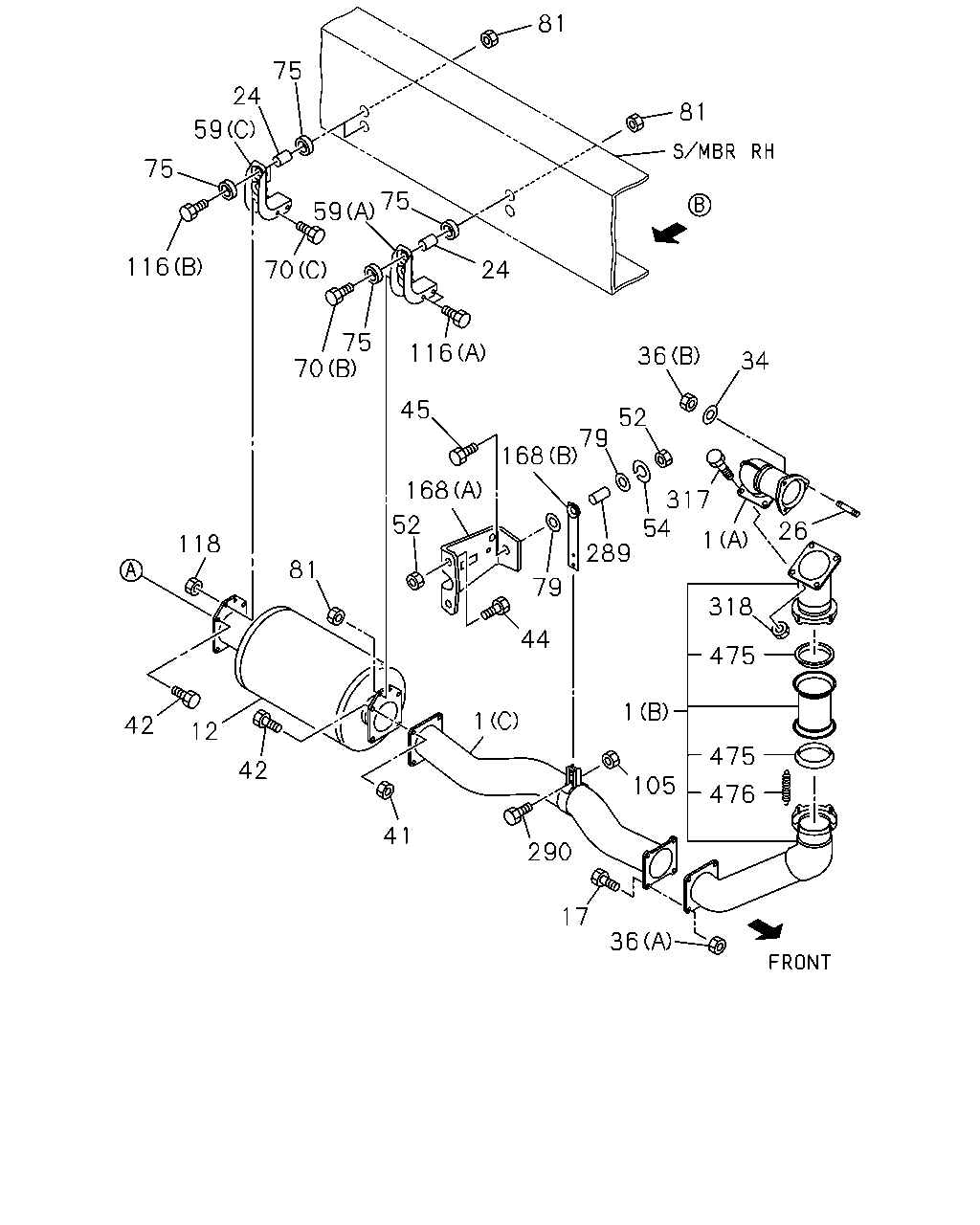

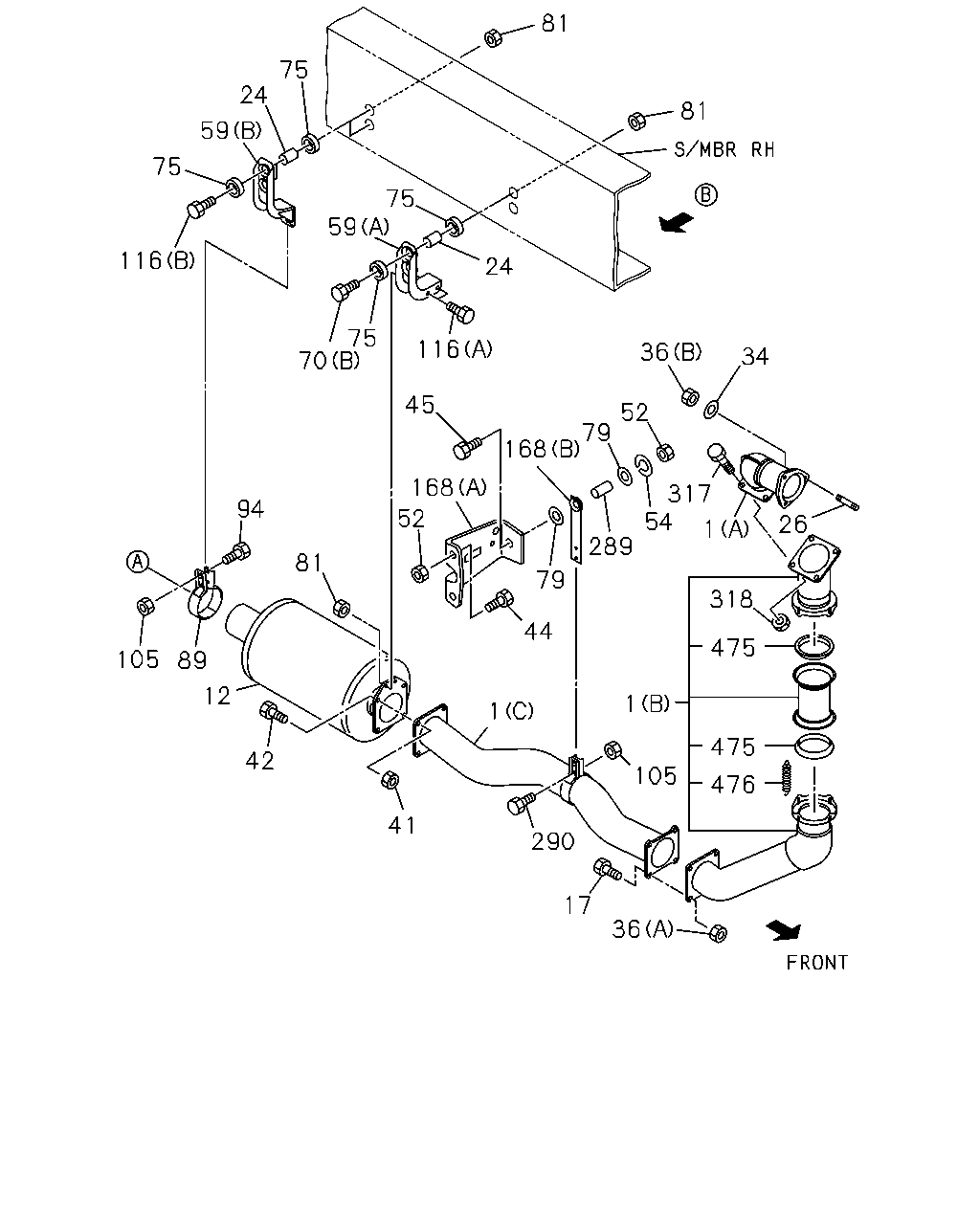

81 75 24 81 59 75 75 59 116 24 75 70 116 36 34 45 52 79 168 168 317 54 94 52 26 1 289 79 81 318 44 475 105 89 12 1 1 475 42 105 476 41 290 17 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PIPE; EXH (B)	1-22122-459-1	01	1	9606-9905	●
1	PIPE; EXH (B)	1-22122-459-1	01	1	9906-	●	●
1	PIPE; EXH (C)	1-22122-792-0	01	1	9606-9905	●
1	PIPE; EXH (C)	1-22122-792-0	01	1	9906-0003	●	●
1	PIPE; EXH (C)	1-22123-388-0	01	1	0004-	●	●
1	PIPE; EXH (A)	1-22122-227-1	01	1	9606-9905	●		●
1	PIPE; EXH (A)	1-22122-227-1	01	1	9906-	●	●		●
1	PIPE; EXH (B)	1-22123-095-0	01	1	9712-9905			●
1	PIPE; EXH (B)	1-22123-230-0	01	1	9906-				●
1	PIPE; EXH (C)	1-22123-096-0	01	1	9712-9905			●
1	PIPE; EXH (C)	1-22123-096-0	01	1	9906-				●
12	SILENCER ASM; EXH	1-22140-725-0	01	1	9606-9701	●
12	SILENCER ASM; EXH	1-22140-845-0	01	1	9702-9905	●
12	SILENCER ASM; EXH	1-22140-845-0	01	1	9906-0003	●	●
12	SILENCER ASM; EXH	1-22140-938-0	01	1	0004-	●	●
12	SILENCER ASM; EXH	1-22140-819-0	01	1	9707-9905			●
12	SILENCER ASM; EXH	1-22140-819-0	01	1	9906-0003				●
12	SILENCER ASM; EXH	1-22140-923-1	01	1	0004-				●
17	BOLT; EXH PIPE M12X25 FLANGE	1-09000-604-0	04	1	9606-9905	●		●
17	BOLT; EXH PIPE M12X25 FLANGE	1-09000-604-0	04	1	9906-	●	●		●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	9606-9905	●		●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	9906-	●	●		●
26	STUD; EXH MANIF M12X140 L=160	1-09302-163-0	03	1	9606-9905	●		●
26	STUD; EXH MANIF M12X140 L=160	1-09302-163-0	03	1	9906-	●	●		●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	03	1	9606-9606	●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09556-020-0	03	1	9607-9905	●		●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09556-020-0	03	1	9906-	●	●		●
36	NUT; EXH PIPE (B) M12	1-09400-010-0	03	1	9606-9807	●		●
36	NUT; EXH PIPE (B) M12	1-09400-131-0	03	1	9808-9905	●		●
36	NUT; EXH PIPE (B) M12	1-09400-131-0	03	1	9906-	●	●		●
36	NUT; EXH PIPE (A) M12 FLANGE	0-91150-212-0	04	1	9607-9709	●		●
36	NUT; EXH PIPE (A) M12	9-99110-512-0	04	1	9710-9905	●		●
36	NUT; EXH PIPE (A) M12	9-99110-512-0	04	1	9906-	●	●		●
41	NUT; EXH PIPE TO EXH SILENCER M12 FLANGE	0-91150-212-0	04	1	9607-9701	●
41	NUT; EXH PIPE TO EXH SILENCER M12 FLANGE	0-91150-212-0	04	1	9702-9709	●		●
41	NUT; EXH PIPE TO EXH SILENCER M12 FLANGE	0-91150-212-0	04	1	9702-9709	●
41	NUT; EXH PIPE TO EXH SILENCER M12 FLANGE	0-91150-212-0	04	1	9710-9905	●
41	NUT; EXH PIPE TO EXH SILENCER M12 FLANGE	0-91150-212-0	04	1	9906-	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	04	1	9710-9905	●		●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	04	1	9906-	●	●		●
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	04	1	9606-9701	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	04	1	9702-9905	●		●
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	04	1	9702-9905	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	04	1	9906-	●	●		●
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	04	1	9906-	●	●
44	BOLT; BRKT M8X30 FLANGE	0-28080-830-0	02	1	9606-9606	●
44	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	9607-9905	●		●
44	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	9906-	●	●		●
45	BOLT; BRKT M10X50	0-10806-050-0	01	1	9606-9606	●
45	BOLT; BRKT M10X50 FLANGE	0-28081-050-0	01	1	9607-9905	●		●
45	BOLT; BRKT M10X50 FLANGE	0-28081-050-0	01	1	9906-	●	●		●
52	NUT; BRKT M8	9-09110-408-0	02	1	9606-9606	●
52	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9607-9905	●		●
52	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9906-	●	●		●
52	NUT; BRKT M10	9-09110-510-0	01	1	9606-9606	●
52	NUT; BRKT M10 FLANGE	0-91150-210-0	01	1	9607-9905	●		●
52	NUT; BRKT M10 FLANGE	0-91150-210-0	01	1	9906-	●	●		●
54	WASHER; LK,BRKT ID=10.2	9-09150-510-0	01	1	9606-9711	●		●
59	BRACKET; EXH SILENCER,FRT (B)	1-22151-728-0	01	1	9606-9701	●
59	BRACKET; EXH SILENCER,FRT (B)	1-22151-728-0	01	1	9904-9905			●
59	BRACKET; EXH SILENCER,FRT (B)	1-22151-728-0	01	1	9906-				●
59	BRACKET; EXH SILENCER,FRT (C)	1-22151-717-0	01	1	9702-9903	●
59	BRACKET; EXH SILENCER,FRT (A)	1-22151-727-1	01	1	9606-9903	●		●
59	BRACKET; EXH SILENCER,FRT (A)	1-22151-727-1	01	1	9904-9905	●		●
59	BRACKET; EXH SILENCER,FRT (A)	1-22151-727-1	01	1	9904-9905	●
59	BRACKET; EXH SILENCER,FRT (A)	1-22151-727-1	01	1	9906-	●	●		●
59	BRACKET; EXH SILENCER,FRT (A)	1-22151-727-1	01	1	9906-	●	●
59	BRACKET; EXH SILENCER,FRT (B)	1-22151-336-1	01	1	9707-9903			●
70	BOLT; BRKT (B) M10X25 FLANGE	0-28081-025-0	02	1	9606-9606	●
70	BOLT; BRKT (B) M10X35 FLANGE	0-28681-035-0	02	1	9607-9607	●
70	BOLT; BRKT WHEEL BASE 6300MM(63W) (B) M10X35 FLANGE	0-28681-035-0	02	1	9610-9905	●
70	BOLT; BRKT WHEEL BASE 6300MM(63W) (B) M10X35 FLANGE	0-28681-035-0	02	1	9906-	●	●
70	BOLT; BRKT (C) M10X70 FLANGE	0-28081-070-0	02	1	9702-9905	●
70	BOLT; BRKT (C) M10X70 FLANGE	0-28081-070-0	02	1	9906-	●	●
70	BOLT; BRKT (A) M10X50 FLANGE	0-28081-050-0	03	1	9606-9905	●		●
70	BOLT; BRKT (A) M10X50 FLANGE	0-28081-050-0	03	1	9906-	●	●		●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	08	1	9606-9905	●		●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	08	1	9906-	●	●		●
79	SUPPORT; BRKT OD=40	1-22159-094-0	02	1	9606-9905	●		●
79	SUPPORT; BRKT OD=40	1-22159-094-0	02	1	9906-	●	●		●
81	NUT; BRKT M8	9-09110-408-0	04	1	9606-9606	●
81	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	9607-9905	●		●
81	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	9906-	●	●		●
81	NUT; BRKT M10	9-09110-510-0	07	1	9606-9606	●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	07	1	9607-9607	●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	05	1	9607-9905	●		●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	05	1	9906-	●	●		●
81	NUT; BRKT WHEEL BASE 6300MM(63W) M10 FLANGE	0-91150-210-0	02	1	9610-	●
89	CLAMP; EXH SILENCER,RR	1-22133-172-2	01	1	9606-9701	●
89	CLAMP; EXH SILENCER,RR	1-22133-172-2	01	1	9707-9905			●
89	CLAMP; EXH SILENCER,RR	1-22133-172-2	01	1	9906-9910				●
89	CLAMP; EXH SILENCER,RR	1-22133-276-0	01	1	9911-				●
94	BOLT; CLAMP M8X40 W/LK WASHER	0-50040-840-0	04	1	9606-9606	●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	04	1	9607-9701	●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9702-9905	●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9906-	●	●		●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9906-				●
94	BOLT; CLAMP M8X40 FLANGE	0-28680-840-0	02	1	9707-9905			●
105	NUT; CLAMP M8	9-09110-408-0	04	1	9606-9606	●
105	NUT; CLAMP M8 FLANGE	0-91150-108-0	04	1	9607-9701	●
105	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	9702-9706	●
105	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	9707-9905	●		●
105	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	9707-9905			●
105	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	9906-	●	●		●
105	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	9906-				●
116	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	02	1	9606-9905	●		●
116	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	02	1	9906-	●	●		●
116	BOLT; BRKT (A) M10X70 FLANGE	0-28081-070-0	02	1	9606-9905	●		●
116	BOLT; BRKT (A) M10X70 FLANGE	0-28081-070-0	02	1	9906-	●	●		●
168	BRACKET; EXH PIPE,FRT (B)	1-22131-276-2	01	1	9606-9905	●		●
168	BRACKET; EXH PIPE,FRT (B)	1-22131-276-2	01	1	9906-	●	●		●
168	BRACKET; EXH PIPE,FRT (A)	1-22131-649-0	01	1	9606-9905	●		●
168	BRACKET; EXH PIPE,FRT (A)	1-22131-649-0	01	1	9906-	●	●		●
168	BRACKET; EXH PIPE,FRT WHEEL BASE 6300MM(63W) (C)	1-22131-761-0	01	1	9610-9905	●
168	BRACKET; EXH PIPE,FRT WHEEL BASE 6300MM(63W) (C)	1-22131-761-0	01	1	9906-	●	●
289	COLLAR; DIST,SUPPORT RUBBER L=22	9-22159-024-0	01	1	9606-9905	●		●
289	COLLAR; DIST,SUPPORT RUBBER L=22	9-22159-024-0	01	1	9906-	●	●		●
290	BOLT; CLAMP M8X40 W/LK WASHER	0-50040-840-0	02	1	9606-9606	●
290	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9607-9905	●		●
290	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9906-	●	●		●
317	BOLT; EXH PIPE,FRT M12X25 FLANGE	1-09000-604-0	04	1	9606-9905	●		●
317	BOLT; EXH PIPE,FRT M12X25 FLANGE	1-09000-604-0	04	1	9906-	●	●		●
318	NUT; EXH PIPE,FRT M12	9-99110-512-0	04	1	9606-9606	●
318	NUT; EXH PIPE,FRT M12 FLANGE	0-91150-212-0	04	1	9607-9905	●		●
318	NUT; EXH PIPE,FRT M12 FLANGE	0-91150-212-0	04	1	9906-	●	●		●
475	BEARING; SEAL,VIBNON,EXH PIPE OD=122	1-22119-297-0	02	1	9606-9905	●		●
475	BEARING; SEAL,VIBNON,EXH PIPE OD=122	1-22119-297-0	02	1	9906-	●	●		●
476	SPRING; VIBNON,EXH PIPE	1-09583-298-0	04	1	9606-9905	●		●
476	SPRING; VIBNON,EXH PIPE	1-09583-298-0	04	1	9906-	●	●		●

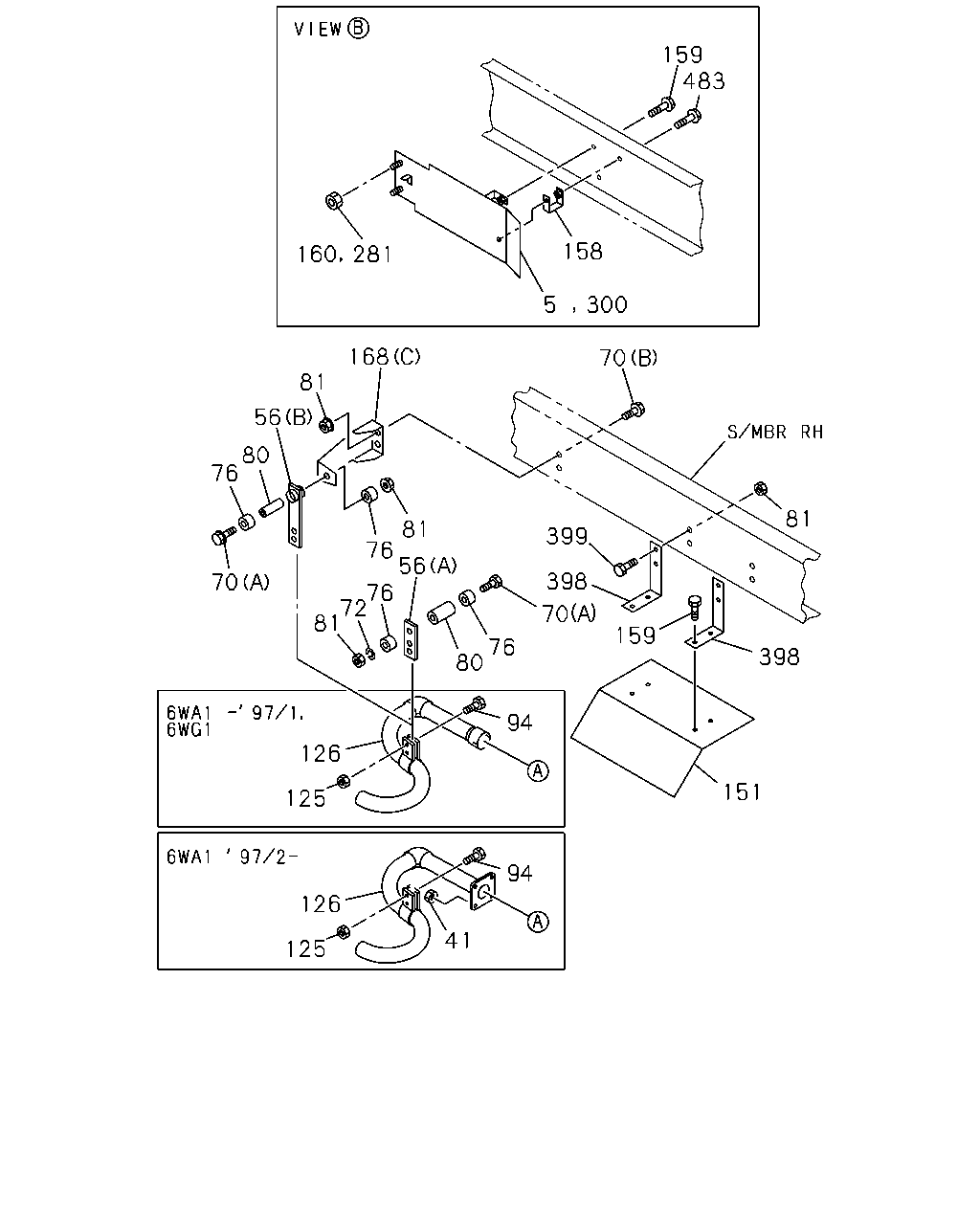

159 483 158 5 300 168 70 81 56 80 76 81 81 76 56 76 72 81 399 398 70 70 159 76 80 398 94 126 151 125 94 126 41 125 160 281

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
5	PROTECTOR; HEAT	1-22119-366-0	01	1	9903-9905	●
5	PROTECTOR; HEAT	1-22119-366-0	01	1	9906-	●	●
5	PROTECTOR; HEAT ELECTRONIC GOV RED3(KG5)	1-22119-405-0	01	1	9906-		●		●
41	NUT; EXH PIPE TO EXH SILENCER M12 FLANGE	0-91150-212-0	04	1	9607-9701	●
41	NUT; EXH PIPE TO EXH SILENCER M12 FLANGE	0-91150-212-0	04	1	9702-9709	●		●
41	NUT; EXH PIPE TO EXH SILENCER M12 FLANGE	0-91150-212-0	04	1	9702-9709	●
41	NUT; EXH PIPE TO EXH SILENCER M12 FLANGE	0-91150-212-0	04	1	9710-9905	●
41	NUT; EXH PIPE TO EXH SILENCER M12 FLANGE	0-91150-212-0	04	1	9906-	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	04	1	9710-9905	●		●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	04	1	9906-	●	●		●
56	BRACKET; CLAMP,EXH PIPE (A)	1-22131-280-2	01	1	9606-9609	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 6600MM(66W) (A)	1-22131-280-2	01	1	9610-9905	●		●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 6600MM(66W) (A)	1-22131-280-2	01	1	9906-	●	●		●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 6300MM(63W) (B)	1-22131-232-2	01	1	9610-9905	●	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 6300MM(63W) (B)	1-22131-232-2	01	1	9906-	●	●
70	BOLT; BRKT (B) M10X25 FLANGE	0-28081-025-0	02	1	9606-9606	●
70	BOLT; BRKT (B) M10X35 FLANGE	0-28681-035-0	02	1	9607-9607	●
70	BOLT; BRKT WHEEL BASE 6300MM(63W) (B) M10X35 FLANGE	0-28681-035-0	02	1	9610-9905	●
70	BOLT; BRKT WHEEL BASE 6300MM(63W) (B) M10X35 FLANGE	0-28681-035-0	02	1	9906-	●	●
70	BOLT; BRKT (C) M10X70 FLANGE	0-28081-070-0	02	1	9702-9905	●
70	BOLT; BRKT (C) M10X70 FLANGE	0-28081-070-0	02	1	9906-	●	●
70	BOLT; BRKT (A) M10X50 FLANGE	0-28081-050-0	03	1	9606-9905	●		●
70	BOLT; BRKT (A) M10X50 FLANGE	0-28081-050-0	03	1	9906-	●	●		●
72	WASHER; LK,BRKT ID=10.2	9-09150-510-0	01	1	9606-9606	●
76	SUPPORT; BRKT OD=40	1-22159-193-0	02	1	9606-9905	●		●
76	SUPPORT; BRKT OD=40	1-22159-193-0	02	1	9906-	●	●		●
80	COLLAR; DIST,SUPPORT RUBBER L=22	9-22159-024-0	01	1	9606-9905	●		●
80	COLLAR; DIST,SUPPORT RUBBER L=22	9-22159-024-0	01	1	9906-	●	●		●
81	NUT; BRKT M8	9-09110-408-0	04	1	9606-9606	●
81	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	9607-9905	●		●
81	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	9906-	●	●		●
81	NUT; BRKT M10	9-09110-510-0	07	1	9606-9606	●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	07	1	9607-9607	●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	05	1	9607-9905	●		●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	05	1	9906-	●	●		●
81	NUT; BRKT WHEEL BASE 6300MM(63W) M10 FLANGE	0-91150-210-0	02	1	9610-	●
94	BOLT; CLAMP M8X40 W/LK WASHER	0-50040-840-0	04	1	9606-9606	●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	04	1	9607-9701	●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9702-9905	●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9906-	●	●		●
94	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9906-				●
94	BOLT; CLAMP M8X40 FLANGE	0-28680-840-0	02	1	9707-9905			●
125	NUT; CLAMP M8	9-09110-408-0	02	1	9606-9606	●
125	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	9607-9905	●		●
125	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	9906-	●	●		●
126	PIPE; EXH,RR	1-22126-190-0	01	1	9606-9609	●
126	PIPE; EXH,RR WHEEL BASE 6600MM(66W)	1-22126-190-0	01	1	9610-9701	●
126	PIPE; EXH,RR WHEEL BASE 6600MM(66W)	1-22126-227-0	01	1	9702-9905	●
126	PIPE; EXH,RR WHEEL BASE 6600MM(66W)	1-22126-227-0	01	1	9906-	●	●
126	PIPE; EXH,RR WHEEL BASE 6300MM(63W)	1-22126-209-0	01	1	9610-9701	●
126	PIPE; EXH,RR WHEEL BASE 6300MM(63W)	1-22126-228-0	01	1	9702-9905	●
126	PIPE; EXH,RR WHEEL BASE 6300MM(63W)	1-22126-228-0	01	1	9906-	●	●
126	PIPE; EXH,RR	1-22126-253-1	01	1	9707-9905			●
126	PIPE; EXH,RR	1-22126-253-1	01	1	9906-				●
151	PROTECTOR; HEAT,EXH PIPE	1-22159-274-0	01	1	9606-9905	●		●
151	PROTECTOR; HEAT,EXH PIPE	1-22159-274-0	01	1	9906-	●	●		●
158	BRACKET; HEAT PROTECTOR	1-22119-368-0	01	1	9606-9905	●		●
158	BRACKET; HEAT PROTECTOR	1-22119-368-0	01	1	9906-	●	●		●
159	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28080-816-0	01	1	9606-9606	●
159	BOLT; HEAT PROTECTOR M8X20 FLANGE	0-28680-820-0	01	1	9607-9902	●		●
159	BOLT; HEAT PROTECTOR M8X20 FLANGE	0-28080-820-0	01	1	9606-9606	●
159	BOLT; HEAT PROTECTOR M8X20 FLANGE	0-28080-820-0	04	1	9606-9606	●
159	BOLT; HEAT PROTECTOR M8X20 FLANGE	0-28680-820-0	04	1	9607-9905	●		●
159	BOLT; HEAT PROTECTOR M8X20 FLANGE	0-28680-820-0	04	1	9906-	●	●		●
159	BOLT; HEAT PROTECTOR M8X30 FLANGE	0-28680-830-0	02	1	9606-9902	●		●
160	NUT; HEAT PROTECTOR M8	9-09110-408-0	02	1	9606-9606	●
160	NUT; HEAT PROTECTOR M8 FLANGE	0-91150-108-0	02	1	9607-9902	●		●
168	BRACKET; EXH PIPE,FRT (B)	1-22131-276-2	01	1	9606-9905	●		●
168	BRACKET; EXH PIPE,FRT (B)	1-22131-276-2	01	1	9906-	●	●		●
168	BRACKET; EXH PIPE,FRT (A)	1-22131-649-0	01	1	9606-9905	●		●
168	BRACKET; EXH PIPE,FRT (A)	1-22131-649-0	01	1	9906-	●	●		●
168	BRACKET; EXH PIPE,FRT WHEEL BASE 6300MM(63W) (C)	1-22131-761-0	01	1	9610-9905	●
168	BRACKET; EXH PIPE,FRT WHEEL BASE 6300MM(63W) (C)	1-22131-761-0	01	1	9906-	●	●
281	NUT; HEAT PROTECTOR M8 FLANGE	0-91150-108-0	02	1	9903-	●
300	PROTECTOR; HEAT,EXH PIPE	1-22119-366-0	01	1	9606-9902	●
398	BRACKET; HEAT PROTECTOR	1-22119-355-0	02	1	9606-9905	●		●
398	BRACKET; HEAT PROTECTOR	1-22119-355-0	02	1	9906-	●	●		●
399	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	04	1	9606-9606	●
399	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	04	1	9607-9905	●		●
399	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	04	1	9906-	●	●		●
483	BOLT; BRKT,HEAT PROTECTOR M8X30 FLANGE	0-28680-830-0	01	1	9606-9905	●		●
483	BOLT; BRKT,HEAT PROTECTOR M8X30 FLANGE	0-28680-830-0	01	1	9906-	●	●		●

81 75 24 81 59 75 75 59 116 24 70 75 70 116 36 34 45 52 79 168 168 317 54 52 26 1 118 289 79 81 318 44 475 1 1 42 12 475 42 105 476 41 290 17 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PIPE; EXH (B)	1-22122-459-1	01	1	9606-9905	●
1	PIPE; EXH (B)	1-22122-459-1	01	1	9906-	●	●
1	PIPE; EXH (C)	1-22122-792-0	01	1	9606-9905	●
1	PIPE; EXH (C)	1-22122-792-0	01	1	9906-0003	●	●
1	PIPE; EXH (C)	1-22123-388-0	01	1	0004-	●	●
1	PIPE; EXH (A)	1-22122-227-1	01	1	9606-9905	●		●
1	PIPE; EXH (A)	1-22122-227-1	01	1	9906-	●	●		●
1	PIPE; EXH (B)	1-22123-095-0	01	1	9712-9905			●
1	PIPE; EXH (B)	1-22123-230-0	01	1	9906-				●
1	PIPE; EXH (C)	1-22123-096-0	01	1	9712-9905			●
1	PIPE; EXH (C)	1-22123-096-0	01	1	9906-				●
12	SILENCER ASM; EXH	1-22140-725-0	01	1	9606-9701	●
12	SILENCER ASM; EXH	1-22140-845-0	01	1	9702-9905	●
12	SILENCER ASM; EXH	1-22140-845-0	01	1	9906-0003	●	●
12	SILENCER ASM; EXH	1-22140-938-0	01	1	0004-	●	●
12	SILENCER ASM; EXH	1-22140-819-0	01	1	9707-9905			●
12	SILENCER ASM; EXH	1-22140-819-0	01	1	9906-0003				●
12	SILENCER ASM; EXH	1-22140-923-1	01	1	0004-				●
17	BOLT; EXH PIPE M12X25 FLANGE	1-09000-604-0	04	1	9606-9905	●		●
17	BOLT; EXH PIPE M12X25 FLANGE	1-09000-604-0	04	1	9906-	●	●		●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	9606-9905	●		●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	9906-	●	●		●
26	STUD; EXH MANIF M12X140 L=160	1-09302-163-0	03	1	9606-9905	●		●
26	STUD; EXH MANIF M12X140 L=160	1-09302-163-0	03	1	9906-	●	●		●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	03	1	9606-9606	●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09556-020-0	03	1	9607-9905	●		●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09556-020-0	03	1	9906-	●	●		●
36	NUT; EXH PIPE (B) M12	1-09400-010-0	03	1	9606-9807	●		●
36	NUT; EXH PIPE (B) M12	1-09400-131-0	03	1	9808-9905	●		●
36	NUT; EXH PIPE (B) M12	1-09400-131-0	03	1	9906-	●	●		●
36	NUT; EXH PIPE (A) M12 FLANGE	0-91150-212-0	04	1	9607-9709	●		●
36	NUT; EXH PIPE (A) M12	9-99110-512-0	04	1	9710-9905	●		●
36	NUT; EXH PIPE (A) M12	9-99110-512-0	04	1	9906-	●	●		●
41	NUT; EXH PIPE TO EXH SILENCER M12 FLANGE	0-91150-212-0	04	1	9607-9701	●
41	NUT; EXH PIPE TO EXH SILENCER M12 FLANGE	0-91150-212-0	04	1	9702-9709	●		●
41	NUT; EXH PIPE TO EXH SILENCER M12 FLANGE	0-91150-212-0	04	1	9702-9709	●
41	NUT; EXH PIPE TO EXH SILENCER M12 FLANGE	0-91150-212-0	04	1	9710-9905	●
41	NUT; EXH PIPE TO EXH SILENCER M12 FLANGE	0-91150-212-0	04	1	9906-	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	04	1	9710-9905	●		●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	04	1	9906-	●	●		●
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	04	1	9606-9701	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	04	1	9702-9905	●		●
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	04	1	9702-9905	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	04	1	9906-	●	●		●
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	04	1	9906-	●	●
44	BOLT; BRKT M8X30 FLANGE	0-28080-830-0	02	1	9606-9606	●
44	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	9607-9905	●		●
44	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	9906-	●	●		●
45	BOLT; BRKT M10X50	0-10806-050-0	01	1	9606-9606	●
45	BOLT; BRKT M10X50 FLANGE	0-28081-050-0	01	1	9607-9905	●		●
45	BOLT; BRKT M10X50 FLANGE	0-28081-050-0	01	1	9906-	●	●		●
52	NUT; BRKT M8	9-09110-408-0	02	1	9606-9606	●
52	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9607-9905	●		●
52	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9906-	●	●		●
52	NUT; BRKT M10	9-09110-510-0	01	1	9606-9606	●
52	NUT; BRKT M10 FLANGE	0-91150-210-0	01	1	9607-9905	●		●
52	NUT; BRKT M10 FLANGE	0-91150-210-0	01	1	9906-	●	●		●
54	WASHER; LK,BRKT ID=10.2	9-09150-510-0	01	1	9606-9711	●		●
59	BRACKET; EXH SILENCER,FRT (B)	1-22151-728-0	01	1	9606-9701	●
59	BRACKET; EXH SILENCER,FRT (B)	1-22151-728-0	01	1	9904-9905			●
59	BRACKET; EXH SILENCER,FRT (B)	1-22151-728-0	01	1	9906-				●
59	BRACKET; EXH SILENCER,FRT (C)	1-22151-717-0	01	1	9702-9903	●
59	BRACKET; EXH SILENCER,FRT (A)	1-22151-727-1	01	1	9606-9903	●		●
59	BRACKET; EXH SILENCER,FRT (A)	1-22151-727-1	01	1	9904-9905	●		●
59	BRACKET; EXH SILENCER,FRT (A)	1-22151-727-1	01	1	9904-9905	●
59	BRACKET; EXH SILENCER,FRT (A)	1-22151-727-1	01	1	9906-	●	●		●
59	BRACKET; EXH SILENCER,FRT (A)	1-22151-727-1	01	1	9906-	●	●
59	BRACKET; EXH SILENCER,FRT (B)	1-22151-336-1	01	1	9707-9903			●
70	BOLT; BRKT (B) M10X25 FLANGE	0-28081-025-0	02	1	9606-9606	●
70	BOLT; BRKT (B) M10X35 FLANGE	0-28681-035-0	02	1	9607-9607	●
70	BOLT; BRKT WHEEL BASE 6300MM(63W) (B) M10X35 FLANGE	0-28681-035-0	02	1	9610-9905	●
70	BOLT; BRKT WHEEL BASE 6300MM(63W) (B) M10X35 FLANGE	0-28681-035-0	02	1	9906-	●	●
70	BOLT; BRKT (C) M10X70 FLANGE	0-28081-070-0	02	1	9702-9905	●
70	BOLT; BRKT (C) M10X70 FLANGE	0-28081-070-0	02	1	9906-	●	●
70	BOLT; BRKT (A) M10X50 FLANGE	0-28081-050-0	03	1	9606-9905	●		●
70	BOLT; BRKT (A) M10X50 FLANGE	0-28081-050-0	03	1	9906-	●	●		●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	08	1	9606-9905	●		●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	08	1	9906-	●	●		●
79	SUPPORT; BRKT OD=40	1-22159-094-0	02	1	9606-9905	●		●
79	SUPPORT; BRKT OD=40	1-22159-094-0	02	1	9906-	●	●		●
81	NUT; BRKT M8	9-09110-408-0	04	1	9606-9606	●
81	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	9607-9905	●		●
81	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	9906-	●	●		●
81	NUT; BRKT M10	9-09110-510-0	07	1	9606-9606	●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	07	1	9607-9607	●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	05	1	9607-9905	●		●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	05	1	9906-	●	●		●
81	NUT; BRKT WHEEL BASE 6300MM(63W) M10 FLANGE	0-91150-210-0	02	1	9610-	●
105	NUT; CLAMP M8	9-09110-408-0	04	1	9606-9606	●
105	NUT; CLAMP M8 FLANGE	0-91150-108-0	04	1	9607-9701	●
105	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	9702-9706	●
105	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	9707-9905	●		●
105	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	9707-9905			●
105	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	9906-	●	●		●
105	NUT; CLAMP M8 FLANGE	0-91150-108-0	02	1	9906-				●
116	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	02	1	9606-9905	●		●
116	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	02	1	9906-	●	●		●
116	BOLT; BRKT (A) M10X70 FLANGE	0-28081-070-0	02	1	9606-9905	●		●
116	BOLT; BRKT (A) M10X70 FLANGE	0-28081-070-0	02	1	9906-	●	●		●
118	NUT; SILENCER MTG BRKT M10 FLANGE	0-91150-210-0	02	1	9702-9905	●
118	NUT; SILENCER MTG BRKT M10 FLANGE	0-91150-210-0	02	1	9906-	●	●
168	BRACKET; EXH PIPE,FRT (B)	1-22131-276-2	01	1	9606-9905	●		●
168	BRACKET; EXH PIPE,FRT (B)	1-22131-276-2	01	1	9906-	●	●		●
168	BRACKET; EXH PIPE,FRT (A)	1-22131-649-0	01	1	9606-9905	●		●
168	BRACKET; EXH PIPE,FRT (A)	1-22131-649-0	01	1	9906-	●	●		●
168	BRACKET; EXH PIPE,FRT WHEEL BASE 6300MM(63W) (C)	1-22131-761-0	01	1	9610-9905	●
168	BRACKET; EXH PIPE,FRT WHEEL BASE 6300MM(63W) (C)	1-22131-761-0	01	1	9906-	●	●
289	COLLAR; DIST,SUPPORT RUBBER L=22	9-22159-024-0	01	1	9606-9905	●		●
289	COLLAR; DIST,SUPPORT RUBBER L=22	9-22159-024-0	01	1	9906-	●	●		●
290	BOLT; CLAMP M8X40 W/LK WASHER	0-50040-840-0	02	1	9606-9606	●
290	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9607-9905	●		●
290	BOLT; CLAMP M8X40 FLANGE	0-28080-840-0	02	1	9906-	●	●		●
317	BOLT; EXH PIPE,FRT M12X25 FLANGE	1-09000-604-0	04	1	9606-9905	●		●
317	BOLT; EXH PIPE,FRT M12X25 FLANGE	1-09000-604-0	04	1	9906-	●	●		●
318	NUT; EXH PIPE,FRT M12	9-99110-512-0	04	1	9606-9606	●
318	NUT; EXH PIPE,FRT M12 FLANGE	0-91150-212-0	04	1	9607-9905	●		●
318	NUT; EXH PIPE,FRT M12 FLANGE	0-91150-212-0	04	1	9906-	●	●		●
475	BEARING; SEAL,VIBNON,EXH PIPE OD=122	1-22119-297-0	02	1	9606-9905	●		●
475	BEARING; SEAL,VIBNON,EXH PIPE OD=122	1-22119-297-0	02	1	9906-	●	●		●
476	SPRING; VIBNON,EXH PIPE	1-09583-298-0	04	1	9606-9905	●		●
476	SPRING; VIBNON,EXH PIPE	1-09583-298-0	04	1	9906-	●	●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
