Sayfa 3-15 - Isuzu EPC

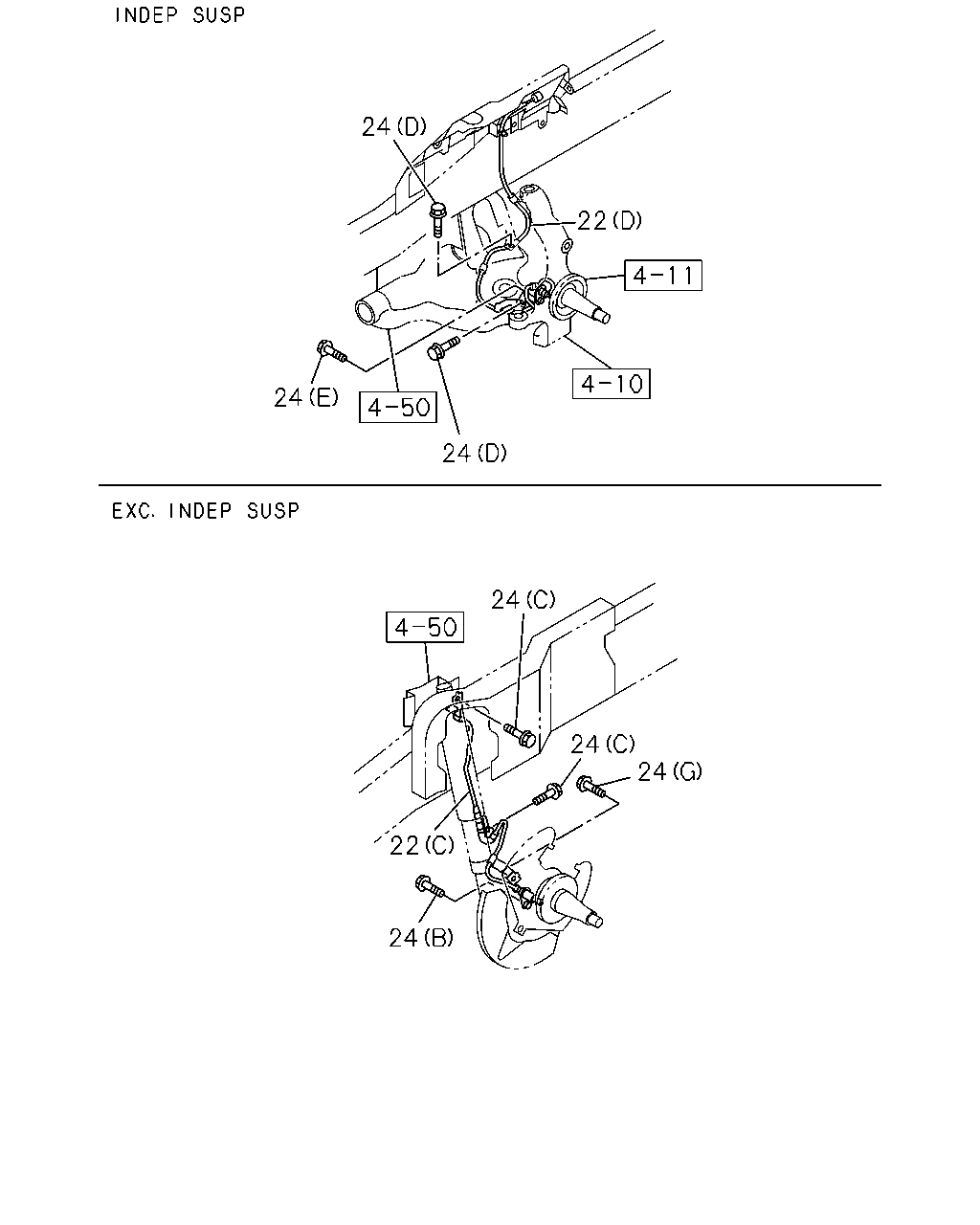

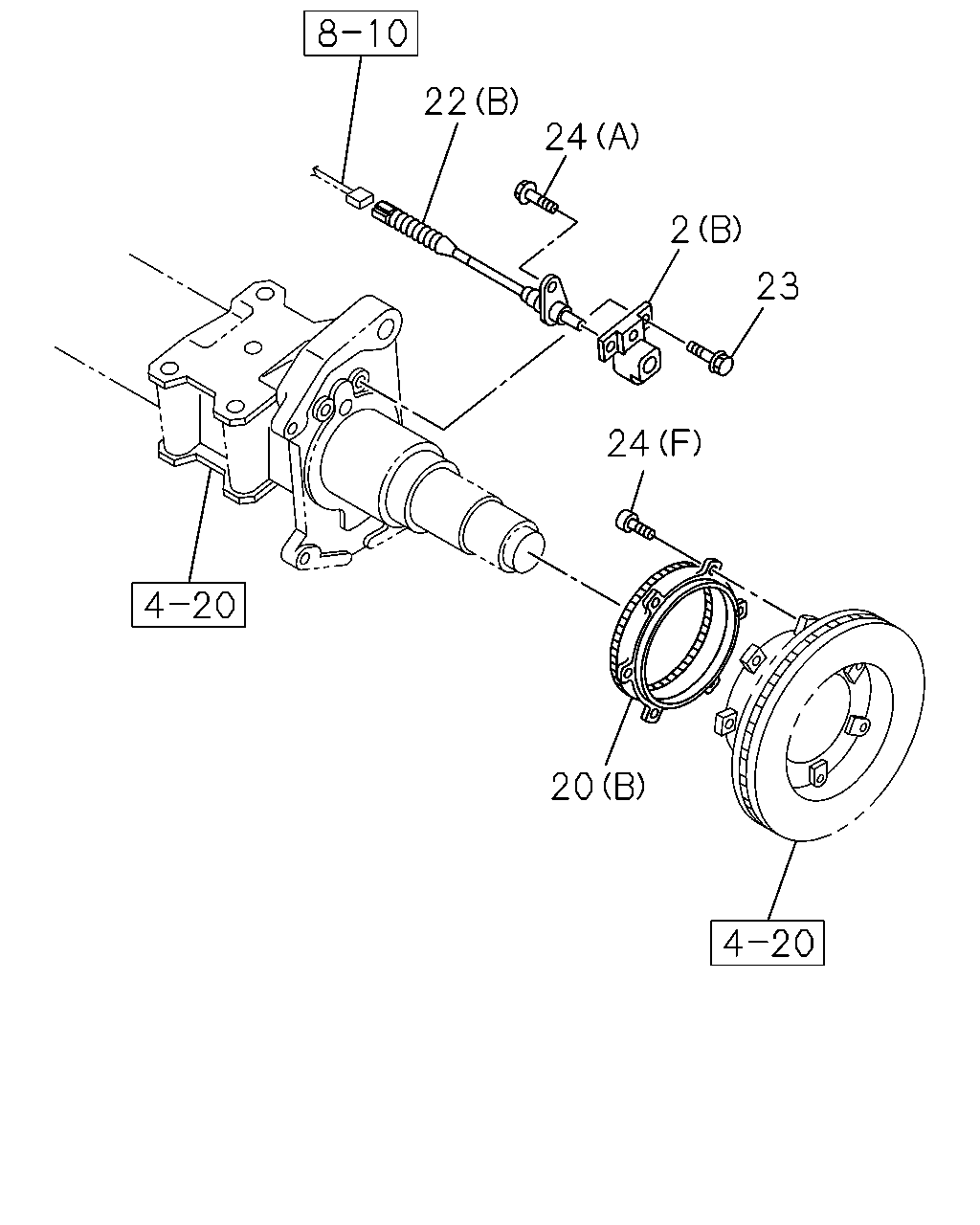

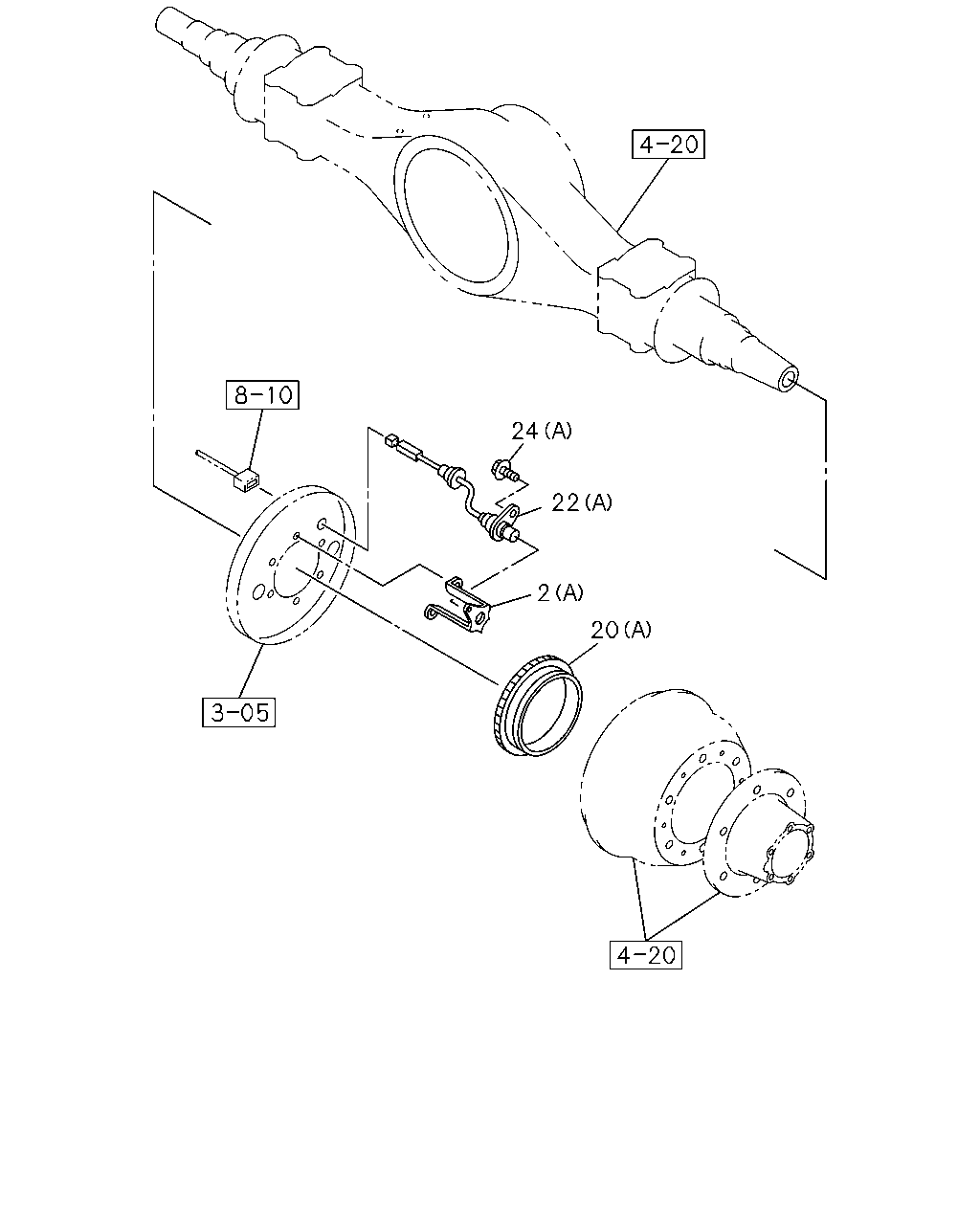

3-15 — ANTILOCK BRAKE SYSTEM(A.B.S.) (#50399) — 132 parça

24 22 24 24 24 24 24 22 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. 4 WHEEL DISC BRAKE<JF9>,BRK WHL LK CONT LSPV<6PH> (A)	8-98219-351-0	02	1	1402-	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. 4 WHEEL DISC BRAKE<JF9>,BRK WHL LK CONT LSPV<6PH> (A)	8-97388-899-1	02	1	0712-1401	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> EXC. BRK WHL LK CONT LSPV<6PH> (B)	8-98012-753-1	02	1	0712-	●
22	04.710 SENSOR; SPEED (B)	8-98012-753-1	02	1	0712-		●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98012-753-1	02	1	0712-			●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98001-127-1	01	1	0712-	●		●
22	04.710 SENSOR; SPEED (C)	8-98001-127-1	01	1	0712-		●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98001-128-1	01	1	0712-	●		●
22	04.710 SENSOR; SPEED (C)	8-98001-128-1	01	1	0712-		●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (C)	8-98001-129-1	01	1	0802-	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (C)	8-98001-130-1	01	1	0802-	●
22	04.710 SENSOR; SPEED FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 05.811 (D)	8-98001-470-1	01	1	0712-	●
22	04.710 SENSOR; SPEED FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 05.811 (D)	8-98001-471-2	01	1	0712-	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (A) M6X10 FLANGE	0-28050-610-0	02	1	0712-1401	●		●
24	04.730 BOLT; SENSOR 03.671 (A) M6X10 FLANGE	0-28050-610-0	02	1	0712-1401		●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1402-	●		●
24	04.730 BOLT; SENSOR 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1402-		●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	0712-1310	●		●
24	04.730 BOLT; SENSOR 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	0712-1310		●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 09.242 (B) M6X16 FLANGE	0-28050-616-0	02	1	1311-	●		●
24	04.730 BOLT; SENSOR 09.242 (B) M6X16 FLANGE	0-28050-616-0	02	1	1311-		●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	0712-	●		●
24	04.730 BOLT; SENSOR 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	0712-		●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	0712-	●		●
24	04.730 BOLT; SENSOR 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	0712-		●
24	04.730 BOLT; SENSOR FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 (D) M8X12 FLANGE	0-28050-812-0	04	1	0712-	●
24	04.730 BOLT; SENSOR FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 03.162 (E) M6X12 FLANGE	0-28050-612-0	02	1	0712-	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> EXC. BRK WHL LK CONT LSPV<6PH> 00.349 (F) M6X10 HEX SOCKET	0-58330-610-0	12	1	0712-1303	●
24	04.730 BOLT; SENSOR 00.349 (F) M6X10 HEX SOCKET	0-58330-610-0	12	1	0712-1303		●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 00.349 (F) M6X10 HEX SOCKET	0-58330-610-0	12	1	0712-1303			●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> EXC. BRK WHL LK CONT LSPV<6PH> 01.251 (F) M6X12 HEX SOCKET	0-58330-612-0	12	1	1304-	●
24	04.730 BOLT; SENSOR 01.251 (F) M6X12 HEX SOCKET	0-58330-612-0	12	1	1304-		●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 01.251 (F) M6X12 HEX SOCKET	0-58330-612-0	12	1	1304-			●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.225 (G) M10X12 FLANGE	0-28051-012-0	02	1	0712-	●		●
24	04.730 BOLT; SENSOR 06.225 (G) M10X12 FLANGE	0-28051-012-0	02	1	0712-		●

24 22 2 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	04.730 BRACKET; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> EXC. BRK WHL LK CONT LSPV<6PH> (B)	8-98045-222-0	02	1	0712-	●
2	04.730 BRACKET; SENSOR (B)	8-98045-222-0	02	1	0712-		●
2	04.730 BRACKET; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98045-222-0	02	1	0712-			●
2	04.730 BRACKET; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. 4 WHEEL DISC BRAKE<JF9>,BRK WHL LK CONT LSPV<6PH> (A)	8-98002-436-1	02	1	0712-	●
20	04.710 ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> EXC. BRK WHL LK CONT LSPV<6PH> 05.809 (B)	8-97387-160-0	02	1	0712-1102	●
20	04.710 ROTOR; SENSOR 05.809 (B)	8-97387-160-0	02	1	0712-1102		●
20	04.710 ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 05.809 (B)	8-97387-160-0	02	1	0712-1102			●
20	04.710 ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> EXC. BRK WHL LK CONT LSPV<6PH> 05.809 (B)	8-98187-136-0	02	1	1103-	●
20	04.710 ROTOR; SENSOR 05.809 (B)	8-98187-136-0	02	1	1103-		●
20	04.710 ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 05.809 (B)	8-98187-136-0	02	1	1103-			●
20	04.710 ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. 4 WHEEL DISC BRAKE<JF9>,BRK WHL LK CONT LSPV<6PH> (A)	8-97239-527-0	02	1	0712-0911	●
20	04.710 ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. 4 WHEEL DISC BRAKE<JF9>,BRK WHL LK CONT LSPV<6PH> (A)	8-98113-174-0	02	1	0912-	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. 4 WHEEL DISC BRAKE<JF9>,BRK WHL LK CONT LSPV<6PH> (A)	8-98219-351-0	02	1	1402-	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. 4 WHEEL DISC BRAKE<JF9>,BRK WHL LK CONT LSPV<6PH> (A)	8-97388-899-1	02	1	0712-1401	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> EXC. BRK WHL LK CONT LSPV<6PH> (B)	8-98012-753-1	02	1	0712-	●
22	04.710 SENSOR; SPEED (B)	8-98012-753-1	02	1	0712-		●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98012-753-1	02	1	0712-			●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98001-127-1	01	1	0712-	●		●
22	04.710 SENSOR; SPEED (C)	8-98001-127-1	01	1	0712-		●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98001-128-1	01	1	0712-	●		●
22	04.710 SENSOR; SPEED (C)	8-98001-128-1	01	1	0712-		●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (C)	8-98001-129-1	01	1	0802-	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (C)	8-98001-130-1	01	1	0802-	●
22	04.710 SENSOR; SPEED FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 05.811 (D)	8-98001-470-1	01	1	0712-	●
22	04.710 SENSOR; SPEED FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 05.811 (D)	8-98001-471-2	01	1	0712-	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (A) M6X10 FLANGE	0-28050-610-0	02	1	0712-1401	●		●
24	04.730 BOLT; SENSOR 03.671 (A) M6X10 FLANGE	0-28050-610-0	02	1	0712-1401		●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1402-	●		●
24	04.730 BOLT; SENSOR 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1402-		●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	0712-1310	●		●
24	04.730 BOLT; SENSOR 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	0712-1310		●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 09.242 (B) M6X16 FLANGE	0-28050-616-0	02	1	1311-	●		●
24	04.730 BOLT; SENSOR 09.242 (B) M6X16 FLANGE	0-28050-616-0	02	1	1311-		●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	0712-	●		●
24	04.730 BOLT; SENSOR 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	0712-		●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	0712-	●		●
24	04.730 BOLT; SENSOR 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	0712-		●
24	04.730 BOLT; SENSOR FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 (D) M8X12 FLANGE	0-28050-812-0	04	1	0712-	●
24	04.730 BOLT; SENSOR FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 03.162 (E) M6X12 FLANGE	0-28050-612-0	02	1	0712-	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> EXC. BRK WHL LK CONT LSPV<6PH> 00.349 (F) M6X10 HEX SOCKET	0-58330-610-0	12	1	0712-1303	●
24	04.730 BOLT; SENSOR 00.349 (F) M6X10 HEX SOCKET	0-58330-610-0	12	1	0712-1303		●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 00.349 (F) M6X10 HEX SOCKET	0-58330-610-0	12	1	0712-1303			●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> EXC. BRK WHL LK CONT LSPV<6PH> 01.251 (F) M6X12 HEX SOCKET	0-58330-612-0	12	1	1304-	●
24	04.730 BOLT; SENSOR 01.251 (F) M6X12 HEX SOCKET	0-58330-612-0	12	1	1304-		●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 01.251 (F) M6X12 HEX SOCKET	0-58330-612-0	12	1	1304-			●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.225 (G) M10X12 FLANGE	0-28051-012-0	02	1	0712-	●		●
24	04.730 BOLT; SENSOR 06.225 (G) M10X12 FLANGE	0-28051-012-0	02	1	0712-		●

22 24 2 23 24 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	04.730 BRACKET; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> EXC. BRK WHL LK CONT LSPV<6PH> (B)	8-98045-222-0	02	1	0712-	●
2	04.730 BRACKET; SENSOR (B)	8-98045-222-0	02	1	0712-		●
2	04.730 BRACKET; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98045-222-0	02	1	0712-			●
2	04.730 BRACKET; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. 4 WHEEL DISC BRAKE<JF9>,BRK WHL LK CONT LSPV<6PH> (A)	8-98002-436-1	02	1	0712-	●
20	04.710 ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> EXC. BRK WHL LK CONT LSPV<6PH> 05.809 (B)	8-97387-160-0	02	1	0712-1102	●
20	04.710 ROTOR; SENSOR 05.809 (B)	8-97387-160-0	02	1	0712-1102		●
20	04.710 ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 05.809 (B)	8-97387-160-0	02	1	0712-1102			●
20	04.710 ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> EXC. BRK WHL LK CONT LSPV<6PH> 05.809 (B)	8-98187-136-0	02	1	1103-	●
20	04.710 ROTOR; SENSOR 05.809 (B)	8-98187-136-0	02	1	1103-		●
20	04.710 ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 05.809 (B)	8-98187-136-0	02	1	1103-			●
20	04.710 ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. 4 WHEEL DISC BRAKE<JF9>,BRK WHL LK CONT LSPV<6PH> (A)	8-97239-527-0	02	1	0712-0911	●
20	04.710 ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. 4 WHEEL DISC BRAKE<JF9>,BRK WHL LK CONT LSPV<6PH> (A)	8-98113-174-0	02	1	0912-	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. 4 WHEEL DISC BRAKE<JF9>,BRK WHL LK CONT LSPV<6PH> (A)	8-98219-351-0	02	1	1402-	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. 4 WHEEL DISC BRAKE<JF9>,BRK WHL LK CONT LSPV<6PH> (A)	8-97388-899-1	02	1	0712-1401	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> EXC. BRK WHL LK CONT LSPV<6PH> (B)	8-98012-753-1	02	1	0712-	●
22	04.710 SENSOR; SPEED (B)	8-98012-753-1	02	1	0712-		●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98012-753-1	02	1	0712-			●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98001-127-1	01	1	0712-	●		●
22	04.710 SENSOR; SPEED (C)	8-98001-127-1	01	1	0712-		●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98001-128-1	01	1	0712-	●		●
22	04.710 SENSOR; SPEED (C)	8-98001-128-1	01	1	0712-		●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (C)	8-98001-129-1	01	1	0802-	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0),4 WHEEL DISC BRAKE<JF9>,DISC BRAKE FRT<J52> (C)	8-98001-130-1	01	1	0802-	●
22	04.710 SENSOR; SPEED FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 05.811 (D)	8-98001-470-1	01	1	0712-	●
22	04.710 SENSOR; SPEED FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 05.811 (D)	8-98001-471-2	01	1	0712-	●
23	04.710 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> EXC. BRK WHL LK CONT LSPV<6PH> 02.343 M8X12 FLANGE	0-28050-812-0	04	1	0712-	●
23	04.710 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	04	1	0712-		●
23	04.710 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE	0-28050-812-0	04	1	0712-			●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (A) M6X10 FLANGE	0-28050-610-0	02	1	0712-1401	●		●
24	04.730 BOLT; SENSOR 03.671 (A) M6X10 FLANGE	0-28050-610-0	02	1	0712-1401		●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1402-	●		●
24	04.730 BOLT; SENSOR 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1402-		●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	0712-1310	●		●
24	04.730 BOLT; SENSOR 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	0712-1310		●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 09.242 (B) M6X16 FLANGE	0-28050-616-0	02	1	1311-	●		●
24	04.730 BOLT; SENSOR 09.242 (B) M6X16 FLANGE	0-28050-616-0	02	1	1311-		●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	0712-	●		●
24	04.730 BOLT; SENSOR 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	0712-		●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	0712-	●		●
24	04.730 BOLT; SENSOR 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	0712-		●
24	04.730 BOLT; SENSOR FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 (D) M8X12 FLANGE	0-28050-812-0	04	1	0712-	●
24	04.730 BOLT; SENSOR FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 03.162 (E) M6X12 FLANGE	0-28050-612-0	02	1	0712-	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> EXC. BRK WHL LK CONT LSPV<6PH> 00.349 (F) M6X10 HEX SOCKET	0-58330-610-0	12	1	0712-1303	●
24	04.730 BOLT; SENSOR 00.349 (F) M6X10 HEX SOCKET	0-58330-610-0	12	1	0712-1303		●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 00.349 (F) M6X10 HEX SOCKET	0-58330-610-0	12	1	0712-1303			●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> EXC. BRK WHL LK CONT LSPV<6PH> 01.251 (F) M6X12 HEX SOCKET	0-58330-612-0	12	1	1304-	●
24	04.730 BOLT; SENSOR 01.251 (F) M6X12 HEX SOCKET	0-58330-612-0	12	1	1304-		●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 01.251 (F) M6X12 HEX SOCKET	0-58330-612-0	12	1	1304-			●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.225 (G) M10X12 FLANGE	0-28051-012-0	02	1	0712-	●		●
24	04.730 BOLT; SENSOR 06.225 (G) M10X12 FLANGE	0-28051-012-0	02	1	0712-		●
