Sayfa 2-85 - Isuzu EPC

2-85 — POWER TAKE OFF CONTROL (#50391) — 130 parça

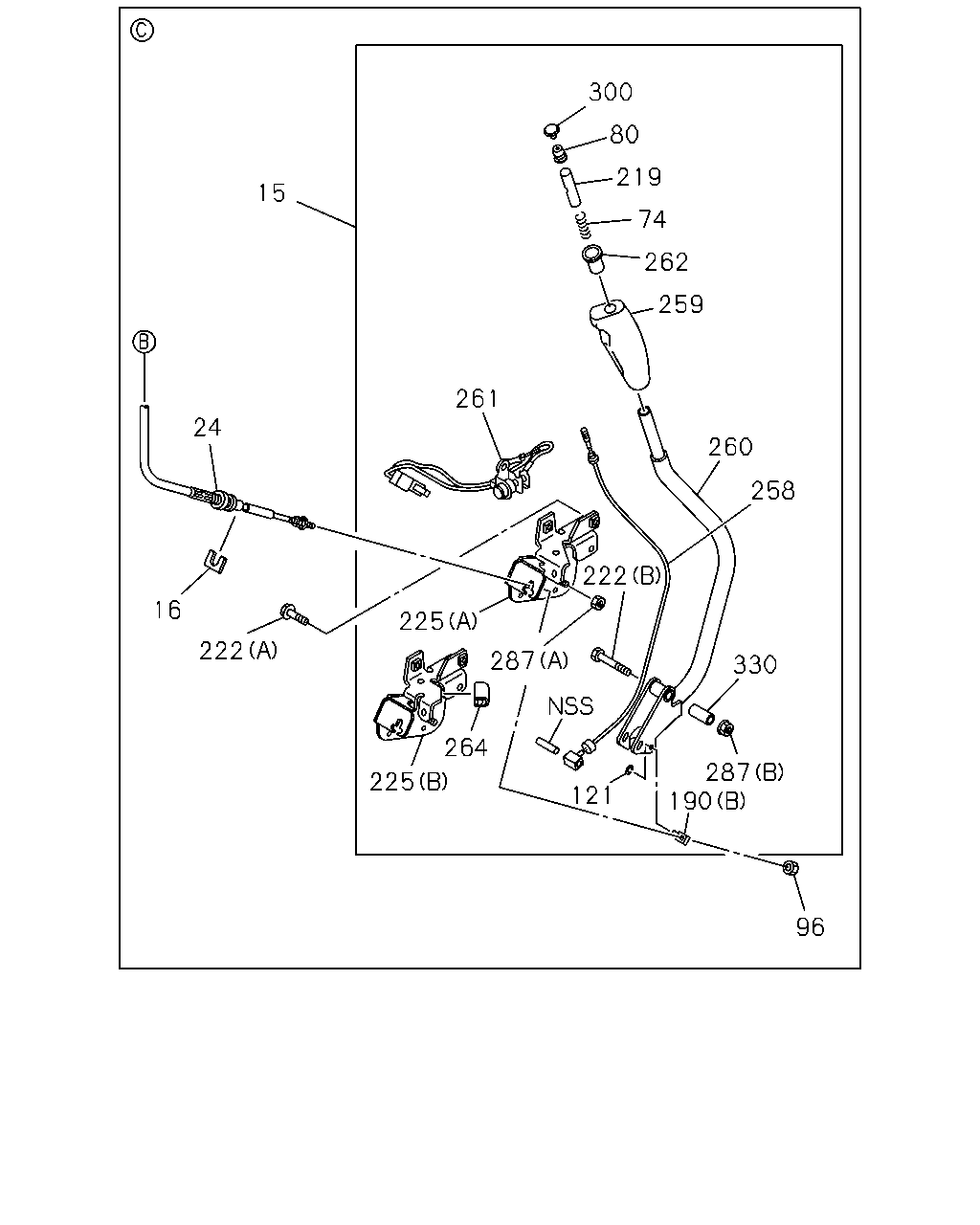

15 300 80 219 74 262 259 260 258 330 222 261 24 16 222 225 225 287 264 121 190 287 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	04.439 LEVER ASM; PTO CONT PTO MANUAL CONTROL(6WC)	8-98029-208-7	01	1	0712-1204
15	04.439 LEVER ASM; PTO CONT PTO MANUAL CONTROL(6WC)	8-98199-362-0	01	1	1205-
16	04.439 CLIP; CABLE,PTO PTO MANUAL CONTROL(6WC)	8-98050-126-0	01	1	0712-
24	04.439 CABLE; PTO CONT AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3455	8-98071-354-2	01	1	0712-0803
24	04.439 CABLE; PTO CONT AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3455	8-98117-142-1	01	1	0804-1207
24	04.439 CABLE; PTO CONT AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3455	8-98223-324-0	01	1	1208-
24	04.439 CABLE; PTO CONT AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3377	8-98071-355-2	01	1	0712-0803
24	04.439 CABLE; PTO CONT AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3377	8-98117-143-1	01	1	0804-1207
24	04.439 CABLE; PTO CONT AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3377	8-98223-323-0	01	1	1208-
24	04.439 CABLE; PTO CONT FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3577	8-98071-359-1	01	1	0712-1207
24	04.439 CABLE; PTO CONT FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3577	8-98223-327-0	01	1	1208-
24	04.439 CABLE; PTO CONT FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3655	8-98071-358-1	01	1	0712-1207
24	04.439 CABLE; PTO CONT FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3655	8-98223-328-0	01	1	1208-
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68),FRT INDEPENDENT SUSPENSION(FF0) L=3372	8-98086-185-1	01	1	0712-0803
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68),FRT INDEPENDENT SUSPENSION(FF0) L=3372	8-98117-145-1	01	1	0804-1207
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68),FRT INDEPENDENT SUSPENSION(FF0) L=3372	8-98223-325-0	01	1	1208-
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68),FRT INDEPENDENT SUSPENSION(FF0) L=3450	8-98086-184-1	01	1	0712-0803
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68),FRT INDEPENDENT SUSPENSION(FF0) L=3450	8-98117-144-1	01	1	0804-1207
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68),FRT INDEPENDENT SUSPENSION(FF0) L=3450	8-98223-326-0	01	1	1208-
74	04.439 SPRING; RETURN,CONT LEVER PTO MANUAL CONTROL(6WC)	8-98029-874-0	01	1	0712-
80	04.439 COVER; CONT LEVER PTO MANUAL CONTROL(6WC)	8-97122-741-0	01	1	0712-
96	04.439 NUT PTO MANUAL CONTROL(6WC) 03.330 M6	0-91110-506-0	01	1	0712-
121	04.439 RING; SNAP PTO MANUAL CONTROL(6WC) 03.485 ID=4	0-91805-504-0	01	1	0712-
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) 04.307 (A)	8-94366-842-2	01	1	0712-
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (B)	8-98029-878-0	01	1	0712-
219	04.439 KNOB; LEVER PTO MANUAL CONTROL(6WC)	8-97122-736-0	01	1	0712-
222	04.439 BOLT; LEVER PTO MANUAL CONTROL(6WC) (B) M8X60	0-10855-860-0	01	1	0712-
222	04.439 BOLT; LEVER PTO MANUAL CONTROL(6WC) 01.531 (A) M8X20 FLANGE	0-28650-820-0	03	1	0712-
225	04.439 BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC)	8-98029-873-3	01	1	0712-1204
225	04.439 BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC)	8-98152-960-1	01	1	1205-
258	04.439 CABLE; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98029-877-1	01	1	0712-
259	04.439 GRIP; CONT LEVER PTO MANUAL CONTROL(6WC)	8-97141-653-0	01	1	0712-
260	04.439 LEVER; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98030-057-2	01	1	0712-
261	04.439 SWITCH; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98081-918-0	01	1	0712-
262	04.439 RETAINER; SPRING PTO MANUAL CONTROL(6WC)	8-97129-397-0	01	1	0712-
264	04.439 PROTECTOR; EDGE PTO MANUAL CONTROL(6WC)	8-98211-652-0	01	1	1205-
287	04.439 NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL(6WC) 03.330 (A) M6	0-91110-506-0	01	1	0712-
287	04.439 NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL(6WC) 01.540 (B) M8 FLANGE	0-91180-208-0	01	1	0712-
300	04.439 CAP; KNOB PTO MANUAL CONTROL(6WC)	8-97122-740-0	01	1	0712-
330	04.439 COLOR; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98049-802-0	01	1	0712-

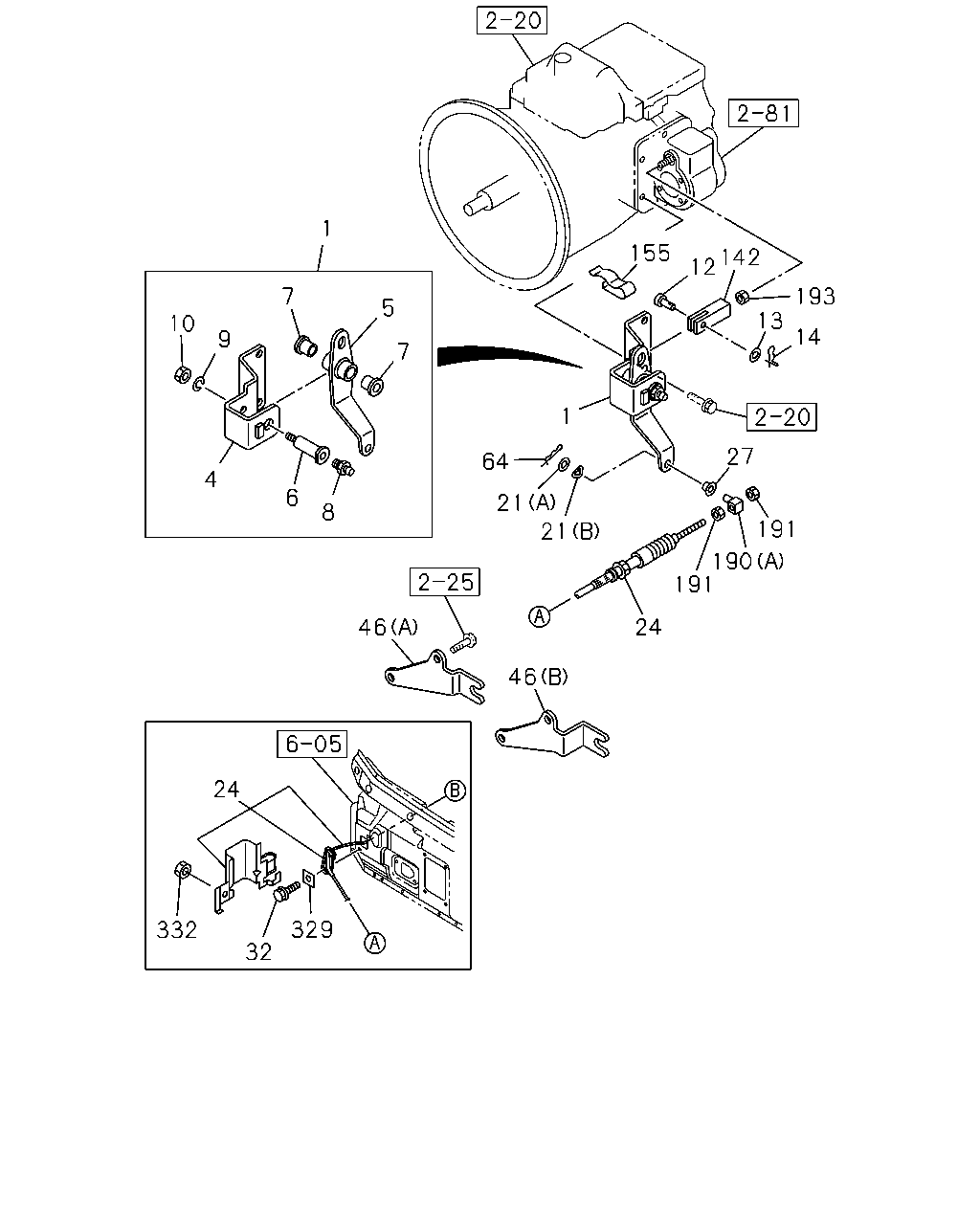

1 155 142 12 193 7 5 13 10 14 9 7 1 27 64 4 6 21 21 8 191 190 191 24 46 46 24 329 332 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66)	8-98032-714-0	01	1	0712-1107
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66)	8-98150-089-1	01	1	1108-
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66)	8-98032-717-0	01	1	0712-1107
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66)	8-98150-099-1	01	1	1108-
5	04.439 LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66)	8-98032-718-0	01	1	0712-
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66)	8-98032-720-0	01	1	0712-1107
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66)	8-98150-101-0	01	1	1108-
7	04.439 BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66)	5-33659-053-0	02	1	0712-
8	04.439 NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	0712-
9	04.439 WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) ID=8.2	0-91510-508-0	01	1	0712-
10	04.439 NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) 02.334 M8	0-91110-508-0	01	1	0712-
12	04.439 JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66)	8-98031-692-0	01	1	0712-
13	04.439 WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) ID=12.5 OD=22	0-91610-512-0	01	1	0712-
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66)	8-97581-216-0	01	1	0712-
21	04.439 WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) 02.277 (A) ID=8.4 OD=22	0-91614-708-0	01	1	0712-
21	04.439 WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) 04.037 (B) ID=8.5 T=0.3	5-09509-001-0	01	1	0712-
24	04.439 CABLE; PTO CONT AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3455	8-98071-354-2	01	1	0712-0803
24	04.439 CABLE; PTO CONT AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3455	8-98117-142-1	01	1	0804-1207
24	04.439 CABLE; PTO CONT AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3455	8-98223-324-0	01	1	1208-
24	04.439 CABLE; PTO CONT AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3377	8-98071-355-2	01	1	0712-0803
24	04.439 CABLE; PTO CONT AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3377	8-98117-143-1	01	1	0804-1207
24	04.439 CABLE; PTO CONT AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3377	8-98223-323-0	01	1	1208-
24	04.439 CABLE; PTO CONT FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3577	8-98071-359-1	01	1	0712-1207
24	04.439 CABLE; PTO CONT FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3577	8-98223-327-0	01	1	1208-
24	04.439 CABLE; PTO CONT FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3655	8-98071-358-1	01	1	0712-1207
24	04.439 CABLE; PTO CONT FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3655	8-98223-328-0	01	1	1208-
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68),FRT INDEPENDENT SUSPENSION(FF0) L=3372	8-98086-185-1	01	1	0712-0803
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68),FRT INDEPENDENT SUSPENSION(FF0) L=3372	8-98117-145-1	01	1	0804-1207
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68),FRT INDEPENDENT SUSPENSION(FF0) L=3372	8-98223-325-0	01	1	1208-
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68),FRT INDEPENDENT SUSPENSION(FF0) L=3450	8-98086-184-1	01	1	0712-0803
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68),FRT INDEPENDENT SUSPENSION(FF0) L=3450	8-98117-144-1	01	1	0804-1207
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68),FRT INDEPENDENT SUSPENSION(FF0) L=3450	8-98223-326-0	01	1	1208-
27	04.439 BUSHING; LEVER,PTO PTO MANUAL CONTROL(6WC) 04.042	8-94367-367-0	01	1	0712-
32	04.439 BOLT; CLIP,CABLE PTO MANUAL CONTROL(6WC) M6X16 FLANGE	0-28060-616-0	02	1	0712-
46	04.439 BRACKET; PTO,TRANS SIDE PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98032-829-2	01	1	0712-
46	04.439 BRACKET; PTO,TRANS SIDE PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98081-815-0	01	1	0712-
64	04.439 PIN; SNAP,CONT CABLE JOINT PTO MANUAL CONTROL(6WC) 00.833 L=27.7	8-94111-137-0	01	1	0712-
142	04.439 CLEVIS; CONT BOX PTO TRANSMISSION SIDE(V66)	8-98031-691-0	01	1	0712-
155	04.439 CLIP; CABLE PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.240 T=5.5	5-09709-047-0	01	1	0712-1308
155	04.439 CLIP; CABLE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.240 T=5.5	5-09709-047-0	01	1	1309-
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) 04.307 (A)	8-94366-842-2	01	1	0712-
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (B)	8-98029-878-0	01	1	0712-
191	04.439 NUT; BOSS PTO MANUAL CONTROL(6WC) 03.330 M6	0-91110-506-0	02	1	0712-
193	04.439 NUT PTO TRANSMISSION SIDE(V66) M12	0-91111-512-0	01	1	0712-
329	16.520 SEAL PTO MANUAL CONTROL(6WC) 08.845	8-97856-616-0	02	1	0712-
332	04.439 NUT; PTO CONT CABLE PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE	0-91180-106-0	01	1	0712-

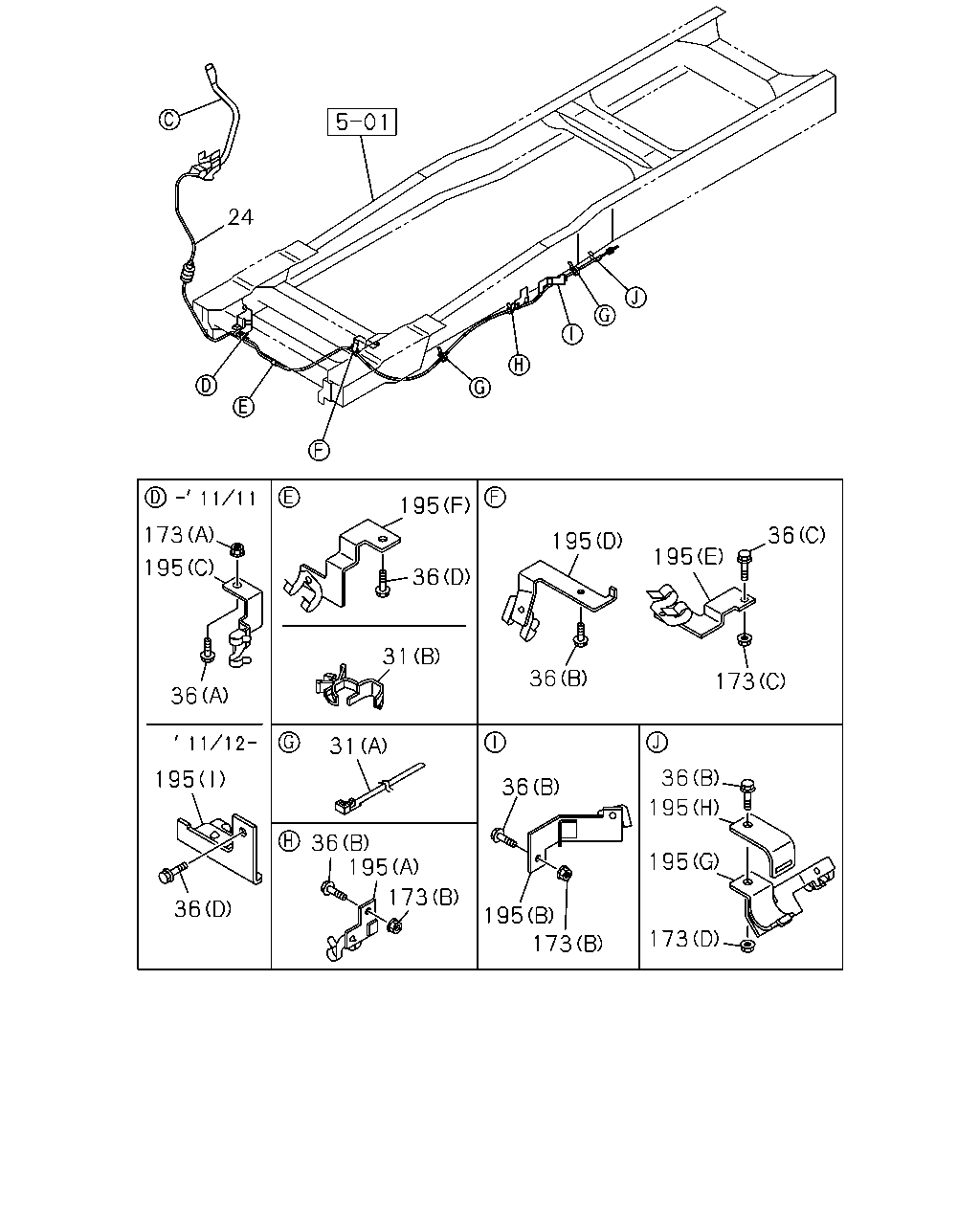

24 195 173 36 195 195 195 36 31 36 173 36 31 36 195 36 195 36 195 195 173 36 195 173 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	04.439 CABLE; PTO CONT AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3455	8-98071-354-2	01	1	0712-0803
24	04.439 CABLE; PTO CONT AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3455	8-98117-142-1	01	1	0804-1207
24	04.439 CABLE; PTO CONT AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3455	8-98223-324-0	01	1	1208-
24	04.439 CABLE; PTO CONT AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3377	8-98071-355-2	01	1	0712-0803
24	04.439 CABLE; PTO CONT AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3377	8-98117-143-1	01	1	0804-1207
24	04.439 CABLE; PTO CONT AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3377	8-98223-323-0	01	1	1208-
24	04.439 CABLE; PTO CONT FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3577	8-98071-359-1	01	1	0712-1207
24	04.439 CABLE; PTO CONT FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3577	8-98223-327-0	01	1	1208-
24	04.439 CABLE; PTO CONT FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3655	8-98071-358-1	01	1	0712-1207
24	04.439 CABLE; PTO CONT FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) L=3655	8-98223-328-0	01	1	1208-
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68),FRT INDEPENDENT SUSPENSION(FF0) L=3372	8-98086-185-1	01	1	0712-0803
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68),FRT INDEPENDENT SUSPENSION(FF0) L=3372	8-98117-145-1	01	1	0804-1207
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68),FRT INDEPENDENT SUSPENSION(FF0) L=3372	8-98223-325-0	01	1	1208-
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68),FRT INDEPENDENT SUSPENSION(FF0) L=3450	8-98086-184-1	01	1	0712-0803
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68),FRT INDEPENDENT SUSPENSION(FF0) L=3450	8-98117-144-1	01	1	0804-1207
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68),FRT INDEPENDENT SUSPENSION(FF0) L=3450	8-98223-326-0	01	1	1208-
31	04.439 CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) 02.559 (A) L=250	5-09707-030-1	01	1	0712-0803
31	04.439 CLIP; BAND,CABLE FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) 02.559 (A) L=250	5-09707-030-1	01	1	0804-0810
31	04.439 CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) 02.559 (A) L=250	5-09707-030-1	01	1	0811-
31	04.439 CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) 02.559 (B) ID=16	8-97040-812-0	01	1	0712-
36	04.439 BOLT; PTO BRKT AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) 03.162 (C) M6X20 FLANGE	0-28650-620-0	01	1	0712-
36	04.439 BOLT; PTO BRKT FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0712-
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) 02.343 (D) M10X20 FLANGE	0-28651-020-0	01	1	0712-1111
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) 02.343 (D) M10X20 FLANGE	0-28651-020-0	01	1	1112-1112
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) 02.343 (D) M10X20 FLANGE	0-28651-020-0	01	1	1112-1112
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) 02.343 (D) M10X20 FLANGE	0-28651-020-0	02	1	1112-
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) 07.874 (A) M14X30 FLANGE	0-28651-430-0	01	1	0712-1111
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68),FRT INDEPENDENT SUSPENSION(FF0) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0712-0803
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0804-
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68),FRT INDEPENDENT SUSPENSION(FF0) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0804-
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 (D) M8 FLANGE	0-91180-108-0	01	1	0804-
173	04.439 NUT; BRKT AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.062 (C) M6 FLANGE	0-91180-106-0	01	1	0712-
173	04.439 NUT; BRKT FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0712-
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) 07.529 (A) M14 FLANGE	0-91180-114-0	01	1	0712-1111
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) (G)	8-98117-131-0	01	1	0804-
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) (H)	8-98117-132-0	01	1	0804-
195	04.439 BRACKET; CONT CABLE AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98032-856-1	01	1	0712-
195	04.439 BRACKET; CONT CABLE FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) (A)	8-98052-321-1	01	1	0712-
195	04.439 BRACKET; CONT CABLE FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) (B)	8-98082-622-0	01	1	0712-0905
195	04.439 BRACKET; CONT CABLE FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) (B)	8-98146-462-0	01	1	0906-
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (C)	8-98086-262-0	01	1	0712-1111
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (I)	8-98152-321-0	01	1	1112-
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (F)	8-98101-143-0	01	1	0712-
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68),FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98086-264-0	01	1	0712-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
