Sayfa 1-41B - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10722 - CXH RHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-41B - FUEL PIPING; CHASSIS ▶

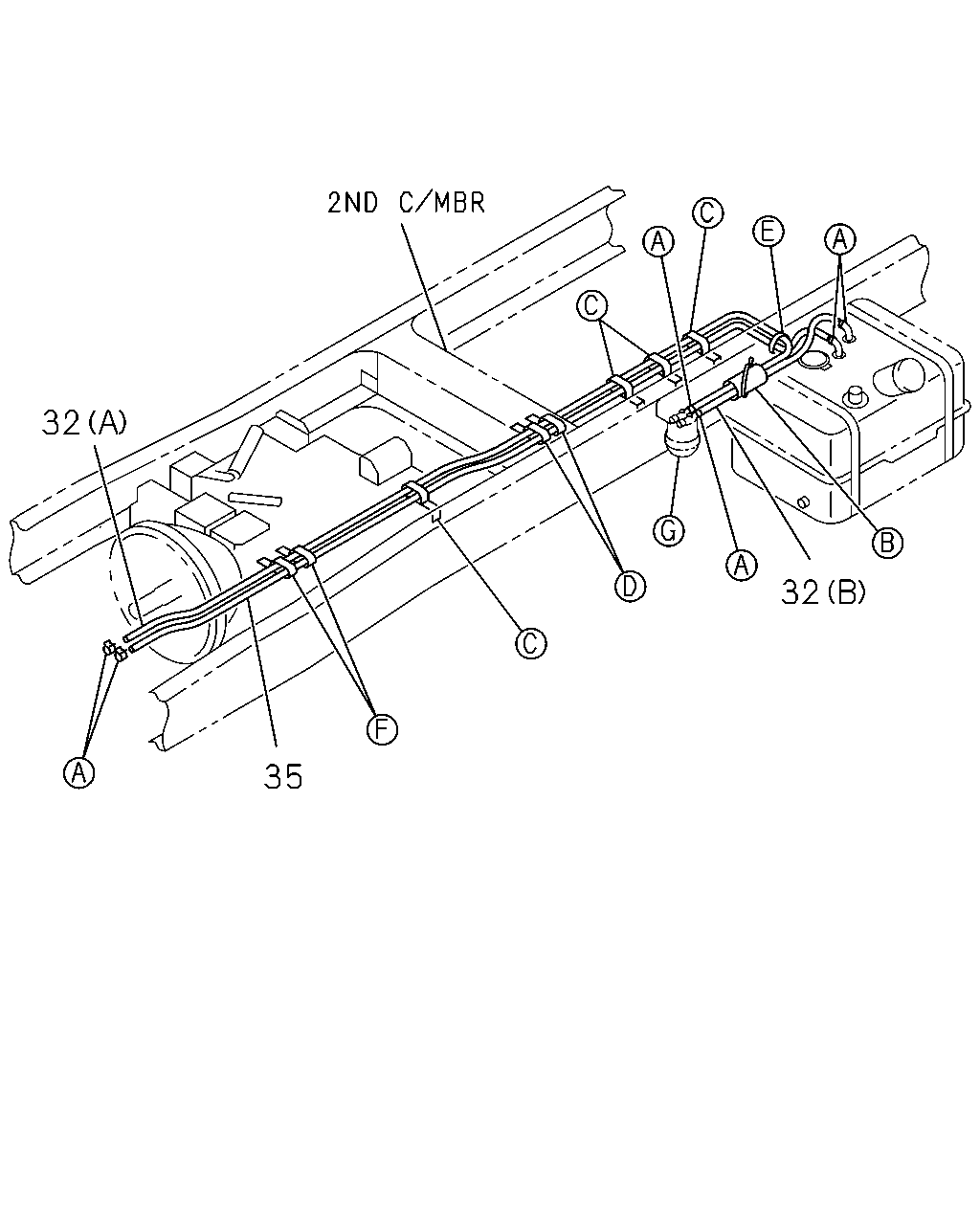

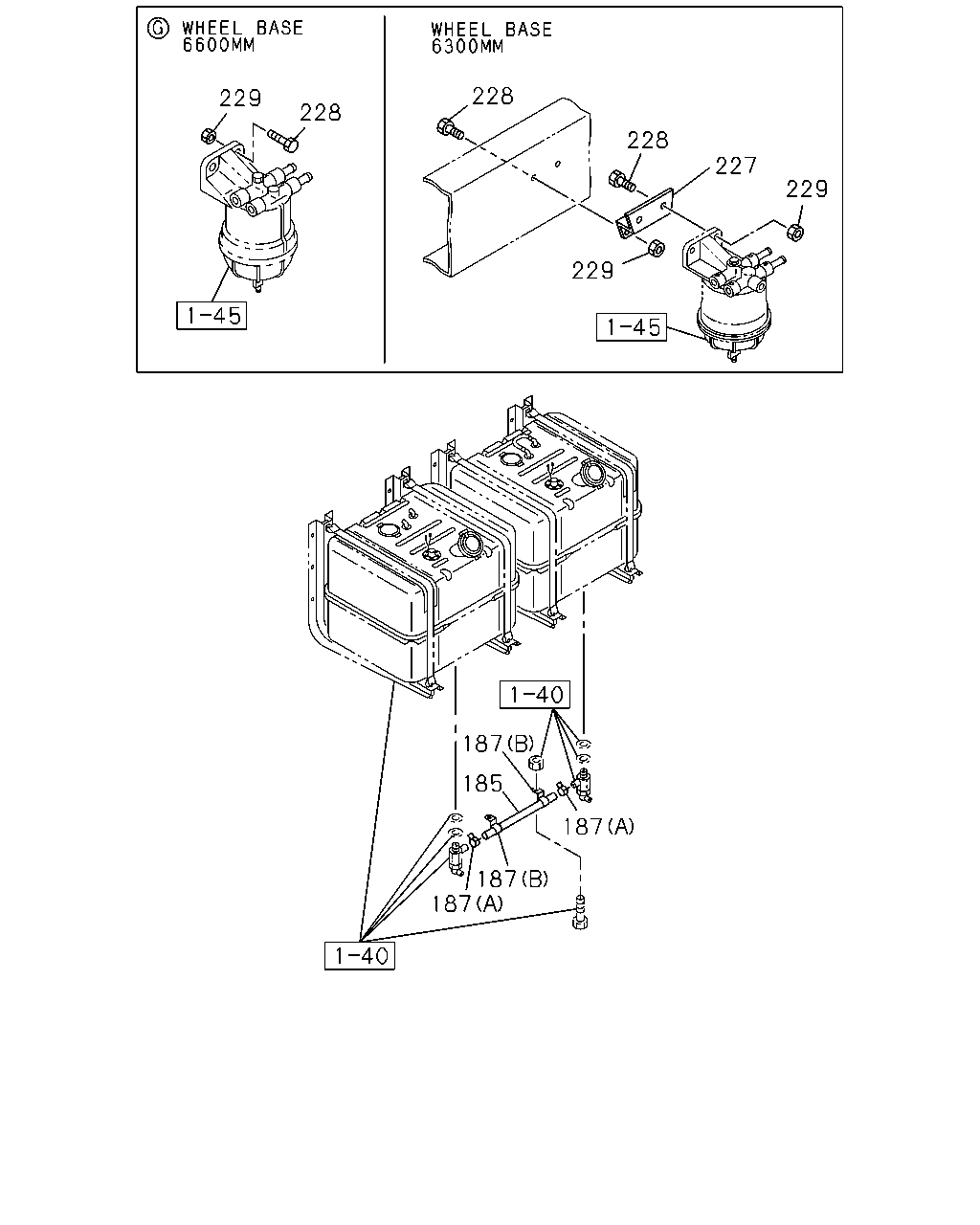

1-41B — FUEL PIPING; CHASSIS (#5037) — 131 parça

228 229 228 228 227 229 229 187 185 187 187 187

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
185	PIPE; FUEL TANK TO TANK EXC. FUEL TANK 200L FRAME SIDE<N20> L=900 SERVICED BY L=3000	0-01262-300-0	01	1	9606-9905	●
185	PIPE; FUEL TANK TO TANK EXC. FUEL TANK 200L FRAME SIDE<N20> L=900 SERVICED BY L=3000	0-01262-300-0	01	1	9906-		●
187	CLIP; FUEL PIPE TANK TO TANK EXC. FUEL TANK 200L FRAME SIDE<N20> (A) ID=17.1	8-94122-679-0	02	1	9606-9905	●
187	CLIP; FUEL PIPE TANK TO TANK EXC. FUEL TANK 200L FRAME SIDE<N20> (A) ID=17.1	8-94122-679-0	02	1	9906-		●
187	CLIP; FUEL PIPE TANK TO TANK EXC. FUEL TANK 200L FRAME SIDE<N20> (B) ID=19 H=25 L=25	9-09917-035-0	02	1	9606-9905	●
187	CLIP; FUEL PIPE TANK TO TANK EXC. FUEL TANK 200L FRAME SIDE<N20> (B) ID=19 H=25 L=25	9-09917-035-0	02	1	9906-		●
227	BRACKET; FUEL SEDIMENTER WHEEL BASE 6300MM(63W) FUEL SEDIMENTER<PS9>	1-19755-223-0	01	1	0101-	●	●
227	BRACKET; FUEL SEDIMENTER WHEEL BASE 6600MM(66W) FUEL SEDIMENTER<PS9>	1-22518-178-1	01	1	0101-0104	●	●
227	BRACKET; FUEL SEDIMENTER WHEEL BASE 6600MM(66W) FUEL SEDIMENTER<PS9>	1-22518-183-0	01	1	0105-		●
227	BRACKET; FUEL SEDIMENTER WHEEL BASE 6300MM(63W)	1-22518-156-0	01	1	9606-0012	●	●
227	BRACKET; FUEL SEDIMENTER WHEEL BASE 6300MM(63W) EXC. FUEL SEDIMENTER<PS9>	1-22518-156-0	01	1	0101-		●
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 6300MM(63W) M10X30 FLANGE	0-28081-030-0	02	1	9606-9606	●
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 6300MM(63W) M8X35 FLANGE	0-28680-835-0	02	1	9607-0008	●	●
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 6300MM(63W) M10X35 FLANGE	0-28681-035-0	02	1	0009-0012	●	●
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 6300MM(63W) EXC. FUEL SEDIMENTER<PS9> M10X35 FLANGE	0-28681-035-0	02	1	0101-		●
228	BOLT; BRKT,SEDIMENTER M10X40 FLANGE	0-28081-040-0	02	1	9606-9606	●
228	BOLT; BRKT,SEDIMENTER M10X40 FLANGE	0-28681-040-0	02	1	9607-9905	●
228	BOLT; BRKT,SEDIMENTER M10X40 FLANGE	0-28681-040-0	02	1	9906-0012		●
228	BOLT; BRKT,SEDIMENTER M10X40 FLANGE	0-28681-040-0	02	1	0101-		●
229	NUT; BRKT,FUEL FILTER M10	9-09110-510-0	02	1	9606-9606	●
229	NUT; BRKT,FUEL FILTER WHEEL BASE 6300MM(63W) M10	9-09110-510-0	02	1	9606-9606	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	9607-0012	●	●
229	NUT; BRKT,FUEL FILTER WHEEL BASE 6300MM(63W) M10 FLANGE	0-91150-210-0	02	1	9607-0012	●	●
229	NUT; BRKT,FUEL FILTER WHEEL BASE 6300MM(63W) EXC. FUEL SEDIMENTER<PS9> M10 FLANGE	0-91150-210-0	02	1	0101-	●	●
229	NUT; BRKT,FUEL FILTER EXC. FUEL SEDIMENTER<PS9> M10 FLANGE	0-91150-210-0	02	1	0101-	●	●
229	NUT; BRKT,FUEL FILTER WHEEL BASE 6600MM(66W) FUEL SEDIMENTER<PS9> M12 FLANGE	0-91150-212-0	02	1	0104-		●

101 100 41 97 102 289 48 38 103 101 101 100 156 95 100 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	SLEEVE; RUBBER,RUBBER HOSE L=1300	1-09360-677-1	01	1	9606-9905	●
38	SLEEVE; RUBBER,RUBBER HOSE L=150 SERVICED BY L=1300	1-09360-677-1	01	1	9906-0101		●
38	SLEEVE; RUBBER,RUBBER HOSE L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0102-		●
41	CLIP; FUEL PIPE,FUEL TANK ID=14	1-09704-102-0	06	1	9606-9905	●
41	CLIP; FUEL PIPE,FUEL TANK ID=14	1-09704-102-0	06	1	9906-		●
48	BOLT; BRKT WHEEL BASE 6300MM(63W) M8X35 FLANGE	0-28680-835-0	03	1	0009-		●
48	BOLT; BRKT WHEEL BASE 6300MM(63W) M8X30 FLANGE	0-28080-830-0	03	1	9606-9606	●
48	BOLT; BRKT WHEEL BASE 6300MM(63W) M8X35 FLANGE	0-28680-835-0	03	1	9607-9609	●
48	BOLT; BRKT WHEEL BASE 6600MM(66W) ISUZU M/T<X9A> M8X30 FLANGE	0-28080-830-0	04	1	9606-9606	●
48	BOLT; BRKT ZF M/T<X9E> M8X30 FLANGE	0-28080-830-0	04	1	9606-9606	●
48	BOLT; BRKT WHEEL BASE 6600MM(66W) ISUZU M/T<X9A> M8X35 FLANGE	0-28680-835-0	04	1	9607-9607	●
48	BOLT; BRKT ZF M/T<X9E> M8X35 FLANGE	0-28680-835-0	04	1	9607-9607	●
48	BOLT; BRKT WHEEL BASE 6600MM(66W) M8X35 FLANGE	0-28680-835-0	05	1	9607-9905	●
48	BOLT; BRKT WHEEL BASE 6600MM(66W) M8X35 FLANGE	0-28680-835-0	05	1	9906-0008		●
48	BOLT; BRKT WHEEL BASE 6600MM(66W) M8X35 FLANGE	0-28680-835-0	05	1	0009-		●
48	BOLT; BRKT WHEEL BASE 6300MM(63W) M8X35 FLANGE	0-28680-835-0	03	1	9610-9905	●
48	BOLT; BRKT WHEEL BASE 6300MM(63W) M8X35 FLANGE	0-28680-835-0	03	1	9906-0008		●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	9606-9905	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	9906-		●
97	BRACKET; CLIP WHEEL BASE 6300MM(63W) (A) W/NUT M8 FLANGE L=115	1-47475-305-0	03	1	9606-9606	●
97	BRACKET; CLIP WHEEL BASE 6600MM(66W) ISUZU M/T<X9A> (A) W/NUT M8 FLANGE L=115	1-47475-305-0	02	1	9606-9606	●
97	BRACKET; CLIP ZF M/T<X9E> (A) W/NUT M8 FLANGE L=115	1-47475-305-0	02	1	9606-9606	●
97	BRACKET; CLIP (A) W/NUT M8 FLANGE L=115	1-47475-305-0	03	1	9607-9609	●
97	BRACKET; CLIP (A) W/NUT M8 FLANGE L=115	1-47475-305-0	02	1	9909-0008		●
97	BRACKET; CLIP WHEEL BASE 6600MM(66W) (A) W/NUT M8 FLANGE L=115	1-47475-305-0	02	1	0009-0010		●
97	BRACKET; CLIP (A) W/NUT M8 FLANGE L=115	1-47475-305-0	02	1	0011-		●
97	BRACKET; CLIP (A) L=115	1-47475-305-0	03	1	9610-9905	●
97	BRACKET; CLIP (A) L=115	1-47475-305-0	03	1	9906-9908		●
97	BRACKET; CLIP WHEEL BASE 6300MM(63W) (A) L=135	1-22518-099-0	01	1	9909-0012		●
97	BRACKET; CLIP WHEEL BASE 6300MM(63W) V TYPE ENG<91L> (A) L=135	1-22518-099-0	01	1	0101-	●	●
97	BRACKET; CLIP FUEL SEDIMENTER<PS9> (A) L=135	1-22518-099-0	01	1	0101-	●	●
97	BRACKET; CLIP WHEEL BASE 6600MM(66W) (A) L=135	1-22518-099-0	02	1	9606-9905	●
97	BRACKET; CLIP WHEEL BASE 6600MM(66W) (A) L=135	1-22518-099-0	02	1	9906-9908		●
97	BRACKET; CLIP WHEEL BASE 6600MM(66W) (A) L=135	1-22518-099-0	03	1	9909-		●
100	CLIP; FUEL PIPE WHEEL BASE 6300MM(63W) ID=16X2 L=20	9-09535-536-0	07	1	9607-9609	●
100	CLIP; FUEL PIPE WHEEL BASE 6600MM(66W) ID=16X2 L=20	9-09535-536-0	07	1	9701-9805	●
100	CLIP; FUEL PIPE WHEEL BASE 6600MM(66W) ID=16X2 L=20	9-09535-536-0	09	1	9806-9905	●
100	CLIP; FUEL PIPE WHEEL BASE 6600MM(66W) ID=16X2 L=20	9-09535-536-0	09	1	9906-9908		●
100	CLIP; FUEL PIPE WHEEL BASE 6600MM(66W) ID=16X2 L=20	9-09535-536-0	09	1	9909-		●
100	CLIP; FUEL PIPE MJA7U M/T(X6G),TRANSMISSION-FULLER RTL0147 13 OD(Y2P),TRANSMISSION-FULLER RTLO167 18 OD(Y3M) WHEEL BASE 6600MM(66W) ID=16X2 L=20	9-09535-536-0	09	1	9609-9612	●
100	CLIP; FUEL PIPE WHEEL BASE 6300MM(63W) ZF M/T<X9E> ID=16X2 L=20	9-09535-536-0	09	1	9701-9805	●
100	CLIP; FUEL PIPE WHEEL BASE 6300MM(63W) ID=16X2 L=20	9-09535-536-0	07	1	9806-9905	●
100	CLIP; FUEL PIPE WHEEL BASE 6300MM(63W) ID=16X2 L=20	9-09535-536-0	07	1	9906-9908		●
100	CLIP; FUEL PIPE WHEEL BASE 6300MM(63W) ID=16X2 L=20	9-09535-536-0	07	1	9610-9612	●
100	CLIP; FUEL PIPE WHEEL BASE 6300MM(63W) ID=16X2 L=20	9-09535-536-0	07	1	9909-		●
100	CLIP; FUEL PIPE WHEEL BASE 6600MM(66W) ID=16X2 L=20	9-09535-536-0	08	1	9606-9606	●
100	CLIP; FUEL PIPE WHEEL BASE 6600MM(66W) ID=16X2 L=20	9-09535-536-0	09	1	9607-9608	●
100	CLIP; FUEL PIPE WHEEL BASE 6600MM(66W) ZF M/T<X9E> ID=16X2 L=20	9-09535-536-0	10	1	9609-9805	●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 6300MM(63W) M8X25 FLANGE	0-28680-825-0	07	1	9607-9609	●
101	BOLT; CLIP,FUEL PIPE MJA7U M/T(X6G),TRANSMISSION-FULLER RTL0147 13 OD(Y2P),TRANSMISSION-FULLER RTLO167 18 OD(Y3M) WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28680-825-0	09	1	9609-9612	●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 6300MM(63W) ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	09	1	9701-9805	●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28680-825-0	09	1	9806-9905	●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28680-825-0	09	1	9906-9908		●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28680-825-0	09	1	9909-		●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 6300MM(63W) M8X25 FLANGE	0-28680-825-0	07	1	9610-9612	●
101	BOLT; CLIP,FUEL PIPE MJA7U M/T(X6G),TRANSMISSION-FULLER RTL0147 13 OD(Y2P),TRANSMISSION-FULLER RTLO167 18 OD(Y3M) WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28680-825-0	07	1	9701-9805	●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 6300MM(63W) M8X25 FLANGE	0-28680-825-0	07	1	9806-9905	●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 6300MM(63W) M8X25 FLANGE	0-28680-825-0	07	1	9906-9908		●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 6600MM(66W) M8X20 FLANGE	0-28080-820-0	08	1	9606-9606	●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28680-825-0	08	1	9607-9607	●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 6300MM(63W) M8X25 FLANGE	0-28680-825-0	07	1	9909-		●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28680-825-0	09	1	9607-9608	●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 6600MM(66W) ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	10	1	9609-9805	●
102	NUT; CLIP,FUEL PIPE ZF M/T<X9E> M8	9-09110-408-0	03	1	9606-9606	●
102	NUT; CLIP,FUEL PIPE ZF M/T<X9E> M8 FLANGE	0-91150-108-0	03	1	9607-9609	●
102	NUT; CLIP,FUEL PIPE MJA7U M/T(X6G),TRANSMISSION-FULLER RTL0147 13 OD(Y2P),TRANSMISSION-FULLER RTLO167 18 OD(Y3M) M8 FLANGE	0-91150-108-0	02	1	9610-9905	●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91150-108-0	02	1	9906-9908		●
102	NUT; CLIP,FUEL PIPE ISUZU M/T<X9A> V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	02	1	0102-	●	●
102	NUT; CLIP,FUEL PIPE FUEL SEDIMENTER<PS9> M8 FLANGE	0-91150-108-0	02	1	0102-	●	●
102	NUT; CLIP,FUEL PIPE MJA7U M/T(X6G),TRANSMISSION-FULLER RTL0147 13 OD(Y2P),TRANSMISSION-FULLER RTLO167 18 OD(Y3M) M8	9-09110-408-0	02	1	9606-9606	●
102	NUT; CLIP,FUEL PIPE MJA7U M/T(X6G),TRANSMISSION-FULLER RTL0147 13 OD(Y2P),TRANSMISSION-FULLER RTLO167 18 OD(Y3M) M8 FLANGE	0-91150-108-0	02	1	9607-9609	●
102	NUT; CLIP,FUEL PIPE ZF M/T<X9E> M8 FLANGE	0-91150-108-0	03	1	9610-9905	●
102	NUT; CLIP,FUEL PIPE ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	02	1	9909-0008		●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91150-108-0	02	1	0009-0101		●
103	NUT; BRKT WHEEL BASE 6300MM(63W) M8 FLANGE	0-91150-108-0	03	1	0009-		●
103	NUT; BRKT WHEEL BASE 6300MM(63W) M8	9-09110-408-0	03	1	9606-9606	●
103	NUT; BRKT WHEEL BASE 6300MM(63W) M8 FLANGE	0-91150-108-0	03	1	9607-9609	●
103	NUT; BRKT WHEEL BASE 6600MM(66W) ISUZU M/T<X9A> M8	9-09110-408-0	04	1	9606-9606	●
103	NUT; BRKT ZF M/T<X9E> M8	9-09110-408-0	04	1	9606-9606	●
103	NUT; BRKT WHEEL BASE 6600MM(66W) ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	04	1	9607-9607	●
103	NUT; BRKT ZF M/T<X9E> M8 FLANGE	0-91150-108-0	04	1	9607-9607	●
103	NUT; BRKT WHEEL BASE 6600MM(66W) M8 FLANGE	0-91150-108-0	05	1	9607-9905	●
103	NUT; BRKT WHEEL BASE 6600MM(66W) M8 FLANGE	0-91150-108-0	05	1	9906-0008		●
103	NUT; BRKT WHEEL BASE 6600MM(66W) M8 FLANGE	0-91150-108-0	05	1	0009-		●
103	NUT; BRKT WHEEL BASE 6300MM(63W) M8 FLANGE	0-91150-108-0	03	1	9610-9905	●
103	NUT; BRKT WHEEL BASE 6300MM(63W) M8 FLANGE	0-91150-108-0	03	1	9906-0008		●
156	BRACKET; FUEL HOSE TRANSMISSION-ZF 16S151 OD(Y2N) (A) L=80 H=20	1-82699-304-0	01	1	9806-9905	●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	02	1	9606-9905	●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	02	1	9906-0101		●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	04	1	0102-		●

32 32 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6300MM(63W) (A) L=2500 SERVICED BY L=3000	0-01260-300-0	01	1	9606-9609	●
32	PIPE; DELIVERY,FUEL TANK FUEL SEDIMENTER<PS9> (B) L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	0101-0101	●	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6600MM(66W) FUEL SEDIMENTER<PS9> (B) L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	0102-		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6300MM(63W) FUEL SEDIMENTER<PS9> (B) L=1450 SERVICED BY L=3000	0-01260-300-0	01	1	0102-		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6600MM(66W) (B) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	9606-0012	●	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6600MM(66W) EXC. FUEL SEDIMENTER<PS9> (B) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	0101-		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6300MM(63W) (B) L=1100 SERVICED BY L=3000	0-01260-300-0	01	1	9606-0012	●	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6300MM(63W) EXC. FUEL SEDIMENTER<PS9> (B) L=1100 SERVICED BY L=3000	0-01260-300-0	01	1	0101-		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6300MM(63W) (A) L=2500 SERVICED BY L=3000	0-01260-300-0	01	1	9610-9905	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6300MM(63W) (A) L=2500 SERVICED BY L=3000	0-01260-300-0	01	1	9906-		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6600MM(66W) (A) L=2800 SERVICED BY L=3000	0-01260-300-0	01	1	9606-9905	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6600MM(66W) (A) L=2800 SERVICED BY L=3000	0-01260-300-0	01	1	9906-		●
35	PIPE; FUEL TANK,RETURN WHEEL BASE 6300MM(63W) L=3150 SERVICED BY L=8000	0-01260-800-0	01	1	9610-	●	●
35	PIPE; FUEL TANK,RETURN WHEEL BASE 6600MM(66W) L=3350 SERVICED BY L=8000	0-01260-800-0	01	1	9606-9905	●
35	PIPE; FUEL TANK,RETURN WHEEL BASE 6600MM(66W) L=3350 SERVICED BY L=8000	0-01260-800-0	01	1	9906-		●
