Isuzu WW
▶
TRUCKS
▶
FTS
▶
11438 - FTS(PAKISTAN)D-TIRE
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-50 - EXHAUST PIPE AND SILENCER
▶
1-50 — EXHAUST PIPE AND SILENCER
(#50364) — 84 parça
◀

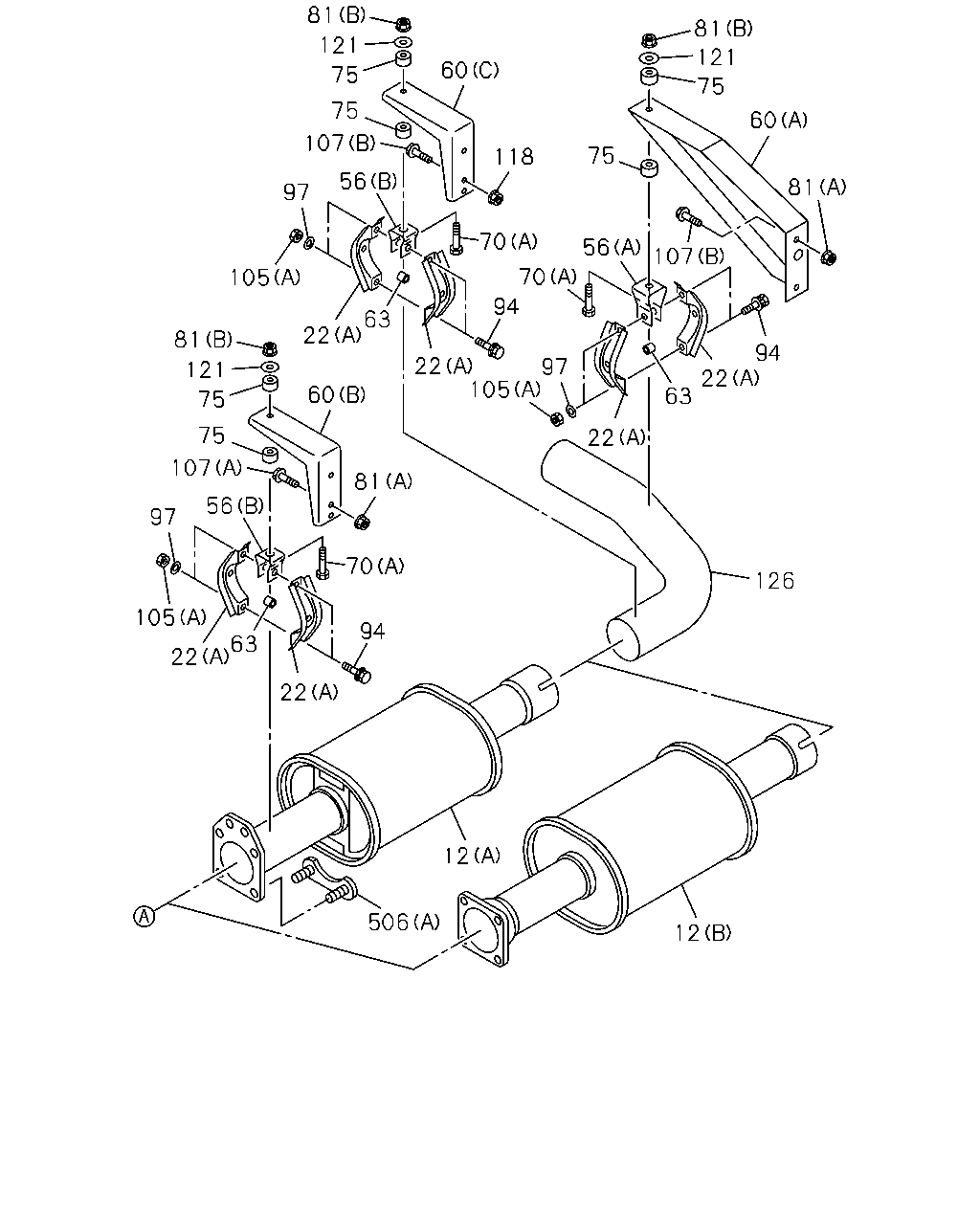

[150A] REAR (31 parça)

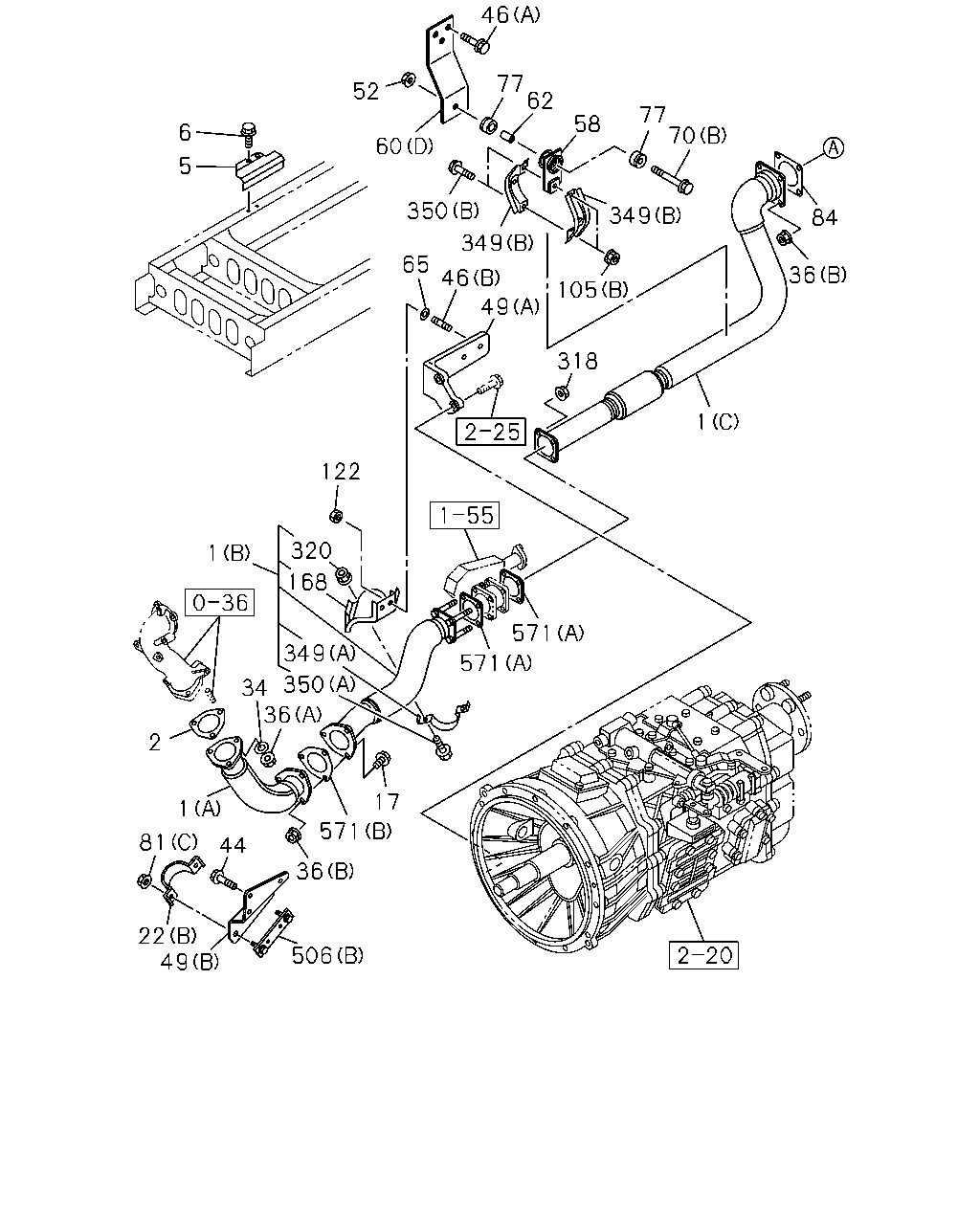

[150A] FRONT (53 parça)
▶
81
121
75
60
81
75
56
107
63
22
94
97
22
105
22
94
70
70
118
60
81
121
75
75
107
97
56
105
63
22
60
81
70
94
56
97
107
75
75
121
81
126
22
63
22
105
12
506
12
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
SILENCER ASM; EXH
(A)
8-98164-249-0
01
1
1101-1201
12
SILENCER ASM; EXH
(B) PAK
8-98202-459-0
01
1
1202-
22
CLAMP; EXH PIPE
(B)
8-97615-334-0
01
1
1305-
22
CLAMP; EXH PIPE
(A) ID=80-84
1-22133-233-0
06
1
1101-
56
BRACKET; CLAMP,EXH PIPE
(A) H=67
1-22139-050-0
01
1
1101-
56
BRACKET; CLAMP,EXH PIPE
(B)
1-22139-074-0
02
1
1101-
60
BRACKET; FRAME TO BRKT
(A)
1-22131-835-0
01
1
1101-
60
BRACKET; FRAME TO BRKT
(C)
1-22151-501-1
01
1
1101-
60
BRACKET; FRAME TO BRKT
(B)
1-22151-847-0
01
1
1101-
60
BRACKET; FRAME TO BRKT
(D)
8-98108-372-1
01
1
1101-
63
TUBE; DIST,BRKT
L=11
1-22139-026-0
03
1
1101-
70
BOLT; BRKT
(A) M10X50
0-10856-050-0
03
1
1101-
70
BOLT; BRKT
(B) M10X50 FLANGE
0-28051-050-0
01
1
1101-
75
RUBBER; SUPPORT,BRKT
OD=30
1-22159-106-1
06
1
1101-
81
NUT; BRKT
(C) M10 FLANGE
0-91180-110-0
02
1
1305-
81
NUT; BRKT
(A) M10 FLANGE
0-91180-210-0
02
1
1101-1304
81
NUT; BRKT
(A) M10 FLANGE
0-91180-210-0
02
1
1305-
81
NUT; BRKT
(A) M10 FLANGE
0-91180-210-0
03
1
1101-
81
NUT; BRKT
(B) M10 LOCK NUT
0-91370-010-0
03
1
1101-
94
BOLT; CLAMP
M10X45 W/LK&PL WASHER
8-98055-085-0
06
1
1101-
97
WASHER; PL,CLAMP
ID=10.5
9-09164-510-0
06
1
1101-
105
NUT; CLAMP
(A) M10
0-91110-510-0
06
1
1101-
105
NUT; CLAMP
(B) M10 FLANGE
0-91180-210-0
02
1
1101-
107
BOLT; BRKT
(B) M10X35 FLANGE
0-28651-035-0
02
1
1101-
107
BOLT; BRKT
(B) M10X35 FLANGE
0-28651-035-0
02
1
1101-
107
BOLT; BRKT
(A) M10X40 FLANGE
0-28651-040-0
03
1
1101-
118
NUT; SILENCER MTG BRKT
M10 FLANGE
0-91180-210-0
02
1
1101-
121
WASHER; PL,BRKT
ID=10.5 OD=32
0-91614-810-0
03
1
1101-
126
PIPE; EXH,RR
8-98108-373-0
01
1
1101-
506
BRACKET; STUD
(B)
8-97615-333-1
01
1
1305-
506
BRACKET; STUD
(A) M12X35
1-22131-963-0
02
1
1101-1203
6
5
52
46
60
77
77
58
62
350
349
105
49
46
349
65
70
84
36
1
318
571
571
571
17
36
506
49
22
81
2
34
36
44
1
350
349
1
122
168
320
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PIPE; EXH
(A)
8-98073-006-3
01
1
1101-
1
PIPE; EXH
(B)
8-98119-515-0
01
1
1101-1209
1
PIPE; EXH
(B)
8-98230-001-0
01
1
1210-1309
1
PIPE; EXH
(B)
8-98245-502-0
01
1
1310-1406
1
PIPE; EXH
(B) PAK
8-98234-516-1
01
1
1407-
1
PIPE; EXH
(C)
8-98152-441-1
01
1
1101-
2
GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). ID=81
8-98043-481-0
01
1
1101-
5
PROTECTOR; HEAT
8-98044-124-0
01
1
1101-
6
BOLT; HEAT PROTECTOR
M8X25 FLANGE
0-28650-825-0
02
1
1101-
17
BOLT; EXH PIPE
M12X35 FLANGE
0-28051-235-0
04
1
1204-
17
BOLT; EXH PIPE
M12X35 FLANGE
0-28051-235-0
03
1
1101-
22
CLAMP; EXH PIPE
(B)
8-97615-334-0
01
1
1305-
22
CLAMP; EXH PIPE
(A) ID=80-84
1-22133-233-0
06
1
1101-
34
WASHER; EXH PIPE
ID=13 OD=24 DISH
1-09500-030-0
03
1
1101-
36
NUT; EXH PIPE
(B) M12 FLANGE
0-91180-212-0
07
1
1101-
36
NUT; EXH PIPE
(A) M12
1-09400-010-0
03
1
1101-
44
BOLT; BRKT
M10X20 FLANGE
0-28751-020-0
03
1
1305-
46
BOLT; BRKT,EXH PIPE
(A) M10X35 FLANGE
0-28651-035-0
02
1
1101-
46
BOLT; BRKT,EXH PIPE
(B) M10X25 L=40
0-44011-025-0
02
1
1101-
49
BRACKET; EXH PIPE TO TRANS
(B)
8-97629-970-0
01
1
1305-
49
BRACKET; EXH PIPE TO TRANS
(A) PAK
8-98120-493-0
01
1
1101-
52
NUT; BRKT
M10 FLANGE
0-91180-210-0
01
1
1101-
58
BRACKET; EXH PIPE,RR
L=94
1-22131-575-0
01
1
1101-
60
BRACKET; FRAME TO BRKT
(A)
1-22131-835-0
01
1
1101-
60
BRACKET; FRAME TO BRKT
(C)
1-22151-501-1
01
1
1101-
60
BRACKET; FRAME TO BRKT
(B)
1-22151-847-0
01
1
1101-
60
BRACKET; FRAME TO BRKT
(D)
8-98108-372-1
01
1
1101-
62
TUBE; DIST,BRKT
L=22
9-22159-024-0
01
1
1101-
65
WASHER; PL
ID=10.5
8-98073-091-0
02
1
1101-
70
BOLT; BRKT
(A) M10X50
0-10856-050-0
03
1
1101-
70
BOLT; BRKT
(B) M10X50 FLANGE
0-28051-050-0
01
1
1101-
77
RUBBER; CUSHION,BRKT
OD=40
1-22159-094-0
02
1
1101-
81
NUT; BRKT
(C) M10 FLANGE
0-91180-110-0
02
1
1305-
81
NUT; BRKT
(A) M10 FLANGE
0-91180-210-0
02
1
1101-1304
81
NUT; BRKT
(A) M10 FLANGE
0-91180-210-0
02
1
1305-
81
NUT; BRKT
(A) M10 FLANGE
0-91180-210-0
03
1
1101-
81
NUT; BRKT
(B) M10 LOCK NUT
0-91370-010-0
03
1
1101-
84
GASKET; EXH PIPE
8-98096-305-0
01
1
1101-
105
NUT; CLAMP
(A) M10
0-91110-510-0
06
1
1101-
105
NUT; CLAMP
(B) M10 FLANGE
0-91180-210-0
02
1
1101-
122
NUT; HANGER BRKT
M10 FLANGE
0-91180-210-0
02
1
1101-
168
BRACKET; EXH PIPE,FRT
8-98071-144-0
01
1
1101-1209
168
BRACKET; EXH PIPE,FRT
8-98221-369-1
01
1
1210-
318
NUT; EXH PIPE,FRT
M10 FLANGE
0-91180-210-0
04
1
1101-
320
NUT; CLAMP,EXH PIPE
M10 FLANGE
0-91180-210-0
02
1
1101-
349
CLAMP; EXH PIPE
(B) ID=80-84
1-22133-233-0
02
1
1101-
349
CLAMP; EXH PIPE
(A)
8-98115-162-0
01
1
1101-
350
BOLT; CLAMP,EXH PIPE
(A) M10X30 FLANGE
0-28651-030-0
02
1
1101-
350
BOLT; CLAMP,EXH PIPE
(B) M10X40 FLANGE
0-28651-040-0
02
1
1101-
506
BRACKET; STUD
(B)
8-97615-333-1
01
1
1305-
506
BRACKET; STUD
(A) M12X35
1-22131-963-0
02
1
1101-1203
571
GASKET
(A) ID=85.8
1-22116-043-0
02
1
1101-
571
GASKET
(B) ID=81
8-98043-481-0
01
1
1101-
