Sayfa 1-41A - Isuzu EPC

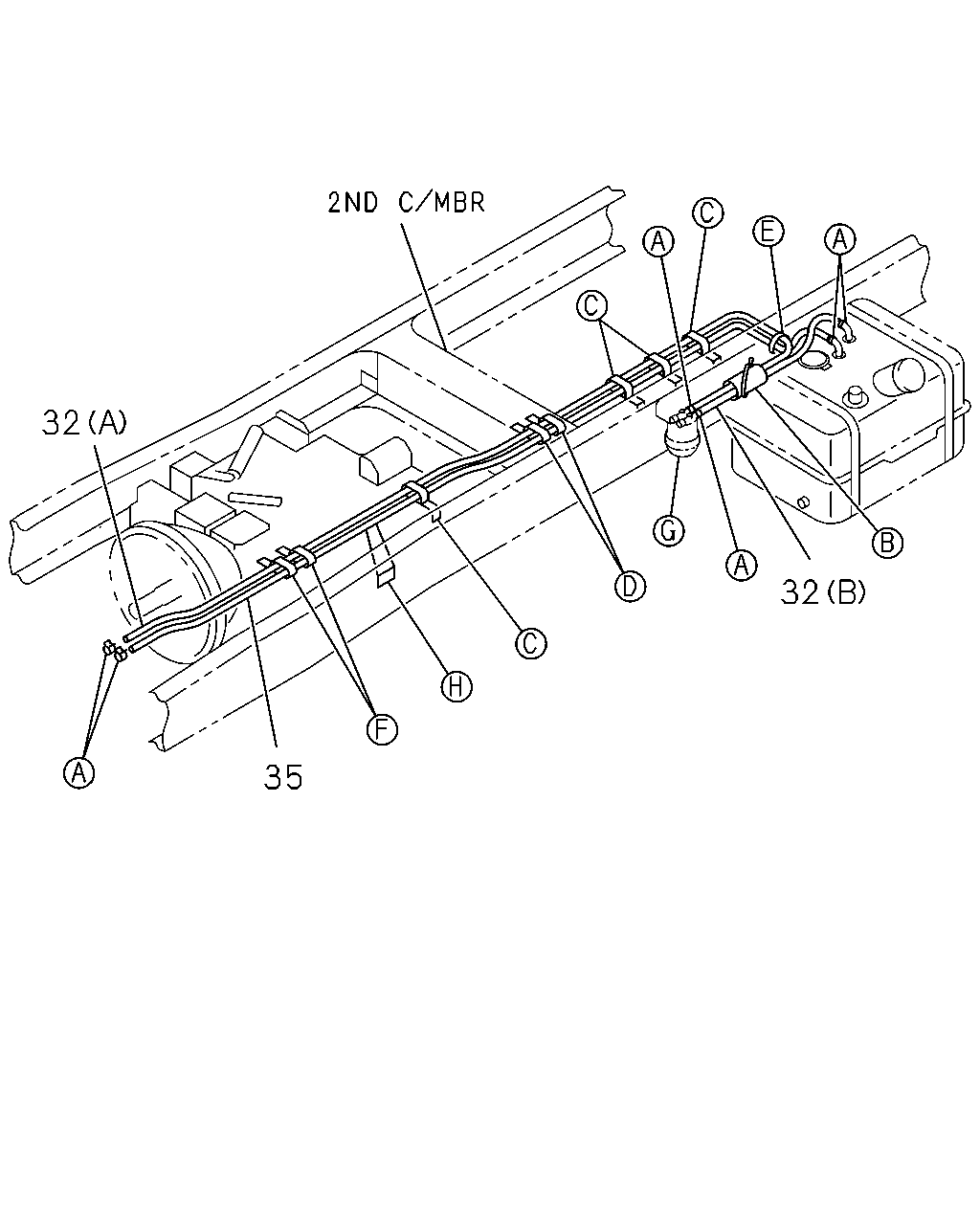

1-41A — FUEL PIPING; CHASSIS (#5036) — 192 parça

32 32 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6300MM(63W) (A) L=2500 SERVICED BY L=3000	0-01260-300-0	01	1	9606-9609	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6300MM(63W) (A) L=2400 SERVICED BY L=3000	0-01260-300-0	01	1	9610-9905	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6300MM(63W) (A) L=2400 SERVICED BY L=3000	0-01260-300-0	01	1	9906-0012		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6300MM(63W) EXC. FUEL SEDIMENTER<PS9> (A) L=2400 SERVICED BY L=3000	0-01260-300-0	01	1	0101-		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6600MM(66W) (A) L=2600 SERVICED BY L=3000	0-01260-300-0	01	1	9606-9905	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6600MM(66W) (A) L=2600 SERVICED BY L=3000	0-01260-300-0	01	1	9906-0012	●	●	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6600MM(66W) EXC. FUEL SEDIMENTER<PS9> (A) L=2600 SERVICED BY L=3000	0-01260-300-0	01	1	0101-	●	●	●
32	PIPE; DELIVERY,FUEL TANK FUEL SEDIMENTER<PS9> (B) L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	0101-0101	●	●	●	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6600MM(66W) FUEL SEDIMENTER<PS9> (B) L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	0102-	●	●	●
32	PIPE; DELIVERY,FUEL TANK FUEL SEDIMENTER<PS9> L TYPE ENG<90L> (A) L=2950 SERVICED BY L=3000	0-01260-300-0	01	1	0101-0101	●	●	●	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6600MM(66W) FUEL SEDIMENTER<PS9> (A) L=2950 SERVICED BY L=3000	0-01260-300-0	01	1	0102-	●	●	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6300MM(63W) FUEL SEDIMENTER<PS9> (B) L=1450 SERVICED BY L=3000	0-01260-300-0	01	1	0102-		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6300MM(63W) FUEL SEDIMENTER<PS9> (A) L=2700 SERVICED BY L=3000	0-01260-300-0	01	1	0102-		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6600MM(66W) (B) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	9606-0012	●	●	●	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6600MM(66W) EXC. FUEL SEDIMENTER<PS9> (B) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	0101-	●	●	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6300MM(63W) (B) L=1100 SERVICED BY L=3000	0-01260-300-0	01	1	9606-0012	●	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6300MM(63W) EXC. FUEL SEDIMENTER<PS9> (B) L=1100 SERVICED BY L=3000	0-01260-300-0	01	1	0101-		●
35	PIPE; FUEL TANK,RETURN WHEEL BASE 6300MM(63W) L=3150 SERVICED BY L=8000	0-01260-800-0	01	1	9606-9609	●
35	PIPE; FUEL TANK,RETURN WHEEL BASE 6600MM(66W) L=3150 SERVICED BY L=8000	0-01260-800-0	01	1	9610-	●	●	●	●
35	PIPE; FUEL TANK,RETURN WHEEL BASE 6300MM(63W) SERVICED BY L=3000	0-01260-300-0	01	1	9610-9905	●
35	PIPE; FUEL TANK,RETURN WHEEL BASE 6300MM(63W) SERVICED BY L=3000	0-01260-300-0	01	1	9906-	●	●

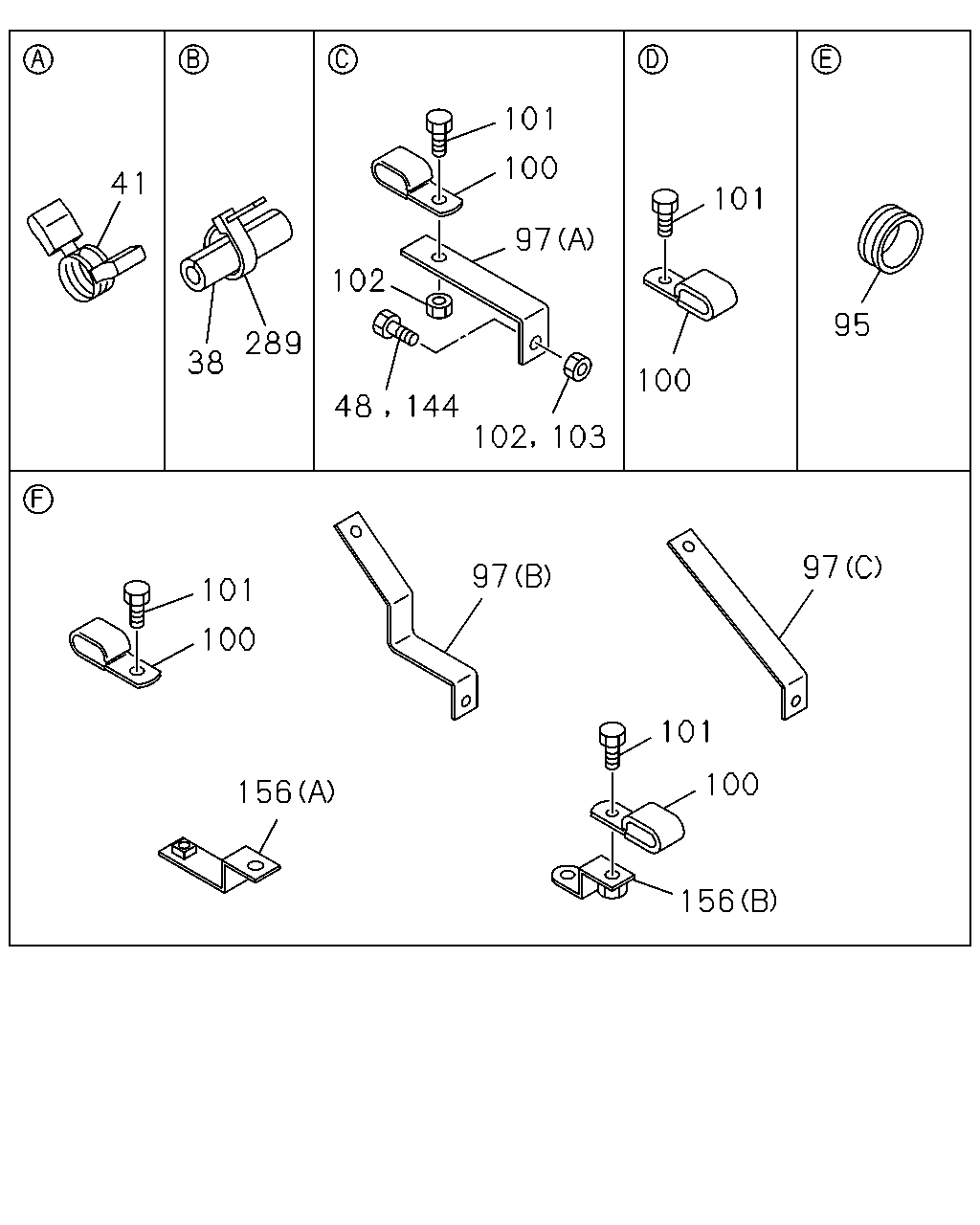

101 100 41 101 97 102 95 289 38 100 48 144 102 103 97 97 101 100 101 100 156 156

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
38	SLEEVE; RUBBER,RUBBER HOSE L=1300	1-09360-677-1	01	1	9606-9905	●			●
38	SLEEVE; RUBBER,RUBBER HOSE L=150 SERVICED BY L=1300	1-09360-677-1	01	1	9906-0101	●	●	●
38	SLEEVE; RUBBER,RUBBER HOSE L TYPE ENG<90L> L=150 SERVICED BY L=1300	1-09360-677-1	03	1	0102-	●	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK ID=14	1-09704-102-0	06	1	9606-9905	●			●
41	CLIP; FUEL PIPE,FUEL TANK ID=14	1-09704-102-0	06	1	9906-	●	●	●
48	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	05	1	9606-9606	●
48	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	05	1	9607-9607	●
48	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	06	1	9607-9609	●
48	BOLT; BRKT WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28680-825-0	06	1	9610-9905	●			●
48	BOLT; BRKT WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28680-825-0	06	1	9906-9908	●	●	●
48	BOLT; BRKT WHEEL BASE 6600MM(66W) M8X35 FLANGE	0-28680-835-0	04	1	9909-0008	●	●	●
48	BOLT; BRKT MJA7U M/T(X6G) WHEEL BASE 6600MM(66W) M8X35 FLANGE	0-28680-835-0	03	1	0009-		●
48	BOLT; BRKT WHEEL BASE 6300MM(63W) M8X30 FLANGE	0-28080-830-0	03	1	9606-9606	●
48	BOLT; BRKT WHEEL BASE 6300MM(63W) M8X35 FLANGE	0-28680-835-0	03	1	9607-9609	●
48	BOLT; BRKT WHEEL BASE 6300MM(63W) M8X35 FLANGE	0-28680-835-0	02	1	9610-9905	●
48	BOLT; BRKT WHEEL BASE 6300MM(63W) M8X35 FLANGE	0-28680-835-0	02	1	9906-0010		●
48	BOLT; BRKT WHEEL BASE 6300MM(63W) ISUZU M/T<X9A> M8X35 FLANGE	0-28680-835-0	01	1	0011-		●
48	BOLT; BRKT WHEEL BASE 6600MM(66W) ISUZU M/T<X9A> M8X30 FLANGE	0-28080-830-0	04	1	9606-9606	●
48	BOLT; BRKT WHEEL BASE 6600MM(66W) ISUZU M/T<X9A> M8X35 FLANGE	0-28680-835-0	04	1	9607-9607	●
48	BOLT; BRKT FULLER M/T<X9B>,ZF M/T<X9E> M8X35 FLANGE	0-28680-835-0	01	1	9906-9908	●	●	●
48	BOLT; BRKT FULLER M/T<X9B>,ZF M/T<X9E> M8X35 FLANGE	0-28680-835-0	01	1	9909-0008	●	●	●
48	BOLT; BRKT FULLER M/T<X9B> M8X35 FLANGE	0-28680-835-0	01	1	9909-0008	●		●
48	BOLT; BRKT FULLER M/T<X9B> M8X35 FLANGE	0-28680-835-0	05	1	0009-	●		●
48	BOLT; BRKT WHEEL BASE 6300MM(63W) FULLER M/T<X9B>,ZF M/T<X9E> M8X35 FLANGE	0-28680-835-0	02	1	0011-		●
48	BOLT; BRKT WHEEL BASE 6600MM(66W) ZF M/T<X9E> M8X35 FLANGE	0-28680-835-0	04	1	0009-		●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	9606-9905	●			●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	9906-	●	●	●
97	BRACKET; CLIP (A) W/NUT M8 FLANGE L=115	1-47475-305-0	04	1	9606-9606	●
97	BRACKET; CLIP (A) W/NUT M8 FLANGE L=115	1-47475-305-0	05	1	9607-9609	●
97	BRACKET; CLIP WHEEL BASE 6600MM(66W) (A) W/NUT M8 FLANGE L=115	1-47475-305-0	05	1	9610-9905	●			●
97	BRACKET; CLIP WHEEL BASE 6600MM(66W) (A) W/NUT M8 FLANGE L=115	1-47475-305-0	05	1	9906-9908	●	●	●
97	BRACKET; CLIP WHEEL BASE 6600MM(66W) (A) W/NUT M8 FLANGE L=115	1-47475-305-0	04	1	9909-0008	●	●	●
97	BRACKET; CLIP WHEEL BASE 6600MM(66W) (A) W/NUT M8 FLANGE L=115	1-47475-305-0	03	1	0009-	●	●	●
97	BRACKET; CLIP WHEEL BASE 6300MM(63W) (A) W/NUT M8 FLANGE L=115	1-47475-305-0	03	1	9606-9606	●
97	BRACKET; CLIP WHEEL BASE 6600MM(66W) ISUZU M/T<X9A> (A) W/NUT M8 FLANGE L=115	1-47475-305-0	02	1	9606-9606	●
97	BRACKET; CLIP WHEEL BASE 6300MM(63W) (A) W/NUT M8 FLANGE L=115	1-47475-305-0	03	1	9607-9609	●
97	BRACKET; CLIP WHEEL BASE 6300MM(63W) (A) W/NUT M8 FLANGE L=115	1-47475-305-0	02	1	9610-9905	●
97	BRACKET; CLIP WHEEL BASE 6300MM(63W) (A) W/NUT M8 FLANGE L=115	1-47475-305-0	02	1	9906-9908		●
97	BRACKET; CLIP WHEEL BASE 6300MM(63W) (A) W/NUT M8 FLANGE L=115	1-47475-305-0	02	1	9909-0008		●
97	BRACKET; CLIP MJA7U M/T(X6G) WHEEL BASE 6300MM(63W) (A) W/NUT M8 FLANGE L=115	1-47475-305-0	02	1	0009-0010		●
97	BRACKET; CLIP WHEEL BASE 6300MM(63W) (A) W/NUT M8 FLANGE L=115	1-47475-305-0	01	1	0011-		●
97	BRACKET; CLIP WHEEL BASE 6300MM(63W) ZF M/T<X9E> (A) W/NUT M8 FLANGE L=115	1-47475-305-0	01	1	0011-		●
97	BRACKET; CLIP FULLER M/T<X9B> (B)	1-47477-677-0	01	1	9606-9711	●			●
97	BRACKET; CLIP FULLER M/T<X9B> (C)	1-47478-083-0	01	1	9712-9905	●			●
97	BRACKET; CLIP FULLER M/T<X9B> (C)	1-47478-083-0	01	1	9906-	●		●
97	BRACKET; CLIP FULLER M/T<X9B>,ZF M/T<X9E> (D)	1-47478-442-0	01	1	9906-	●	●	●
97	BRACKET; CLIP WHEEL BASE 6300MM(63W) ZF M/T<X9E> (A) W/NUT M8 FLANGE L=115	1-47475-305-0	01	1	0009-0010		●
97	BRACKET; CLIP FUEL SEDIMENTER<PS9> (A) L=135	1-22518-099-0	01	1	0101-	●	●	●	●
100	CLIP; FUEL PIPE WHEEL BASE 6300MM(63W) ID=16X2 L=20	9-09535-536-0	07	1	9606-9606	●
100	CLIP; FUEL PIPE WHEEL BASE 6300MM(63W) ID=16X2 L=20	9-09535-536-0	07	1	9607-9609	●
100	CLIP; FUEL PIPE WHEEL BASE 6300MM(63W) ID=16X2 L=20	9-09535-536-0	06	1	9610-9612	●
100	CLIP; FUEL PIPE WHEEL BASE 6600MM(66W) ZF M/T<X9E> ID=16X2 L=20	9-09535-536-0	09	1	9909-		●
100	CLIP; FUEL PIPE FUEL SEDIMENTER<PS9> ID=16X2 L=20	9-09535-536-0	01	1	0101-		●
100	CLIP; FUEL PIPE WHEEL BASE 6600MM(66W) ISUZU M/T<X9A>,FULLER M/T<X9B> ID=16X2 L=20	9-09535-536-0	08	1	9909-	●	●	●
100	CLIP; FUEL PIPE WHEEL BASE 6600MM(66W) ID=16X2 L=20	9-09535-536-0	08	1	9701-9905	●			●
100	CLIP; FUEL PIPE WHEEL BASE 6600MM(66W) ID=16X2 L=20	9-09535-536-0	08	1	9906-9908	●	●	●
100	CLIP; FUEL PIPE WHEEL BASE 6300MM(63W) ZF M/T<X9E> ID=16X2 L=20	9-09535-536-0	07	1	9909-		●
100	CLIP; FUEL PIPE ID=16X2 L=20	9-09535-536-0	08	1	9607-9609	●
100	CLIP; FUEL PIPE WHEEL BASE 6600MM(66W) ID=16X2 L=20	9-09535-536-0	08	1	9610-9612	●
100	CLIP; FUEL PIPE WHEEL BASE 6300MM(63W) ID=16X2 L=20	9-09535-536-0	06	1	9701-9905	●
100	CLIP; FUEL PIPE WHEEL BASE 6300MM(63W) ID=16X2 L=20	9-09535-536-0	06	1	9906-9908		●
100	CLIP; FUEL PIPE WHEEL BASE 6300MM(63W) ISUZU M/T<X9A> ID=16X2 L=20	9-09535-536-0	06	1	9909-		●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 6300MM(63W) M8X20 FLANGE	0-28080-820-0	07	1	9606-9606	●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 6300MM(63W) M8X25 FLANGE	0-28680-825-0	07	1	9607-9607	●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 6300MM(63W) M8X25 FLANGE	0-28680-825-0	07	1	9607-9609	●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 6300MM(63W) M8X25 FLANGE	0-28680-825-0	06	1	9610-9905	●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 6300MM(63W) M8X25 FLANGE	0-28680-825-0	06	1	9906-9908		●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 6300MM(63W) ISUZU M/T<X9A> M8X25 FLANGE	0-28680-825-0	06	1	9909-		●
101	BOLT; CLIP,FUEL PIPE FUEL SEDIMENTER<PS9> M8X25 FLANGE	0-28680-825-0	01	1	0101-		●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 6600MM(66W) ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	09	1	9909-		●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 6600MM(66W) ISUZU M/T<X9A>,FULLER M/T<X9B> M8X25 FLANGE	0-28680-825-0	08	1	9909-	●	●	●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28680-825-0	08	1	9607-9609	●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28680-825-0	08	1	9610-9905	●			●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28680-825-0	08	1	9906-9908	●	●	●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 6300MM(63W) ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	07	1	9909-		●
102	NUT; CLIP,FUEL PIPE M8	9-09110-408-0	03	1	9606-9606	●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91150-108-0	03	1	9607-9609	●
102	NUT; CLIP,FUEL PIPE WHEEL BASE 6300MM(63W) M8 FLANGE	0-91150-108-0	02	1	9610-9905	●
102	NUT; CLIP,FUEL PIPE WHEEL BASE 6300MM(63W) ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	02	1	9906-9908		●
102	NUT; CLIP,FUEL PIPE FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	04	1	9909-0008	●		●
102	NUT; CLIP,FUEL PIPE FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	05	1	0009-	●		●
102	NUT; CLIP,FUEL PIPE WHEEL BASE 6600MM(66W) ZF M/T<X9E> M8 FLANGE	0-91150-108-0	04	1	9906-9908		●
102	NUT; CLIP,FUEL PIPE ZF M/T<X9E> M8 FLANGE	0-91150-108-0	03	1	9909-0008		●
102	NUT; CLIP,FUEL PIPE ZF M/T<X9E> M8 FLANGE	0-91150-108-0	04	1	0009-		●
102	NUT; CLIP,FUEL PIPE FUEL SEDIMENTER<PS9> M8 FLANGE	0-91150-108-0	01	1	0101-0101		●
102	NUT; CLIP,FUEL PIPE WHEEL BASE 6300MM(63W) ISUZU M/T<X9A> L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	02	1	0102-	●	●	●	●
102	NUT; CLIP,FUEL PIPE FUEL SEDIMENTER<PS9> M8 FLANGE	0-91150-108-0	02	1	0102-	●	●	●	●
102	NUT; CLIP,FUEL PIPE MJA7U M/T(X6G) WHEEL BASE 6600MM(66W) M8 FLANGE	0-91150-108-0	03	1	0009-		●
102	NUT; CLIP,FUEL PIPE WHEEL BASE 6600MM(66W) M8 FLANGE	0-91150-108-0	03	1	9610-9905	●
102	NUT; CLIP,FUEL PIPE WHEEL BASE 6600MM(66W) ISUZU M/T<X9A>,FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	03	1	9906-9908	●	●	●
102	NUT; CLIP,FUEL PIPE WHEEL BASE 6300MM(63W) ZF M/T<X9E> M8 FLANGE	0-91150-108-0	03	1	9906-9908		●
102	NUT; CLIP,FUEL PIPE ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	02	1	9909-0008		●
102	NUT; CLIP,FUEL PIPE MJA7U M/T(X6G) M8 FLANGE	0-91150-108-0	02	1	0009-0101		●
103	NUT; BRKT M8	9-09110-408-0	05	1	9606-9606	●
103	NUT; BRKT M8 FLANGE	0-91150-108-0	05	1	9607-9607	●
103	NUT; BRKT M8 FLANGE	0-91150-108-0	06	1	9607-9609	●
103	NUT; BRKT WHEEL BASE 6600MM(66W) M8 FLANGE	0-91150-108-0	06	1	9610-9905	●			●
103	NUT; BRKT WHEEL BASE 6600MM(66W) M8 FLANGE	0-91150-108-0	06	1	9906-9908	●	●	●
103	NUT; BRKT WHEEL BASE 6600MM(66W) M8 FLANGE	0-91150-108-0	04	1	9909-0008	●	●	●
103	NUT; BRKT MJA7U M/T(X6G) WHEEL BASE 6600MM(66W) M8 FLANGE	0-91150-108-0	03	1	0009-		●
103	NUT; BRKT WHEEL BASE 6300MM(63W) M8	9-09110-408-0	03	1	9606-9606	●
103	NUT; BRKT WHEEL BASE 6300MM(63W) M8 FLANGE	0-91150-108-0	03	1	9607-9609	●
103	NUT; BRKT WHEEL BASE 6300MM(63W) M8 FLANGE	0-91150-108-0	02	1	9610-9905	●
103	NUT; BRKT WHEEL BASE 6300MM(63W) M8 FLANGE	0-91150-108-0	02	1	9906-0010		●
103	NUT; BRKT WHEEL BASE 6300MM(63W) ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	01	1	0011-		●
103	NUT; BRKT WHEEL BASE 6600MM(66W) ISUZU M/T<X9A> M8	9-09110-408-0	04	1	9606-9606	●
103	NUT; BRKT WHEEL BASE 6600MM(66W) ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	04	1	9607-9607	●
103	NUT; BRKT FULLER M/T<X9B>,ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	9906-9908	●	●	●
103	NUT; BRKT FULLER M/T<X9B>,ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	9909-0008	●	●	●
103	NUT; BRKT FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	01	1	9909-0008	●		●
103	NUT; BRKT FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	05	1	0009-	●		●
103	NUT; BRKT WHEEL BASE 6300MM(63W) FULLER M/T<X9B>,ZF M/T<X9E> M8 FLANGE	0-91150-108-0	02	1	0011-		●
103	NUT; BRKT WHEEL BASE 6600MM(66W) ZF M/T<X9E> M8 FLANGE	0-91150-108-0	04	1	0009-		●
144	BOLT; CLIP,FUEL PIPE,C/MBR FUEL SEDIMENTER<PS9> M8X35 FLANGE	0-28680-835-0	01	1	0102-		●
156	BRACKET; FUEL HOSE TRANSMISSION-ZF 16S151 OD(Y2N) (A) L=80 H=20	1-82699-304-0	01	1	9806-9905	●
156	BRACKET; FUEL HOSE ZF M/T<X9E> (B)	1-47478-306-0	02	1	9906-		●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	02	1	9606-9905	●			●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	02	1	9906-0101	●	●	●
289	CLIP; BAND,HOSE L TYPE ENG<90L> L=250	5-09707-030-1	06	1	0102-	●	●	●	●

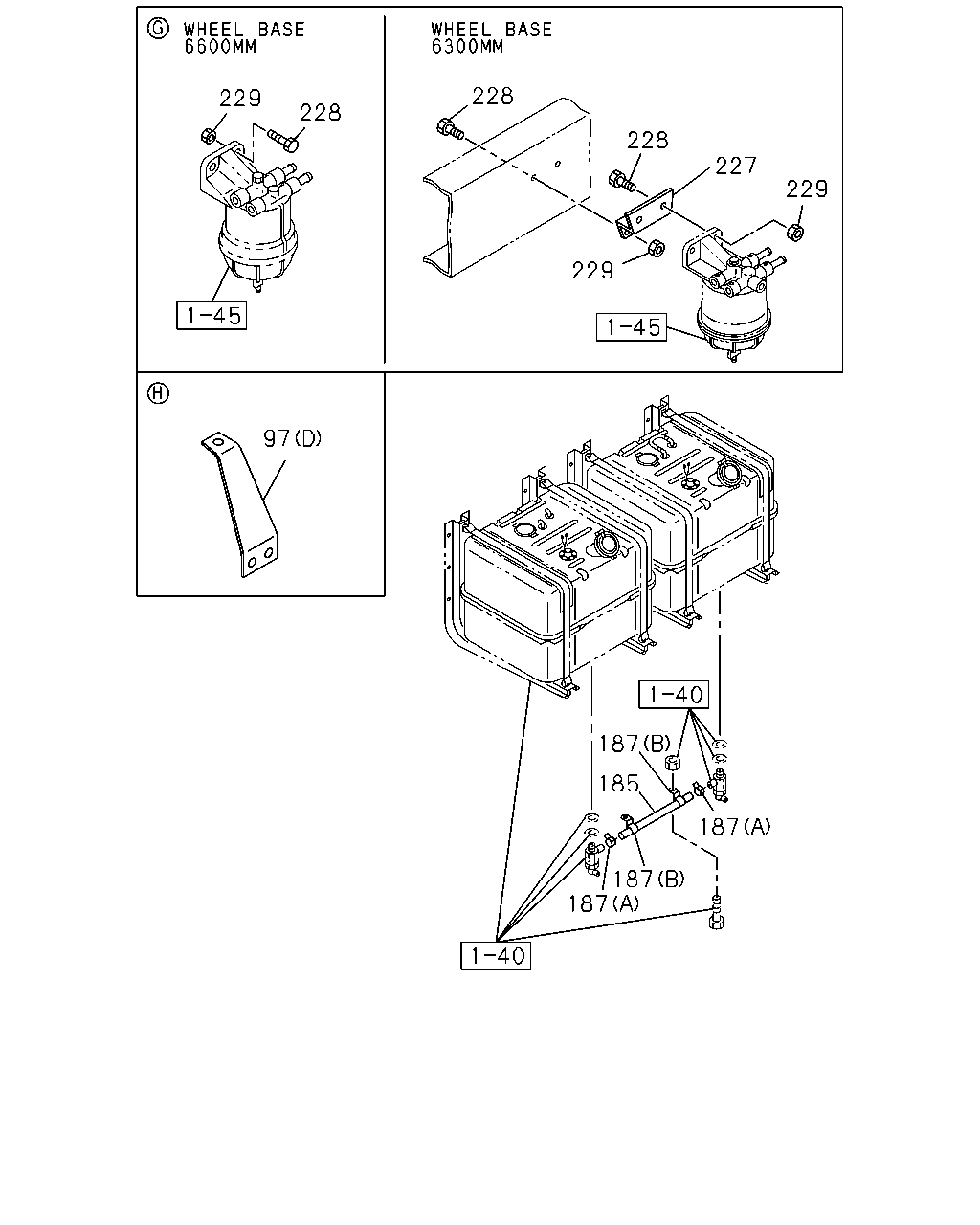

228 229 228 228 227 229 229 97 187 185 187 187 187

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
97	BRACKET; CLIP (A) W/NUT M8 FLANGE L=115	1-47475-305-0	04	1	9606-9606	●
97	BRACKET; CLIP (A) W/NUT M8 FLANGE L=115	1-47475-305-0	05	1	9607-9609	●
97	BRACKET; CLIP WHEEL BASE 6600MM(66W) (A) W/NUT M8 FLANGE L=115	1-47475-305-0	05	1	9610-9905	●			●
97	BRACKET; CLIP WHEEL BASE 6600MM(66W) (A) W/NUT M8 FLANGE L=115	1-47475-305-0	05	1	9906-9908	●	●	●
97	BRACKET; CLIP WHEEL BASE 6600MM(66W) (A) W/NUT M8 FLANGE L=115	1-47475-305-0	04	1	9909-0008	●	●	●
97	BRACKET; CLIP WHEEL BASE 6600MM(66W) (A) W/NUT M8 FLANGE L=115	1-47475-305-0	03	1	0009-	●	●	●
97	BRACKET; CLIP WHEEL BASE 6300MM(63W) (A) W/NUT M8 FLANGE L=115	1-47475-305-0	03	1	9606-9606	●
97	BRACKET; CLIP WHEEL BASE 6600MM(66W) ISUZU M/T<X9A> (A) W/NUT M8 FLANGE L=115	1-47475-305-0	02	1	9606-9606	●
97	BRACKET; CLIP WHEEL BASE 6300MM(63W) (A) W/NUT M8 FLANGE L=115	1-47475-305-0	03	1	9607-9609	●
97	BRACKET; CLIP WHEEL BASE 6300MM(63W) (A) W/NUT M8 FLANGE L=115	1-47475-305-0	02	1	9610-9905	●
97	BRACKET; CLIP WHEEL BASE 6300MM(63W) (A) W/NUT M8 FLANGE L=115	1-47475-305-0	02	1	9906-9908		●
97	BRACKET; CLIP WHEEL BASE 6300MM(63W) (A) W/NUT M8 FLANGE L=115	1-47475-305-0	02	1	9909-0008		●
97	BRACKET; CLIP MJA7U M/T(X6G) WHEEL BASE 6300MM(63W) (A) W/NUT M8 FLANGE L=115	1-47475-305-0	02	1	0009-0010		●
97	BRACKET; CLIP WHEEL BASE 6300MM(63W) (A) W/NUT M8 FLANGE L=115	1-47475-305-0	01	1	0011-		●
97	BRACKET; CLIP WHEEL BASE 6300MM(63W) ZF M/T<X9E> (A) W/NUT M8 FLANGE L=115	1-47475-305-0	01	1	0011-		●
97	BRACKET; CLIP FULLER M/T<X9B> (B)	1-47477-677-0	01	1	9606-9711	●			●
97	BRACKET; CLIP FULLER M/T<X9B> (C)	1-47478-083-0	01	1	9712-9905	●			●
97	BRACKET; CLIP FULLER M/T<X9B> (C)	1-47478-083-0	01	1	9906-	●		●
97	BRACKET; CLIP FULLER M/T<X9B>,ZF M/T<X9E> (D)	1-47478-442-0	01	1	9906-	●	●	●
97	BRACKET; CLIP WHEEL BASE 6300MM(63W) ZF M/T<X9E> (A) W/NUT M8 FLANGE L=115	1-47475-305-0	01	1	0009-0010		●
97	BRACKET; CLIP FUEL SEDIMENTER<PS9> (A) L=135	1-22518-099-0	01	1	0101-	●	●	●	●
185	PIPE; FUEL TANK TO TANK EXC. FUEL TANK 200L FRAME SIDE<N20> L=900 SERVICED BY L=3000	0-01262-300-0	01	1	9606-9905	●			●
185	PIPE; FUEL TANK TO TANK EXC. FUEL TANK 200L FRAME SIDE<N20> L=900 SERVICED BY L=3000	0-01262-300-0	01	1	9906-	●	●	●
187	CLIP; FUEL PIPE TANK TO TANK EXC. FUEL TANK 200L FRAME SIDE<N20> (A) ID=17.1	8-94122-679-0	02	1	9606-9905	●			●
187	CLIP; FUEL PIPE TANK TO TANK EXC. FUEL TANK 200L FRAME SIDE<N20> (A) ID=17.1	8-94122-679-0	02	1	9906-	●	●	●
187	CLIP; FUEL PIPE TANK TO TANK EXC. FUEL TANK 200L FRAME SIDE<N20> (B) ID=19 H=25 L=25	9-09917-035-0	02	1	9606-9905	●			●
187	CLIP; FUEL PIPE TANK TO TANK EXC. FUEL TANK 200L FRAME SIDE<N20> (B) ID=19 H=25 L=25	9-09917-035-0	02	1	9906-	●	●	●
227	BRACKET; FUEL SEDIMENTER WHEEL BASE 6300MM(63W) FUEL SEDIMENTER<PS9>	1-19755-223-0	01	1	0101-	●	●	●	●
227	BRACKET; FUEL SEDIMENTER WHEEL BASE 6600MM(66W) FUEL SEDIMENTER<PS9>	1-22518-178-1	01	1	0101-0104	●	●	●	●
227	BRACKET; FUEL SEDIMENTER WHEEL BASE 6600MM(66W) FUEL SEDIMENTER<PS9>	1-22518-183-0	01	1	0105-	●	●	●
227	BRACKET; FUEL SEDIMENTER WHEEL BASE 6300MM(63W)	1-22518-156-0	01	1	9606-0012	●	●
227	BRACKET; FUEL SEDIMENTER WHEEL BASE 6300MM(63W) EXC. FUEL SEDIMENTER<PS9>	1-22518-156-0	01	1	0101-		●
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 6300MM(63W) M10X30 FLANGE	0-28081-030-0	02	1	9606-9606	●
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 6300MM(63W) M8X35 FLANGE	0-28680-835-0	02	1	9607-0008	●	●
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 6300MM(63W) M10X35 FLANGE	0-28681-035-0	02	1	0009-0012	●	●
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 6300MM(63W) EXC. FUEL SEDIMENTER<PS9> M10X35 FLANGE	0-28681-035-0	02	1	0101-		●
228	BOLT; BRKT,SEDIMENTER M10X40 FLANGE	0-28081-040-0	02	1	9606-9606	●			●
228	BOLT; BRKT,SEDIMENTER M10X40 FLANGE	0-28681-040-0	02	1	9607-9905	●			●
228	BOLT; BRKT,SEDIMENTER M10X40 FLANGE	0-28681-040-0	02	1	9906-0012	●	●	●
228	BOLT; BRKT,SEDIMENTER M10X40 FLANGE	0-28681-040-0	02	1	0101-	●		●
228	BOLT; BRKT,SEDIMENTER EXC. FUEL SEDIMENTER<PS9> M10X40 FLANGE	0-28681-040-0	02	1	0101-		●
228	BOLT; BRKT,SEDIMENTER FUEL SEDIMENTER<PS9> M14X45	0-20801-445-0	02	1	0101-		●
228	BOLT; BRKT,SEDIMENTER FUEL SEDIMENTER<PS9> M12X30	9-92061-230-0	04	1	0101-0102		●
228	BOLT; BRKT,SEDIMENTER FUEL SEDIMENTER<PS9> M12X35	9-92061-235-0	04	1	0103-		●
229	NUT; BRKT,FUEL FILTER M10	9-09110-510-0	02	1	9606-9606	●
229	NUT; BRKT,FUEL FILTER WHEEL BASE 6300MM(63W) M10	9-09110-510-0	02	1	9606-9606	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	9607-0012	●	●	●	●
229	NUT; BRKT,FUEL FILTER WHEEL BASE 6300MM(63W) M10 FLANGE	0-91150-210-0	02	1	9607-0012	●	●
229	NUT; BRKT,FUEL FILTER WHEEL BASE 6300MM(63W) EXC. FUEL SEDIMENTER<PS9> M10 FLANGE	0-91150-210-0	02	1	0101-	●	●	●	●
229	NUT; BRKT,FUEL FILTER EXC. FUEL SEDIMENTER<PS9> M10 FLANGE	0-91150-210-0	02	1	0101-	●	●	●	●
229	NUT; BRKT,FUEL FILTER FUEL SEDIMENTER<PS9> M14	9-99110-414-0	02	1	0101-		●
229	NUT; BRKT,FUEL FILTER WHEEL BASE 6600MM(66W) FUEL SEDIMENTER<PS9> M12 FLANGE	0-91150-212-0	02	1	0104-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
