Sayfa 1-40A - Isuzu EPC

1-40A — FUEL TANK (#5034) — 178 parça

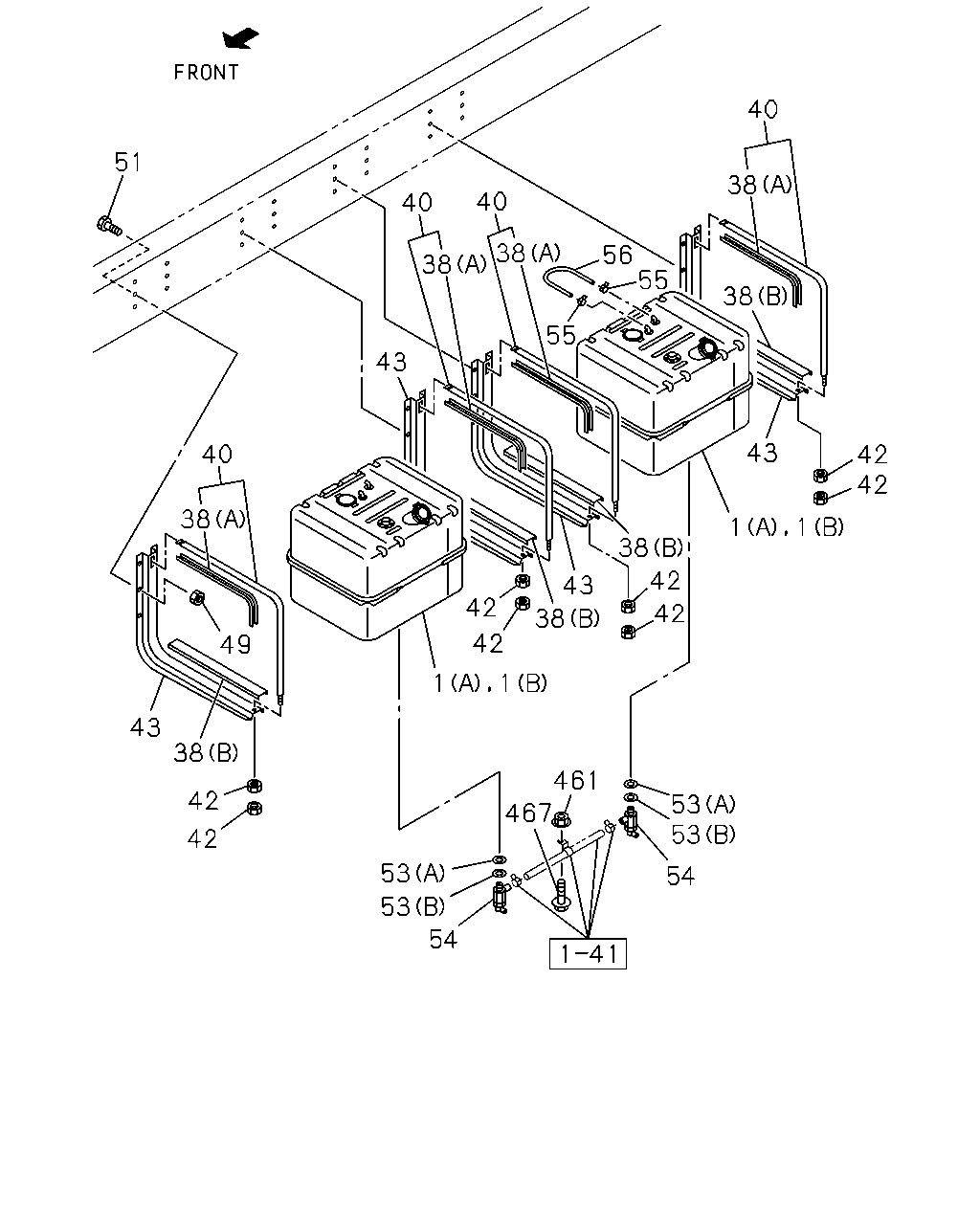

40 51 38 40 40 38 56 55 38 38 55 43 43 40 42 42 38 1 1 38 42 43 42 38 42 42 49 1 1 43 38 461 42 53 53 467 42 53 54 53 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-855-0	01	1	9606-9905	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-855-0	01	1	9906-0003		●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-121-1	01	1	0004-		●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22400-854-1	01	1	9606-9905	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22400-854-1	01	1	9906-0003		●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-117-1	01	1	0004-		●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L FRAME SIDE<N20> (B) 720X610X496 200L	1-22400-855-0	02	1	9606-9905	●		●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-855-0	02	1	9906-0003	●	●		●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-121-1	02	1	0004-	●	●		●
1	TANK; FUEL EXC. FUEL TANK 200L FRAME SIDE<N20>,FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22400-854-1	02	1	9606-9905	●		●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22400-854-1	02	1	9906-0003	●	●		●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-117-1	02	1	0004-	●	●		●
38	INSULATION; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> (B) L=580	1-22553-003-0	02	1	9606-9905	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> (B) L=580	1-22553-003-0	02	1	9906-		●
38	INSULATION; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> (A) L=650	1-22553-022-1	02	1	9606-9905	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> (A) L=650	1-22553-022-1	02	1	9906-		●
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 200L FRAME SIDE<N20> (B) L=580	1-22553-003-0	04	1	9606-9905	●		●
38	INSULATION; SUPPORT BELT FUEL TANK 200L+200L<NF7> (B) L=580	1-22553-003-0	04	1	9906-	●	●		●
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 200L FRAME SIDE<N20> (A) L=650	1-22553-022-1	04	1	9606-9905	●		●
38	INSULATION; SUPPORT BELT FUEL TANK 200L+200L<NF7> (A) L=650	1-22553-022-1	04	1	9906-	●	●		●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=1030	1-22550-204-1	02	1	9606-9905	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=1030	1-22550-204-2	02	1	9906-		●
40	BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 200L FRAME SIDE<N20> L=1030	1-22550-204-1	04	1	9606-9905	●		●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L<NF7> L=1030	1-22550-204-2	04	1	9906-	●	●		●
42	NUT; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> M10	9-09110-510-0	04	1	9606-9905	●
42	NUT; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> M10	9-09110-510-0	04	1	9906-		●
42	NUT; SUPPORT BELT EXC. FUEL TANK 200L FRAME SIDE<N20> M10	9-09110-510-0	08	1	9606-9905	●		●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	08	1	9906-	●	●		●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> WHEEL BASE 6300MM(63W)	1-53461-409-1	02	1	9606-9905	●
43	BRACKET; FUEL TANK WHEEL BASE 6300MM(63W) FUEL TANK 200L FRAME SIDE<N20>	1-53461-409-1	02	1	9906-		●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> WHEEL BASE 6600MM(66W)	1-53461-279-4	02	1	9606-9905	●
43	BRACKET; FUEL TANK WHEEL BASE 6600MM(66W) FUEL TANK 200L+200L<NF7>	1-53461-279-4	04	1	9906-	●	●		●
43	BRACKET; FUEL TANK EXC. FUEL TANK 200L FRAME SIDE<N20>	1-53461-279-4	04	1	9606-9905	●		●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> WHEEL BASE 6300MM(63W) M12	9-99110-512-0	08	1	9606-9905	●
49	NUT; BRKT WHEEL BASE 6300MM(63W) FUEL TANK 200L FRAME SIDE<N20> M12	9-99110-512-0	08	1	9906-		●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> WHEEL BASE 6600MM(66W) M12	9-99110-512-0	12	1	9606-9905	●
49	NUT; BRKT FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	24	1	9906-	●	●		●
49	NUT; BRKT EXC. FUEL TANK 200L FRAME SIDE<N20> M12	9-99110-512-0	24	1	9606-9905	●		●
51	BOLT; BRKT TO FRAME FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FUEL TANK 200L FRAME SIDE<N20> M12X35 FLANGE	0-28081-235-0	24	1	9606-9606	●
51	BOLT; BRKT TO FRAME FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FUEL TANK 200L FRAME SIDE<N20> M12X40 FLANGE	0-28681-240-0	24	1	9607-9905	●		●
51	BOLT; BRKT TO FRAME FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FUEL TANK 200L FRAME SIDE<N20> M12X40 FLANGE	0-28681-240-0	24	1	9906-	●	●		●
51	BOLT; BRKT TO FRAME EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,FUEL TANK 200L FRAME SIDE<N20> M12X30 FLANGE	0-28081-230-0	24	1	9606-9606	●
51	BOLT; BRKT TO FRAME EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,FUEL TANK 200L FRAME SIDE<N20> M12X35 FLANGE	0-28681-235-0	24	1	9607-9905	●		●
51	BOLT; BRKT TO FRAME WHEEL BASE 6300MM(63W) FUEL TANK 200L FRAME SIDE<N20> M12X35 FLANGE	0-28081-235-0	08	1	9606-9606	●
51	BOLT; BRKT TO FRAME WHEEL BASE 6300MM(63W) FUEL TANK 200L FRAME SIDE<N20> M12X40 FLANGE	0-28681-240-0	08	1	9607-9905	●
51	BOLT; BRKT TO FRAME WHEEL BASE 6300MM(63W) FUEL TANK 200L FRAME SIDE<N20> M12X40 FLANGE	0-28681-240-0	08	1	9906-		●
51	BOLT; BRKT TO FRAME WHEEL BASE 6600MM(66W) FUEL TANK 200L FRAME SIDE<N20> FRAME EQUIPMENT HEAVY DUTY<F03> M12X35 FLANGE	0-28081-235-0	12	1	9606-9606	●
51	BOLT; BRKT TO FRAME WHEEL BASE 6600MM(66W) FUEL TANK 200L FRAME SIDE<N20> FRAME EQUIPMENT HEAVY DUTY<F03> M12X40 FLANGE	0-28681-240-0	12	1	9607-9905	●
51	BOLT; BRKT TO FRAME WHEEL BASE 6600MM(66W) FUEL TANK 200L FRAME SIDE<N20> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M12X30 FLANGE	0-28081-230-0	12	1	9606-9606	●
51	BOLT; BRKT TO FRAME WHEEL BASE 6600MM(66W) FUEL TANK 200L FRAME SIDE<N20> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M12X35 FLANGE	0-28681-235-0	12	1	9607-9905	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L<NF7> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M12X35 FLANGE	0-28681-235-0	24	1	9906-	●	●		●
53	GASKET; COCK,FUEL TANK EXC. FUEL TANK 200L FRAME SIDE<N20> (B) T=1.60	1-22416-001-0	02	1	9606-9905	●		●
53	GASKET; COCK,FUEL TANK FUEL TANK 200L+200L<NF7> (B) T=1.60	1-22416-001-0	02	1	9906-	●	●		●
53	GASKET; COCK,FUEL TANK EXC. FUEL TANK 200L FRAME SIDE<N20> (A) T=0.80	1-22416-004-0	02	1	9606-9905	●		●
53	GASKET; COCK,FUEL TANK FUEL TANK 200L+200L<NF7> (A) T=0.80	1-22416-004-0	02	1	9906-	●	●		●
54	COCK ASM; FUEL TANK EXC. FUEL TANK 200L FRAME SIDE<N20>	9-09904-176-0	02	1	9606-9905	●		●
54	COCK ASM; FUEL TANK FUEL TANK 200L+200L<NF7>	9-09904-176-0	02	1	9906-	●	●		●
55	CLIP; FUEL PIPE EXC. FUEL TANK 200L FRAME SIDE<N20> ID=14	1-09704-102-0	02	1	9606-9905	●		●
55	CLIP; FUEL PIPE EXC. FUEL TANK 200L FRAME SIDE<N20> ID=14	1-09704-102-0	02	1	9906-	●	●		●
56	PIPE; FUEL SHUTTER EXC. FUEL TANK 200L FRAME SIDE<N20> L=260 SERVICED BY L=3000	0-01260-300-0	01	1	9606-9905	●		●
56	PIPE; FUEL SHUTTER EXC. FUEL TANK 200L FRAME SIDE<N20> L=260 SERVICED BY L=3000	0-01260-300-0	01	1	9906-	●	●		●
461	NUT; CLIP,FUEL PIPE EXC. FUEL TANK 200L FRAME SIDE<N20> M8	9-09110-508-0	02	1	9606-9606	●		●
461	NUT; CLIP,FUEL PIPE EXC. FUEL TANK 200L FRAME SIDE<N20> M8 FLANGE	0-91150-108-0	02	1	9607-9905	●		●
461	NUT; CLIP,FUEL PIPE EXC. FUEL TANK 200L FRAME SIDE<N20> M8 FLANGE	0-91150-108-0	02	1	9906-	●	●		●
467	BOLT EXC. FUEL TANK 200L FRAME SIDE<N20> M8X20 FLANGE	0-28080-820-0	02	1	9606-9606	●		●
467	BOLT EXC. FUEL TANK 200L FRAME SIDE<N20> M8X25 FLANGE	0-28680-825-0	02	1	9607-9905	●		●
467	BOLT EXC. FUEL TANK 200L FRAME SIDE<N20> M8X25 FLANGE	0-28680-825-0	02	1	9906-	●	●		●

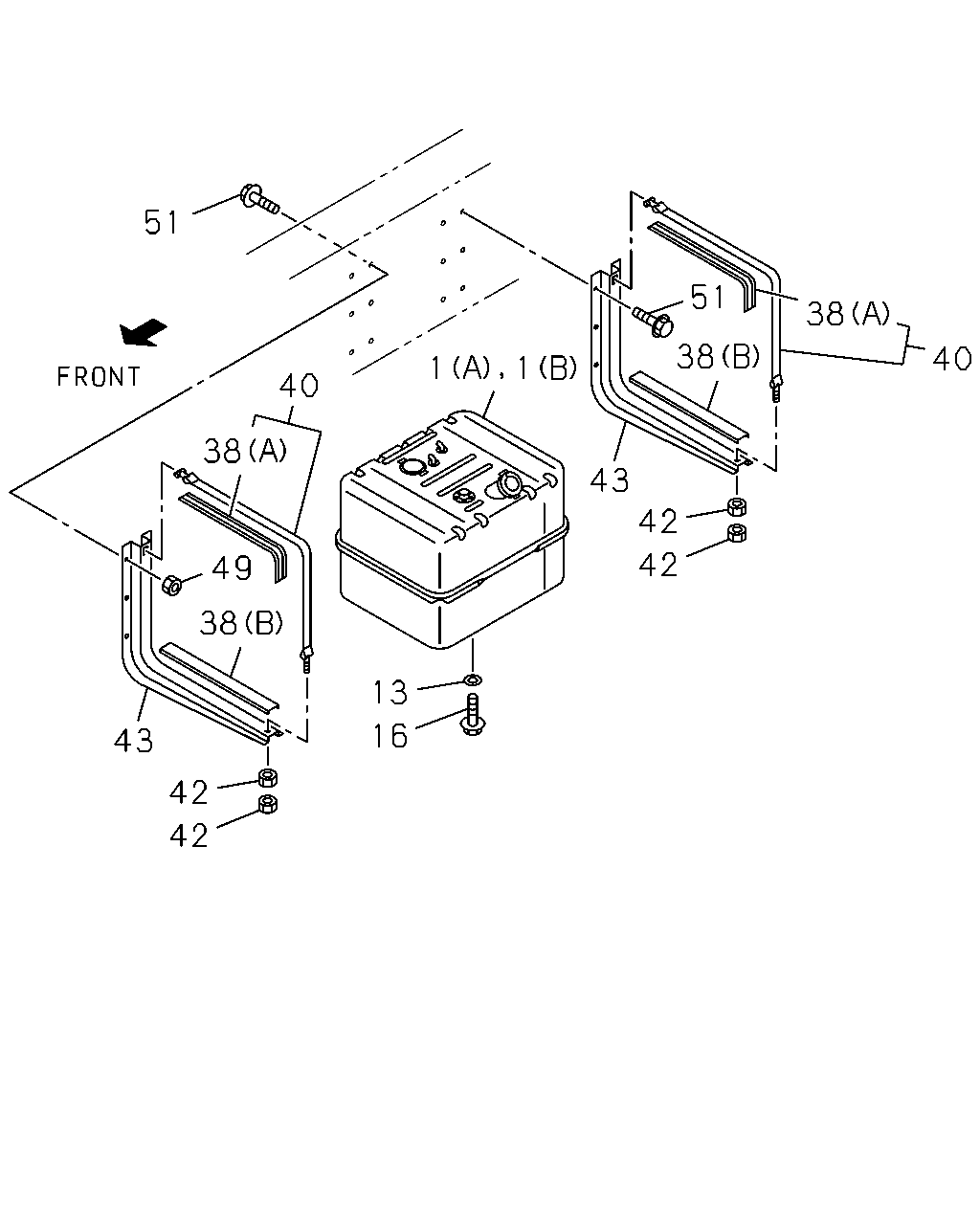

51 51 38 38 40 1 1 40 38 43 42 42 49 38 13 16 43 42 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-855-0	01	1	9606-9905	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-855-0	01	1	9906-0003		●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-121-1	01	1	0004-		●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22400-854-1	01	1	9606-9905	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22400-854-1	01	1	9906-0003		●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-117-1	01	1	0004-		●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L FRAME SIDE<N20> (B) 720X610X496 200L	1-22400-855-0	02	1	9606-9905	●		●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-855-0	02	1	9906-0003	●	●		●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-121-1	02	1	0004-	●	●		●
1	TANK; FUEL EXC. FUEL TANK 200L FRAME SIDE<N20>,FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22400-854-1	02	1	9606-9905	●		●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22400-854-1	02	1	9906-0003	●	●		●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-117-1	02	1	0004-	●	●		●
13	PLUG; SCREW,SUB TANK JOINT FUEL TANK 200L FRAME SIDE<N20> M18X12	1-09604-081-0	01	1	9606-9905	●
13	PLUG; SCREW,SUB TANK JOINT FUEL TANK 200L FRAME SIDE<N20> M18X12	1-09604-081-0	01	1	9906-		●
16	GASKET; PLUG FUEL TANK 200L FRAME SIDE<N20> T=1.60	1-22416-001-0	01	1	9606-9905	●
16	GASKET; PLUG FUEL TANK 200L FRAME SIDE<N20> T=1.60	1-22416-001-0	01	1	9906-		●
38	INSULATION; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> (B) L=580	1-22553-003-0	02	1	9606-9905	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> (B) L=580	1-22553-003-0	02	1	9906-		●
38	INSULATION; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> (A) L=650	1-22553-022-1	02	1	9606-9905	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> (A) L=650	1-22553-022-1	02	1	9906-		●
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 200L FRAME SIDE<N20> (B) L=580	1-22553-003-0	04	1	9606-9905	●		●
38	INSULATION; SUPPORT BELT FUEL TANK 200L+200L<NF7> (B) L=580	1-22553-003-0	04	1	9906-	●	●		●
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 200L FRAME SIDE<N20> (A) L=650	1-22553-022-1	04	1	9606-9905	●		●
38	INSULATION; SUPPORT BELT FUEL TANK 200L+200L<NF7> (A) L=650	1-22553-022-1	04	1	9906-	●	●		●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=1030	1-22550-204-1	02	1	9606-9905	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=1030	1-22550-204-2	02	1	9906-		●
40	BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 200L FRAME SIDE<N20> L=1030	1-22550-204-1	04	1	9606-9905	●		●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L<NF7> L=1030	1-22550-204-2	04	1	9906-	●	●		●
42	NUT; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> M10	9-09110-510-0	04	1	9606-9905	●
42	NUT; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> M10	9-09110-510-0	04	1	9906-		●
42	NUT; SUPPORT BELT EXC. FUEL TANK 200L FRAME SIDE<N20> M10	9-09110-510-0	08	1	9606-9905	●		●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	08	1	9906-	●	●		●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> WHEEL BASE 6300MM(63W)	1-53461-409-1	02	1	9606-9905	●
43	BRACKET; FUEL TANK WHEEL BASE 6300MM(63W) FUEL TANK 200L FRAME SIDE<N20>	1-53461-409-1	02	1	9906-		●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> WHEEL BASE 6600MM(66W)	1-53461-279-4	02	1	9606-9905	●
43	BRACKET; FUEL TANK WHEEL BASE 6600MM(66W) FUEL TANK 200L+200L<NF7>	1-53461-279-4	04	1	9906-	●	●		●
43	BRACKET; FUEL TANK EXC. FUEL TANK 200L FRAME SIDE<N20>	1-53461-279-4	04	1	9606-9905	●		●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> WHEEL BASE 6300MM(63W) M12	9-99110-512-0	08	1	9606-9905	●
49	NUT; BRKT WHEEL BASE 6300MM(63W) FUEL TANK 200L FRAME SIDE<N20> M12	9-99110-512-0	08	1	9906-		●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> WHEEL BASE 6600MM(66W) M12	9-99110-512-0	12	1	9606-9905	●
49	NUT; BRKT FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	24	1	9906-	●	●		●
49	NUT; BRKT EXC. FUEL TANK 200L FRAME SIDE<N20> M12	9-99110-512-0	24	1	9606-9905	●		●
51	BOLT; BRKT TO FRAME FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FUEL TANK 200L FRAME SIDE<N20> M12X35 FLANGE	0-28081-235-0	24	1	9606-9606	●
51	BOLT; BRKT TO FRAME FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FUEL TANK 200L FRAME SIDE<N20> M12X40 FLANGE	0-28681-240-0	24	1	9607-9905	●		●
51	BOLT; BRKT TO FRAME FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FUEL TANK 200L FRAME SIDE<N20> M12X40 FLANGE	0-28681-240-0	24	1	9906-	●	●		●
51	BOLT; BRKT TO FRAME EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,FUEL TANK 200L FRAME SIDE<N20> M12X30 FLANGE	0-28081-230-0	24	1	9606-9606	●
51	BOLT; BRKT TO FRAME EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,FUEL TANK 200L FRAME SIDE<N20> M12X35 FLANGE	0-28681-235-0	24	1	9607-9905	●		●
51	BOLT; BRKT TO FRAME WHEEL BASE 6300MM(63W) FUEL TANK 200L FRAME SIDE<N20> M12X35 FLANGE	0-28081-235-0	08	1	9606-9606	●
51	BOLT; BRKT TO FRAME WHEEL BASE 6300MM(63W) FUEL TANK 200L FRAME SIDE<N20> M12X40 FLANGE	0-28681-240-0	08	1	9607-9905	●
51	BOLT; BRKT TO FRAME WHEEL BASE 6300MM(63W) FUEL TANK 200L FRAME SIDE<N20> M12X40 FLANGE	0-28681-240-0	08	1	9906-		●
51	BOLT; BRKT TO FRAME WHEEL BASE 6600MM(66W) FUEL TANK 200L FRAME SIDE<N20> FRAME EQUIPMENT HEAVY DUTY<F03> M12X35 FLANGE	0-28081-235-0	12	1	9606-9606	●
51	BOLT; BRKT TO FRAME WHEEL BASE 6600MM(66W) FUEL TANK 200L FRAME SIDE<N20> FRAME EQUIPMENT HEAVY DUTY<F03> M12X40 FLANGE	0-28681-240-0	12	1	9607-9905	●
51	BOLT; BRKT TO FRAME WHEEL BASE 6600MM(66W) FUEL TANK 200L FRAME SIDE<N20> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M12X30 FLANGE	0-28081-230-0	12	1	9606-9606	●
51	BOLT; BRKT TO FRAME WHEEL BASE 6600MM(66W) FUEL TANK 200L FRAME SIDE<N20> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M12X35 FLANGE	0-28681-235-0	12	1	9607-9905	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L<NF7> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M12X35 FLANGE	0-28681-235-0	24	1	9906-	●	●		●

1 1 35 35 32 32 29 29 25 25 19 19 8 22 8 22 11 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-855-0	01	1	9606-9905	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-855-0	01	1	9906-0003		●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-121-1	01	1	0004-		●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22400-854-1	01	1	9606-9905	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22400-854-1	01	1	9906-0003		●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-117-1	01	1	0004-		●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L FRAME SIDE<N20> (B) 720X610X496 200L	1-22400-855-0	02	1	9606-9905	●		●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22400-855-0	02	1	9906-0003	●	●		●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-121-1	02	1	0004-	●	●		●
1	TANK; FUEL EXC. FUEL TANK 200L FRAME SIDE<N20>,FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22400-854-1	02	1	9606-9905	●		●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22400-854-1	02	1	9906-0003	●	●		●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-117-1	02	1	0004-	●	●		●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> T=2.0	9-09923-030-0	01	1	9606-9905	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> T=2.0	9-09923-030-0	01	1	9906-		●
8	GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL TANK 200L FRAME SIDE<N20> T=2.0	9-09923-030-0	02	1	9606-9905	●		●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L<NF7> T=2.0	9-09923-030-0	02	1	9906-	●	●		●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> M36	1-09604-052-0	01	1	9606-9905	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> M36	1-09604-052-0	01	1	9906-0003		●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> M36	1-09604-052-0	01	1	0004-		●
11	PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 200L FRAME SIDE<N20> M36	1-09604-052-0	02	1	9606-9905	●		●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L<NF7> M36	1-09604-052-0	02	1	9906-0003	●	●		●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L<NF7> M36	1-09604-052-0	02	1	0004-	●	●		●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20>	9-83135-003-0	01	1	9606-9905	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20>	9-83135-003-0	01	1	9906-		●
19	GASKET; FUEL TANK UNIT EXC. FUEL TANK 200L FRAME SIDE<N20>	9-83135-003-0	02	1	9606-9905	●		●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L<NF7>	9-83135-003-0	02	1	9906-	●	●		●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-080-1	01	1	9606-9905	●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-080-1	01	1	9906-		●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	01	1	9606-9905	●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	01	1	9906-		●
22	UNIT; FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L FRAME SIDE<N20>	1-83141-080-1	02	1	9606-9905	●		●
22	UNIT; FUEL TANK FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-080-1	02	1	9906-	●	●		●
22	UNIT; FUEL TANK EXC. FUEL TANK 200L FRAME SIDE<N20>,FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	02	1	9606-9905	●		●
22	UNIT; FUEL TANK FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	02	1	9906-	●	●		●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-034-1	01	1	9606-9905	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-034-1	01	1	9906-		●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-033-2	01	1	9606-9905	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-033-2	01	1	9906-0003		●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-067-0	01	1	0004-		●
25	CAP; FILLER,FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L FRAME SIDE<N20>	1-22440-034-1	02	1	9606-9905	●		●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-034-1	02	1	9906-	●	●		●
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK 200L FRAME SIDE<N20>,FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-033-2	02	1	9606-9905	●		●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-033-2	02	1	9906-0003	●	●		●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-067-0	02	1	0004-	●	●		●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.3	9-09160-505-0	01	1	9606-9905	●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.3	9-09160-505-0	01	1	9906-		●
29	WASHER; PL,FUEL TANK UNIT EXC. FUEL TANK 200L FRAME SIDE<N20> ID=5.3	9-09160-505-0	02	1	9606-9905	●		●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L+200L<NF7> ID=5.3	9-09160-505-0	02	1	9906-	●	●		●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.1	9-09150-505-0	05	1	9606-9905	●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.1	9-09150-505-0	05	1	9906-		●
32	WASHER; LK,FUEL TANK UNIT EXC. FUEL TANK 200L FRAME SIDE<N20> ID=5.1	9-09150-505-0	10	1	9606-9905	●		●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L+200L<NF7> ID=5.1	9-09150-505-0	10	1	9906-	●	●		●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> M5X10	9-93497-510-0	05	1	9606-9905	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> M5X10	9-93497-510-0	05	1	9906-		●
35	SCREW; FUEL TANK UNIT EXC. FUEL TANK 200L FRAME SIDE<N20> M5X10	9-93497-510-0	10	1	9606-9905	●		●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L+200L<NF7> M5X10	9-93497-510-0	10	1	9906-	●	●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
