8-73 — BLOWER UNIT (#50319) — 21 parça

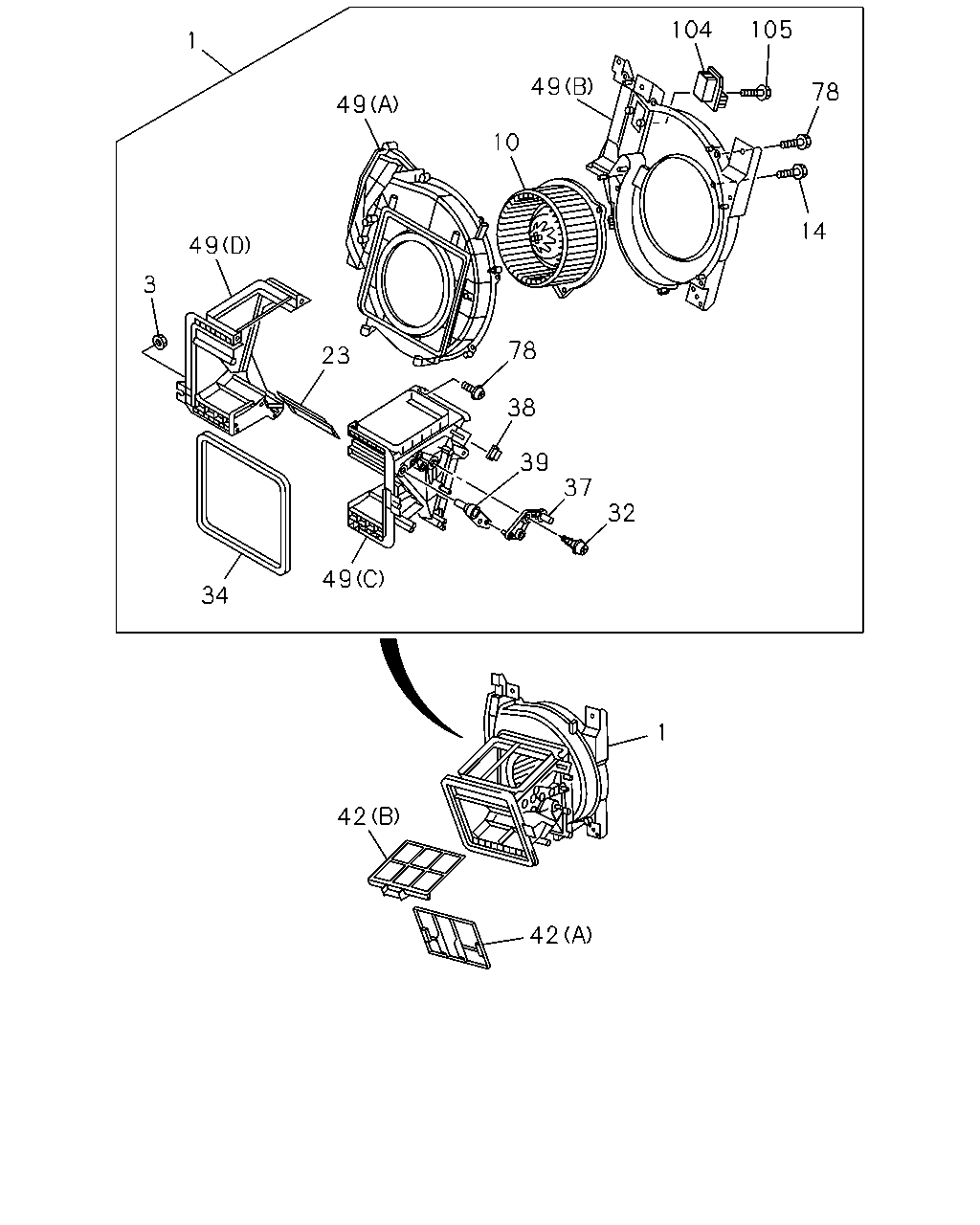

çizim 149249
104 105 1 49 78 49 10 14 49 3 78 23 38 39 37 32 49 34 1 42 42
BalonParca AdiParca NoAdetTipApplied Date
1 BLOWER ASM 8-98041-323-1 01 1 1011-1012
1 BLOWER ASM 8-98183-596-0 01 1 1101-
3 NUT; CASE
M6 		1-83539-354-0 02 1 1011-
10 MOTOR ASM; FAN,BLOWER UNIT 8-98047-767-0 01 1 1011-1012
10 MOTOR ASM; FAN,BLOWER UNIT 8-98183-924-0 01 1 1101-
14 SCREW; COVER TO CASE
M5X16 		8-98047-448-0 03 1 1011-
23 SHUTTER; BLOWER UNIT 8-98047-437-0 01 1 1011-
32 SCREW; LEVER
M4X16 		8-98047-416-0 01 1 1011-
34 LINING; BLOWER UNIT 8-98096-453-0 01 1 1011-
37 LEVER; MODE LEVER 8-98047-436-0 01 1 1011-
38 CLIP; BLOWER UNIT 8-98047-417-0 01 1 1011-
39 LEVER; SHUTTER,BLOWER UNIT 8-98047-435-0 01 1 1011-
42 FILTER; BLOWER UNIT
(B) 		8-98025-006-1 01 1 1011-
42 FILTER; BLOWER UNIT
(A) 		8-98041-327-0 01 1 1011-
49 CASE; BLOWER UNIT
(B) 		8-98047-440-0 01 1 1011-
49 CASE; BLOWER UNIT
(A) 		8-98047-441-0 01 1 1011-
49 CASE; BLOWER UNIT
(D) 		8-98077-413-0 01 1 1011-
49 CASE; BLOWER UNIT
(C) 		8-98077-414-0 01 1 1011-
78 SCREW; CASE TO CASE
M4X16 TAPPING 		8-97957-708-0 15 1 1011-
104 RESISTOR; BLOWER UNIT 8-98074-113-0 01 1 1011-
105 SCREW; RESISTOR
M4X16 TAPPING 		8-97957-708-0 02 1 1011-
