Isuzu WW
▶
TRUCKS
▶
FTS
▶
11434 - FTS(PAKISTAN)S-TIRE
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶

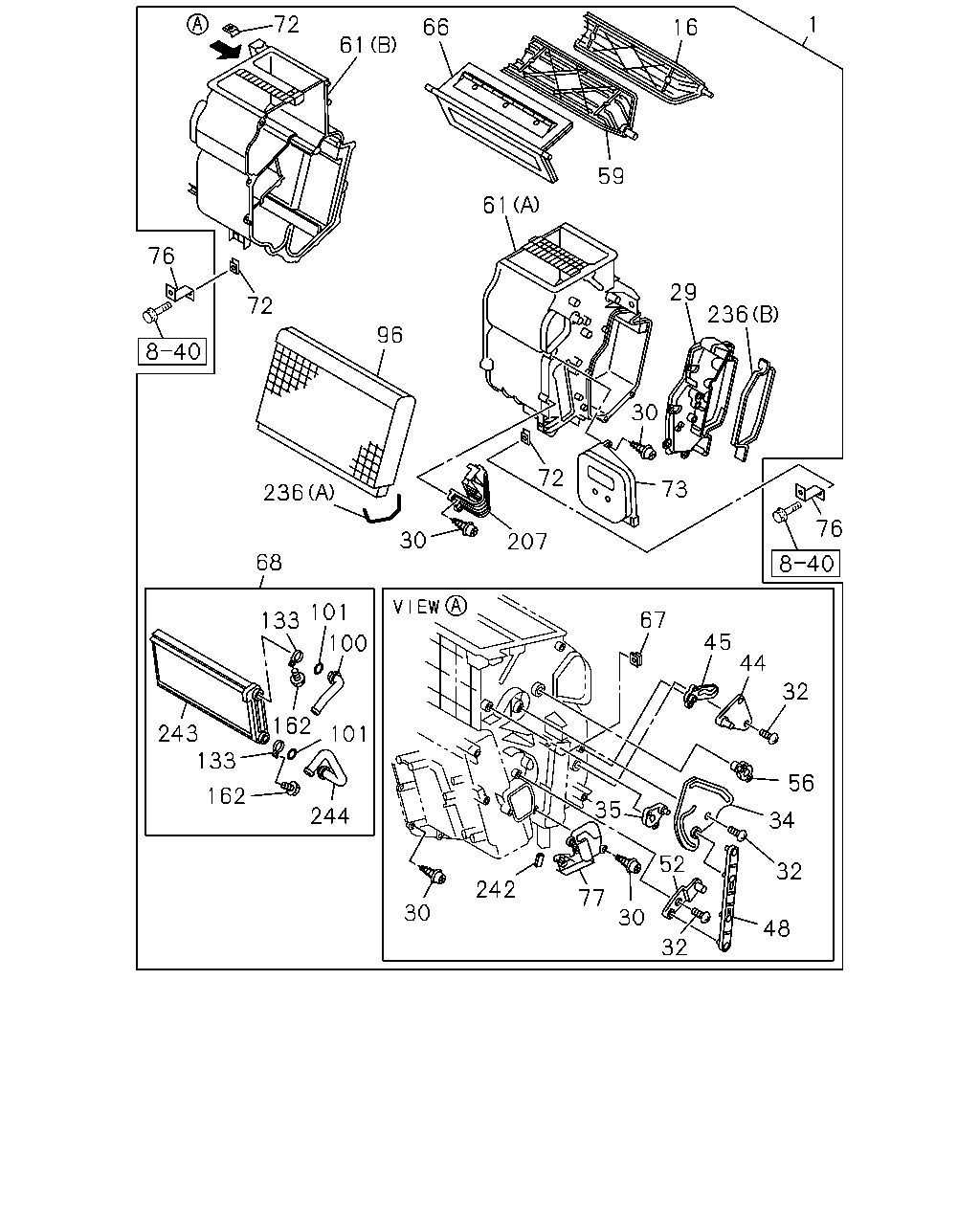

8-60 - HEATER UNIT; FRONT
▶
8-60 — HEATER UNIT; FRONT
(#50317) — 33 parça
72
1
66
16
61
59
61
76
29
72
236
96
30
72
73
236
76
30
207
68
101
67
133
45
44
100
32
162
243
133
101
56
162
35
244
34
52
32
242
77
30
30
48
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HEATER UNIT
8-98062-756-1
01
1
1011-
16
SHUTTER; HTR UNIT,CENTER UPR
8-98047-387-0
01
1
1011-
29
COVER; HTR UNIT
8-98074-119-0
01
1
1011-
30
SCREW; HTR UNIT
M4X16 TAPPING
8-97957-708-0
25
1
1011-
32
SCREW; HTR UNIT
M4X16
8-98047-416-0
03
1
1011-
34
LEVER; SHUTTER,HTR UNIT
8-98047-389-0
01
1
1011-
35
LEVER; SHUTTER,HTR UNIT
8-98047-392-0
01
1
1011-
44
LEVER; SHUTTER,HTR UNIT
8-98047-394-0
01
1
1011-
45
LEVER; SHUTTER,HTR UNIT
8-98047-395-0
01
1
1011-
48
LEVER; HTR UNIT
8-98047-391-0
01
1
1011-
52
LEVER; SHUTTER,HTR UNIT
8-98047-390-0
01
1
1011-
56
LEVER; SHUTTER,HTR UNIT
8-98047-393-0
01
1
1011-
59
SHUTTER; HTR UNIT,SIDE
8-98047-386-0
01
1
1011-
61
CASE; HTR UNIT
(B)
8-98047-375-0
01
1
1011-
61
CASE; HTR UNIT
(A)
8-98047-376-0
01
1
1011-
66
SHUTTER; HTR UNIT,CENTER LWR
8-98047-385-0
01
1
1011-
67
CLIP; HTR UNIT
8-98047-417-0
02
1
1011-
68
CORE; HTR UNIT
8-98047-380-0
01
1
1011-
72
NUT; CASE,HTR UNIT
M6
8-98047-428-0
03
1
1011-
73
PLATE; HTR UNIT
8-98072-542-0
01
1
1011-
76
BRACKET; HTR UNIT
8-98009-742-1
02
1
1011-
77
COVER; HTR CASE
8-98047-414-0
01
1
1011-
96
PLATE; HTR UNIT
8-98048-815-0
01
1
1011-
100
PIPE; CORE,HTR UNIT
8-98072-528-0
01
1
1011-
101
GASKET; CORE,HTR UNIT
8-98072-531-0
02
1
1011-
133
CLIP; PIPE
8-98072-530-0
02
1
1011-
162
SCREW; CLIP FIX
8-98072-529-0
02
1
1011-
207
CLAMP; HTR UNIT
8-98047-379-0
01
1
1011-
236
GASKET; HEATER
(A)
8-98047-420-0
01
1
1011-
236
GASKET; HEATER
(B)
8-98047-421-0
01
1
1011-
242
GASKET; CASE
8-98048-816-0
01
1
1011-
243
CORE
8-98048-508-0
01
1
1011-
244
PIPE; INLET
8-98048-510-0
01
1
1011-
