8-28 — CHASSIS ELECTRICAL (#50313) — 100 parça

93 120 94 93 190 352 51 50 51 584 744 45 51 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

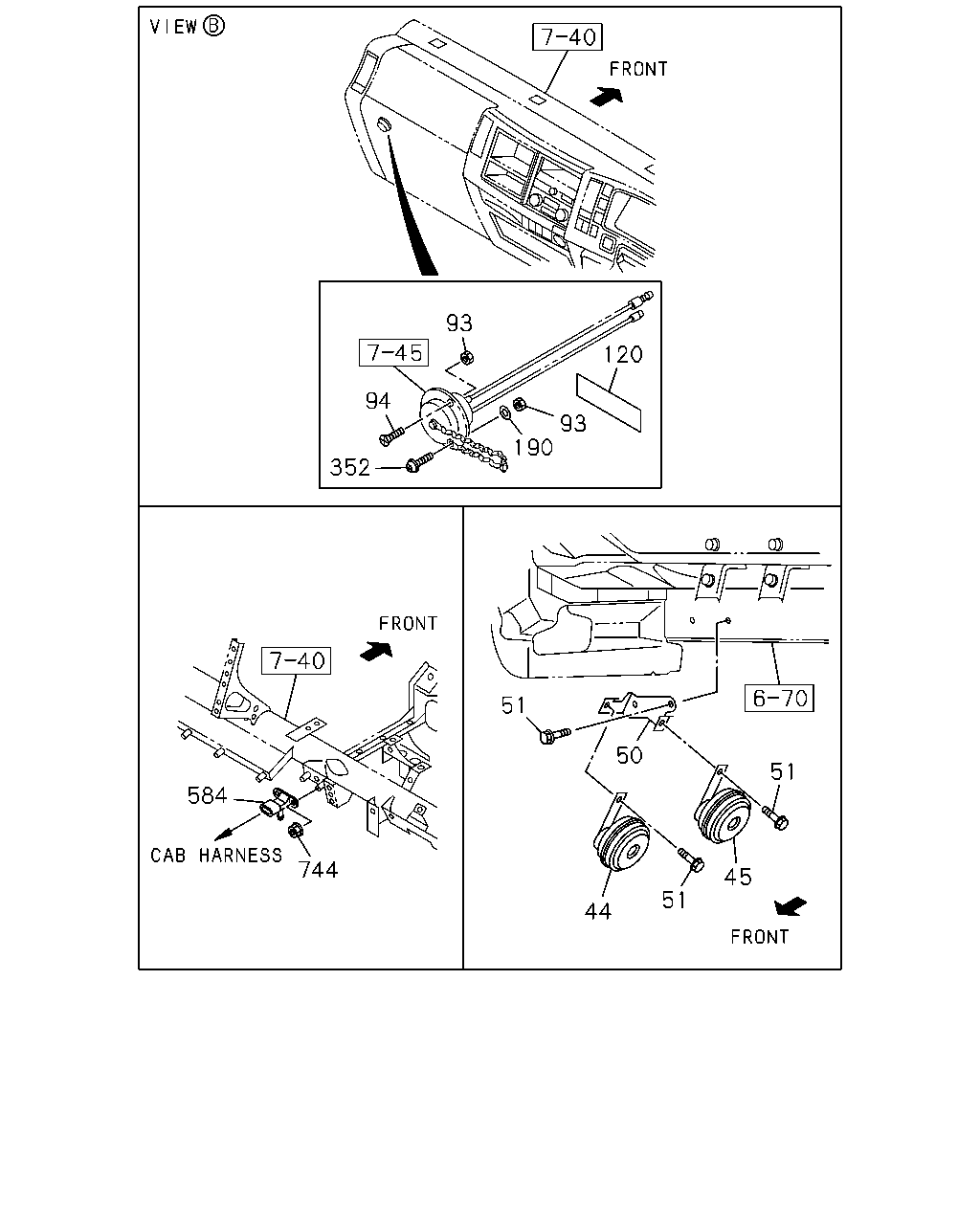

44	HORN; HIGH NOTE	8-98022-022-0	01	1	1011-
45	HORN; LOW NOTE	8-98022-023-0	01	1	1011-
50	BRACKET; HORN	8-97613-300-2	01	1	1011-
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1011-
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1011-
93	NUT; CONSENT TO BLIND PNL M3	9-99110-403-0	03	1	1011-
94	SCREW; CONSENT TO BLIND PNL M3X10 CK-HEAD	9-93090-310-0	02	1	1011-
120	SEAL 100X40	1-72498-022-1	01	1	1011-
190	WASHER ID=3.1	0-91510-503-0	01	1	1011-
352	SCREW; BRKT M3X10	9-93490-310-0	01	1	1011-
584	SENSOR; PRESSURE	8-98020-514-0	01	1	1011-
744	NUT; SENSOR M6 FLANGE	0-91180-106-0	02	1	1011-

531

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

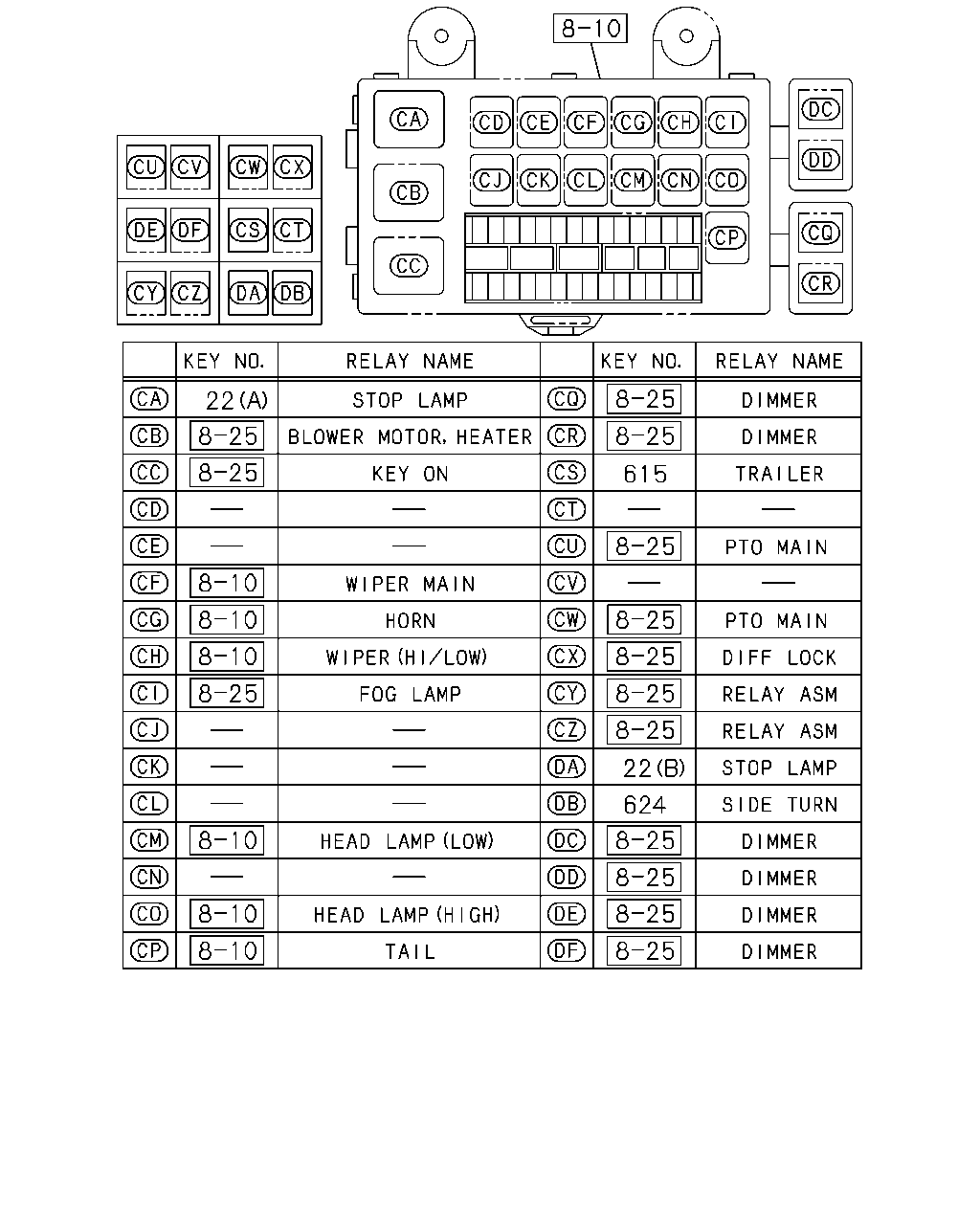

	531	RELAY; MAIN 24V 30A MITUBA	8-97238-540-0	01	1	1011-1402
	531	RELAY; MAIN 24V 30A MITSUBA	8-98259-779-0	01	1	1403-

34 34 89 89 34 602 285 210 89 36 40 284 210 34 261 39 90 89 261 34 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

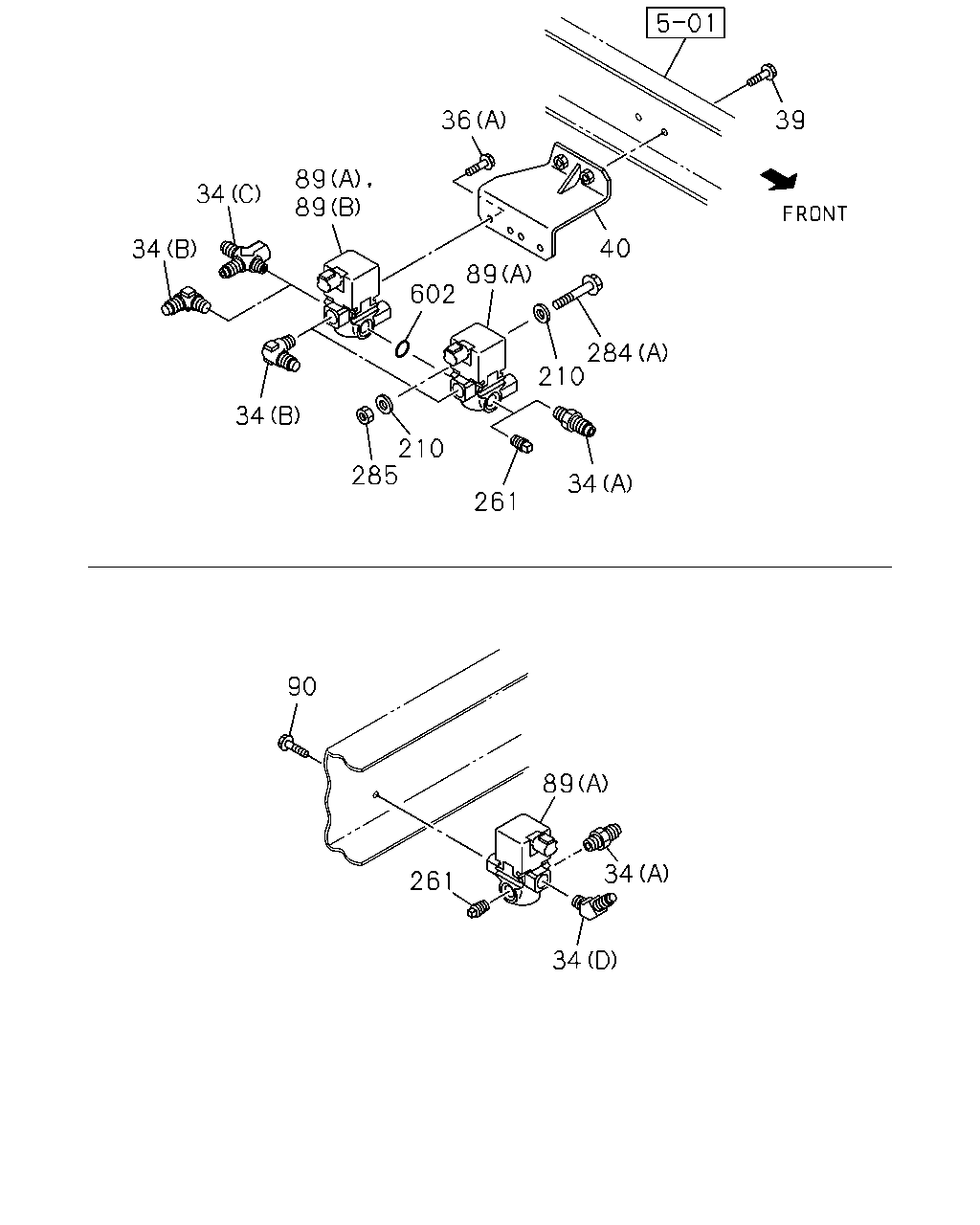

34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> (D) M12 & PT1/4 ELBOW	1-48629-258-0	01	1	1011-1503
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> (D) M12 & PT1/4 ELBOW	8-98299-777-0	01	1	1504-
34	CONNECTOR; MAG VLV,INL PORT (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1011-
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1011-
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1011-
34	CONNECTOR; MAG VLV,INL PORT (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	1011-
34	CONNECTOR; MAG VLV,INL PORT (C) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	1011-
34	CONNECTOR; MAG VLV,INL PORT (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1011-
34	CONNECTOR; MAG VLV,INL PORT EXC. PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1011-
36	BOLT; MAG VLV,PTO CONT (A) M8X20 FLANGE	0-28650-820-0	02	1	1011-
36	BOLT; MAG VLV,PTO CONT (B) M8X25 FLANGE	0-28650-825-0	02	1	1011-
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> EXC. DIFF LOCK<C3N> M10X30 FLANGE	0-28651-030-0	02	1	1011-
39	BOLT; BRKT,MAG VLV EXC. PTO CONTROL<SV6> M10X30 FLANGE	0-28651-030-0	02	1	1011-
40	BRACKET; MAG VLV	8-98034-702-0	01	1	1011-
89	VALVE; MAG,DIFF LOCK (A)	1-82563-871-2	01	1	1011-1205
89	VALVE; MAG,DIFF LOCK DIFF LOCK<C3N> (A)	1-82563-871-2	01	1	1011-1205
89	VALVE; MAG,DIFF LOCK EXC. PTO CONTROL<SV6> (A)	1-82563-871-2	01	1	1011-1205
89	VALVE; MAG,DIFF LOCK (B)	8-97641-594-0	01	1	1206-
89	VALVE; MAG,DIFF LOCK DIFF LOCK<C3N> (B)	8-97641-594-0	01	1	1206-
89	VALVE; MAG,DIFF LOCK PTO CONTROL<SV6> (A)	1-82563-871-2	02	1	1011-1205
89	VALVE; MAG,DIFF LOCK PTO CONTROL<SV6> (A)	1-82563-871-2	01	1	1206-
90	BOLT; MAG VLV DIFF LOCK<C3N> M8X25 FLANGE	0-28650-825-0	02	1	1011-
210	WASHER; PL,BRKT PTO CONTROL<SV6>	1-82569-266-0	02	1	1011-
210	WASHER; PL,BRKT	1-82569-266-0	02	1	1011-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1011-1205
261	PLUG; MAG VLV DIFF LOCK<C3N> PT1/4	9-99204-513-0	01	1	1011-1205
261	PLUG; MAG VLV	0-92004-813-0	01	1	1206-1206
261	PLUG; MAG VLV DIFF LOCK<C3N>	0-92004-813-0	01	1	1206-1206
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1207-
261	PLUG; MAG VLV DIFF LOCK<C3N> PT1/4	9-99204-513-0	01	1	1207-
284	BOLT; MAG VLV PTO CONTROL<SV6> (A) M6X50 FLANGE	0-28050-650-0	01	1	1011-
284	BOLT; MAG VLV (A) M6X50 FLANGE	0-28050-650-0	01	1	1011-
284	BOLT; MAG VLV (B) M8X25 FLANGE	0-28650-825-0	02	1	1011-
285	NUT; MAG VLV PTO CONTROL<SV6> M6 FLANGE	0-91180-106-0	01	1	1011-
285	NUT; MAG VLV M6 FLANGE	0-91180-106-0	01	1	1011-
602	GASKET; MAG VLV PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	1011-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	1011-

22 615 22 624

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	RELAY; STOP LAMP (B) 24V 10A PANASONIC	8-97173-035-1	01	1	1011-
22	RELAY; STOP LAMP (A) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1011-
615	RELAY; TRAILER 24V 10A PANASONIC	8-97173-035-1	01	1	1011-
624	RELAY; SIDE TURN 24V 10A PANASONIC	8-97173-035-1	01	1	1011-

36 89 34 34 261 284 714 34 714 602 210 210 88 284 285 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> (D) M12 & PT1/4 ELBOW	1-48629-258-0	01	1	1011-1503
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> (D) M12 & PT1/4 ELBOW	8-98299-777-0	01	1	1504-
34	CONNECTOR; MAG VLV,INL PORT (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1011-
34	CONNECTOR; MAG VLV,INL PORT DIFF LOCK<C3N> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1011-
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1011-
34	CONNECTOR; MAG VLV,INL PORT (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	1011-
34	CONNECTOR; MAG VLV,INL PORT (C) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	1011-
34	CONNECTOR; MAG VLV,INL PORT (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1011-
34	CONNECTOR; MAG VLV,INL PORT EXC. PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1011-
36	BOLT; MAG VLV,PTO CONT (A) M8X20 FLANGE	0-28650-820-0	02	1	1011-
36	BOLT; MAG VLV,PTO CONT (B) M8X25 FLANGE	0-28650-825-0	02	1	1011-
88	CONNECTOR; MAG VLV M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1011-
89	VALVE; MAG,DIFF LOCK (A)	1-82563-871-2	01	1	1011-1205
89	VALVE; MAG,DIFF LOCK DIFF LOCK<C3N> (A)	1-82563-871-2	01	1	1011-1205
89	VALVE; MAG,DIFF LOCK EXC. PTO CONTROL<SV6> (A)	1-82563-871-2	01	1	1011-1205
89	VALVE; MAG,DIFF LOCK (B)	8-97641-594-0	01	1	1206-
89	VALVE; MAG,DIFF LOCK DIFF LOCK<C3N> (B)	8-97641-594-0	01	1	1206-
89	VALVE; MAG,DIFF LOCK PTO CONTROL<SV6> (A)	1-82563-871-2	02	1	1011-1205
89	VALVE; MAG,DIFF LOCK PTO CONTROL<SV6> (A)	1-82563-871-2	01	1	1206-
210	WASHER; PL,BRKT PTO CONTROL<SV6>	1-82569-266-0	02	1	1011-
210	WASHER; PL,BRKT	1-82569-266-0	02	1	1011-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1011-1205
261	PLUG; MAG VLV DIFF LOCK<C3N> PT1/4	9-99204-513-0	01	1	1011-1205
261	PLUG; MAG VLV	0-92004-813-0	01	1	1206-1206
261	PLUG; MAG VLV DIFF LOCK<C3N>	0-92004-813-0	01	1	1206-1206
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1207-
261	PLUG; MAG VLV DIFF LOCK<C3N> PT1/4	9-99204-513-0	01	1	1207-
284	BOLT; MAG VLV PTO CONTROL<SV6> (A) M6X50 FLANGE	0-28050-650-0	01	1	1011-
284	BOLT; MAG VLV (A) M6X50 FLANGE	0-28050-650-0	01	1	1011-
284	BOLT; MAG VLV (B) M8X25 FLANGE	0-28650-825-0	02	1	1011-
285	NUT; MAG VLV PTO CONTROL<SV6> M6 FLANGE	0-91180-106-0	01	1	1011-
285	NUT; MAG VLV M6 FLANGE	0-91180-106-0	01	1	1011-
602	GASKET; MAG VLV PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	1011-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	1011-
714	VALVE; MAG,TRANS,LOW TO HIGH	1-82563-871-2	02	1	1011-

286 388 540 438 2 4 573 278 1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

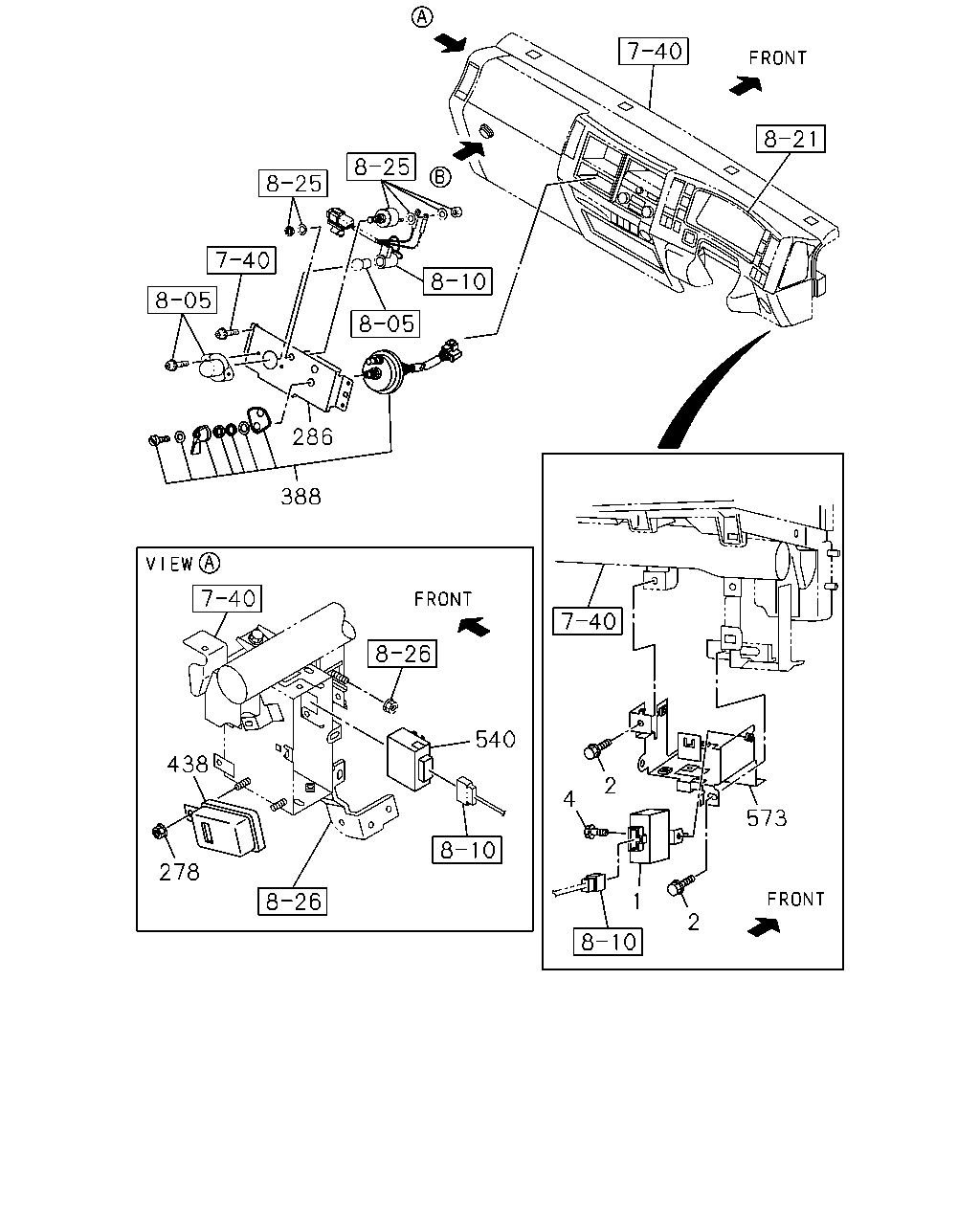

1	UNIT; FLASHER	8-98025-533-1	01	1	1011-
2	BOLT; FLASHER UNIT M6X16 FLANGE	0-28650-616-0	02	1	1011-
4	SCREW; FLASHER UNIT M6X16 FLANGE	0-28650-616-0	01	1	1011-
278	NUT; CONT UNIT M6 FLANGE	0-91180-106-0	01	1	1011-
286	BRACKET	8-97623-460-2	01	1	1011-
388	SWITCH; ROTARY	1-82430-003-0	01	1	1011-
438	UNIT; SPD CONTROL	1-82550-271-0	01	1	1011-
540	RELAY; WIPER INTERVAL	8-98060-388-0	01	1	1011-1308
540	RELAY; WIPER INTERVAL	8-98233-976-0	01	1	1309-
573	BRACKET; FLASHER UNIT	8-97609-984-5	01	1	1011-
