Sayfa 1-31A - Isuzu EPC

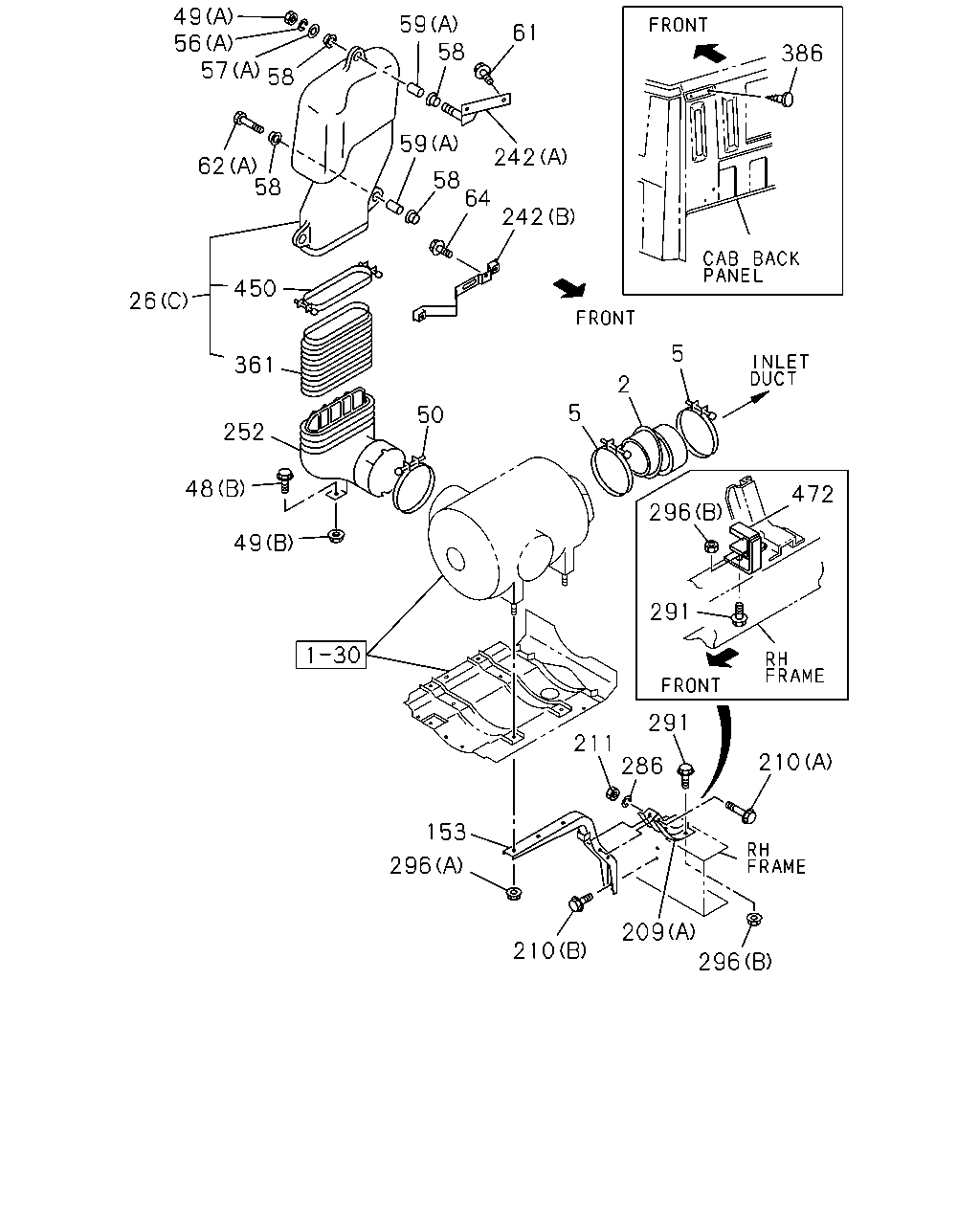

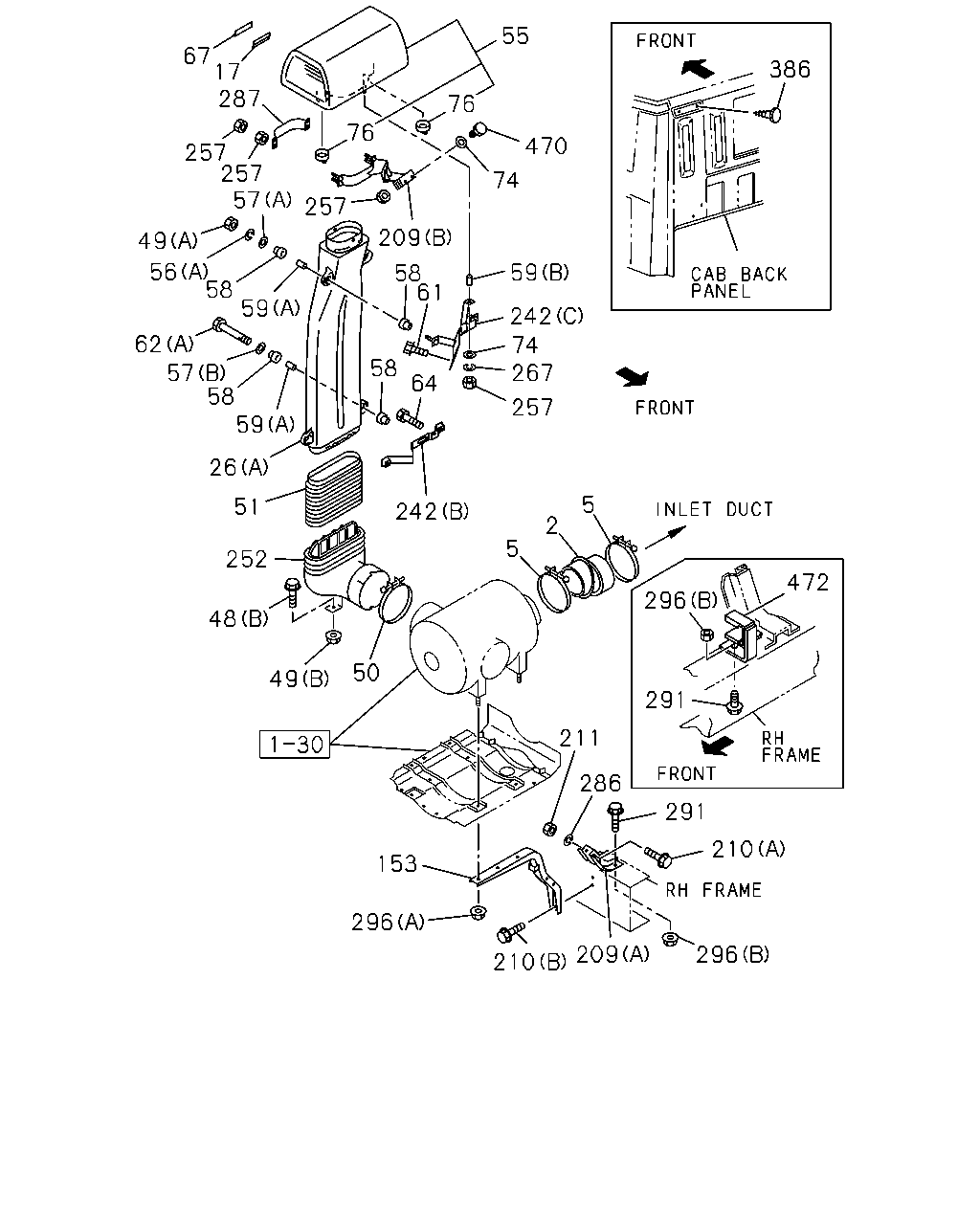

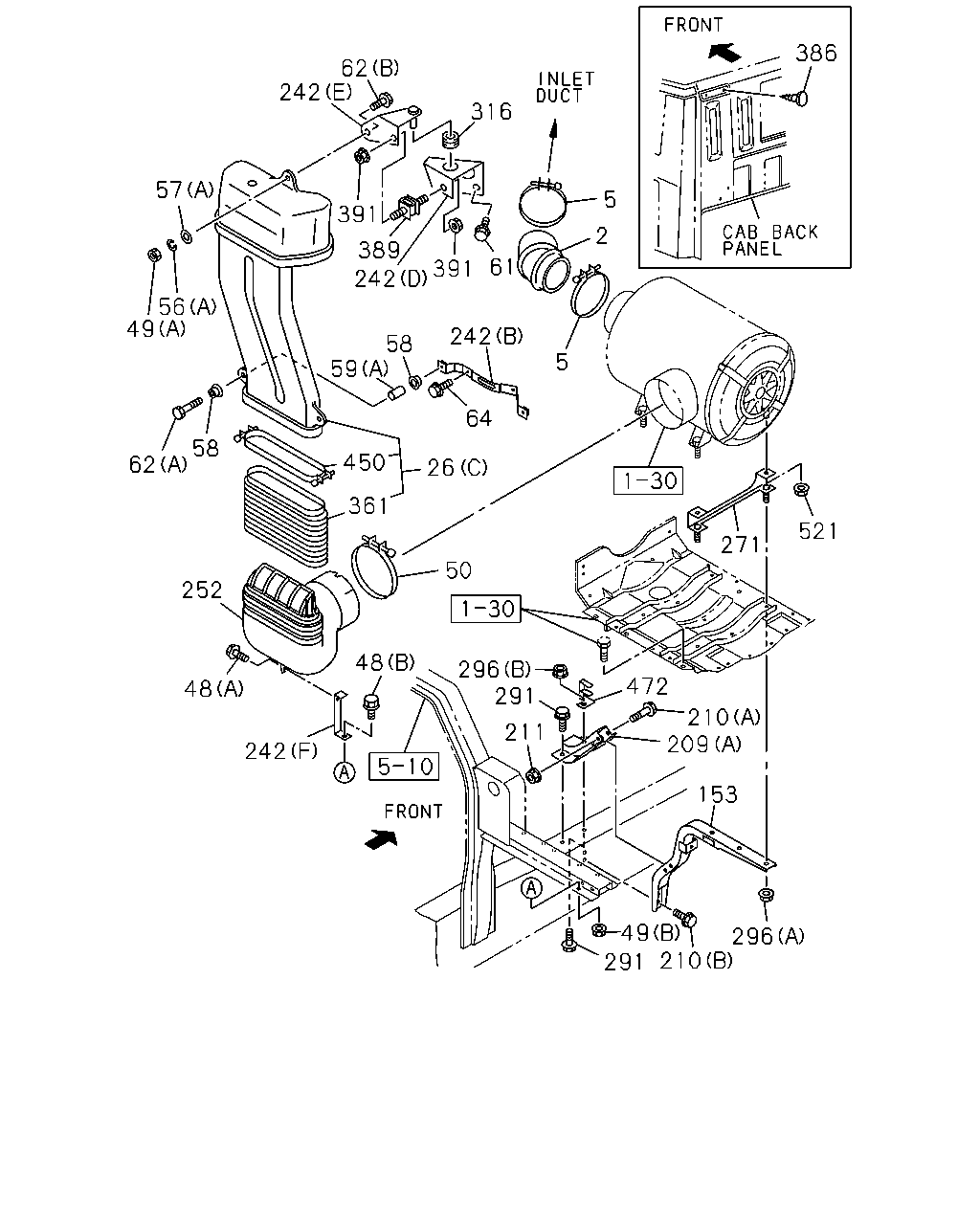

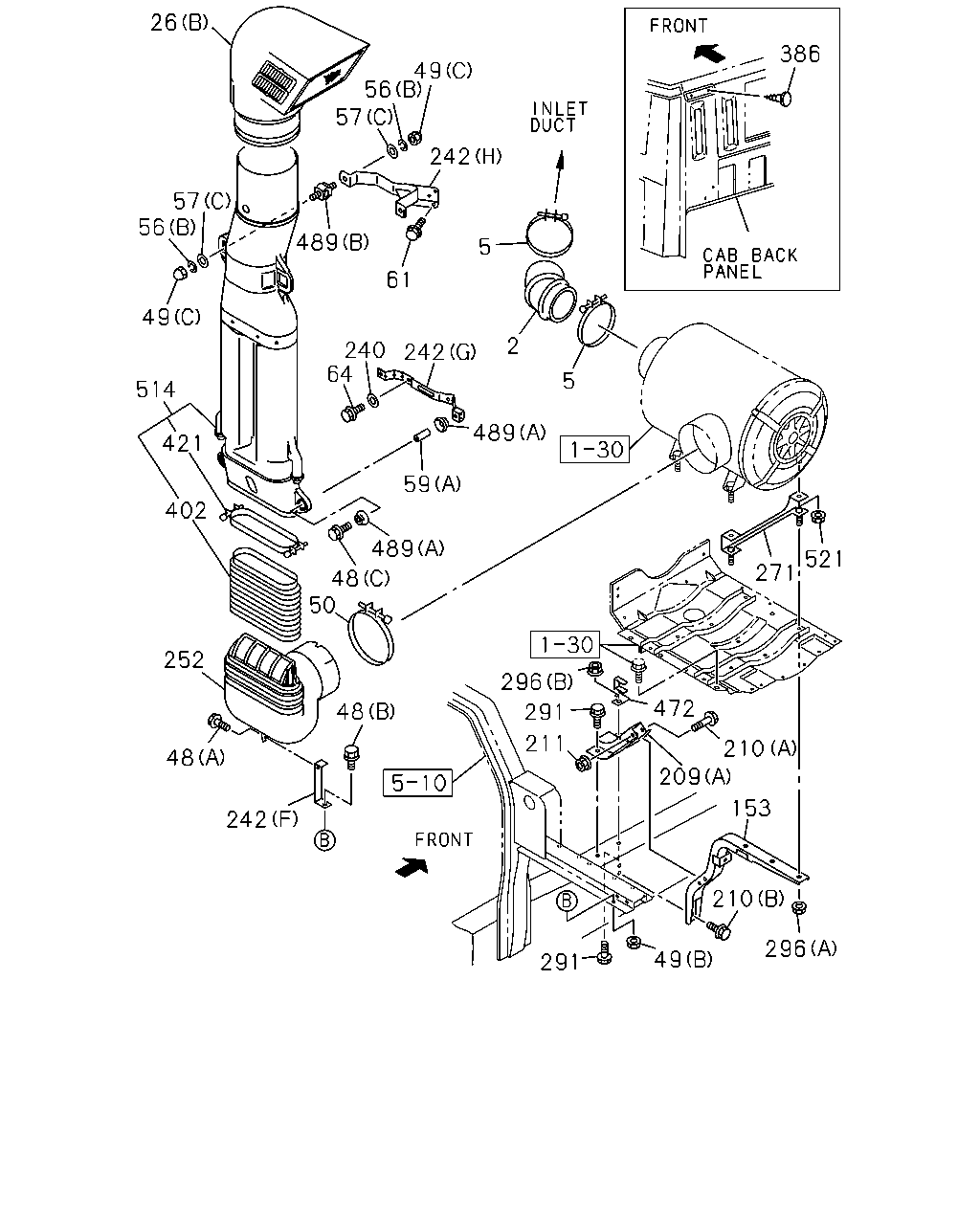

1-31A — AIR DUCT (#5031) — 567 parça

386 62 242 316 57 5 391 2 389 391 242 61 56 49 242 58 5 59 64 58 450 62 26 361 521 271 50 252 48 296 291 472 48 210 209 211 242 153 49 296 210 291

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	HOSE; ACL	1-14231-871-0	01	1	9606-9905	●	●
2	HOSE; ACL	1-14231-871-0	01	1	9906-	●		●
2	HOSE; ACL	1-14231-955-0	01	1	9906-				●
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	02	1	9606-9905	●	●
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	02	1	9906-	●		●	●
26	DUCT; AIR INT PRE CLEANER<W17> (A)	1-14231-938-0	01	1	9606-9905	●
26	DUCT; AIR INT PRE CLEANER<W17> (B)	1-14219-258-0	01	1	9906-				●
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (C)	1-14230-135-0	01	1	9606-9705	●
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (C)	1-14230-152-0	01	1	9706-9905	●	●
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (C)	1-14230-152-0	01	1	9906-	●		●	●
26	DUCT; AIR INT PRE CLEANER<W17> (A)	1-14231-938-0	01	1	9906-	●		●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28081-025-0	01	1	9606-9606	●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28681-025-0	01	1	9607-	●	●	●	●
48	BOLT; AIR DUCT PRE CLEANER<W17> (C) M10X26	1-09030-044-1	02	1	9906-				●
48	BOLT; AIR DUCT EXC. PRE CLEANER<W17> (A) M8X25 FLANGE	0-28680-825-0	01	1	9906-				●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91150-110-0	01	1	9606-9606	●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91150-210-0	01	1	9607-	●	●	●	●
49	NUT; AIR DUCT PRE CLEANER<W17> (A) M10	1-09984-145-0	02	1	9606-9905	●
49	NUT; AIR DUCT PRE CLEANER<W17> (C) M8 FLANGE	1-09984-126-0	04	1	9906-				●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (A) M10	1-09984-145-0	01	1	9606-9905	●	●
49	NUT; AIR DUCT PRE CLEANER<W17> (A) M10	1-09984-145-0	02	1	9906-	●		●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (A) M10	1-09984-145-0	01	1	9906-	●		●
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	9606-9905	●	●
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	9906-	●		●	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> (A) ID=10	1-09985-185-0	02	1	9606-9905	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> (B) ID=8.2	1-09985-177-0	04	1	9906-				●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10	1-09985-185-0	01	1	9606-9905	●	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> (A) ID=10	1-09985-185-0	02	1	9906-	●		●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10	1-09985-185-0	01	1	9906-	●		●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	02	1	9606-9905	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (C) ID=8.4 OD=22	1-09985-188-0	04	1	9906-				●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (B) ID=10.5 OD=26	9-09160-710-0	02	1	9606-9905	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (B) ID=10.5 OD=26	9-09160-710-0	02	1	9906-	●		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	01	1	9606-9905	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	02	1	9906-	●		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	01	1	9906-	●		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=11 OD=54	1-09503-154-1	01	1	9707-9905		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=11 OD=54	1-09503-154-1	01	1	9906-				●
58	SUPPORT; AIR INL DUCT PRE CLEANER<W17> OD=40 T=18.5	1-14119-267-0	08	1	9606-9905	●
58	SUPPORT; AIR INL DUCT PRE CLEANER<W17> OD=40 T=18.5	1-14119-267-0	08	1	9906-	●		●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> OD=40 T=18.5	1-14119-267-0	06	1	9606-9706	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> OD=40 T=18.5	1-14119-267-0	06	1	9707-9905	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> OD=40 T=18.5	1-14119-267-0	06	1	9906-	●		●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> OD=40 T=18.5	1-14119-267-0	04	1	9707-9905		●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> OD=40 T=18.5	1-14119-267-0	04	1	9906-				●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (A)	1-79998-228-0	04	1	9606-9905	●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (A)	1-79998-228-0	04	1	9906-	●		●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (B) L=22	9-22159-024-0	01	1	9606-9905	●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (B) L=22	9-22159-024-0	01	1	9906-	●		●
59	TUBE; DIST,AIR INT DUCT EXC. PRE CLEANER<W17> (A)	1-79998-228-0	03	1	9606-9706	●
59	TUBE; DIST,AIR INT DUCT EXC. PRE CLEANER<W17> (A)	1-79998-228-0	03	1	9707-9905	●
59	TUBE; DIST,AIR INT DUCT EXC. PRE CLEANER<W17> (A)	1-79998-228-0	03	1	9906-	●		●
59	TUBE; DIST,AIR INT DUCT EXC. PRE CLEANER<W17> (A)	1-79998-228-0	02	1	9707-9905		●
59	TUBE; DIST,AIR INT DUCT (A)	1-79998-228-0	02	1	9906-				●
61	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	9606-9905	●	●
61	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	9906-	●		●	●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> (A) M10X80 FLANGE	0-28081-080-0	01	1	9606-9905	●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> (A) M10X80 FLANGE	0-28081-080-0	01	1	9906-	●		●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> (A) M10X26	1-09030-044-1	01	1	9606-9905	●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> (A) M10X26	1-09030-044-1	01	1	9906-	●		●
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> (A) M10X26	1-09030-044-1	02	1	9606-9905	●	●
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> (A) M10X26	1-09030-044-1	02	1	9906-	●		●
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> (B) M10X35 FLANGE	0-28681-035-0	01	1	9707-9905		●
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> (B) M10X35 FLANGE	0-28681-035-0	01	1	9906-				●
64	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	9606-9905	●	●
64	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	9906-	●		●	●
153	BRACKET; ACL,FRT	1-53419-270-2	01	1	9606-9812	●
153	BRACKET; ACL,FRT	1-53419-265-1	01	1	9901-9905	●
153	BRACKET; ACL,FRT	1-53419-265-1	01	1	9906-	●		●
153	BRACKET; ACL,FRT	1-53419-309-0	01	1	9712-9812		●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	9707-9711		●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	9901-9905		●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	9906-				●
209	BRACKET; ACL PRE CLEANER<W17> (B)	1-14239-247-0	01	1	9606-9905	●
209	BRACKET; ACL PRE CLEANER<W17> EXC. HIGH ROOF<S2F> (B)	1-14239-247-0	01	1	9906-	●		●
209	BRACKET; ACL (A)	1-53419-276-0	01	1	9606-9905	●	●
209	BRACKET; ACL (A)	1-53419-276-0	01	1	9906-	●		●	●
209	BRACKET; ACL HIGH ROOF<S2F> PRE CLEANER<W17> (B)	1-14239-257-0	01	1	9906-	●		●
210	BOLT; ACL BRKT (A) M8X65	0-10805-865-0	02	1	9606-9606	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28080-870-0	02	1	9607-9905	●	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28080-870-0	02	1	9906-	●		●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28081-230-0	01	1	9606-9606	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28681-230-0	01	1	9607-9905	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28681-230-0	01	1	9906-	●		●	●
211	NUT; BRKT M8	9-09110-408-0	02	1	9606-9606	●
211	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9607-9905	●	●
211	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9906-	●		●	●
242	BRACKET; AIR DUCT (B)	1-79997-326-1	01	1	9606-9708	●
242	BRACKET; AIR DUCT (B)	1-79997-326-1	01	1	9709-9905	●	●
242	BRACKET; AIR DUCT (B)	1-79997-326-1	01	1	9906-	●		●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (B)	1-79997-326-1	01	1	9906-				●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (C)	1-79996-119-0	01	1	9606-9612	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> GRIP OUT SIDE<W52> (C)	1-79996-361-0	01	1	9709-9711	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> GRIP OUT SIDE<W52> (C)	1-79996-361-0	01	1	9712-9905	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> GRIP OUT SIDE<W52> (C)	1-79996-361-0	01	1	9906-	●		●
242	BRACKET; AIR DUCT PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C)	1-79996-119-0	01	1	9709-9905	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C)	1-79996-119-0	01	1	9906-	●		●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (A)	1-79997-322-0	01	1	9606-9708	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (A)	1-79997-322-1	01	1	9709-9905	●	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (A)	1-79997-322-1	01	1	9906-	●		●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (D)	1-47477-674-0	01	1	9707-9905		●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (D)	1-47477-674-0	01	1	9906-				●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (E)	1-47477-675-0	01	1	9707-9905		●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (E)	1-47477-675-0	01	1	9906-				●
242	BRACKET; AIR DUCT (F)	1-23957-006-0	01	1	9906-				●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (G)	1-79990-041-0	01	1	9906-				●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (H)	1-79990-045-1	01	1	9906-				●
252	DUCT; AIR INT	1-14230-121-1	01	1	9606-9610	●
252	DUCT; AIR INT	1-14230-158-0	01	1	9611-9611	●
252	DUCT; AIR INT	1-14230-157-0	01	1	9612-9812	●
252	DUCT; AIR INT	1-14230-191-0	01	1	9901-9905	●
252	DUCT; AIR INT	1-14230-191-0	01	1	9906-	●		●
252	DUCT; AIR INT	1-14230-159-1	01	1	9707-9812		●
252	DUCT; AIR INT	1-14230-193-0	01	1	9901-9905		●
252	DUCT; AIR INT	1-14230-194-0	01	1	9906-				●
271	SPACER; BRKT,ACL	1-53419-343-0	02	1	9906-				●
291	BOLT; ACL M12X30 FLANGE	0-28081-230-0	02	1	9606-9606	●
291	BOLT; ACL M12X30 FLANGE	0-28681-230-0	02	1	9607-9905	●	●
291	BOLT; ACL M12X30 FLANGE	0-28681-230-0	02	1	9906-	●		●	●
296	NUT; ACL (B) M12	9-99110-512-0	02	1	9606-9606	●
296	NUT; ACL (B) M12 FLANGE	0-91150-212-0	02	1	9607-9905	●	●
296	NUT; ACL (B) M12 FLANGE	0-91150-212-0	02	1	9906-	●		●	●
296	NUT; ACL (A) M8 FLANGE	0-91150-108-0	04	1	9606-9905	●	●
296	NUT; ACL (A) M8 FLANGE	0-91150-108-0	04	1	9906-	●		●	●
316	RUBBER; CUSHION,DUCT EXC. PRE CLEANER<W17>	9-09575-525-0	01	1	9707-9905		●
316	RUBBER; CUSHION,DUCT EXC. PRE CLEANER<W17>	9-09575-525-0	01	1	9906-				●
361	RUBBER; CUSHION,AIR DUCT EXC. PRE CLEANER<W17>	1-14230-124-0	01	1	9606-9905	●	●
361	RUBBER; CUSHION,AIR DUCT EXC. PRE CLEANER<W17>	1-14230-124-0	01	1	9906-	●		●	●
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	01	1	9606-9905	●	●
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	01	1	9906-0002	●		●	●
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	04	1	0003-	●		●	●
389	RUBBER; SUPPORT,AIR INT UPR EXC. PRE CLEANER<W17>	8-97080-149-0	01	1	9707-9905		●
389	RUBBER; SUPPORT,AIR INT UPR EXC. PRE CLEANER<W17>	8-97080-149-0	01	1	9906-				●
391	NUT; SUPPORT RUBBER,UPR EXC. PRE CLEANER<W17> M8 FLANGE	0-91150-108-0	02	1	9707-9905		●
391	NUT; SUPPORT RUBBER,UPR EXC. PRE CLEANER<W17> M8 FLANGE	0-91150-108-0	02	1	9906-				●
450	CLAMP; HOSE EXC. PRE CLEANER<W17>	1-14239-237-0	01	1	9606-9905	●	●
450	CLAMP; HOSE EXC. PRE CLEANER<W17>	1-14239-237-0	01	1	9906-	●		●	●
472	STOPPER; LINK ROD	1-33659-173-1	01	1	9606-9706	●
472	STOPPER; LINK ROD	1-33659-173-1	01	1	9707-9905	●	●
472	STOPPER; LINK ROD	1-33659-173-1	01	1	9906-0005	●		●
472	STOPPER; LINK ROD EXC. MIXER TRUCK<RA2>	1-33659-173-1	01	1	0006-	●		●
472	STOPPER; LINK ROD MIXER TRUCK<RA2>	1-33659-227-0	01	1	0006-			●
472	STOPPER; LINK ROD	1-33659-196-0	01	1	9906-				●
521	NUT; SPACER M8 FLANGE	0-91150-108-0	04	1	0103-				●

49 56 57 59 58 61 386 58 59 242 62 58 58 64 242 450 26 5 361 2 5 50 252 48 472 296 49 291 291 211 210 286 153 296 209 210 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	HOSE; ACL	1-14231-871-0	01	1	9606-9905	●	●
2	HOSE; ACL	1-14231-871-0	01	1	9906-	●		●
2	HOSE; ACL	1-14231-955-0	01	1	9906-				●
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	02	1	9606-9905	●	●
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	02	1	9906-	●		●	●
26	DUCT; AIR INT PRE CLEANER<W17> (A)	1-14231-938-0	01	1	9606-9905	●
26	DUCT; AIR INT PRE CLEANER<W17> (B)	1-14219-258-0	01	1	9906-				●
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (C)	1-14230-135-0	01	1	9606-9705	●
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (C)	1-14230-152-0	01	1	9706-9905	●	●
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (C)	1-14230-152-0	01	1	9906-	●		●	●
26	DUCT; AIR INT PRE CLEANER<W17> (A)	1-14231-938-0	01	1	9906-	●		●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28081-025-0	01	1	9606-9606	●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28681-025-0	01	1	9607-	●	●	●	●
48	BOLT; AIR DUCT PRE CLEANER<W17> (C) M10X26	1-09030-044-1	02	1	9906-				●
48	BOLT; AIR DUCT EXC. PRE CLEANER<W17> (A) M8X25 FLANGE	0-28680-825-0	01	1	9906-				●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91150-110-0	01	1	9606-9606	●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91150-210-0	01	1	9607-	●	●	●	●
49	NUT; AIR DUCT PRE CLEANER<W17> (A) M10	1-09984-145-0	02	1	9606-9905	●
49	NUT; AIR DUCT PRE CLEANER<W17> (C) M8 FLANGE	1-09984-126-0	04	1	9906-				●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (A) M10	1-09984-145-0	01	1	9606-9905	●	●
49	NUT; AIR DUCT PRE CLEANER<W17> (A) M10	1-09984-145-0	02	1	9906-	●		●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (A) M10	1-09984-145-0	01	1	9906-	●		●
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	9606-9905	●	●
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	9906-	●		●	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> (A) ID=10	1-09985-185-0	02	1	9606-9905	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> (B) ID=8.2	1-09985-177-0	04	1	9906-				●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10	1-09985-185-0	01	1	9606-9905	●	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> (A) ID=10	1-09985-185-0	02	1	9906-	●		●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10	1-09985-185-0	01	1	9906-	●		●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	02	1	9606-9905	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (C) ID=8.4 OD=22	1-09985-188-0	04	1	9906-				●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (B) ID=10.5 OD=26	9-09160-710-0	02	1	9606-9905	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (B) ID=10.5 OD=26	9-09160-710-0	02	1	9906-	●		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	01	1	9606-9905	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	02	1	9906-	●		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	01	1	9906-	●		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=11 OD=54	1-09503-154-1	01	1	9707-9905		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=11 OD=54	1-09503-154-1	01	1	9906-				●
58	SUPPORT; AIR INL DUCT PRE CLEANER<W17> OD=40 T=18.5	1-14119-267-0	08	1	9606-9905	●
58	SUPPORT; AIR INL DUCT PRE CLEANER<W17> OD=40 T=18.5	1-14119-267-0	08	1	9906-	●		●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> OD=40 T=18.5	1-14119-267-0	06	1	9606-9706	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> OD=40 T=18.5	1-14119-267-0	06	1	9707-9905	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> OD=40 T=18.5	1-14119-267-0	06	1	9906-	●		●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> OD=40 T=18.5	1-14119-267-0	04	1	9707-9905		●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> OD=40 T=18.5	1-14119-267-0	04	1	9906-				●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (A)	1-79998-228-0	04	1	9606-9905	●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (A)	1-79998-228-0	04	1	9906-	●		●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (B) L=22	9-22159-024-0	01	1	9606-9905	●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (B) L=22	9-22159-024-0	01	1	9906-	●		●
59	TUBE; DIST,AIR INT DUCT EXC. PRE CLEANER<W17> (A)	1-79998-228-0	03	1	9606-9706	●
59	TUBE; DIST,AIR INT DUCT EXC. PRE CLEANER<W17> (A)	1-79998-228-0	03	1	9707-9905	●
59	TUBE; DIST,AIR INT DUCT EXC. PRE CLEANER<W17> (A)	1-79998-228-0	03	1	9906-	●		●
59	TUBE; DIST,AIR INT DUCT EXC. PRE CLEANER<W17> (A)	1-79998-228-0	02	1	9707-9905		●
59	TUBE; DIST,AIR INT DUCT (A)	1-79998-228-0	02	1	9906-				●
61	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	9606-9905	●	●
61	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	9906-	●		●	●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> (A) M10X80 FLANGE	0-28081-080-0	01	1	9606-9905	●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> (A) M10X80 FLANGE	0-28081-080-0	01	1	9906-	●		●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> (A) M10X26	1-09030-044-1	01	1	9606-9905	●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> (A) M10X26	1-09030-044-1	01	1	9906-	●		●
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> (A) M10X26	1-09030-044-1	02	1	9606-9905	●	●
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> (A) M10X26	1-09030-044-1	02	1	9906-	●		●
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> (B) M10X35 FLANGE	0-28681-035-0	01	1	9707-9905		●
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> (B) M10X35 FLANGE	0-28681-035-0	01	1	9906-				●
64	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	9606-9905	●	●
64	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	9906-	●		●	●
153	BRACKET; ACL,FRT	1-53419-270-2	01	1	9606-9812	●
153	BRACKET; ACL,FRT	1-53419-265-1	01	1	9901-9905	●
153	BRACKET; ACL,FRT	1-53419-265-1	01	1	9906-	●		●
153	BRACKET; ACL,FRT	1-53419-309-0	01	1	9712-9812		●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	9707-9711		●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	9901-9905		●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	9906-				●
209	BRACKET; ACL PRE CLEANER<W17> (B)	1-14239-247-0	01	1	9606-9905	●
209	BRACKET; ACL PRE CLEANER<W17> EXC. HIGH ROOF<S2F> (B)	1-14239-247-0	01	1	9906-	●		●
209	BRACKET; ACL (A)	1-53419-276-0	01	1	9606-9905	●	●
209	BRACKET; ACL (A)	1-53419-276-0	01	1	9906-	●		●	●
209	BRACKET; ACL HIGH ROOF<S2F> PRE CLEANER<W17> (B)	1-14239-257-0	01	1	9906-	●		●
210	BOLT; ACL BRKT (A) M8X65	0-10805-865-0	02	1	9606-9606	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28080-870-0	02	1	9607-9905	●	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28080-870-0	02	1	9906-	●		●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28081-230-0	01	1	9606-9606	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28681-230-0	01	1	9607-9905	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28681-230-0	01	1	9906-	●		●	●
211	NUT; BRKT M8	9-09110-408-0	02	1	9606-9606	●
211	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9607-9905	●	●
211	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9906-	●		●	●
242	BRACKET; AIR DUCT (B)	1-79997-326-1	01	1	9606-9708	●
242	BRACKET; AIR DUCT (B)	1-79997-326-1	01	1	9709-9905	●	●
242	BRACKET; AIR DUCT (B)	1-79997-326-1	01	1	9906-	●		●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (B)	1-79997-326-1	01	1	9906-				●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (C)	1-79996-119-0	01	1	9606-9612	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> GRIP OUT SIDE<W52> (C)	1-79996-361-0	01	1	9709-9711	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> GRIP OUT SIDE<W52> (C)	1-79996-361-0	01	1	9712-9905	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> GRIP OUT SIDE<W52> (C)	1-79996-361-0	01	1	9906-	●		●
242	BRACKET; AIR DUCT PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C)	1-79996-119-0	01	1	9709-9905	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C)	1-79996-119-0	01	1	9906-	●		●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (A)	1-79997-322-0	01	1	9606-9708	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (A)	1-79997-322-1	01	1	9709-9905	●	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (A)	1-79997-322-1	01	1	9906-	●		●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (D)	1-47477-674-0	01	1	9707-9905		●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (D)	1-47477-674-0	01	1	9906-				●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (E)	1-47477-675-0	01	1	9707-9905		●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (E)	1-47477-675-0	01	1	9906-				●
242	BRACKET; AIR DUCT (F)	1-23957-006-0	01	1	9906-				●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (G)	1-79990-041-0	01	1	9906-				●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (H)	1-79990-045-1	01	1	9906-				●
252	DUCT; AIR INT	1-14230-121-1	01	1	9606-9610	●
252	DUCT; AIR INT	1-14230-158-0	01	1	9611-9611	●
252	DUCT; AIR INT	1-14230-157-0	01	1	9612-9812	●
252	DUCT; AIR INT	1-14230-191-0	01	1	9901-9905	●
252	DUCT; AIR INT	1-14230-191-0	01	1	9906-	●		●
252	DUCT; AIR INT	1-14230-159-1	01	1	9707-9812		●
252	DUCT; AIR INT	1-14230-193-0	01	1	9901-9905		●
252	DUCT; AIR INT	1-14230-194-0	01	1	9906-				●
286	WASHER; LK,BRKT ID=8.2	9-09150-508-0	02	1	9606-9606	●
291	BOLT; ACL M12X30 FLANGE	0-28081-230-0	02	1	9606-9606	●
291	BOLT; ACL M12X30 FLANGE	0-28681-230-0	02	1	9607-9905	●	●
291	BOLT; ACL M12X30 FLANGE	0-28681-230-0	02	1	9906-	●		●	●
296	NUT; ACL (B) M12	9-99110-512-0	02	1	9606-9606	●
296	NUT; ACL (B) M12 FLANGE	0-91150-212-0	02	1	9607-9905	●	●
296	NUT; ACL (B) M12 FLANGE	0-91150-212-0	02	1	9906-	●		●	●
296	NUT; ACL (A) M8 FLANGE	0-91150-108-0	04	1	9606-9905	●	●
296	NUT; ACL (A) M8 FLANGE	0-91150-108-0	04	1	9906-	●		●	●
361	RUBBER; CUSHION,AIR DUCT EXC. PRE CLEANER<W17>	1-14230-124-0	01	1	9606-9905	●	●
361	RUBBER; CUSHION,AIR DUCT EXC. PRE CLEANER<W17>	1-14230-124-0	01	1	9906-	●		●	●
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	01	1	9606-9905	●	●
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	01	1	9906-0002	●		●	●
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	04	1	0003-	●		●	●
450	CLAMP; HOSE EXC. PRE CLEANER<W17>	1-14239-237-0	01	1	9606-9905	●	●
450	CLAMP; HOSE EXC. PRE CLEANER<W17>	1-14239-237-0	01	1	9906-	●		●	●
472	STOPPER; LINK ROD	1-33659-173-1	01	1	9606-9706	●
472	STOPPER; LINK ROD	1-33659-173-1	01	1	9707-9905	●	●
472	STOPPER; LINK ROD	1-33659-173-1	01	1	9906-0005	●		●
472	STOPPER; LINK ROD EXC. MIXER TRUCK<RA2>	1-33659-173-1	01	1	0006-	●		●
472	STOPPER; LINK ROD MIXER TRUCK<RA2>	1-33659-227-0	01	1	0006-			●
472	STOPPER; LINK ROD	1-33659-196-0	01	1	9906-				●

26 386 49 56 57 242 57 56 489 5 61 49 2 240 64 242 5 514 489 421 59 402 489 521 271 48 50 252 296 472 48 291 211 210 48 209 153 242 210 296 49 291

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	HOSE; ACL	1-14231-871-0	01	1	9606-9905	●	●
2	HOSE; ACL	1-14231-871-0	01	1	9906-	●		●
2	HOSE; ACL	1-14231-955-0	01	1	9906-				●
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	02	1	9606-9905	●	●
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	02	1	9906-	●		●	●
26	DUCT; AIR INT PRE CLEANER<W17> (A)	1-14231-938-0	01	1	9606-9905	●
26	DUCT; AIR INT PRE CLEANER<W17> (B)	1-14219-258-0	01	1	9906-				●
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (C)	1-14230-135-0	01	1	9606-9705	●
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (C)	1-14230-152-0	01	1	9706-9905	●	●
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (C)	1-14230-152-0	01	1	9906-	●		●	●
26	DUCT; AIR INT PRE CLEANER<W17> (A)	1-14231-938-0	01	1	9906-	●		●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28081-025-0	01	1	9606-9606	●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28681-025-0	01	1	9607-	●	●	●	●
48	BOLT; AIR DUCT PRE CLEANER<W17> (C) M10X26	1-09030-044-1	02	1	9906-				●
48	BOLT; AIR DUCT EXC. PRE CLEANER<W17> (A) M8X25 FLANGE	0-28680-825-0	01	1	9906-				●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91150-110-0	01	1	9606-9606	●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91150-210-0	01	1	9607-	●	●	●	●
49	NUT; AIR DUCT PRE CLEANER<W17> (A) M10	1-09984-145-0	02	1	9606-9905	●
49	NUT; AIR DUCT PRE CLEANER<W17> (C) M8 FLANGE	1-09984-126-0	04	1	9906-				●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (A) M10	1-09984-145-0	01	1	9606-9905	●	●
49	NUT; AIR DUCT PRE CLEANER<W17> (A) M10	1-09984-145-0	02	1	9906-	●		●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (A) M10	1-09984-145-0	01	1	9906-	●		●
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	9606-9905	●	●
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	9906-	●		●	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> (A) ID=10	1-09985-185-0	02	1	9606-9905	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> (B) ID=8.2	1-09985-177-0	04	1	9906-				●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10	1-09985-185-0	01	1	9606-9905	●	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> (A) ID=10	1-09985-185-0	02	1	9906-	●		●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10	1-09985-185-0	01	1	9906-	●		●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	02	1	9606-9905	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (C) ID=8.4 OD=22	1-09985-188-0	04	1	9906-				●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (B) ID=10.5 OD=26	9-09160-710-0	02	1	9606-9905	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (B) ID=10.5 OD=26	9-09160-710-0	02	1	9906-	●		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	01	1	9606-9905	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	02	1	9906-	●		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	01	1	9906-	●		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=11 OD=54	1-09503-154-1	01	1	9707-9905		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=11 OD=54	1-09503-154-1	01	1	9906-				●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (A)	1-79998-228-0	04	1	9606-9905	●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (A)	1-79998-228-0	04	1	9906-	●		●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (B) L=22	9-22159-024-0	01	1	9606-9905	●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (B) L=22	9-22159-024-0	01	1	9906-	●		●
59	TUBE; DIST,AIR INT DUCT EXC. PRE CLEANER<W17> (A)	1-79998-228-0	03	1	9606-9706	●
59	TUBE; DIST,AIR INT DUCT EXC. PRE CLEANER<W17> (A)	1-79998-228-0	03	1	9707-9905	●
59	TUBE; DIST,AIR INT DUCT EXC. PRE CLEANER<W17> (A)	1-79998-228-0	03	1	9906-	●		●
59	TUBE; DIST,AIR INT DUCT EXC. PRE CLEANER<W17> (A)	1-79998-228-0	02	1	9707-9905		●
59	TUBE; DIST,AIR INT DUCT (A)	1-79998-228-0	02	1	9906-				●
61	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	9606-9905	●	●
61	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	9906-	●		●	●
64	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	9606-9905	●	●
64	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	9906-	●		●	●
153	BRACKET; ACL,FRT	1-53419-270-2	01	1	9606-9812	●
153	BRACKET; ACL,FRT	1-53419-265-1	01	1	9901-9905	●
153	BRACKET; ACL,FRT	1-53419-265-1	01	1	9906-	●		●
153	BRACKET; ACL,FRT	1-53419-309-0	01	1	9712-9812		●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	9707-9711		●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	9901-9905		●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	9906-				●
209	BRACKET; ACL PRE CLEANER<W17> (B)	1-14239-247-0	01	1	9606-9905	●
209	BRACKET; ACL PRE CLEANER<W17> EXC. HIGH ROOF<S2F> (B)	1-14239-247-0	01	1	9906-	●		●
209	BRACKET; ACL (A)	1-53419-276-0	01	1	9606-9905	●	●
209	BRACKET; ACL (A)	1-53419-276-0	01	1	9906-	●		●	●
209	BRACKET; ACL HIGH ROOF<S2F> PRE CLEANER<W17> (B)	1-14239-257-0	01	1	9906-	●		●
210	BOLT; ACL BRKT (A) M8X65	0-10805-865-0	02	1	9606-9606	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28080-870-0	02	1	9607-9905	●	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28080-870-0	02	1	9906-	●		●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28081-230-0	01	1	9606-9606	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28681-230-0	01	1	9607-9905	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28681-230-0	01	1	9906-	●		●	●
211	NUT; BRKT M8	9-09110-408-0	02	1	9606-9606	●
211	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9607-9905	●	●
211	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9906-	●		●	●
240	WASHER; PL,BRKT PRE CLEANER<W17> ID=8.4 OD=22	1-09985-188-0	01	1	9906-				●
242	BRACKET; AIR DUCT (B)	1-79997-326-1	01	1	9606-9708	●
242	BRACKET; AIR DUCT (B)	1-79997-326-1	01	1	9709-9905	●	●
242	BRACKET; AIR DUCT (B)	1-79997-326-1	01	1	9906-	●		●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (B)	1-79997-326-1	01	1	9906-				●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (C)	1-79996-119-0	01	1	9606-9612	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> GRIP OUT SIDE<W52> (C)	1-79996-361-0	01	1	9709-9711	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> GRIP OUT SIDE<W52> (C)	1-79996-361-0	01	1	9712-9905	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> GRIP OUT SIDE<W52> (C)	1-79996-361-0	01	1	9906-	●		●
242	BRACKET; AIR DUCT PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C)	1-79996-119-0	01	1	9709-9905	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C)	1-79996-119-0	01	1	9906-	●		●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (A)	1-79997-322-0	01	1	9606-9708	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (A)	1-79997-322-1	01	1	9709-9905	●	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (A)	1-79997-322-1	01	1	9906-	●		●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (D)	1-47477-674-0	01	1	9707-9905		●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (D)	1-47477-674-0	01	1	9906-				●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (E)	1-47477-675-0	01	1	9707-9905		●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (E)	1-47477-675-0	01	1	9906-				●
242	BRACKET; AIR DUCT (F)	1-23957-006-0	01	1	9906-				●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (G)	1-79990-041-0	01	1	9906-				●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (H)	1-79990-045-1	01	1	9906-				●
252	DUCT; AIR INT	1-14230-121-1	01	1	9606-9610	●
252	DUCT; AIR INT	1-14230-158-0	01	1	9611-9611	●
252	DUCT; AIR INT	1-14230-157-0	01	1	9612-9812	●
252	DUCT; AIR INT	1-14230-191-0	01	1	9901-9905	●
252	DUCT; AIR INT	1-14230-191-0	01	1	9906-	●		●
252	DUCT; AIR INT	1-14230-159-1	01	1	9707-9812		●
252	DUCT; AIR INT	1-14230-193-0	01	1	9901-9905		●
252	DUCT; AIR INT	1-14230-194-0	01	1	9906-				●
271	SPACER; BRKT,ACL	1-53419-343-0	02	1	9906-				●
291	BOLT; ACL M12X30 FLANGE	0-28081-230-0	02	1	9606-9606	●
291	BOLT; ACL M12X30 FLANGE	0-28681-230-0	02	1	9607-9905	●	●
291	BOLT; ACL M12X30 FLANGE	0-28681-230-0	02	1	9906-	●		●	●
296	NUT; ACL (B) M12	9-99110-512-0	02	1	9606-9606	●
296	NUT; ACL (B) M12 FLANGE	0-91150-212-0	02	1	9607-9905	●	●
296	NUT; ACL (B) M12 FLANGE	0-91150-212-0	02	1	9906-	●		●	●
296	NUT; ACL (A) M8 FLANGE	0-91150-108-0	04	1	9606-9905	●	●
296	NUT; ACL (A) M8 FLANGE	0-91150-108-0	04	1	9906-	●		●	●
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	01	1	9606-9905	●	●
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	01	1	9906-0002	●		●	●
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	04	1	0003-	●		●	●
402	GASKET; RUBBER PRE CLEANER<W17>	1-14230-149-1	01	1	9906-				●
421	CLAMP; AIR DUCT PRE CLEANER<W17>	1-14239-237-0	01	1	9906-				●
472	STOPPER; LINK ROD	1-33659-173-1	01	1	9606-9706	●
472	STOPPER; LINK ROD	1-33659-173-1	01	1	9707-9905	●	●
472	STOPPER; LINK ROD	1-33659-173-1	01	1	9906-0005	●		●
472	STOPPER; LINK ROD EXC. MIXER TRUCK<RA2>	1-33659-173-1	01	1	0006-	●		●
472	STOPPER; LINK ROD MIXER TRUCK<RA2>	1-33659-227-0	01	1	0006-			●
472	STOPPER; LINK ROD	1-33659-196-0	01	1	9906-				●
489	RUBBER; SUPPORT PRE CLEANER<W17> (A) OD=40 T=18.5	1-14119-267-0	04	1	9906-				●
489	RUBBER; SUPPORT PRE CLEANER<W17> (B)	8-97080-149-0	02	1	9906-				●
514	DUCT; PRE CLEANER PRE CLEANER<W17>	1-14230-170-0	01	1	9906-				●
521	NUT; SPACER M8 FLANGE	0-91150-108-0	04	1	0103-				●

55 67 17 287 386 76 76 470 257 257 57 74 257 209 49 56 58 59 59 58 61 242 62 74 267 58 57 58 59 64 257 26 5 51 242 2 5 252 472 296 48 50 49 291 211 286 291 210 153 296 209 210 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	HOSE; ACL	1-14231-871-0	01	1	9606-9905	●	●
2	HOSE; ACL	1-14231-871-0	01	1	9906-	●		●
2	HOSE; ACL	1-14231-955-0	01	1	9906-				●
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	02	1	9606-9905	●	●
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	02	1	9906-	●		●	●
17	GASKET; AIR DUCT PRE CLEANER<W17>	1-14239-170-0	01	1	9606-9905	●
17	GASKET; AIR DUCT PRE CLEANER<W17>	1-14239-170-0	01	1	9906-	●		●
26	DUCT; AIR INT PRE CLEANER<W17> (A)	1-14231-938-0	01	1	9606-9905	●
26	DUCT; AIR INT PRE CLEANER<W17> (B)	1-14219-258-0	01	1	9906-				●
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (C)	1-14230-135-0	01	1	9606-9705	●
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (C)	1-14230-152-0	01	1	9706-9905	●	●
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (C)	1-14230-152-0	01	1	9906-	●		●	●
26	DUCT; AIR INT PRE CLEANER<W17> (A)	1-14231-938-0	01	1	9906-	●		●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28081-025-0	01	1	9606-9606	●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28681-025-0	01	1	9607-	●	●	●	●
48	BOLT; AIR DUCT PRE CLEANER<W17> (C) M10X26	1-09030-044-1	02	1	9906-				●
48	BOLT; AIR DUCT EXC. PRE CLEANER<W17> (A) M8X25 FLANGE	0-28680-825-0	01	1	9906-				●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91150-110-0	01	1	9606-9606	●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91150-210-0	01	1	9607-	●	●	●	●
49	NUT; AIR DUCT PRE CLEANER<W17> (A) M10	1-09984-145-0	02	1	9606-9905	●
49	NUT; AIR DUCT PRE CLEANER<W17> (C) M8 FLANGE	1-09984-126-0	04	1	9906-				●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (A) M10	1-09984-145-0	01	1	9606-9905	●	●
49	NUT; AIR DUCT PRE CLEANER<W17> (A) M10	1-09984-145-0	02	1	9906-	●		●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (A) M10	1-09984-145-0	01	1	9906-	●		●
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	9606-9905	●	●
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	9906-	●		●	●
51	GASKET ASM; RUBBER PRE CLEANER<W17>	1-14230-150-0	01	1	9606-9905	●
51	GASKET ASM; RUBBER PRE CLEANER<W17>	1-14230-150-0	01	1	9906-	●		●
55	CLEANER ASM; AIR,PRE PRE CLEANER<W17>	1-14210-768-0	01	1	9606-9905	●
55	CLEANER ASM; AIR,PRE PRE CLEANER<W17>	1-14210-768-0	01	1	9906-	●		●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> (A) ID=10	1-09985-185-0	02	1	9606-9905	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> (B) ID=8.2	1-09985-177-0	04	1	9906-				●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10	1-09985-185-0	01	1	9606-9905	●	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> (A) ID=10	1-09985-185-0	02	1	9906-	●		●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10	1-09985-185-0	01	1	9906-	●		●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	02	1	9606-9905	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (C) ID=8.4 OD=22	1-09985-188-0	04	1	9906-				●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (B) ID=10.5 OD=26	9-09160-710-0	02	1	9606-9905	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (B) ID=10.5 OD=26	9-09160-710-0	02	1	9906-	●		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	01	1	9606-9905	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	02	1	9906-	●		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	01	1	9906-	●		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=11 OD=54	1-09503-154-1	01	1	9707-9905		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=11 OD=54	1-09503-154-1	01	1	9906-				●
58	SUPPORT; AIR INL DUCT PRE CLEANER<W17> OD=40 T=18.5	1-14119-267-0	08	1	9606-9905	●
58	SUPPORT; AIR INL DUCT PRE CLEANER<W17> OD=40 T=18.5	1-14119-267-0	08	1	9906-	●		●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> OD=40 T=18.5	1-14119-267-0	06	1	9606-9706	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> OD=40 T=18.5	1-14119-267-0	06	1	9707-9905	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> OD=40 T=18.5	1-14119-267-0	06	1	9906-	●		●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> OD=40 T=18.5	1-14119-267-0	04	1	9707-9905		●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> OD=40 T=18.5	1-14119-267-0	04	1	9906-				●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (A)	1-79998-228-0	04	1	9606-9905	●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (A)	1-79998-228-0	04	1	9906-	●		●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (B) L=22	9-22159-024-0	01	1	9606-9905	●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (B) L=22	9-22159-024-0	01	1	9906-	●		●
59	TUBE; DIST,AIR INT DUCT EXC. PRE CLEANER<W17> (A)	1-79998-228-0	03	1	9606-9706	●
59	TUBE; DIST,AIR INT DUCT EXC. PRE CLEANER<W17> (A)	1-79998-228-0	03	1	9707-9905	●
59	TUBE; DIST,AIR INT DUCT EXC. PRE CLEANER<W17> (A)	1-79998-228-0	03	1	9906-	●		●
59	TUBE; DIST,AIR INT DUCT EXC. PRE CLEANER<W17> (A)	1-79998-228-0	02	1	9707-9905		●
59	TUBE; DIST,AIR INT DUCT (A)	1-79998-228-0	02	1	9906-				●
61	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	9606-9905	●	●
61	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	9906-	●		●	●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> (A) M10X80 FLANGE	0-28081-080-0	01	1	9606-9905	●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> (A) M10X80 FLANGE	0-28081-080-0	01	1	9906-	●		●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> (A) M10X26	1-09030-044-1	01	1	9606-9905	●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> (A) M10X26	1-09030-044-1	01	1	9906-	●		●
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> (A) M10X26	1-09030-044-1	02	1	9606-9905	●	●
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> (A) M10X26	1-09030-044-1	02	1	9906-	●		●
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> (B) M10X35 FLANGE	0-28681-035-0	01	1	9707-9905		●
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> (B) M10X35 FLANGE	0-28681-035-0	01	1	9906-				●
64	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	9606-9905	●	●
64	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	9906-	●		●	●
67	SPACER; AIR DUCT PRE CLEANER<W17>	1-14239-171-0	01	1	9606-9905	●
67	SPACER; AIR DUCT PRE CLEANER<W17>	1-14239-171-0	01	1	9906-	●		●
74	WASHER; PL,ACL PRE CLEANER<W17> ID=10.5	1-09985-107-0	03	1	9606-9905	●
74	WASHER; PL,ACL PRE CLEANER<W17> ID=10.5	1-09985-107-0	03	1	9906-	●		●
76	VALVE; PRE ACL PRE CLEANER<W17>	1-14219-129-0	02	1	9606-9905	●
76	VALVE; PRE ACL PRE CLEANER<W17>	1-14219-129-0	02	1	9906-	●		●
153	BRACKET; ACL,FRT	1-53419-270-2	01	1	9606-9812	●
153	BRACKET; ACL,FRT	1-53419-265-1	01	1	9901-9905	●
153	BRACKET; ACL,FRT	1-53419-265-1	01	1	9906-	●		●
153	BRACKET; ACL,FRT	1-53419-309-0	01	1	9712-9812		●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	9707-9711		●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	9901-9905		●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	9906-				●
209	BRACKET; ACL PRE CLEANER<W17> (B)	1-14239-247-0	01	1	9606-9905	●
209	BRACKET; ACL PRE CLEANER<W17> EXC. HIGH ROOF<S2F> (B)	1-14239-247-0	01	1	9906-	●		●
209	BRACKET; ACL (A)	1-53419-276-0	01	1	9606-9905	●	●
209	BRACKET; ACL (A)	1-53419-276-0	01	1	9906-	●		●	●
209	BRACKET; ACL HIGH ROOF<S2F> PRE CLEANER<W17> (B)	1-14239-257-0	01	1	9906-	●		●
210	BOLT; ACL BRKT (A) M8X65	0-10805-865-0	02	1	9606-9606	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28080-870-0	02	1	9607-9905	●	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28080-870-0	02	1	9906-	●		●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28081-230-0	01	1	9606-9606	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28681-230-0	01	1	9607-9905	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28681-230-0	01	1	9906-	●		●	●
211	NUT; BRKT M8	9-09110-408-0	02	1	9606-9606	●
211	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9607-9905	●	●
211	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9906-	●		●	●
242	BRACKET; AIR DUCT (B)	1-79997-326-1	01	1	9606-9708	●
242	BRACKET; AIR DUCT (B)	1-79997-326-1	01	1	9709-9905	●	●
242	BRACKET; AIR DUCT (B)	1-79997-326-1	01	1	9906-	●		●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (B)	1-79997-326-1	01	1	9906-				●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (C)	1-79996-119-0	01	1	9606-9612	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> GRIP OUT SIDE<W52> (C)	1-79996-361-0	01	1	9709-9711	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> GRIP OUT SIDE<W52> (C)	1-79996-361-0	01	1	9712-9905	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> GRIP OUT SIDE<W52> (C)	1-79996-361-0	01	1	9906-	●		●
242	BRACKET; AIR DUCT PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C)	1-79996-119-0	01	1	9709-9905	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C)	1-79996-119-0	01	1	9906-	●		●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (A)	1-79997-322-0	01	1	9606-9708	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (A)	1-79997-322-1	01	1	9709-9905	●	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (A)	1-79997-322-1	01	1	9906-	●		●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (D)	1-47477-674-0	01	1	9707-9905		●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (D)	1-47477-674-0	01	1	9906-				●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (E)	1-47477-675-0	01	1	9707-9905		●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (E)	1-47477-675-0	01	1	9906-				●
242	BRACKET; AIR DUCT (F)	1-23957-006-0	01	1	9906-				●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (G)	1-79990-041-0	01	1	9906-				●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (H)	1-79990-045-1	01	1	9906-				●
252	DUCT; AIR INT	1-14230-121-1	01	1	9606-9610	●
252	DUCT; AIR INT	1-14230-158-0	01	1	9611-9611	●
252	DUCT; AIR INT	1-14230-157-0	01	1	9612-9812	●
252	DUCT; AIR INT	1-14230-191-0	01	1	9901-9905	●
252	DUCT; AIR INT	1-14230-191-0	01	1	9906-	●		●
252	DUCT; AIR INT	1-14230-159-1	01	1	9707-9812		●
252	DUCT; AIR INT	1-14230-193-0	01	1	9901-9905		●
252	DUCT; AIR INT	1-14230-194-0	01	1	9906-				●
257	NUT; BRKT PRE CLEANER<W17> M10	1-09400-053-0	11	1	9606-9905	●
257	NUT; BRKT PRE CLEANER<W17> M10	1-09400-053-0	11	1	9906-	●		●
267	WASHER; LK,ACL PRE CLEANER<W17>	1-09500-033-0	01	1	9606-9905	●
267	WASHER; LK,ACL PRE CLEANER<W17> ID=10	1-09985-180-0	01	1	9906-	●		●
286	WASHER; LK,BRKT ID=8.2	9-09150-508-0	02	1	9606-9606	●
287	CLIP; AIR DUCT PRE CLEANER<W17>	1-14239-165-1	01	1	9606-9905	●
287	CLIP; AIR DUCT PRE CLEANER<W17>	1-14239-165-1	01	1	9906-	●		●
291	BOLT; ACL M12X30 FLANGE	0-28081-230-0	02	1	9606-9606	●
291	BOLT; ACL M12X30 FLANGE	0-28681-230-0	02	1	9607-9905	●	●
291	BOLT; ACL M12X30 FLANGE	0-28681-230-0	02	1	9906-	●		●	●
296	NUT; ACL (B) M12	9-99110-512-0	02	1	9606-9606	●
296	NUT; ACL (B) M12 FLANGE	0-91150-212-0	02	1	9607-9905	●	●
296	NUT; ACL (B) M12 FLANGE	0-91150-212-0	02	1	9906-	●		●	●
296	NUT; ACL (A) M8 FLANGE	0-91150-108-0	04	1	9606-9905	●	●
296	NUT; ACL (A) M8 FLANGE	0-91150-108-0	04	1	9906-	●		●	●
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	01	1	9606-9905	●	●
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	01	1	9906-0002	●		●	●
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	04	1	0003-	●		●	●
470	BOLT; BRKT PRE CLEANER<W17>	1-09000-372-0	02	1	9606-9905	●
470	BOLT; BRKT PRE CLEANER<W17>	1-09000-372-0	02	1	9906-	●		●
472	STOPPER; LINK ROD	1-33659-173-1	01	1	9606-9706	●
472	STOPPER; LINK ROD	1-33659-173-1	01	1	9707-9905	●	●
472	STOPPER; LINK ROD	1-33659-173-1	01	1	9906-0005	●		●
472	STOPPER; LINK ROD EXC. MIXER TRUCK<RA2>	1-33659-173-1	01	1	0006-	●		●
472	STOPPER; LINK ROD MIXER TRUCK<RA2>	1-33659-227-0	01	1	0006-			●
472	STOPPER; LINK ROD	1-33659-196-0	01	1	9906-				●

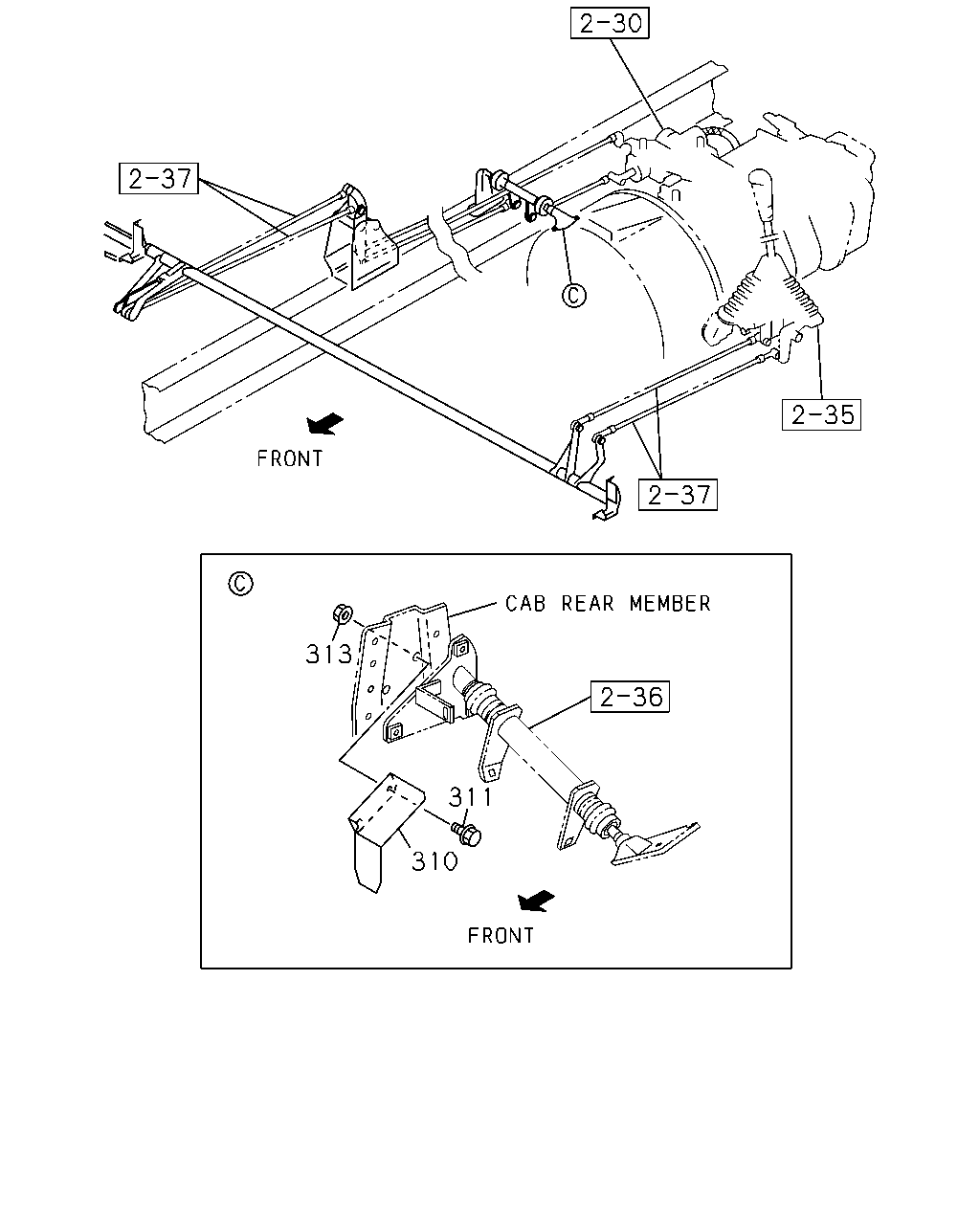

313 311 310

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
310	PROTECTOR; HEAT,ACL	1-14181-287-1	01	1	9606-9905	●	●
310	PROTECTOR; HEAT,ACL	1-14181-287-1	01	1	9906-	●		●
311	BOLT; HEAT PROTECTOR M8X20 FLANGE	0-28080-820-0	02	1	9606-9606	●
311	BOLT; HEAT PROTECTOR M8X20 FLANGE	0-28680-820-0	02	1	9607-9905	●	●
311	BOLT; HEAT PROTECTOR M8X20 FLANGE	0-28680-820-0	02	1	9906-	●		●
313	NUT; HEAT PROTECTOR M8	9-09110-508-0	01	1	9606-9606	●
313	NUT; HEAT PROTECTOR M8 FLANGE	0-91150-108-0	01	1	9607-9905	●	●
313	NUT; HEAT PROTECTOR M8 FLANGE	0-91150-108-0	01	1	9906-	●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
