◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11434 - FTS(PAKISTAN)S-TIRE ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#50308) — 189 parça

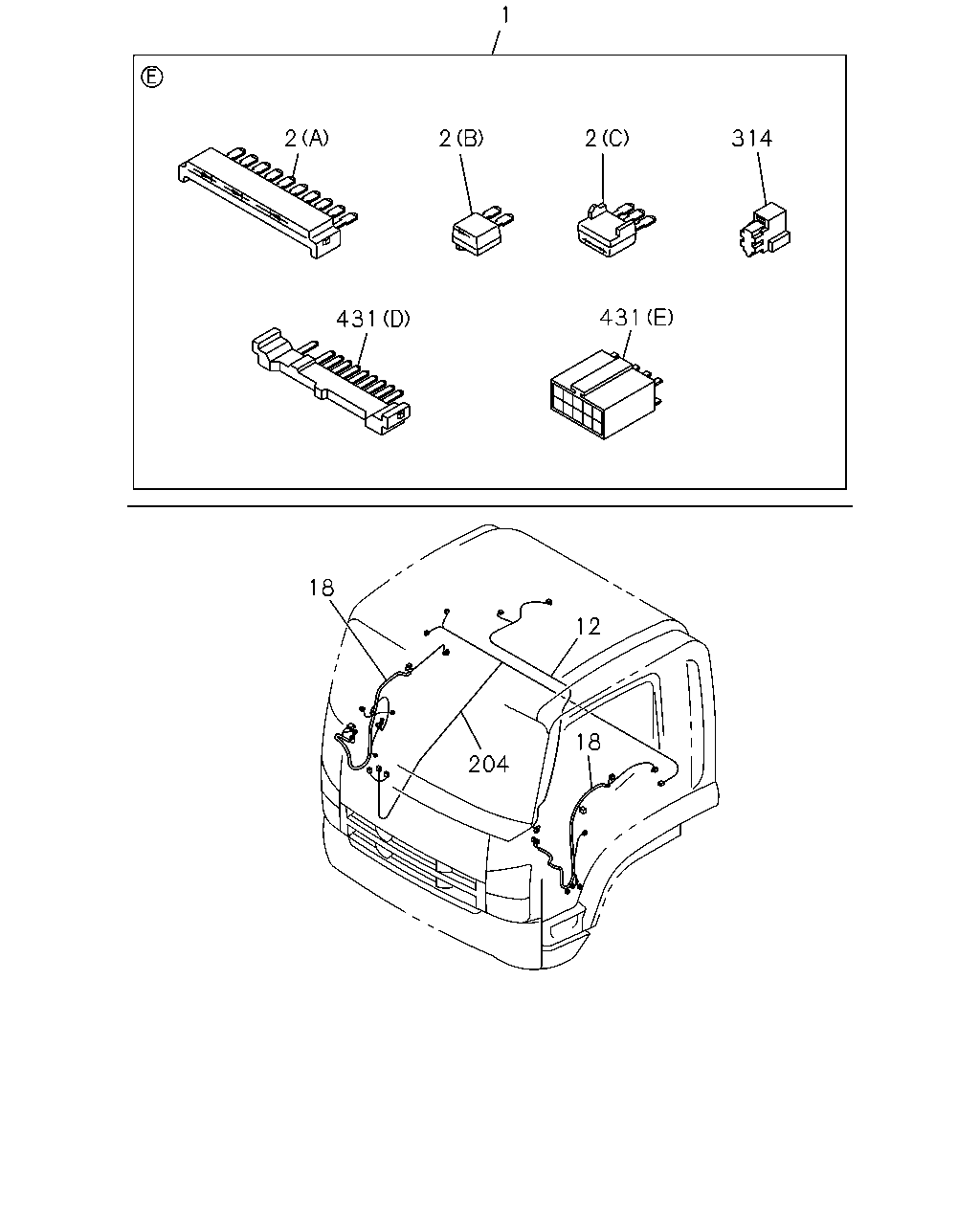

çizim 149204
1 2 2 2 314 431 431 18 12 18 204
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> EXC. COUNTRY PAKISTAN<CK5> 		8-98188-096-0 01 1 1201-1209
1 HARNESS; CAB
EXC. COUNTRY PAKISTAN<CK5> 		8-98188-096-0 01 1 1210-
1 HARNESS; CAB
COUNTRY PAKISTAN<CK5> 		8-98209-638-0 01 1 1201-1209
1 HARNESS; CAB
COUNTRY PAKISTAN<CK5> 		8-98209-638-0 01 1 1210-
1 HARNESS; CAB 8-98137-714-2 01 1 1011-1112
1 HARNESS; CAB
EXC. COUNTRY PAKISTAN<CK5>,IN HOUSE PRODUCTION<TKF> 		8-98137-714-2 01 1 1201-1209
2 DIODE; CABLE HARNESS
(A) BLACK 10P 		1-82699-703-0 01 1 1011-1112
2 DIODE; CABLE HARNESS
(A) BLACK 10P 		1-82699-703-0 01 1 1201-1209
2 DIODE; CABLE HARNESS
(A) BLACK 10P 		1-82699-703-0 01 1 1210-
2 DIODE; CABLE HARNESS
(C) BLACK 3P-1.5A 		8-94416-438-1 01 1 1011-1112
2 DIODE; CABLE HARNESS
(C) BLACK 3P-1.5A 		8-94416-438-1 01 1 1201-1209
2 DIODE; CABLE HARNESS
(C) BLACK 3P-1.5A 		8-94416-438-1 01 1 1210-
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 08 1 1011-1112
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 08 1 1201-1209
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 08 1 1210-
2 DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A 		8-94422-640-1 02 1 1011-1112
2 DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A 		8-94422-640-1 02 1 1201-1209
2 DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A 		8-94422-640-1 02 1 1210-
12 HARNESS; ROOF 8-98041-949-2 01 1 1011-
18 HARNESS; DOOR 8-98084-282-3 01 1 1011-1202
18 HARNESS; DOOR
EXC. CORNERING LAMP<T87> 		8-98076-304-3 01 1 1203-
18 HARNESS; DOOR 8-98084-287-3 01 1 1011-1202
18 HARNESS; DOOR
EXC. CORNERING LAMP<T87> 		8-98076-305-3 01 1 1203-
204 HARNESS; CABLE,FLOOR 8-98085-274-0 01 1 1011-
314 RESISTOR; HARNESS
BLUE 		1-82691-204-0 01 1 1011-1112
314 RESISTOR; HARNESS
EXC. COUNTRY PAKISTAN<CK5> BLUE 		1-82691-204-0 01 1 1201-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 1011-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 02 1 1011-1112
431 CONNECTOR; JOINT
EXC. COUNTRY PAKISTAN<CK5> (C) 10P BLUE 		1-82699-598-0 02 1 1201-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 05 1 1011-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 1011-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1011-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 1011-1112
431 CONNECTOR; JOINT
EXC. COUNTRY PAKISTAN<CK5> (D) 10P BROWN 		1-82699-601-0 09 1 1201-
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1011-1112
431 CONNECTOR; JOINT
EXC. COUNTRY PAKISTAN<CK5> (E) 10P 		8-97077-943-0 02 1 1201-
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 02 1 1011-
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1011-1112
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1201-1209
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1210-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1011-1112
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1201-1209
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1210-

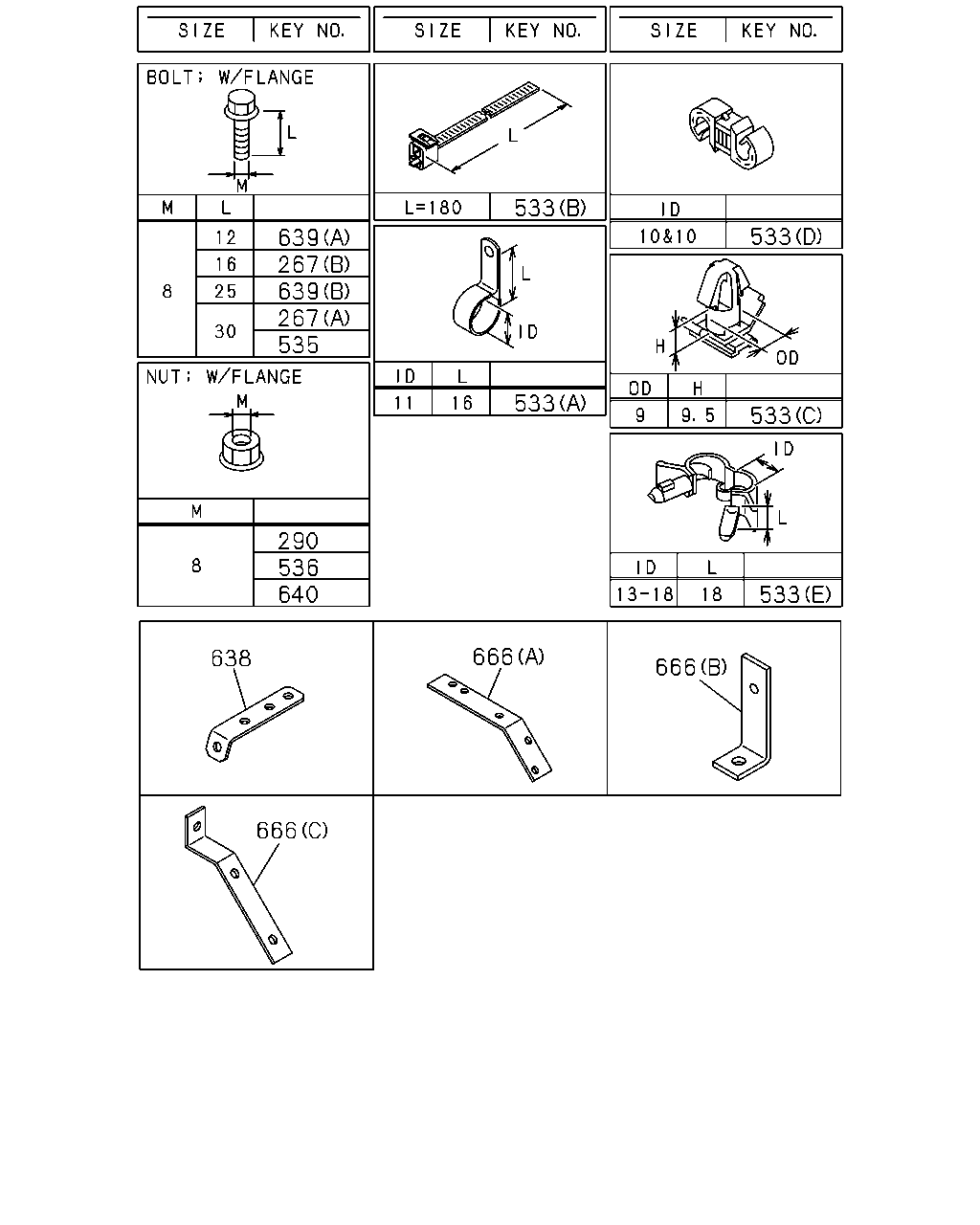

çizim 149208
533 533 639 267 639 267 535 533 533 290 536 640 533 666 638 666 666
BalonParca AdiParca NoAdetTipApplied Date
267 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1011-
267 BOLT; BRKT
(B) M8X16 FLANGE 		0-28050-816-0 03 1 1011-
267 BOLT; BRKT
(B) M8X16 FLANGE 		0-28050-816-0 03 1 1011-
290 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1011-
533 CLIP
(A) ID=11 L=16 		0-95235-025-0 04 1 1011-
533 CLIP
(B) L=180 		1-09707-162-1 01 1 1011-1206
533 CLIP
(C) OD=9 H=9.5 		1-09709-179-0 01 1 1011-
533 CLIP
(D) ID=10 & 10 		1-09709-277-1 01 1 1011-
533 CLIP
(E) ID=5-12 L=18 		1-09709-287-0 01 1 1011-
533 CLIP
(E) ID=5-12 L=18 		1-09709-287-0 01 1 1011-
535 BOLT; BRKT FIX
DIFF LOCK<C3N> M8X30 FLANGE 		0-28650-830-0 01 1 1011-
536 NUT; BRKT FIX
DIFF LOCK<C3N> M8 FLANGE 		0-91180-108-0 01 1 1011-
638 BRACKET; SPD SENSOR
DIFF LOCK<C3N> 		1-82698-167-0 01 1 1011-
639 BOLT; CLIP
(A) M8X12 FLANGE 		0-28050-812-0 02 1 1011-
639 BOLT; CLIP
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1011-
640 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1011-
666 BRACKET; CLIP
(B) L=145 		1-47475-655-0 01 1 1011-
666 BRACKET; CLIP
(C) 		8-98140-841-1 01 1 1011-
666 BRACKET; CLIP
(A) PAK 		8-98140-891-1 01 1 1011-

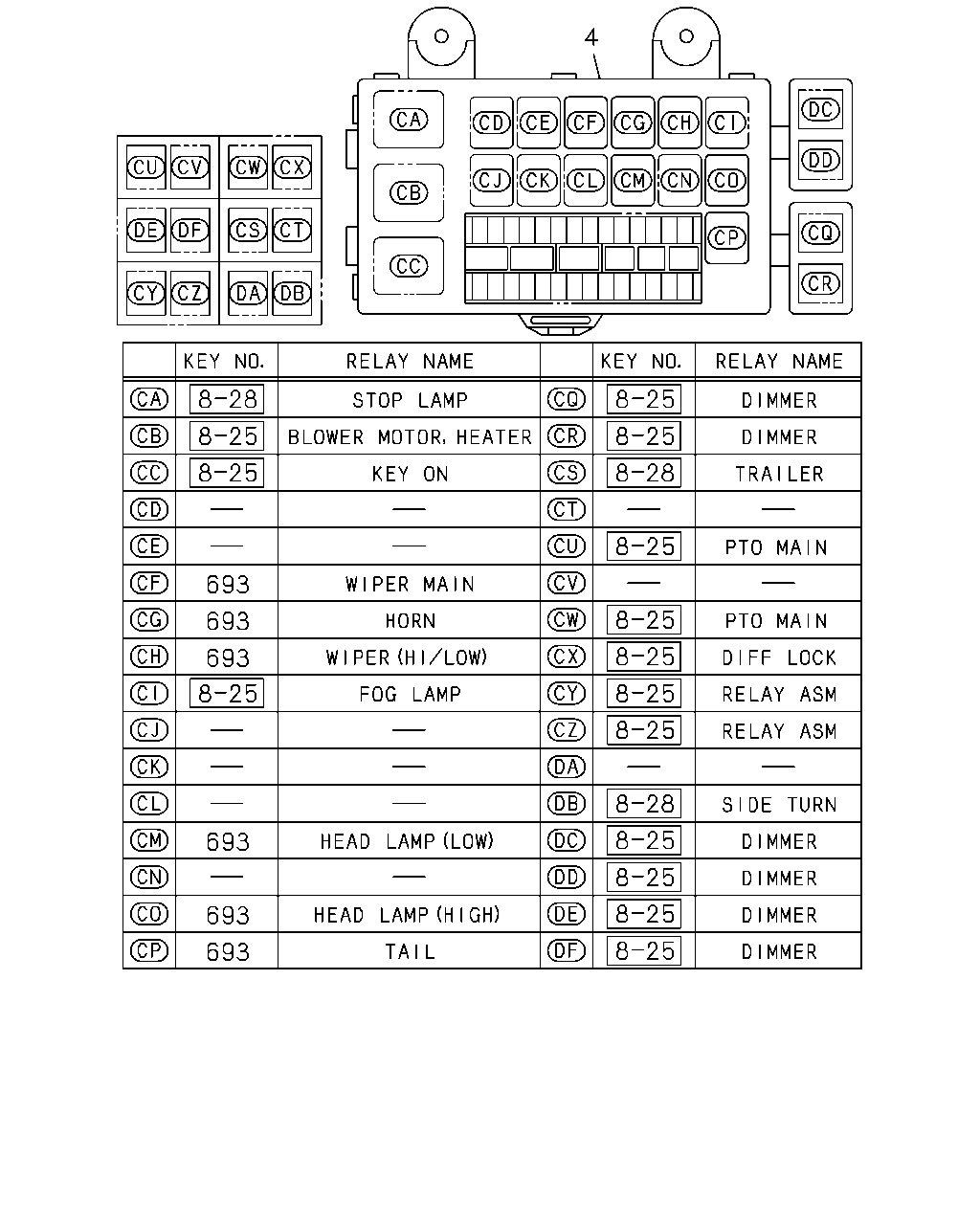

çizim 149211
4 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date
4 BOX ASM; FUSE,HARNESS 8-98081-164-0 01 1 1011-1112
4 BOX ASM; FUSE,HARNESS 8-98081-164-0 01 1 1201-1209
4 BOX ASM; FUSE,HARNESS 8-98081-164-0 01 1 1210-
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1011-1112
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1201-1209
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1210-

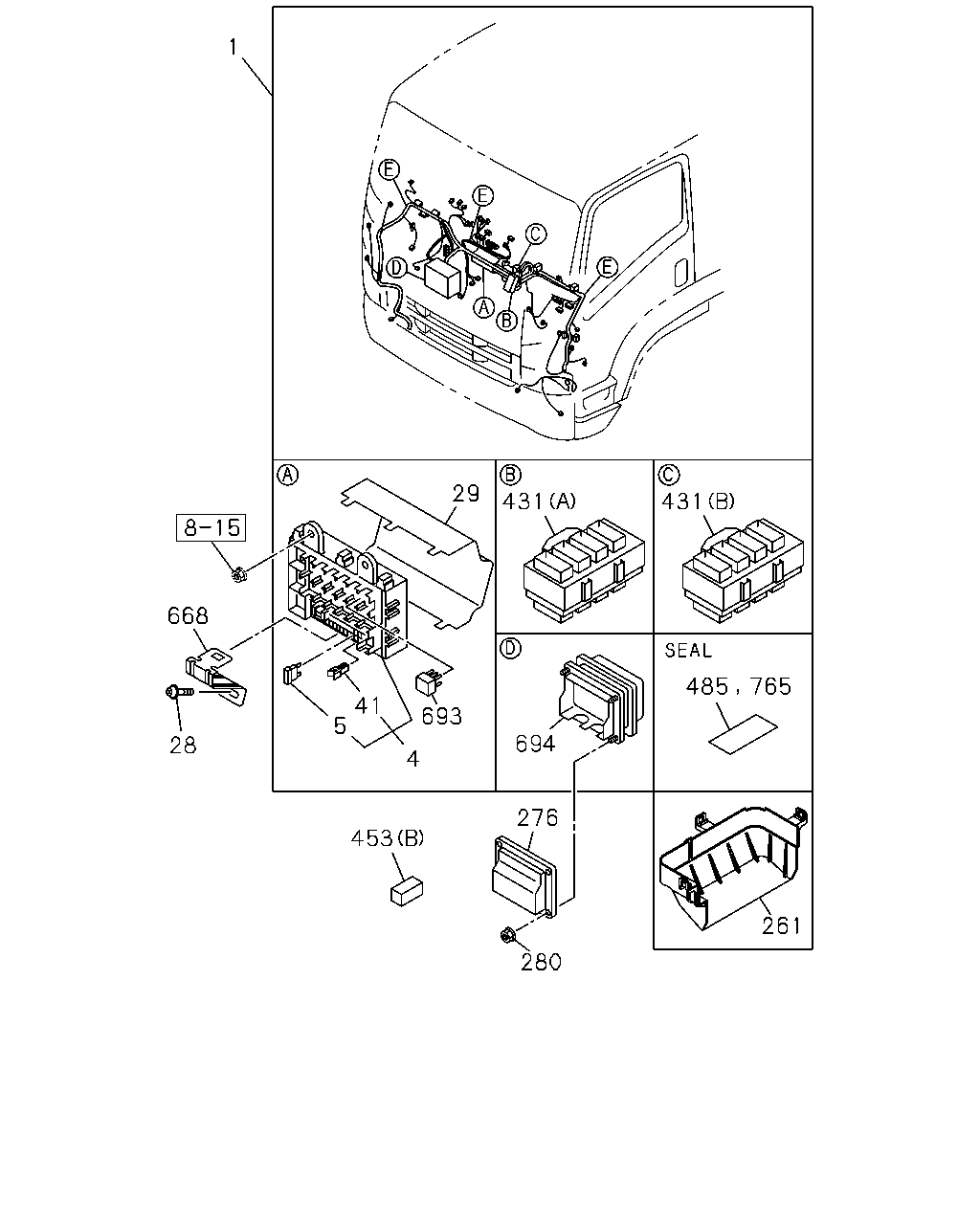

çizim 149212
1 668 28 5 41 693 4 453 431 29 694 276 431 485 765 261 280
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> EXC. COUNTRY PAKISTAN<CK5> 		8-98188-096-0 01 1 1201-1209
1 HARNESS; CAB
EXC. COUNTRY PAKISTAN<CK5> 		8-98188-096-0 01 1 1210-
1 HARNESS; CAB
COUNTRY PAKISTAN<CK5> 		8-98209-638-0 01 1 1201-1209
1 HARNESS; CAB
COUNTRY PAKISTAN<CK5> 		8-98209-638-0 01 1 1210-
1 HARNESS; CAB 8-98137-714-2 01 1 1011-1112
1 HARNESS; CAB
EXC. COUNTRY PAKISTAN<CK5>,IN HOUSE PRODUCTION<TKF> 		8-98137-714-2 01 1 1201-1209
4 BOX ASM; FUSE,HARNESS 8-98081-164-0 01 1 1011-1112
4 BOX ASM; FUSE,HARNESS 8-98081-164-0 01 1 1201-1209
4 BOX ASM; FUSE,HARNESS 8-98081-164-0 01 1 1210-
5 FUSE; FACIA HARNESS
EXC. COUNTRY PAKISTAN<CK5> 25A WHITE 		8-98062-982-0 02 1 1201-
5 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 1011-1112
5 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 1201-1209
5 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 1210-
5 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 1011-1112
5 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 1201-1209
5 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 1210-
5 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 1011-1112
5 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 1201-1209
5 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 1210-
5 FUSE; FACIA HARNESS
25A WHITE 		8-98062-982-0 02 1 1011-1112
5 FUSE; FACIA HARNESS
COUNTRY PAKISTAN<CK5> 25A WHITE 		8-98062-982-0 AR 1 1201-1209
5 FUSE; FACIA HARNESS
COUNTRY PAKISTAN<CK5> 25A WHITE 		8-98062-982-0 AR 1 1210-
28 SCREW; FUSE BOX
M6X16 FLANGE 		0-28650-616-0 01 1 1011-
29 COVER; FUSE BOX 8-98056-968-0 01 1 1011-1112
29 COVER; FUSE BOX 8-98056-968-0 01 1 1201-1209
29 COVER; FUSE BOX 8-98056-968-0 01 1 1210-
41 PULLER; FUSE 8-98054-260-0 01 1 1011-1112
41 PULLER; FUSE 8-98054-260-0 01 1 1201-1209
41 PULLER; FUSE 8-98054-260-0 01 1 1210-
261 COVER; CONNECTOR BOX
COUNTRY PAKISTAN<CK5> 		8-98065-986-1 01 1 1201-1209
261 COVER; CONNECTOR BOX
COUNTRY PAKISTAN<CK5> 		8-98065-986-1 01 1 1210-
276 COVER; BOX,FRAME HARNESS 8-98034-039-1 01 1 1011-
280 NUT; BOX ASM FIX
M6 FLANGE 		0-91180-106-0 04 1 1011-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 1011-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 02 1 1011-1112
431 CONNECTOR; JOINT
EXC. COUNTRY PAKISTAN<CK5> (C) 10P BLUE 		1-82699-598-0 02 1 1201-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 05 1 1011-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 1011-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1011-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 1011-1112
431 CONNECTOR; JOINT
EXC. COUNTRY PAKISTAN<CK5> (D) 10P BROWN 		1-82699-601-0 09 1 1201-
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1011-1112
431 CONNECTOR; JOINT
EXC. COUNTRY PAKISTAN<CK5> (E) 10P 		8-97077-943-0 02 1 1201-
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 02 1 1011-
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1011-1112
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1201-1209
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1210-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1011-1112
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1201-1209
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1210-
453 PROTECTOR; HARNESS
COUNTRY PAKISTAN<CK5> (B) 		8-98210-971-0 01 1 1201-
453 PROTECTOR; HARNESS
(A) 		1-82699-709-0 01 1 1011-
485 SEAL; CONNECTOR
180X40 		1-72498-019-1 01 1 1011-
668 BRACKET; HARNESS 8-98095-653-2 01 1 1011-
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1011-1112
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1201-1209
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1210-
694 BOX ASM; CONNECTOR
COUNTRY PAKISTAN<CK5> 		8-98057-771-0 01 1 1201-1209
694 BOX ASM; CONNECTOR
COUNTRY PAKISTAN<CK5> 		8-98057-771-0 01 1 1210-
694 BOX ASM; CONNECTOR 8-98063-269-1 01 1 1011-1112
694 BOX ASM; CONNECTOR
EXC. COUNTRY PAKISTAN<CK5> 		8-98063-269-1 01 1 1201-
765 TAPE
100X40 		1-72498-022-1 01 1 1409-

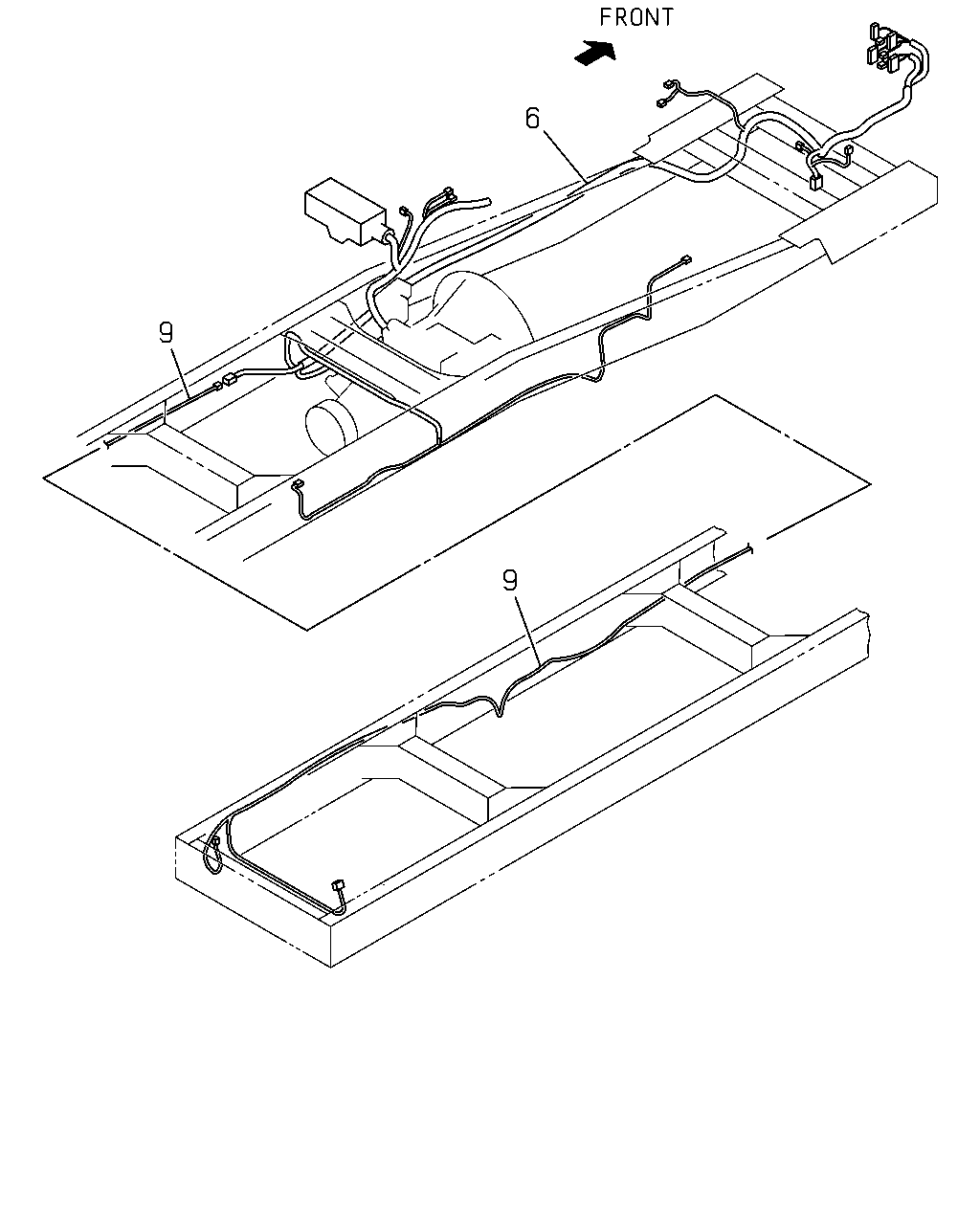

çizim 149214
6 9 9
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME 8-98137-481-3 01 1 1011-1103
6 HARNESS; FRAME 8-98186-316-0 01 1 1104-
9 HARNESS; FRAME,RR 8-98137-360-2 01 1 1011-

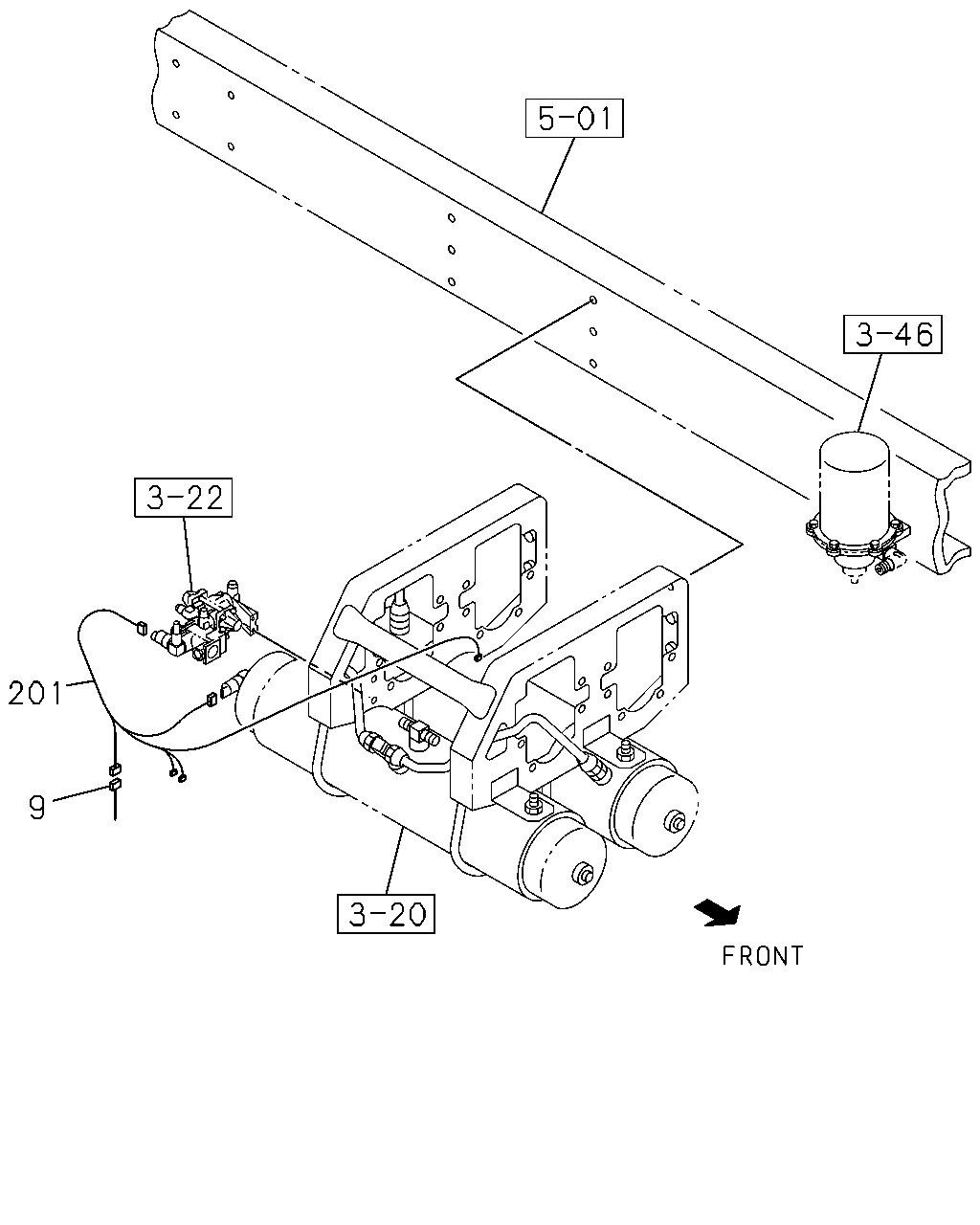

çizim 149216
201 9
BalonParca AdiParca NoAdetTipApplied Date
9 HARNESS; FRAME,RR 8-98137-360-2 01 1 1011-
201 HARNESS; AIR TANK 8-98132-111-3 01 1 1011-

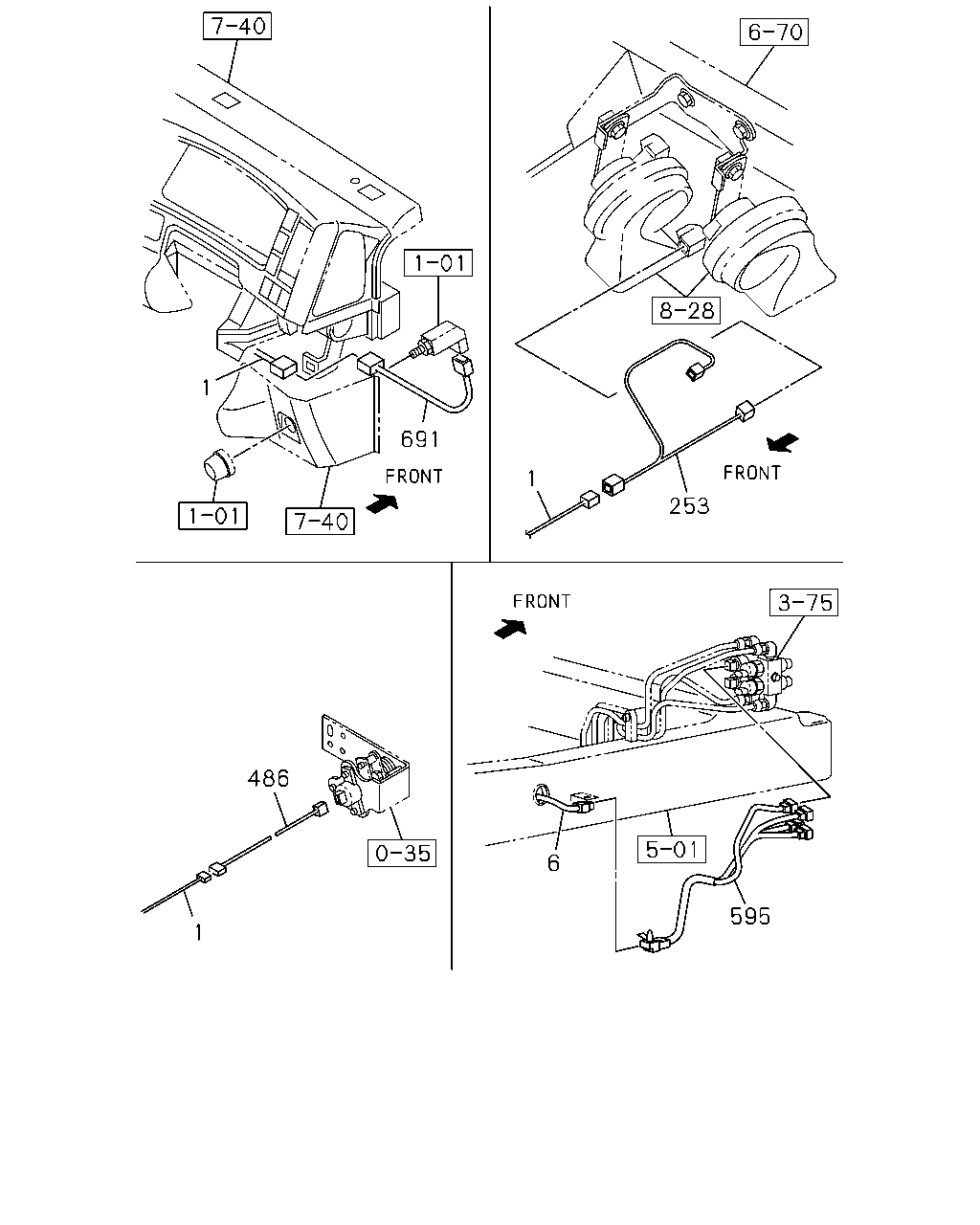

çizim 149218
1 691 1 253 486 6 595 1
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> EXC. COUNTRY PAKISTAN<CK5> 		8-98188-096-0 01 1 1201-1209
1 HARNESS; CAB
EXC. COUNTRY PAKISTAN<CK5> 		8-98188-096-0 01 1 1210-
1 HARNESS; CAB
COUNTRY PAKISTAN<CK5> 		8-98209-638-0 01 1 1201-1209
1 HARNESS; CAB
COUNTRY PAKISTAN<CK5> 		8-98209-638-0 01 1 1210-
1 HARNESS; CAB 8-98137-714-2 01 1 1011-1112
1 HARNESS; CAB
EXC. COUNTRY PAKISTAN<CK5>,IN HOUSE PRODUCTION<TKF> 		8-98137-714-2 01 1 1201-1209
6 HARNESS; FRAME 8-98137-481-3 01 1 1011-1103
6 HARNESS; FRAME 8-98186-316-0 01 1 1104-
253 HARNESS; EXT,HORN 8-98074-080-3 01 1 1011-
486 HARNESS; ALL SPEED ACCEL
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82675-898-0 01 1 1011-
595 HARNESS; WARNING,BRK 8-97621-002-3 01 1 1011-
691 HARNESS; IDLE CONT 8-98049-014-2 01 1 1011-

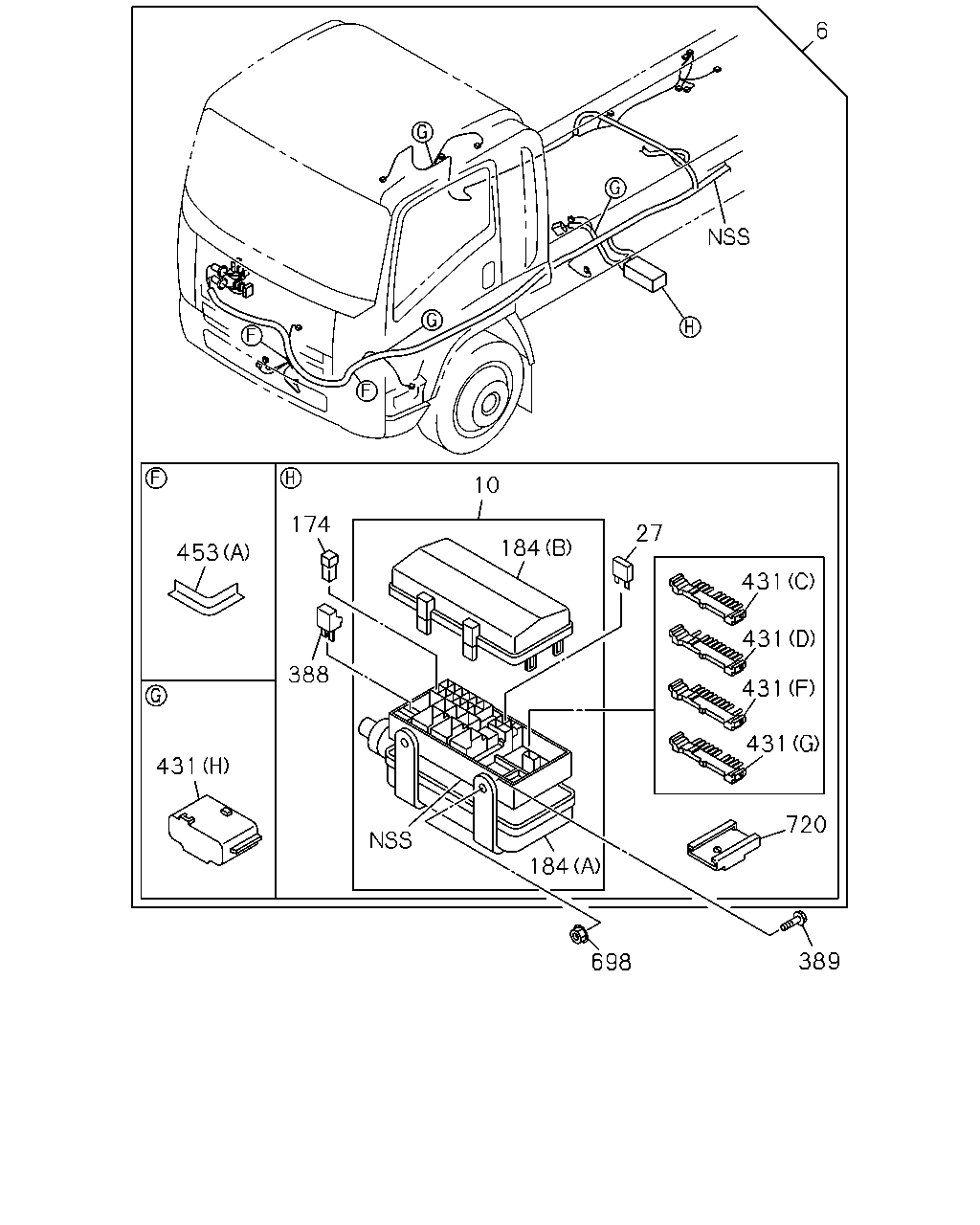

çizim 149219
6 10 174 27 184 453 431 431 388 431 431 431 720 184 389 698
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME 8-98137-481-3 01 1 1011-1103
6 HARNESS; FRAME 8-98186-316-0 01 1 1104-
10 BOX; FUSE,HARNESS 8-98030-762-0 01 1 1011-
27 FUSE UNIT
10A RED 		8-98054-257-0 01 1 1011-
27 FUSE UNIT
15A BLUE 		8-98054-258-0 02 1 1011-
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 01 1 1107-
174 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 01 1 1011-
174 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 01 1 1011-
174 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 03 1 1011-
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 03 1 1011-1106
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 02 1 1107-
184 COVER; RELAY & FUSE BOX
(A) 		8-98030-766-0 01 1 1011-
184 COVER; RELAY & FUSE BOX
(B) 		8-98030-767-0 01 1 1011-
388 DIODE; RELAY BOX
BLACK 2P-1.5A 		8-94422-639-1 02 1 1011-
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1011-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 1011-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 02 1 1011-1112
431 CONNECTOR; JOINT
EXC. COUNTRY PAKISTAN<CK5> (C) 10P BLUE 		1-82699-598-0 02 1 1201-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 05 1 1011-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 1011-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1011-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 1011-1112
431 CONNECTOR; JOINT
EXC. COUNTRY PAKISTAN<CK5> (D) 10P BROWN 		1-82699-601-0 09 1 1201-
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1011-1112
431 CONNECTOR; JOINT
EXC. COUNTRY PAKISTAN<CK5> (E) 10P 		8-97077-943-0 02 1 1201-
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 02 1 1011-
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1011-1112
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1201-1209
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1210-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1011-1112
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1201-1209
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1210-
453 PROTECTOR; HARNESS
COUNTRY PAKISTAN<CK5> (B) 		8-98210-971-0 01 1 1201-
453 PROTECTOR; HARNESS
(A) 		1-82699-709-0 01 1 1011-
698 NUT; COVER,RELAY BOX
M8 FLANGE 		0-91180-108-0 02 1 1011-
720 ATTACHMENT; CONNECTOR 1-82699-688-0 03 1 1011-

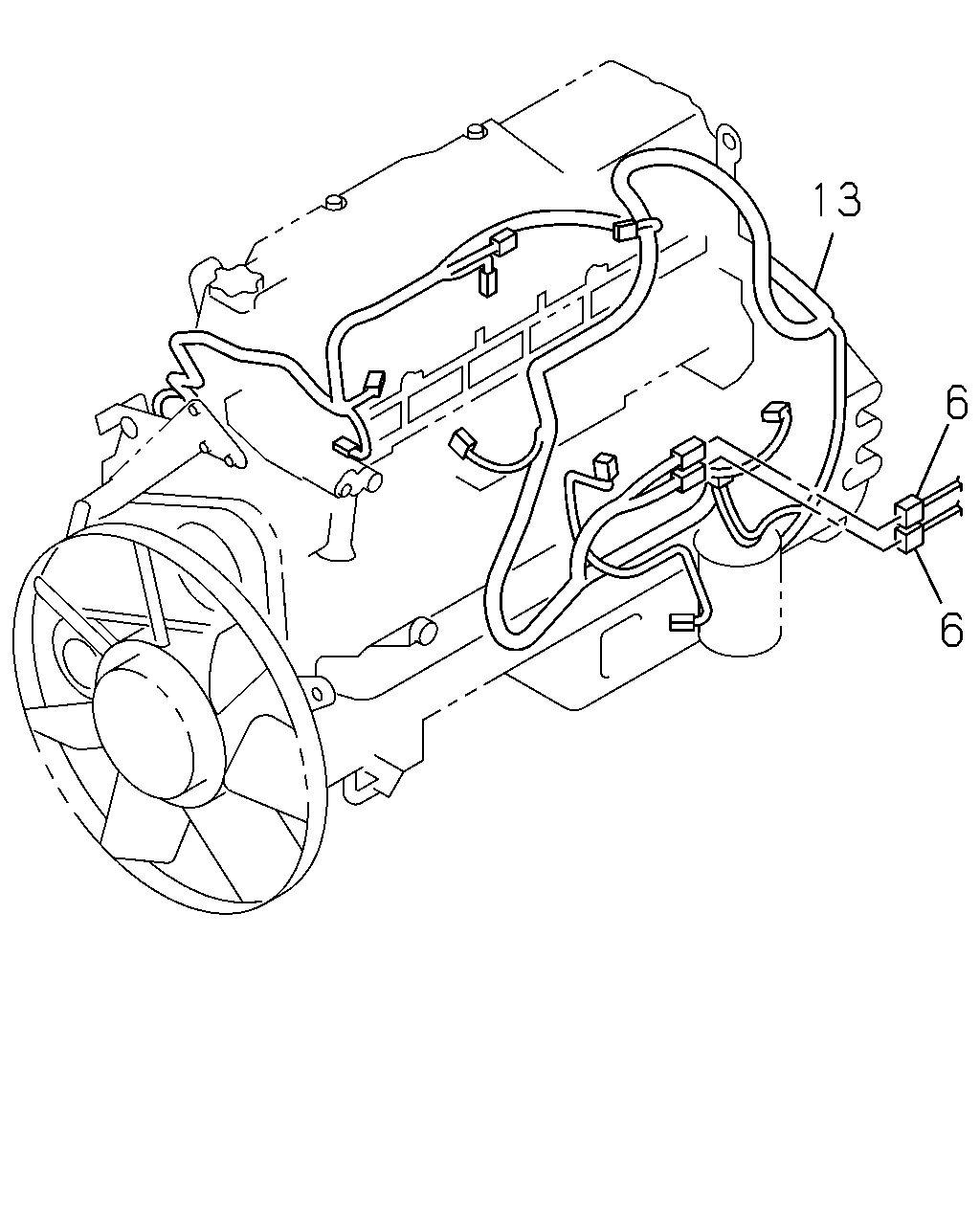

çizim 149222
13 6 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME 8-98137-481-3 01 1 1011-1103
6 HARNESS; FRAME 8-98186-316-0 01 1 1104-
13 HARNESS; ENG 8-98075-771-5 01 1 1011-

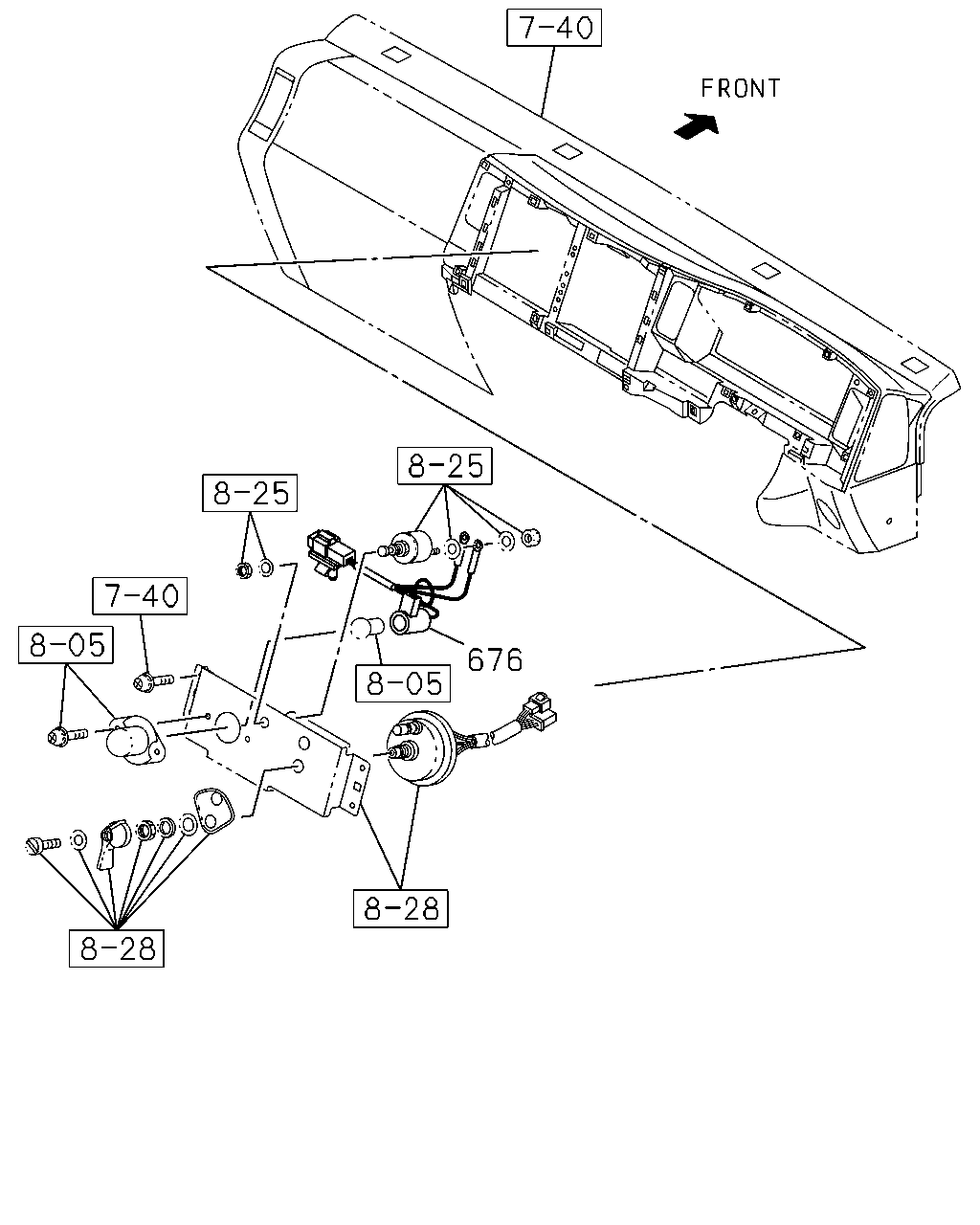

çizim 149231
676
BalonParca AdiParca NoAdetTipApplied Date
676 HARNESS; EXT,MAP LAMP 8-98140-101-0 01 1 1011-

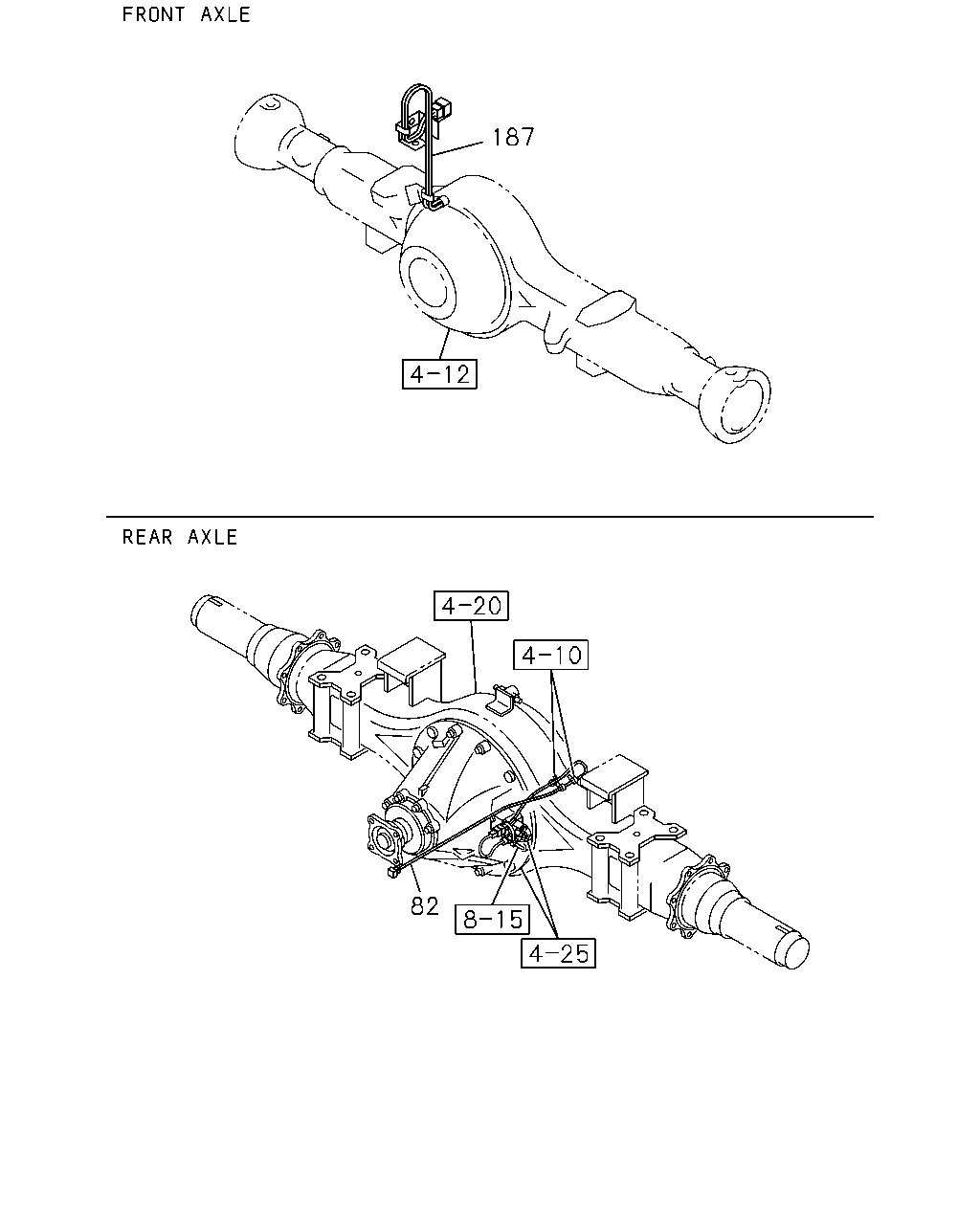

çizim 149236
187 82
BalonParca AdiParca NoAdetTipApplied Date
82 HARNESS; DIFF LOCK
DIFF LOCK<C3N> 		8-98145-727-1 01 1 1011-
187 HARNESS; AXLE 8-98138-762-1 01 1 1011-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
