6-05 — FRONT PANEL (#50275) — 309 parça

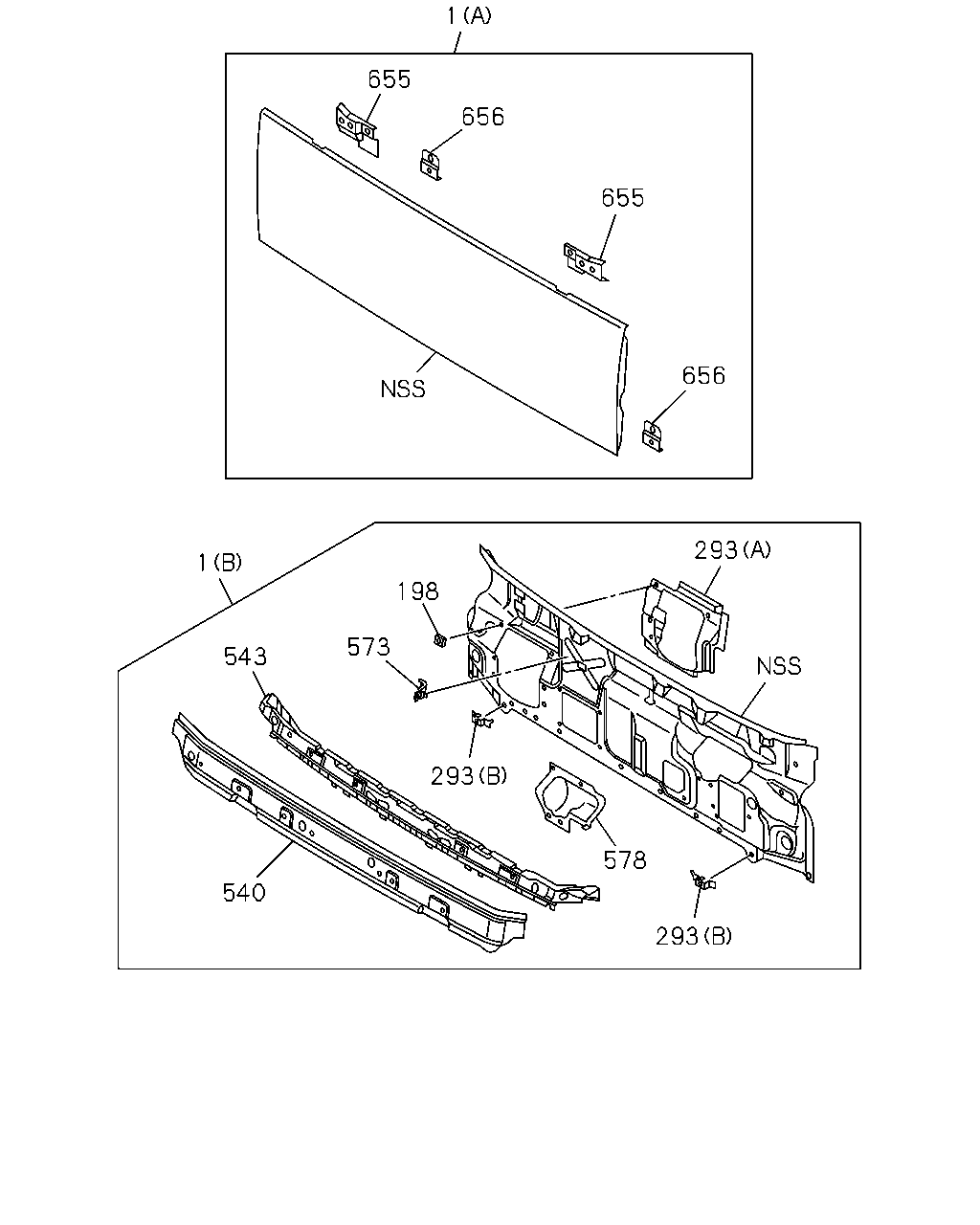

çizim 149134
1 655 656 655 656 293 1 198 573 543 293 578 540 293
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-960-9 01 1 1011-
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1011-
198 NUT; PANEL
M6 		9-09114-086-0 02 1 1011-
293 BRACKET; PANEL
(A) 		8-97586-007-3 01 1 1011-
293 BRACKET; PANEL
(B) 		8-98008-124-1 01 1 1011-
293 BRACKET; PANEL
(B) 		8-98008-126-1 01 1 1011-
540 PANEL; FRONT,OUTER 8-97585-966-2 01 1 1011-
543 CLOSING; FRT MTG RAIL 8-97585-990-4 01 1 1011-
573 BRACKET; SUPPORT 8-98017-700-2 01 1 1011-
578 COVER; WIPER MOTOR 8-97586-018-3 01 1 1011-
655 PATCH; HINGE 8-98031-263-0 01 1 1011-
655 PATCH; HINGE 8-98031-264-0 01 1 1011-
656 PATCH; STRIKER 8-98031-265-0 02 1 1011-

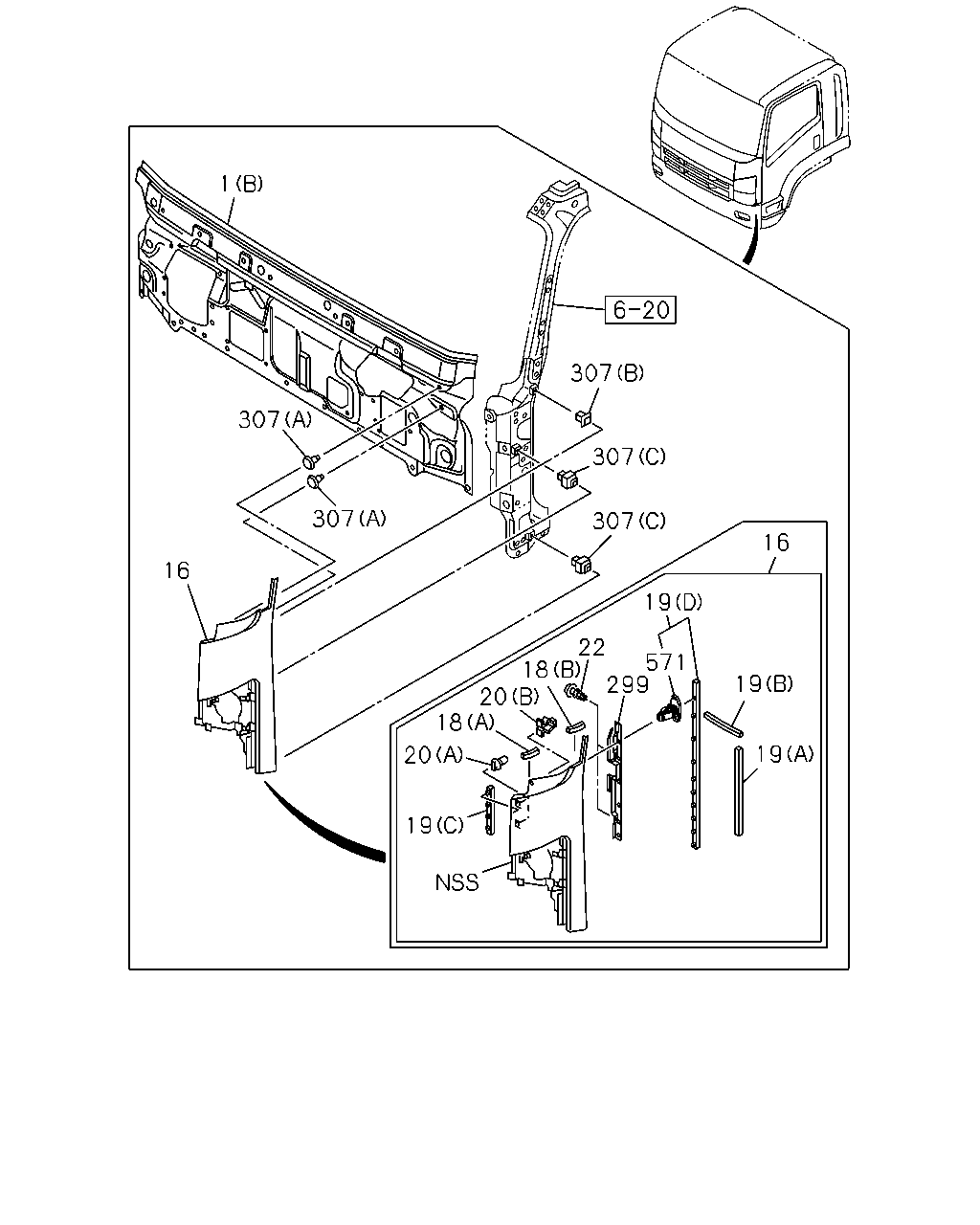

çizim 149140
1 307 307 307 307 307 16 16 19 22 18 20 18 571 299 19 19 20 19
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-960-9 01 1 1011-
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1011-
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) GRAY 		8-97413-576-4 01 1 1011-
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) GRAY 		8-97417-654-4 01 1 1011-
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97413-577-4 01 1 1011-
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97417-655-4 01 1 1011-
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) RED 		8-97413-578-4 01 1 1011-
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) RED 		8-97417-656-4 01 1 1011-
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) BLUE 		8-97413-579-4 01 1 1011-
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) BLUE 		8-97415-030-4 01 1 1011-
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97407-509-4 01 1 1011-
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97409-901-4 01 1 1011-
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) RED 		8-97411-292-4 01 1 1011-
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) RED 		8-97411-298-4 01 1 1011-
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97413-580-4 01 1 1011-
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97415-031-4 01 1 1011-
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97413-581-4 01 1 1011-
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97415-032-4 01 1 1011-
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97411-293-4 01 1 1011-
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97411-299-4 01 1 1011-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97413-582-4 01 1 1011-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97417-657-4 01 1 1011-
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97411-296-4 01 1 1011-
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97411-302-4 01 1 1011-
16 PANEL; FRONT,SIDE
BODY COLOR MIDDLE BRONZE GREEN(909) GREEN 		8-97417-083-4 01 1 1011-
16 PANEL; FRONT,SIDE
BODY COLOR MIDDLE BRONZE GREEN(909) GREEN 		8-97417-084-4 01 1 1011-
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) RED 		8-97411-295-4 01 1 1011-
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) RED 		8-97411-301-4 01 1 1011-
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97413-583-4 01 1 1011-
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97417-658-4 01 1 1011-
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-653-4 01 1 1011-
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-659-4 01 1 1011-
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) GREEN 		8-97413-585-4 01 1 1011-
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) GREEN 		8-97417-660-4 01 1 1011-
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97411-297-4 01 1 1011-
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97411-303-4 01 1 1011-
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR GOLDEN YELLOW(904),BODY COLOR MIDDLE BRONZE GREEN(909),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (B) 		8-98038-608-0 01 1 1011-
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989) (B) 		8-98038-608-0 01 1 1011-
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR MIDDLE BRONZE GREEN(909),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BOD Y COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) 		8-98038-608-0 01 1 1011-
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR GOLDEN YELLOW(904),BODY COLOR MIDDLE BRONZE GREEN(909),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (A) 		8-98043-511-1 01 1 1011-
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989) (A) 		8-98043-511-1 01 1 1011-
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR MIDDLE BRONZE GREEN(909),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BOD Y COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (A) 		8-98043-511-1 01 1 1011-
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR GOLDEN YELLOW(904),BODY COLOR MIDDLE BRONZE GREEN(909),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (B) 		8-98035-268-0 01 1 1011-
19 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989) (B) 		8-98035-268-0 01 1 1011-
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR MIDDLE BRONZE GREEN(909),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BOD Y COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) 		8-98035-268-0 01 1 1011-
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR GOLDEN YELLOW(904),BODY COLOR MIDDLE BRONZE GREEN(909),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (A) 		8-98062-215-0 01 1 1011-
19 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989) (A) 		8-98062-215-0 01 1 1011-
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR MIDDLE BRONZE GREEN(909),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BOD Y COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (A) 		8-98062-215-0 01 1 1011-
19 SEAL; FRT SIDE PANEL
(C) 		8-98036-580-0 01 1 1011-
19 SEAL; FRT SIDE PANEL
(C) 		8-98036-581-0 01 1 1011-
19 SEAL; FRT SIDE PANEL
(D) 		8-98041-358-2 01 1 1011-
19 SEAL; FRT SIDE PANEL
(D) 		8-98041-359-2 01 1 1011-
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR GOLDEN YELLOW(904),BODY COLOR MIDDLE BRONZE GREEN(909),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (A) 		8-97410-739-1 02 1 1011-
20 CLIP; FRT PANEL SIDE
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989) (A) 		8-97410-739-1 02 1 1011-
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR MIDDLE BRONZE GREEN(909),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BOD Y COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (A) 		8-97410-739-1 02 1 1011-
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR GOLDEN YELLOW(904),BODY COLOR MIDDLE BRONZE GREEN(909),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (B) 		8-97410-740-3 01 1 1011-
20 CLIP; FRT PANEL SIDE
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989) (B) 		8-97410-740-3 01 1 1011-
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR MIDDLE BRONZE GREEN(909),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BOD Y COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) 		8-97410-740-3 01 1 1011-
22 SCREW; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR GOLDEN YELLOW(904),BODY COLOR MIDDLE BRONZE GREEN(909),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1011-
22 SCREW; FRT PANEL SIDE
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1011-
22 SCREW; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR MIDDLE BRONZE GREEN(909),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BOD Y COLOR GREEN(989),BODY COLOR TRANS BLUE(999) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 03 1 1011-
299 COVER; FRT PANEL SIDE 8-98034-813-1 01 1 1011-
299 COVER; FRT PANEL SIDE 8-98034-814-1 01 1 1011-
307 GROMMET; FRT PANEL
(B) 		8-97410-738-0 02 1 1011-
307 GROMMET; FRT PANEL
(C) 		8-98021-300-1 04 1 1011-
307 GROMMET; FRT PANEL
(A) OD=20 		8-98034-363-1 04 1 1011-
571 CLIP; SEAL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR GOLDEN YELLOW(904),BODY COLOR MIDDLE BRONZE GREEN(909),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) NATURAL 		8-98027-457-0 10 1 1011-
571 CLIP; SEAL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989) NATURAL 		8-98027-457-0 10 1 1011-
571 CLIP; SEAL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR MIDDLE BRONZE GREEN(909),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BOD Y COLOR GREEN(989),BODY COLOR TRANS BLUE(999) NATURAL 		8-98027-457-0 10 1 1011-

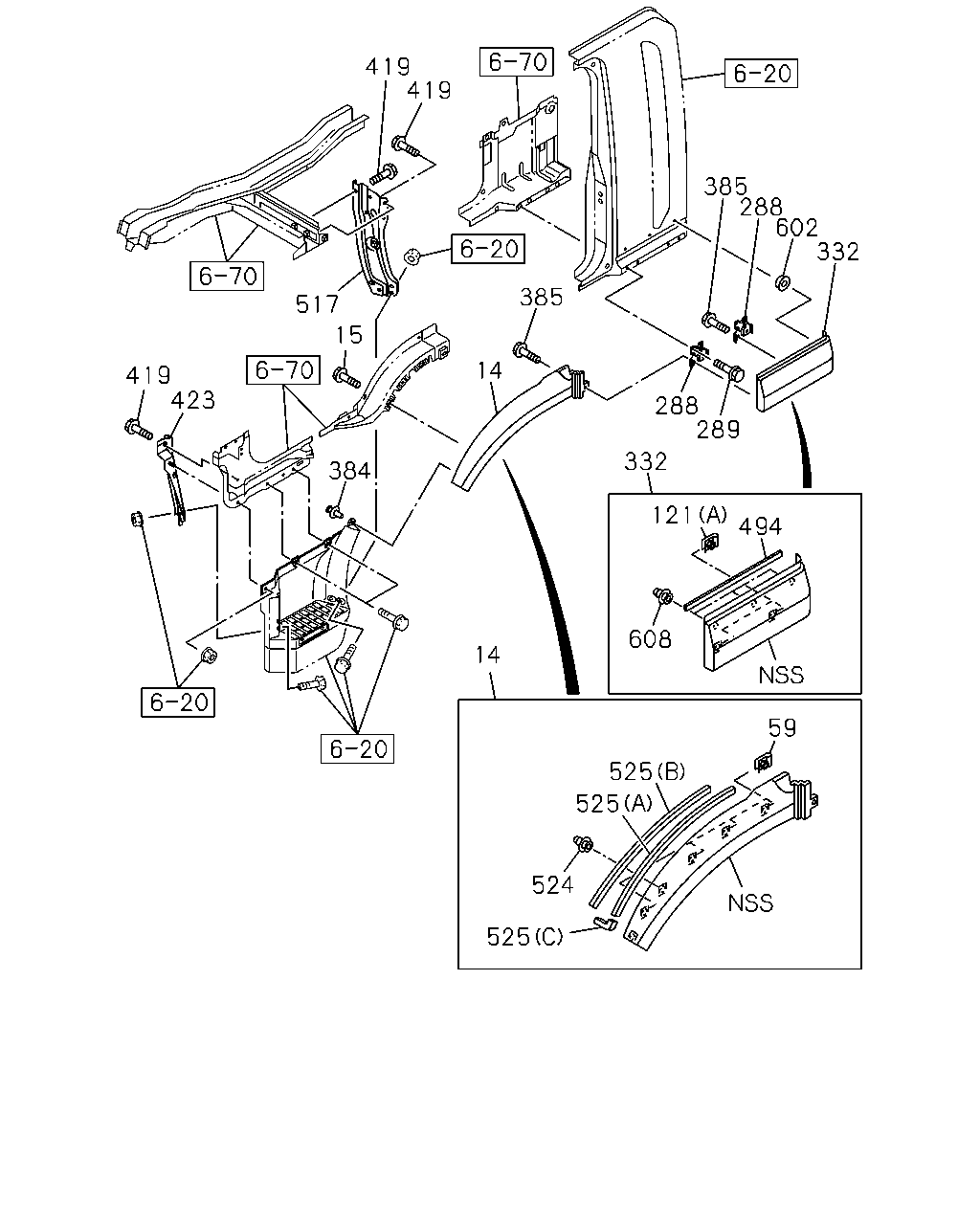

çizim 149150
419 419 385 288 602 332 385 517 15 14 419 423 288 289 332 384 121 494 608 14 59 525 525 524 525
BalonParca AdiParca NoAdetTipApplied Date
14 FENDER; FRT
BLACK 		8-98041-398-3 01 1 1011-
14 FENDER; FRT
BLACK 		8-98041-399-3 01 1 1011-
15 BOLT; FENDER
M6X20 W/PL WASHER 		8-98059-504-0 06 1 1011-
59 GROMMET; SCREW
EXC. CAB ALL PAINTING<TFD> 		8-94279-723-0 02 1 1011-
59 GROMMET; SCREW
CAB ALL PAINTING<TFD> 		8-94279-723-0 02 1 1011-
59 GROMMET; SCREW 8-94279-723-0 08 1 1011-
121 GROMMET; FENDER
EXC. CAB ALL PAINTING<TFD> (A) 		8-94279-723-0 04 1 1011-
121 GROMMET; FENDER
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> (A) 		8-94279-723-0 04 1 1011-
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1011-
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 10 1 1011-
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 1011-
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 1011-
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 1011-
288 BRACKET; FENDER SKIRT 8-98041-162-1 04 1 1011-
289 BOLT; FENDER SKIRT BRKT
M6X16 FLANGE 		0-28650-616-0 08 1 1011-
332 FENDER; RR
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97413-596-2 01 1 1011-
332 FENDER; RR
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97413-606-2 01 1 1011-
332 FENDER; RR
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97413-597-2 01 1 1011-
332 FENDER; RR
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97413-607-2 01 1 1011-
332 FENDER; RR
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97413-598-2 01 1 1011-
332 FENDER; RR
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97413-608-2 01 1 1011-
332 FENDER; RR
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97413-599-2 01 1 1011-
332 FENDER; RR
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97413-609-2 01 1 1011-
332 FENDER; RR
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97407-506-2 01 1 1011-
332 FENDER; RR
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97407-507-2 01 1 1011-
332 FENDER; RR
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97411-304-2 01 1 1011-
332 FENDER; RR
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97411-310-2 01 1 1011-
332 FENDER; RR
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97413-600-2 01 1 1011-
332 FENDER; RR
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97413-610-2 01 1 1011-
332 FENDER; RR
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97413-601-2 01 1 1011-
332 FENDER; RR
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97413-611-2 01 1 1011-
332 FENDER; RR
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97411-305-2 01 1 1011-
332 FENDER; RR
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97411-311-2 01 1 1011-
332 FENDER; RR
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97413-602-2 01 1 1011-
332 FENDER; RR
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97413-612-2 01 1 1011-
332 FENDER; RR
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97411-308-2 01 1 1011-
332 FENDER; RR
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97411-314-2 01 1 1011-
332 FENDER; RR
BODY COLOR MIDDLE BRONZE GREEN(909) CAB ALL PAINTING<TFD> GREEN 		8-97417-085-2 01 1 1011-
332 FENDER; RR
BODY COLOR MIDDLE BRONZE GREEN(909) CAB ALL PAINTING<TFD> GREEN 		8-97417-086-2 01 1 1011-
332 FENDER; RR
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97411-307-2 01 1 1011-
332 FENDER; RR
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97411-313-2 01 1 1011-
332 FENDER; RR
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97413-603-2 01 1 1011-
332 FENDER; RR
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97413-613-2 01 1 1011-
332 FENDER; RR
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-674-2 01 1 1011-
332 FENDER; RR
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-675-2 01 1 1011-
332 FENDER; RR
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97413-605-2 01 1 1011-
332 FENDER; RR
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97413-615-2 01 1 1011-
332 FENDER; RR
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97411-309-2 01 1 1011-
332 FENDER; RR
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97411-315-2 01 1 1011-
332 FENDER; RR
EXC. CAB ALL PAINTING<TFD> 		8-98038-434-2 01 1 1011-
332 FENDER; RR
EXC. CAB ALL PAINTING<TFD> 		8-98038-435-2 01 1 1011-
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 02 1 1011-
385 SCREW; FENDER LWR
M6X20 W/PL WASHER 		8-98059-504-0 04 1 1011-
419 BOLT; STEP
M8X20 FLANGE 		0-28650-820-0 08 1 1011-
423 SUPPORT ASM; STEP 8-98037-335-1 01 1 1011-
423 SUPPORT ASM; STEP 8-98037-336-1 01 1 1011-
494 FINISHER; FENDER
EXC. CAB ALL PAINTING<TFD> 		8-98041-172-1 01 1 1011-
494 FINISHER; FENDER
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> 		8-98041-172-1 01 1 1011-
494 FINISHER; FENDER
EXC. CAB ALL PAINTING<TFD> 		8-98072-723-0 01 1 1011-
494 FINISHER; FENDER
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> 		8-98072-723-0 01 1 1011-
517 SUPPORT; STEP PANEL 8-98037-338-2 01 1 1011-
517 SUPPORT; STEP PANEL 8-98037-339-2 01 1 1011-
524 CLIP; FENDER COVER
OD=7.9 BLACK 		8-94279-974-1 02 1 1011-
525 SEAL; FENDER
(A) UPPER 		8-98061-760-0 02 1 1011-
525 SEAL; FENDER
(B) LOWER 		8-98061-761-0 02 1 1011-
525 SEAL; FENDER
(C) 		8-98061-762-0 02 1 1011-
602 RETAINER; COVER
ID=5.4 OD=6.8 		1-09989-021-0 06 1 1011-1302
602 RETAINER; COVER
ID=5.4 OD=6.8 		8-98241-984-0 06 1 1303-
608 CLIP
EXC. CAB ALL PAINTING<TFD> D5.4X8 		1-09983-154-0 06 1 1011-
608 CLIP
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> D5.4X8 		1-09983-154-0 06 1 1011-

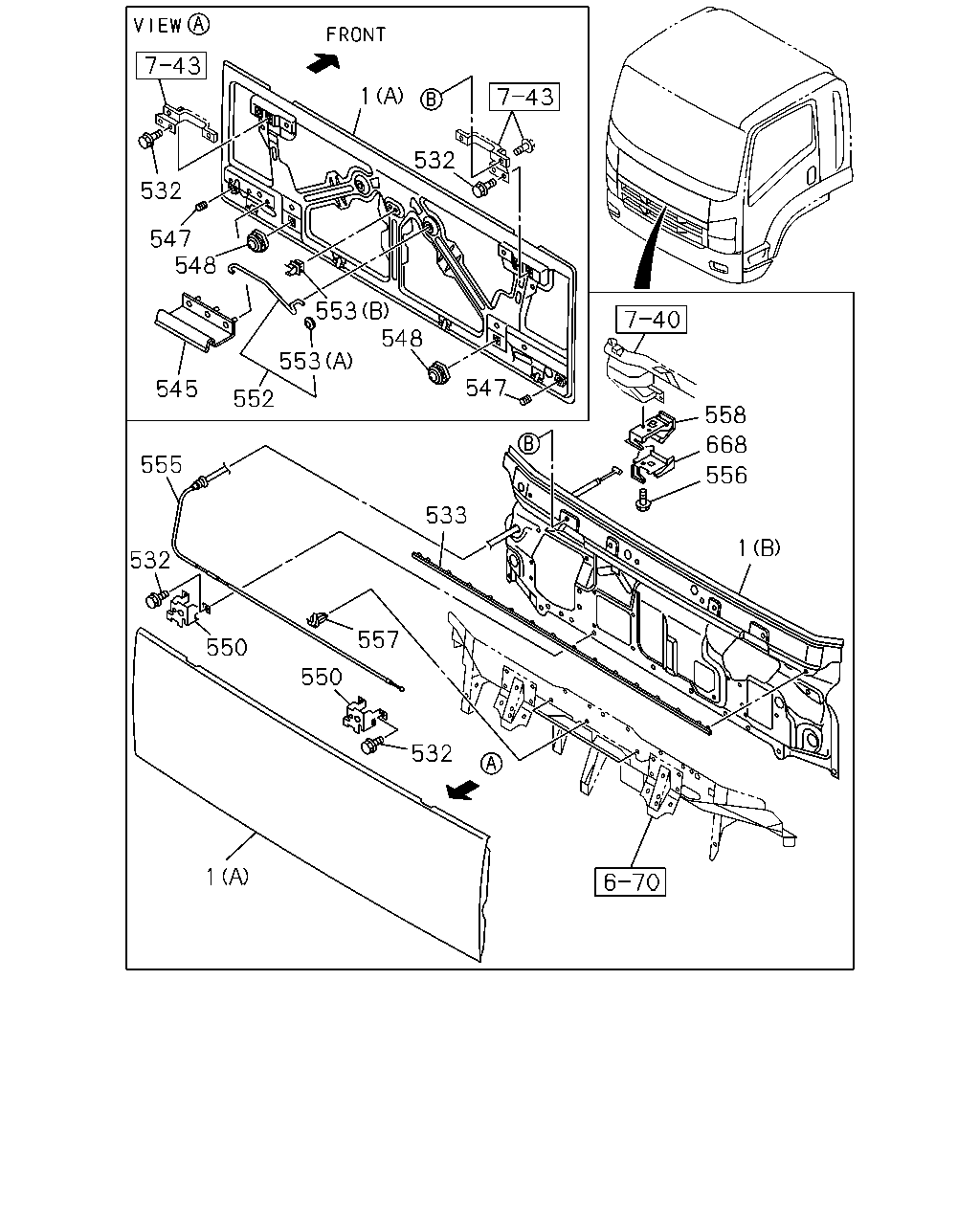

çizim 149152
1 532 532 547 548 553 548 553 547 545 552 558 668 555 556 533 1 532 557 550 550 532 1
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-960-9 01 1 1011-
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1011-
532 BOLT; FRT PANEL
M8X20 FLANGE 		0-28650-820-0 08 1 1011-
533 SEAL; FRT PANEL 8-98096-289-0 01 1 1011-
545 SEAL; FRT LID 8-98123-265-0 01 1 1011-
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 02 1 1011-
548 STRIKER; FRT LID PANEL 8-98068-145-1 02 1 1011-
550 LOCK ASM; FRT LID 8-98036-569-2 02 1 1011-
552 STAY; FRT LID 8-98089-838-0 01 1 1011-
553 CLIP; STAY
(B) 		8-97031-428-0 01 1 1011-
553 CLIP; STAY
(A) 		8-98071-399-0 01 1 1011-
555 CABLE; FRT LID 8-98036-574-1 01 1 1011-
556 BOLT; CABLE
M6X16 FLANGE 		0-28650-616-0 01 1 1011-
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 03 1 1011-
558 LEVER; FRT LID 1-79338-007-1 01 1 1011-
668 COVER; LEVER,FRT LID 8-98076-339-1 01 1 1011-

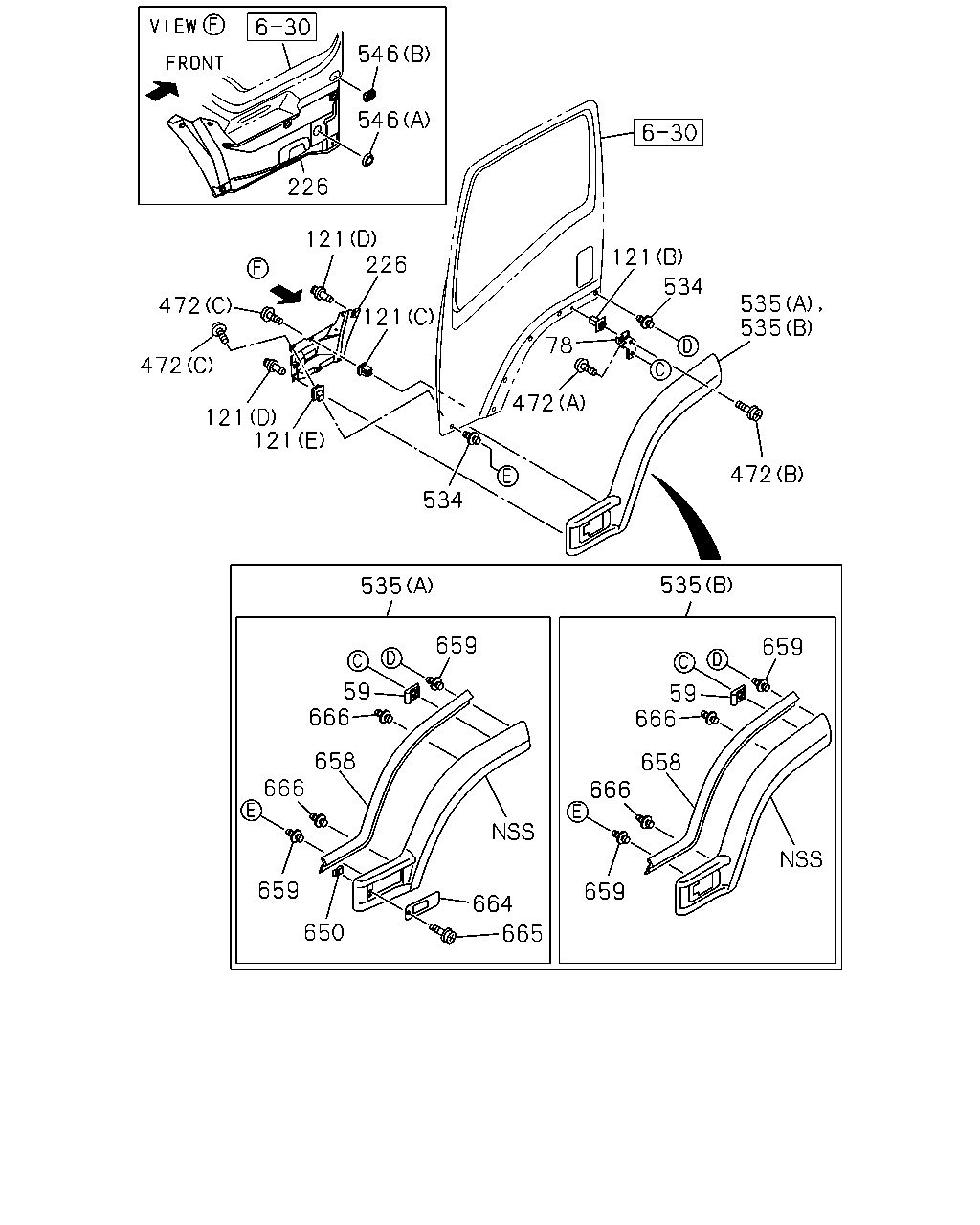

çizim 149164
546 546 226 121 226 121 534 535 535 472 121 78 472 472 121 121 472 534 535 535 659 659 59 666 59 666 658 658 666 666 659 659 664 650 665
BalonParca AdiParca NoAdetTipApplied Date
59 GROMMET; SCREW
EXC. CAB ALL PAINTING<TFD> 		8-94279-723-0 02 1 1011-
59 GROMMET; SCREW
CAB ALL PAINTING<TFD> 		8-94279-723-0 02 1 1011-
59 GROMMET; SCREW 8-94279-723-0 08 1 1011-
78 BRACKET; FENDER 8-98041-165-1 01 1 1011-
78 BRACKET; FENDER 8-98041-166-1 01 1 1011-
121 GROMMET; FENDER
EXC. CAB ALL PAINTING<TFD> (A) 		8-94279-723-0 04 1 1011-
121 GROMMET; FENDER
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> (A) 		8-94279-723-0 04 1 1011-
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1011-
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 10 1 1011-
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 1011-
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 1011-
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 1011-
226 PROTECTOR; FRT 8-98037-712-2 01 1 1011-
226 PROTECTOR; FRT 8-98037-713-2 01 1 1011-
472 SCREW; FENDER TO CAB
(A) M6X18 TAPPING 		8-98059-505-0 02 1 1011-
472 SCREW; FENDER TO CAB
(C) M5X16 		8-98090-737-0 08 1 1011-
472 SCREW; FENDER TO CAB
(B) M5X12 		8-98093-669-0 04 1 1011-
534 FASTENER
ID=5.4 OD=6.8 		1-09989-021-0 12 1 1011-1302
534 FASTENER
ID=5.4 OD=6.8 		8-98241-984-0 12 1 1303-
535 FENDER; BLISTER
CORNERING LAMP<T87> EXC. CAB ALL PAINTING<TFD> (B) BLACK 		8-98106-494-0 01 1 1011-
535 FENDER; BLISTER
CORNERING LAMP<T87> EXC. CAB ALL PAINTING<TFD> (B) BLACK 		8-98106-495-0 01 1 1011-
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) GRAY 		8-97415-271-0 01 1 1011-
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) GRAY 		8-97415-296-0 01 1 1011-
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) GRAY 		8-97415-320-1 01 1 1011-
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) GRAY 		8-97415-340-1 01 1 1011-
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) BLUE 		8-97415-263-0 01 1 1011-
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) BLUE 		8-97415-288-0 01 1 1011-
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) BLUE 		8-97415-313-1 01 1 1011-
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) BLUE 		8-97415-333-1 01 1 1011-
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) RED 		8-97415-272-0 01 1 1011-
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) RED 		8-97415-297-0 01 1 1011-
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) RED 		8-97415-321-1 01 1 1011-
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) RED 		8-97415-341-1 01 1 1011-
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) BLUE 		8-97415-264-0 01 1 1011-
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) BLUE 		8-97415-289-0 01 1 1011-
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) BLUE 		8-97415-314-1 01 1 1011-
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) BLUE 		8-97415-334-1 01 1 1011-
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) WHITE 		8-97415-278-0 01 1 1011-
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) WHITE 		8-97415-303-0 01 1 1011-
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) WHITE 		8-97415-325-1 01 1 1011-
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) WHITE 		8-97415-345-1 01 1 1011-
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) RED 		8-97415-273-0 01 1 1011-
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) RED 		8-97415-298-0 01 1 1011-
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) RED 		8-97415-322-1 01 1 1011-
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) RED 		8-97415-342-1 01 1 1011-
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) DARK GREEN 		8-97415-270-0 01 1 1011-
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) DARK GREEN 		8-97415-295-0 01 1 1011-
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) DARK GREEN 		8-97415-319-1 01 1 1011-
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) DARK GREEN 		8-97415-339-1 01 1 1011-
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) YELLOW 		8-97415-285-0 01 1 1011-
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) YELLOW 		8-97415-310-0 01 1 1011-
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) YELLOW 		8-97415-330-1 01 1 1011-
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) YELLOW 		8-97415-350-1 01 1 1011-
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) BEIGE 		8-97415-286-0 01 1 1011-
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) BEIGE 		8-97415-311-0 01 1 1011-
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) BEIGE 		8-97415-331-1 01 1 1011-
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) BEIGE 		8-97415-351-1 01 1 1011-
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) BLUE 		8-97415-287-0 01 1 1011-
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) BLUE 		8-97415-312-0 01 1 1011-
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) BLUE 		8-97415-332-1 01 1 1011-
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) BLUE 		8-97415-352-1 01 1 1011-
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) YELLOW 		8-97415-282-0 01 1 1011-
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) YELLOW 		8-97415-307-0 01 1 1011-
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) YELLOW 		8-97415-328-1 01 1 1011-
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) YELLOW 		8-97415-348-1 01 1 1011-
535 FENDER; BLISTER
BODY COLOR MIDDLE BRONZE GREEN(909) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) GREEN 		8-97417-087-0 01 1 1011-
535 FENDER; BLISTER
BODY COLOR MIDDLE BRONZE GREEN(909) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) GREEN 		8-97417-088-0 01 1 1011-
535 FENDER; BLISTER
BODY COLOR MIDDLE BRONZE GREEN(909) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) GREEN 		8-97417-089-1 01 1 1011-
535 FENDER; BLISTER
BODY COLOR MIDDLE BRONZE GREEN(909) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) GREEN 		8-97417-090-1 01 1 1011-
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) RED 		8-97415-274-0 01 1 1011-
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) RED 		8-97415-299-0 01 1 1011-
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) RED 		8-97415-323-1 01 1 1011-
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) RED 		8-97415-343-1 01 1 1011-
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) ORANGE 		8-97415-284-0 01 1 1011-
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) ORANGE 		8-97415-309-0 01 1 1011-
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) ORANGE 		8-97415-329-1 01 1 1011-
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) ORANGE 		8-97415-349-1 01 1 1011-
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) WHITE 		8-97417-779-0 01 1 1011-
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) WHITE 		8-97417-781-0 01 1 1011-
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) WHITE 		8-97417-742-1 01 1 1011-
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) WHITE 		8-97417-743-1 01 1 1011-
535 FENDER; BLISTER
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) GREEN 		8-97415-267-0 01 1 1011-
535 FENDER; BLISTER
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) GREEN 		8-97415-292-0 01 1 1011-
535 FENDER; BLISTER
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) GREEN 		8-97415-317-1 01 1 1011-
535 FENDER; BLISTER
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) GREEN 		8-97415-337-1 01 1 1011-
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) BLUE 		8-97415-265-0 01 1 1011-
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> CORNERING LAMP<T87> (B) BLUE 		8-97415-290-0 01 1 1011-
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) BLUE 		8-97415-315-1 01 1 1011-
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> (A) BLUE 		8-97415-335-1 01 1 1011-
535 FENDER; BLISTER
EXC. CAB ALL PAINTING<TFD>,CORNERING LAMP<T87> (A) BLACK 		8-98106-498-0 01 1 1011-
535 FENDER; BLISTER
EXC. CAB ALL PAINTING<TFD>,CORNERING LAMP<T87> (A) BLACK 		8-98106-499-0 01 1 1011-
546 PLUG; DUMMY HOLE
(A) OD=38 		8-94159-507-0 02 1 1011-
546 PLUG; DUMMY HOLE
(B) 		8-94430-184-1 02 1 1011-
650 NUT; SPIRE
EXC. CAB ALL PAINTING<TFD>,CORNERING LAMP<T87> 		8-94279-501-0 02 1 1011-
650 NUT; SPIRE
CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> 		8-94279-501-0 02 1 1011-
658 FINISHER; BLISTER FENDER
EXC. CAB ALL PAINTING<TFD> 		8-98041-168-3 01 1 1011-
658 FINISHER; BLISTER FENDER
CAB ALL PAINTING<TFD> 		8-98041-168-3 01 1 1011-
658 FINISHER; BLISTER FENDER
EXC. CAB ALL PAINTING<TFD> 		8-98041-169-3 01 1 1011-
658 FINISHER; BLISTER FENDER
CAB ALL PAINTING<TFD> 		8-98041-169-3 01 1 1011-
659 CLIP; FENDER
EXC. CAB ALL PAINTING<TFD> D5.4X8 		1-09983-154-0 08 1 1011-
659 CLIP; FENDER
CAB ALL PAINTING<TFD> D5.4X8 		1-09983-154-0 08 1 1011-
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> GRAY 		8-97421-521-0 01 1 1011-
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> GRAY 		8-97421-549-0 01 1 1011-
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BLUE 		8-97421-509-0 01 1 1011-
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BLUE 		8-97421-537-0 01 1 1011-
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> RED 		8-97421-523-0 01 1 1011-
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> RED 		8-97421-551-0 01 1 1011-
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BLUE 		8-97421-511-0 01 1 1011-
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BLUE 		8-97421-539-0 01 1 1011-
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> WHITE 		8-97421-485-0 01 1 1011-
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> WHITE 		8-97421-497-0 01 1 1011-
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> RED 		8-97421-487-0 01 1 1011-
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> RED 		8-97421-499-0 01 1 1011-
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> DARK GREEN 		8-97421-519-0 01 1 1011-
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> DARK GREEN 		8-97421-547-0 01 1 1011-
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> YELLOW 		8-97421-533-0 01 1 1011-
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> YELLOW 		8-97421-596-0 01 1 1011-
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BEIGE 		8-97421-489-0 01 1 1011-
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BEIGE 		8-97421-501-0 01 1 1011-
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BLUE 		8-97421-535-0 01 1 1011-
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BLUE 		8-97421-563-0 01 1 1011-
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> YELLOW 		8-97421-493-0 01 1 1011-
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> YELLOW 		8-97421-505-0 01 1 1011-
664 BASE; DOOR,SIDE TURN
BODY COLOR MIDDLE BRONZE GREEN(909) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> GREEN 		8-97421-601-0 01 1 1011-
664 BASE; DOOR,SIDE TURN
BODY COLOR MIDDLE BRONZE GREEN(909) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> GREEN 		8-97421-603-0 01 1 1011-
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> RED 		8-97421-491-0 01 1 1011-
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> RED 		8-97421-503-0 01 1 1011-
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> ORANGE 		8-97421-531-0 01 1 1011-
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> ORANGE 		8-97421-559-0 01 1 1011-
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> WHITE 		8-97421-605-0 01 1 1011-
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> WHITE 		8-97421-607-0 01 1 1011-
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> GREEN 		8-97421-515-0 01 1 1011-
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> GREEN 		8-97421-543-0 01 1 1011-
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BLUE 		8-97421-495-0 01 1 1011-
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> BLUE 		8-97421-507-0 01 1 1011-
664 BASE; DOOR,SIDE TURN
EXC. CAB ALL PAINTING<TFD>,CORNERING LAMP<T87> 		8-98053-145-1 01 1 1011-
664 BASE; DOOR,SIDE TURN
EXC. CAB ALL PAINTING<TFD>,CORNERING LAMP<T87> 		8-98053-146-1 01 1 1011-
665 SCREW; FENDER
EXC. CAB ALL PAINTING<TFD>,CORNERING LAMP<T87> M6X20 W/PL WASHER 		0-36210-620-0 02 1 1011-
665 SCREW; FENDER
CAB ALL PAINTING<TFD> EXC. CORNERING LAMP<T87> M6X20 W/PL WASHER 		0-36210-620-0 02 1 1011-
666 CLIP; BLISTER FENDER
EXC. CAB ALL PAINTING<TFD> 		8-98071-178-0 04 1 1011-
666 CLIP; BLISTER FENDER
CAB ALL PAINTING<TFD> 		8-98071-178-0 04 1 1011-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
