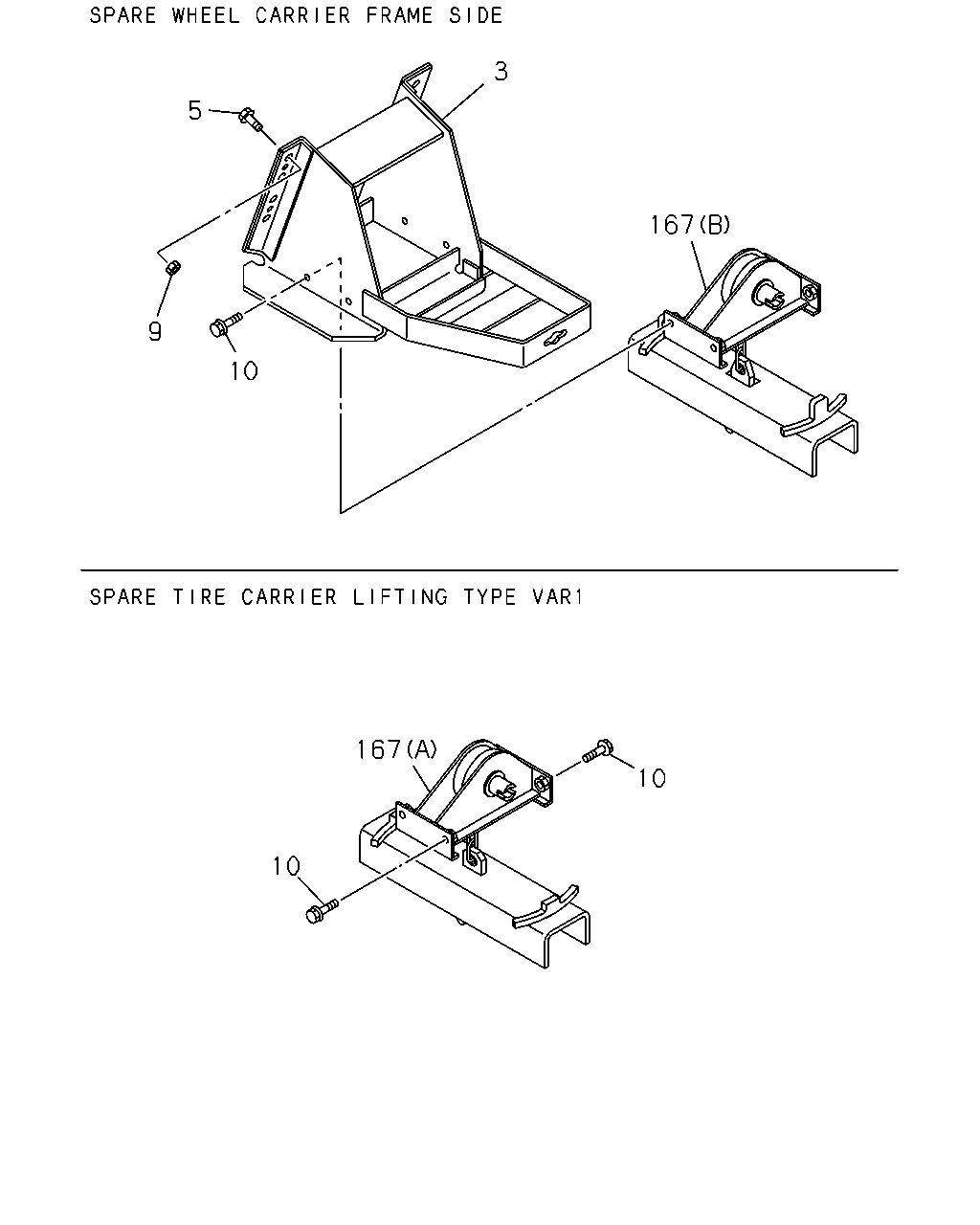

5-30 — SPARE TIRE CARRIER AND COVER (#50272) — 6 parça

3 5 167 9 10 167 10 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	BRACKET; TIRE CARRIER,FRT SPARE WHEEL CARRIER FRAME SIDE<P13>	8-98101-541-3	01	1	1011-
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12X45 FLANGE	0-28051-245-0	05	1	1011-
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12	0-91110-512-0	06	1	1011-
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE	0-28651-230-0	04	1	1011-
167	HANGER; TIRE SPARE WHEEL CARRIER FRAME SIDE<P13> (B)	8-98138-284-2	01	1	1011-
167	HANGER; TIRE SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (A)	1-53630-210-4	01	1	1011-
