◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10722 - CXH RHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-11A - RADIATOR HOSE AND SUB TANK ▶
1-11A — RADIATOR HOSE AND SUB TANK (#5027) — 186 parça

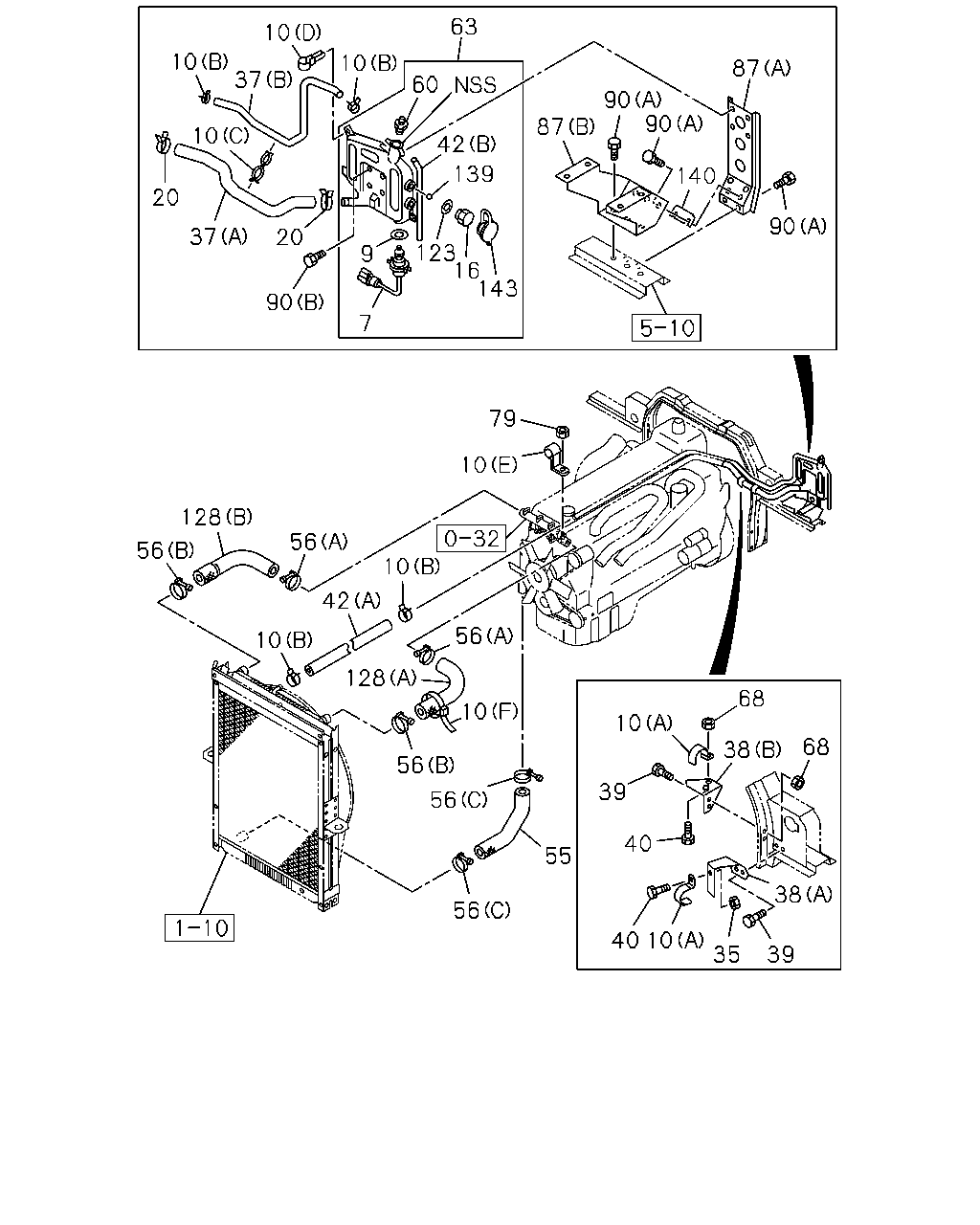

çizim 6532
63 10 10 37 10 87 60 90 87 90 140 42 10 139 20 90 37 20 123 16 143 9 90 7 79 10 128 10 56 56 42 56 10 128 68 10 10 68 38 56 39 56 40 55 38 56 40 10 35 39
BalonParca AdiParca NoAdetTipApplied Date A B C D
7 SWITCH ASM; TANK 1-82480-045-0 01 1 9606-9905 ● ●
7 SWITCH ASM; TANK 1-82480-045-0 01 1 9906-0103 ● ● ●
7 SWITCH ASM; TANK 1-82480-093-1 01 1 0104- ● ● ●
9 GASKET; SWITCH
ID=28 T=2.5 		1-09630-126-0 01 1 9606-9905 ● ●
9 GASKET; SWITCH
ID=28 T=2.5 		1-09630-126-0 01 1 9906- ● ● ●
10 CLIP; RUBBER HOSE
(E) ID=15 H=24 L=20 		1-09700-606-0 01 1 9606-9905 ● ●
10 CLIP; RUBBER HOSE
(E) ID=15 H=24 L=20 		1-09700-606-0 01 1 9906- ● ● ●
10 CLIP; RUBBER HOSE
(A) D=43 		1-09700-703-0 01 1 9606-9905 ● ●
10 CLIP; RUBBER HOSE
(A) D=43 		1-09700-703-0 02 1 9906- ●
10 CLIP; RUBBER HOSE
(B) ID=14 		1-09704-102-0 04 1 9606-9905 ● ●
10 CLIP; RUBBER HOSE
(B) ID=14 		1-09704-102-0 04 1 9906- ● ● ●
10 CLIP; RUBBER HOSE
(C) ID=44 & 16 		1-09709-125-0 04 1 9606-9905 ● ●
10 CLIP; RUBBER HOSE
(C) ID=44 & 16 		1-09709-125-0 04 1 9906- ● ● ●
10 CLIP; RUBBER HOSE
(D) ID=14 L=44 		9-09917-427-0 02 1 9606-9905 ● ●
10 CLIP; RUBBER HOSE
(D) ID=14 L=44 		9-09917-427-0 02 1 9906- ● ● ●
10 CLIP; RUBBER HOSE
(A) D=43 		1-09700-703-0 01 1 9906- ● ●
10 CLIP; RUBBER HOSE
(F) L=250 		1-09707-126-0 01 1 0010-0010 ● ● ●
10 CLIP; RUBBER HOSE
(F) L=350 		1-09707-183-0 01 1 0011- ● ● ●
16 PLUG; TANK 1-21464-425-0 02 1 9606-9609 ●
16 PLUG; TANK 1-21464-514-0 02 1 9610-9905 ● ●
16 PLUG; TANK 1-21464-514-0 02 1 9906- ● ● ●
20 CLIP; HOSE,RAD
ID=31 		1-09707-093-1 02 1 9606-9905 ● ●
20 CLIP; HOSE,RAD
ID=31 		1-09707-093-1 02 1 9906- ● ● ●
35 NUT
M10 FLANGE 		0-91150-210-0 01 1 9607-9905 ● ●
35 NUT
M10 FLANGE 		0-91150-210-0 01 1 9906- ● ● ●
37 HOSE; RUBBER
(B) L=1350 SERVICED BY L=3000 		0-03259-300-0 01 1 9606-9905 ● ●
37 HOSE; RUBBER
(B) L=1450 SERVICED BY L=3000 		0-03259-300-0 01 1 9906-0103 ●
37 HOSE; RUBBER
(B) L=1450 SERVICED BY L=3000 		0-03559-300-0 01 1 0104- ●
37 HOSE; RUBBER
(A) 		1-21437-583-0 01 1 9606-9905 ● ●
37 HOSE; RUBBER
(A) 		1-21437-583-0 01 1 9906- ● ●
37 HOSE; RUBBER
(B) L=1350 SERVICED BY L=3000 		0-03259-300-0 01 1 9906-0103 ● ●
37 HOSE; RUBBER
(B) L=1350 SERVICED BY L=3000 		0-03559-300-0 01 1 0104- ● ●
37 HOSE; RUBBER
ELECTRONIC GOV RED3(KG5) (A) 		1-21437-568-1 01 1 9906- ● ●
38 BRACKET; RUBBER HOSE
CAB UP +110MM<TGG> (A) 		1-21489-158-2 01 1 9906- ●
38 BRACKET; RUBBER HOSE
CAB UP +110MM<TGG> (B) 		1-21489-165-1 01 1 9906- ●
39 BOLT; BRKT FIX
CAB UP +110MM<TGG> M8X20 FLANGE 		0-28680-820-0 04 1 9906- ●
40 BOLT; CLIP
M10X20 FLANGE 		0-28081-020-0 01 1 9606-9606 ●
40 BOLT; CLIP
M10X20 FLANGE 		0-28681-020-0 01 1 9607-9802 ● ●
40 BOLT; CLIP
M10X25 FLANGE 		0-28681-025-0 01 1 9803-9905 ● ●
40 BOLT; CLIP
M10X25 FLANGE 		0-28681-025-0 02 1 9906- ●
40 BOLT; CLIP
M10X25 FLANGE 		0-28681-025-0 01 1 9906- ● ●
42 HOSE; RUBBER
(A) L=560 SERVICED BY L=3000 		0-03259-300-0 01 1 9606-9706 ●
42 HOSE; RUBBER
(A) L=560 SERVICED BY L=3000 		0-03259-300-0 01 1 9707-9905 ● ●
42 HOSE; RUBBER
(A) L=560 SERVICED BY L=3000 		0-03259-300-0 01 1 9906-0103 ● ● ●
42 HOSE; RUBBER
(A) L=560 SERVICED BY L=3000 		0-03559-300-0 01 1 0104- ● ● ●
42 HOSE; RUBBER
(B) L=850 		1-21489-154-0 01 1 9606-9905 ● ●
42 HOSE; RUBBER
(B) L=850 		1-21489-154-0 01 1 9906- ● ● ●
55 HOSE; WATER,RAD OUTLET 1-21437-448-2 01 1 9606-9905 ●
55 HOSE; WATER,RAD OUTLET 1-21437-448-2 01 1 9906- ● ●
55 HOSE; WATER,RAD OUTLET 1-21437-609-1 01 1 9707-9905 ●
55 HOSE; WATER,RAD OUTLET 1-21437-615-1 01 1 9906- ●
56 CLIP; WATER HOSE,RAD
(D) ID=72 		1-09704-068-0 04 1 9606-9905 ●
56 CLIP; WATER HOSE,RAD
(D) ID=72 		1-09704-068-0 04 1 9906- ● ●
56 CLIP; WATER HOSE,RAD
(A) ID=57 		1-09704-066-0 02 1 9707-9905 ●
56 CLIP; WATER HOSE,RAD
(A) ID=57 		1-09704-066-0 02 1 9906- ●
56 CLIP; WATER HOSE,RAD
(B) ID=63 		1-09704-067-0 02 1 9707-9905 ●
56 CLIP; WATER HOSE,RAD
(B) ID=63 		1-09704-067-0 02 1 9906- ●
56 CLIP; WATER HOSE,RAD
(C) ID=72 		1-09704-068-0 02 1 9707-9905 ●
56 CLIP; WATER HOSE,RAD
(C) ID=72 		1-09704-068-0 02 1 9906- ●
60 CAP; SUB TANK 1-21450-083-4 01 1 9606-9807 ● ●
60 CAP; SUB TANK 1-21450-137-0 01 1 9808-9905 ● ●
60 CAP; SUB TANK 1-21450-137-0 01 1 9906- ● ● ●
63 TANK ASM; SUB 1-21481-097-1 01 1 9606-9609 ●
63 TANK ASM; SUB 1-21481-106-1 01 1 9610-9905 ● ●
63 TANK ASM; SUB 1-21481-106-1 01 1 9906-0003 ● ● ●
63 TANK ASM; SUB 1-21481-128-0 01 1 0004-0103 ● ● ●
63 TANK ASM; SUB 1-21481-144-0 01 1 0104- ● ● ●
68 NUT; BRKT
CAB UP +110MM<TGG> M8 FLANGE 		0-91150-108-0 04 1 9906- ●
79 NUT; CLIP,HOSE
M8 FLANGE 		0-91150-108-0 01 1 9606-9905 ● ●
79 NUT; CLIP,HOSE
M8 FLANGE 		0-91150-108-0 01 1 9906- ● ● ●
87 BRACKET; SUB TANK
(B) 		1-21489-155-0 01 1 9606-9905 ● ●
87 BRACKET; SUB TANK
(B) 		1-21489-155-0 01 1 9906- ● ● ●
87 BRACKET; SUB TANK
(A) 		1-21489-156-0 01 1 9606-9905 ● ●
87 BRACKET; SUB TANK
(A) 		1-21489-156-0 01 1 9906- ● ●
87 BRACKET; SUB TANK
ELECTRONIC GOV RED3(KG5) (A) 		1-21489-162-0 01 1 9906- ● ●
90 BOLT; SUB TANK TO BRKT
(A) M8X20 FLANGE 		0-28080-820-0 06 1 9606-9606 ●
90 BOLT; SUB TANK TO BRKT
(A) M8X20 FLANGE 		0-28680-820-0 06 1 9607-9905 ● ●
90 BOLT; SUB TANK TO BRKT
(A) M8X20 FLANGE 		0-28680-820-0 06 1 9906- ● ● ●
90 BOLT; SUB TANK TO BRKT
(B) M8X25 W/LK&PL WASHER 		1-09030-027-0 04 1 9606-9905 ● ●
90 BOLT; SUB TANK TO BRKT
(B) M8X25 W/LK&PL WASHER 		1-09030-027-0 04 1 9906- ● ● ●
123 GASKET
ID=26.2 		8-94399-716-1 02 1 9606-9905 ● ●
123 GASKET
ID=26.2 		8-94399-716-1 02 1 9906- ● ● ●
128 HOSE; WATER,RAD INL
(C) 		1-21437-495-1 01 1 9606-9905 ●
128 HOSE; WATER,RAD INL
(C) 		1-21437-495-1 01 1 9906- ● ●
128 HOSE; WATER,RAD INL
(B) 		1-21437-553-0 01 1 9707-9905 ●
128 HOSE; WATER,RAD INL
(B) 		1-21437-618-1 01 1 9906- ●
128 HOSE; WATER,RAD INL
(A) 		1-21437-552-0 01 1 9707-9905 ●
128 HOSE; WATER,RAD INL
(A) 		1-21437-617-0 01 1 9906- ●
139 FLOAT 1-21489-118-1 02 1 9606-9609 ●
139 FLOAT 1-21489-161-0 02 1 9610-9905 ● ●
139 FLOAT 1-21489-161-0 02 1 9906- ● ● ●
140 SHIM
T=0.8 		1-53458-716-0 AR 1 9606-9905 ● ●
140 SHIM
T=0.8 		1-53458-716-0 AR 1 9906- ● ● ●
143 COVER; PLUG 1-82389-017-0 02 1 9610-9905 ● ●
143 COVER; PLUG 1-82389-017-0 02 1 9906- ● ● ●

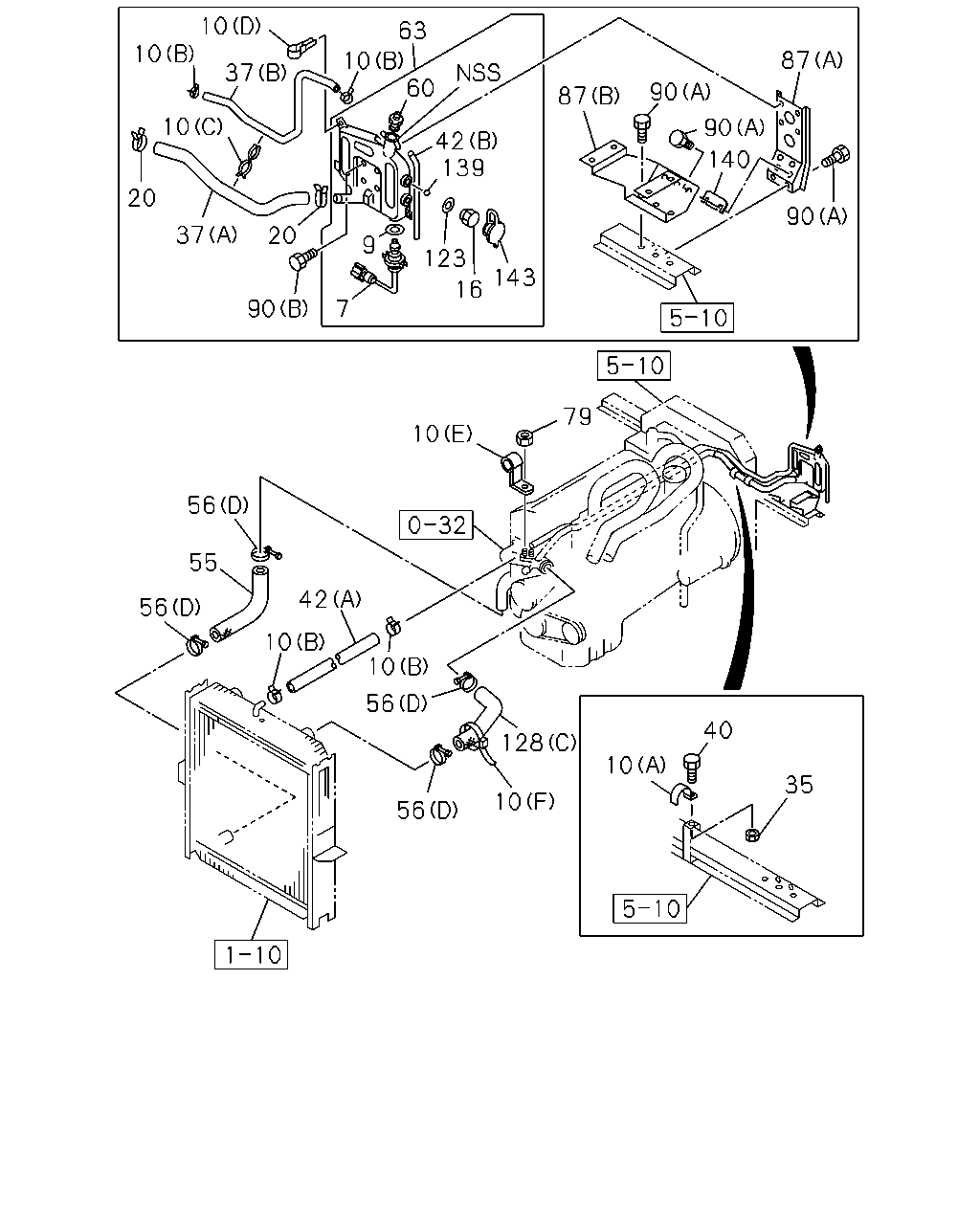

çizim 7268
10 10 63 10 60 87 37 90 87 10 90 42 139 140 20 90 37 20 9 123 143 16 90 7 79 10 56 55 42 56 10 10 56 40 128 10 35 10 56
BalonParca AdiParca NoAdetTipApplied Date A B C D
7 SWITCH ASM; TANK 1-82480-045-0 01 1 9606-9905 ● ●
7 SWITCH ASM; TANK 1-82480-045-0 01 1 9906-0103 ● ● ●
7 SWITCH ASM; TANK 1-82480-093-1 01 1 0104- ● ● ●
9 GASKET; SWITCH
ID=28 T=2.5 		1-09630-126-0 01 1 9606-9905 ● ●
9 GASKET; SWITCH
ID=28 T=2.5 		1-09630-126-0 01 1 9906- ● ● ●
10 CLIP; RUBBER HOSE
(E) ID=15 H=24 L=20 		1-09700-606-0 01 1 9606-9905 ● ●
10 CLIP; RUBBER HOSE
(E) ID=15 H=24 L=20 		1-09700-606-0 01 1 9906- ● ● ●
10 CLIP; RUBBER HOSE
(A) D=43 		1-09700-703-0 01 1 9606-9905 ● ●
10 CLIP; RUBBER HOSE
(A) D=43 		1-09700-703-0 02 1 9906- ●
10 CLIP; RUBBER HOSE
(B) ID=14 		1-09704-102-0 04 1 9606-9905 ● ●
10 CLIP; RUBBER HOSE
(B) ID=14 		1-09704-102-0 04 1 9906- ● ● ●
10 CLIP; RUBBER HOSE
(C) ID=44 & 16 		1-09709-125-0 04 1 9606-9905 ● ●
10 CLIP; RUBBER HOSE
(C) ID=44 & 16 		1-09709-125-0 04 1 9906- ● ● ●
10 CLIP; RUBBER HOSE
(D) ID=14 L=44 		9-09917-427-0 02 1 9606-9905 ● ●
10 CLIP; RUBBER HOSE
(D) ID=14 L=44 		9-09917-427-0 02 1 9906- ● ● ●
10 CLIP; RUBBER HOSE
(A) D=43 		1-09700-703-0 01 1 9906- ● ●
10 CLIP; RUBBER HOSE
(F) L=250 		1-09707-126-0 01 1 0010-0010 ● ● ●
10 CLIP; RUBBER HOSE
(F) L=350 		1-09707-183-0 01 1 0011- ● ● ●
16 PLUG; TANK 1-21464-425-0 02 1 9606-9609 ●
16 PLUG; TANK 1-21464-514-0 02 1 9610-9905 ● ●
16 PLUG; TANK 1-21464-514-0 02 1 9906- ● ● ●
20 CLIP; HOSE,RAD
ID=31 		1-09707-093-1 02 1 9606-9905 ● ●
20 CLIP; HOSE,RAD
ID=31 		1-09707-093-1 02 1 9906- ● ● ●
35 NUT
M10 FLANGE 		0-91150-210-0 01 1 9607-9905 ● ●
35 NUT
M10 FLANGE 		0-91150-210-0 01 1 9906- ● ● ●
37 HOSE; RUBBER
(B) L=1350 SERVICED BY L=3000 		0-03259-300-0 01 1 9606-9905 ● ●
37 HOSE; RUBBER
(B) L=1450 SERVICED BY L=3000 		0-03259-300-0 01 1 9906-0103 ●
37 HOSE; RUBBER
(B) L=1450 SERVICED BY L=3000 		0-03559-300-0 01 1 0104- ●
37 HOSE; RUBBER
(A) 		1-21437-583-0 01 1 9606-9905 ● ●
37 HOSE; RUBBER
(A) 		1-21437-583-0 01 1 9906- ● ●
37 HOSE; RUBBER
(B) L=1350 SERVICED BY L=3000 		0-03259-300-0 01 1 9906-0103 ● ●
37 HOSE; RUBBER
(B) L=1350 SERVICED BY L=3000 		0-03559-300-0 01 1 0104- ● ●
37 HOSE; RUBBER
ELECTRONIC GOV RED3(KG5) (A) 		1-21437-568-1 01 1 9906- ● ●
40 BOLT; CLIP
M10X20 FLANGE 		0-28081-020-0 01 1 9606-9606 ●
40 BOLT; CLIP
M10X20 FLANGE 		0-28681-020-0 01 1 9607-9802 ● ●
40 BOLT; CLIP
M10X25 FLANGE 		0-28681-025-0 01 1 9803-9905 ● ●
40 BOLT; CLIP
M10X25 FLANGE 		0-28681-025-0 02 1 9906- ●
40 BOLT; CLIP
M10X25 FLANGE 		0-28681-025-0 01 1 9906- ● ●
42 HOSE; RUBBER
(A) L=560 SERVICED BY L=3000 		0-03259-300-0 01 1 9606-9706 ●
42 HOSE; RUBBER
(A) L=560 SERVICED BY L=3000 		0-03259-300-0 01 1 9707-9905 ● ●
42 HOSE; RUBBER
(A) L=560 SERVICED BY L=3000 		0-03259-300-0 01 1 9906-0103 ● ● ●
42 HOSE; RUBBER
(A) L=560 SERVICED BY L=3000 		0-03559-300-0 01 1 0104- ● ● ●
42 HOSE; RUBBER
(B) L=850 		1-21489-154-0 01 1 9606-9905 ● ●
42 HOSE; RUBBER
(B) L=850 		1-21489-154-0 01 1 9906- ● ● ●
55 HOSE; WATER,RAD OUTLET 1-21437-448-2 01 1 9606-9905 ●
55 HOSE; WATER,RAD OUTLET 1-21437-448-2 01 1 9906- ● ●
55 HOSE; WATER,RAD OUTLET 1-21437-609-1 01 1 9707-9905 ●
55 HOSE; WATER,RAD OUTLET 1-21437-615-1 01 1 9906- ●
56 CLIP; WATER HOSE,RAD
(D) ID=72 		1-09704-068-0 04 1 9606-9905 ●
56 CLIP; WATER HOSE,RAD
(D) ID=72 		1-09704-068-0 04 1 9906- ● ●
56 CLIP; WATER HOSE,RAD
(A) ID=57 		1-09704-066-0 02 1 9707-9905 ●
56 CLIP; WATER HOSE,RAD
(A) ID=57 		1-09704-066-0 02 1 9906- ●
56 CLIP; WATER HOSE,RAD
(B) ID=63 		1-09704-067-0 02 1 9707-9905 ●
56 CLIP; WATER HOSE,RAD
(B) ID=63 		1-09704-067-0 02 1 9906- ●
56 CLIP; WATER HOSE,RAD
(C) ID=72 		1-09704-068-0 02 1 9707-9905 ●
56 CLIP; WATER HOSE,RAD
(C) ID=72 		1-09704-068-0 02 1 9906- ●
60 CAP; SUB TANK 1-21450-083-4 01 1 9606-9807 ● ●
60 CAP; SUB TANK 1-21450-137-0 01 1 9808-9905 ● ●
60 CAP; SUB TANK 1-21450-137-0 01 1 9906- ● ● ●
63 TANK ASM; SUB 1-21481-097-1 01 1 9606-9609 ●
63 TANK ASM; SUB 1-21481-106-1 01 1 9610-9905 ● ●
63 TANK ASM; SUB 1-21481-106-1 01 1 9906-0003 ● ● ●
63 TANK ASM; SUB 1-21481-128-0 01 1 0004-0103 ● ● ●
63 TANK ASM; SUB 1-21481-144-0 01 1 0104- ● ● ●
79 NUT; CLIP,HOSE
M8 FLANGE 		0-91150-108-0 01 1 9606-9905 ● ●
79 NUT; CLIP,HOSE
M8 FLANGE 		0-91150-108-0 01 1 9906- ● ● ●
87 BRACKET; SUB TANK
(B) 		1-21489-155-0 01 1 9606-9905 ● ●
87 BRACKET; SUB TANK
(B) 		1-21489-155-0 01 1 9906- ● ● ●
87 BRACKET; SUB TANK
(A) 		1-21489-156-0 01 1 9606-9905 ● ●
87 BRACKET; SUB TANK
(A) 		1-21489-156-0 01 1 9906- ● ●
87 BRACKET; SUB TANK
ELECTRONIC GOV RED3(KG5) (A) 		1-21489-162-0 01 1 9906- ● ●
90 BOLT; SUB TANK TO BRKT
(A) M8X20 FLANGE 		0-28080-820-0 06 1 9606-9606 ●
90 BOLT; SUB TANK TO BRKT
(A) M8X20 FLANGE 		0-28680-820-0 06 1 9607-9905 ● ●
90 BOLT; SUB TANK TO BRKT
(A) M8X20 FLANGE 		0-28680-820-0 06 1 9906- ● ● ●
90 BOLT; SUB TANK TO BRKT
(B) M8X25 W/LK&PL WASHER 		1-09030-027-0 04 1 9606-9905 ● ●
90 BOLT; SUB TANK TO BRKT
(B) M8X25 W/LK&PL WASHER 		1-09030-027-0 04 1 9906- ● ● ●
123 GASKET
ID=26.2 		8-94399-716-1 02 1 9606-9905 ● ●
123 GASKET
ID=26.2 		8-94399-716-1 02 1 9906- ● ● ●
128 HOSE; WATER,RAD INL
(C) 		1-21437-495-1 01 1 9606-9905 ●
128 HOSE; WATER,RAD INL
(C) 		1-21437-495-1 01 1 9906- ● ●
128 HOSE; WATER,RAD INL
(B) 		1-21437-553-0 01 1 9707-9905 ●
128 HOSE; WATER,RAD INL
(B) 		1-21437-618-1 01 1 9906- ●
128 HOSE; WATER,RAD INL
(A) 		1-21437-552-0 01 1 9707-9905 ●
128 HOSE; WATER,RAD INL
(A) 		1-21437-617-0 01 1 9906- ●
139 FLOAT 1-21489-118-1 02 1 9606-9609 ●
139 FLOAT 1-21489-161-0 02 1 9610-9905 ● ●
139 FLOAT 1-21489-161-0 02 1 9906- ● ● ●
140 SHIM
T=0.8 		1-53458-716-0 AR 1 9606-9905 ● ●
140 SHIM
T=0.8 		1-53458-716-0 AR 1 9906- ● ● ●
143 COVER; PLUG 1-82389-017-0 02 1 9610-9905 ● ●
143 COVER; PLUG 1-82389-017-0 02 1 9906- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
