5-01 — FRAME AND OTHER PARTS
(#50268) — 58 parça
◀

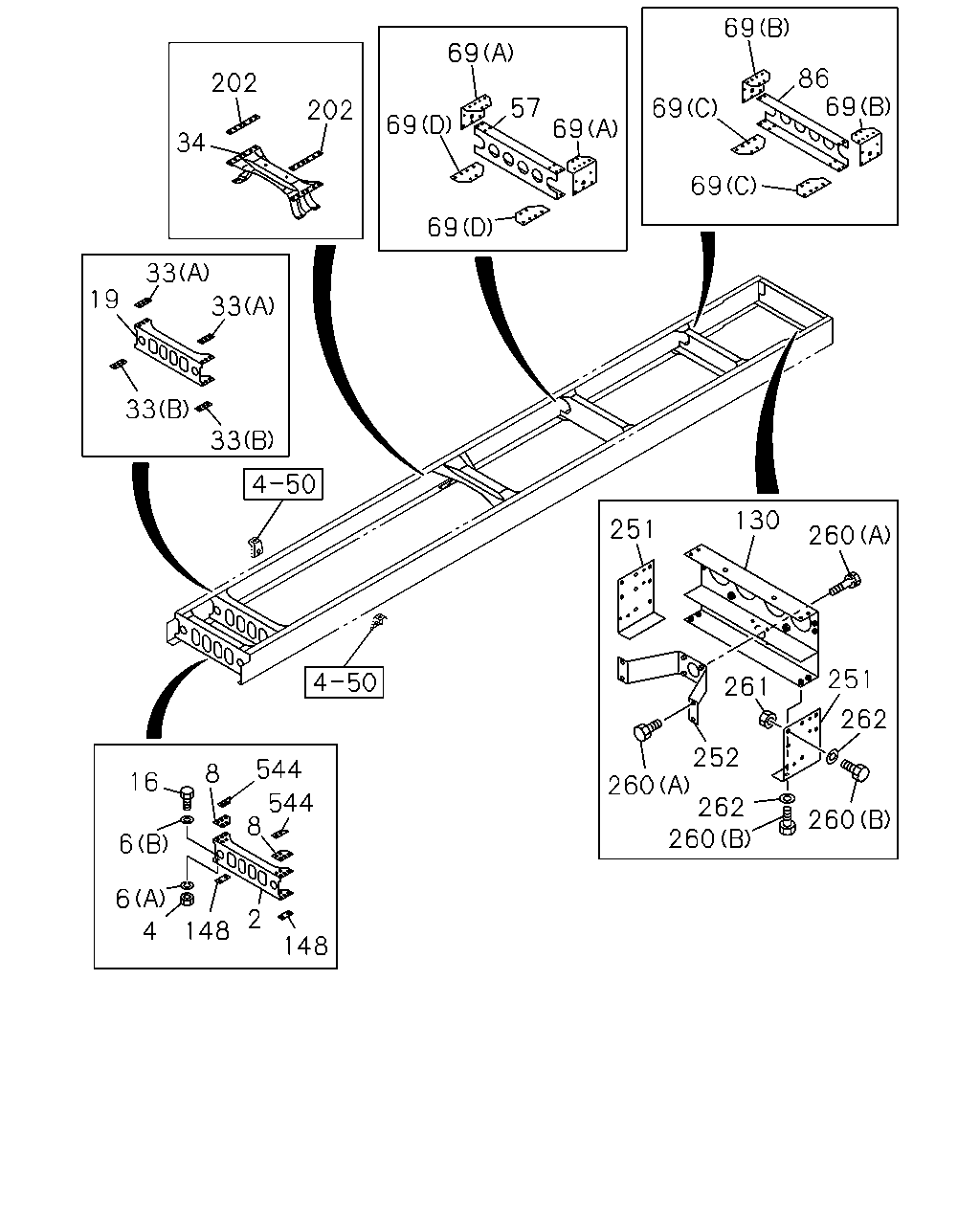

[501A] CROSS MEMBER (31 parça)
[501A] BRACKET AND OTHER PARTS (27 parça)
▶
69
69
86
69
202
69
57
69
202
69
34
69
69
33
19
33
33
33
130
251
260
261
251
262
252
262
260
544
8
16
260
544
8
260
6
6
2
148
4
148
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
PAK
8-97626-850-2
01
1
1011-
4
NUT; 1ST C/MBR TO S/MBR
M14
0-91110-514-0
02
1
1011-
6
WASHER; LK,1ST C/MBR
(A) ID=14.2
0-91510-814-0
02
1
1011-
6
WASHER; LK,1ST C/MBR
(B) ID=15
8-98010-627-1
02
1
1011-
8
GUSSET; 1ST C/MBR
8-97611-027-0
02
1
1011-
16
BOLT; 1ST C/MBR TO S/MBR
M14X40
0-20851-440-0
02
1
1011-
19
MEMBER; CROSS,2ND
PAK
8-97615-907-4
01
1
1011-
33
SPACER; 2ND C/MBR,UPR
(A)
8-97611-040-0
02
1
1011-
33
SPACER; 2ND C/MBR,UPR
(B)
8-97616-640-0
02
1
1011-
34
MEMBER; CROSS,3RD
8-97610-854-2
01
1
1011-
57
MEMBER; CROSS,RR SUSP FRT
8-97637-015-0
01
1
1011-
69
GUSSET; RR SUSP,UPR
(D)
8-97610-865-0
02
1
1011-
69
GUSSET; RR SUSP,UPR
(C)
8-97610-866-0
02
1
1011-
69
GUSSET; RR SUSP,UPR
(A)
8-97612-264-0
01
1
1011-
69
GUSSET; RR SUSP,UPR
(A)
8-97612-265-1
01
1
1011-
69
GUSSET; RR SUSP,UPR
(B)
8-97612-266-1
01
1
1011-
69
GUSSET; RR SUSP,UPR
(B)
8-97612-267-1
01
1
1011-
86
MEMBER; CROSS,RR SUSP RR
8-97610-858-5
01
1
1011-
130
MEMBER; CROSS,END
8-97618-608-1
01
1
1011-1306
130
MEMBER; CROSS,END
8-97618-608-1
01
1
1307-
130
MEMBER; CROSS,END
CONVERTING INTO 6X6<BCC>
8-97618-608-1
01
1
1307-
148
SPACER; C/MBR
8-97611-039-0
02
1
1011-
202
SPACER; 3RD C/MBR
8-97610-872-0
02
1
1011-
251
SUPPORT; PINTLE HOOK
8-97618-611-0
01
1
1011-
251
SUPPORT; PINTLE HOOK
8-97618-612-0
01
1
1011-
252
STIFFENER; PINTLE HOOK
8-97618-613-0
01
1
1011-
260
BOLT; SUB FRAME
(B) M14X35
0-20951-435-0
24
1
1011-
260
BOLT; SUB FRAME
(A) M12X35 FLANGE
0-28051-235-0
08
1
1011-
261
NUT; SUB FRAME
M14
0-91110-514-0
16
1
1011-
262
WASHER; LK,SUB FRAME
ID=14.2
0-91510-814-0
24
1
1011-
544
PLATE; CAB FRT MTG
8-97617-891-0
02
1
1011-
105
256
46
25
25
138
46
82
138
106
25
25
26
138
39
26
18
11
13
103
118
98
101
117
82
103
138
106
23
25
118
98
117
23
25
138
25
25
138
26
26
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
BRACKET; ENG MTG
8-97619-549-0
02
1
1011-
13
BOLT; BRKT,ENG MTG
M12X35 FLANGE
0-28661-235-0
08
1
1011-
18
NUT; BRKT,ENG MTG
M12 FLANGE
0-91180-212-0
08
1
1011-
23
BOLT; BRKT,SPR
(A) M14X50
0-20951-450-0
06
1
1011-
23
BOLT; BRKT,SPR
(B) M16X60
0-20951-660-0
04
1
1011-
24
BRACKET; FRT SPR,FRT
1-53351-259-0
01
1
1011-
24
BRACKET; FRT SPR,FRT
1-53351-260-0
01
1
1011-
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-316-0
08
1
1011-
25
WASHER; PL,BRKT
(A) ID=15
8-98010-627-1
28
1
1011-
26
NUT; BRKT,SPR
(A) M14
0-91110-514-0
14
1
1011-
26
NUT; BRKT,SPR
(B) M16
0-91110-516-0
04
1
1011-
39
BRACKET; FRT SPR,RR
1-53352-124-2
01
1
1011-
39
BRACKET; FRT SPR,RR
1-53352-125-2
01
1
1011-
46
BOLT; BRKT FIX
M14X50
0-20951-450-0
08
1
1011-
82
NUT; BRKT
M14
0-91110-514-0
20
1
1011-
98
WASHER; LK,STOPPER
ID=14.2
0-91510-814-0
16
1
1011-
101
BRACKET; RR SPR,FRT
1-53353-072-1
02
1
1011-
103
STOPPER; SUB SPR
(A)
1-53356-038-1
02
1
1011-
103
STOPPER; SUB SPR
(B)
1-53357-029-1
02
1
1011-
105
BRACKET; RR SPR,RR
1-53353-072-1
02
1
1011-
106
BOLT; BRKT
M14X50
0-20851-450-0
20
1
1011-
117
BOLT; STOPPER
M14X50
0-20851-450-0
16
1
1011-
118
NUT; STOPPER
M14
0-91110-514-0
16
1
1011-
138
WASHER; LK,BRKT
(A) ID=14.2
0-91510-814-0
34
1
1011-
138
WASHER; LK,BRKT
(B) ID=16.2
0-91510-816-0
04
1
1011-
256
BRACKET; S/ABS
PAK
8-98050-122-0
01
1
1011-
256
BRACKET; S/ABS
PAK
8-98050-123-0
01
1
1011-
