◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10722 - CXH RHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10B - RADIATOR ▶
1-10B — RADIATOR (#5026) — 76 parça

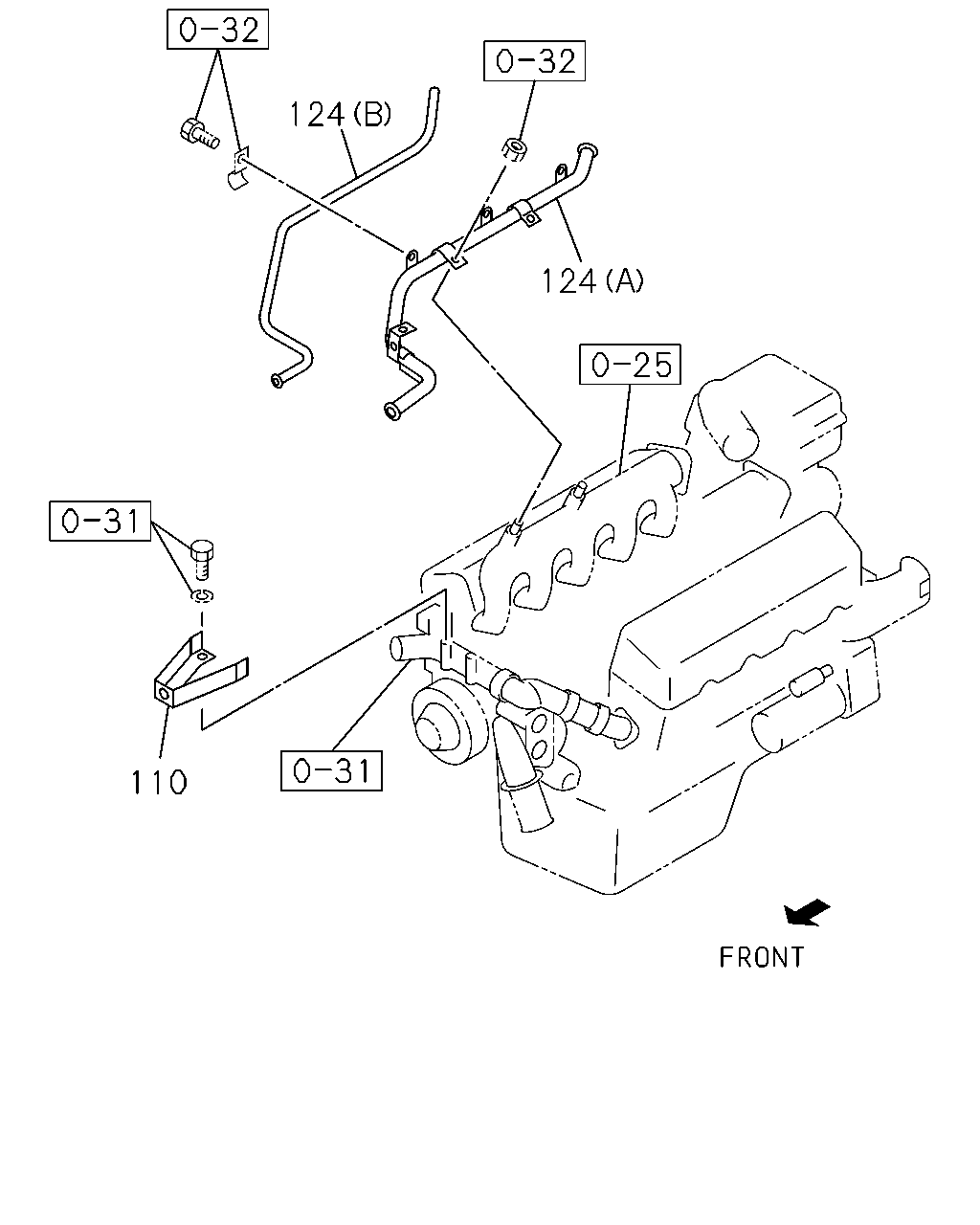

çizim 5400
124 124 110
BalonParca AdiParca NoAdetTipApplied Date A B
110 STAY; FAN GUIDE 1-21559-104-2 01 1 9606-9905 ●
110 STAY; FAN GUIDE 1-21559-104-2 01 1 9906- ●
124 PIPE; WATER,TANK TO RAD
(A) 		1-13711-667-2 01 1 9606-9905 ●
124 PIPE; WATER,TANK TO RAD
(A) 		1-13711-667-2 01 1 9906- ●
124 PIPE; WATER,TANK TO RAD
(B) 		1-13721-536-1 01 1 9606-9705 ●
124 PIPE; WATER,TANK TO RAD
(B) 		1-13711-728-0 01 1 9706-9905 ●
124 PIPE; WATER,TANK TO RAD
(B) 		1-13711-728-0 01 1 9906- ●

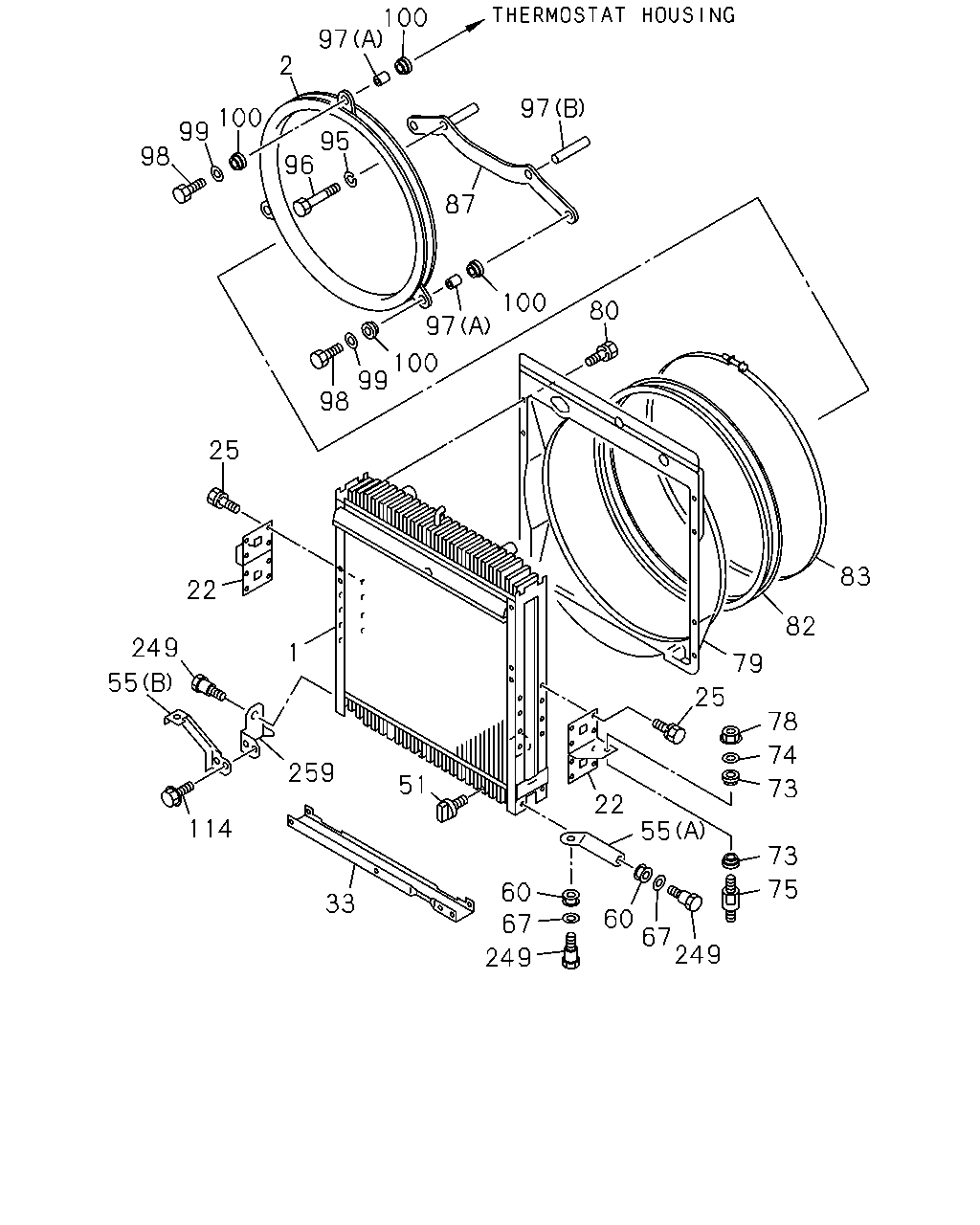

çizim 5645
100 97 2 97 100 99 98 95 96 87 97 100 80 100 99 98 25 83 22 82 249 1 79 55 25 78 74 259 51 73 22 114 55 73 75 60 67 33 60 67 249 249
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIATOR ASM 1-21410-685-0 01 1 9606-9905 ●
1 RADIATOR ASM 1-21410-685-1 01 1 9906- ●
2 GUIDE; FAN 1-21551-235-3 01 1 9606-9905 ●
2 GUIDE; FAN 1-21551-235-3 01 1 9906- ●
22 BRACKET; RAD MTG 1-21464-382-0 01 1 9606-9905 ●
22 BRACKET; RAD MTG 1-21464-382-0 01 1 9906- ●
22 BRACKET; RAD MTG 1-21464-381-0 01 1 9606-9905 ●
22 BRACKET; RAD MTG 1-21464-381-0 01 1 9906- ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 14 1 9606-9706 ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 14 1 9707-9905 ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 14 1 9906- ●
33 PROTECTOR; RAD 1-21419-050-0 01 1 9606-9706 ●
33 PROTECTOR; RAD 1-21419-050-0 01 1 9707-9905 ●
33 PROTECTOR; RAD 1-21419-050-0 01 1 9906- ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 9606-9706 ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 9707-9905 ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 9906- ●
55 STAY; RAD TO UPR MBR
(A) 		1-21464-386-0 01 1 9606-9905 ●
55 STAY; RAD TO UPR MBR
(A) 		1-21464-386-0 01 1 9906- ●
55 STAY; RAD TO UPR MBR
(B) 		1-21464-485-0 01 1 9606-9905 ●
55 STAY; RAD TO UPR MBR
(B) 		1-21464-485-0 01 1 9906- ●
60 GROMMET 1-09332-117-0 04 1 9606-9905 ●
60 GROMMET 1-09332-117-0 04 1 9906- ●
67 WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26 		9-09160-612-0 04 1 9606-9905 ●
67 WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26 		9-09160-612-0 04 1 9906- ●
73 RUBBER; CUSHION,RAD MTG
T=14 		1-21467-004-0 04 1 9606-9905 ●
73 RUBBER; CUSHION,RAD MTG
T=14 		1-21467-004-0 04 1 9906- ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-1 02 1 9606-9905 ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-1 02 1 9906- ●
75 BOLT; CUSHION RUBBER,RAD MTG 1-21466-005-0 02 1 9606-9905 ●
75 BOLT; CUSHION RUBBER,RAD MTG 1-21466-005-0 02 1 9906- ●
78 NUT; CUSHION RUBBER
M10 FLANGE 		0-91150-110-0 02 1 9606-9606 ●
78 NUT; CUSHION RUBBER
M10 FLANGE 		0-91150-210-0 02 1 9607-9905 ●
78 NUT; CUSHION RUBBER
M10 FLANGE 		0-91150-210-0 02 1 9906- ●
79 GUIDE; FAN,RAD 1-21551-383-0 01 1 9606-9905 ●
79 GUIDE; FAN,RAD 1-21551-383-0 01 1 9906-9907 ●
79 GUIDE; FAN,RAD 1-21551-477-0 01 1 9908- ●
80 BOLT; FAN GUIDE
M8X12 FLANGE 		0-28080-812-0 12 1 9606-9905 ●
80 BOLT; FAN GUIDE
M8X12 FLANGE 		0-28080-812-0 12 1 9906- ●
82 COVER; FAN,RAD 1-21559-134-1 01 1 9606-9804 ●
82 COVER; FAN,RAD 1-21559-134-1 01 1 9805-9905 ●
82 COVER; FAN,RAD 1-21559-134-1 01 1 9906- ●
83 CLIP; FAN COVER 1-09707-127-1 01 1 9606-9804 ●
83 CLIP; FAN COVER 1-09707-127-1 01 1 9805-9905 ●
83 CLIP; FAN COVER 1-09707-127-1 01 1 9906- ●
87 STAY; FAN GUIDE 1-21559-285-0 01 1 9606-9905 ●
87 STAY; FAN GUIDE 1-21559-285-0 01 1 9906- ●
95 WASHER; LK
ID=12.2 		9-09150-512-0 02 1 9606-9905 ●
95 WASHER; LK
ID=12.2 		9-09150-512-0 02 1 9906- ●
96 BOLT; STAY FIX
M12X160 		1-09020-067-1 02 1 9606-9905 ●
96 BOLT; STAY FIX
M12X160 		1-09020-067-1 02 1 9906- ●
97 TUBE; DIST,FAN GUIDE
(B) ID=27.6 L=138.8 		1-13666-037-0 01 1 9606-9905 ●
97 TUBE; DIST,FAN GUIDE
(B) ID=27.6 L=138.8 		1-13666-037-0 01 1 9906- ●
97 TUBE; DIST,FAN GUIDE
(A) ID=11.8 L=27 		1-21559-149-0 03 1 9606-9706 ●
97 TUBE; DIST,FAN GUIDE
(A) ID=11.8 L=27 		1-21559-149-0 03 1 9707-9905 ●
97 TUBE; DIST,FAN GUIDE
(A) ID=11.8 L=27 		1-21559-149-0 03 1 9906- ●
98 BOLT; RAD FAN GUIDE
M8X45 FLANGE 		0-28080-845-0 03 1 9606-9905 ●
98 BOLT; RAD FAN GUIDE
M8X45 FLANGE 		0-28080-845-0 03 1 9906- ●
99 WASHER; PL
ID=8.4 OD=26 		9-09164-808-0 03 1 9606-9905 ●
99 WASHER; PL
ID=8.4 OD=26 		9-09164-808-0 03 1 9906- ●
100 RUBBER; MTG 1-09337-017-0 06 1 9606-9905 ●
100 RUBBER; MTG 1-09337-017-0 06 1 9906- ●
114 BOLT; STAY
M8X20 FLANGE 		0-28080-820-0 02 1 9606-9606 ●
114 BOLT; STAY
M8X25 FLANGE 		0-28680-825-0 02 1 9607-9905 ●
114 BOLT; STAY
M8X25 FLANGE 		0-28680-825-0 02 1 9906- ●
249 BOLT; STAY,RAD MBR
M8X30 		1-09009-020-1 04 1 9606-9905 ●
249 BOLT; STAY,RAD MBR
M8X30 		1-09009-020-1 04 1 9906- ●
259 BRACKET; RAD STAY 1-21464-484-0 01 1 9606-9905 ●
259 BRACKET; RAD STAY 1-21464-484-0 01 1 9906- ●
