4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#50258) — 50 parça

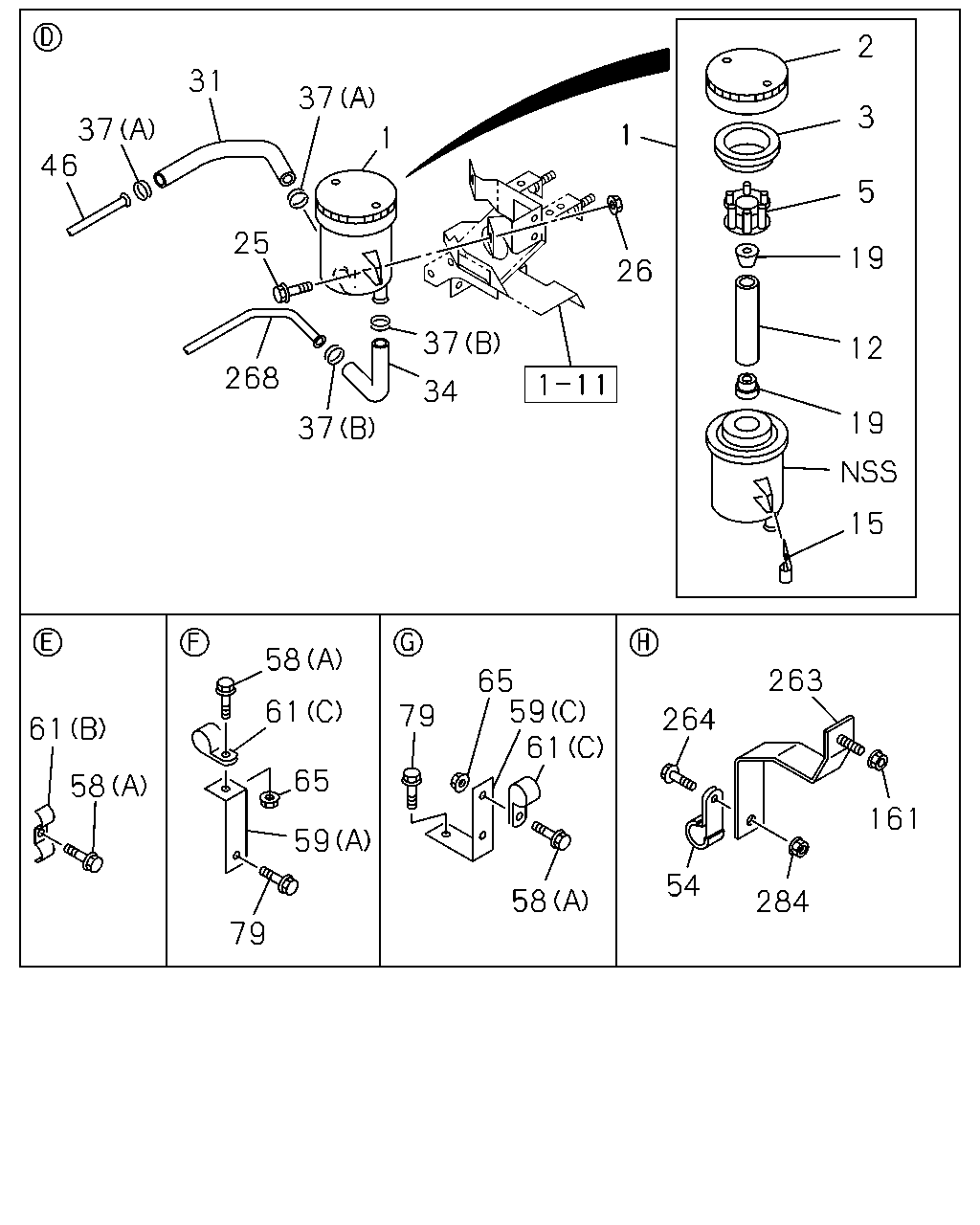

2 31 37 3 37 46 1 1 5 25 19 26 37 12 268 34 19 37 15 58 263 65 59 61 61 79 264 61 65 58 161 59 54 58 284 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1011-
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1011-
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1011-
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1011-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	1011-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	1011-
19	SEAT; OIL TANK	1-21249-004-0	02	1	1011-
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	02	1	1011-
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	1011-
31	HOSE; P/S OIL TANK,INL	8-98092-730-0	01	1	1011-
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1011-
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1011-
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1011-
46	PIPE; OIL,P/S UNIT TO OIL TANK L=2775	8-98111-272-0	01	1	1011-
54	CLIP; OIL PIPE ID=19 L=20	0-95235-836-0	01	1	1011-
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	04	1	1011-
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	1011-
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1011-
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1011-
59	BRACKET; CLIP,OIL PIPE (C)	8-98083-607-0	01	1	1011-
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1011-
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1011-
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1011-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1011-
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1011-
161	NUT; P/S PIPE M8 FLANGE	0-91180-108-0	01	1	1011-
263	BRACKET; P/S PIPE	8-98131-412-0	01	1	1011-
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	1011-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98154-048-0	01	1	1011-
284	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	1011-

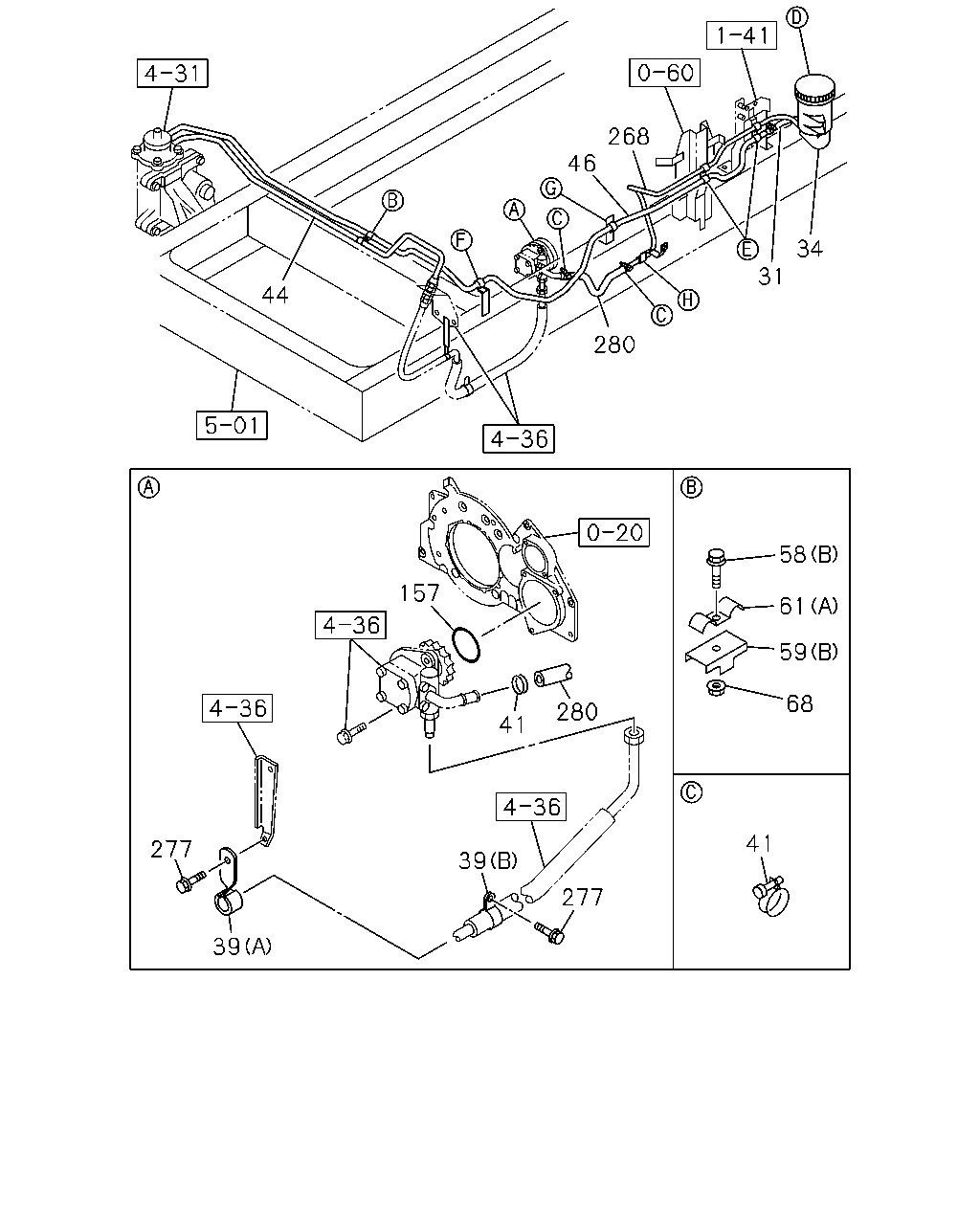

268 46 34 31 44 280 58 157 61 59 68 280 41 41 277 39 277 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	HOSE; P/S OIL TANK,INL	8-98092-730-0	01	1	1011-
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1011-
39	CLIP; FLEX HOSE (A) ID=19 L=58	1-09700-733-1	01	1	1011-
39	CLIP; FLEX HOSE (B) ID=40	8-94226-553-0	01	1	1011-
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1011-
44	PIPE; OIL,P/S UNIT TO NIPPLE	8-97623-288-0	01	1	1011-
46	PIPE; OIL,P/S UNIT TO OIL TANK L=2775	8-98111-272-0	01	1	1011-
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	04	1	1011-
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	1011-
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1011-
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1011-
59	BRACKET; CLIP,OIL PIPE (C)	8-98083-607-0	01	1	1011-
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1011-
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1011-
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1011-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1011-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-467-0	01	1	1011-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98154-048-0	01	1	1011-
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28050-816-0	02	1	1011-
280	HOSE; P/S OIL PUMP,INL	8-98131-414-0	01	1	1011-
