6-20 — SIDE PANEL AND STEP (#50254) — 163 parça

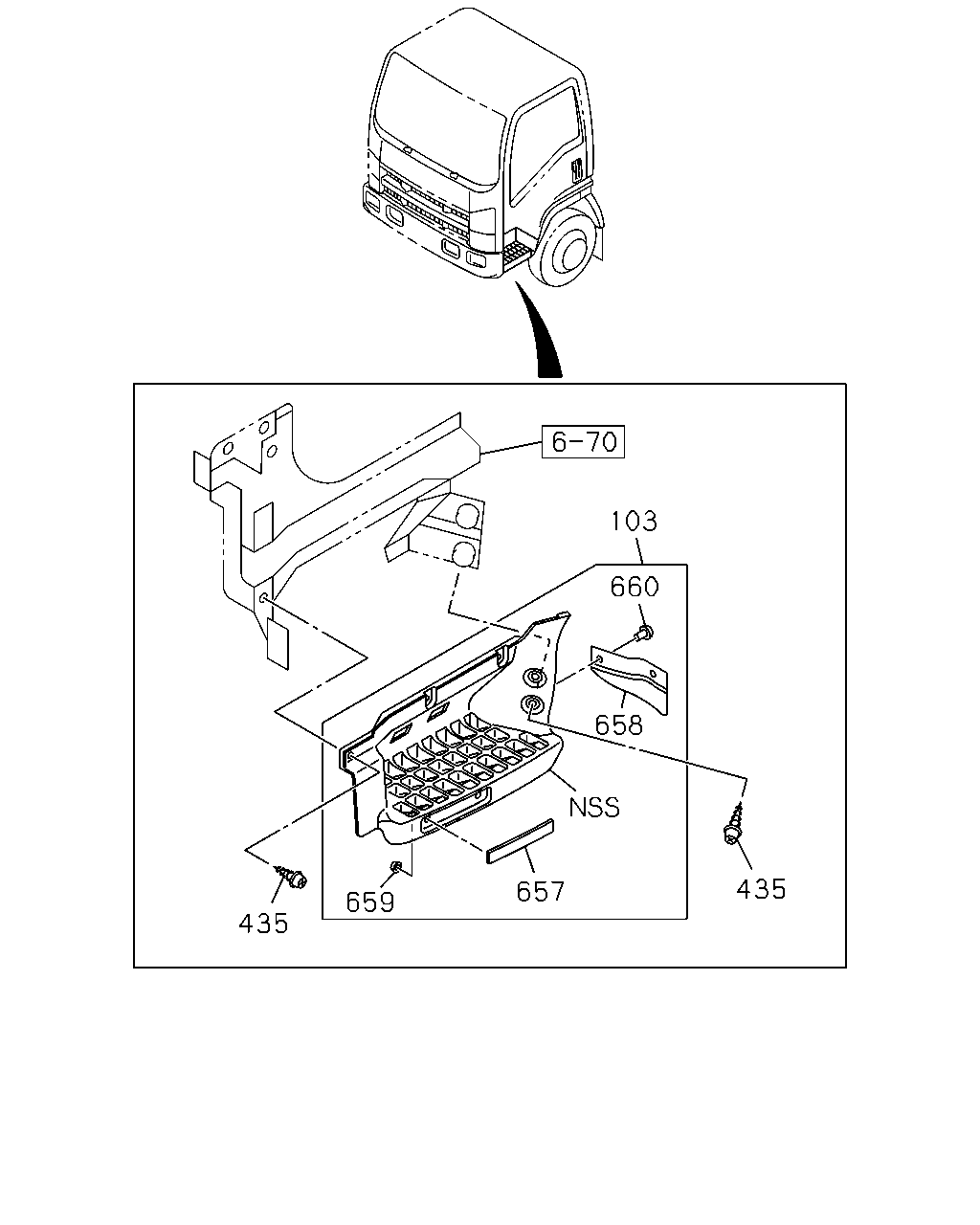

çizim 159365
103 660 658 435 657 659 435
BalonParca AdiParca NoAdetTipApplied Date A B
103 08.228 PLATE; STEP 8-98022-774-3 01 1 0911-1108 ●
103 08.228 PLATE; STEP 8-98022-774-3 01 1 1109- ● ●
103 08.228 PLATE; STEP 8-98022-775-3 01 1 0911-1108 ●
103 08.228 PLATE; STEP 8-98022-775-3 01 1 1109- ● ●
435 08.225 BOLT; RR STEP
M8X18 		8-98004-345-0 12 1 0911-1108 ●
435 08.225 BOLT; RR STEP
M8X18 		8-98004-345-0 12 1 1109- ● ●
657 16.585 REFLECTOR; REFLEX
AMBER 		8-97378-910-0 02 1 0911-1108 ●
657 16.585 REFLECTOR; REFLEX
AMBER 		8-97378-910-0 02 1 1109- ● ●
658 08.228 FLAP; STEP 8-98037-560-1 02 1 0911-1108 ●
658 08.228 FLAP; STEP 8-98037-560-1 02 1 1109- ● ●
659 08.131 CLIP; SPRING NUT 8-97811-510-0 04 1 0911-1108 ●
659 08.131 CLIP; SPRING NUT 8-97811-510-0 04 1 1109- ● ●
660 08.131 CLIP; FLAP 8-98111-558-0 04 1 0911-1108 ●
660 08.131 CLIP; FLAP 8-98111-558-0 04 1 1109- ● ●

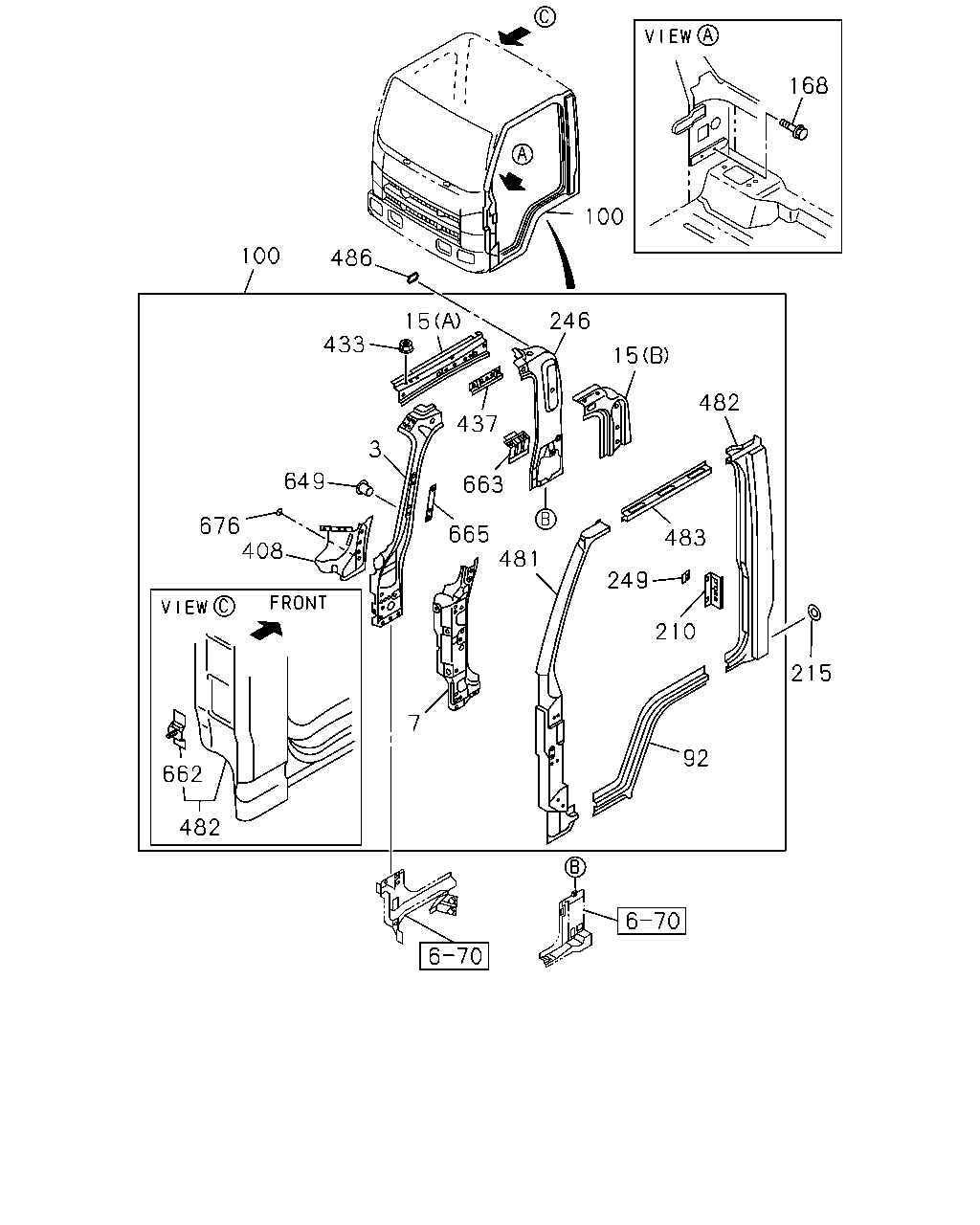

çizim 159388
168 100 100 486 246 15 433 15 482 437 3 649 663 676 408 665 481 483 249 210 215 7 92 662 482
BalonParca AdiParca NoAdetTipApplied Date A B
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 0911-1108 ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1109-1211 ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) 		8-98058-236-1 01 1 1212- ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1212- ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 0911-1108 ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1109-1408 ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) 		8-98058-237-1 01 1 1409- ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1409- ●
7 16.570 REINFORCEMENT; HINGE 8-97585-240-2 01 1 0911-1108 ●
7 16.570 REINFORCEMENT; HINGE 8-97585-240-2 01 1 1109-1211 ● ●
7 16.570 REINFORCEMENT; HINGE
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) 		8-97585-240-3 01 1 1212- ●
7 16.570 REINFORCEMENT; HINGE 8-97585-240-3 01 1 1212- ●
7 16.570 REINFORCEMENT; HINGE 8-97585-244-3 01 1 0911-1108 ●
7 16.570 REINFORCEMENT; HINGE 8-97585-244-4 01 1 1109-1408 ● ●
7 16.570 REINFORCEMENT; HINGE
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) 		8-97585-244-4 01 1 1409- ●
7 16.570 REINFORCEMENT; HINGE 8-97585-244-4 01 1 1409- ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97585-294-2 01 1 0911-1108 ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97585-294-2 01 1 1109-1211 ● ●
15 16.592 PANEL; CANT RAIL SIDE
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) (A) 		8-97585-294-2 01 1 1212- ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97585-294-2 01 1 1212- ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97585-295-2 01 1 0911-1108 ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97585-295-2 01 1 1109-1408 ● ●
15 16.592 PANEL; CANT RAIL SIDE
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) (A) 		8-97585-295-2 01 1 1409- ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97585-295-2 01 1 1409- ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97585-302-1 01 1 0911-1108 ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97585-302-1 01 1 1109-1211 ● ●
15 16.592 PANEL; CANT RAIL SIDE
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) (B) 		8-97585-302-1 01 1 1212- ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97585-302-1 01 1 1212- ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97585-303-2 01 1 0911-1108 ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97585-303-2 01 1 1109-1408 ● ●
15 16.592 PANEL; CANT RAIL SIDE
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) (B) 		8-97585-303-2 01 1 1409- ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97585-303-2 01 1 1409- ●
92 16.570 PANEL; SIDE SILL,CAB 8-98055-461-1 01 1 0911-1108 ●
92 16.570 PANEL; SIDE SILL,CAB 8-98055-461-1 01 1 1109- ● ●
92 16.570 PANEL; SIDE SILL,CAB 8-98055-462-1 01 1 0911-1108 ●
92 16.570 PANEL; SIDE SILL,CAB 8-98055-462-1 01 1 1109- ● ●
100 16.570 PANEL ASM; BODY SIDE
TAIWAN EQUIPMENT(B04) 		8-97410-853-7 01 1 1212- ●
100 16.570 PANEL ASM; BODY SIDE
EXC. LAMPS TWO ROOF MARKER<TEC> 		8-97586-030-6 01 1 1105-1108 ●
100 16.570 PANEL ASM; BODY SIDE
EXC. LAMPS TWO ROOF MARKER<TEC> 		8-97586-047-8 01 1 1105-1108 ●
100 16.570 PANEL ASM; BODY SIDE 8-97410-853-7 01 1 0911-1008 ●
100 16.570 PANEL ASM; BODY SIDE 8-98088-544-2 01 1 1009-1104 ●
100 16.570 PANEL ASM; BODY SIDE
LAMPS TWO ROOF MARKER<TEC> 		8-98088-544-2 01 1 1105-1108 ●
100 16.570 PANEL ASM; BODY SIDE 8-98088-544-2 01 1 1109-1211 ● ●
100 16.570 PANEL ASM; BODY SIDE
TURKEY EQUIPMENT(B11) 		8-98088-544-2 01 1 1212- ●
100 16.570 PANEL ASM; BODY SIDE 8-98088-544-2 01 1 1212- ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-053-9 01 1 0911-1104 ●
100 16.570 PANEL ASM; BODY SIDE
LAMPS TWO ROOF MARKER<TEC> 		8-97586-053-9 01 1 1105-1108 ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-053-9 01 1 1109-1408 ● ●
100 16.570 PANEL ASM; BODY SIDE
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) 		8-97586-053-9 01 1 1409- ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-053-9 01 1 1409- ●
168 16.570 BOLT; BODY SIDE PANEL
16.650 T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 0911-1108 ●
168 16.570 BOLT; BODY SIDE PANEL
16.650 T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 1109- ● ●
210 16.588 PANEL; DOOR STRIKER REINF 8-97585-260-4 01 1 0911-1108 ●
210 16.588 PANEL; DOOR STRIKER REINF 8-97585-260-4 01 1 1109-1211 ● ●
210 16.588 PANEL; DOOR STRIKER REINF
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) 		8-97585-260-4 01 1 1212- ●
210 16.588 PANEL; DOOR STRIKER REINF 8-97585-260-4 01 1 1212- ●
210 16.588 PANEL; DOOR STRIKER REINF 8-97585-261-4 01 1 0911-1108 ●
210 16.588 PANEL; DOOR STRIKER REINF 8-97585-261-4 01 1 1109-1408 ● ●
210 16.588 PANEL; DOOR STRIKER REINF
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) 		8-97585-261-4 01 1 1409- ●
210 16.588 PANEL; DOOR STRIKER REINF 8-97585-261-4 01 1 1409- ●
215 16.674 GROMMET; RR PILLAR
15.222 OD=35 		8-94122-971-0 01 1 0911-1108 ●
215 16.674 GROMMET; RR PILLAR
15.222 OD=35 		8-94122-971-0 01 1 1109- ● ●
246 16.575 PANEL; RR PILLAR,INNER 8-97585-301-3 01 1 0911-1108 ●
246 16.575 PANEL; RR PILLAR,INNER 8-97585-301-3 01 1 1109-1408 ● ●
246 16.575 PANEL; RR PILLAR,INNER
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) 		8-97585-301-3 01 1 1409- ●
246 16.575 PANEL; RR PILLAR,INNER 8-97585-301-3 01 1 1409- ●
246 16.575 PANEL; RR PILLAR,INNER 8-97586-154-3 01 1 0911-1108 ●
246 16.575 PANEL; RR PILLAR,INNER 8-97586-154-3 01 1 1109-1211 ● ●
246 16.575 PANEL; RR PILLAR,INNER
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) 		8-97586-154-3 01 1 1212- ●
246 16.575 PANEL; RR PILLAR,INNER 8-97586-154-3 01 1 1212- ●
249 16.674 REINFORCEMENT; RR PILLAR 8-98012-287-1 01 1 0911-1108 ●
249 16.674 REINFORCEMENT; RR PILLAR 8-98012-287-1 01 1 0911-1108 ●
249 16.674 REINFORCEMENT; RR PILLAR 8-98012-287-1 01 1 1109- ● ●
249 16.674 REINFORCEMENT; RR PILLAR 8-98012-287-1 01 1 1109- ● ●
408 16.570 GUSSET; PILLAR 8-97585-316-3 01 1 0911-1108 ●
408 16.570 GUSSET; PILLAR 8-97585-316-3 01 1 1109-1211 ● ●
408 16.570 GUSSET; PILLAR
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) 		8-97585-316-3 01 1 1212- ●
408 16.570 GUSSET; PILLAR 8-97585-316-3 01 1 1212- ●
408 16.570 GUSSET; PILLAR 8-97585-317-4 01 1 0911-1108 ●
408 16.570 GUSSET; PILLAR 8-97585-317-4 01 1 1109-1408 ● ●
408 16.570 GUSSET; PILLAR
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) 		8-97585-317-4 01 1 1409- ●
408 16.570 GUSSET; PILLAR 8-97585-317-4 01 1 1409- ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 0911-1104 ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 0911-1104 ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 04 1 1105-1108 ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 1109- ● ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 1109- ● ●
437 08.155 BRACKET; ROOF RAIL 8-98039-019-0 01 1 0911-1108 ●
437 08.155 BRACKET; ROOF RAIL 8-98039-019-0 01 1 1109-1211 ● ●
437 08.155 BRACKET; ROOF RAIL
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) 		8-98039-019-0 01 1 1212- ●
437 08.155 BRACKET; ROOF RAIL 8-98039-019-0 01 1 1212- ●
437 08.155 BRACKET; ROOF RAIL 8-98039-020-0 01 1 0911-1108 ●
437 08.155 BRACKET; ROOF RAIL 8-98039-020-0 01 1 1109-1408 ● ●
437 08.155 BRACKET; ROOF RAIL
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) 		8-98039-020-0 01 1 1409- ●
437 08.155 BRACKET; ROOF RAIL 8-98039-020-0 01 1 1409- ●
481 16.570 PANEL; SIDE FRT PILLAR
EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98072-787-0 01 1 1105-1108 ●
481 16.570 PANEL; SIDE FRT PILLAR
EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98072-802-0 01 1 1105-1108 ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98072-715-1 01 1 0911-1104 ●
481 16.570 PANEL; SIDE FRT PILLAR
LAMPS TWO ROOF MARKER<TEC> 		8-98072-715-1 01 1 1105-1108 ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98072-715-1 01 1 1109- ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98093-581-0 01 1 0911-1104 ●
481 16.570 PANEL; SIDE FRT PILLAR
LAMPS TWO ROOF MARKER<TEC> 		8-98093-581-0 01 1 1105-1108 ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98093-581-0 01 1 1109- ● ●
482 16.570 PANEL; SIDE RR PILLAR
TAIWAN EQUIPMENT(B04) 		8-98055-463-0 01 1 1212- ●
482 16.570 PANEL; SIDE RR PILLAR 8-98055-463-0 01 1 0911-1008 ●
482 16.570 PANEL; SIDE RR PILLAR 8-98092-920-0 01 1 1009-1108 ●
482 16.570 PANEL; SIDE RR PILLAR 8-98092-920-0 01 1 1109-1211 ● ●
482 16.570 PANEL; SIDE RR PILLAR
TURKEY EQUIPMENT(B11) 		8-98092-920-0 01 1 1212- ●
482 16.570 PANEL; SIDE RR PILLAR 8-98092-920-0 01 1 1212- ●
482 16.570 PANEL; SIDE RR PILLAR 8-98055-464-0 01 1 0911-1108 ●
482 16.570 PANEL; SIDE RR PILLAR 8-98055-464-0 01 1 1109-1211 ● ●
482 16.570 PANEL; SIDE RR PILLAR 8-98055-464-0 01 1 1212- ● ●
483 16.570 PANEL; SIDE CANTRAIL 8-98055-458-0 01 1 0911-1108 ●
483 16.570 PANEL; SIDE CANTRAIL 8-98055-458-0 01 1 1109- ● ●
483 16.570 PANEL; SIDE CANTRAIL 8-98055-460-0 01 1 0911-1108 ●
483 16.570 PANEL; SIDE CANTRAIL 8-98055-460-0 01 1 1109- ● ●
486 16.570 SEAL; BODY SIDE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0911-1108 ●
486 16.570 SEAL; BODY SIDE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1109-1211 ● ●
486 16.570 SEAL; BODY SIDE
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1212- ●
486 16.570 SEAL; BODY SIDE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1212- ●
486 16.570 SEAL; BODY SIDE
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0911-1108 ●
486 16.570 SEAL; BODY SIDE
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1109-1211 ● ●
486 16.570 SEAL; BODY SIDE
BODY COLOR EBONY BLACK(508),BODY COLOR ALGRAY(517),BODY COLOR PURPLISH BLUE(668), BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COL OR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890), BODY COLOR HIGHWAY YELLOW(916),BODY COLORHIGHWAY ORANGE(944),BODY COLOR SUNBELT G REEN(989),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1212-1212 ●
486 16.570 SEAL; BODY SIDE
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1212-1212 ●
486 16.570 SEAL; BODY SIDE
BODY COLOR EBONY BLACK(508),BODY COLOR ALGRAY(517),BODY COLOR PURPLISH BLUE(668), BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COL OR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890), BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY YELLOW(916),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY C OLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1301- ●
486 16.570 SEAL; BODY SIDE
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1301- ●
649 16.570 NUT; POP
09.647 M5 POP NUT 		8-97249-574-0 02 1 0911-1108 ●
649 16.570 NUT; POP
09.647 M5 POP NUT 		8-97249-574-0 02 1 1109-1408 ● ●
649 16.570 NUT; POP
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) 09.647 M5 POP NUT 		8-97249-574-0 02 1 1409- ●
649 16.570 NUT; POP
09.647 M5 POP NUT 		8-97249-574-0 02 1 1409- ●
662 16.570 BRACKET; DUCT 8-97584-611-1 01 1 0911-1108 ●
662 16.570 BRACKET; DUCT 8-97584-611-1 01 1 1109-1211 ● ●
662 16.570 BRACKET; DUCT
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) 		8-97584-611-1 01 1 1212- ●
662 16.570 BRACKET; DUCT 8-97584-611-1 01 1 1212- ●
663 08.228 BRACKET; AIR 8-97585-207-2 01 1 0911-1108 ●
663 08.228 BRACKET; AIR 8-97585-207-2 01 1 1109-1211 ● ●
663 08.228 BRACKET; AIR
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) 		8-97585-207-2 01 1 1212- ●
663 08.228 BRACKET; AIR 8-97585-207-2 01 1 1212- ●
663 08.228 BRACKET; AIR 8-97585-208-2 01 1 0911-1108 ●
663 08.228 BRACKET; AIR 8-97585-208-2 01 1 1109-1408 ● ●
663 08.228 BRACKET; AIR
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) 		8-97585-208-2 01 1 1409- ●
663 08.228 BRACKET; AIR 8-97585-208-2 01 1 1409- ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 0911-1104 ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 0911-1104 ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 02 1 1105-1108 ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 1109- ● ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 1109- ● ●
676 16.520 SEAL
EXC. PTO MANUAL CONTROL(6WC) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0911-1108 ●
676 16.520 SEAL
EXC. PTO MANUAL CONTROL(6WC) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1109- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
