◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10722 - CXH RHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10A - RADIATOR ▶
1-10A — RADIATOR (#5025) — 216 parça

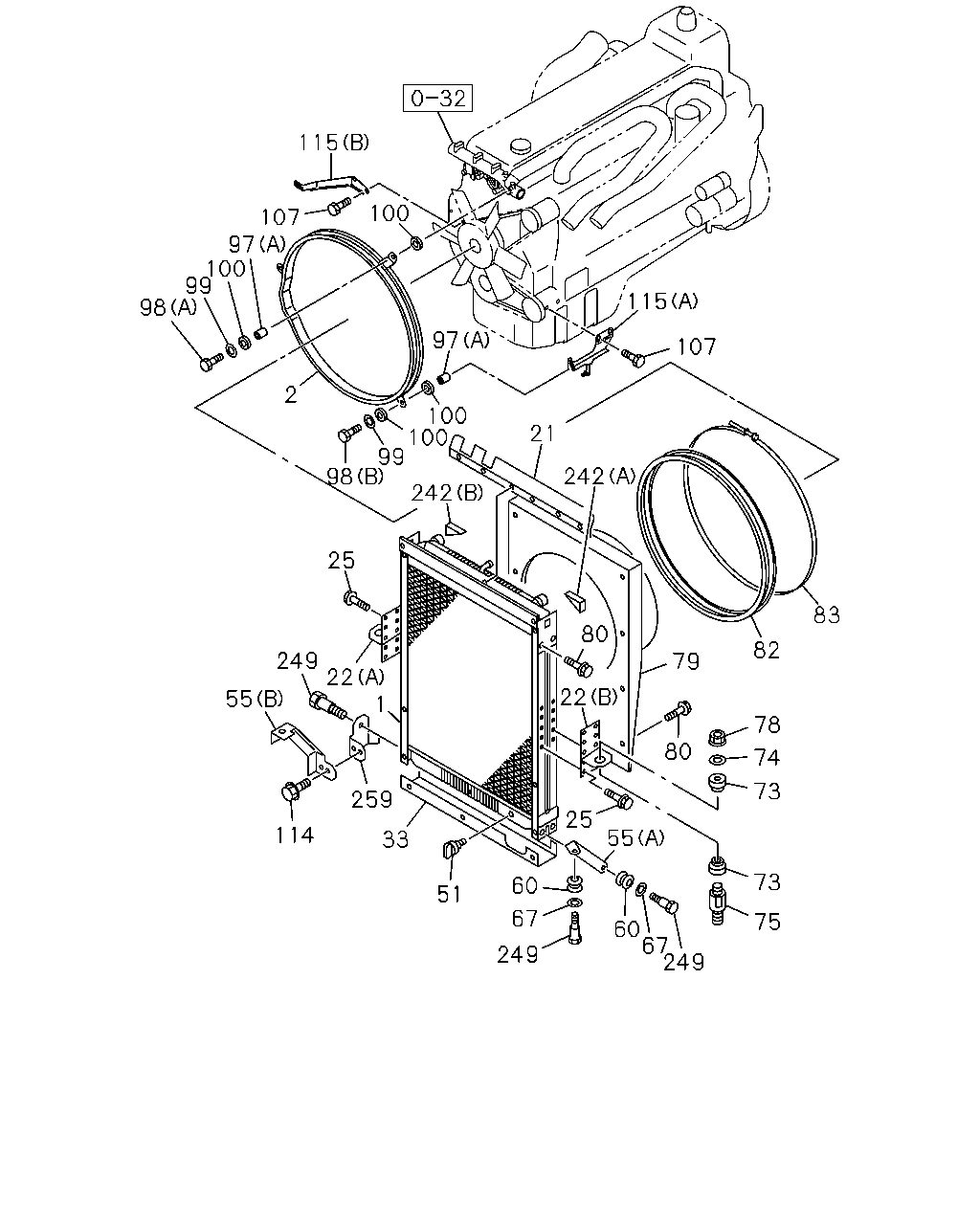

çizim 4753
115 100 107 97 100 99 98 115 97 107 2 100 100 99 98 21 242 242 25 83 1 80 82 249 22 79 22 55 78 80 74 73 259 25 114 55 33 73 60 51 67 75 60 67 249 249
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 RADIATOR ASM 1-21410-693-0 01 1 9606-9905 ●
1 RADIATOR ASM 1-21410-693-0 01 1 9906- ● ●
1 RADIATOR ASM 1-21410-729-0 01 1 9707-9905 ●
1 RADIATOR ASM 1-21410-730-1 01 1 9906- ●
2 GUIDE; FAN 1-21551-369-0 01 1 9606-9905 ●
2 GUIDE; FAN 1-21551-369-0 01 1 9906- ● ●
2 GUIDE; FAN 1-21551-420-0 01 1 9707-9905 ●
2 GUIDE; FAN 1-21551-420-0 01 1 9906- ●
21 SEAL; RAD 1-21460-097-0 01 1 9707-9905 ●
21 SEAL; RAD 1-21460-096-0 01 1 9906- ●
22 BRACKET; RAD MTG
(B) 		1-21464-444-0 01 1 9606-9706 ●
22 BRACKET; RAD MTG
(B) 		1-21464-444-0 01 1 9707-9905 ● ●
22 BRACKET; RAD MTG
(B) 		1-21464-444-0 01 1 9906- ● ●
22 BRACKET; RAD MTG
(A) 		1-21464-443-0 01 1 9606-9706 ●
22 BRACKET; RAD MTG
(A) 		1-21464-443-0 01 1 9707-9905 ● ●
22 BRACKET; RAD MTG
(A) 		1-21464-443-0 01 1 9906- ● ●
22 BRACKET; RAD MTG
(B) 		1-21464-504-0 01 1 9906- ●
22 BRACKET; RAD MTG
(A) 		1-21464-503-0 01 1 9906- ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 14 1 9606-9706 ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 14 1 9707-9905 ● ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 14 1 9906- ● ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 18 1 9906- ●
33 PROTECTOR; RAD 1-21419-050-0 01 1 9606-9706 ●
33 PROTECTOR; RAD 1-21419-050-0 01 1 9707-9905 ● ●
33 PROTECTOR; RAD 1-21419-050-0 01 1 9906- ● ● ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 9606-9706 ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 9707-9905 ● ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 9906- ● ● ●
55 STAY; RAD TO UPR MBR
(A) 		1-21464-397-0 01 1 9606-9706 ●
55 STAY; RAD TO UPR MBR
(A) 		1-21464-397-0 01 1 9707-9905 ● ●
55 STAY; RAD TO UPR MBR
(A) 		1-21464-397-0 01 1 9906- ● ●
55 STAY; RAD TO UPR MBR
(B) 		1-21464-486-0 01 1 9606-9706 ●
55 STAY; RAD TO UPR MBR
(B) 		1-21464-486-0 01 1 9707-9905 ● ●
55 STAY; RAD TO UPR MBR
(B) 		1-21464-486-0 01 1 9906- ● ●
55 STAY; RAD TO UPR MBR
(A) 		1-21464-499-0 01 1 9906- ●
55 STAY; RAD TO UPR MBR
(B) 		1-21464-641-0 01 1 9906- ●
60 GROMMET 1-09332-117-0 04 1 9606-9905 ● ●
60 GROMMET 1-09332-117-0 04 1 9906- ● ● ●
67 WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26 		9-09160-612-0 04 1 9606-9905 ● ●
67 WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26 		9-09160-612-0 04 1 9906- ● ● ●
73 RUBBER; CUSHION,RAD MTG
T=14 		1-21467-004-0 04 1 9606-9905 ● ●
73 RUBBER; CUSHION,RAD MTG
T=14 		1-21467-004-0 04 1 9906- ● ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-1 02 1 9606-9905 ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-1 02 1 9906- ● ● ●
75 BOLT; CUSHION RUBBER,RAD MTG 1-21466-005-0 02 1 9606-9905 ● ●
75 BOLT; CUSHION RUBBER,RAD MTG 1-21466-005-0 02 1 9906- ● ● ●
78 NUT; CUSHION RUBBER
M10 FLANGE 		0-91150-110-0 02 1 9606-9606 ●
78 NUT; CUSHION RUBBER
M10 FLANGE 		0-91150-210-0 02 1 9607-9905 ● ●
78 NUT; CUSHION RUBBER
M10 FLANGE 		0-91150-210-0 02 1 9906- ● ● ●
79 GUIDE; FAN,RAD 1-21551-384-0 01 1 9606-9905 ●
79 GUIDE; FAN,RAD 1-21551-384-0 01 1 9906- ● ●
79 GUIDE; FAN,RAD 1-21551-415-0 01 1 9707-9905 ●
79 GUIDE; FAN,RAD 1-21551-422-1 01 1 9906- ●
80 BOLT; FAN GUIDE
M8X12 FLANGE 		0-28080-812-0 16 1 9606-9905 ●
80 BOLT; FAN GUIDE
M8X12 FLANGE 		0-28080-812-0 16 1 9906- ● ●
80 BOLT; FAN GUIDE
M8X12 FLANGE 		0-28080-812-0 14 1 9707-9905 ●
80 BOLT; FAN GUIDE
M8X12 FLANGE 		0-28080-812-0 14 1 9906- ●
82 COVER; FAN,RAD 1-21559-134-1 01 1 9606-9804 ● ●
82 COVER; FAN,RAD 1-21559-134-1 01 1 9805-9905 ●
82 COVER; FAN,RAD 1-21559-134-1 01 1 9906- ● ●
82 COVER; FAN,RAD 1-21559-262-1 01 1 9805-9905 ●
82 COVER; FAN,RAD 1-21559-262-1 01 1 9906- ●
83 CLIP; FAN COVER 1-09707-127-1 01 1 9606-9804 ● ●
83 CLIP; FAN COVER 1-09707-127-1 01 1 9805-9905 ●
83 CLIP; FAN COVER 1-09707-127-1 01 1 9906- ● ●
83 CLIP; FAN COVER 1-09707-152-0 02 1 9805-9905 ●
83 CLIP; FAN COVER 1-09707-152-2 02 1 9906- ●
97 TUBE; DIST,FAN GUIDE
(A) ID=11.8 L=27 		1-21559-149-0 01 1 9606-9905 ●
97 TUBE; DIST,FAN GUIDE
(A) ID=11.8 L=27 		1-21559-149-0 01 1 9906- ● ●
97 TUBE; DIST,FAN GUIDE
(B) 		1-21559-273-0 02 1 9606-9905 ●
97 TUBE; DIST,FAN GUIDE
(B) 		1-21559-273-0 02 1 9906- ● ●
97 TUBE; DIST,FAN GUIDE
(A) ID=11.8 L=27 		1-21559-149-0 03 1 9707-9905 ●
97 TUBE; DIST,FAN GUIDE
(A) ID=11.8 L=27 		1-21559-149-0 03 1 9906- ●
98 BOLT; RAD FAN GUIDE
(A) M10X40 		0-10806-040-0 01 1 9606-9612 ●
98 BOLT; RAD FAN GUIDE
(A) M10X40 FLANGE 		0-28081-040-0 01 1 9701-9706 ●
98 BOLT; RAD FAN GUIDE
(A) M10X40 FLANGE 		0-28081-040-0 01 1 9707-9905 ● ●
98 BOLT; RAD FAN GUIDE
(A) M10X40 FLANGE 		0-28081-040-0 01 1 9906- ● ● ●
98 BOLT; RAD FAN GUIDE
(B) M10X55 		0-10806-055-0 02 1 9606-9612 ●
98 BOLT; RAD FAN GUIDE
(B) M10X60 FLANGE 		0-28081-060-0 02 1 9701-9706 ●
98 BOLT; RAD FAN GUIDE
(B) M10X60 FLANGE 		0-28081-060-0 02 1 9707-9905 ● ●
98 BOLT; RAD FAN GUIDE
(B) M10X60 FLANGE 		0-28081-060-0 02 1 9906- ● ● ●
99 WASHER; PL
ID=10.5 OD=26 		9-09164-710-0 03 1 9606-9706 ●
99 WASHER; PL
ID=10.5 OD=26 		9-09164-710-0 03 1 9707-9905 ● ●
99 WASHER; PL
ID=10.5 OD=26 		9-09164-710-0 03 1 9906- ● ● ●
100 RUBBER; MTG 1-09337-017-0 06 1 9606-9905 ● ●
100 RUBBER; MTG 1-09337-017-0 06 1 9906- ● ● ●
107 BOLT; BRKT TO STAY
M14X25 FLANGE 		0-28981-425-0 02 1 9606-9706 ●
107 BOLT; BRKT TO STAY
M14X25 FLANGE 		0-28981-425-0 02 1 9707-9905 ● ●
107 BOLT; BRKT TO STAY
M14X25 FLANGE 		0-28981-425-0 02 1 9906- ● ● ●
114 BOLT; STAY
M8X20 FLANGE 		0-28080-820-0 02 1 9606-9606 ●
114 BOLT; STAY
M8X25 FLANGE 		0-28680-825-0 02 1 9607-9905 ● ●
114 BOLT; STAY
M8X25 FLANGE 		0-28680-825-0 02 1 9906- ● ● ●
115 BRACKET; FAN GUIDE
(A) 		1-21559-353-0 01 1 9606-9706 ●
115 BRACKET; FAN GUIDE
(A) 		1-21559-353-0 01 1 9707-9905 ● ●
115 BRACKET; FAN GUIDE
(A) 		1-21559-353-0 01 1 9906- ● ● ●
115 BRACKET; FAN GUIDE
(B) 		1-21559-354-0 01 1 9606-9706 ●
115 BRACKET; FAN GUIDE
(B) 		1-21559-354-0 01 1 9707-9905 ● ●
115 BRACKET; FAN GUIDE
(B) 		1-21559-354-0 01 1 9906- ● ● ●
242 BRACKET; RAD
(C) 		1-21464-461-1 02 1 9606-9905 ●
242 BRACKET; RAD
(C) 		1-21464-461-1 02 1 9906- ● ●
242 BRACKET; RAD
(A) 		1-21464-522-0 01 1 9707-9905 ●
242 BRACKET; RAD
(A) 		1-21464-517-0 01 1 9906- ●
242 BRACKET; RAD
(B) 		1-21464-523-0 01 1 9707-9905 ●
242 BRACKET; RAD
(B) 		1-21464-518-0 01 1 9906- ●
249 BOLT; STAY,RAD MBR
M8X30 		1-09009-020-1 04 1 9606-9905 ● ●
249 BOLT; STAY,RAD MBR
M8X30 		1-09009-020-1 04 1 9906- ● ● ●
259 BRACKET; RAD STAY 1-21464-484-0 01 1 9606-9905 ● ●
259 BRACKET; RAD STAY 1-21464-484-0 01 1 9906- ● ● ●

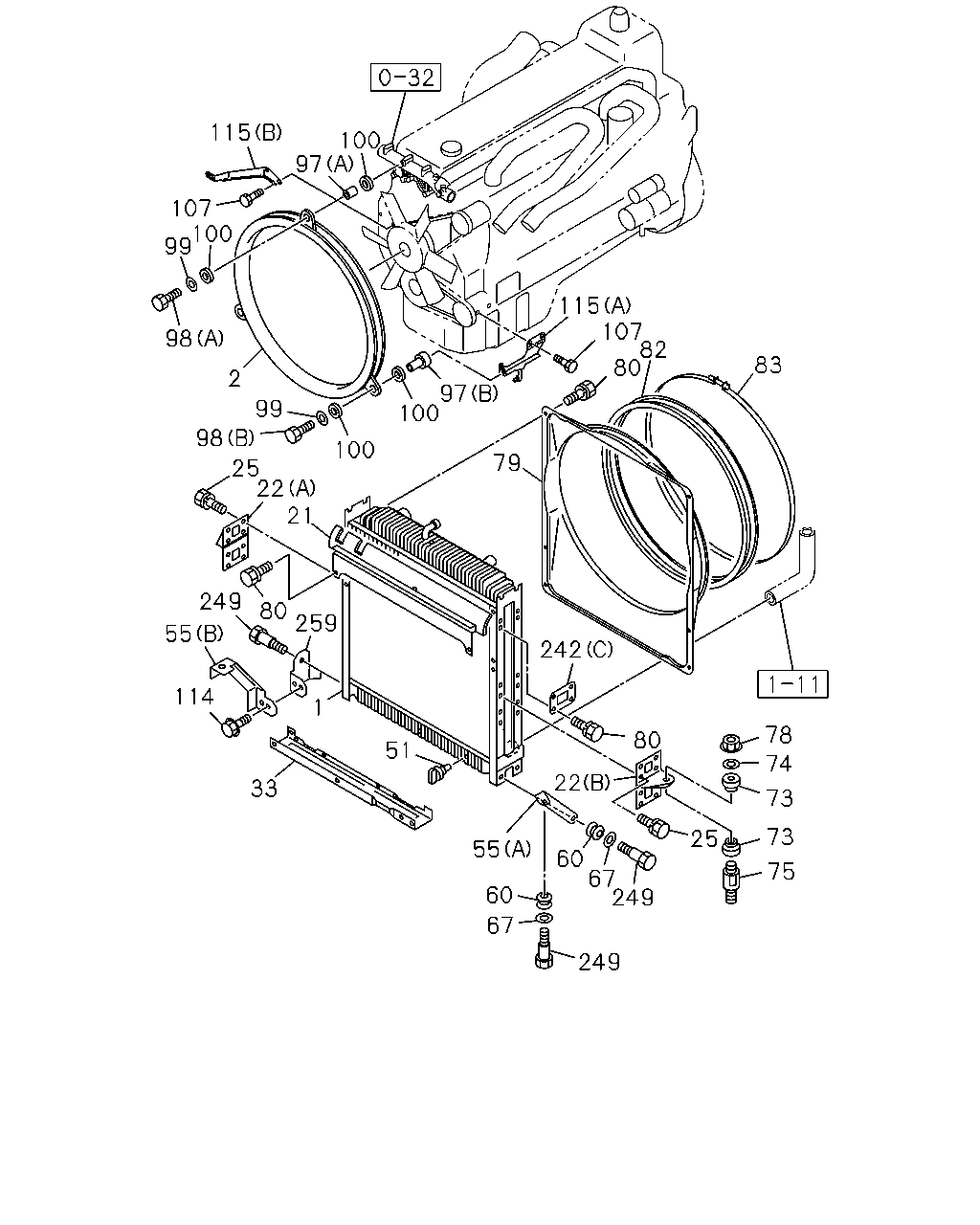

çizim 6712
115 100 97 107 100 99 115 107 82 80 98 83 2 97 100 99 98 79 100 25 22 21 249 80 259 55 242 114 1 78 80 51 74 22 33 73 73 25 55 60 67 249 75 60 67 249
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 RADIATOR ASM 1-21410-693-0 01 1 9606-9905 ●
1 RADIATOR ASM 1-21410-693-0 01 1 9906- ● ●
1 RADIATOR ASM 1-21410-729-0 01 1 9707-9905 ●
1 RADIATOR ASM 1-21410-730-1 01 1 9906- ●
2 GUIDE; FAN 1-21551-369-0 01 1 9606-9905 ●
2 GUIDE; FAN 1-21551-369-0 01 1 9906- ● ●
2 GUIDE; FAN 1-21551-420-0 01 1 9707-9905 ●
2 GUIDE; FAN 1-21551-420-0 01 1 9906- ●
21 SEAL; RAD 1-21460-097-0 01 1 9707-9905 ●
21 SEAL; RAD 1-21460-096-0 01 1 9906- ●
22 BRACKET; RAD MTG
(B) 		1-21464-444-0 01 1 9606-9706 ●
22 BRACKET; RAD MTG
(B) 		1-21464-444-0 01 1 9707-9905 ● ●
22 BRACKET; RAD MTG
(B) 		1-21464-444-0 01 1 9906- ● ●
22 BRACKET; RAD MTG
(A) 		1-21464-443-0 01 1 9606-9706 ●
22 BRACKET; RAD MTG
(A) 		1-21464-443-0 01 1 9707-9905 ● ●
22 BRACKET; RAD MTG
(A) 		1-21464-443-0 01 1 9906- ● ●
22 BRACKET; RAD MTG
(B) 		1-21464-504-0 01 1 9906- ●
22 BRACKET; RAD MTG
(A) 		1-21464-503-0 01 1 9906- ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 14 1 9606-9706 ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 14 1 9707-9905 ● ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 14 1 9906- ● ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 18 1 9906- ●
33 PROTECTOR; RAD 1-21419-050-0 01 1 9606-9706 ●
33 PROTECTOR; RAD 1-21419-050-0 01 1 9707-9905 ● ●
33 PROTECTOR; RAD 1-21419-050-0 01 1 9906- ● ● ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 9606-9706 ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 9707-9905 ● ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 9906- ● ● ●
55 STAY; RAD TO UPR MBR
(A) 		1-21464-397-0 01 1 9606-9706 ●
55 STAY; RAD TO UPR MBR
(A) 		1-21464-397-0 01 1 9707-9905 ● ●
55 STAY; RAD TO UPR MBR
(A) 		1-21464-397-0 01 1 9906- ● ●
55 STAY; RAD TO UPR MBR
(B) 		1-21464-486-0 01 1 9606-9706 ●
55 STAY; RAD TO UPR MBR
(B) 		1-21464-486-0 01 1 9707-9905 ● ●
55 STAY; RAD TO UPR MBR
(B) 		1-21464-486-0 01 1 9906- ● ●
55 STAY; RAD TO UPR MBR
(A) 		1-21464-499-0 01 1 9906- ●
55 STAY; RAD TO UPR MBR
(B) 		1-21464-641-0 01 1 9906- ●
60 GROMMET 1-09332-117-0 04 1 9606-9905 ● ●
60 GROMMET 1-09332-117-0 04 1 9906- ● ● ●
67 WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26 		9-09160-612-0 04 1 9606-9905 ● ●
67 WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26 		9-09160-612-0 04 1 9906- ● ● ●
73 RUBBER; CUSHION,RAD MTG
T=14 		1-21467-004-0 04 1 9606-9905 ● ●
73 RUBBER; CUSHION,RAD MTG
T=14 		1-21467-004-0 04 1 9906- ● ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-1 02 1 9606-9905 ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-1 02 1 9906- ● ● ●
75 BOLT; CUSHION RUBBER,RAD MTG 1-21466-005-0 02 1 9606-9905 ● ●
75 BOLT; CUSHION RUBBER,RAD MTG 1-21466-005-0 02 1 9906- ● ● ●
78 NUT; CUSHION RUBBER
M10 FLANGE 		0-91150-110-0 02 1 9606-9606 ●
78 NUT; CUSHION RUBBER
M10 FLANGE 		0-91150-210-0 02 1 9607-9905 ● ●
78 NUT; CUSHION RUBBER
M10 FLANGE 		0-91150-210-0 02 1 9906- ● ● ●
79 GUIDE; FAN,RAD 1-21551-384-0 01 1 9606-9905 ●
79 GUIDE; FAN,RAD 1-21551-384-0 01 1 9906- ● ●
79 GUIDE; FAN,RAD 1-21551-415-0 01 1 9707-9905 ●
79 GUIDE; FAN,RAD 1-21551-422-1 01 1 9906- ●
80 BOLT; FAN GUIDE
M8X12 FLANGE 		0-28080-812-0 16 1 9606-9905 ●
80 BOLT; FAN GUIDE
M8X12 FLANGE 		0-28080-812-0 16 1 9906- ● ●
80 BOLT; FAN GUIDE
M8X12 FLANGE 		0-28080-812-0 14 1 9707-9905 ●
80 BOLT; FAN GUIDE
M8X12 FLANGE 		0-28080-812-0 14 1 9906- ●
82 COVER; FAN,RAD 1-21559-134-1 01 1 9606-9804 ● ●
82 COVER; FAN,RAD 1-21559-134-1 01 1 9805-9905 ●
82 COVER; FAN,RAD 1-21559-134-1 01 1 9906- ● ●
82 COVER; FAN,RAD 1-21559-262-1 01 1 9805-9905 ●
82 COVER; FAN,RAD 1-21559-262-1 01 1 9906- ●
83 CLIP; FAN COVER 1-09707-127-1 01 1 9606-9804 ● ●
83 CLIP; FAN COVER 1-09707-127-1 01 1 9805-9905 ●
83 CLIP; FAN COVER 1-09707-127-1 01 1 9906- ● ●
83 CLIP; FAN COVER 1-09707-152-0 02 1 9805-9905 ●
83 CLIP; FAN COVER 1-09707-152-2 02 1 9906- ●
97 TUBE; DIST,FAN GUIDE
(A) ID=11.8 L=27 		1-21559-149-0 01 1 9606-9905 ●
97 TUBE; DIST,FAN GUIDE
(A) ID=11.8 L=27 		1-21559-149-0 01 1 9906- ● ●
97 TUBE; DIST,FAN GUIDE
(B) 		1-21559-273-0 02 1 9606-9905 ●
97 TUBE; DIST,FAN GUIDE
(B) 		1-21559-273-0 02 1 9906- ● ●
97 TUBE; DIST,FAN GUIDE
(A) ID=11.8 L=27 		1-21559-149-0 03 1 9707-9905 ●
97 TUBE; DIST,FAN GUIDE
(A) ID=11.8 L=27 		1-21559-149-0 03 1 9906- ●
98 BOLT; RAD FAN GUIDE
(A) M10X40 		0-10806-040-0 01 1 9606-9612 ●
98 BOLT; RAD FAN GUIDE
(A) M10X40 FLANGE 		0-28081-040-0 01 1 9701-9706 ●
98 BOLT; RAD FAN GUIDE
(A) M10X40 FLANGE 		0-28081-040-0 01 1 9707-9905 ● ●
98 BOLT; RAD FAN GUIDE
(A) M10X40 FLANGE 		0-28081-040-0 01 1 9906- ● ● ●
98 BOLT; RAD FAN GUIDE
(B) M10X55 		0-10806-055-0 02 1 9606-9612 ●
98 BOLT; RAD FAN GUIDE
(B) M10X60 FLANGE 		0-28081-060-0 02 1 9701-9706 ●
98 BOLT; RAD FAN GUIDE
(B) M10X60 FLANGE 		0-28081-060-0 02 1 9707-9905 ● ●
98 BOLT; RAD FAN GUIDE
(B) M10X60 FLANGE 		0-28081-060-0 02 1 9906- ● ● ●
99 WASHER; PL
ID=10.5 OD=26 		9-09164-710-0 03 1 9606-9706 ●
99 WASHER; PL
ID=10.5 OD=26 		9-09164-710-0 03 1 9707-9905 ● ●
99 WASHER; PL
ID=10.5 OD=26 		9-09164-710-0 03 1 9906- ● ● ●
100 RUBBER; MTG 1-09337-017-0 06 1 9606-9905 ● ●
100 RUBBER; MTG 1-09337-017-0 06 1 9906- ● ● ●
107 BOLT; BRKT TO STAY
M14X25 FLANGE 		0-28981-425-0 02 1 9606-9706 ●
107 BOLT; BRKT TO STAY
M14X25 FLANGE 		0-28981-425-0 02 1 9707-9905 ● ●
107 BOLT; BRKT TO STAY
M14X25 FLANGE 		0-28981-425-0 02 1 9906- ● ● ●
114 BOLT; STAY
M8X20 FLANGE 		0-28080-820-0 02 1 9606-9606 ●
114 BOLT; STAY
M8X25 FLANGE 		0-28680-825-0 02 1 9607-9905 ● ●
114 BOLT; STAY
M8X25 FLANGE 		0-28680-825-0 02 1 9906- ● ● ●
115 BRACKET; FAN GUIDE
(A) 		1-21559-353-0 01 1 9606-9706 ●
115 BRACKET; FAN GUIDE
(A) 		1-21559-353-0 01 1 9707-9905 ● ●
115 BRACKET; FAN GUIDE
(A) 		1-21559-353-0 01 1 9906- ● ● ●
115 BRACKET; FAN GUIDE
(B) 		1-21559-354-0 01 1 9606-9706 ●
115 BRACKET; FAN GUIDE
(B) 		1-21559-354-0 01 1 9707-9905 ● ●
115 BRACKET; FAN GUIDE
(B) 		1-21559-354-0 01 1 9906- ● ● ●
242 BRACKET; RAD
(C) 		1-21464-461-1 02 1 9606-9905 ●
242 BRACKET; RAD
(C) 		1-21464-461-1 02 1 9906- ● ●
242 BRACKET; RAD
(A) 		1-21464-522-0 01 1 9707-9905 ●
242 BRACKET; RAD
(A) 		1-21464-517-0 01 1 9906- ●
242 BRACKET; RAD
(B) 		1-21464-523-0 01 1 9707-9905 ●
242 BRACKET; RAD
(B) 		1-21464-518-0 01 1 9906- ●
249 BOLT; STAY,RAD MBR
M8X30 		1-09009-020-1 04 1 9606-9905 ● ●
249 BOLT; STAY,RAD MBR
M8X30 		1-09009-020-1 04 1 9906- ● ● ●
259 BRACKET; RAD STAY 1-21464-484-0 01 1 9606-9905 ● ●
259 BRACKET; RAD STAY 1-21464-484-0 01 1 9906- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
