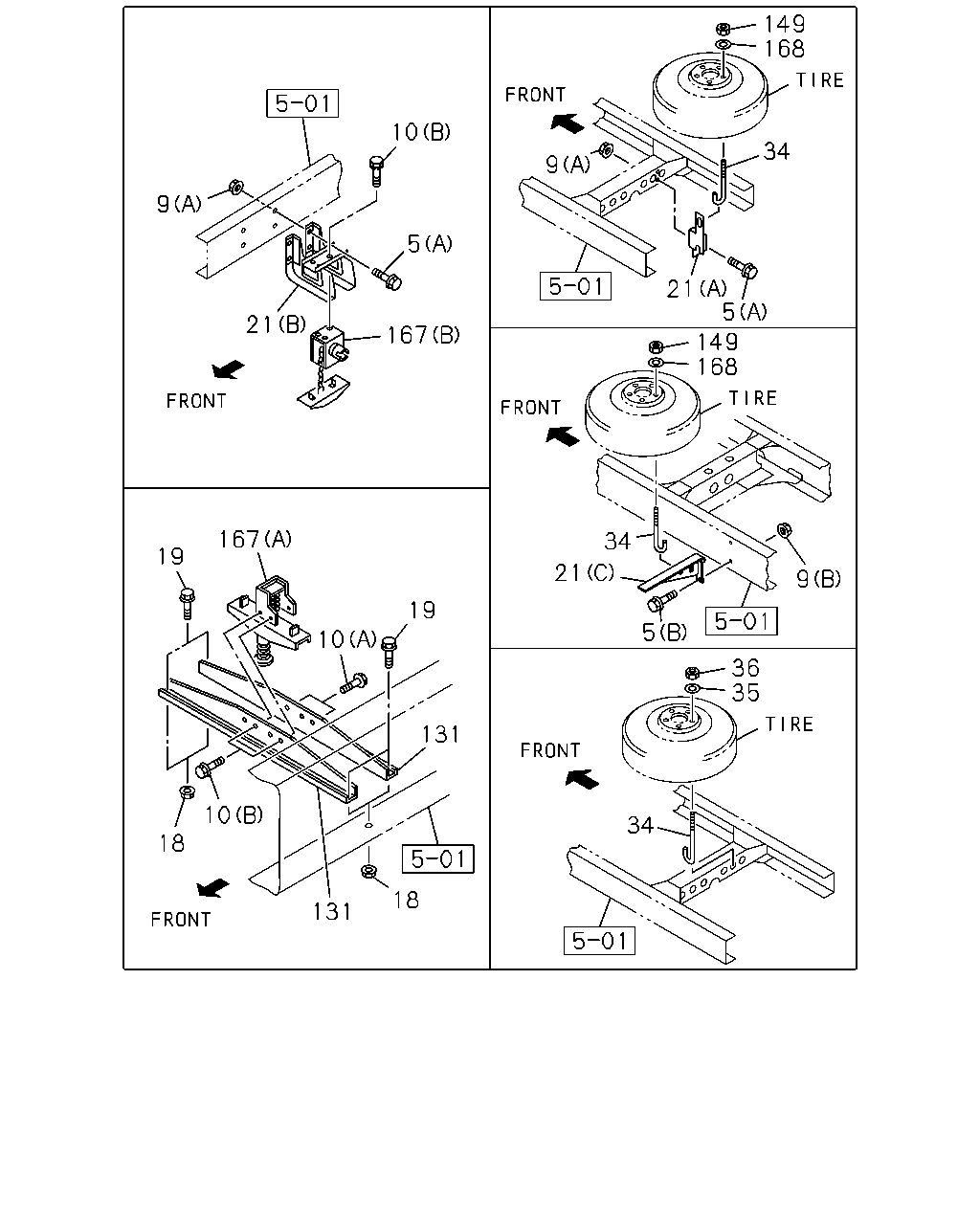

5-30 — SPARE TIRE CARRIER AND COVER (#50248) — 78 parça

149 168 10 34 9 9 5 21 5 21 167 149 168 167 34 19 21 9 19 5 10 36 35 131 10 34 18 18 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	07.632 BOLT; BRKT TO FRAME WHEEL BASE 2700MM(27W) 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	1212-	●
5	07.632 BOLT; BRKT TO FRAME WHEEL BASE 2700MM(27W) SPARE WHEEL CARRIER<P10> 09.171 (B) M10X25 FLANGE	0-28051-025-0	04	1	1212-	●
5	07.632 BOLT; BRKT TO FRAME WHEEL BASE 2700MM(27W) 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	1105-1108	●
5	07.632 BOLT; BRKT TO FRAME WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) SPARE WHEEL CARRIER<P10> 09.171 (B) M10X25 FLANGE	0-28051-025-0	04	1	1105-1108	●
5	07.632 BOLT; BRKT TO FRAME WHEEL BASE 2700MM(27W) SPARE WHEEL CARRIER<P10> 09.171 (B) M10X25 FLANGE	0-28051-025-0	02	1	1109-		●
5	07.632 BOLT; BRKT TO FRAME WHEEL BASE 3300MM(33W) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1105-	●
5	07.632 BOLT; BRKT TO FRAME 06.216 (A) M8X25 FLANGE	0-28650-825-0	04	1	0911-1104	●
5	07.632 BOLT; BRKT TO FRAME WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 06.216 (A) M8X25 FLANGE	0-28650-825-0	04	1	1105-1108	●
5	07.632 BOLT; BRKT TO FRAME WHEEL BASE 3800MM(38W) 06.216 (A) M8X25 FLANGE	0-28650-825-0	04	1	1109-	●
9	07.633 NUT; BRKT TO FRAME WHEEL BASE 2700MM(27W) SPARE WHEEL CARRIER<P10> 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1212-	●
9	07.633 NUT; BRKT TO FRAME WHEEL BASE 2700MM(27W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1105-1108	●
9	07.633 NUT; BRKT TO FRAME WHEEL BASE 2700MM(27W) SPARE WHEEL CARRIER<P10> 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1109-1211		●
9	07.633 NUT; BRKT TO FRAME WHEEL BASE 2700MM(27W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1212-	●
9	07.633 NUT; BRKT TO FRAME WHEEL BASE 2700MM(27W) SPARE WHEEL CARRIER<P10> 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1212-		●
9	07.633 NUT; BRKT TO FRAME WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) SPARE WHEEL CARRIER<P10> 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1105-1108	●
9	07.633 NUT; BRKT TO FRAME WHEEL BASE 3300MM(33W) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1105-	●
9	07.633 NUT; BRKT TO FRAME 01.062 (A) M8 FLANGE	0-91180-108-0	04	1	0911-1104	●
9	07.633 NUT; BRKT TO FRAME WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 01.062 (A) M8 FLANGE	0-91180-108-0	04	1	1105-1108	●
9	07.633 NUT; BRKT TO FRAME WHEEL BASE 3800MM(38W) 01.062 (A) M8 FLANGE	0-91180-108-0	04	1	1109-	●
10	07.632 BOLT; TIRE HANGER WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) SPARE WHEEL CARRIER<P10> 01.531 (B) M8X20 FLANGE	0-28650-820-0	03	1	1105-1108	●
10	07.632 BOLT; TIRE HANGER WHEEL BASE 2700MM(27W) SPARE WHEEL CARRIER<P10> 01.531 (B) M8X20 FLANGE	0-28650-820-0	03	1	1109-1211		●
10	07.632 BOLT; TIRE HANGER WHEEL BASE 2700MM(27W) SPARE WHEEL CARRIER<P10> 01.531 (B) M8X20 FLANGE	0-28650-820-0	03	1	1212-	●	●
10	07.632 BOLT; TIRE HANGER 06.216 (A) M8X25 FLANGE	0-28650-825-0	04	1	0911-1104	●
10	07.632 BOLT; TIRE HANGER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SPARE WHEEL CARRIER<P10> 06.216 (A) M8X25 FLANGE	0-28650-825-0	04	1	1105-1108	●
10	07.632 BOLT; TIRE HANGER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 06.216 (A) M8X25 FLANGE	0-28650-825-0	04	1	1109-1211	●
10	07.632 BOLT; TIRE HANGER WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> 06.216 (A) M8X25 FLANGE	0-28650-825-0	04	1	1109-1211		●
10	07.632 BOLT; TIRE HANGER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SPARE WHEEL CARRIER<P10> 06.216 (A) M8X25 FLANGE	0-28650-825-0	04	1	1212-	●
10	07.632 BOLT; TIRE HANGER WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> 06.216 (A) M8X25 FLANGE	0-28650-825-0	04	1	1212-		●
18	07.633 NUT; MEMBER 03.162 M10 FLANGE	0-91180-110-0	04	1	0911-1104	●
18	07.633 NUT; MEMBER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SPARE WHEEL CARRIER<P10> 03.162 M10 FLANGE	0-91180-110-0	04	1	1105-1108	●
18	07.633 NUT; MEMBER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE	0-91180-110-0	04	1	1109-1211	●
18	07.633 NUT; MEMBER WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> 03.162 M10 FLANGE	0-91180-110-0	04	1	1109-1211		●
18	07.633 NUT; MEMBER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SPARE WHEEL CARRIER<P10> 03.162 M10 FLANGE	0-91180-110-0	04	1	1212-	●
18	07.633 NUT; MEMBER WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> 03.162 M10 FLANGE	0-91180-110-0	04	1	1212-		●
19	07.632 BOLT; C/MBR 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0911-1104	●
19	07.632 BOLT; C/MBR WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SPARE WHEEL CARRIER<P10> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1105-1108	●
19	07.632 BOLT; C/MBR WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1109-1211	●
19	07.632 BOLT; C/MBR WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1109-1211		●
19	07.632 BOLT; C/MBR WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SPARE WHEEL CARRIER<P10> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1212-	●
19	07.632 BOLT; C/MBR WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1212-		●
21	07.629 BRACKET; SPARE TIRE HANGER WHEEL BASE 2700MM(27W) (C)	8-98095-660-1	01	1	1212-	●
21	07.629 BRACKET; SPARE TIRE HANGER WHEEL BASE 2700MM(27W) SPARE WHEEL CARRIER<P10> (B)	8-98036-085-2	01	1	1212-	●
21	07.629 BRACKET; SPARE TIRE HANGER WHEEL BASE 2700MM(27W) (C)	8-98095-660-1	01	1	1105-1108	●
21	07.629 BRACKET; SPARE TIRE HANGER WHEEL BASE 2700MM(27W),WHEEL BASE 4400MM(44W) SPARE WHEEL CARRIER<P10> (B)	8-98036-085-2	01	1	1105-1108	●
21	07.629 BRACKET; SPARE TIRE HANGER WHEEL BASE 3300MM(33W) (A)	8-98019-889-0	01	1	1105-	●
21	07.629 BRACKET; SPARE TIRE HANGER WHEEL BASE 4100MM(41W) SPARE WHEEL CARRIER<P10> (B)	8-98072-378-2	01	1	1105-1108	●
21	07.629 BRACKET; SPARE TIRE HANGER WHEEL BASE 2700MM(27W) SPARE WHEEL CARRIER<P10> (B)	8-98072-378-2	01	1	1109-		●
21	07.629 BRACKET; SPARE TIRE HANGER (A)	8-98019-889-0	02	1	0911-1104	●
21	07.629 BRACKET; SPARE TIRE HANGER WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A)	8-98019-889-0	02	1	1105-1108	●
21	07.629 BRACKET; SPARE TIRE HANGER WHEEL BASE 3800MM(38W) (A)	8-98019-889-0	02	1	1109-	●
34	07.629 BOLT; SPARE TIRE SPARE TIRE CARRIER INSIDE MOUNTED<P15> M12X305	8-94441-189-0	01	1	1105-1108	●
34	07.629 BOLT; SPARE TIRE SPARE TIRE CARRIER INSIDE MOUNTED<P15> M12X305	8-94441-189-0	01	1	1109-1209		●
34	07.629 BOLT; SPARE TIRE SPARE TIRE CARRIER INSIDE MOUNTED<P15> M12X330	8-98226-501-0	01	1	1210-1211		●
34	07.629 BOLT; SPARE TIRE SPARE TIRE CARRIER INSIDE MOUNTED<P15> M12X330	8-98226-501-0	01	1	1212-	●	●
34	07.629 BOLT; SPARE TIRE M12X305	8-94441-189-0	02	1	0911-1209	●
34	07.629 BOLT; SPARE TIRE M12X330	8-98226-501-0	02	1	1210-	●
35	07.629 WASHER; PL,SPARE TIRE SPARE TIRE CARRIER INSIDE MOUNTED<P15> 07.243 ID=12.5 OD=54	8-94466-483-0	01	1	1105-1108	●
35	07.629 WASHER; PL,SPARE TIRE SPARE TIRE CARRIER INSIDE MOUNTED<P15> 07.243 ID=12.5 OD=54	8-94466-483-0	01	1	1109-1211		●
35	07.629 WASHER; PL,SPARE TIRE SPARE TIRE CARRIER INSIDE MOUNTED<P15> 07.243 ID=12.5 OD=54	8-94466-483-0	01	1	1212-	●	●
36	07.629 NUT; SPARE TIRE SPARE TIRE CARRIER INSIDE MOUNTED<P15> 05.002 M12	0-91110-512-0	01	1	1105-1108	●
36	07.629 NUT; SPARE TIRE SPARE TIRE CARRIER INSIDE MOUNTED<P15> 05.002 M12	0-91110-512-0	01	1	1109-1211		●
36	07.629 NUT; SPARE TIRE SPARE TIRE CARRIER INSIDE MOUNTED<P15> 05.002 M12	0-91110-512-0	01	1	1212-	●	●
131	07.629 CROSSMEMBER; SPARE TIRE WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10>	8-98024-842-2	02	1	1109-		●
131	07.629 CROSSMEMBER; SPARE TIRE	8-98035-827-1	02	1	0911-1104	●
131	07.629 CROSSMEMBER; SPARE TIRE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SPARE WHEEL CARRIER<P10>	8-98035-827-1	02	1	1105-1108	●
131	07.629 CROSSMEMBER; SPARE TIRE	8-98035-827-1	02	1	1109-1211	●
131	07.629 CROSSMEMBER; SPARE TIRE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SPARE WHEEL CARRIER<P10>	8-98035-827-1	02	1	1212-	●
149	07.629 NUT; CARRIER 05.002 M12	0-91110-512-0	02	1	0911-	●
167	07.629 HANGER; TIRE WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) SPARE WHEEL CARRIER<P10> (B)	8-97010-955-1	01	1	1105-1108	●
167	07.629 HANGER; TIRE WHEEL BASE 2700MM(27W) SPARE WHEEL CARRIER<P10> (B)	8-97010-955-1	01	1	1109-1308		●
167	07.629 HANGER; TIRE WHEEL BASE 2700MM(27W) SPARE WHEEL CARRIER<P10> (B)	8-97010-955-1	01	1	1309-	●	●
167	07.629 HANGER; TIRE (A)	8-98036-383-0	01	1	0911-1104	●
167	07.629 HANGER; TIRE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SPARE WHEEL CARRIER<P10> (A)	8-98036-383-0	01	1	1105-1108	●
167	07.629 HANGER; TIRE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A)	8-98036-383-0	01	1	1109-1211	●
167	07.629 HANGER; TIRE WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> (A)	8-98036-383-0	01	1	1109-1211		●
167	07.629 HANGER; TIRE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SPARE WHEEL CARRIER<P10> (A)	8-98036-383-0	01	1	1212-	●
167	07.629 HANGER; TIRE WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> (A)	8-98036-383-0	01	1	1212-		●
168	07.633 WASHER; SPARE TIRE 07.243 ID=12.5 OD=54	8-94466-483-0	02	1	0911-	●
