Sayfa 5-15 - Isuzu EPC

5-15 — CAB MOUNTING; CAB SIDE (#50246) — 210 parça

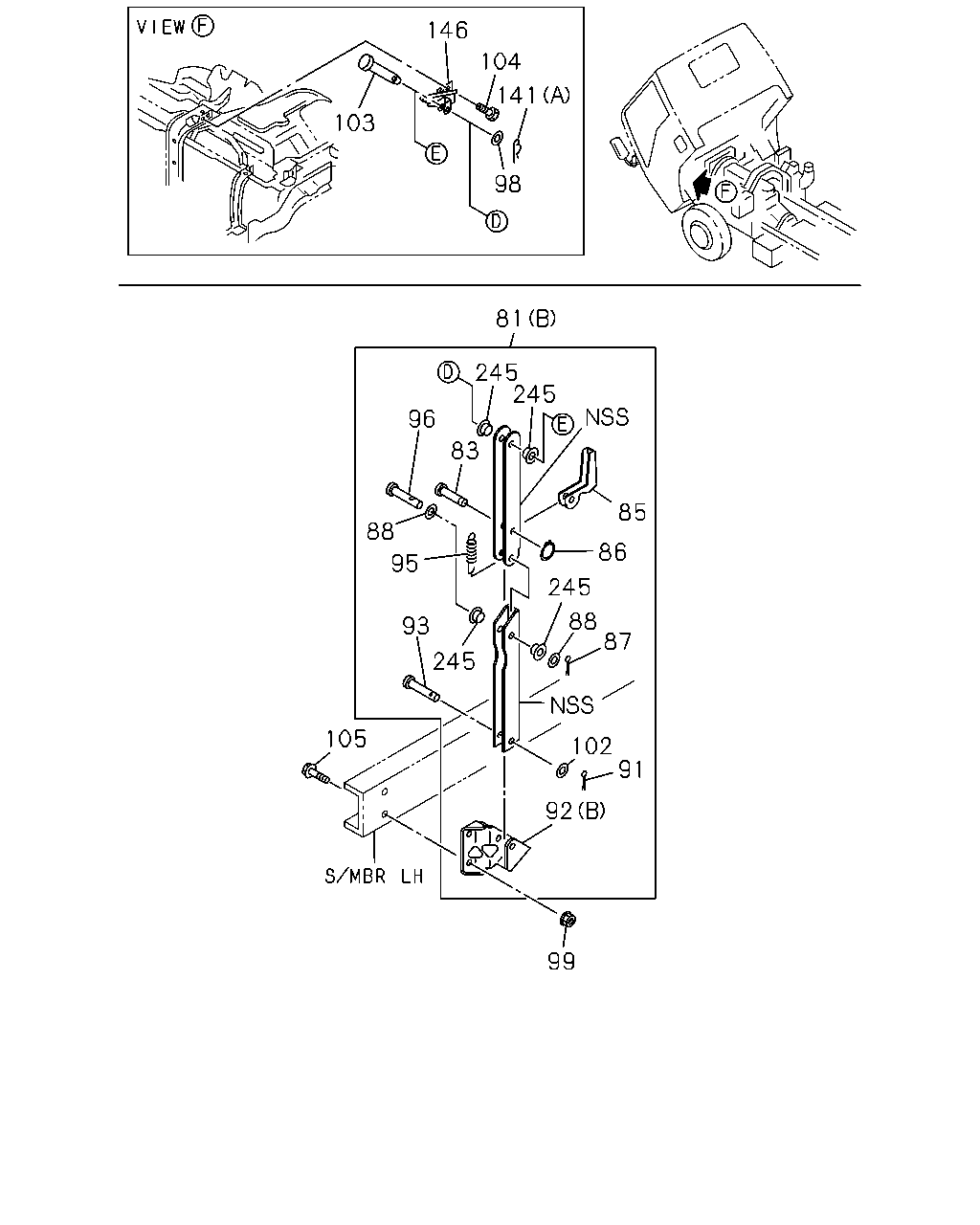

146 104 141 103 98 81 245 245 96 83 85 88 86 95 245 88 87 93 245 105 102 91 92 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
81	09.003 STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> (B)	8-98123-307-0	01	1	1109-	●
81	09.003 STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> (A)	8-98123-310-0	01	1	0911-1510		●
81	09.003 STAY ASM; CAB TILT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) MANUAL TILT CAB<RWZ> (A)	8-98123-310-0	01	1	1511-		●
83	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ>	8-98122-493-0	01	1	0911-1108		●
83	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ>	8-98122-493-0	01	1	1109-1510	●	●
83	09.003 PIN; JOINT,CAB STAY 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) MANUAL TILT CAB<RWZ>	8-98122-493-0	01	1	1511-		●
83	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ>	8-98122-493-0	01	1	1511-	●
85	09.003 LEVER; LOCK,CAB STAY MANUAL TILT CAB<RWZ>	8-94331-481-0	01	1	0911-1108		●
85	09.003 LEVER; LOCK,CAB STAY MANUAL TILT CAB<RWZ>	8-94331-481-0	01	1	1109-1510	●	●
85	09.003 LEVER; LOCK,CAB STAY 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) MANUAL TILT CAB<RWZ>	8-94331-481-0	01	1	1511-		●
85	09.003 LEVER; LOCK,CAB STAY MANUAL TILT CAB<RWZ>	8-94331-481-0	01	1	1511-	●
86	09.003 RING; SNAP,LOCK LEVER,CAB STAY MANUAL TILT CAB<RWZ> 16.585 ID=6	0-91805-506-0	01	1	0911-1108		●
86	09.003 RING; SNAP,LOCK LEVER,CAB STAY MANUAL TILT CAB<RWZ> 16.585 ID=6	0-91805-506-0	01	1	1109-1510	●	●
86	09.003 RING; SNAP,LOCK LEVER,CAB STAY 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) MANUAL TILT CAB<RWZ> 16.585 ID=6	0-91805-506-0	01	1	1511-		●
86	09.003 RING; SNAP,LOCK LEVER,CAB STAY MANUAL TILT CAB<RWZ> 16.585 ID=6	0-91805-506-0	01	1	1511-	●
87	09.003 PIN; SPLIT,CAB STAY PIN MANUAL TILT CAB<RWZ> 06.897 OD=2.8 L=20	0-81123-020-0	01	1	0911-1108		●
87	09.003 PIN; SPLIT,CAB STAY PIN MANUAL TILT CAB<RWZ> 06.897 OD=2.8 L=20	0-81123-020-0	01	1	1109-1510	●	●
87	09.003 PIN; SPLIT,CAB STAY PIN 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) MANUAL TILT CAB<RWZ> 06.897 OD=2.8 L=20	0-81123-020-0	01	1	1511-		●
87	09.003 PIN; SPLIT,CAB STAY PIN MANUAL TILT CAB<RWZ> 06.897 OD=2.8 L=20	0-81123-020-0	01	1	1511-	●
88	09.003 WASHER; PL,CAB STAY PIN MANUAL TILT CAB<RWZ> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	02	1	0911-1108		●
88	09.003 WASHER; PL,CAB STAY PIN MANUAL TILT CAB<RWZ> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	02	1	1109-1510	●	●
88	09.003 WASHER; PL,CAB STAY PIN 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) MANUAL TILT CAB<RWZ> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	02	1	1511-		●
88	09.003 WASHER; PL,CAB STAY PIN MANUAL TILT CAB<RWZ> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	02	1	1511-	●
91	09.003 PIN; SPLIT,CAB STAY MANUAL TILT CAB<RWZ> 06.255 OD=3.7 L=20	0-81124-020-0	01	1	0911-1108		●
91	09.003 PIN; SPLIT,CAB STAY MANUAL TILT CAB<RWZ> 06.255 OD=3.7 L=20	0-81124-020-0	01	1	1109-1510	●	●
91	09.003 PIN; SPLIT,CAB STAY 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) MANUAL TILT CAB<RWZ> 06.255 OD=3.7 L=20	0-81124-020-0	01	1	1511-		●
91	09.003 PIN; SPLIT,CAB STAY MANUAL TILT CAB<RWZ> 06.255 OD=3.7 L=20	0-81124-020-0	01	1	1511-	●
92	09.003 BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ> (B)	8-98001-020-0	01	1	1109-	●
92	09.003 BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ> (A)	8-98011-317-0	01	1	0911-1510		●
92	09.003 BRACKET; CAB STAY TO FRAME 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) MANUAL TILT CAB<RWZ> (A)	8-98011-317-0	01	1	1511-		●
93	09.003 PIN; CAB STAY MANUAL TILT CAB<RWZ>	8-98122-498-0	01	1	0911-1108		●
93	09.003 PIN; CAB STAY MANUAL TILT CAB<RWZ>	8-98122-498-0	01	1	1109-1510	●	●
93	09.003 PIN; CAB STAY 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) MANUAL TILT CAB<RWZ>	8-98122-498-0	01	1	1511-		●
93	09.003 PIN; CAB STAY MANUAL TILT CAB<RWZ>	8-98122-498-0	01	1	1511-	●
95	09.003 SPRING; RETURN,CAB STAY MANUAL TILT CAB<RWZ>	8-94160-167-2	01	1	0911-1108		●
95	09.003 SPRING; RETURN,CAB STAY MANUAL TILT CAB<RWZ>	8-94160-167-2	01	1	1109-1510	●	●
95	09.003 SPRING; RETURN,CAB STAY 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) MANUAL TILT CAB<RWZ>	8-94160-167-2	01	1	1511-		●
95	09.003 SPRING; RETURN,CAB STAY MANUAL TILT CAB<RWZ>	8-94160-167-2	01	1	1511-	●
96	09.003 PIN; JOINT MANUAL TILT CAB<RWZ>	8-98123-513-0	01	1	0911-1108		●
96	09.003 PIN; JOINT MANUAL TILT CAB<RWZ>	8-98123-513-0	01	1	1109-1510	●	●
96	09.003 PIN; JOINT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) MANUAL TILT CAB<RWZ>	8-98123-513-0	01	1	1511-		●
96	09.003 PIN; JOINT MANUAL TILT CAB<RWZ>	8-98123-513-0	01	1	1511-	●
98	09.003 WASHER; CAB STAY MANUAL TILT CAB<RWZ> 09.008 ID=10.5 T=2.0	1-09985-183-0	01	1	0911-1108		●
98	09.003 WASHER; CAB STAY MANUAL TILT CAB<RWZ> 09.008 ID=10.5 T=2.0	1-09985-183-0	01	1	1109-	●	●
99	09.003 NUT; CAB STAY MANUAL TILT CAB<RWZ> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> 03.162 M10 FLANGE	0-91180-110-0	02	1	1511-	●
99	09.003 NUT; CAB STAY MANUAL TILT CAB<RWZ> 03.162 M10 FLANGE	0-91180-110-0	02	1	0911-1108		●
99	09.003 NUT; CAB STAY MANUAL TILT CAB<RWZ> 03.162 M10 FLANGE	0-91180-110-0	02	1	1109-1510	●	●
99	09.003 NUT; CAB STAY AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> MANUAL TILT CAB<RWZ> 03.162 M10 FLANGE	0-91180-110-0	01	1	1511-	●
102	09.003 WASHER; PL,CAB STAY MANUAL TILT CAB<RWZ> 02.812 ID=12.5 OD=26	0-91610-612-0	01	1	0911-1108		●
102	09.003 WASHER; PL,CAB STAY MANUAL TILT CAB<RWZ> 02.812 ID=12.5 OD=26	0-91610-612-0	01	1	1109-1510	●	●
102	09.003 WASHER; PL,CAB STAY 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) MANUAL TILT CAB<RWZ> 02.812 ID=12.5 OD=26	0-91610-612-0	01	1	1511-		●
102	09.003 WASHER; PL,CAB STAY MANUAL TILT CAB<RWZ> 02.812 ID=12.5 OD=26	0-91610-612-0	01	1	1511-	●
103	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> OD=10 L=48	1-09744-107-0	01	1	0911-1108		●
103	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> OD=10 L=48	1-09744-107-0	01	1	1109-	●	●
104	09.003 BOLT; CAB STAY BRKT MANUAL TILT CAB<RWZ> 02.277 M8X20 FLANGE	0-28660-820-0	03	1	0911-1108		●
104	09.003 BOLT; CAB STAY BRKT MANUAL TILT CAB<RWZ> 02.277 M8X20 FLANGE	0-28660-820-0	03	1	1109-	●	●
105	09.003 BOLT; CAB STAY MANUAL TILT CAB<RWZ> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0911-1108		●
105	09.003 BOLT; CAB STAY MANUAL TILT CAB<RWZ> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1109-	●	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (A) L=32.6	1-09987-142-0	01	1	0911-1108		●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (A) L=32.6	1-09987-142-0	01	1	1109-	●	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (B) L=25.3	8-98039-045-1	01	1	0911-1108		●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (B) L=25.3	8-98039-045-1	01	1	1109-	●	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (C) L=34	8-98039-426-1	03	1	0911-1108		●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (C) L=34	8-98039-426-1	03	1	1109-	●	●
146	09.003 BRACKET ASM; CAB STAY UPR MANUAL TILT CAB<RWZ>	8-97387-328-2	01	1	0911-1108		●
146	09.003 BRACKET ASM; CAB STAY UPR MANUAL TILT CAB<RWZ>	8-97387-328-2	01	1	1109-	●	●
245	09.003 BUSHING; CAB STAY MANUAL TILT CAB<RWZ>	1-62500-587-0	04	1	0911-1108		●
245	09.003 BUSHING; CAB STAY MANUAL TILT CAB<RWZ>	1-62500-587-0	04	1	1109-1510	●	●
245	09.003 BUSHING; CAB STAY 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) MANUAL TILT CAB<RWZ>	1-62500-587-0	04	1	1511-		●
245	09.003 BUSHING; CAB STAY MANUAL TILT CAB<RWZ>	1-62500-587-0	04	1	1511-	●

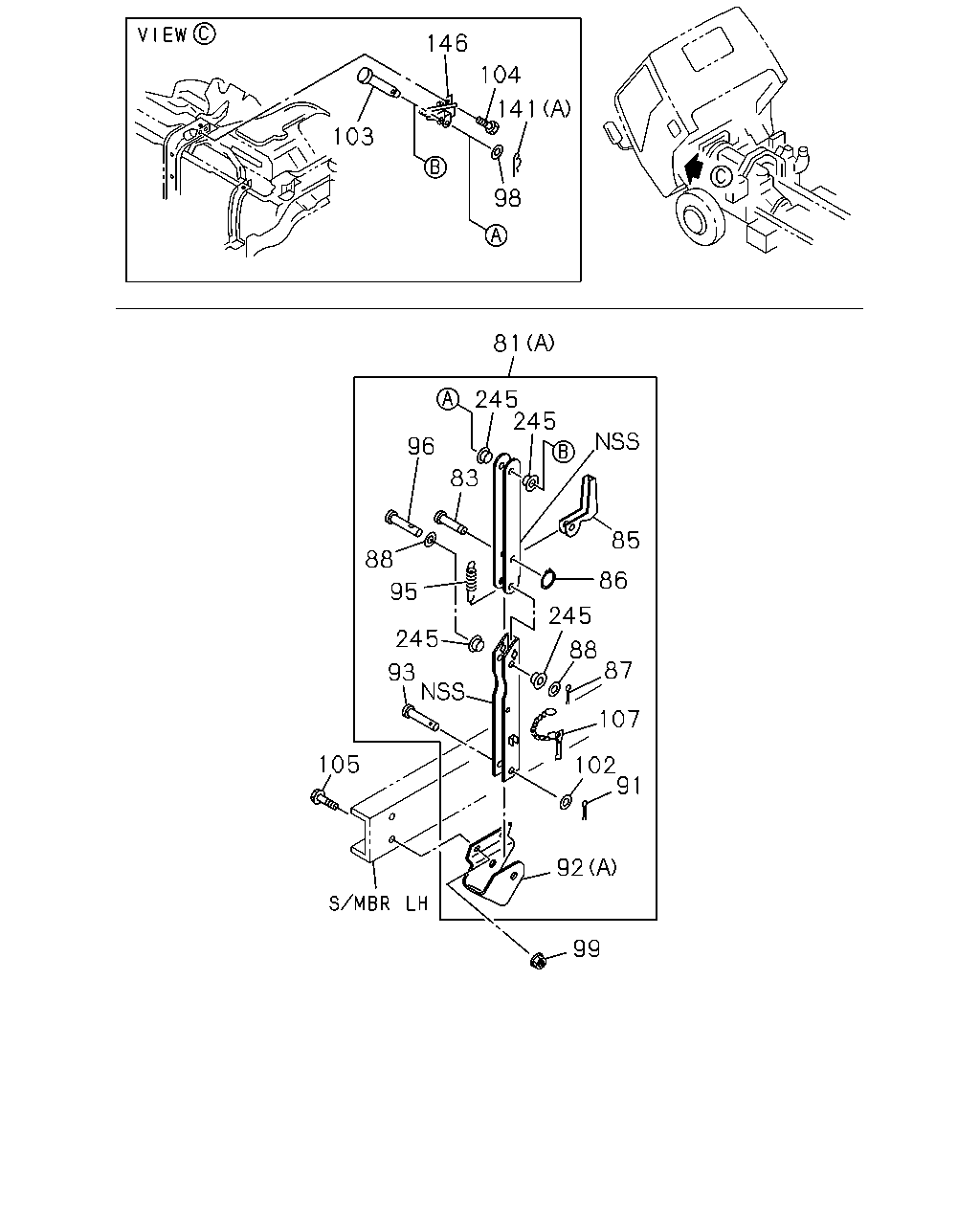

146 104 141 103 98 81 245 245 96 83 85 88 86 95 245 245 88 87 93 107 105 102 91 92 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
81	09.003 STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> (B)	8-98123-307-0	01	1	1109-	●
81	09.003 STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> (A)	8-98123-310-0	01	1	0911-1510		●
81	09.003 STAY ASM; CAB TILT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) MANUAL TILT CAB<RWZ> (A)	8-98123-310-0	01	1	1511-		●
83	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ>	8-98122-493-0	01	1	0911-1108		●
83	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ>	8-98122-493-0	01	1	1109-1510	●	●
83	09.003 PIN; JOINT,CAB STAY 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) MANUAL TILT CAB<RWZ>	8-98122-493-0	01	1	1511-		●
83	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ>	8-98122-493-0	01	1	1511-	●
85	09.003 LEVER; LOCK,CAB STAY MANUAL TILT CAB<RWZ>	8-94331-481-0	01	1	0911-1108		●
85	09.003 LEVER; LOCK,CAB STAY MANUAL TILT CAB<RWZ>	8-94331-481-0	01	1	1109-1510	●	●
85	09.003 LEVER; LOCK,CAB STAY 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) MANUAL TILT CAB<RWZ>	8-94331-481-0	01	1	1511-		●
85	09.003 LEVER; LOCK,CAB STAY MANUAL TILT CAB<RWZ>	8-94331-481-0	01	1	1511-	●
86	09.003 RING; SNAP,LOCK LEVER,CAB STAY MANUAL TILT CAB<RWZ> 16.585 ID=6	0-91805-506-0	01	1	0911-1108		●
86	09.003 RING; SNAP,LOCK LEVER,CAB STAY MANUAL TILT CAB<RWZ> 16.585 ID=6	0-91805-506-0	01	1	1109-1510	●	●
86	09.003 RING; SNAP,LOCK LEVER,CAB STAY 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) MANUAL TILT CAB<RWZ> 16.585 ID=6	0-91805-506-0	01	1	1511-		●
86	09.003 RING; SNAP,LOCK LEVER,CAB STAY MANUAL TILT CAB<RWZ> 16.585 ID=6	0-91805-506-0	01	1	1511-	●
87	09.003 PIN; SPLIT,CAB STAY PIN MANUAL TILT CAB<RWZ> 06.897 OD=2.8 L=20	0-81123-020-0	01	1	0911-1108		●
87	09.003 PIN; SPLIT,CAB STAY PIN MANUAL TILT CAB<RWZ> 06.897 OD=2.8 L=20	0-81123-020-0	01	1	1109-1510	●	●
87	09.003 PIN; SPLIT,CAB STAY PIN 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) MANUAL TILT CAB<RWZ> 06.897 OD=2.8 L=20	0-81123-020-0	01	1	1511-		●
87	09.003 PIN; SPLIT,CAB STAY PIN MANUAL TILT CAB<RWZ> 06.897 OD=2.8 L=20	0-81123-020-0	01	1	1511-	●
88	09.003 WASHER; PL,CAB STAY PIN MANUAL TILT CAB<RWZ> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	02	1	0911-1108		●
88	09.003 WASHER; PL,CAB STAY PIN MANUAL TILT CAB<RWZ> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	02	1	1109-1510	●	●
88	09.003 WASHER; PL,CAB STAY PIN 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) MANUAL TILT CAB<RWZ> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	02	1	1511-		●
88	09.003 WASHER; PL,CAB STAY PIN MANUAL TILT CAB<RWZ> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	02	1	1511-	●
91	09.003 PIN; SPLIT,CAB STAY MANUAL TILT CAB<RWZ> 06.255 OD=3.7 L=20	0-81124-020-0	01	1	0911-1108		●
91	09.003 PIN; SPLIT,CAB STAY MANUAL TILT CAB<RWZ> 06.255 OD=3.7 L=20	0-81124-020-0	01	1	1109-1510	●	●
91	09.003 PIN; SPLIT,CAB STAY 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) MANUAL TILT CAB<RWZ> 06.255 OD=3.7 L=20	0-81124-020-0	01	1	1511-		●
91	09.003 PIN; SPLIT,CAB STAY MANUAL TILT CAB<RWZ> 06.255 OD=3.7 L=20	0-81124-020-0	01	1	1511-	●
92	09.003 BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ> (B)	8-98001-020-0	01	1	1109-	●
92	09.003 BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ> (A)	8-98011-317-0	01	1	0911-1510		●
92	09.003 BRACKET; CAB STAY TO FRAME 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) MANUAL TILT CAB<RWZ> (A)	8-98011-317-0	01	1	1511-		●
93	09.003 PIN; CAB STAY MANUAL TILT CAB<RWZ>	8-98122-498-0	01	1	0911-1108		●
93	09.003 PIN; CAB STAY MANUAL TILT CAB<RWZ>	8-98122-498-0	01	1	1109-1510	●	●
93	09.003 PIN; CAB STAY 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) MANUAL TILT CAB<RWZ>	8-98122-498-0	01	1	1511-		●
93	09.003 PIN; CAB STAY MANUAL TILT CAB<RWZ>	8-98122-498-0	01	1	1511-	●
95	09.003 SPRING; RETURN,CAB STAY MANUAL TILT CAB<RWZ>	8-94160-167-2	01	1	0911-1108		●
95	09.003 SPRING; RETURN,CAB STAY MANUAL TILT CAB<RWZ>	8-94160-167-2	01	1	1109-1510	●	●
95	09.003 SPRING; RETURN,CAB STAY 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) MANUAL TILT CAB<RWZ>	8-94160-167-2	01	1	1511-		●
95	09.003 SPRING; RETURN,CAB STAY MANUAL TILT CAB<RWZ>	8-94160-167-2	01	1	1511-	●
96	09.003 PIN; JOINT MANUAL TILT CAB<RWZ>	8-98123-513-0	01	1	0911-1108		●
96	09.003 PIN; JOINT MANUAL TILT CAB<RWZ>	8-98123-513-0	01	1	1109-1510	●	●
96	09.003 PIN; JOINT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) MANUAL TILT CAB<RWZ>	8-98123-513-0	01	1	1511-		●
96	09.003 PIN; JOINT MANUAL TILT CAB<RWZ>	8-98123-513-0	01	1	1511-	●
98	09.003 WASHER; CAB STAY MANUAL TILT CAB<RWZ> 09.008 ID=10.5 T=2.0	1-09985-183-0	01	1	0911-1108		●
98	09.003 WASHER; CAB STAY MANUAL TILT CAB<RWZ> 09.008 ID=10.5 T=2.0	1-09985-183-0	01	1	1109-	●	●
99	09.003 NUT; CAB STAY MANUAL TILT CAB<RWZ> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> 03.162 M10 FLANGE	0-91180-110-0	02	1	1511-	●
99	09.003 NUT; CAB STAY MANUAL TILT CAB<RWZ> 03.162 M10 FLANGE	0-91180-110-0	02	1	0911-1108		●
99	09.003 NUT; CAB STAY MANUAL TILT CAB<RWZ> 03.162 M10 FLANGE	0-91180-110-0	02	1	1109-1510	●	●
99	09.003 NUT; CAB STAY AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> MANUAL TILT CAB<RWZ> 03.162 M10 FLANGE	0-91180-110-0	01	1	1511-	●
102	09.003 WASHER; PL,CAB STAY MANUAL TILT CAB<RWZ> 02.812 ID=12.5 OD=26	0-91610-612-0	01	1	0911-1108		●
102	09.003 WASHER; PL,CAB STAY MANUAL TILT CAB<RWZ> 02.812 ID=12.5 OD=26	0-91610-612-0	01	1	1109-1510	●	●
102	09.003 WASHER; PL,CAB STAY 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) MANUAL TILT CAB<RWZ> 02.812 ID=12.5 OD=26	0-91610-612-0	01	1	1511-		●
102	09.003 WASHER; PL,CAB STAY MANUAL TILT CAB<RWZ> 02.812 ID=12.5 OD=26	0-91610-612-0	01	1	1511-	●
103	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> OD=10 L=48	1-09744-107-0	01	1	0911-1108		●
103	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> OD=10 L=48	1-09744-107-0	01	1	1109-	●	●
104	09.003 BOLT; CAB STAY BRKT MANUAL TILT CAB<RWZ> 02.277 M8X20 FLANGE	0-28660-820-0	03	1	0911-1108		●
104	09.003 BOLT; CAB STAY BRKT MANUAL TILT CAB<RWZ> 02.277 M8X20 FLANGE	0-28660-820-0	03	1	1109-	●	●
105	09.003 BOLT; CAB STAY MANUAL TILT CAB<RWZ> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0911-1108		●
105	09.003 BOLT; CAB STAY MANUAL TILT CAB<RWZ> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1109-	●	●
107	09.005 PIN; LK LEVER MANUAL TILT CAB<RWZ>	8-94331-482-0	01	1	0911-1510		●
107	09.005 PIN; LK LEVER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) MANUAL TILT CAB<RWZ>	8-94331-482-0	01	1	1511-		●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (A) L=32.6	1-09987-142-0	01	1	0911-1108		●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (A) L=32.6	1-09987-142-0	01	1	1109-	●	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (B) L=25.3	8-98039-045-1	01	1	0911-1108		●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (B) L=25.3	8-98039-045-1	01	1	1109-	●	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (C) L=34	8-98039-426-1	03	1	0911-1108		●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (C) L=34	8-98039-426-1	03	1	1109-	●	●
146	09.003 BRACKET ASM; CAB STAY UPR MANUAL TILT CAB<RWZ>	8-97387-328-2	01	1	0911-1108		●
146	09.003 BRACKET ASM; CAB STAY UPR MANUAL TILT CAB<RWZ>	8-97387-328-2	01	1	1109-	●	●
245	09.003 BUSHING; CAB STAY MANUAL TILT CAB<RWZ>	1-62500-587-0	04	1	0911-1108		●
245	09.003 BUSHING; CAB STAY MANUAL TILT CAB<RWZ>	1-62500-587-0	04	1	1109-1510	●	●
245	09.003 BUSHING; CAB STAY 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) MANUAL TILT CAB<RWZ>	1-62500-587-0	04	1	1511-		●
245	09.003 BUSHING; CAB STAY MANUAL TILT CAB<RWZ>	1-62500-587-0	04	1	1511-	●

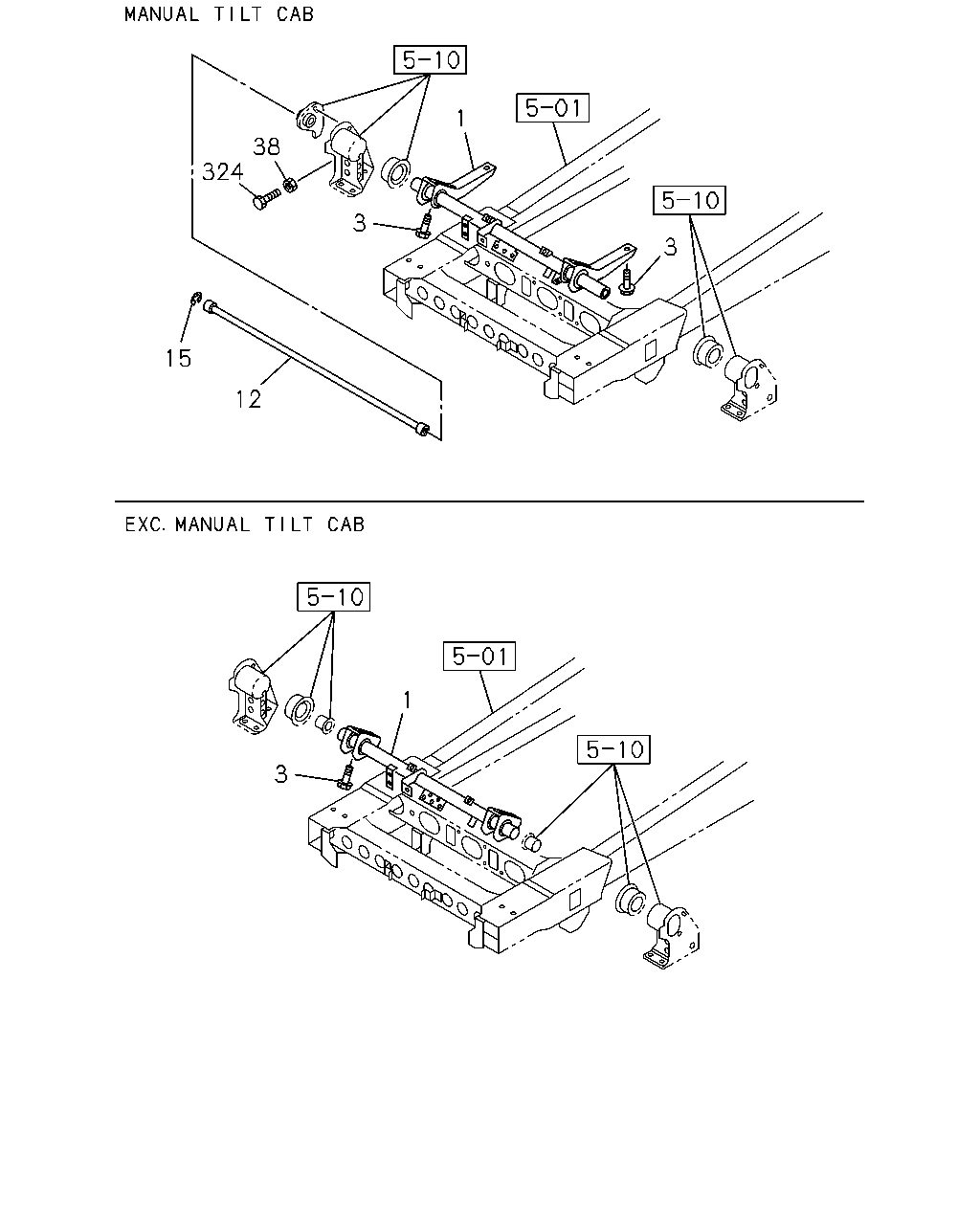

1 38 324 3 3 15 12 1 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	09.003 LEVER; TORSION BAR MANUAL TILT CAB<RWZ>	8-98088-215-1	01	1	0911-1108		●
1	09.003 LEVER; TORSION BAR MANUAL TILT CAB<RWZ>	8-98088-215-1	01	1	1109-	●	●
1	09.003 LEVER; TORSION BAR EXC. MANUAL TILT CAB<RWZ>	8-98088-216-0	01	1	0911-1108		●
1	09.003 LEVER; TORSION BAR EXC. MANUAL TILT CAB<RWZ>	8-98088-216-0	01	1	1109-	●	●
3	09.003 BOLT; LEVER MANUAL TILT CAB<RWZ> M12X37 W/LK&PL WASHER	8-97359-033-0	06	1	0911-1108		●
3	09.003 BOLT; LEVER MANUAL TILT CAB<RWZ> M12X37 W/LK&PL WASHER	8-97359-033-0	06	1	1109-	●	●
3	09.003 BOLT; LEVER EXC. MANUAL TILT CAB<RWZ> M12X37 W/LK&PL WASHER	8-97359-033-0	04	1	0911-1108		●
3	09.003 BOLT; LEVER EXC. MANUAL TILT CAB<RWZ> M12X37 W/LK&PL WASHER	8-97359-033-0	04	1	1109-	●	●
12	09.003 BAR; TORSION,UPR MANUAL TILT CAB<RWZ>	8-97261-872-0	01	1	0911-1005		●
12	09.003 BAR; TORSION,UPR MANUAL TILT CAB<RWZ>	8-98166-029-0	01	1	1006-1108		●
12	09.003 BAR; TORSION,UPR MANUAL TILT CAB<RWZ>	8-98166-029-0	01	1	1109-	●	●
15	09.003 RING; SNAP,TORSION BAR MANUAL TILT CAB<RWZ>	8-97359-034-0	01	1	0911-1108		●
15	09.003 RING; SNAP,TORSION BAR MANUAL TILT CAB<RWZ>	8-97359-034-0	01	1	1109-	●	●
38	09.005 NUT; LK MANUAL TILT CAB<RWZ> M14	8-98039-988-0	01	1	0911-1108		●
38	09.005 NUT; LK MANUAL TILT CAB<RWZ> M14	8-98039-988-0	01	1	1109-	●	●
324	09.003 BOLT; ADJUST MANUAL TILT CAB<RWZ> M14X55	8-98004-319-1	01	1	0911-1108		●
324	09.003 BOLT; ADJUST MANUAL TILT CAB<RWZ> M14X55	8-98004-319-1	01	1	1109-	●	●

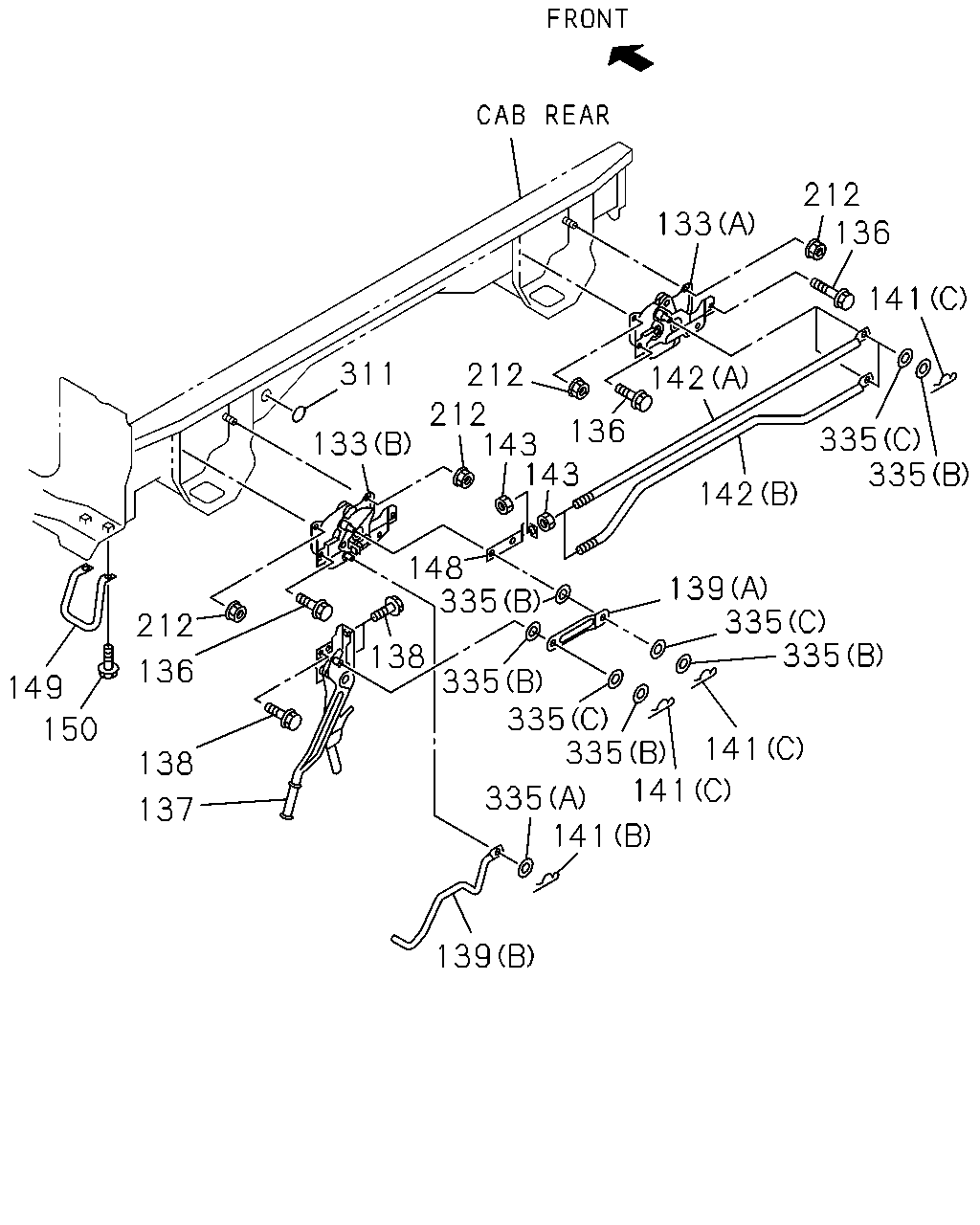

212 136 133 141 311 212 212 143 143 142 136 335 335 133 142 148 335 139 335 335 212 138 136 335 335 335 141 149 150 141 138 335 141 137 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
133	09.005 LOCK ASM; CAB MANUAL TILT CAB<RWZ> (B)	8-97410-270-2	01	1	0911-1108		●
133	09.005 LOCK ASM; CAB MANUAL TILT CAB<RWZ> (B)	8-97410-270-2	01	1	1109-	●	●
133	09.005 LOCK ASM; CAB MANUAL TILT CAB<RWZ> (A)	8-97584-486-4	01	1	0911-1105		●
133	09.005 LOCK ASM; CAB MANUAL TILT CAB<RWZ> (A)	8-98182-353-0	01	1	1106-1108		●
133	09.005 LOCK ASM; CAB MANUAL TILT CAB<RWZ> (A)	8-98182-353-0	01	1	1109-	●	●
136	09.005 BOLT; CAB LK MANUAL TILT CAB<RWZ> 01.531 M8X20 FLANGE	0-28650-820-0	04	1	0911-1108		●
136	09.005 BOLT; CAB LK MANUAL TILT CAB<RWZ> 01.531 M8X20 FLANGE	0-28650-820-0	04	1	1109-	●	●
137	09.005 CONTROL UNIT; CAB LOCK MANUAL TILT CAB<RWZ>	8-97584-469-3	01	1	0911-1108		●
137	09.005 CONTROL UNIT; CAB LOCK MANUAL TILT CAB<RWZ>	8-97584-469-3	01	1	1109-	●	●
138	09.005 BOLT; CAB LOCK CONT UNIT MANUAL TILT CAB<RWZ> 01.531 M8X20 FLANGE	0-28650-820-0	03	1	0911-1108		●
138	09.005 BOLT; CAB LOCK CONT UNIT MANUAL TILT CAB<RWZ> 01.531 M8X20 FLANGE	0-28650-820-0	03	1	1109-	●	●
139	09.005 ROD; CAB LOCK,LEVER TO HOOK MANUAL TILT CAB<RWZ> (A)	8-97584-483-2	01	1	0911-1108		●
139	09.005 ROD; CAB LOCK,LEVER TO HOOK MANUAL TILT CAB<RWZ> (A)	8-97584-483-2	01	1	1109-	●	●
139	09.005 ROD; CAB LOCK,LEVER TO HOOK MANUAL TILT CAB<RWZ> (B)	8-98128-202-0	01	1	0911-1108		●
139	09.005 ROD; CAB LOCK,LEVER TO HOOK MANUAL TILT CAB<RWZ> (B)	8-98128-202-0	01	1	1109-	●	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (A) L=32.6	1-09987-142-0	01	1	0911-1108		●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (A) L=32.6	1-09987-142-0	01	1	1109-	●	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (B) L=25.3	8-98039-045-1	01	1	0911-1108		●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (B) L=25.3	8-98039-045-1	01	1	1109-	●	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (C) L=34	8-98039-426-1	03	1	0911-1108		●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (C) L=34	8-98039-426-1	03	1	1109-	●	●
142	09.005 ROD; HOOK TO HOOK 4JJ1-TCS ENG(LFB) MANUAL TILT CAB<RWZ> (A)	8-97587-991-0	01	1	1109-	●
142	09.005 ROD; HOOK TO HOOK 4HK1-TCN ENG(RDQ) MANUAL TILT CAB<RWZ> (B)	8-97410-633-0	01	1	0911-1108		●
142	09.005 ROD; HOOK TO HOOK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) MANUAL TILT CAB<RWZ> (B)	8-97410-633-0	01	1	1109-		●
143	09.005 NUT; JAW JOINT,HOOK TO HOOK 4HK1-TCN ENG(RDQ) MANUAL TILT CAB<RWZ> 00.833 M10	0-91110-510-0	02	1	0911-1108		●
143	09.005 NUT; JAW JOINT,HOOK TO HOOK MANUAL TILT CAB<RWZ> 00.833 M10	0-91110-510-0	02	1	1109-	●	●
148	09.005 JOINT; JAW,HOOK TO HOOK 4HK1-TCN ENG(RDQ) MANUAL TILT CAB<RWZ>	8-97410-736-0	01	1	0911-1108		●
148	09.005 JOINT; JAW,HOOK TO HOOK MANUAL TILT CAB<RWZ>	8-97410-736-0	01	1	1109-	●	●
149	16.450 HANDLE; TILT MANUAL TILT CAB<RWZ>	8-98067-938-0	01	1	0911-1108		●
149	16.450 HANDLE; TILT MANUAL TILT CAB<RWZ>	8-98067-938-0	01	1	1109-	●	●
150	16.450 BOLT; TILT HANDLE MANUAL TILT CAB<RWZ> 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0911-1103		●
150	16.450 BOLT; TILT HANDLE MANUAL TILT CAB<RWZ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1104-1108		●
150	16.450 BOLT; TILT HANDLE MANUAL TILT CAB<RWZ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1109-	●	●
212	09.005 NUT; BRKT,CAB LOCK MANUAL TILT CAB<RWZ> 01.062 M8 FLANGE	0-91180-108-0	04	1	0911-1108		●
212	09.005 NUT; BRKT,CAB LOCK MANUAL TILT CAB<RWZ> 01.062 M8 FLANGE	0-91180-108-0	04	1	1109-	●	●
311	09.005 SEAL; CAB LOCK 16.545 OD=32 BLACK	8-98031-126-0	01	1	0911-1108		●
311	09.005 SEAL; CAB LOCK 16.545 OD=32 BLACK	8-98031-126-0	01	1	1109-	●	●
335	09.005 WASHER; CAB LOCK ROD MANUAL TILT CAB<RWZ> 04.439 (B) ID=12.5 OD=22	0-91610-512-0	05	1	0911-1108		●
335	09.005 WASHER; CAB LOCK ROD MANUAL TILT CAB<RWZ> 04.439 (B) ID=12.5 OD=22	0-91610-512-0	05	1	1109-	●	●
335	09.005 WASHER; CAB LOCK ROD MANUAL TILT CAB<RWZ> 00.854 (A) ID=8.4 OD=14	5-09550-002-0	01	1	0911-1108		●
335	09.005 WASHER; CAB LOCK ROD MANUAL TILT CAB<RWZ> 00.854 (A) ID=8.4 OD=14	5-09550-002-0	01	1	1109-	●	●
335	09.005 WASHER; CAB LOCK ROD MANUAL TILT CAB<RWZ> (C) ID=13 OD=22	8-98060-839-0	03	1	0911-1108		●
335	09.005 WASHER; CAB LOCK ROD MANUAL TILT CAB<RWZ> (C) ID=13 OD=22	8-98060-839-0	03	1	1109-	●	●

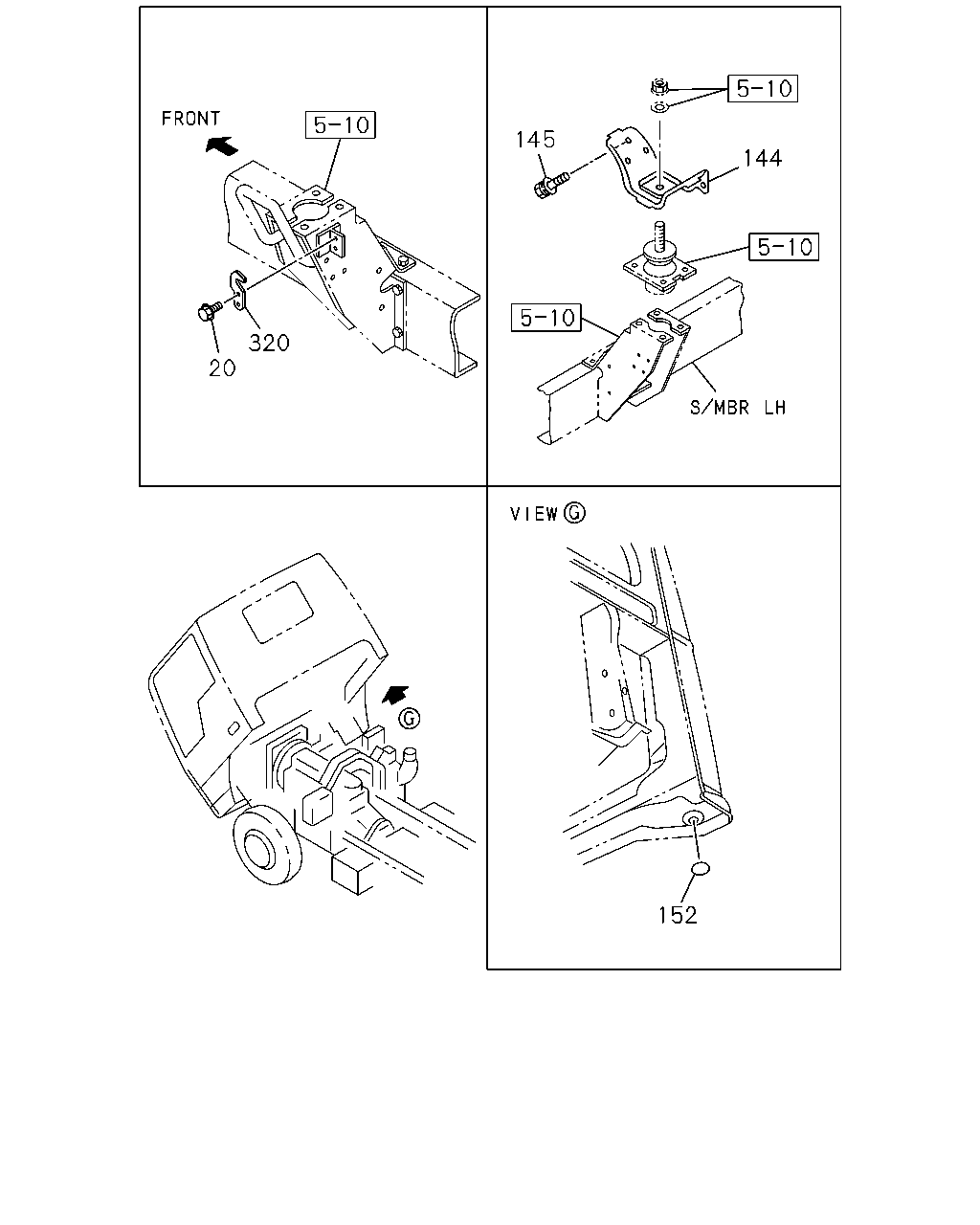

145 144 152 320 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
20	09.003 BOLT TAIWAN EQUIPMENT(B04) MANUAL TILT CAB<RWZ> M12X40 FLANGE	0-28651-240-0	04	1	1212-		●
144	09.009 BRACKET ASM; CAB RR MTG EXC. MANUAL TILT CAB<RWZ>	8-97853-066-4	02	1	0911-1108		●
144	09.009 BRACKET ASM; CAB RR MTG EXC. MANUAL TILT CAB<RWZ>	8-97853-066-4	02	1	1109-	●	●
145	09.008 BOLT; CAB RR MTG BRKT EXC. MANUAL TILT CAB<RWZ> 06.514 M8X24.5 W/LK&PL WASHER	8-98051-939-0	12	1	0911-1108		●
145	09.008 BOLT; CAB RR MTG BRKT EXC. MANUAL TILT CAB<RWZ> 06.514 M8X24.5 W/LK&PL WASHER	8-98051-939-0	12	1	1109-	●	●
152	09.003 GROMMET; DUMMY HOLE,CAB TILT LOC EXC. MANUAL TILT CAB<RWZ> 16.165 OD=25 BLACK	1-76798-019-0	02	1	0911-1108		●
152	09.003 GROMMET; DUMMY HOLE,CAB TILT LOC EXC. MANUAL TILT CAB<RWZ> 16.165 OD=25 BLACK	1-76798-019-0	02	1	1109-	●	●
320	09.001 ANCHOR; CAB RR TAIWAN EQUIPMENT(B04) MANUAL TILT CAB<RWZ>	8-98089-546-0	02	1	1212-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
